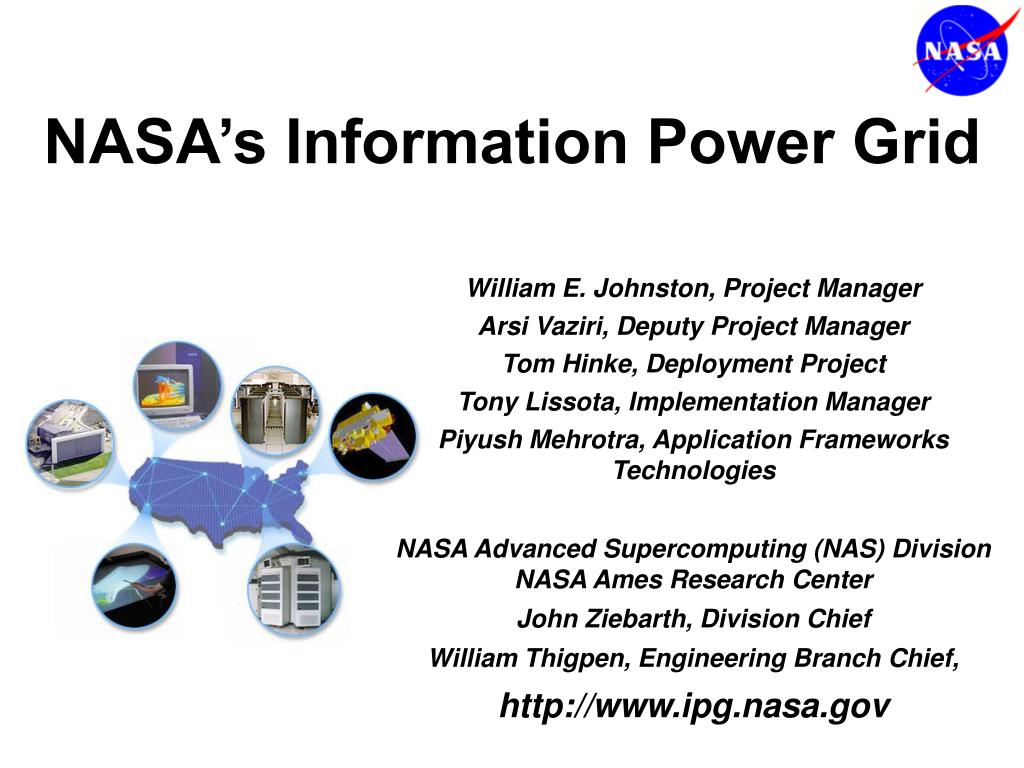

NASA’s Information Power Grid William E. Johnston, Project Manager Arsi Vaziri, Deputy Project Manager Tom Hinke, Deployment Project Tony Lissota, Implementation Manager Piyush Mehrotra, Application Frameworks Technologies NASA Advanced Supercomputing (NAS) DivisionNASA Ames Research Center John Ziebarth, Division Chief William Thigpen, Engineering Branch Chief, http://www.ipg.nasa.gov

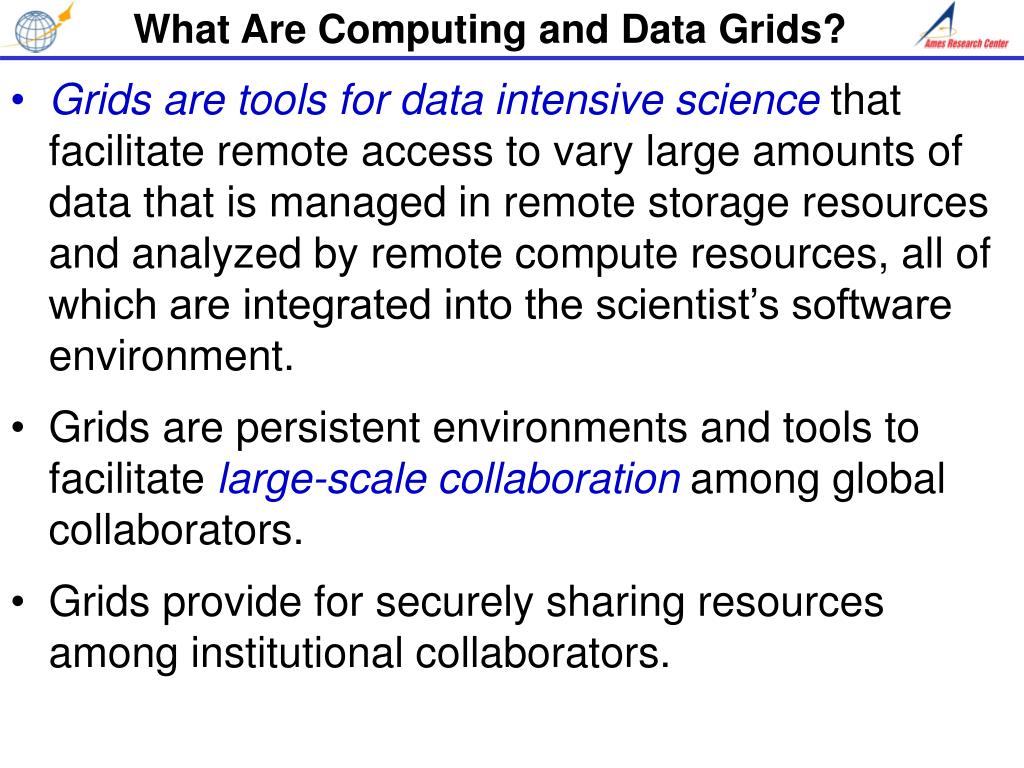

What Are Computing and Data Grids? • Grids are technology and an emerging architecture that involve several types of middleware that mediate between science portals, applications, and the underlying resources (compute, data, and instrument) in order to simplify the construction of large-scale problem solving systems • Grids are persistent environments that facilitate integrating software applications with instruments, displays, computational, and information resources that are managed by diverse organizations in widespread locations

What Are Computing and Data Grids? • Grids are tools for data intensive science that facilitate remote access to vary large amounts of data that is managed in remote storage resources and analyzed by remote compute resources, all of which are integrated into the scientist’s software environment. • Grids are persistent environments and tools to facilitate large-scale collaboration among global collaborators. • Grids provide for securely sharing resources among institutional collaborators.

What Are Computing and Data Grids? • Grids are also a major international technology initiative with 450 people from 35 countries in an IETF-like standards organization: The Global Grid Forum

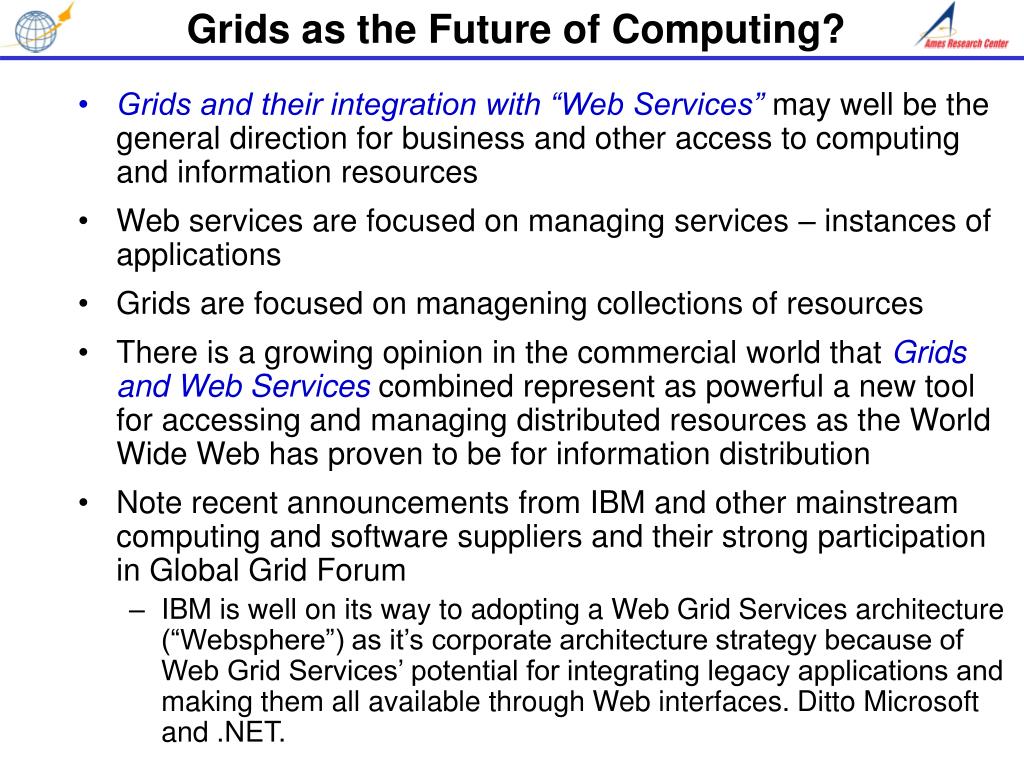

Grids as the Future of Computing? • Grids and their integration with “Web Services” may well be the general direction for business and other access to computing and information resources • Web services are focused on managing services – instances of applications • Grids are focused on managening collections of resources • There is a growing opinion in the commercial world that Grids and Web Services combined represent as powerful a new tool for accessing and managing distributed resources as the World Wide Web has proven to be for information distribution • Note recent announcements from IBM and other mainstream computing and software suppliers and their strong participation in Global Grid Forum • IBM is well on its way to adopting a Web Grid Services architecture (“Websphere”) as it’s corporate architecture strategy because of Web Grid Services’ potential for integrating legacy applications and making them all available through Web interfaces. Ditto Microsoft and .NET.

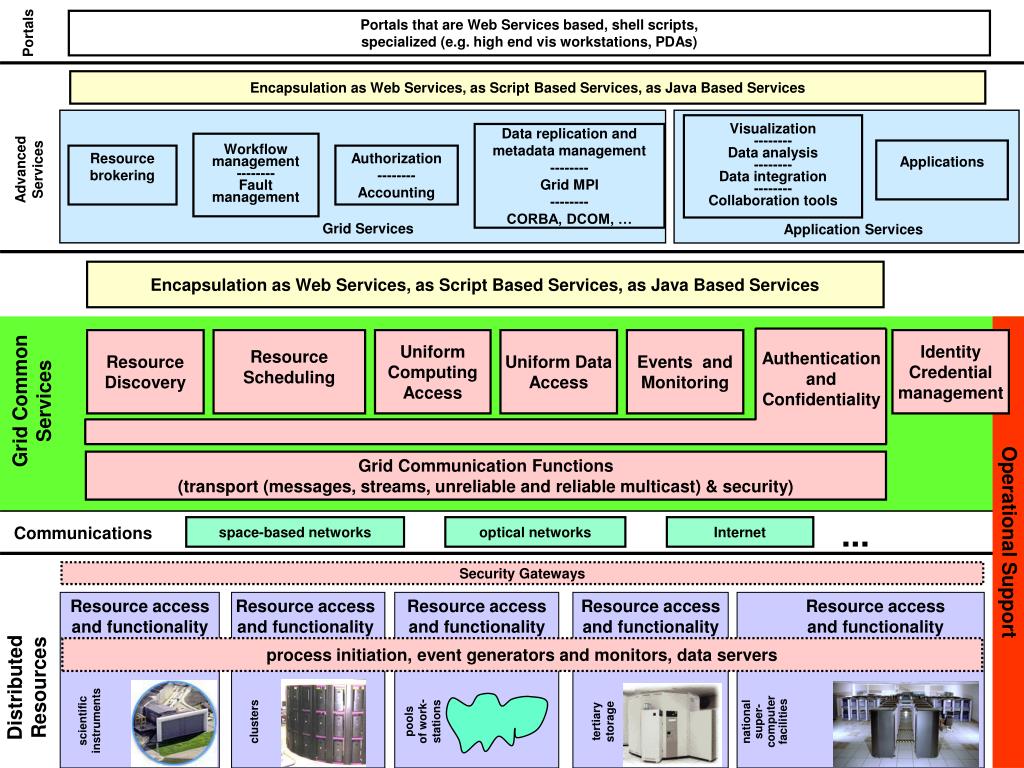

Portals that are Web Services based, shell scripts,specialized (e.g. high end vis workstations, PDAs) Portals Encapsulation as Web Services, as Script Based Services, as Java Based Services Visualization --------Data analysis -------- Data integration -------- Collaboration tools Data replication and metadata management -------- Grid MPI -------- CORBA, DCOM, … Workflow management -------- Fault management Applications Resource brokering Authorization -------- Accounting Advanced Services Grid Services Application Services Encapsulation as Web Services, as Script Based Services, as Java Based Services Resource Discovery ResourceScheduling UniformComputing Access Uniform Data Access Events and Monitoring Identity Credential management Authentication and Confidentiality Grid CommonServices Grid Communication Functions(transport (messages, streams, unreliable and reliable multicast) & security) ... space-based networks optical networks Internet Communications Operational Support Security Gateways Resource accessand functionality Resource accessand functionality Resource accessand functionality Resource accessand functionality Resource accessand functionality process initiation, event generators and monitors, data servers DistributedResources national super-computer facilities poolsof work-stations scientific instruments tertiary storage clusters

Why Are Grids Important? • Grids are being adopted and developed in several scientific disciplines that have to deal withlarge-scale collaboration, massive distributed data, and distributed computing problems, e.g. • High Energy Physics (major US, Europe, and Asia Pacific Grids) • Observational astronomy and astrophysics (US, Europe, andAsia Pacific) • Earthquake engineering community (NEESGrid - US) • Grids are being deployed as infrastructure for science • NASA’s IPG • UK eScience Grid • EU Data Grid (Europe – actually many Grids) • DOE Science Grid (US – actually many Grids) • NSF TeraGrid (interconnected supercomputer Grid) • Grids can facilitate NASA’s large-scale science, engineering, and (maybe) operational systems

Points to Take Away • Grids are a major international effort to define a common computing, data management, and collaboration infrastructure for science • NASA has a major role in Grids • NASA is heavily leveraging a lot of other work in Grids

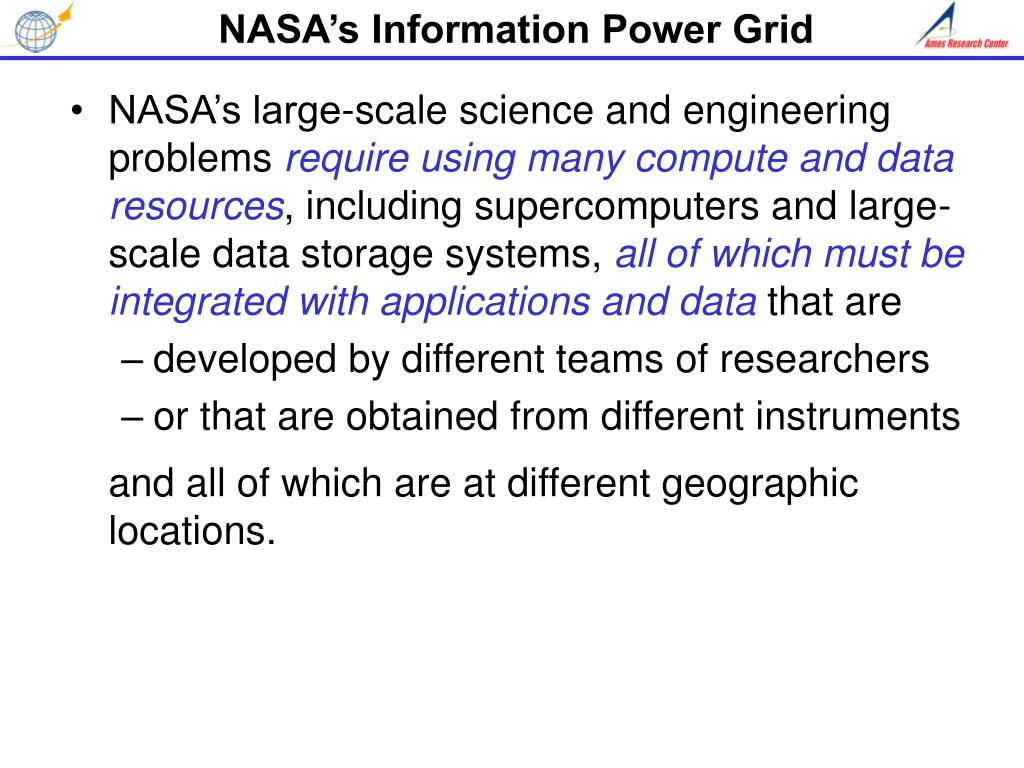

NASA’s Information Power Grid • NASA’s large-scale science and engineering problems require using many compute and data resources, including supercomputers and large-scale data storage systems, all of which must be integrated with applications and data that are • developed by different teams of researchers • or that are obtained from different instruments and all of which are at different geographic locations.

Multi-disciplinary Simulations:Aviation Safety Example Virtual National Air Space (VNAS) • FAA Ops Data • Weather Data • Airline Schedule Data • Digital Flight Data • Radar Tracks • Terrain Data • Surface Data The vision for VNAS is that whole system simulated aircraft are inserted into a realistic environment. This requires integrating many types of operations data as drivers for the simulations.

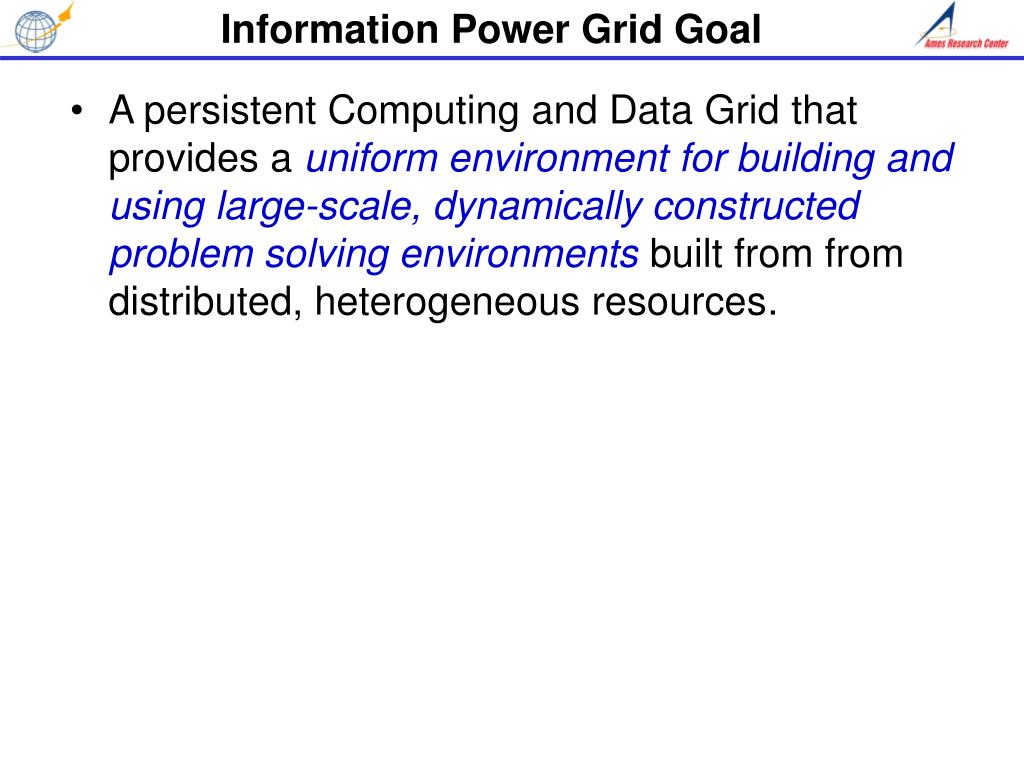

Information Power Grid Goal • Apersistent Computing and Data Grid that provides a uniform environment for building and using large-scale, dynamically constructed problem solving environments built from from distributed, heterogeneous resources.

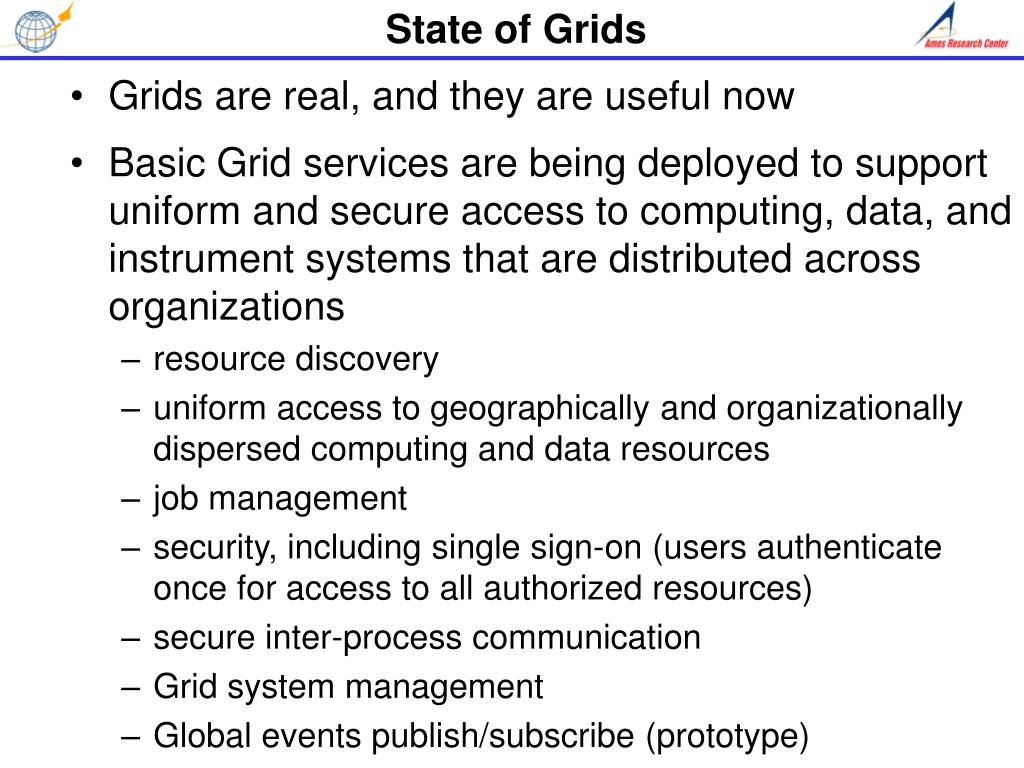

State of Grids • Grids are real, and they are useful now • Basic Grid services are being deployed to support uniform and secure access to computing, data, and instrument systems that are distributed across organizations • resource discovery • uniform access to geographically and organizationally dispersed computing and data resources • job management • security, including single sign-on (users authenticate once for access to all authorized resources) • secure inter-process communication • Grid system management • Global events publish/subscribe (prototype)

State of Grids • Higher level services • Grid execution management tools (e.g. Condor-G) are being deployed • Data services providing uniform access to tertiary storage systems and global metadata catalogues (e.g. GridFTP and SRB/MCAT) are being deployed • Web services supporting application frameworks and science portals are being prototyped

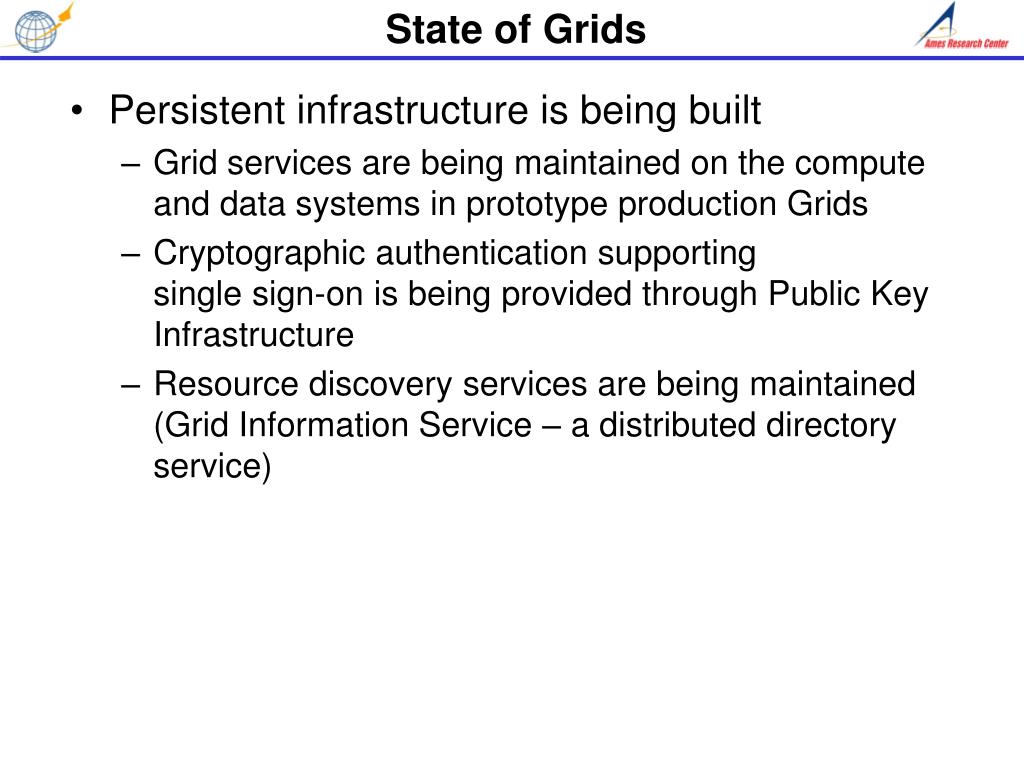

State of Grids • Persistent infrastructure is being built • Grid services are being maintained on the compute and data systems in prototype production Grids • Cryptographic authentication supportingsingle sign-on is being provided through Public Key Infrastructure • Resource discovery services are being maintained(Grid Information Service – a distributed directory service)

State of the Information Power Grid • Hardware resources for the baseline IPG prototype-production Grid system include • approximately 1500 CPU nodes in half a dozen SGI Origins distributed across several NASA centers • 10-50 Terabytes of uniformly and securely accessible mass storage • several workstation clusters involving about 100 CPUs • a Condor pool of about 300 workstations All of these are managed and accessed through the IPG Grid services • Globus (basic Grid functions) • SRB/MCAT (uniform access to distributed tertiary storage and global metadata catalogues) • Condor (pools of workstations as a Grid resource)

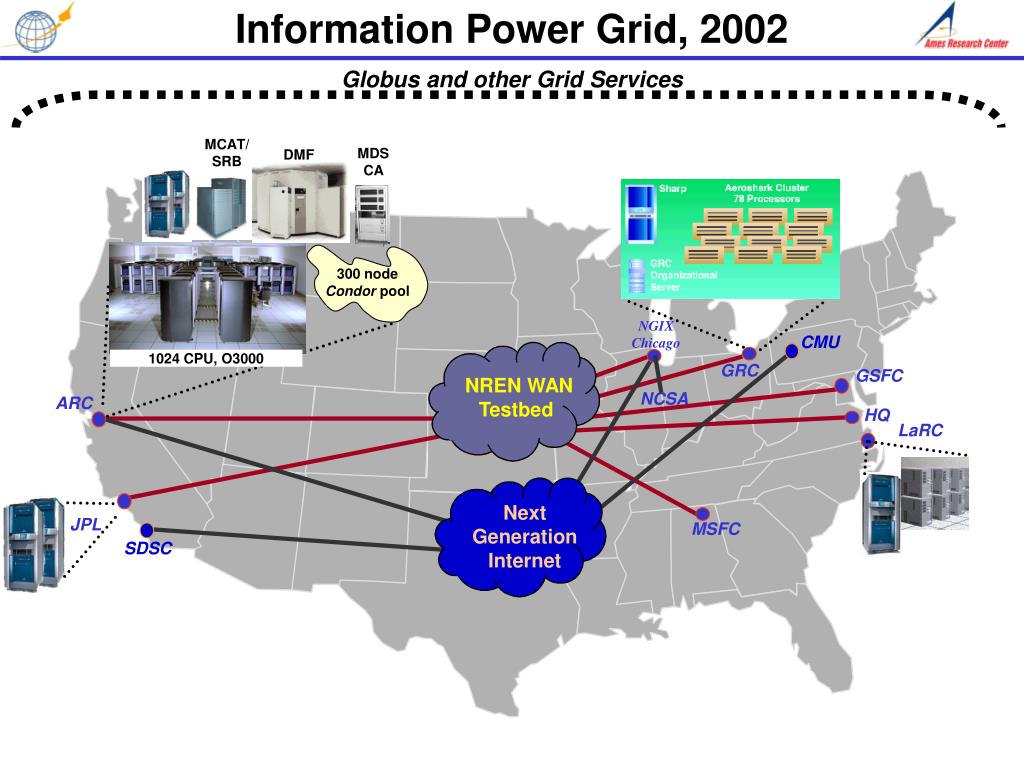

Information Power Grid, 2002 MCAT/SRB MDS CA DMF 300 node Condor pool 1024 CPU, O3000 Globus and other Grid Services NGIX Chicago CMU GRC GSFC NREN WAN Testbed NCSA ARC HQ LaRC Next Generation Internet JPL MSFC SDSC

The State of IPG • IPG and NAS are building and operating Grid infrastructure, and developing and deploying Grid services for NASA’s persistent Grid • Several major milestones have demonstrated IPG as an operational, prototype-production Grid • Several of these milestones have demonstrated that the NASA Grid can interoperate with the other extant Grids at Universities and other Federal Labs. • This represents significant progress toward a “universal,” common computing and data infrastructure for science

The Data Mining Using Grid Services • Management and access to massive data sets is fundamental to large-scale science and engineering. The IPG Data Mining application demonstrated: • Persistent and uniform access to heterogeneous, multi-organizational archival storage systems • The SDSC Storage Resource Broker (SRB - an IPG Grid service) provides a standard data access interface for heterogeneous data archive systems • SRB’s MCAT is a catalogue service that provides a standard way to define, manage, and search metadata for all files in a collection, where a collection may span many data archive systems – i.e. it provides for federating dataset in different systems

High Speed Distributed Data Access:IPG Milestone Completed 3/2000 • Data access capabilities of IPG are demonstrated by parallel data mining • 512 node SGI Origin at Ames uses IPG uniform interface data access tools (SRB) to simultaneously mine hydrology data from four sites • SDSC • CalTech • GRC • Washington U. Result from one agent Mining Daemon & Control Database IPG Processor IPG Processor IPG Processor IPG Mining Agent IPG Mining Agent IPG Processor . . . IPG Mining Agent Satellite Data From GRC via GASS Satellite Date From Wash. U. via SRB Satellite Data From CalTech via SRB Satellite Data From SDSC via SRB Tom Hinke, NASA Ames

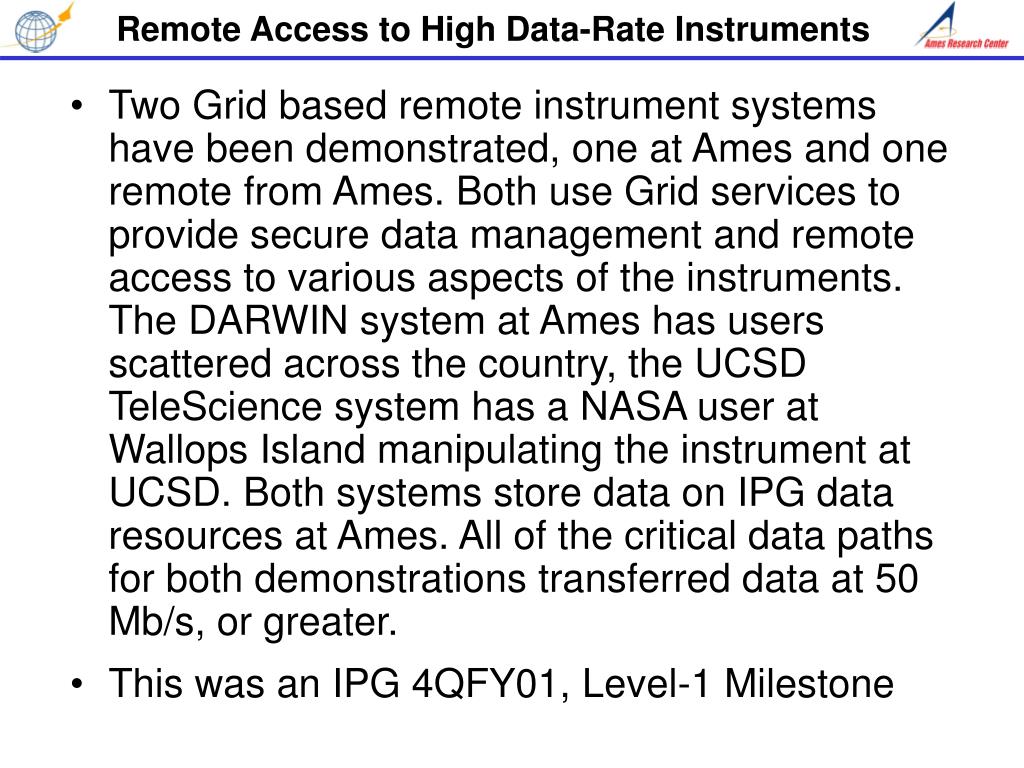

Remote Access to High Data-Rate Instruments • Two Grid based remote instrument systems have been demonstrated, one at Ames and one remote from Ames. Both use Grid services to provide secure data management and remote access to various aspects of the instruments. The DARWIN system at Ames has users scattered across the country, the UCSD TeleScience system has a NASA user at Wallops Island manipulating the instrument at UCSD. Both systems store data on IPG data resources at Ames. All of the critical data paths for both demonstrations transferred data at 50 Mb/s, or greater. • This was an IPG 4QFY01, Level-1 Milestone

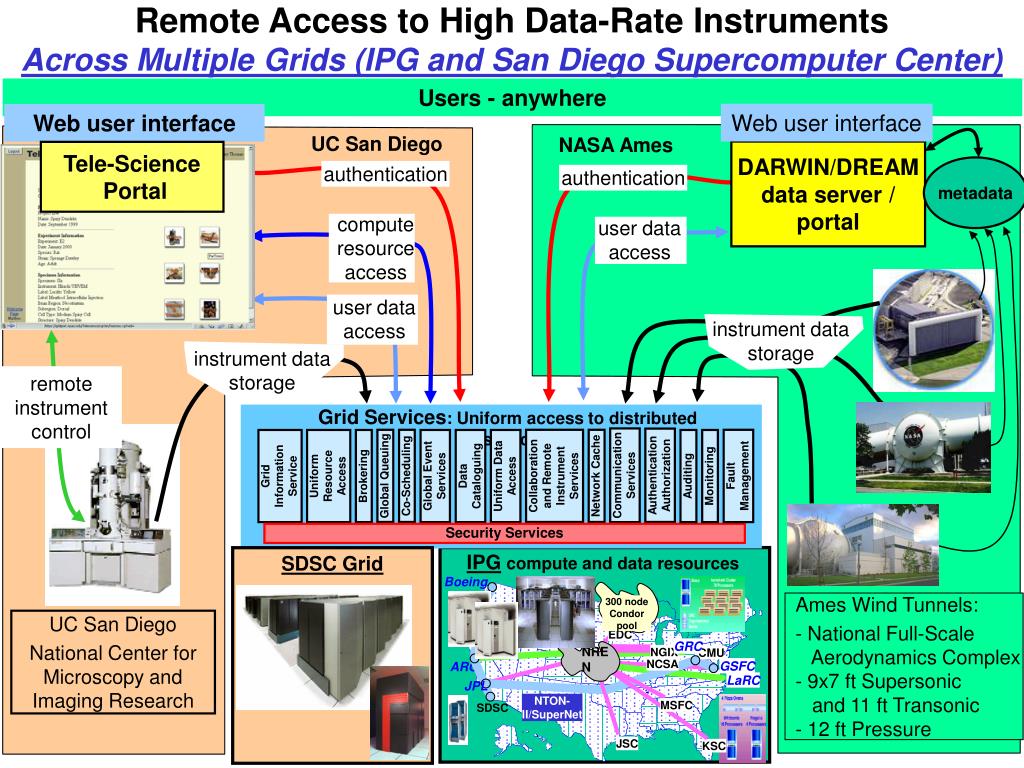

Remote Access to High Data-Rate InstrumentsAcross Multiple Grids (IPG and San Diego Supercomputer Center) 300 node Condor pool authentication authentication IPGcompute and data resources Boeing EDC GRC NREN NGIX CMU NCSA GSFC ARC LaRC JPL NTON-II/SuperNet MSFC SDSC JSC KSC Users - anywhere Web user interface Web user interface UC San Diego NASA Ames DARWIN/DREAMdata server /portal Tele-Science Portal metadata compute resource access user data access user data access instrument datastorage instrument datastorage remote instrument control Grid Services: Uniform access to distributed resources Collaboration and Remote Instrument Services Grid Information Service UniformResourceAccess Communication Services Authentication Authorization Fault Management Global EventServices Data Cataloguing Uniform Data Access Global Queuing Co-Scheduling Network Cache Brokering Auditing Monitoring Security Services SDSC Grid Ames Wind Tunnels: - National Full-Scale Aerodynamics Complex- 9x7 ft Supersonic and 11 ft Transonic- 12 ft Pressure UC San Diego National Center forMicroscopy andImaging Research

Aviation Safety • Multiple sub-systems, e.g. a CFD model for a wing operating at NASA Ames and a turbo-machine model operating at NASA Glenn, are combined using GRC’s NPSS (Numerical Propulsion System Simulation) application framework that manages the interactions of multiple models and uses IPG services to coordinate computing and data storage systems across NASA.

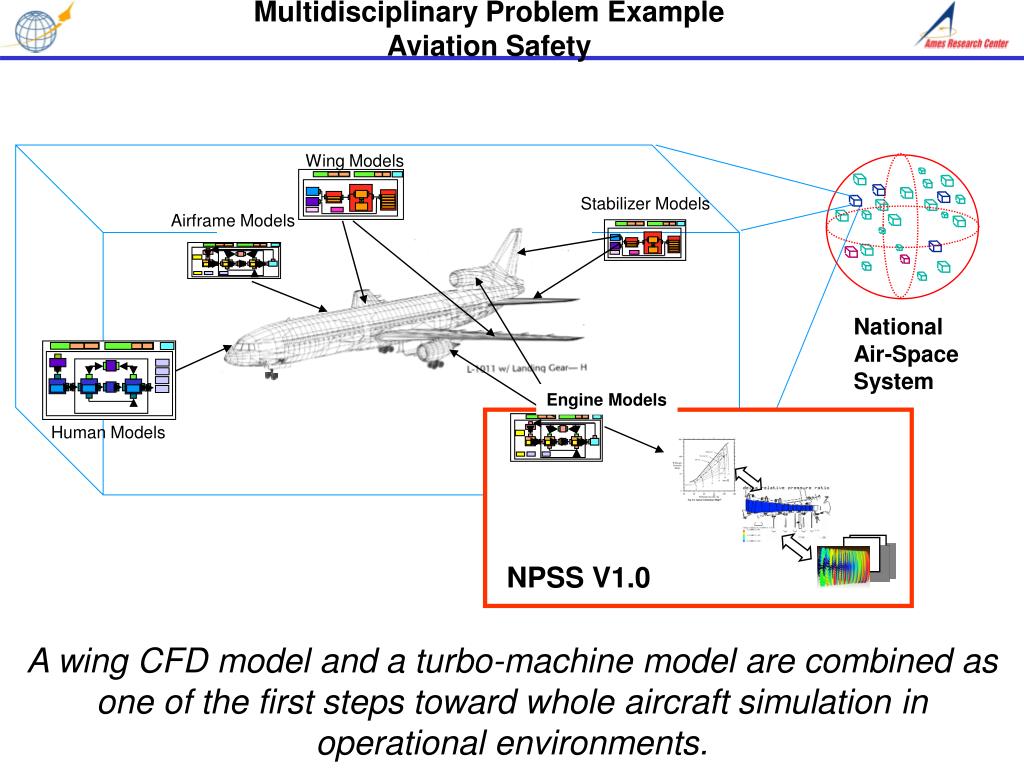

Multidisciplinary Problem ExampleAviation Safety Human Models Wing Models Stabilizer Models Airframe Models National Air-Space System Engine Models NPSS V1.0 A wing CFD model and a turbo-machine model are combined as one of the first steps toward whole aircraft simulation in operational environments.

Multi-Disciplinary Simulation Across Many Remote Systems 300 node Condor pool Boeing EDC GRC NGIX NREN CMU ARC NCSA GSFC LaRC JPL SDSC NTON-II/SuperNet MSFC JSC KSC Collaboration and Remote Instrument Services Grid Information Service UniformResourceAccess Communication Services Authentication Authorization Security Services Fault Management Global EventServices Data Cataloguing Uniform Data Access Global Queuing Co-Scheduling Network Cache Brokering Auditing Monitoring NASA Glenn NASA Ames Web server JSP servlets environment database Web client User Interface System 5 NPSS CORBA framework (coupling, sequencing and data input/output mgmt for multiple simulations) operational conditions database (Objectivity) System 2 Grid Secure Communication Services System 1 Grid Services: Uniform access to distributed resources System 3 Globus initiatedCORBA server running computational simulation on NAS supercomputers Globus initiatedCORBA server running computational simulation on other IPG resources IPG resources System 4

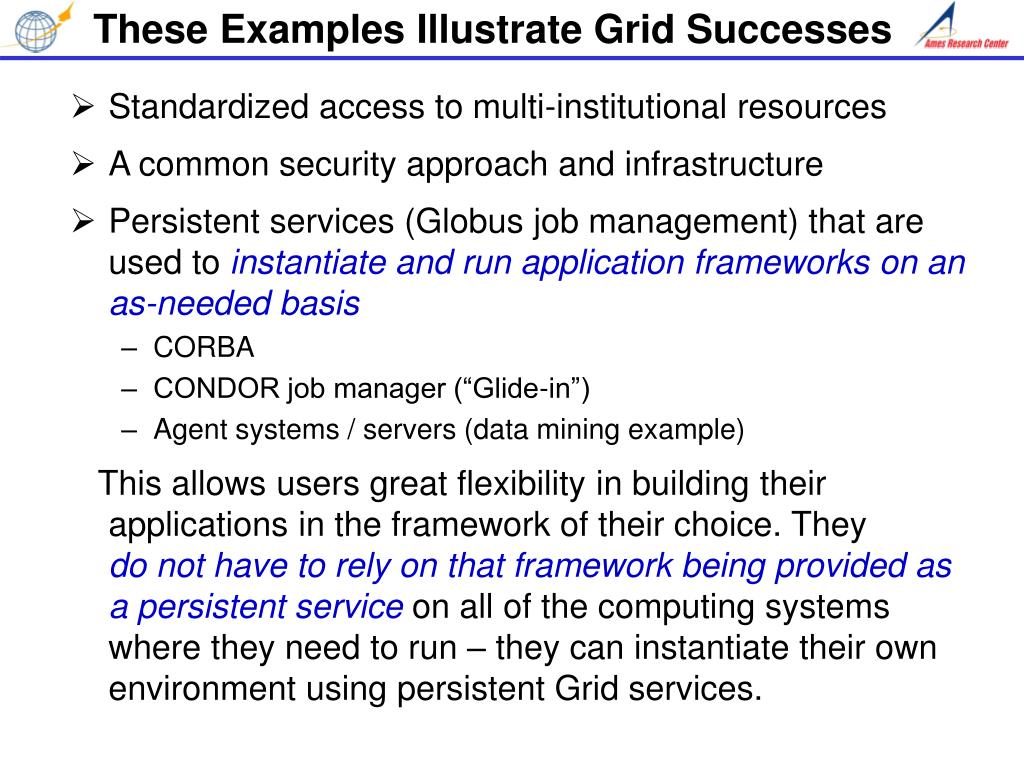

These Examples Illustrate Grid Successes • Standardized access to multi-institutional resources • A common security approach and infrastructure • Persistent services (Globus job management) that are used to instantiate and run application frameworks on an as-needed basis • CORBA • CONDOR job manager (“Glide-in”) • Agent systems / servers (data mining example) This allows users great flexibility in building their applications in the framework of their choice. Theydo not have to rely on that framework being provided as a persistent service on all of the computing systems where they need to run – they can instantiate their own environment using persistent Grid services.

Information Power Grid Vision • The IPG vision is to use the Grid approach to revolutionize how computing is used in NASA’s science and engineering by providing the middleware services for routinely building large-scale, dynamically constructed, and transient,problem solving environments fromdistributed, heterogeneous resources

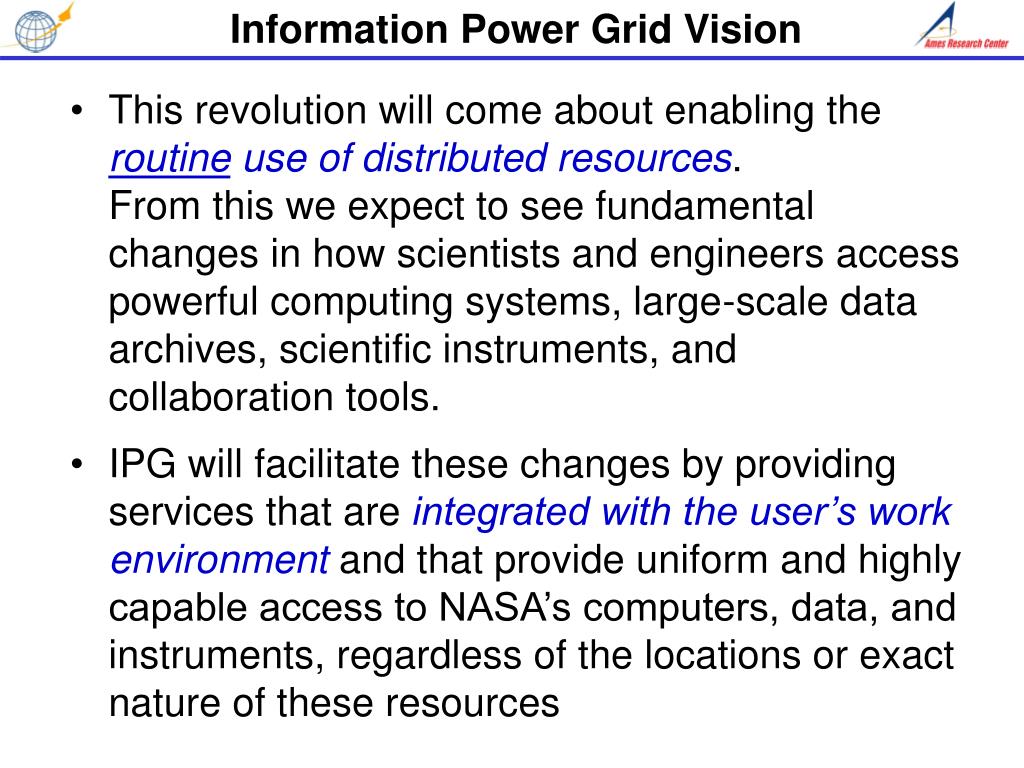

Information Power Grid Vision • This revolution will come about enabling the routineuse of distributed resources.From this we expect to see fundamental changes in how scientists and engineers access powerful computing systems, large-scale data archives, scientific instruments, and collaboration tools. • IPG will facilitate these changes by providing services that are integrated with the user’s work environment and that provide uniform and highly capable access to NASA’s computers, data, and instruments, regardless of the locations or exact nature of these resources

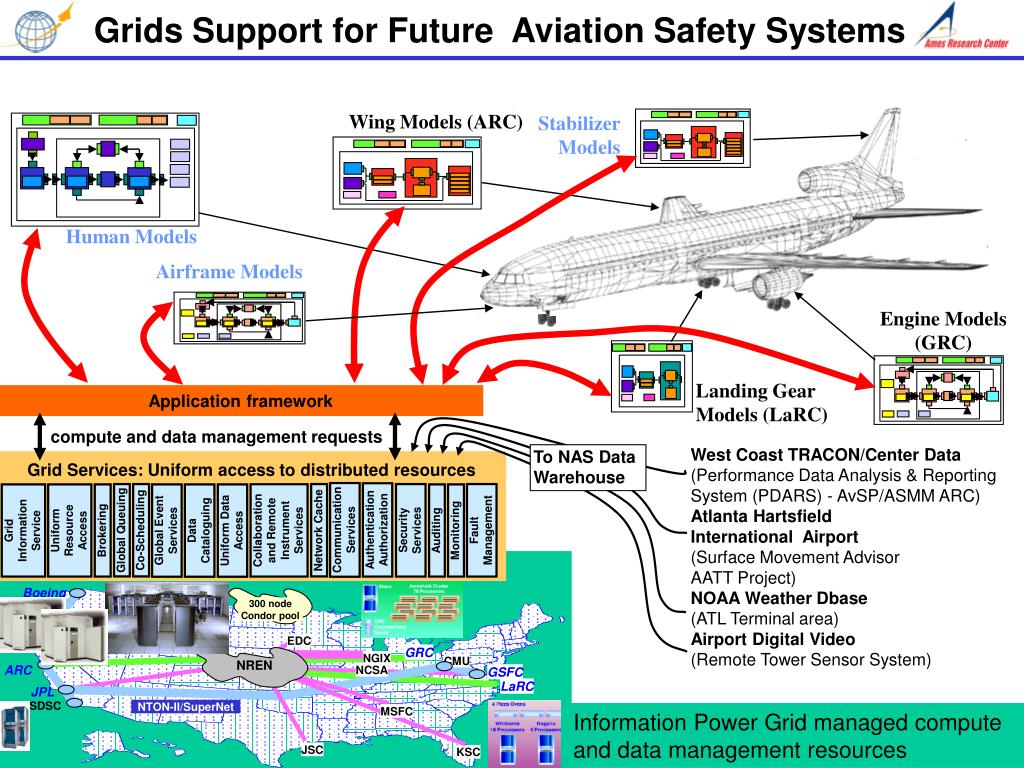

Grids Support for Future Aviation Safety Systems 300 node Condor pool Boeing EDC GRC NGIX NREN CMU ARC NCSA GSFC LaRC JPL SDSC NTON-II/SuperNet MSFC JSC KSC Collaboration and Remote Instrument Services Grid Information Service UniformResourceAccess Communication Services Authentication Authorization Security Services Fault Management Global EventServices Data Cataloguing Uniform Data Access Global Queuing Co-Scheduling Network Cache Brokering Auditing Monitoring To NAS Data Warehouse Wing Models (ARC) StabilizerModels Human Models Airframe Models Engine Models(GRC) Landing Gear Models (LaRC) Application framework compute and data management requests West Coast TRACON/Center Data (Performance Data Analysis & Reporting System (PDARS) - AvSP/ASMM ARC) Atlanta Hartsfield International Airport (Surface Movement Advisor AATT Project) NOAA Weather Dbase (ATL Terminal area) Airport Digital Video (Remote Tower Sensor System) Grid Services: Uniform access to distributed resources Information Power Grid managed compute and data management resources

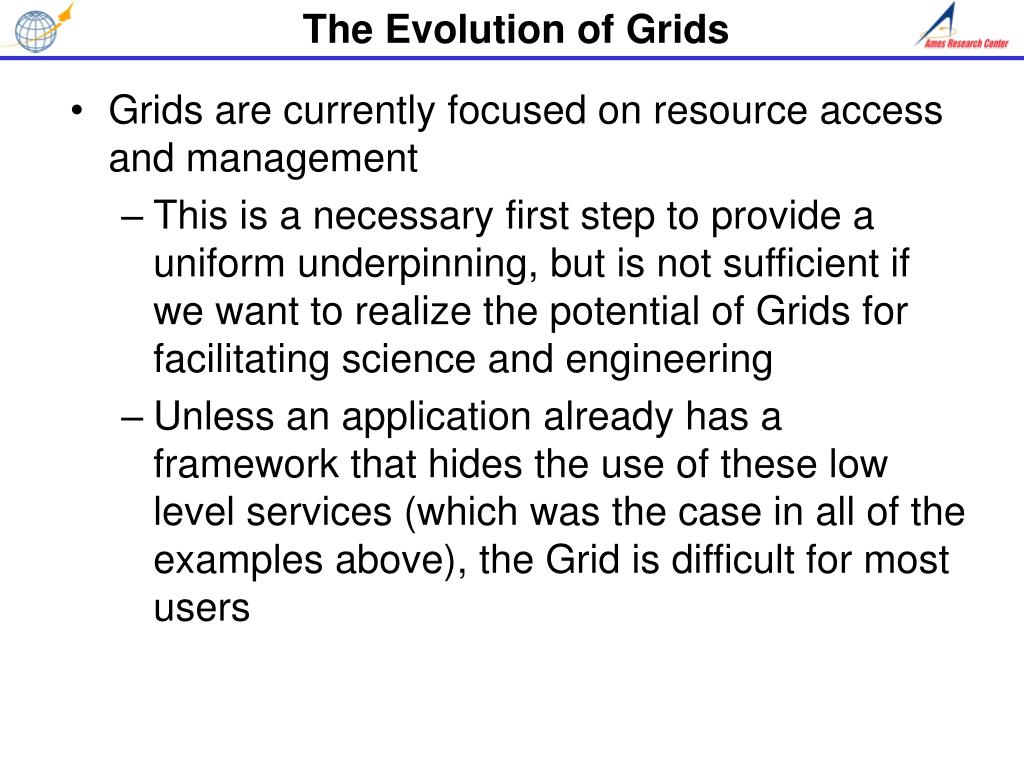

The Evolution of Grids • Grids are currently focused on resource access and management • This is a necessary first step to provide a uniform underpinning, but is not sufficient if we want to realize the potential of Grids for facilitating science and engineering • Unless an application already has a framework that hides the use of these low level services (which was the case in all of the examples above), the Grid is difficult for most users

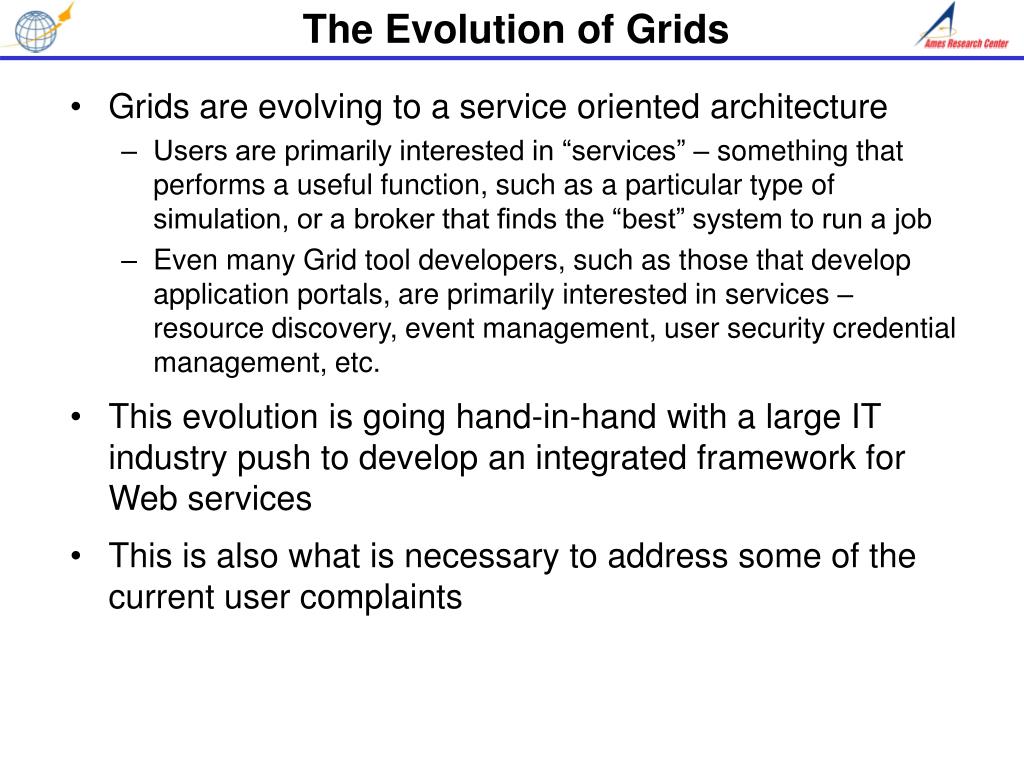

The Evolution of Grids • Grids are evolving to a service oriented architecture • Users are primarily interested in “services” – something that performs a useful function, such as a particular type of simulation, or a broker that finds the “best” system to run a job • Even many Grid tool developers, such as those that develop application portals, are primarily interested in services – resource discovery, event management, user security credential management, etc. • This evolution is going hand-in-hand with a large IT industry push to develop an integrated framework for Web services • This is also what is necessary to address some of the current user complaints

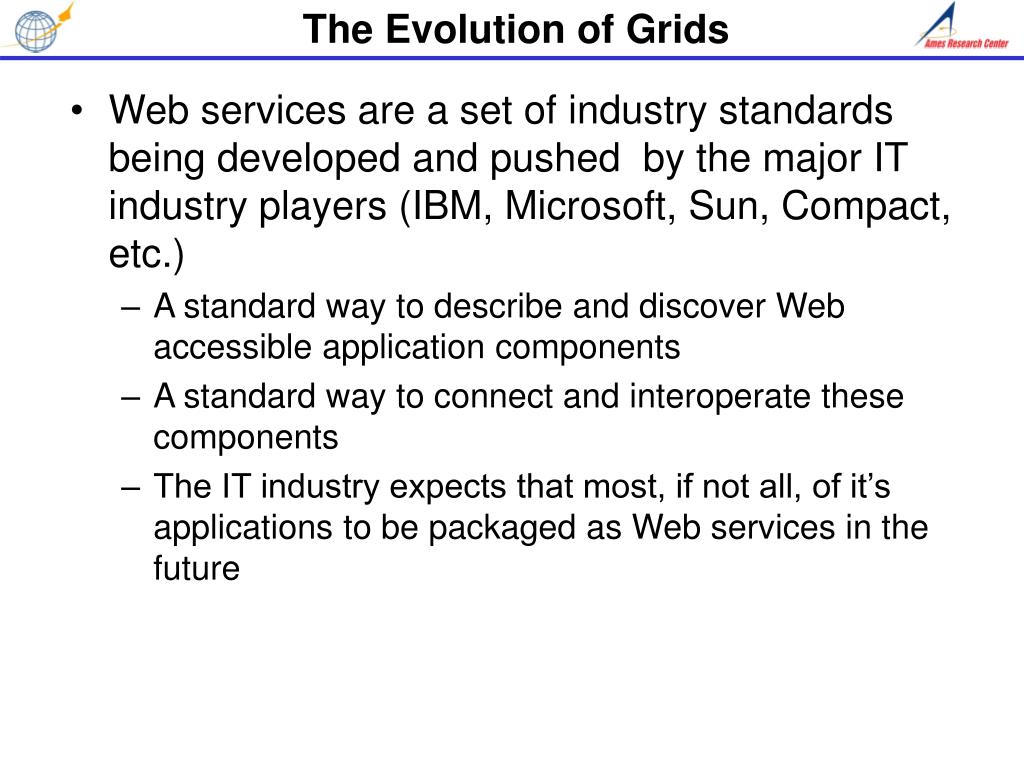

The Evolution of Grids • Web services are a set of industry standards being developed and pushed by the major IT industry players (IBM, Microsoft, Sun, Compact, etc.) • A standard way to describe and discover Web accessible application components • A standard way to connect and interoperate these components • The IT industry expects that most, if not all, of it’s applications to be packaged as Web services in the future

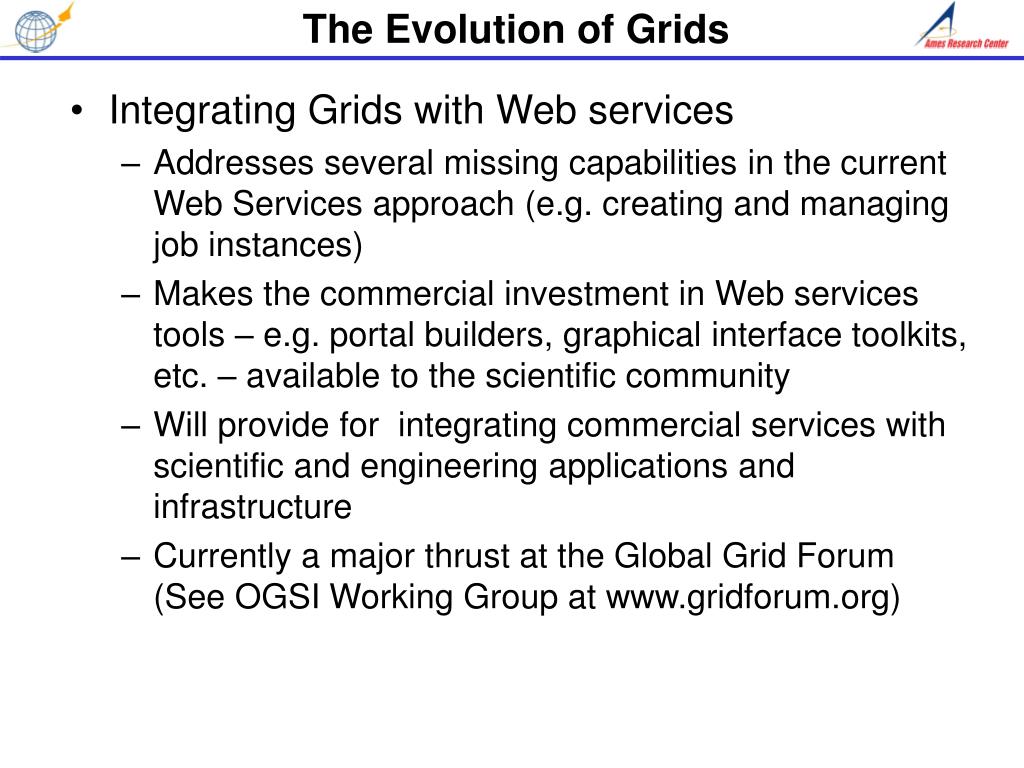

The Evolution of Grids • Integrating Grids with Web services • Addresses several missing capabilities in the current Web Services approach (e.g. creating and managing job instances) • Makes the commercial investment in Web services tools – e.g. portal builders, graphical interface toolkits, etc. – available to the scientific community • Will provide for integrating commercial services with scientific and engineering applications and infrastructure • Currently a major thrust at the Global Grid Forum (See OGSI Working Group at www.gridforum.org)

The Future of Grids:Portals and Web Services Environment for Problem Solving Portals: Services Presented to the Users to Accomplish Tasks STS/SLI Mission Analysis ISS Training ES Modeling MER/CIP Aviation Capacity User Environment Portals Collaboration Portals Application Domain Specific Portals Application Domain Independent Portals Grid Web Services: Grid Functions and Application Functions Packaged for Building Portals Instrument & Sensor Gateways Computational Simulation Workflow Management Experiment Management Flight Simulation Programming Services Data Processing & Analysis Zooming System Models Archive Gateways Coupling Collaboration Services Visualization Monitoring Events Data Management Domain Specific Web Services –Encapsulated Applications Domain IndependentGrid Web Services Grid Common Services: Uniform Access, Security, and Management of Compute, Data, and Instrument Resources Multiple Compute, Data, and Instrument Resources at Many Different Sites

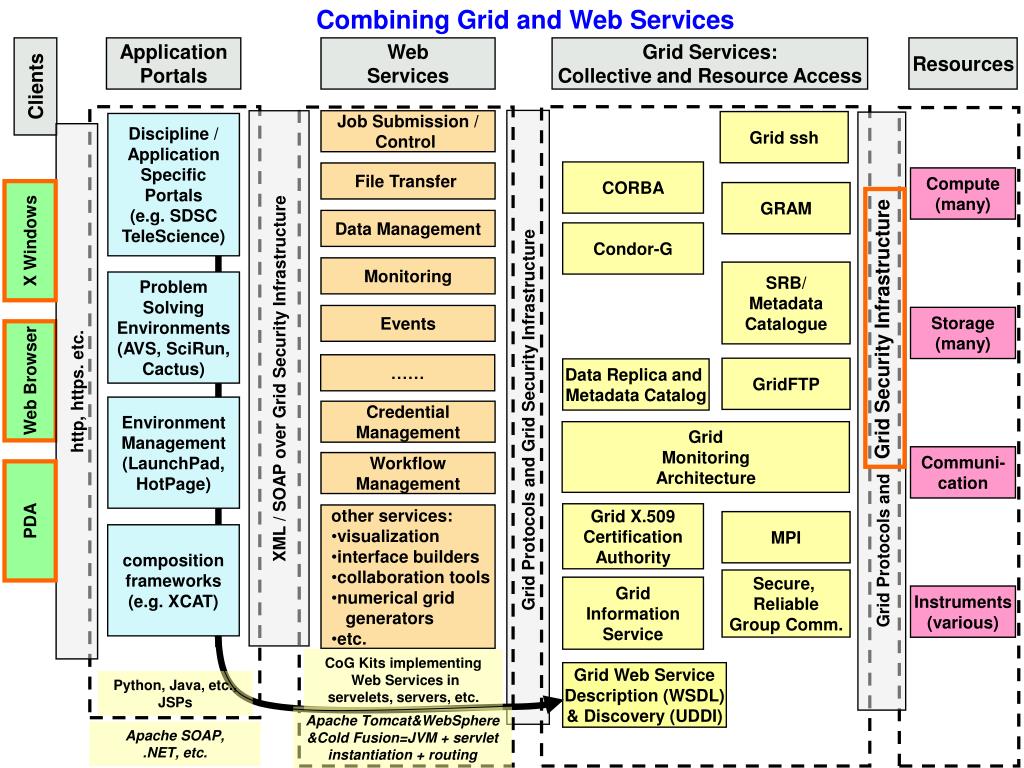

Combining Grid and Web Services Compute (many) Storage (many) Communi-cation Instruments (various) ApplicationPortals Web Services Grid Services:Collective and Resource Access Resources Clients Grid Protocols and Grid Security Infrastructure XML / SOAP over Grid Security Infrastructure Job Submission / Control Grid ssh Grid Protocols and Grid Security Infrastructure Discipline / Application SpecificPortals (e.g. SDSCTeleScience) http, https. etc. CORBA File Transfer GRAM Data Management X Windows Condor-G Monitoring SRB/MetadataCatalogue ProblemSolvingEnvironments(AVS, SciRun,Cactus) Events …… Web Browser GridFTP Data Replica and Metadata Catalog EnvironmentManagement(LaunchPad,HotPage) Credential Management GridMonitoringArchitecture Workflow Management PDA Grid X.509CertificationAuthority • other services: • visualization • interface builders • collaboration tools • numerical grid generators • etc. MPI compositionframeworks (e.g. XCAT) Secure, ReliableGroup Comm. GridInformationService CoG Kits implementing Web Services in servelets, servers, etc. Grid Web ServiceDescription (WSDL) & Discovery (UDDI) Python, Java, etc., JSPs Apache Tomcat&WebSphere&Cold Fusion=JVM + servlet instantiation + routing Apache SOAP,.NET, etc.

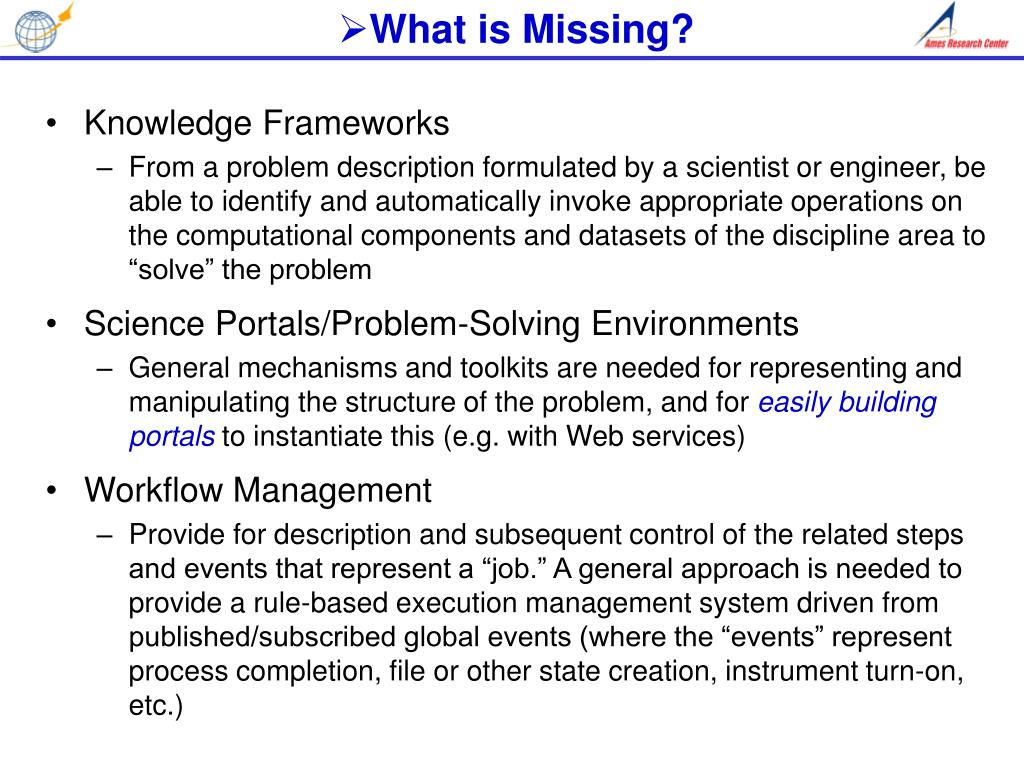

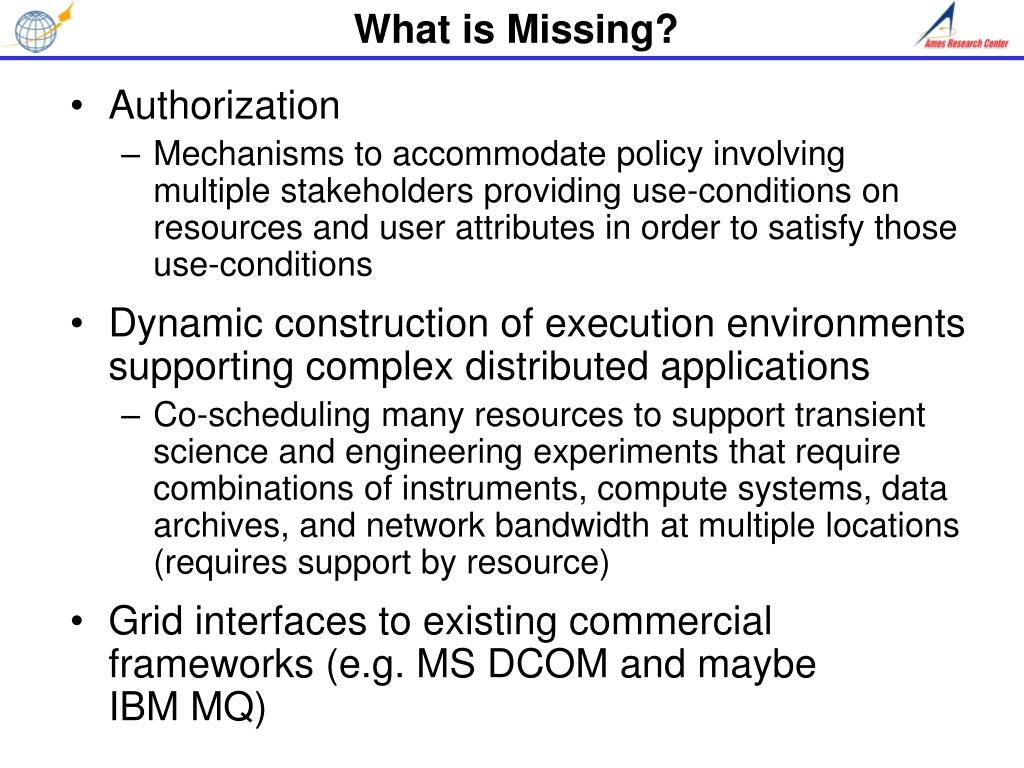

What is Missing? • Knowledge Frameworks • From a problem description formulated by a scientist or engineer, be able to identify and automatically invoke appropriate operations on the computational components and datasets of the discipline area to “solve” the problem • Science Portals/Problem-Solving Environments • General mechanisms and toolkits are needed for representing and manipulating the structure of the problem, and for easily building portals to instantiate this (e.g. with Web services) • Workflow Management • Provide for description and subsequent control of the related steps and events that represent a “job.” A general approach is needed to provide a rule-based execution management system driven from published/subscribed global events (where the “events” represent process completion, file or other state creation, instrument turn-on, etc.)

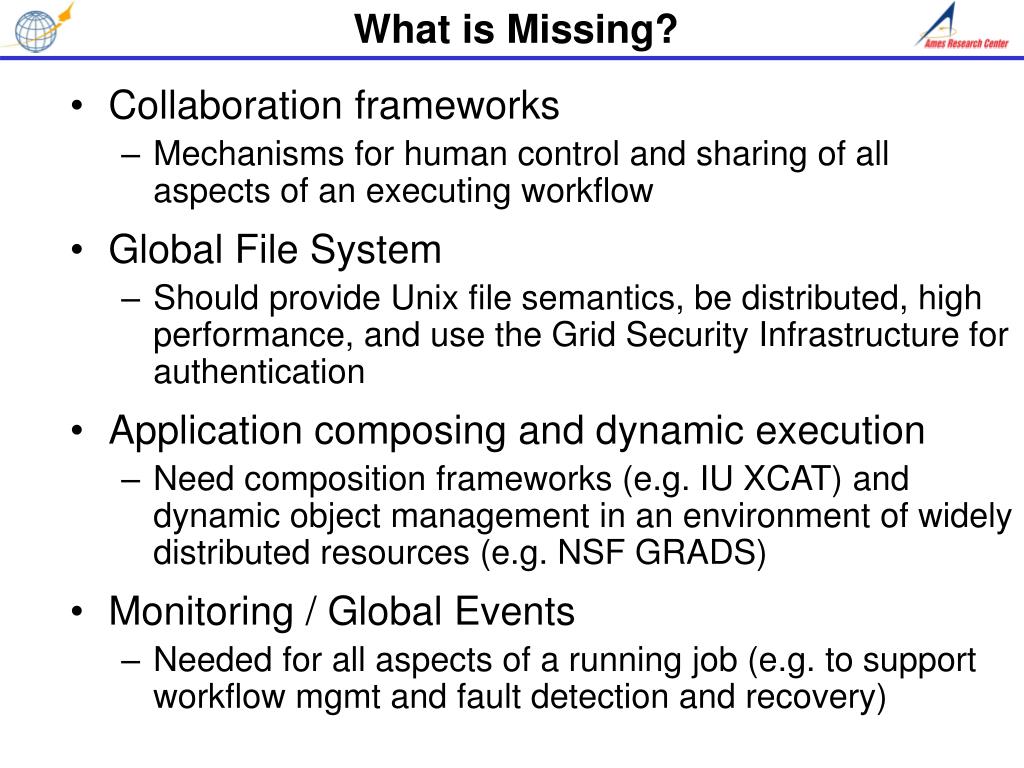

What is Missing? • Collaboration frameworks • Mechanisms for human control and sharing of all aspects of an executing workflow • Global File System • Should provide Unix file semantics, be distributed, high performance, and use the Grid Security Infrastructure for authentication • Application composing and dynamic execution • Need composition frameworks (e.g. IU XCAT) and dynamic object management in an environment of widely distributed resources (e.g. NSF GRADS) • Monitoring / Global Events • Needed for all aspects of a running job (e.g. to support workflow mgmt and fault detection and recovery)

What is Missing? • Authorization • Mechanisms to accommodate policy involving multiple stakeholders providing use-conditions on resources and user attributes in order to satisfy those use-conditions • Dynamic construction of execution environments supporting complex distributed applications • Co-scheduling many resources to support transient science and engineering experiments that require combinations of instruments, compute systems, data archives, and network bandwidth at multiple locations (requires support by resource) • Grid interfaces to existing commercial frameworks (e.g. MS DCOM and maybeIBM MQ)

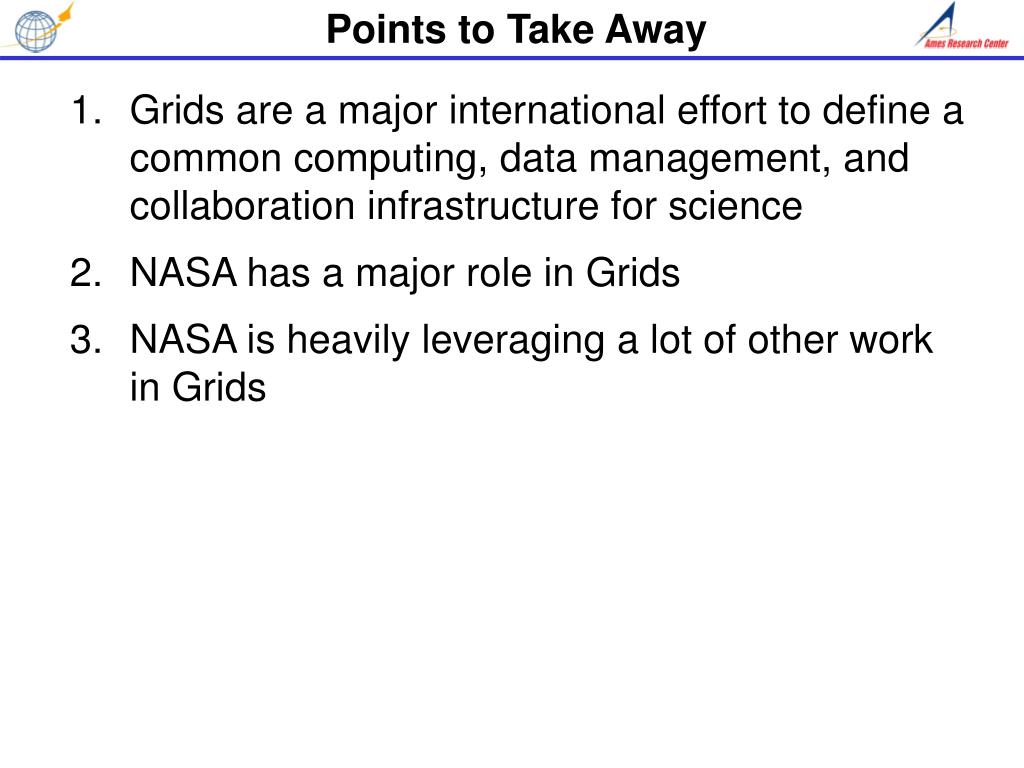

Points to Take Away • Grids are a major international effort to define a common computing, data management, and collaboration infrastructure for science • NASA has a major role in Grids • NASA is heavily leveraging a lot of other work in Grids

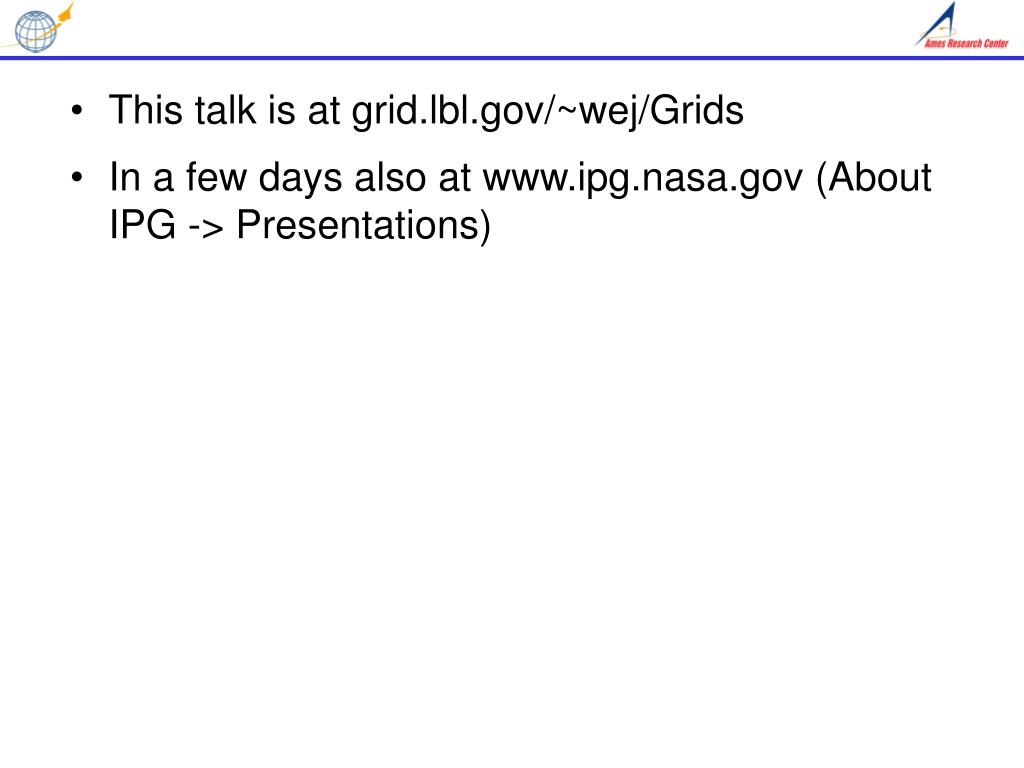

This talk is at grid.lbl.gov/~wej/Grids • In a few days also at www.ipg.nasa.gov (About IPG -> Presentations)
