EPC Data Formats

EPC Data Formats. EPC SGTIN serialized global trade identification number CASE or “Single Unit” (Big Screen TV) EPC SSCC serial shipping container code PALLETS. Header specifies tag size too. EPC SGTIN UPC: 0=country code (0=usa)

mervin
Télécharger la présentation

EPC Data Formats

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

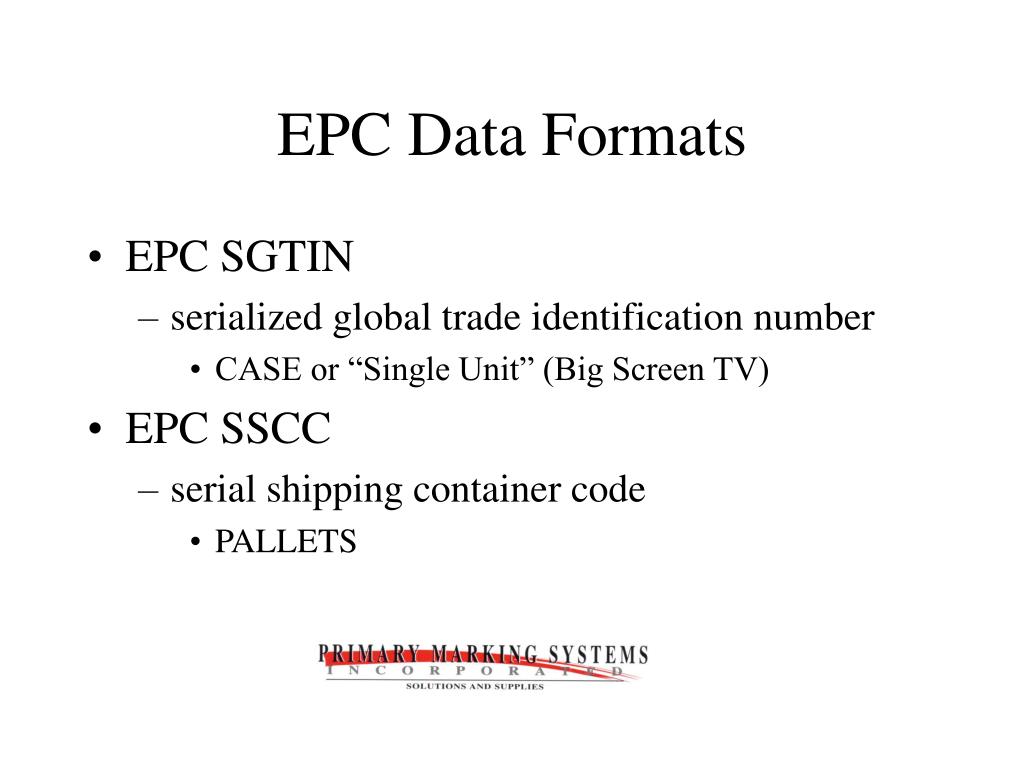

  1. EPC Data Formats • EPC SGTIN • serialized global trade identification number • CASE or “Single Unit” (Big Screen TV) • EPC SSCC • serial shipping container code • PALLETS

  2. Header specifies tag size too

  3. EPC SGTIN UPC: 0=country code (0=usa) 78742=mfr. (EPC adds two digits {tot. 7 digits}to accommodate UCC12 & UCC13 format) 46165=item # (5 digits, remains the same) GTIN indicator digit (1), a defined by mfr., i.e. 2pk carton. In EPC, indicator moved to left of item#) Tag Data Structure user data=96 bits *at the (tag) device level, there are actually 128 bits of data for unique tag ID, check sum for comm. integrity, etc. References: EPCglobal tag data specs. WM RFID guidelines SGTIN sent to printer in serial format (hex or ASCII), printer/reader compiles to binary and writes to tag. Reading: binary to serial (hex/ASCII)

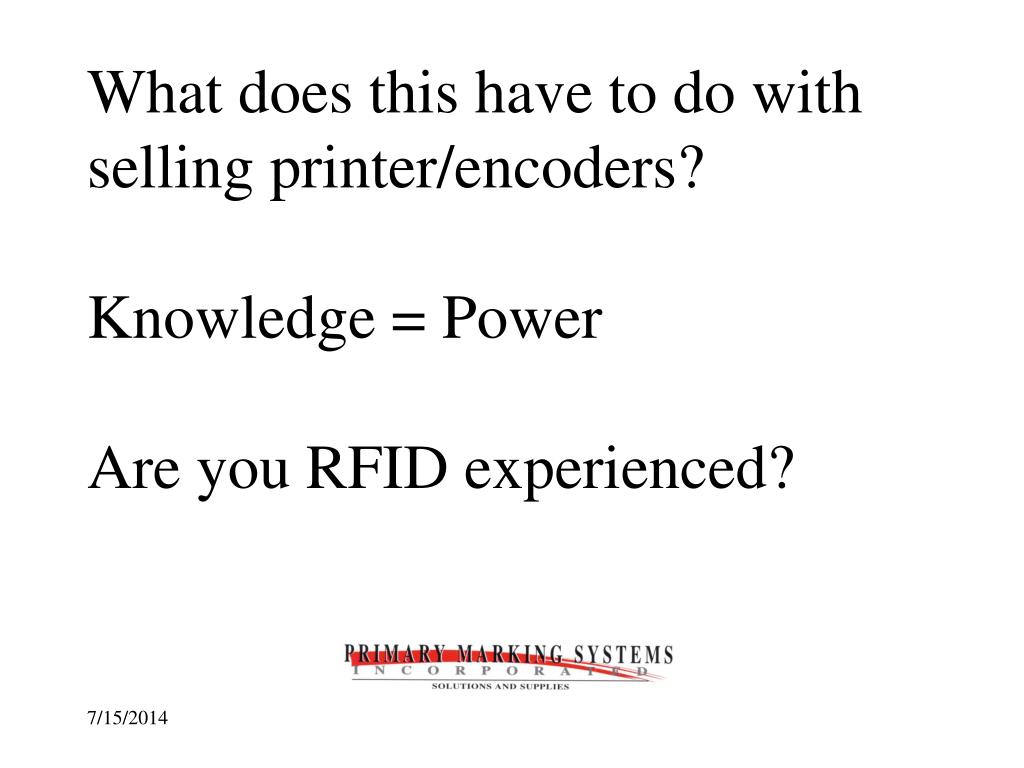

  4. What does this have to do with selling printer/encoders?Knowledge = PowerAre you RFID experienced?
