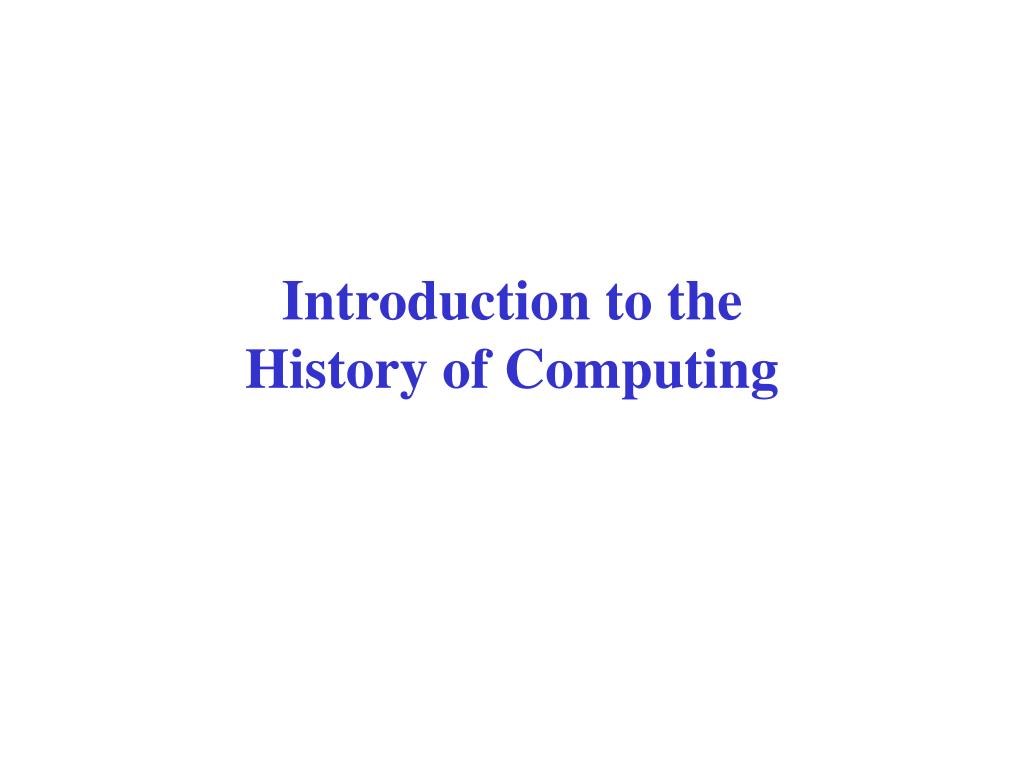

  1. Introduction to the History of Computing

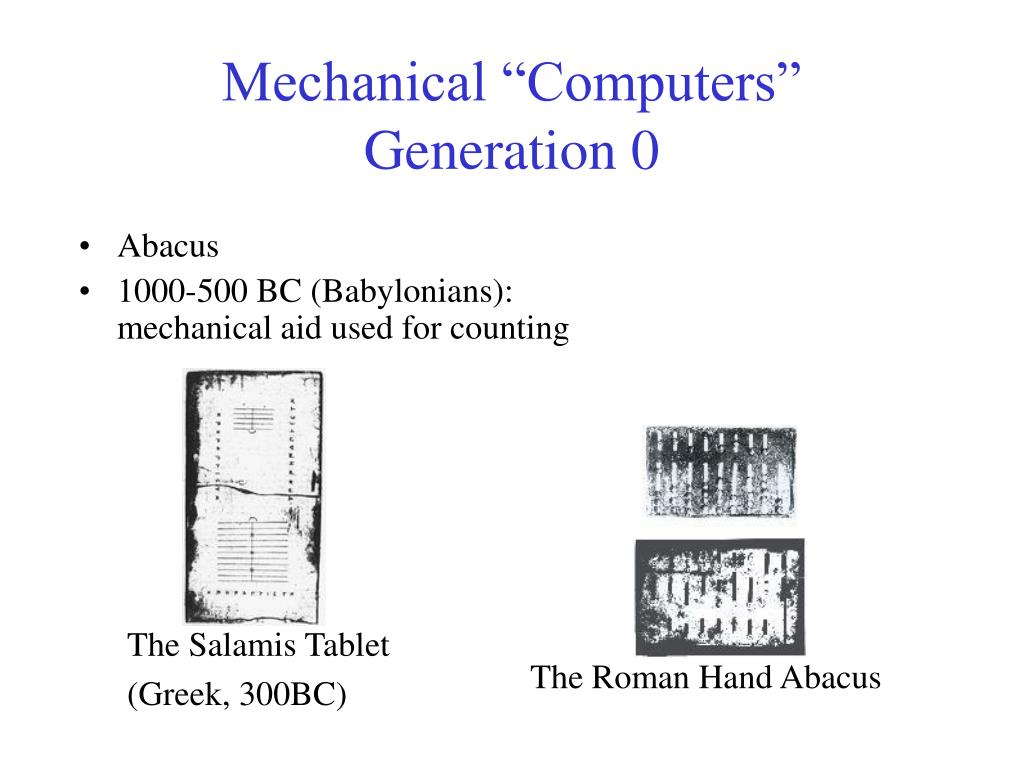

  2. Mechanical “Computers”Generation 0 • Abacus • 1000-500 BC (Babylonians): mechanical aid used for counting The Salamis Tablet (Greek, 300BC) The Roman Hand Abacus

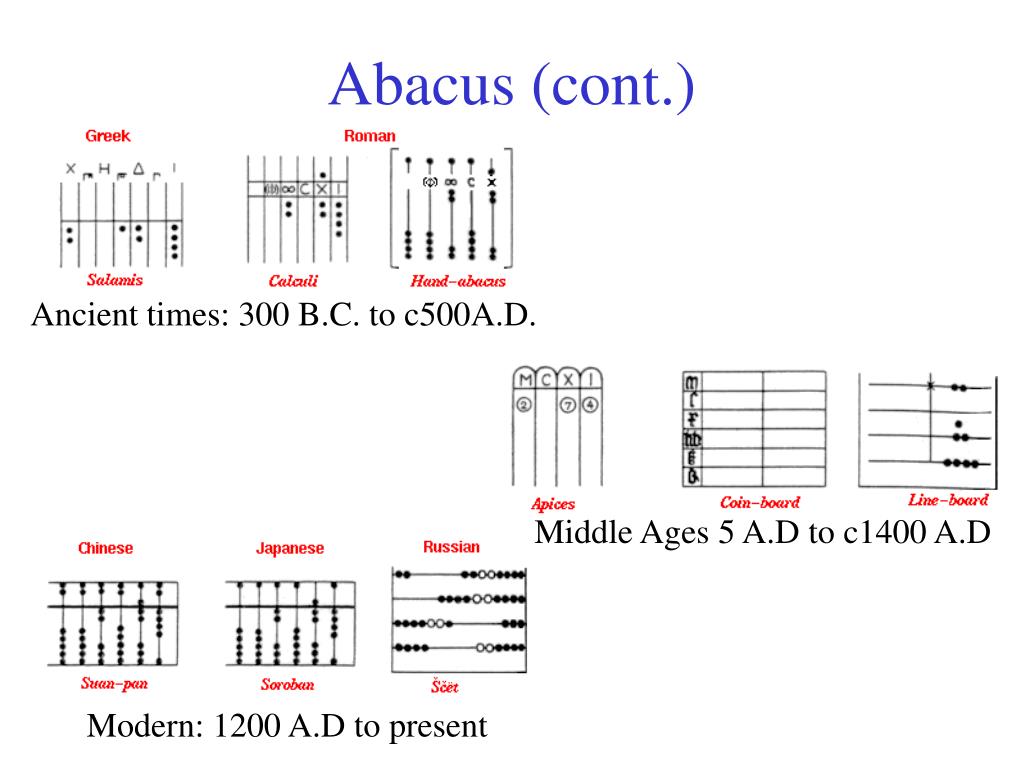

  3. Ancient times: 300 B.C. to c500A.D. Modern: 1200 A.D to present Abacus (cont.) Middle Ages 5 A.D to c1400 A.D

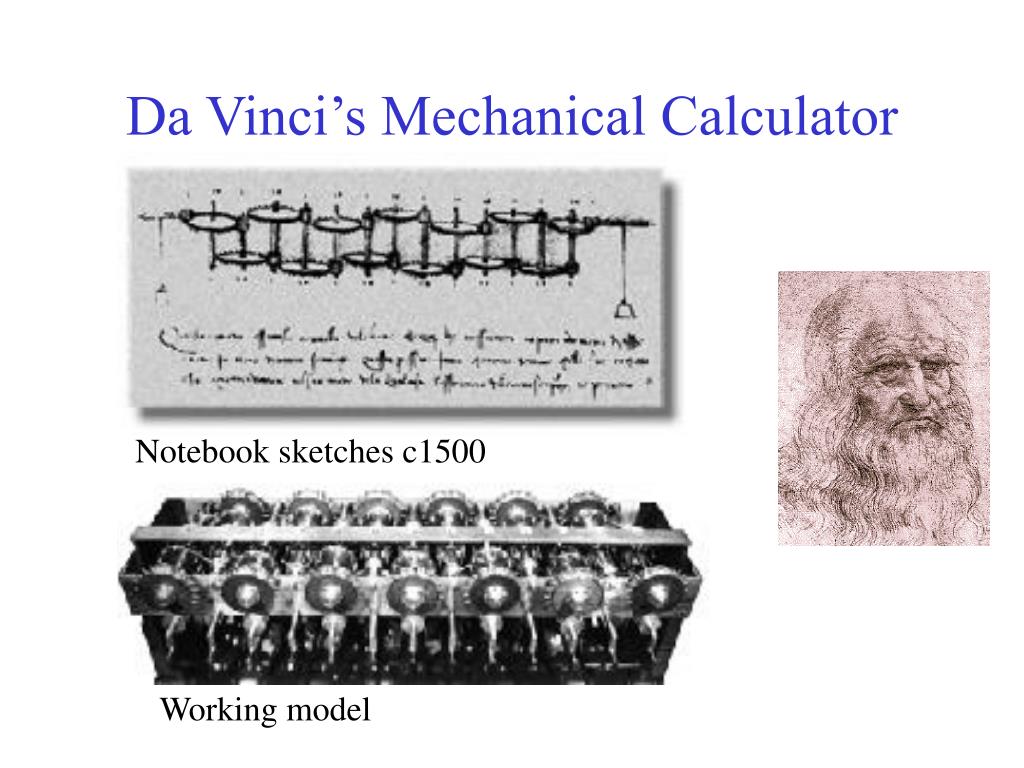

  4. Da Vinci’s Mechanical Calculator Notebook sketches c1500 Working model

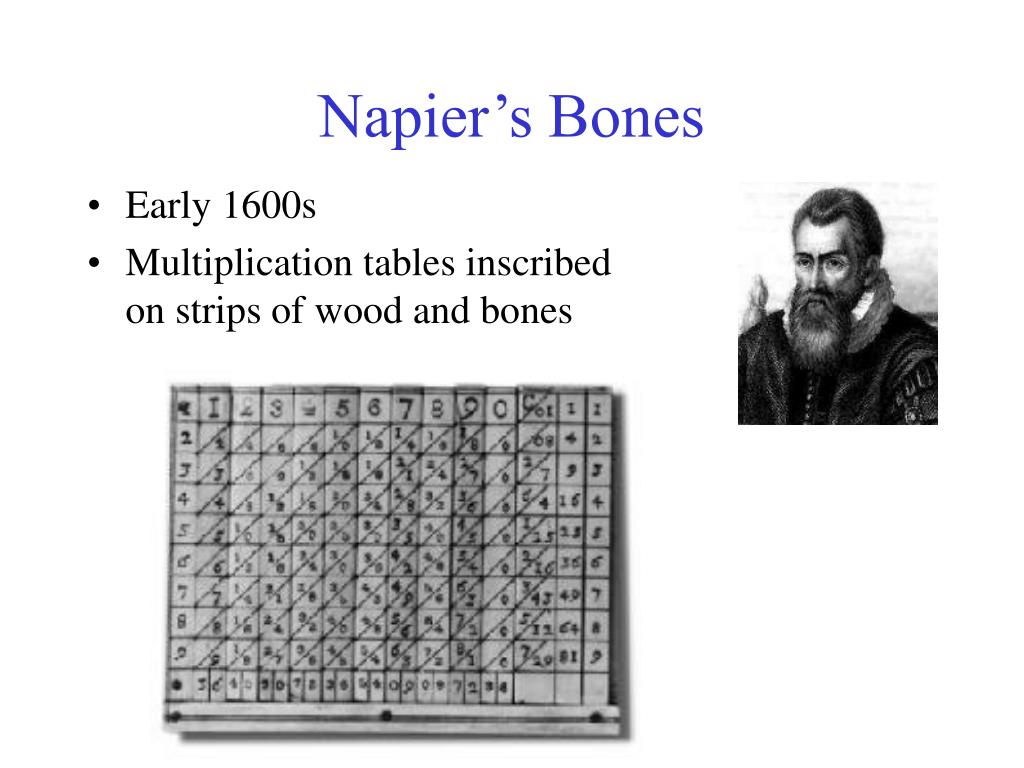

  5. Napier’s Bones • Early 1600s • Multiplication tables inscribed on strips of wood and bones

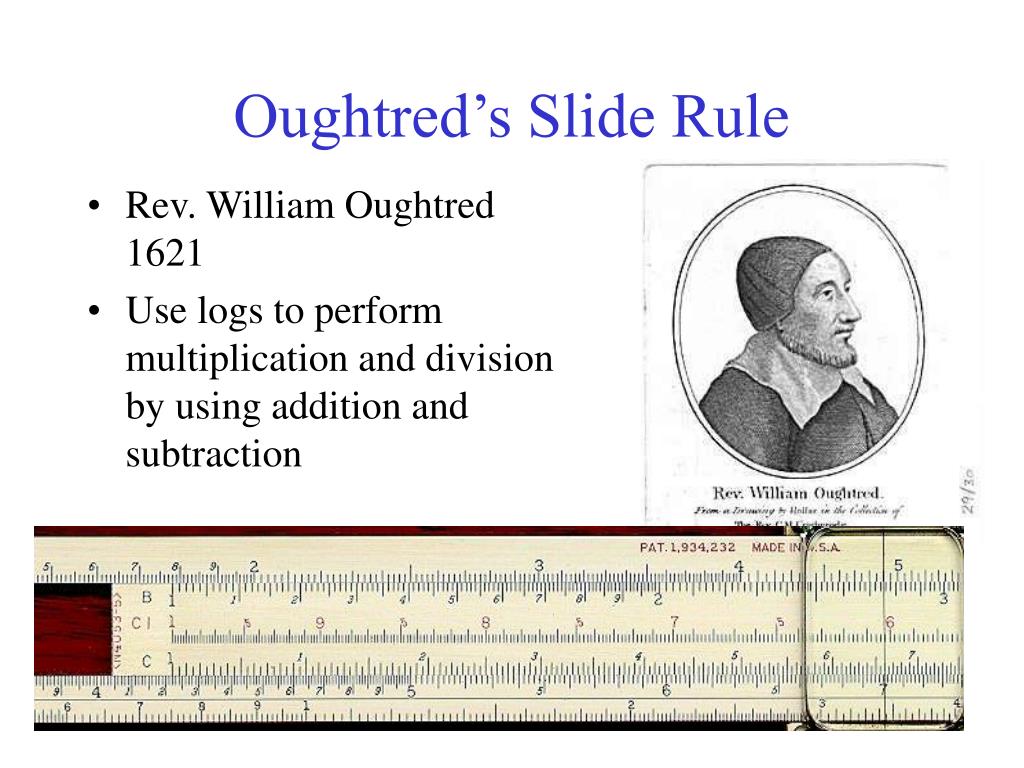

  6. Oughtred’s Slide Rule • Rev. William Oughtred 1621 • Use logs to perform multiplication and division by using addition and subtraction

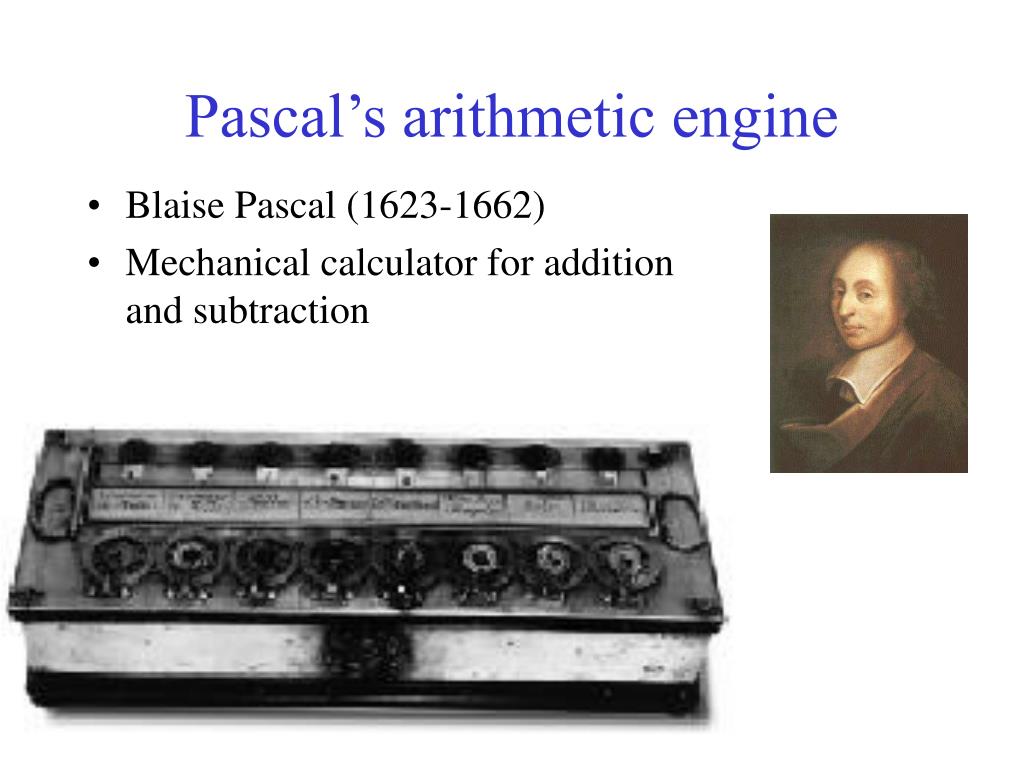

  7. Pascal’s arithmetic engine • Blaise Pascal (1623-1662) • Mechanical calculator for addition and subtraction

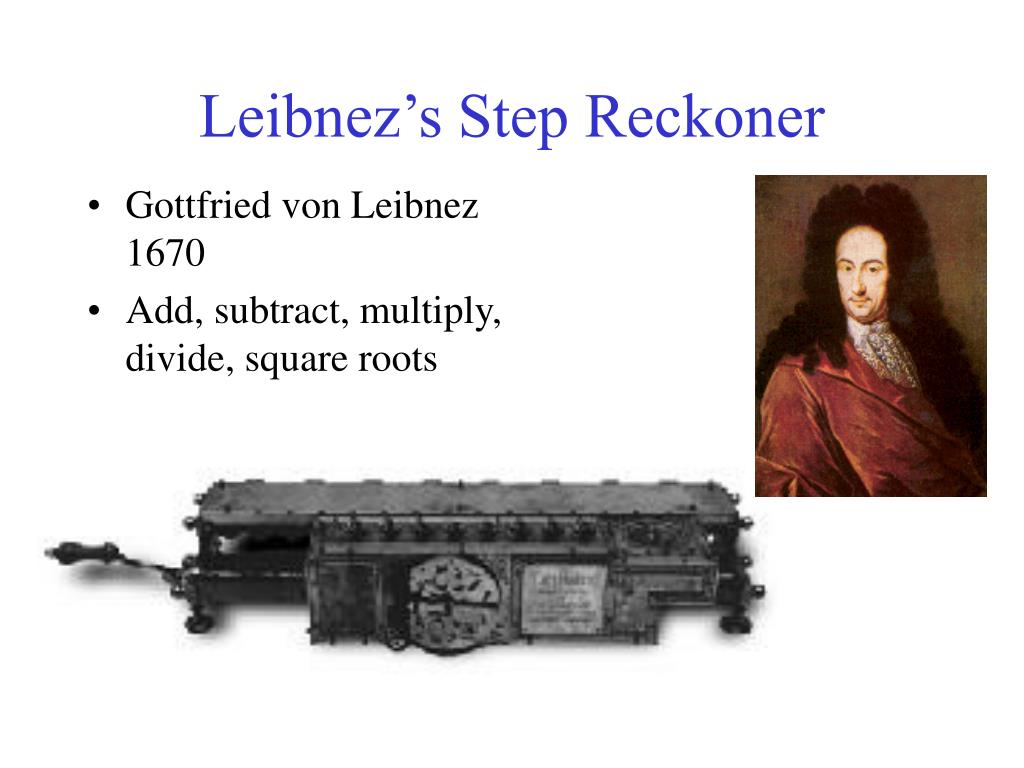

  8. Leibnez’s Step Reckoner • Gottfried von Leibnez 1670 • Add, subtract, multiply, divide, square roots

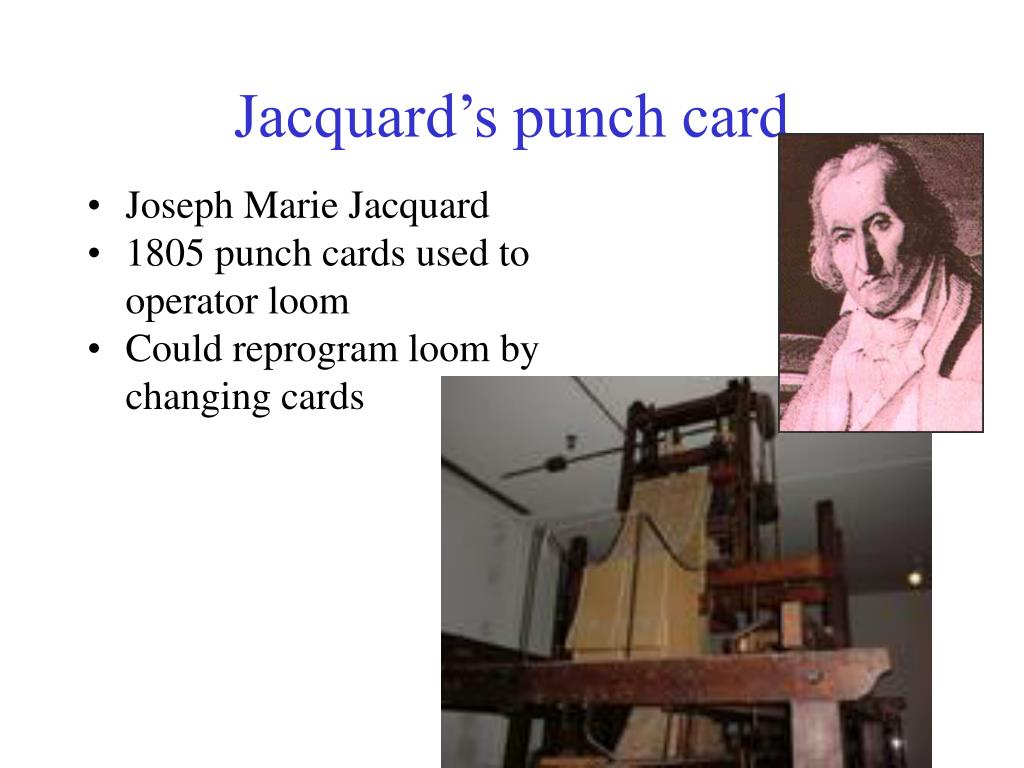

  9. Jacquard’s punch card • Joseph Marie Jacquard • 1805 punch cards used to operator loom • Could reprogram loom by changing cards

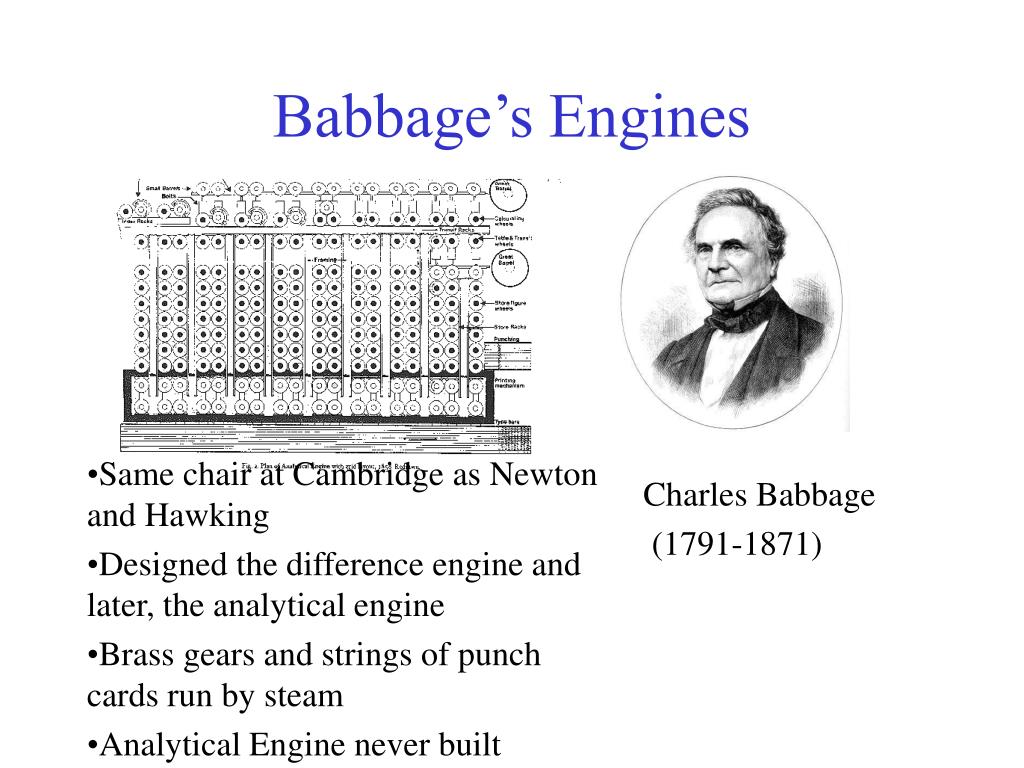

  10. Babbage’s Engines Same chair at Cambridge as Newton and Hawking Designed the difference engine and later, the analytical engine Brass gears and strings of punch cards run by steam Analytical Engine never built Charles Babbage (1791-1871)

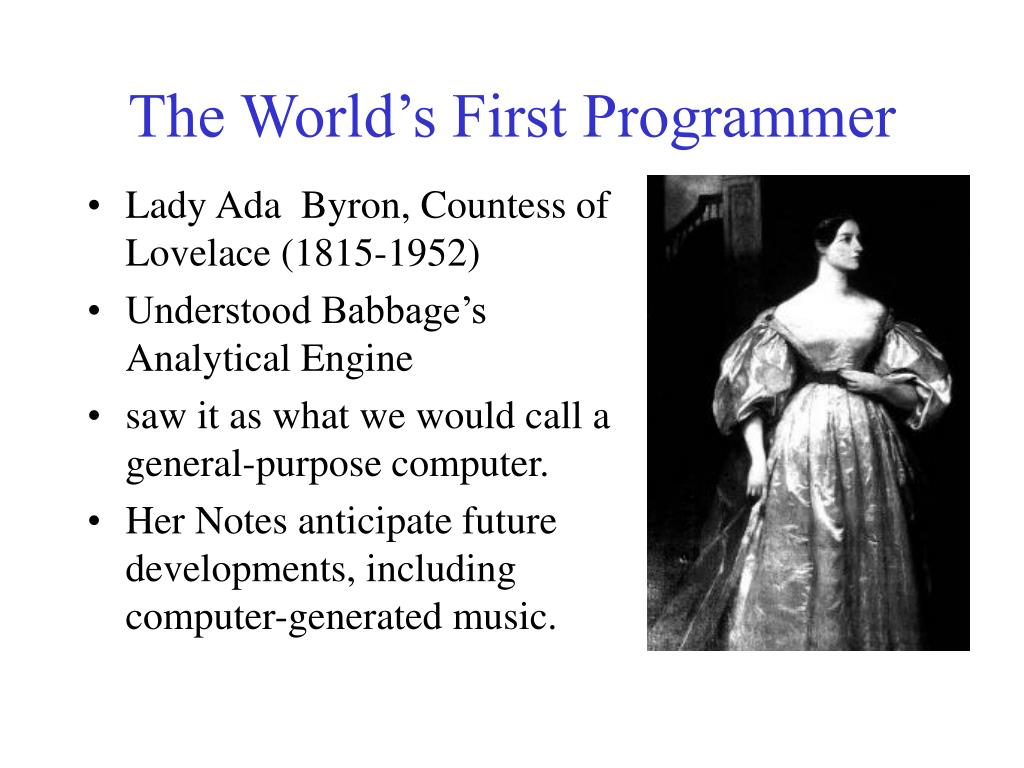

  11. The World’s First Programmer • Lady Ada Byron, Countess of Lovelace (1815-1952) • Understood Babbage’s Analytical Engine • saw it as what we would call a general-purpose computer. • Her Notes anticipate future developments, including computer-generated music.

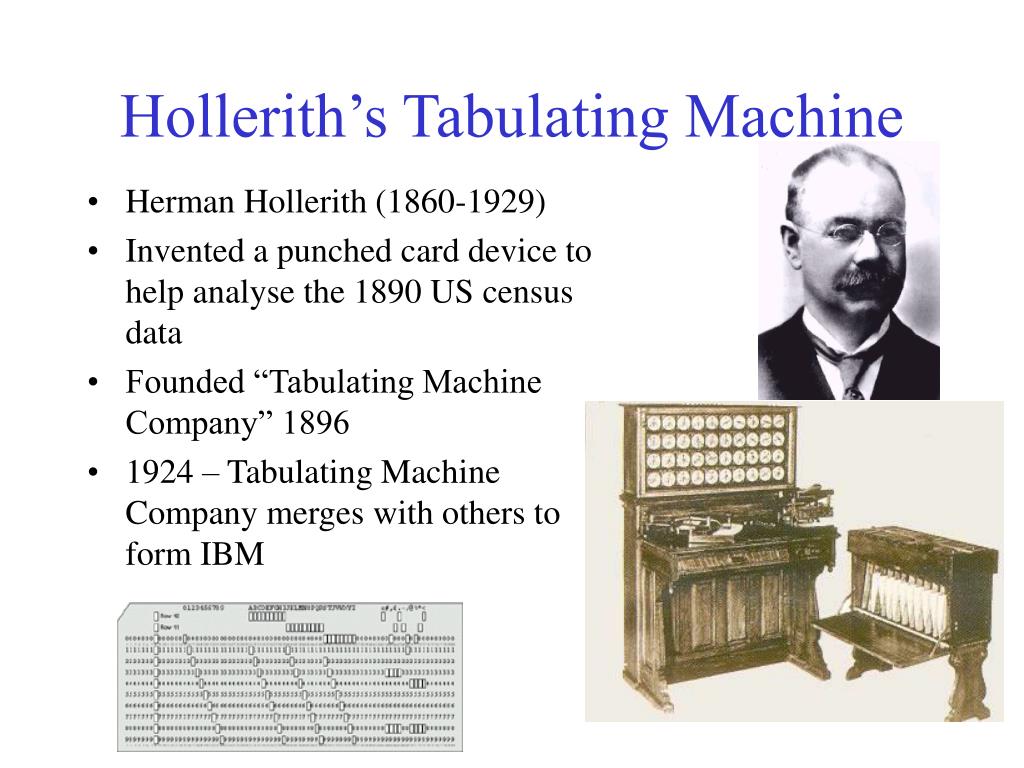

  12. Hollerith’s Tabulating Machine • Herman Hollerith (1860-1929) • Invented a punched card device to help analyse the 1890 US census data • Founded “Tabulating Machine Company” 1896 • 1924 – Tabulating Machine Company merges with others to form IBM

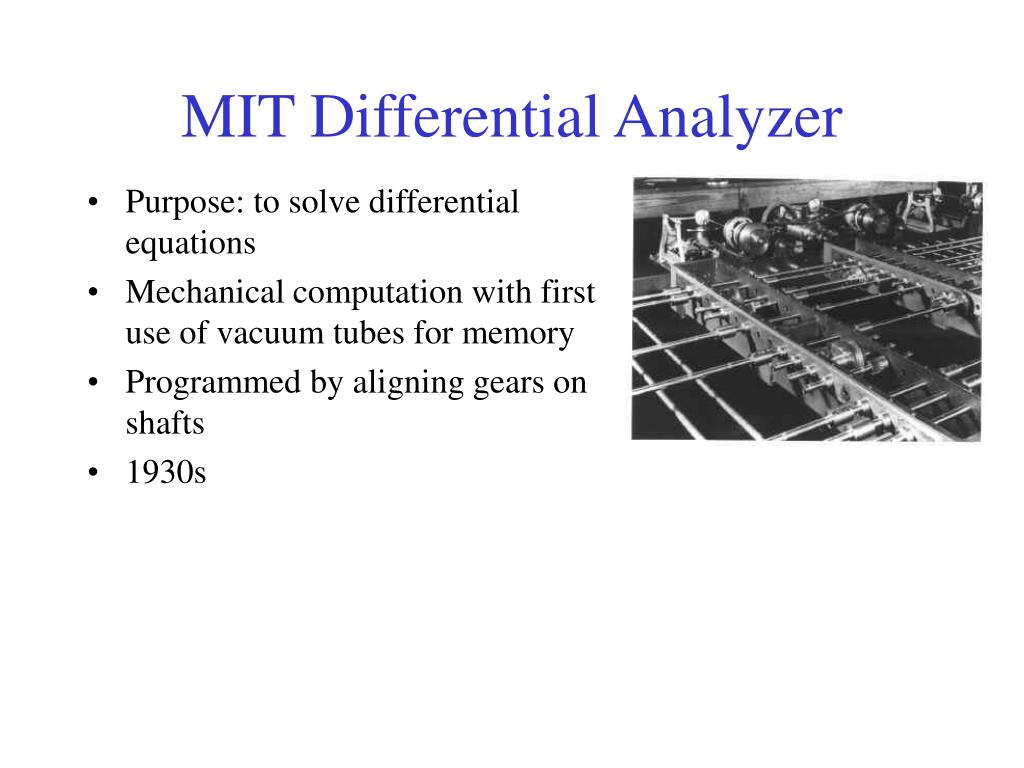

  13. MIT Differential Analyzer • Purpose: to solve differential equations • Mechanical computation with first use of vacuum tubes for memory • Programmed by aligning gears on shafts • 1930s

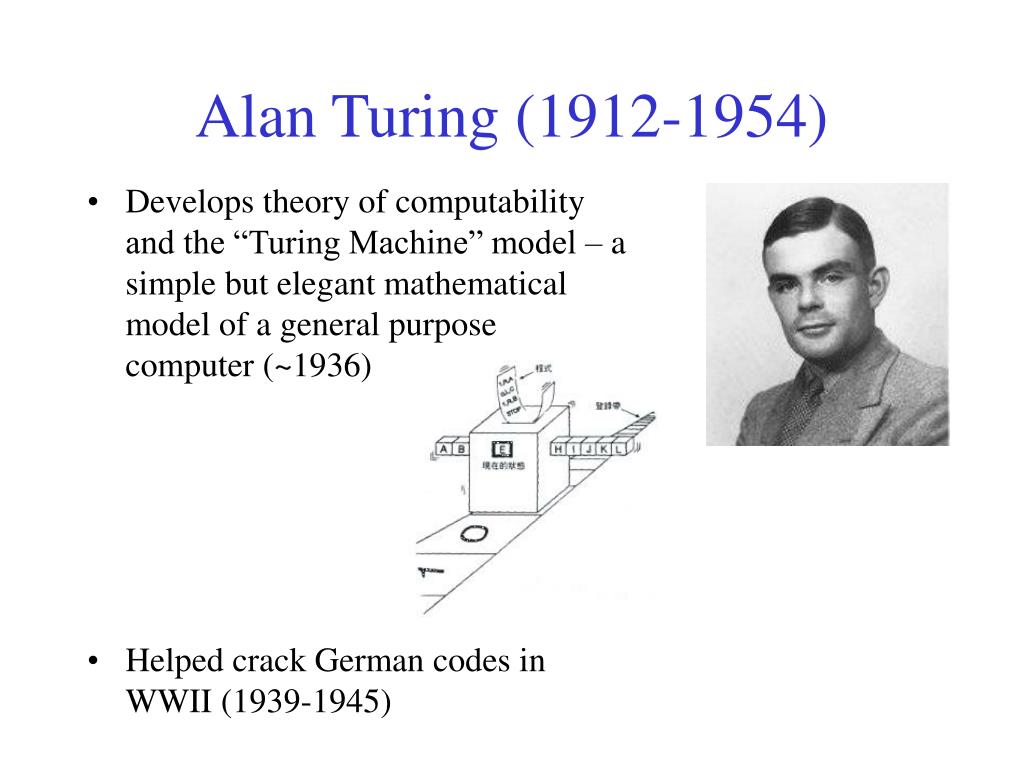

  14. Alan Turing (1912-1954) • Develops theory of computability and the “Turing Machine” model – a simple but elegant mathematical model of a general purpose computer (~1936) • Helped crack German codes in WWII (1939-1945)

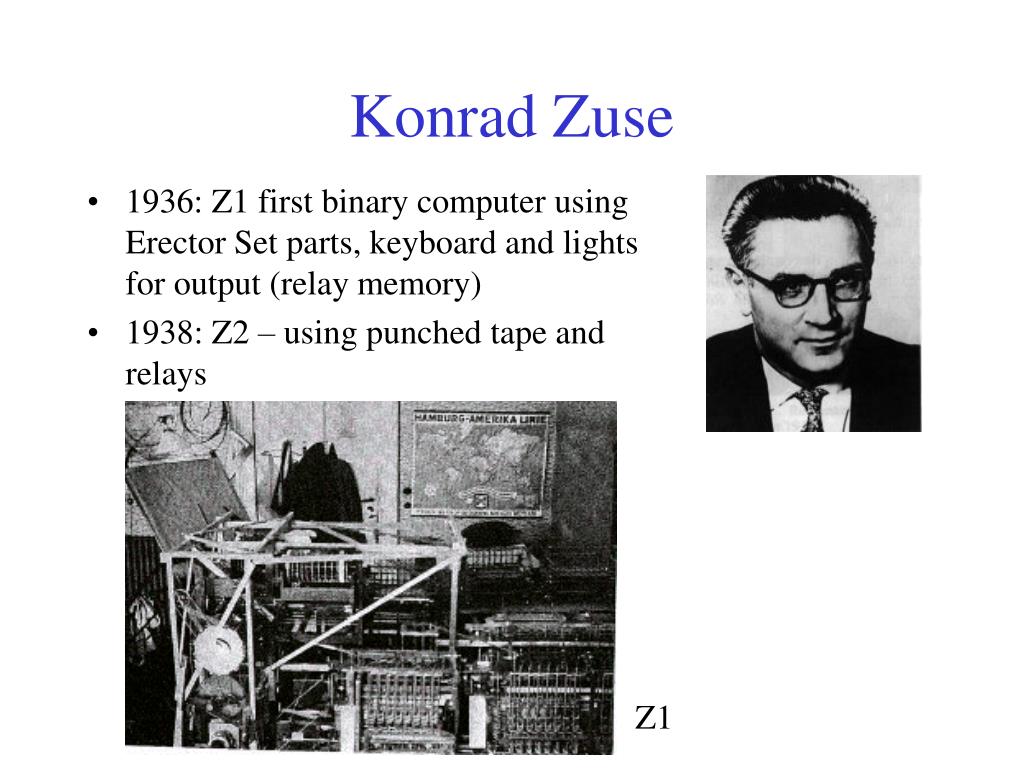

  15. Konrad Zuse • 1936: Z1 first binary computer using Erector Set parts, keyboard and lights for output (relay memory) • 1938: Z2 – using punched tape and relays Z1

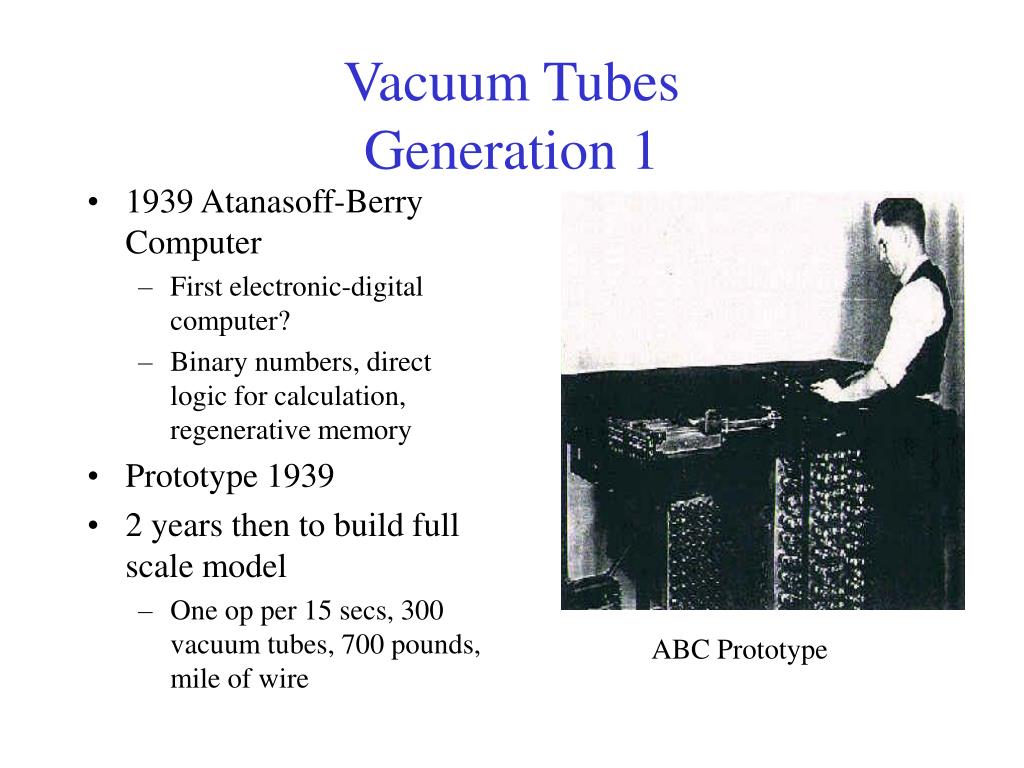

  16. Vacuum TubesGeneration 1 • 1939 Atanasoff-Berry Computer • First electronic-digital computer? • Binary numbers, direct logic for calculation, regenerative memory • Prototype 1939 • 2 years then to build full scale model • One op per 15 secs, 300 vacuum tubes, 700 pounds, mile of wire ABC Prototype

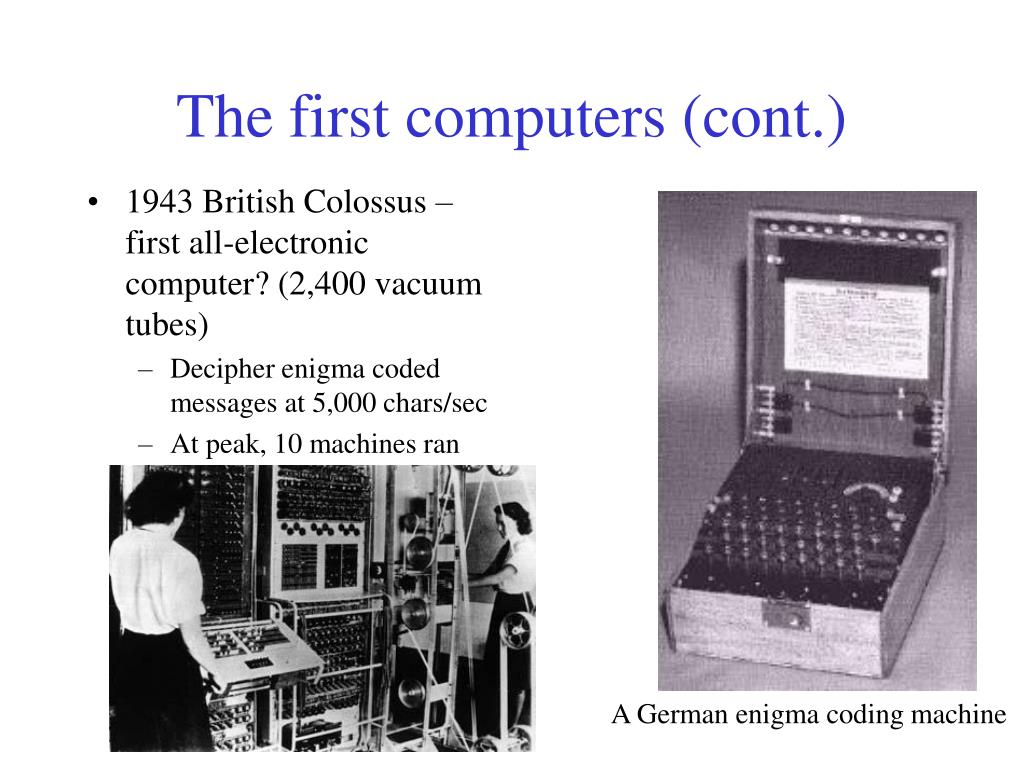

  17. The first computers (cont.) • 1943 British Colossus – first all-electronic computer? (2,400 vacuum tubes) • Decipher enigma coded messages at 5,000 chars/sec • At peak, 10 machines ran 24 hours a day A German enigma coding machine

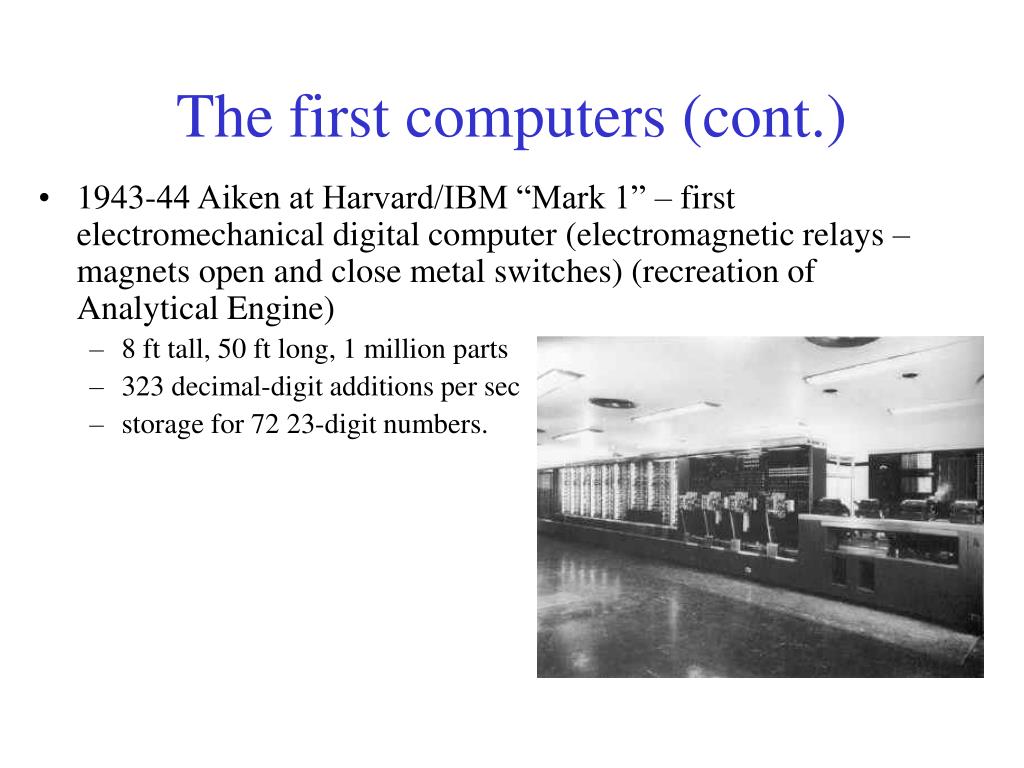

  18. The first computers (cont.) • 1943-44 Aiken at Harvard/IBM “Mark 1” – first electromechanical digital computer (electromagnetic relays – magnets open and close metal switches) (recreation of Analytical Engine) • 8 ft tall, 50 ft long, 1 million parts • 323 decimal-digit additions per sec • storage for 72 23-digit numbers.

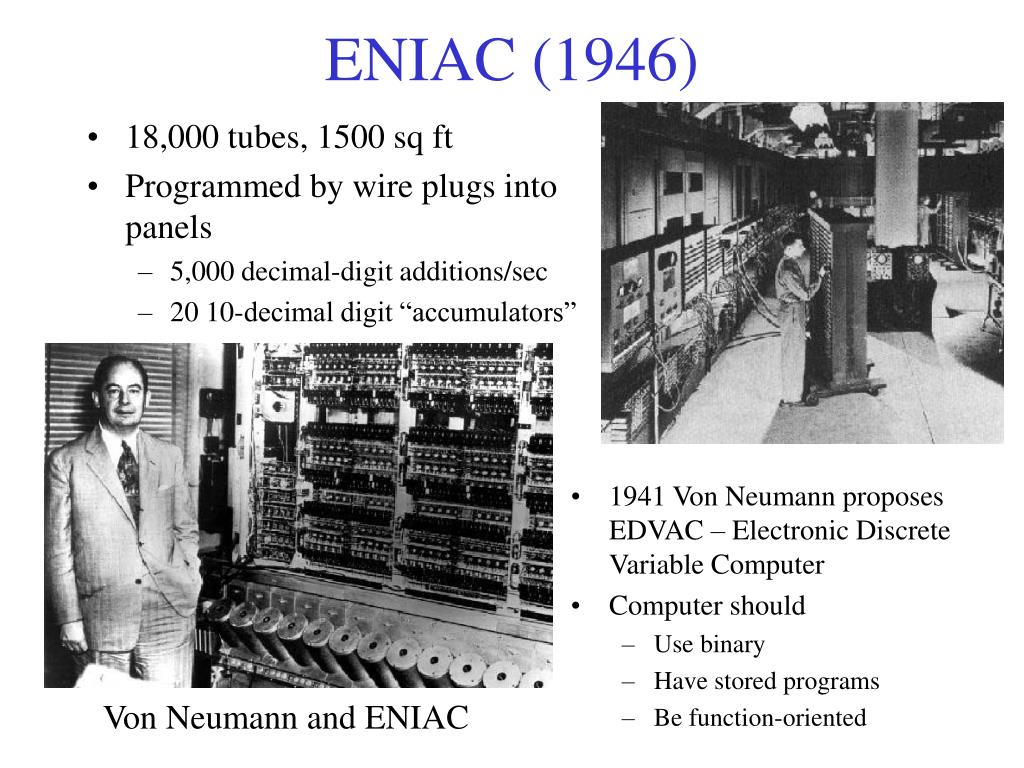

  19. ENIAC (1946) • 18,000 tubes, 1500 sq ft • Programmed by wire plugs into panels • 5,000 decimal-digit additions/sec • 20 10-decimal digit “accumulators” • 1941 Von Neumann proposes EDVAC – Electronic Discrete Variable Computer • Computer should • Use binary • Have stored programs • Be function-oriented Von Neumann and ENIAC

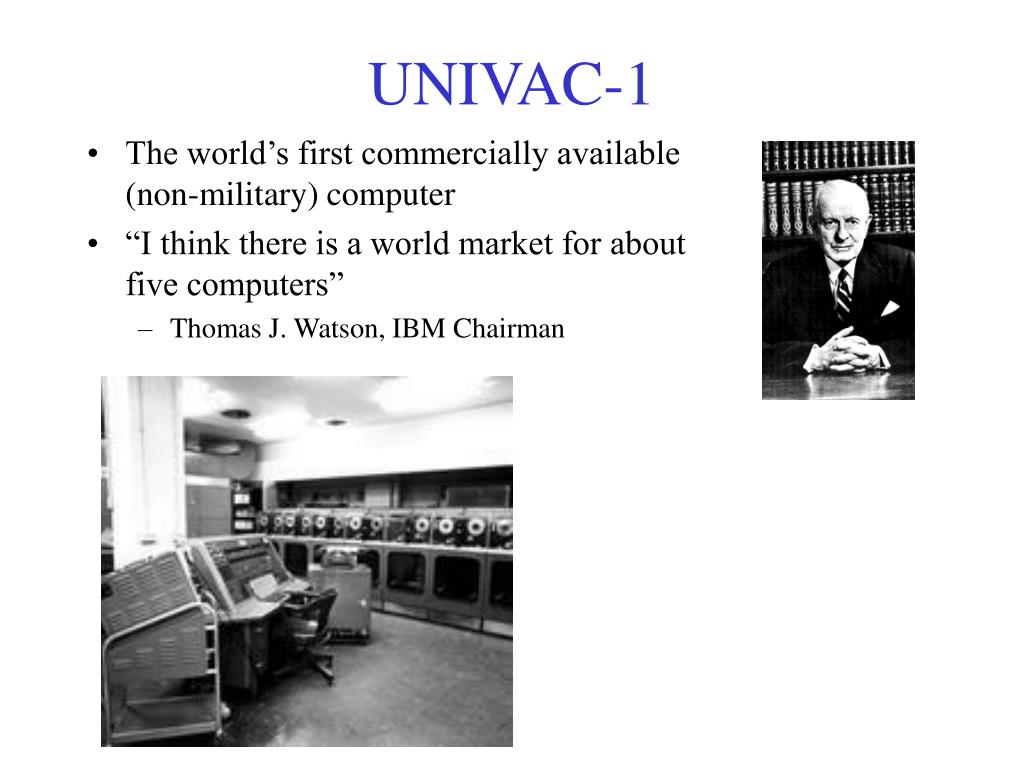

  20. UNIVAC-1 • The world’s first commercially available (non-military) computer • “I think there is a world market for about five computers” • Thomas J. Watson, IBM Chairman

  21. TransistorsGeneration 2 • Transistors replace vacuum tubes • Size and cost decreased, speed increased • 1960’s IBM sells large mainframe computers to businesses • Mainframes run operating systems that allow many dumb terminals to be attached • Typical business applications are custom written and run in batch mode

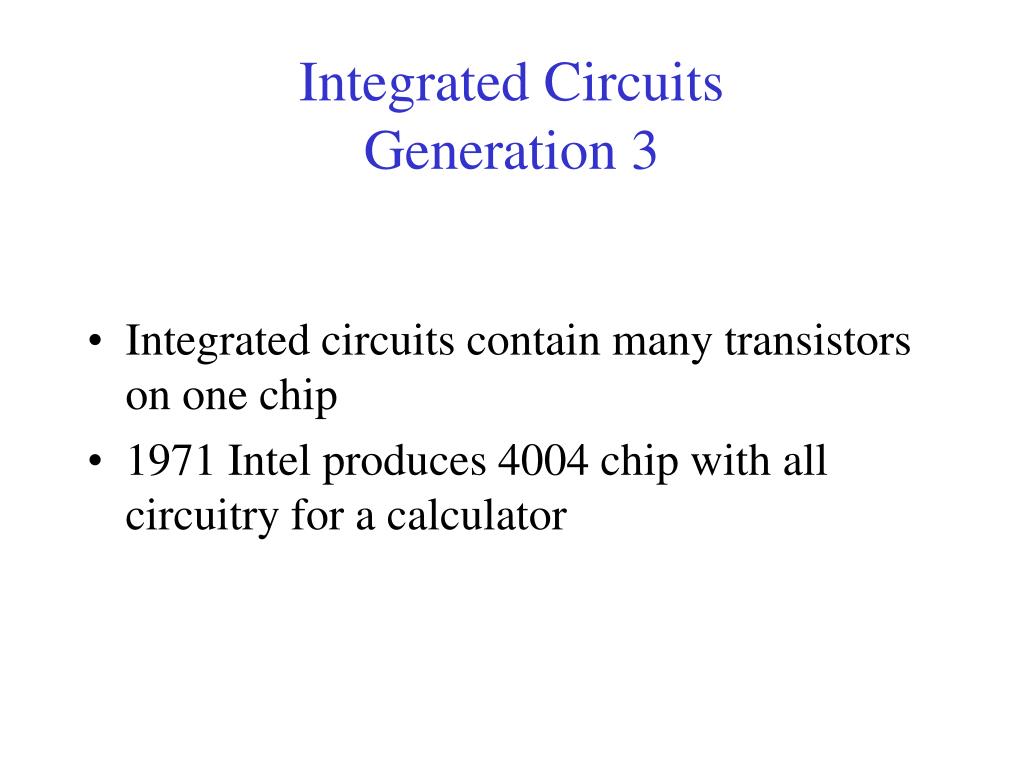

  22. Integrated CircuitsGeneration 3 • Integrated circuits contain many transistors on one chip • 1971 Intel produces 4004 chip with all circuitry for a calculator

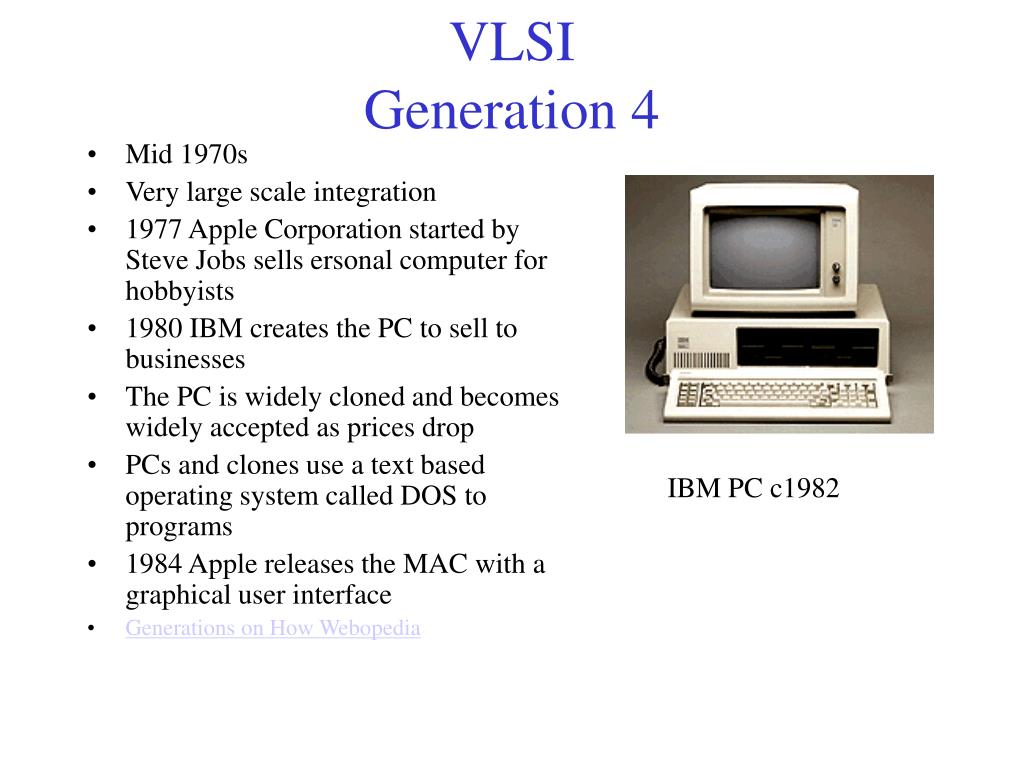

  23. VLSI Generation 4 • Mid 1970s • Very large scale integration • 1977 Apple Corporation started by Steve Jobs sells ersonal computer for hobbyists • 1980 IBM creates the PC to sell to businesses • The PC is widely cloned and becomes widely accepted as prices drop • PCs and clones use a text based operating system called DOS to programs • 1984 Apple releases the MAC with a graphical user interface • Generations on How Webopedia IBM PC c1982

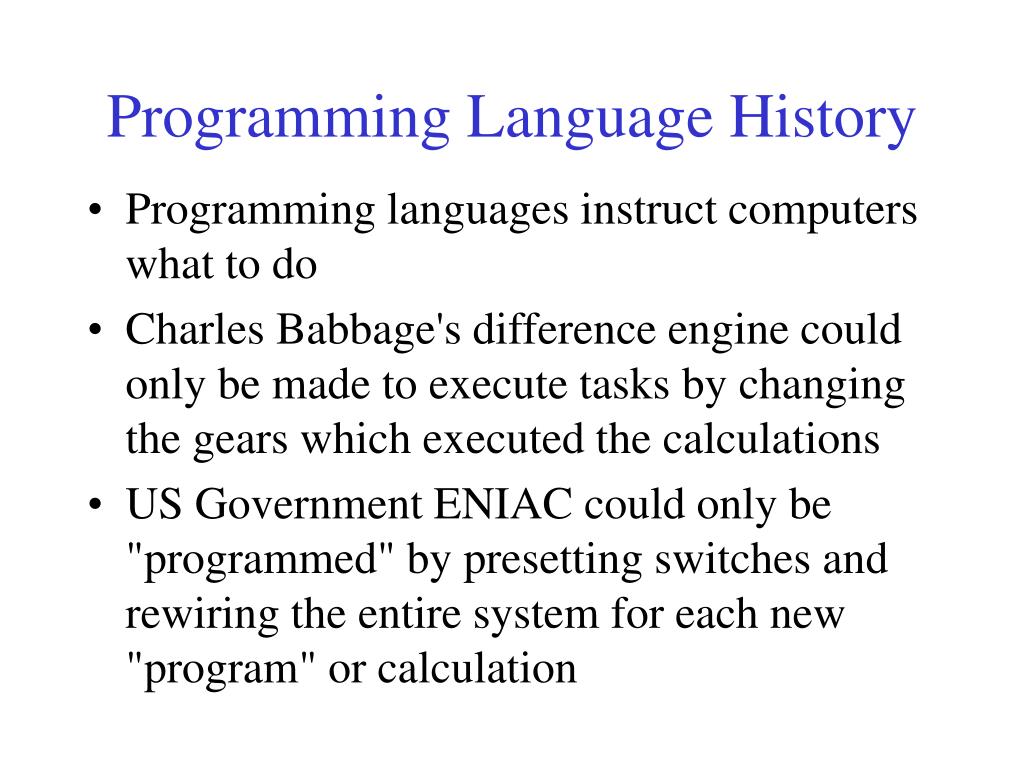

  24. Programming Language History • Programming languages instruct computers what to do • Charles Babbage's difference engine could only be made to execute tasks by changing the gears which executed the calculations • US Government ENIAC could only be "programmed" by presetting switches and rewiring the entire system for each new "program" or calculation

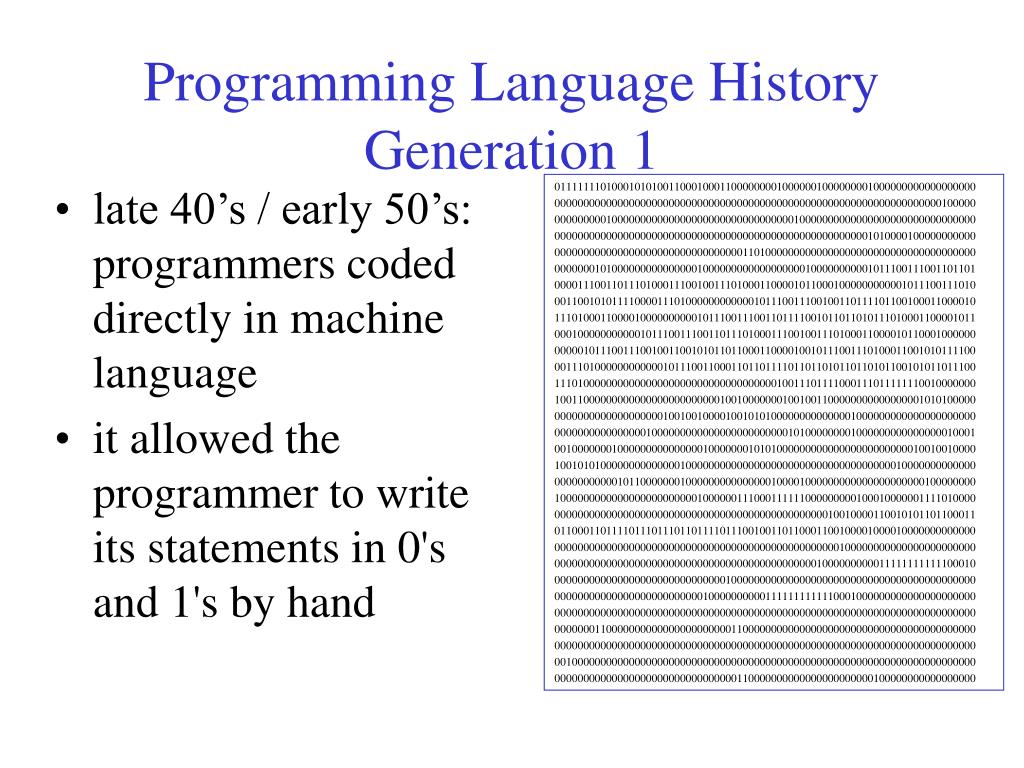

  25. Programming Language HistoryGeneration 1 • late 40’s / early 50’s: programmers coded directly in machine language • it allowed the programmer to write its statements in 0's and 1's by hand 01111111010001010100110001000110000000010000001000000001000000000000000000 00000000000000000000000000000000000000000000000000000000000000000000100000 00000000010000000000000000000000000000000010000000000000000000000000000000 00000000000000000000000000000000000000000000000000000001010000100000000000 00000000000000000000000000000000011010000000000000000000000000000000000000 00000001010000000000000001000000000000000000100000000001011100111001101101 00001110011011101000111001001110100011000010110001000000000001011100111010 00110010101111000011101000000000000101110011100100110111101100100011000010 11101000110000100000000001011100111001101111001011011010111010001100001011 00010000000000010111001110011011101000111001001110100011000010110001000000 00000101110011100100110010101101100011000010010111001110100011001010111100 00111010000000000001011100110001101101111011011010110110101100101011011100 11101000000000000000000000000000000000010011101111000111011111110010000000 10011000000000000000000000000100100000001001001100000000000000001010100000 00000000000000000001001001000010010101000000000000001000000000000000000000 00000000000000001000000000000000000000000101000000001000000000000000010001 00100000001000000000000000100000001010100000000000000000000000010010010000 10010101000000000000001000000000000000000000000000000000000010000000000000 00000000000101100000001000000000000000100001000000000000000000000100000000 10000000000000000000000001000000111000111111000000000100010000001111010000 00000000000000000000000000000000000000000000000010010000110010101101100011 01100011011110111011101101111011100100110110001100100001000010000000000000 00000000000000000000000000000000000000000000000000100000000000000000000000 00000000000000000000000000000000000000000000001000000000011111111111100010 00000000000000000000000000000010000000000000000000000000000000000000000000 00000000000000000000000000100000000001111111111110001000000000000000000000 00000000000000000000000000000000000000000000000000000000000000000000000000 00000001100000000000000000000001100000000000000000000000000000000000000000 00000000000000000000000000000000000000000000000000000000000000000000000000 00100000000000000000000000000000000000000000000000000000000000000000000000 00000000000000000000000000000000110000000000000000000000100000000000000000

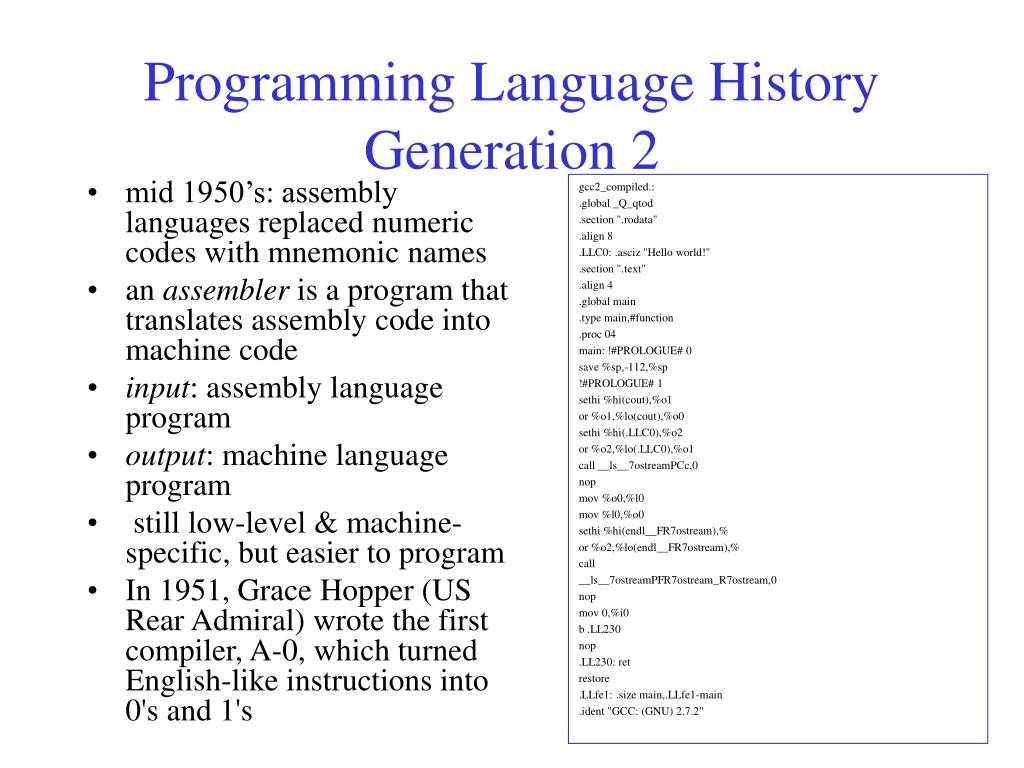

  26. Programming Language HistoryGeneration 2 • mid 1950’s: assembly languages replaced numeric codes with mnemonic names • an assembler is a program that translates assembly code into machine code • input: assembly language program • output: machine language program • still low-level & machine-specific, but easier to program • In 1951, Grace Hopper (US Rear Admiral) wrote the first compiler, A-0, which turned English-like instructions into 0's and 1's gcc2_compiled.: .global _Q_qtod .section ".rodata" .align 8 .LLC0: .asciz "Hello world!" .section ".text" .align 4 .global main .type main,#function .proc 04 main: !#PROLOGUE# 0 save %sp,-112,%sp !#PROLOGUE# 1 sethi %hi(cout),%o1 or %o1,%lo(cout),%o0 sethi %hi(.LLC0),%o2 or %o2,%lo(.LLC0),%o1 call __ls__7ostreamPCc,0 nop mov %o0,%l0 mov %l0,%o0 sethi %hi(endl__FR7ostream),% or %o2,%lo(endl__FR7ostream),% call __ls__7ostreamPFR7ostream_R7ostream,0 nop mov 0,%i0 b .LL230 nop .LL230: ret restore .LLfe1: .size main,.LLfe1-main .ident "GCC: (GNU) 2.7.2"

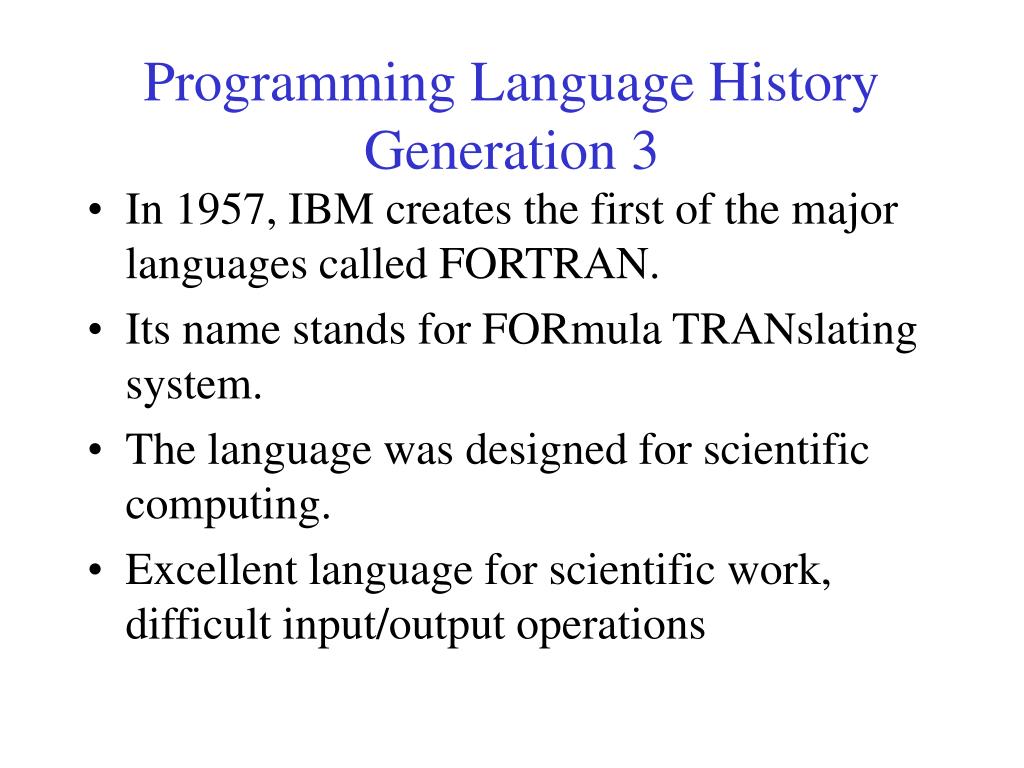

  27. Programming Language HistoryGeneration 3 • In 1957, IBM creates the first of the major languages called FORTRAN. • Its name stands for FORmula TRANslating system. • The language was designed for scientific computing. • Excellent language for scientific work, difficult input/output operations

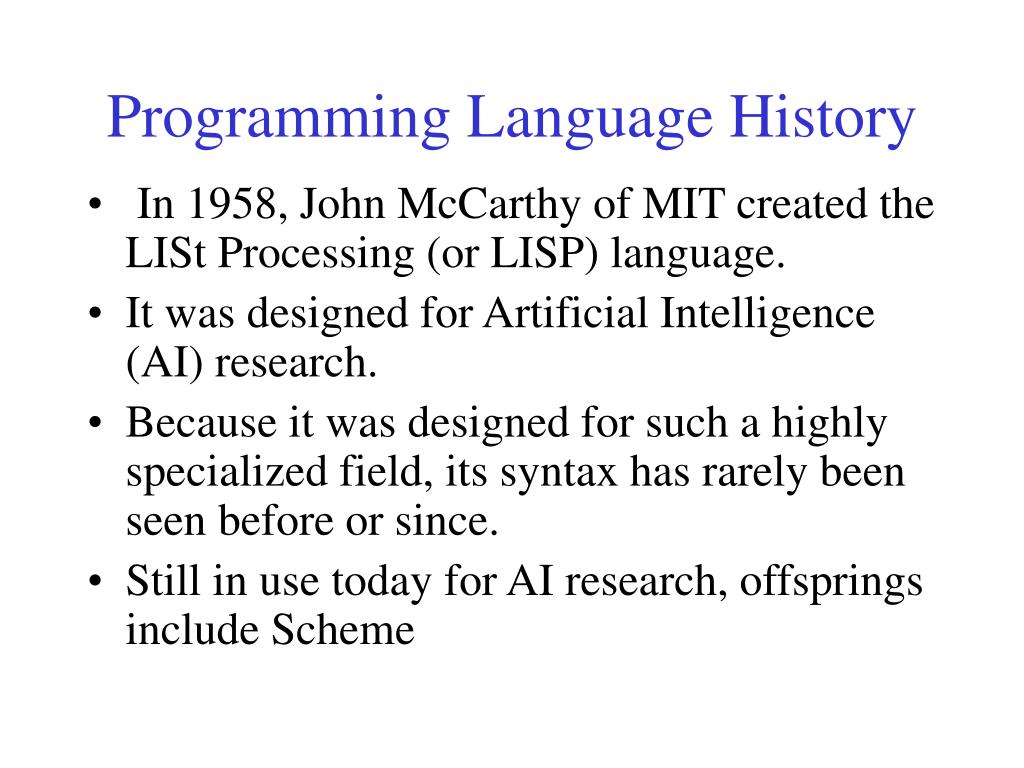

  28. Programming Language History •  In 1958, John McCarthy of MIT created the LISt Processing (or LISP) language. • It was designed for Artificial Intelligence (AI) research. • Because it was designed for such a highly specialized field, its syntax has rarely been seen before or since. • Still in use today for AI research, offsprings include Scheme

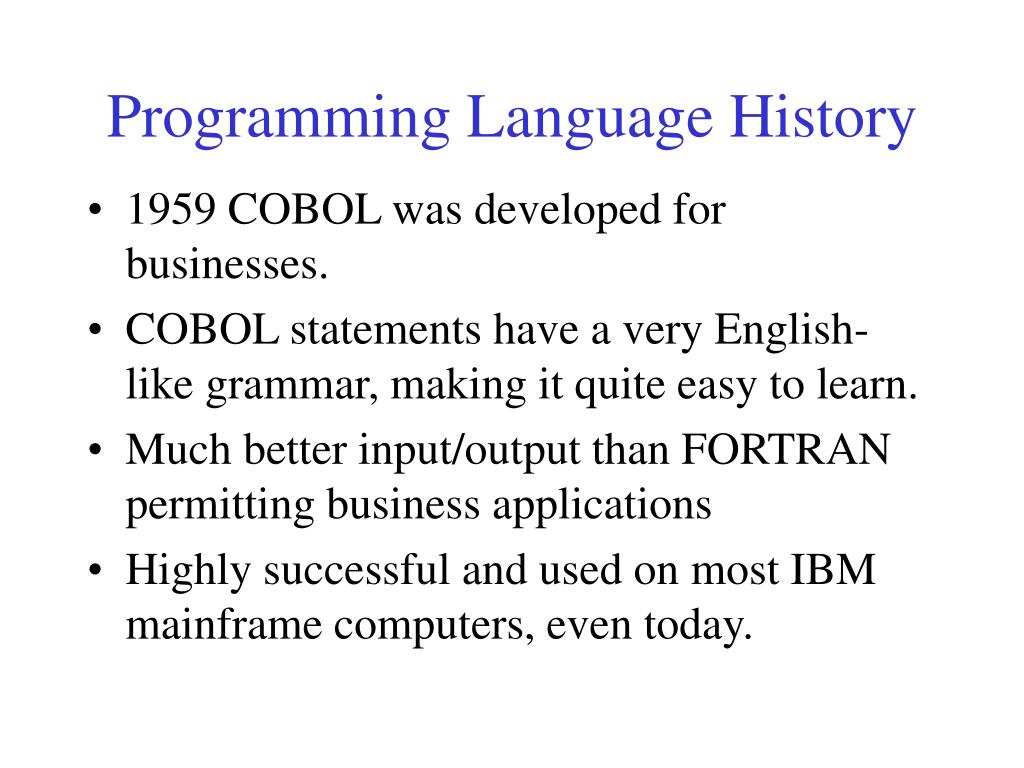

  29. Programming Language History • 1959 COBOL was developed for businesses. • COBOL statements have a very English-like grammar, making it quite easy to learn. • Much better input/output than FORTRAN permitting business applications • Highly successful and used on most IBM mainframe computers, even today.

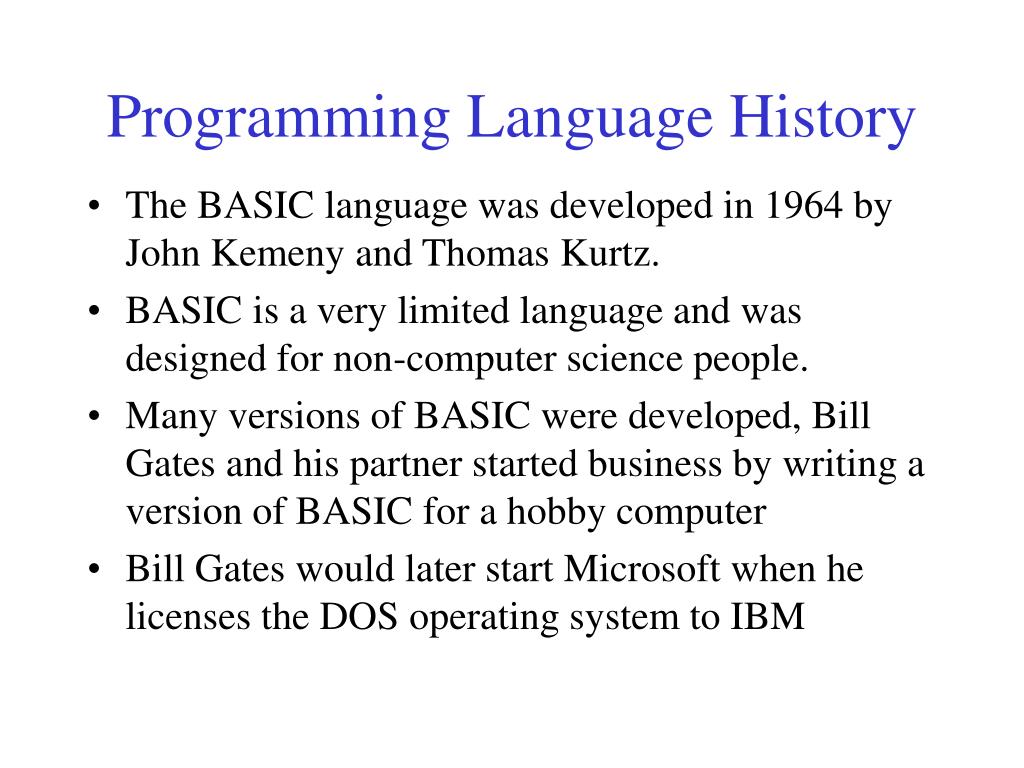

  30. Programming Language History • The BASIC language was developed in 1964 by John Kemeny and Thomas Kurtz. • BASIC is a very limited language and was designed for non-computer science people. • Many versions of BASIC were developed, Bill Gates and his partner started business by writing a version of BASIC for a hobby computer • Bill Gates would later start Microsoft when he licenses the DOS operating system to IBM

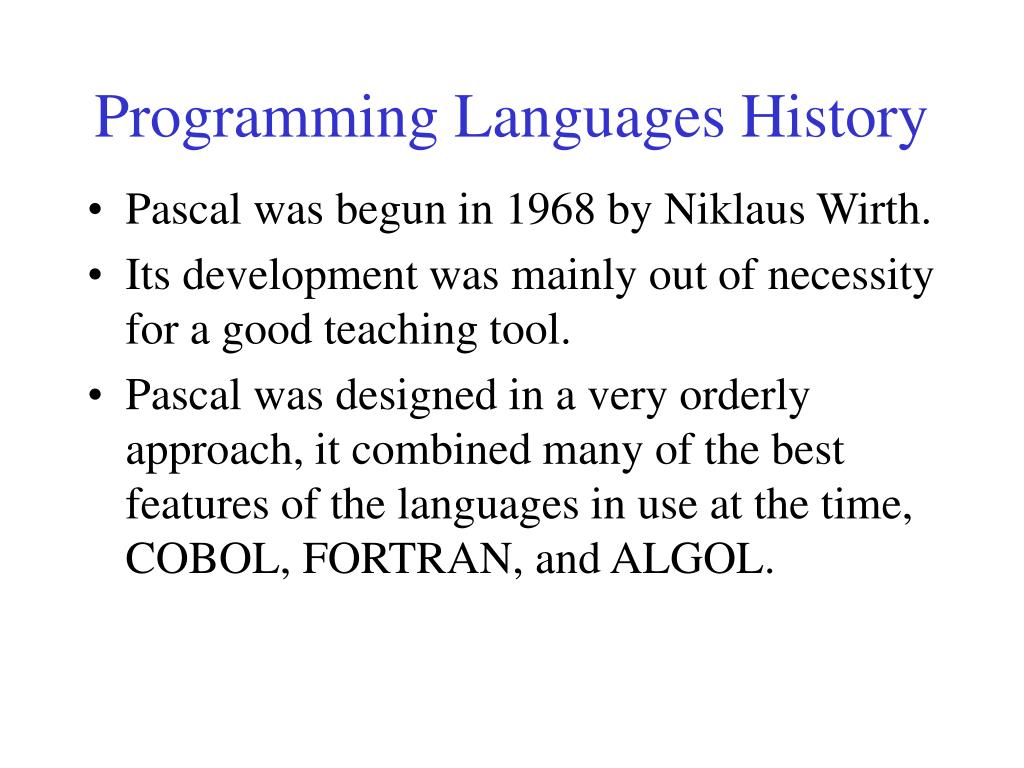

  31. Programming Languages History • Pascal was begun in 1968 by Niklaus Wirth. • Its development was mainly out of necessity for a good teaching tool. • Pascal was designed in a very orderly approach, it combined many of the best features of the languages in use at the time, COBOL, FORTRAN, and ALGOL.

  32. Programming Language History •  C was developed in 1972 by Dennis Ritchie while working at Bell Labs in New Jersey. • The transition in usage from the first major languages to the major languages of today occurred with the transition between Pascal and C. • C was built to be fast and powerful at the expense of being hard to read. • Ritchie developed C for the new Unix system being created at the same time. • C is very commonly used to program operating systems such as Unix, Windows, the MacOS, and Linux.

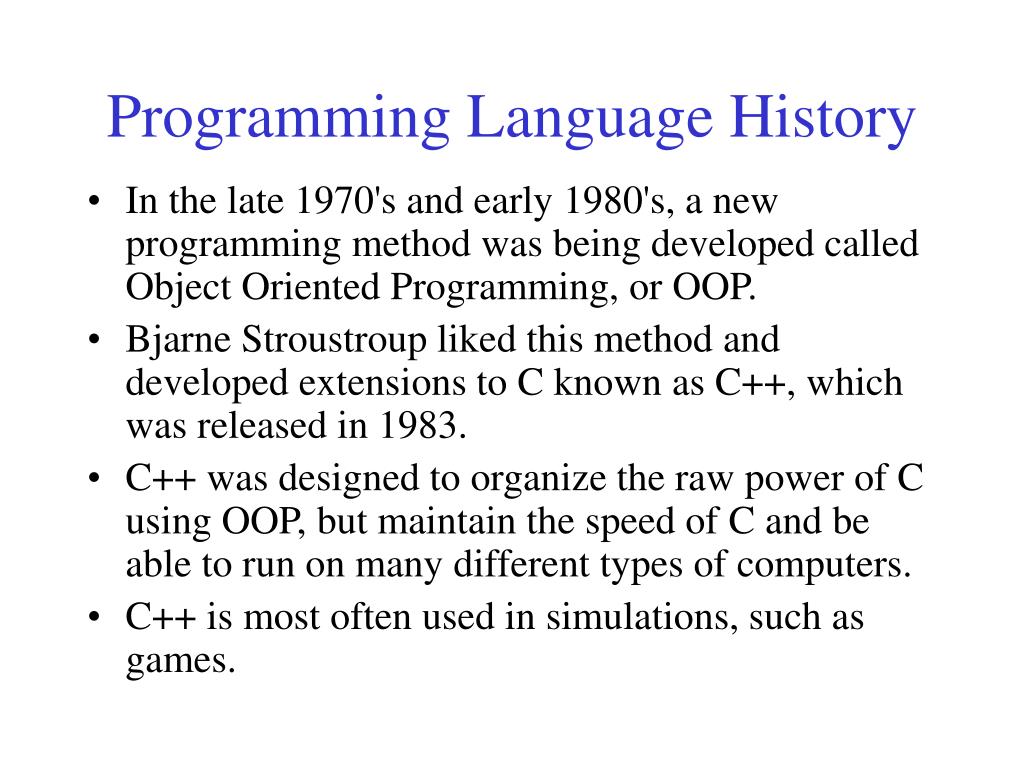

  33. Programming Language History • In the late 1970's and early 1980's, a new programming method was being developed called Object Oriented Programming, or OOP. • Bjarne Stroustroup liked this method and developed extensions to C known as C++, which was released in 1983. • C++ was designed to organize the raw power of C using OOP, but maintain the speed of C and be able to run on many different types of computers. • C++ is most often used in simulations, such as games.

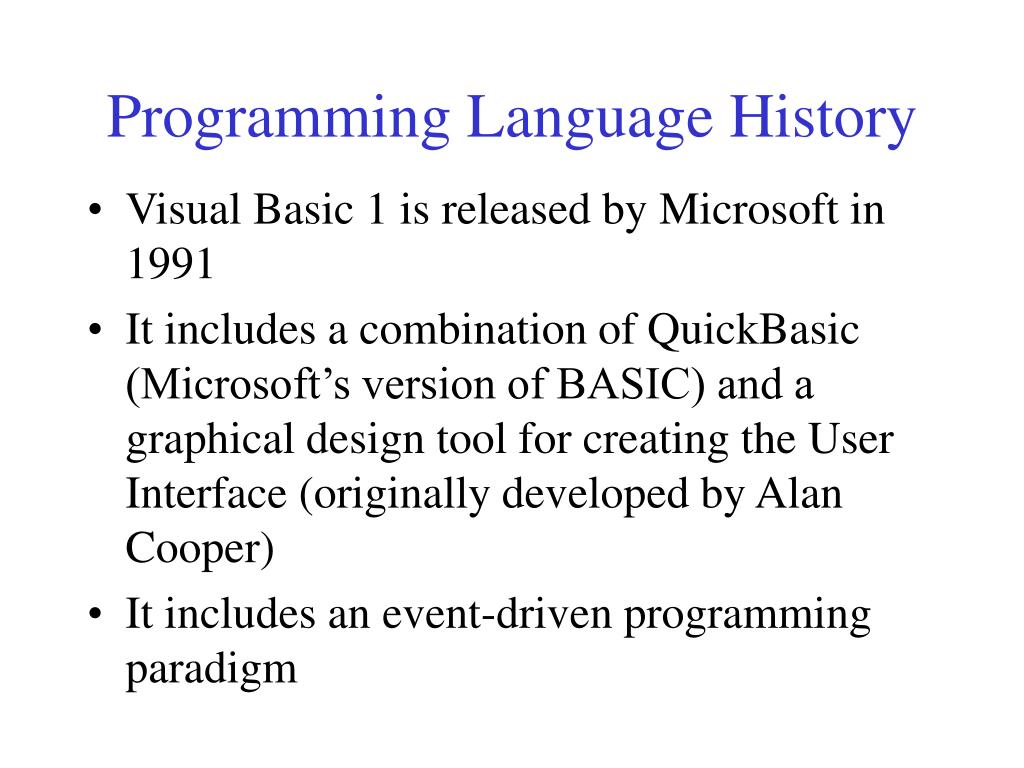

  34. Programming Language History • Visual Basic 1 is released by Microsoft in 1991 • It includes a combination of QuickBasic (Microsoft’s version of BASIC) and a graphical design tool for creating the User Interface (originally developed by Alan Cooper) • It includes an event-driven programming paradigm

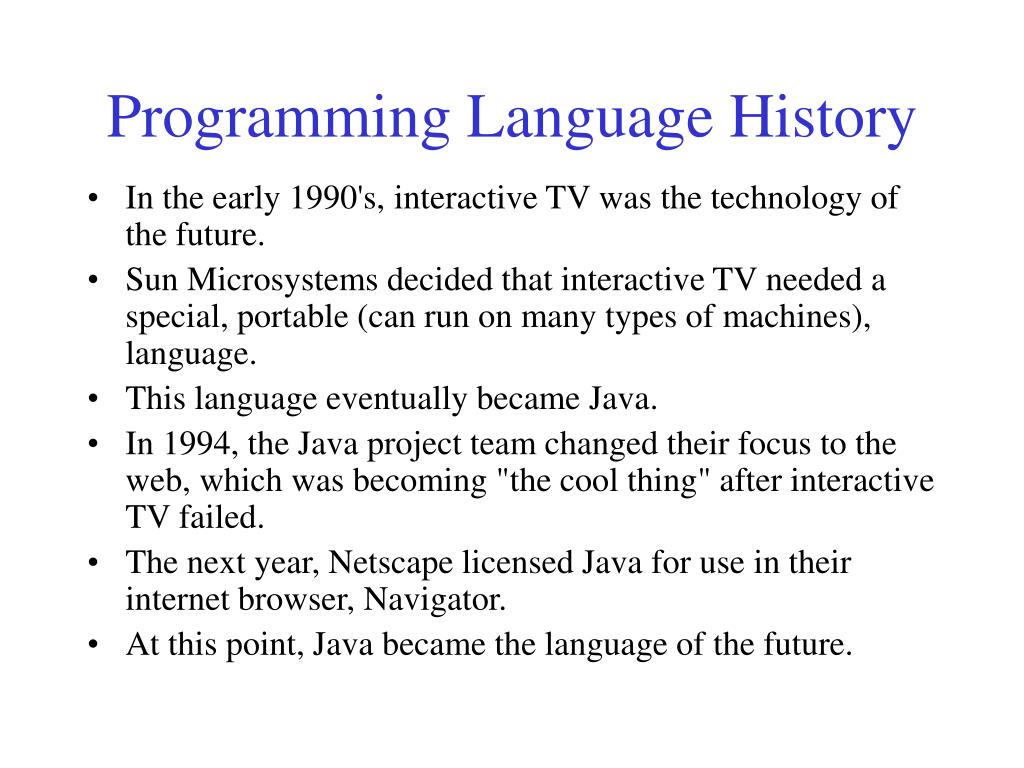

  35. Programming Language History • In the early 1990's, interactive TV was the technology of the future. • Sun Microsystems decided that interactive TV needed a special, portable (can run on many types of machines), language. • This language eventually became Java. • In 1994, the Java project team changed their focus to the web, which was becoming "the cool thing" after interactive TV failed. • The next year, Netscape licensed Java for use in their internet browser, Navigator. • At this point, Java became the language of the future.

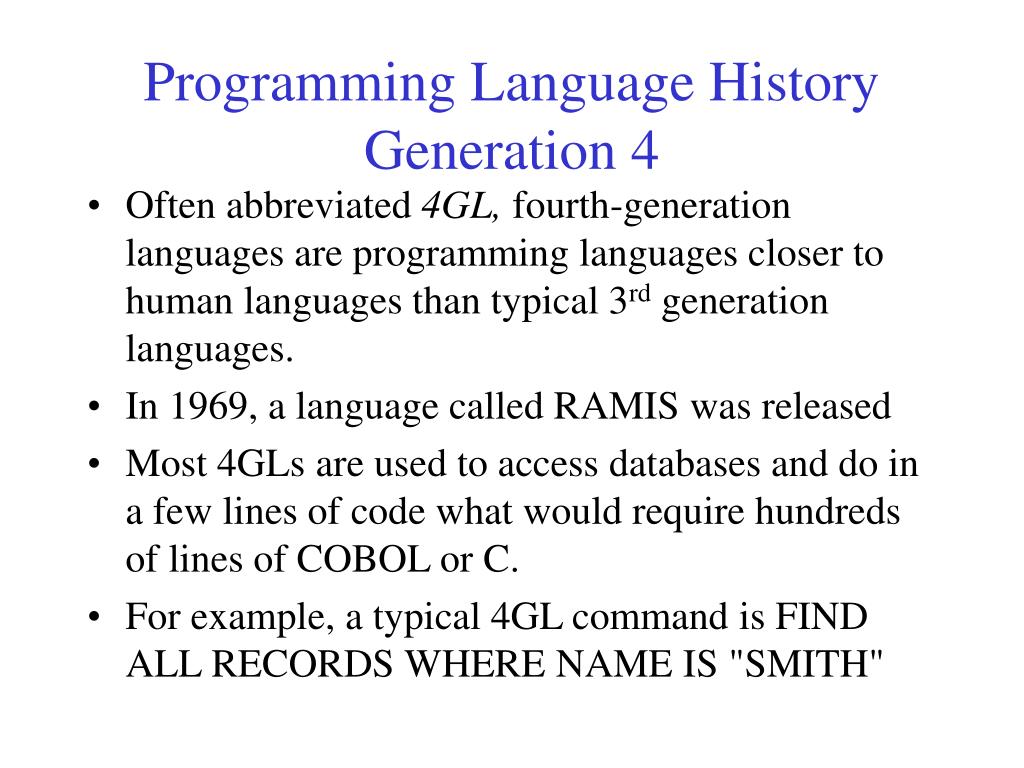

  36. Programming Language HistoryGeneration 4 • Often abbreviated 4GL, fourth-generation languages are programming languages closer to human languages than typical 3rd generation languages. • In 1969, a language called RAMIS was released • Most 4GLs are used to access databases and do in a few lines of code what would require hundreds of lines of COBOL or C. • For example, a typical 4GL command is FIND ALL RECORDS WHERE NAME IS "SMITH"
