  1. GCSS-GPCI / BLCL-RICO 18-21 sept 2006 On the use of the GPCI for the tuning and the validation of the new ARPEGE GCM’s physics P. Marquet,CNRM. Toulouse. Météo-France. + ARPEGE CLIMATE & N.W.P. team + Meso-Scale CNRM team + ENM (School of Met.) + CERFACS + IPSL-LMD … (20-sept-2006)

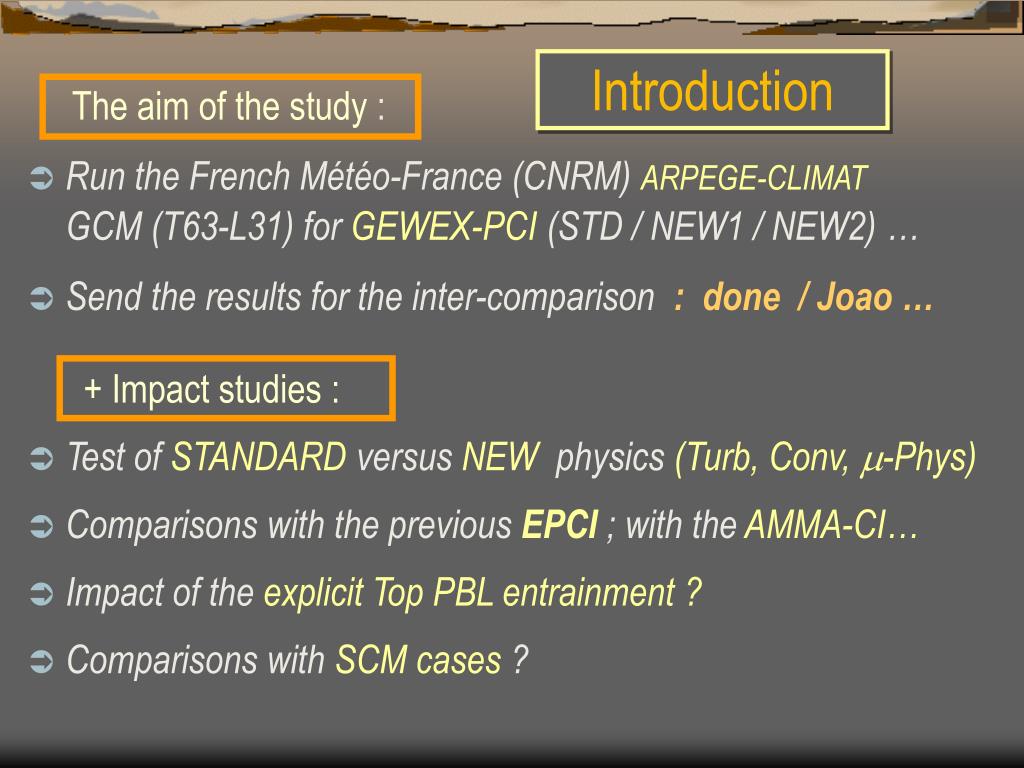

  2. Introduction The aim of the study : • Run the French Météo-France (CNRM) ARPEGE-CLIMAT GCM (T63-L31) for GEWEX-PCI (STD / NEW1 / NEW2) … • Send the results for the inter-comparison : done / Joao … + Impact studies : • Test of STANDARD versus NEW physics (Turb, Conv,-Phys) • Comparisons with the previous EPCI ; with the AMMA-CI… • Impact of the explicit Top PBL entrainment ? • Comparisons with SCM cases ?

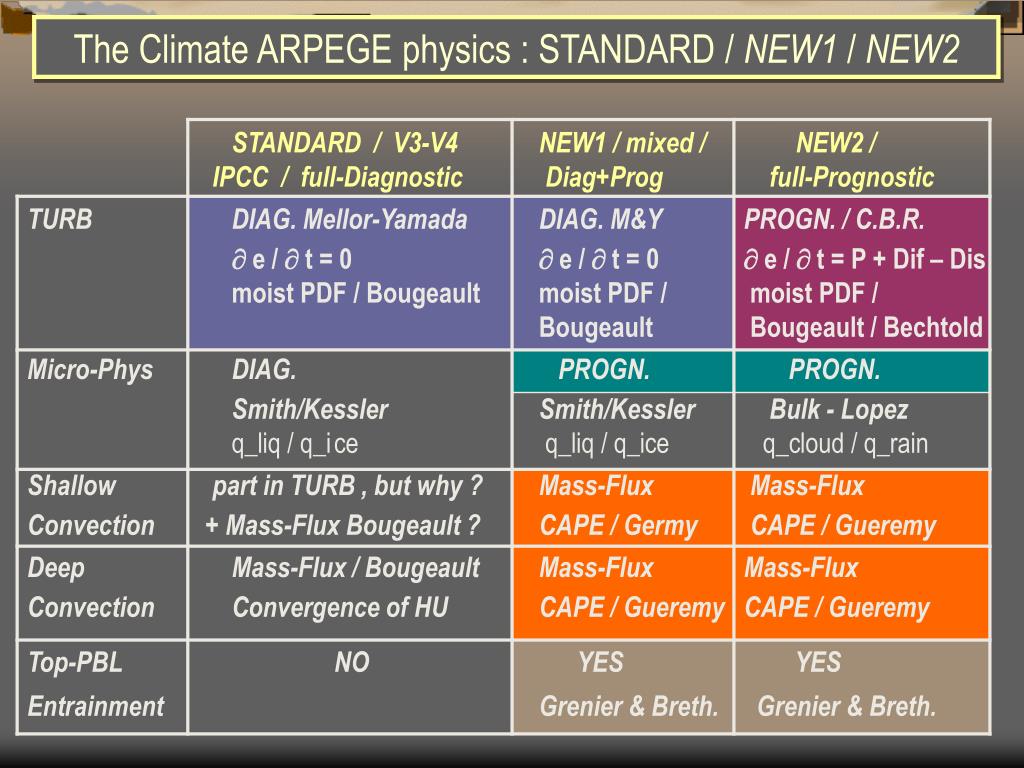

  3. The Climate ARPEGE physics : STANDARD / NEW1 / NEW2 STANDARD / V3-V4 NEW1 / mixed / NEW2 / IPCC / full-Diagnostic Diag+Prog full-Prognostic TURB DIAG. Mellor-Yamada DIAG. M&Y PROGN. / C.B.R.  e /  t = 0  e /  t = 0  e /  t = P + Dif – Dis moist PDF / Bougeault moist PDF / moist PDF / Bougeault Bougeault / Bechtold Micro-Phys DIAG. PROGN. PROGN. Smith/Kessler Smith/Kessler Bulk - Lopez q_liq / q_i ce q_liq / q_ice q_cloud / q_rain Shallow part in TURB , but why ? Mass-Flux Mass-Flux Convection + Mass-Flux Bougeault ? CAPE / Germy CAPE / Gueremy Deep Mass-Flux / Bougeault Mass-Flux Mass-Flux Convection Convergence of HU CAPE / Gueremy CAPE / Gueremy Top-PBL NO YES YES Entrainment Grenier & Breth. Grenier & Breth.

  4. Equator GPCI =GewexPacificCross-sectionIntercomparison U.S.A Sc/St 1st Cross Section Cu 2nd Cross Section Cb GCM runs Arpege / V4.5 : 2 years : 1998 and 2003 10 days of spin-up in June (lost) + JJA every 3 h NEW1 : TKE-GY + -phys-GY + CVGY + LPBLE / or not NEW2 : TKE-CBR + LOPEZ + CVGY + LPBLE / or not

  5. (b) L.W.P. (a) I.W.V. (c) C. C. (diag) (diag) Versus : SCM / EUROCS Cumulus (L40) EPCI =EurocsPacificCross-sectionIntercomparison

  6. ECMWF Arpege MPI JMA MetO RACMO HIRLAM KF HIRLAM ST ERA (3-6h) EPCI =EurocsPacificCross-sectionIntercomparison Cloud Cover

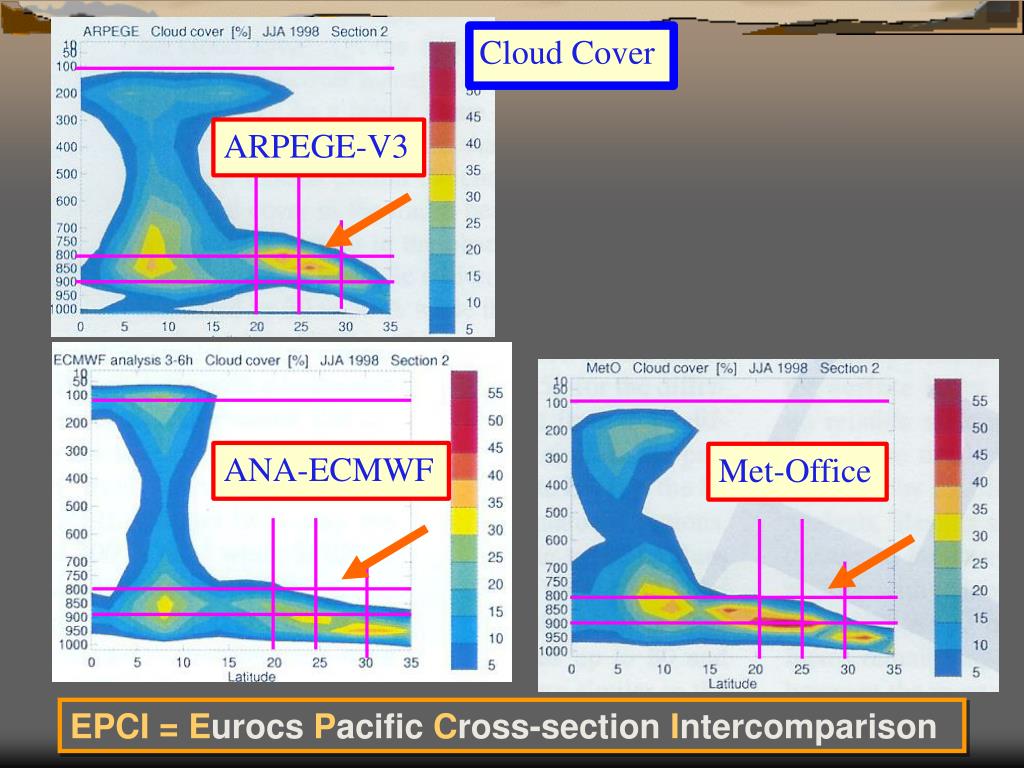

  7. ARPEGE-V3 Met-Office ANA-ECMWF Cloud Cover EPCI =EurocsPacificCross-sectionIntercomparison

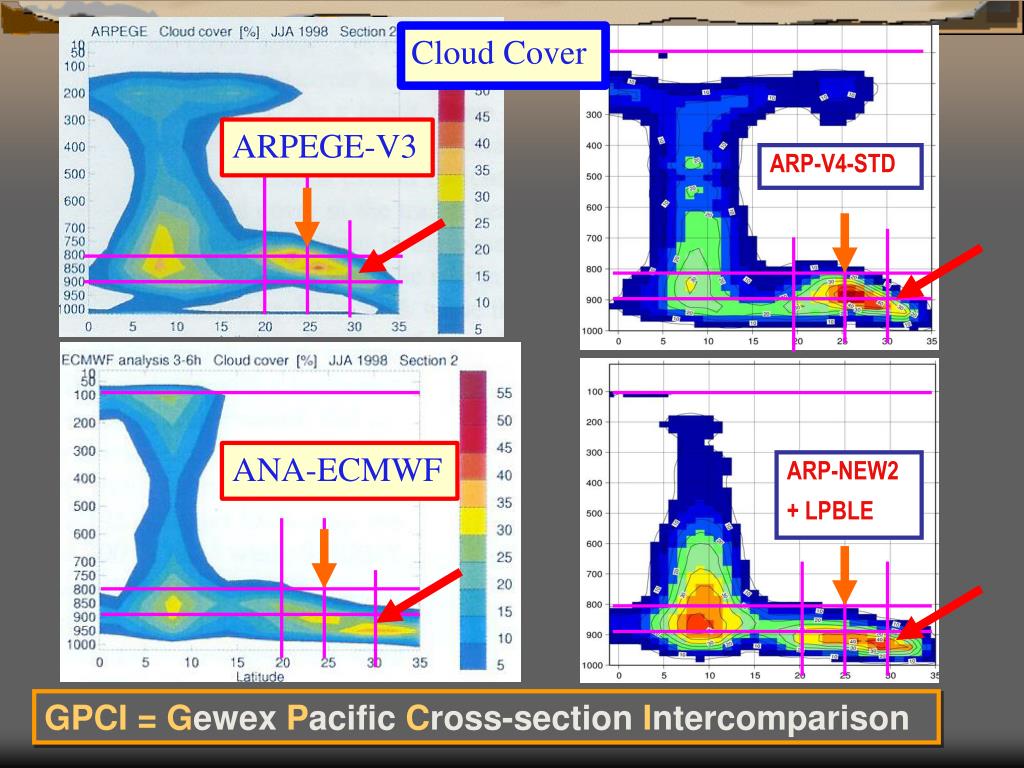

  8. ARP-NEW2 + LPBLE ANA-ECMWF ARPEGE-V3 ARP-V4-STD Cloud Cover GPCI =GewexPacificCross-sectionIntercomparison

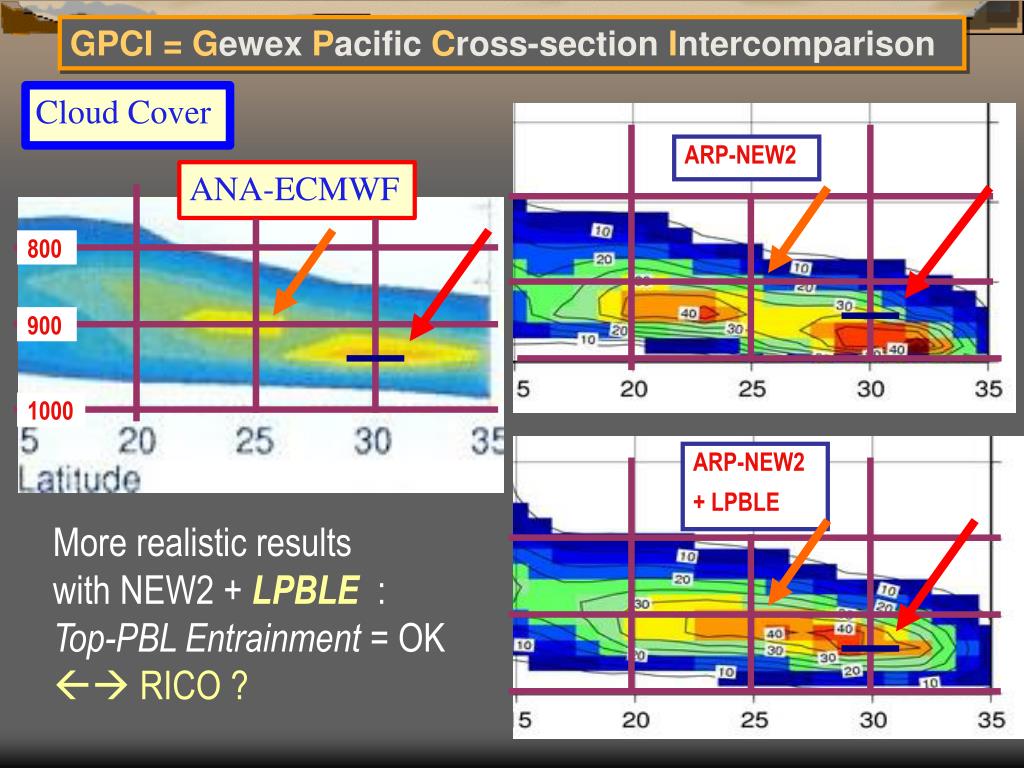

  9. ARP-NEW2 ANA-ECMWF 800 900 1000 ARP-NEW2 + LPBLE GPCI =GewexPacificCross-sectionIntercomparison Cloud Cover More realistic results with NEW2 + LPBLE : Top-PBL Entrainment = OK  RICO ?

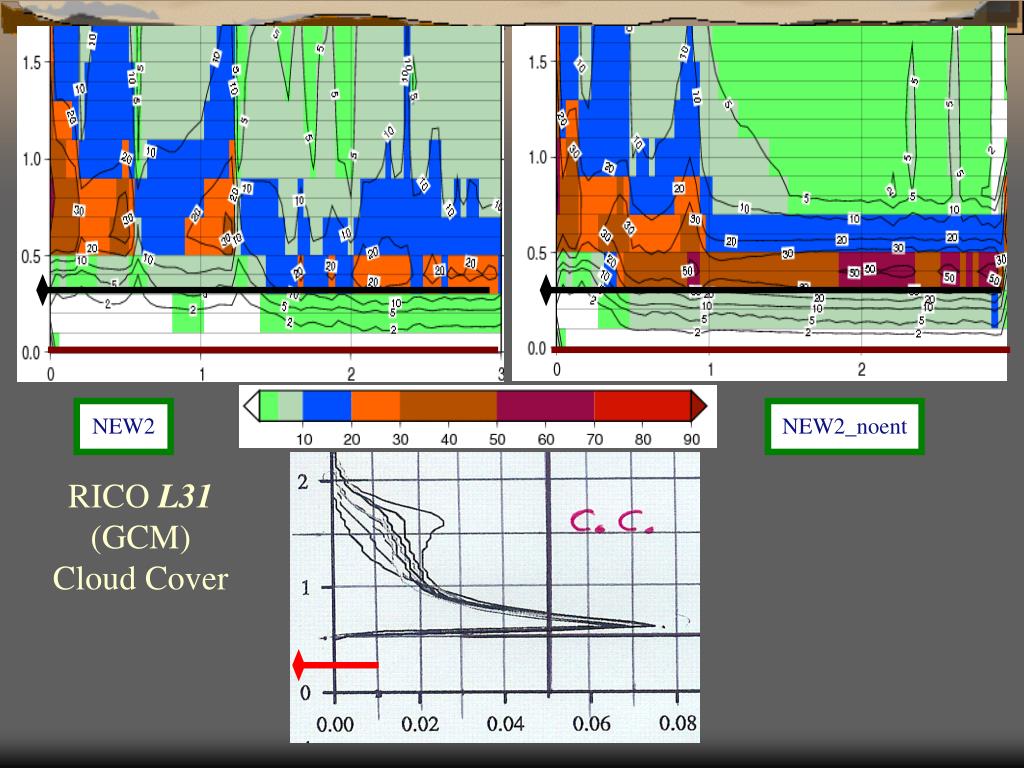

  10. NEW2 NEW2_noent RICO L31 (GCM) Cloud Cover

  11. More realistic results with NEW2 (+ LPBLE) ARP-NEW2 + LPBLE ARP-NEW2 GPCI =GewexPacificCross-sectionIntercomparison ARP-STD Athens (2005) : Pb OMEGA (Pa/s) !!

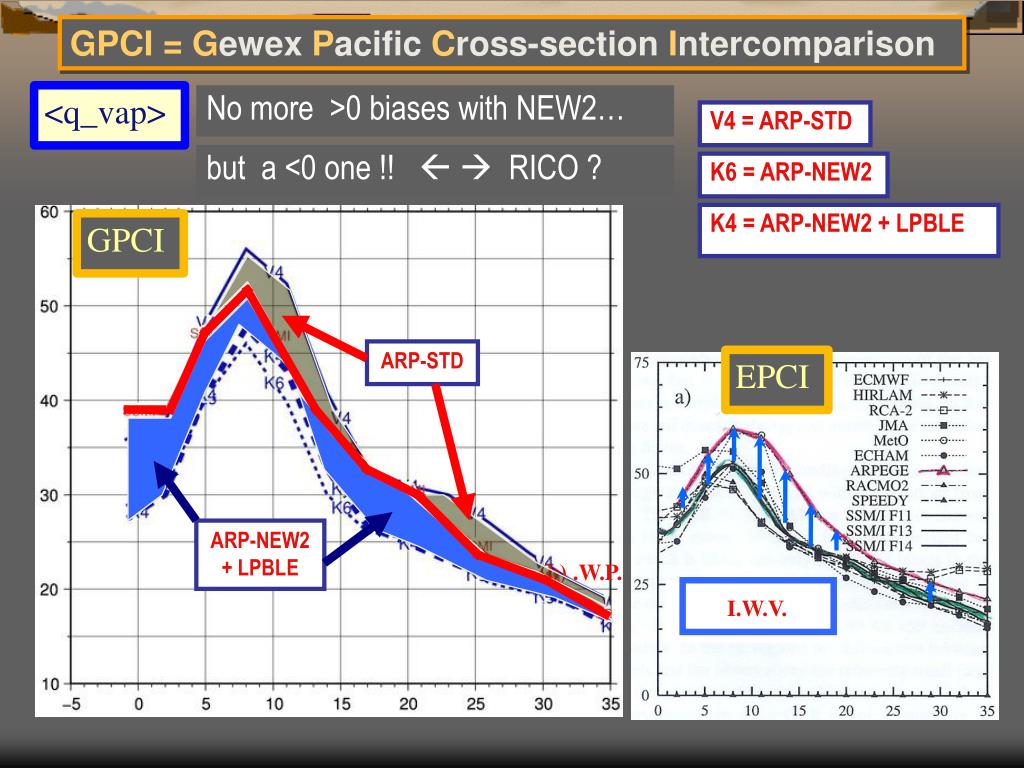

  12. No more >0 biases with NEW2… but a <0 one !!   RICO ? GPCI ARP-STD ARP-NEW2 + LPBLE (b) .W.P. GPCI =GewexPacificCross-sectionIntercomparison <q_vap> V4 = ARP-STD K6 = ARP-NEW2 K4 = ARP-NEW2 + LPBLE EPCI I.W.V.

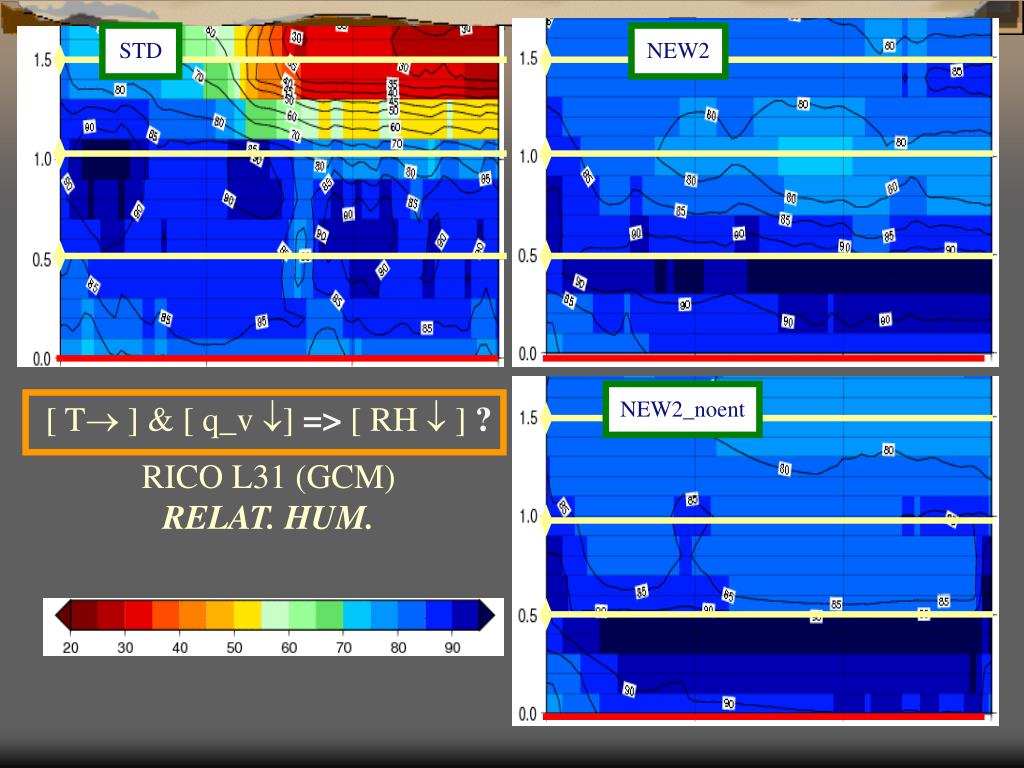

  13. STD NEW2 NEW2_noent [ T ] & [ q_v ] => [ RH  ]? RICO L31 (GCM) RELAT. HUM.

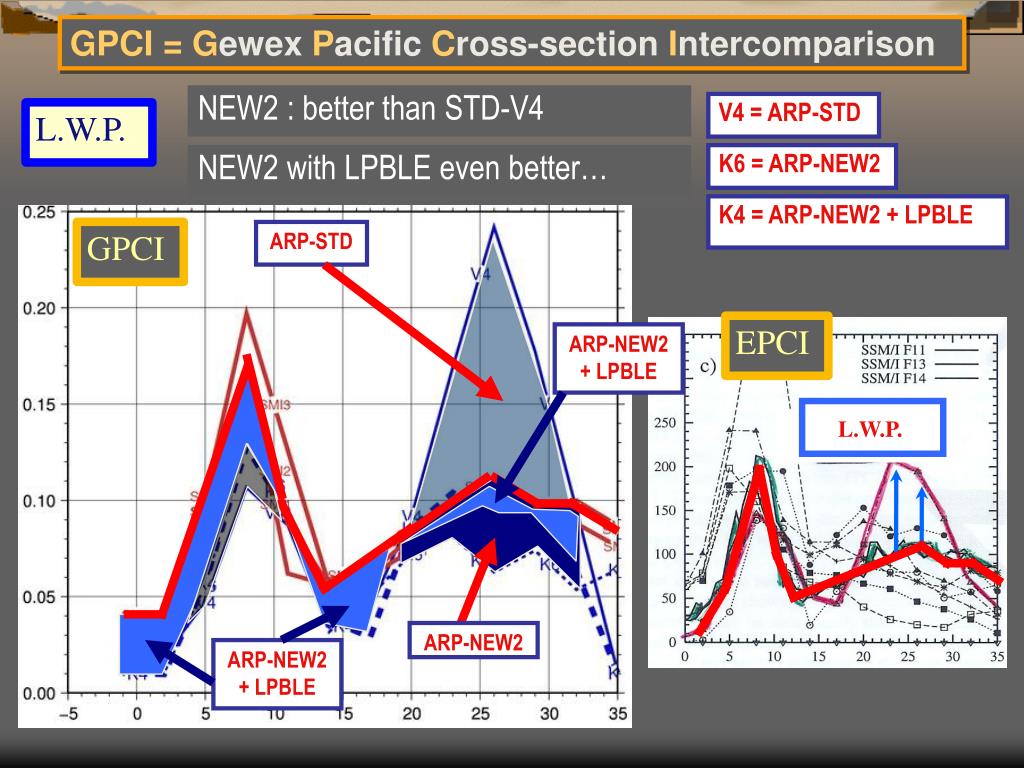

  14. NEW2 : better than STD-V4 NEW2 with LPBLE even better… GPCI ARP-STD ARP-NEW2 + LPBLE ARP-NEW2 ARP-NEW2 + LPBLE GPCI =GewexPacificCross-sectionIntercomparison V4 = ARP-STD L.W.P. K6 = ARP-NEW2 K4 = ARP-NEW2 + LPBLE EPCI L.W.P.

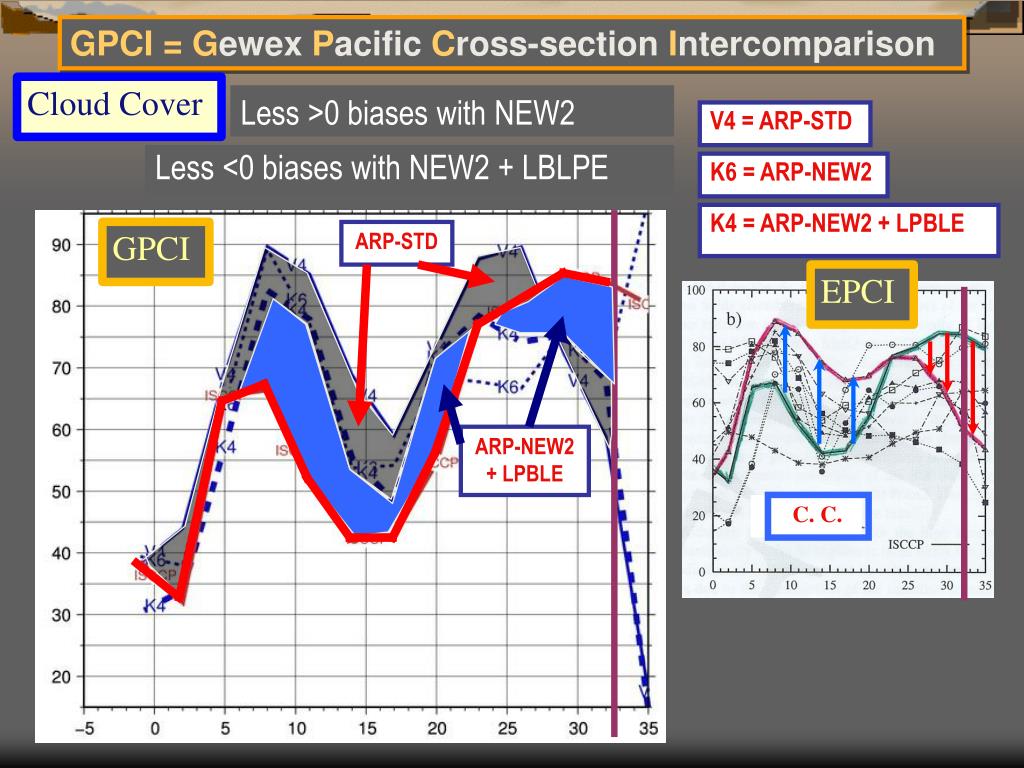

  15. GPCI ARP-STD ARP-NEW2 + LPBLE GPCI =GewexPacificCross-sectionIntercomparison Cloud Cover Less >0 biases with NEW2 V4 = ARP-STD Less <0 biases with NEW2 + LBLPE K6 = ARP-NEW2 K4 = ARP-NEW2 + LPBLE EPCI C. C.

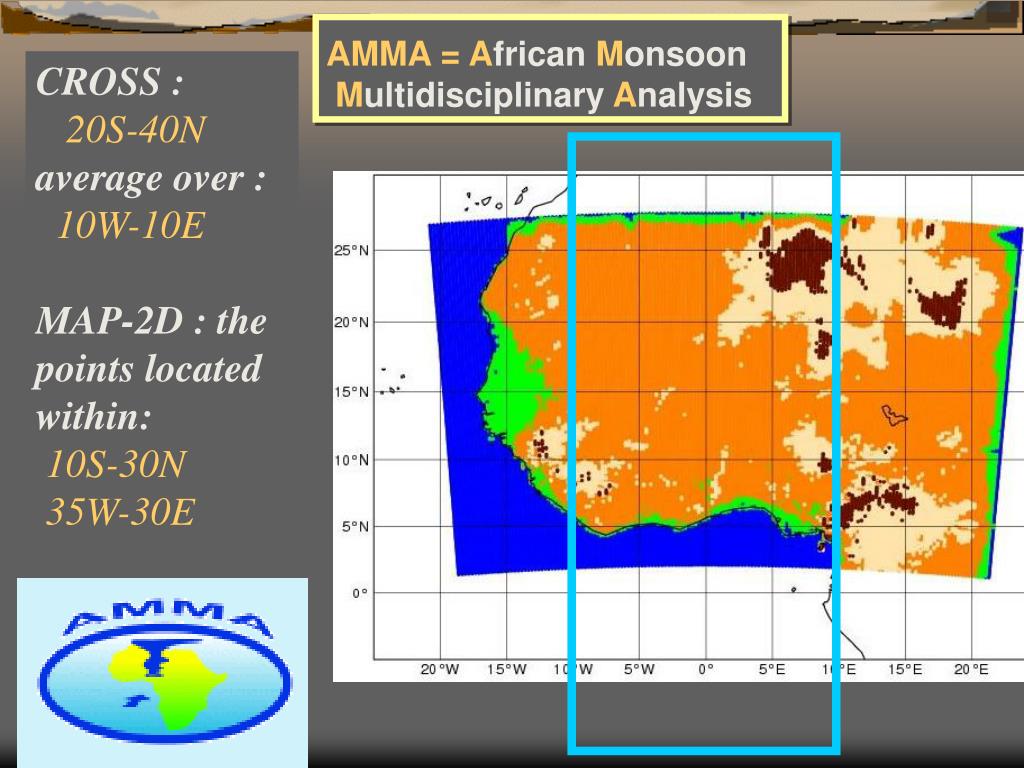

  16. CROSS : 20S-40N average over : 10W-10E MAP-2D : the points located within: 10S-30N 35W-30E AMMA =AfricanMonsoonMultidisciplinaryAnalysis

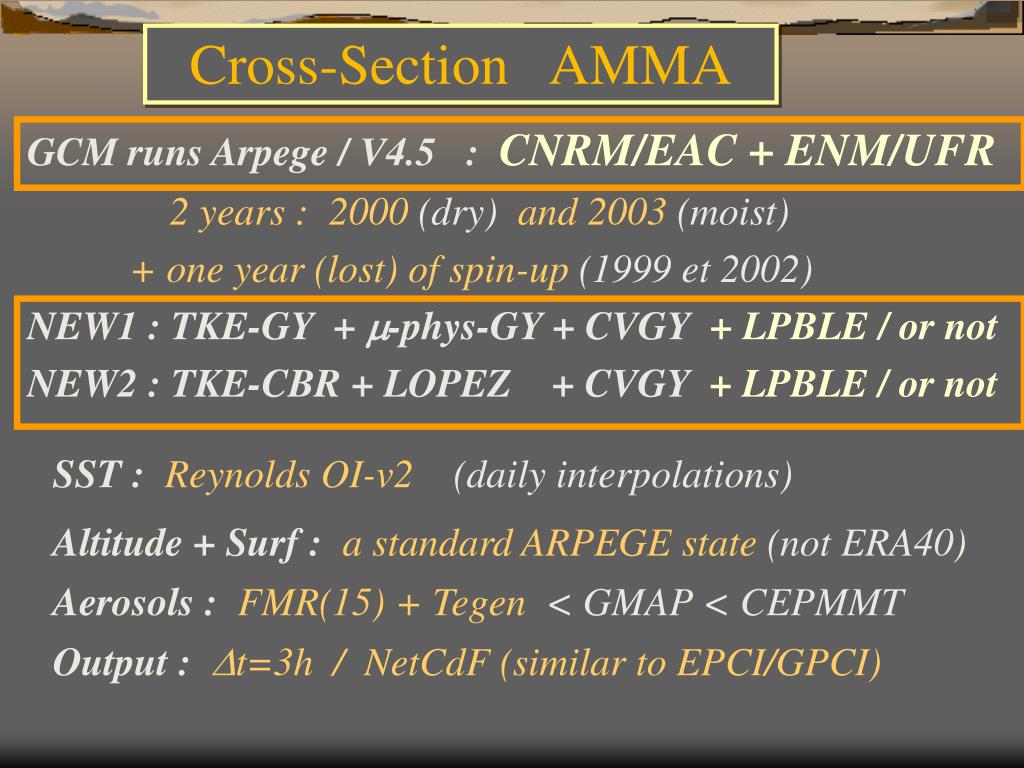

  17. Cross-Section AMMA GCM runs Arpege / V4.5 : CNRM/EAC + ENM/UFR 2 years : 2000 (dry) and 2003 (moist) + one year (lost) of spin-up (1999 et 2002) NEW1 : TKE-GY + -phys-GY + CVGY + LPBLE / or not NEW2 : TKE-CBR + LOPEZ + CVGY + LPBLE / or not SST : Reynolds OI-v2 (daily interpolations) Altitude + Surf : a standard ARPEGE state (not ERA40) Aerosols : FMR(15) + Tegen < GMAP < CEPMMT Output : t=3h / NetCdF (similar to EPCI/GPCI)

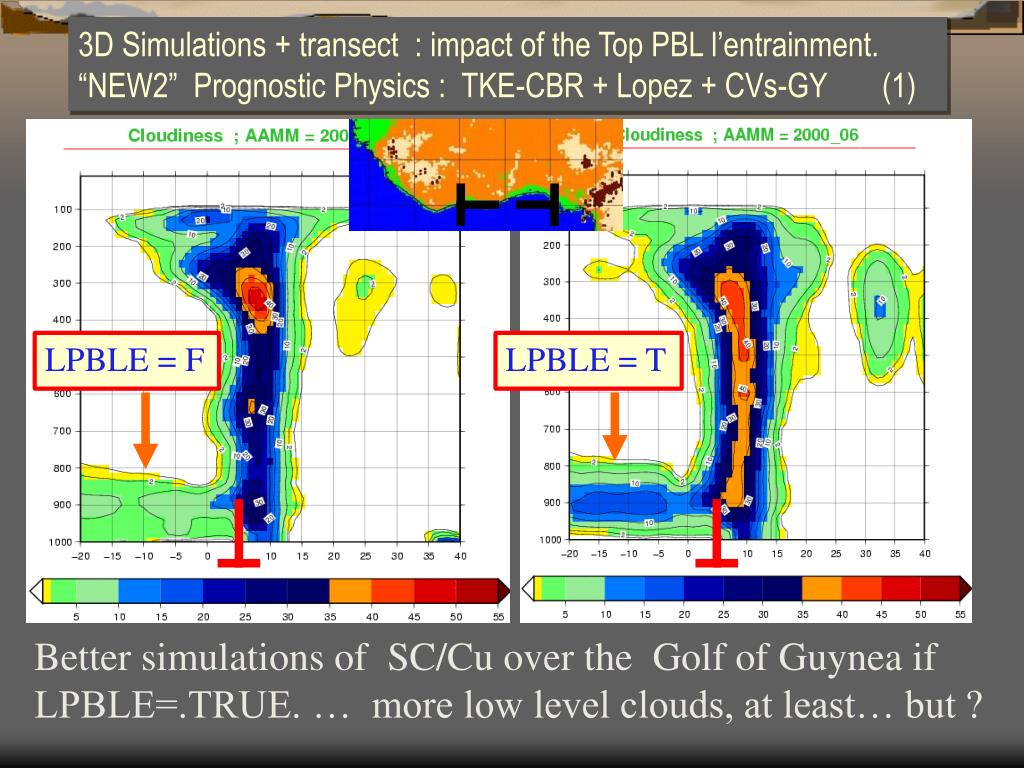

  18. 3D Simulations + transect : impact of the Top PBL l’entrainment. “NEW2” Prognostic Physics : TKE-CBR + Lopez + CVs-GY (1) LPBLE = F LPBLE = T Better simulations of SC/Cu over the Golf of Guynea if LPBLE=.TRUE. … more low level clouds, at least… but ?

  19. 3D Simulations + transect : impact of the Top PBL l’entrainment. “NEW2” Prognostic Physics : TKE-CBR + Lopez + CVs-GY (2) “Omega” : 2000-06 Re-analysis NMC : More realistic indeed with LPBLE=TRUE LPBLE = T LPBLE = F

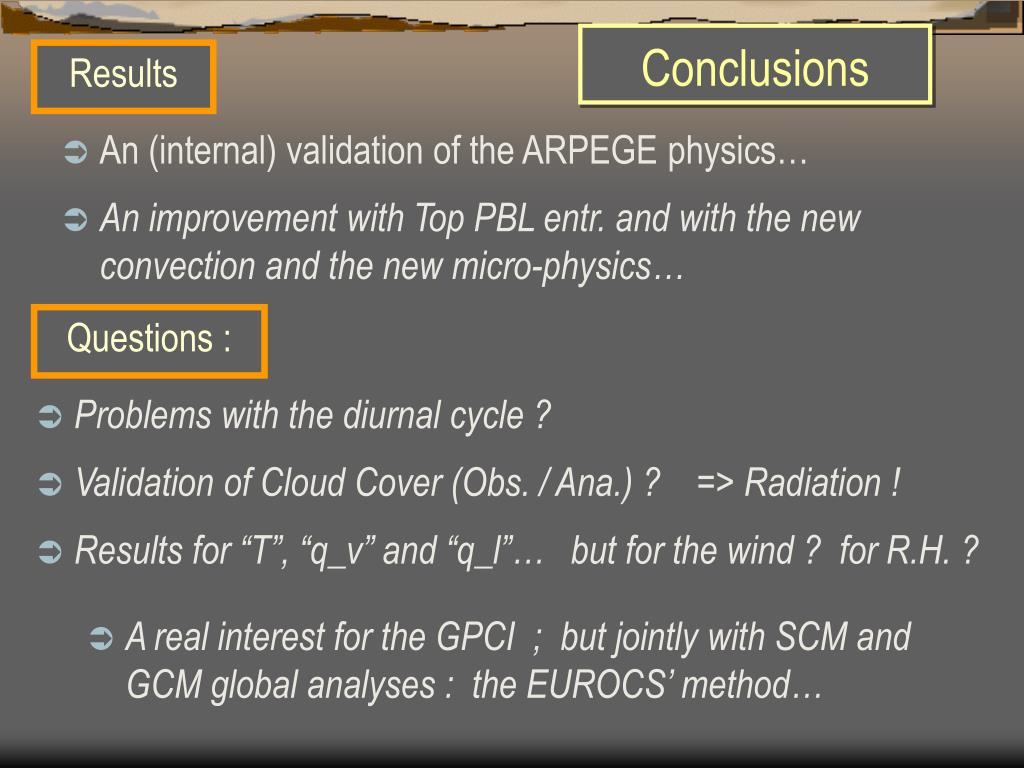

  20. Questions : • Problems with the diurnal cycle ? • Validation of Cloud Cover (Obs. / Ana.) ? => Radiation ! • Results for “T”, “q_v” and “q_l”… but for the wind ? for R.H. ? Results Conclusions • An (internal) validation of the ARPEGE physics… • An improvement with Top PBL entr. and with the new convection and the new micro-physics… • A real interest for the GPCI ; but jointly with SCM and GCM global analyses : the EUROCS’ method…
