Presentation Transcript

  1. Times Two, X2 Original Image 512X480X8 bits Times Two Image without Noise Filtering

  2. Times Two, X2 Original Image 512X480X8 bits Times Two Image without Noise Filtering circle ellipse Cusp Fine line transition curve

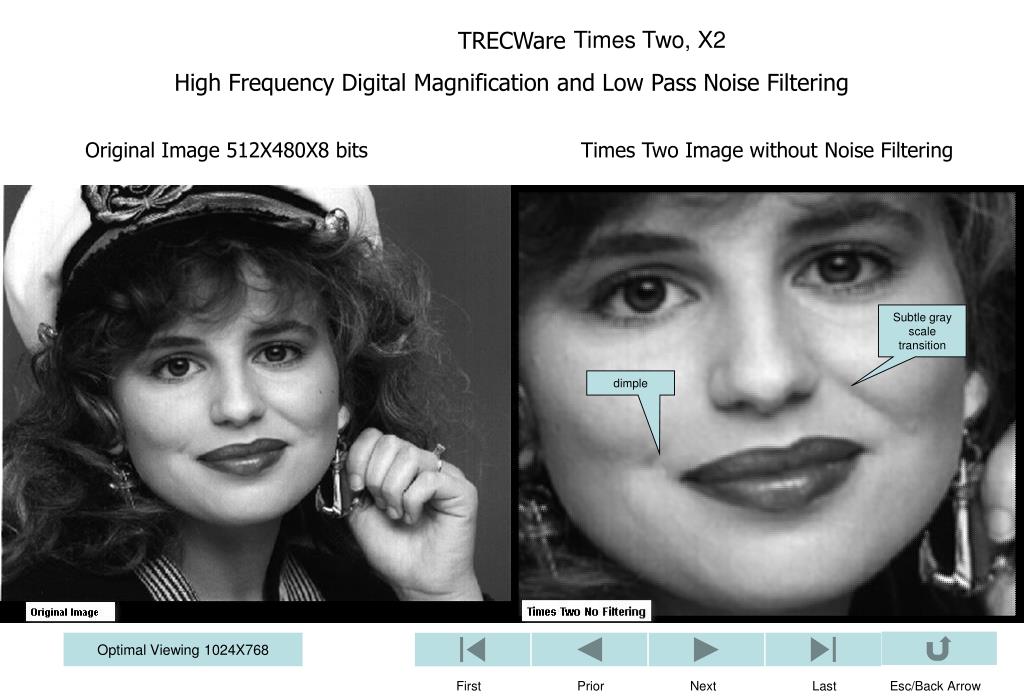

  3. Times Two, X2 Original Image 512X480X8 bits Times Two Image without Noise Filtering Subtle gray scale transition dimple

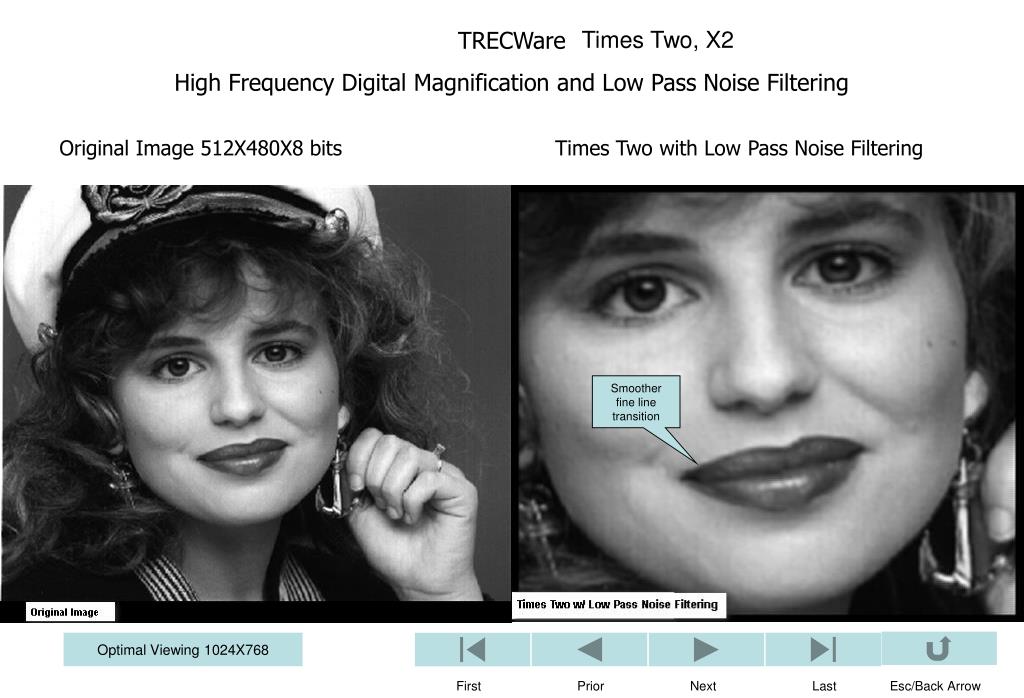

  4. Times Two, X2 Original Image 512X480X8 bits Times Two with Low Pass Noise Filtering Smoother fine line transition

  5. Times Two Comparison Times Two without Low Pass Noise Filtering Times Two with Low Pass Noise Filtering Subtle Noise Noise Removed Very small speckle about transition contour Fine line striations Smooth area no striations No speckle about transition contour

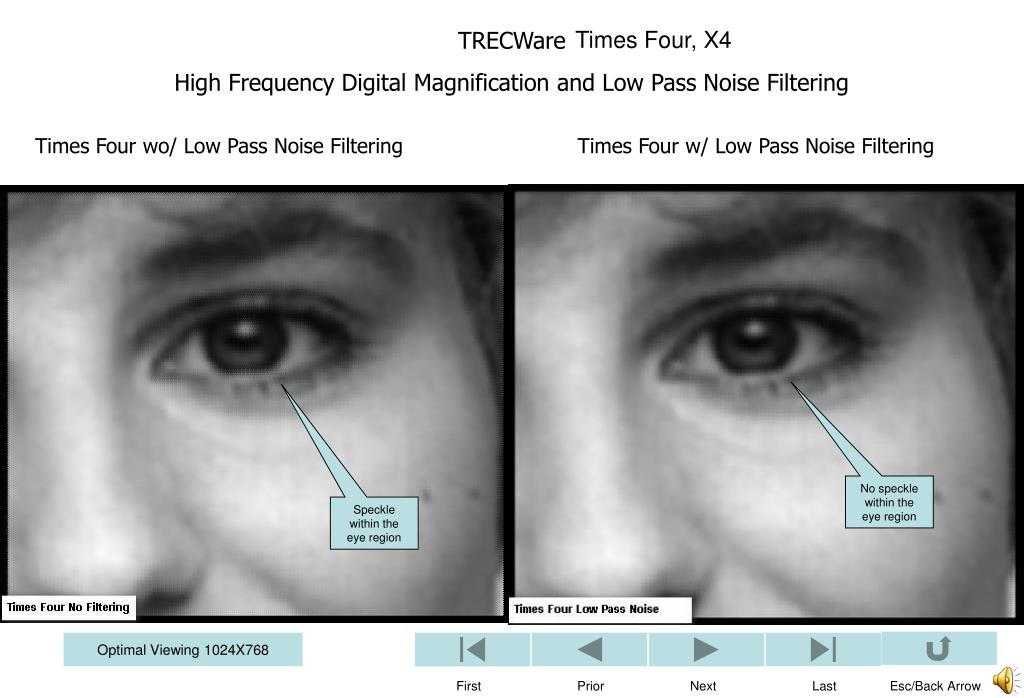

  6. Times Four, X4 Times Four wo/ Low Pass Noise Filtering Times Four w/ Low Pass Noise Filtering No speckle within the eye region Speckle within the eye region

  7. Times Two Comparison Times Two without Low Pass Noise Filtering Times Two with Low Pass Noise Filtering Subtle Noise Noise Removed Very small speckle about transition contour No speckle about transition contour

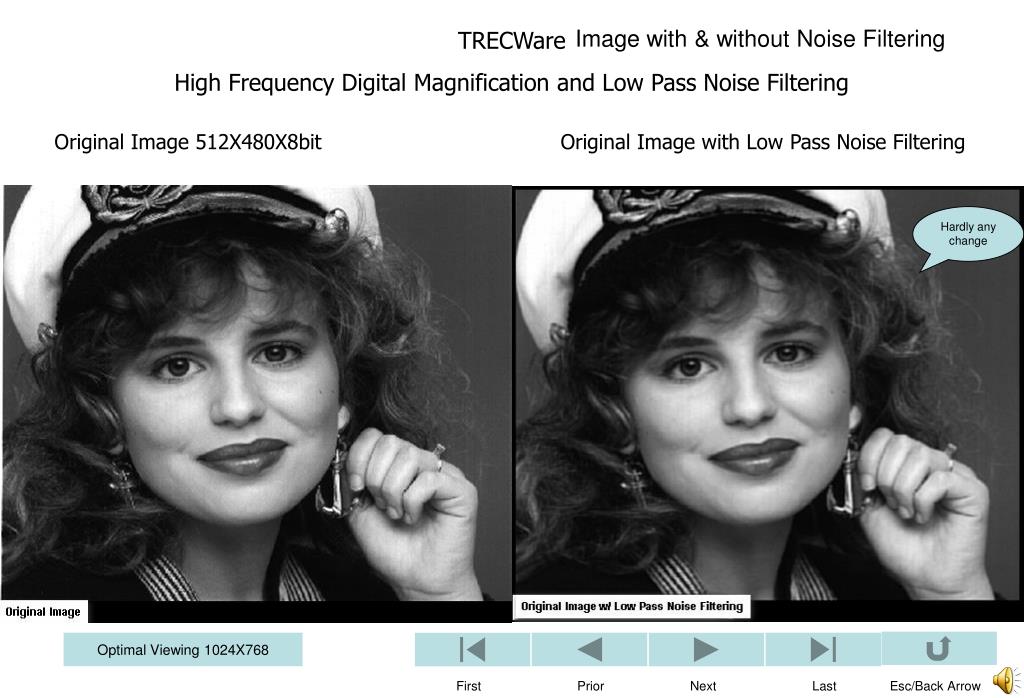

  8. Image with & without Noise Filtering Original Image 512X480X8bit Original Image with Low Pass Noise Filtering Hardly any change

  9. End of Slide Show
