  1. Applications of CBM-Root Simulation of a medical probe for tumor localization. Michael Habermann

  2. Overview • GF&E • Medical Aspects • Our Approach • Phantom Simulations • Electronic Simulation Michael Habermann

  3. Gesellschaft für Forschungs- und Entwicklungsservice mbH GF&E delivers physical-technical R&D-services. Our goal ist to apply and transfer key-technologies – especially from GSI developed methods, techniques and qualifications. Michael Habermann

  4. Positron Emission Tomography • Uses 18F (β+-Emitter, λ=110 minutes) • 18F is attached to tracer (Glucose) • Glucose is enriched in body parts with high energy intake • Tumors need much energy to grow fast Michael Habermann

  5. Conventional Low Energy Probewith 99mTc Kollimator Detektor Tumor 10kBq/ml Water 1 kBq/ml Michael Habermann

  6. Conventional Low Energy Probewith 18F Michael Habermann

  7. Electronic Collimation Michael Habermann

  8. Our Design Michael Habermann

  9. γ-Locator DXI Michael Habermann

  10. Phantom-Measurements Sphere Michael Habermann

  11. Phantom-Measurements Michael Habermann

  12. Real Scenario Michael Habermann

  13. CBMRoot-Simulation Michael Habermann

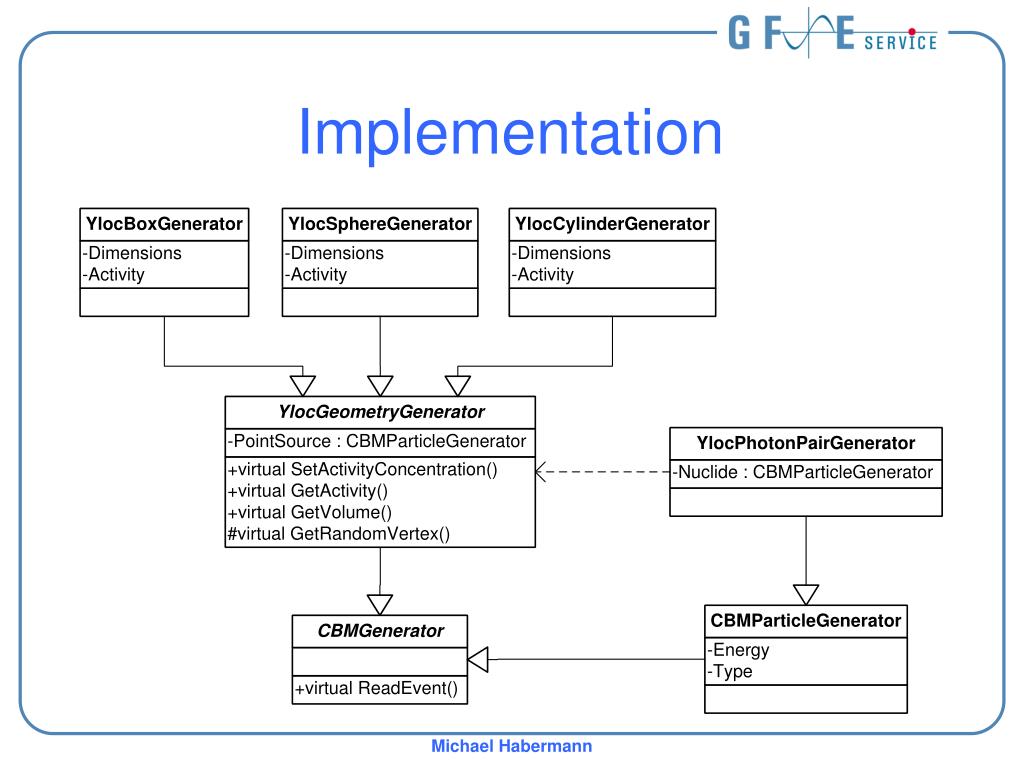

  14. Implementation Michael Habermann

  15. Data analysis Michael Habermann

  16. Data analysis Michael Habermann

  17. Summary • No redundance of application sourcecode for simulation • Easy adaption of scenarios through text files • Use of ROOT for presentation of analysis results Michael Habermann
