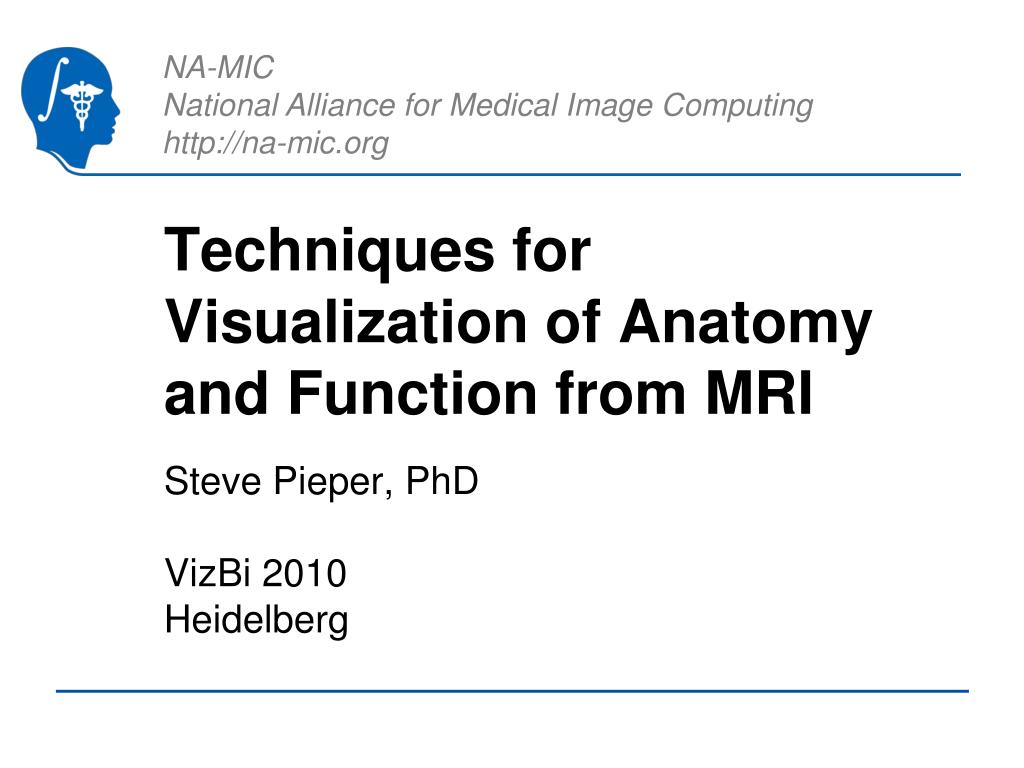

  1. Techniques for Visualization of Anatomy and Function from MRI Steve Pieper, PhD VizBi 2010 Heidelberg

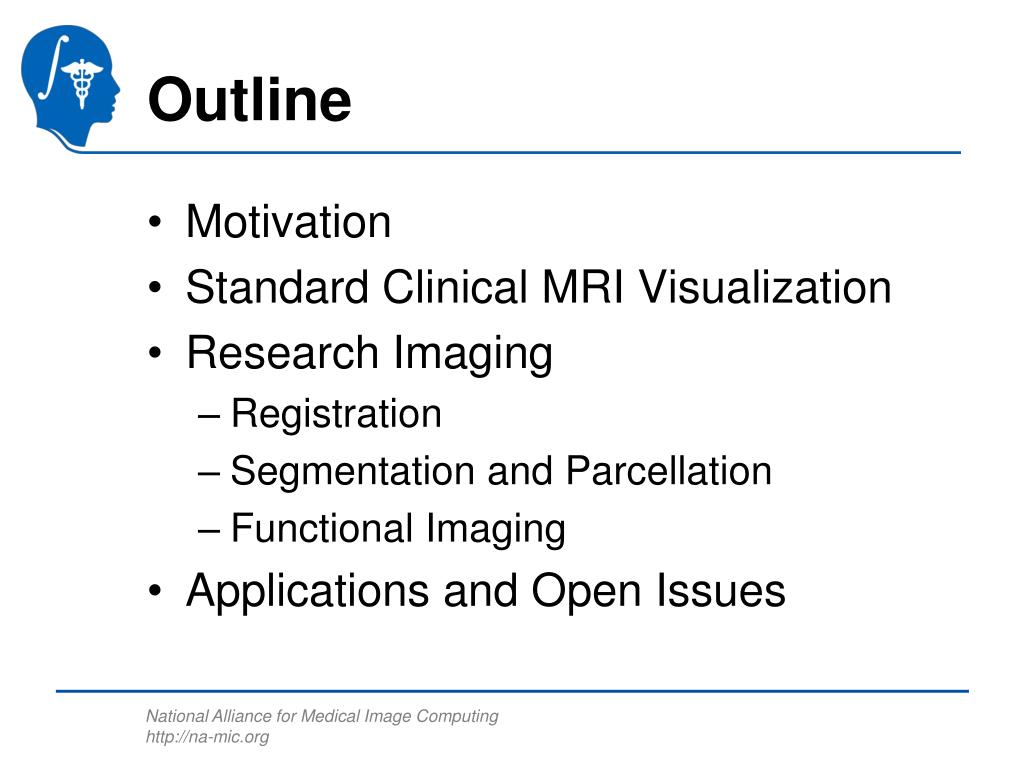

  2. Outline • Motivation • Standard Clinical MRI Visualization • Research Imaging • Registration • Segmentation and Parcellation • Functional Imaging • Applications and Open Issues

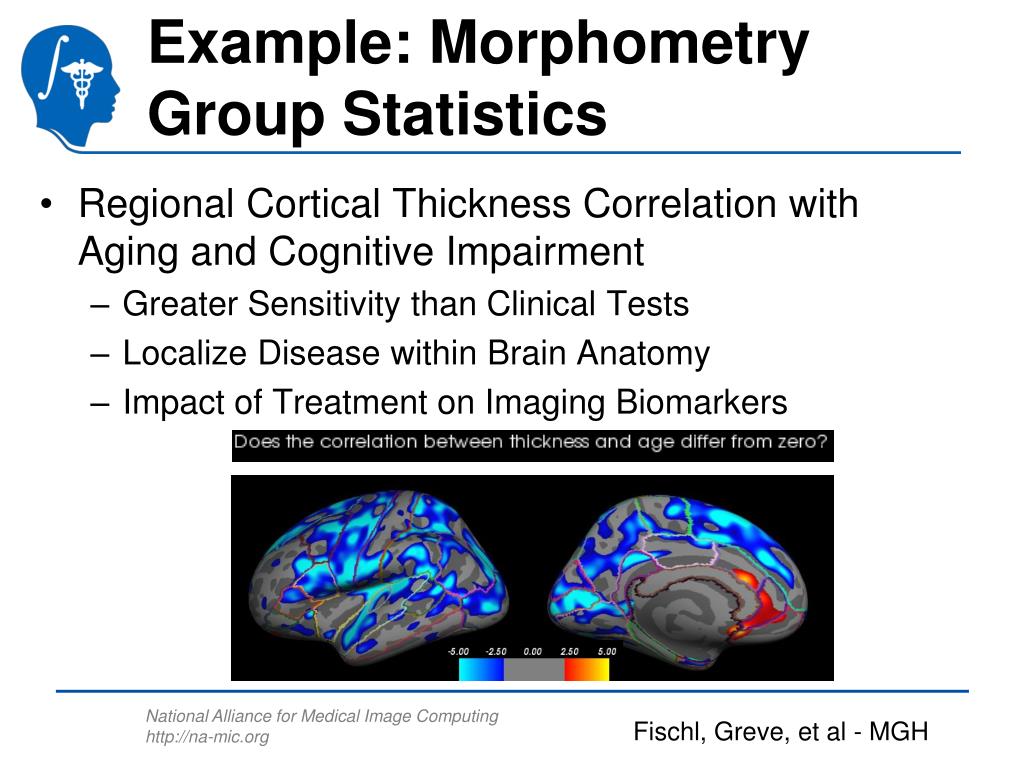

  3. Example: Morphometry Group Statistics • Regional Cortical Thickness Correlation with Aging and Cognitive Impairment • Greater Sensitivity than Clinical Tests • Localize Disease within Brain Anatomy • Impact of Treatment on Imaging Biomarkers Fischl, Greve, et al - MGH

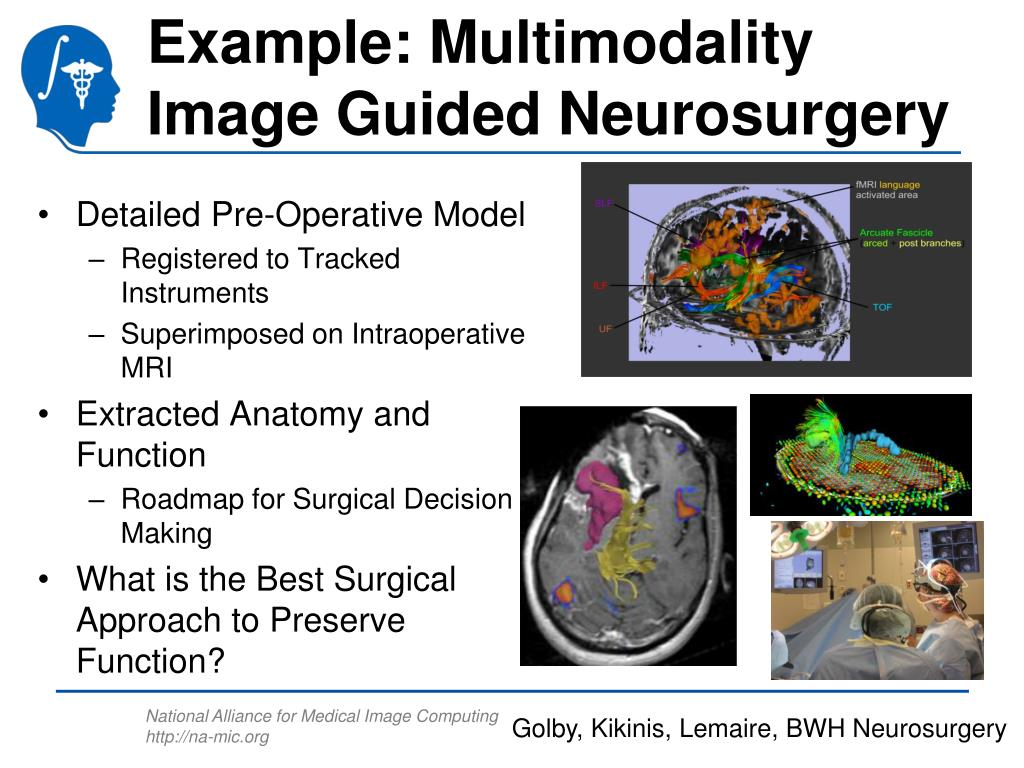

  4. Example: Multimodality Image Guided Neurosurgery • Detailed Pre-Operative Model • Registered to Tracked Instruments • Superimposed on Intraoperative MRI • Extracted Anatomy and Function • Roadmap for Surgical Decision Making • What is the Best Surgical Approach to Preserve Function? Golby, Kikinis, Lemaire, BWH Neurosurgery

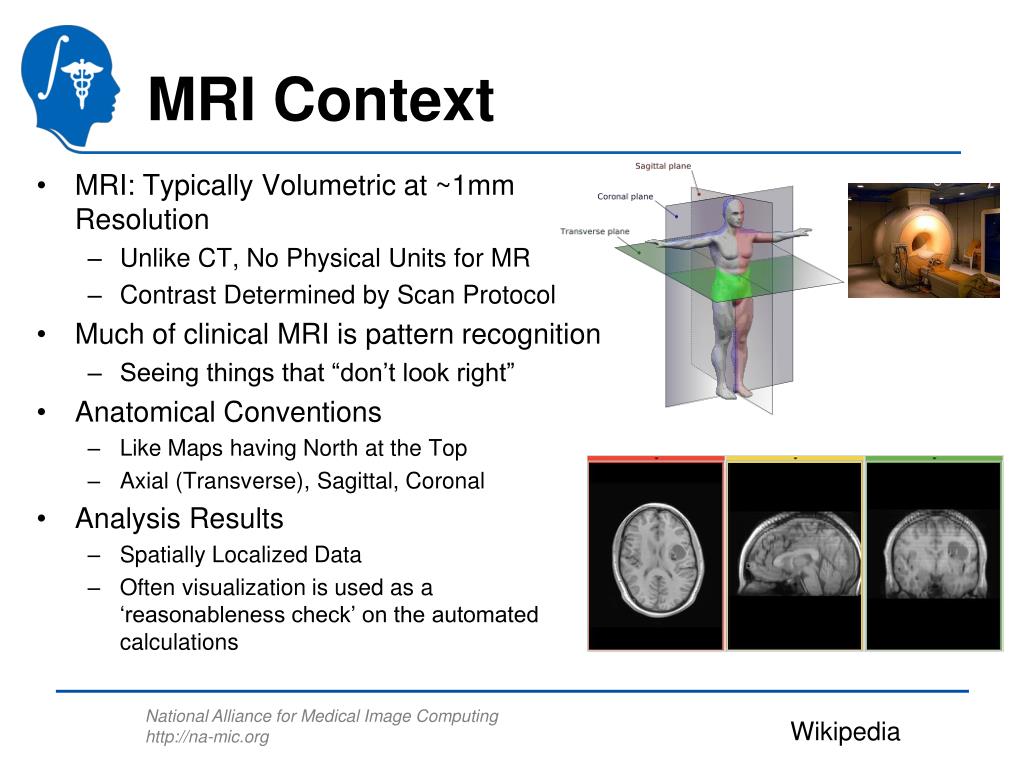

  5. MRI Context • MRI: Typically Volumetric at ~1mm Resolution • Unlike CT, No Physical Units for MR • Contrast Determined by Scan Protocol • Much of clinical MRI is pattern recognition • Seeing things that “don’t look right” • Anatomical Conventions • Like Maps having North at the Top • Axial (Transverse), Sagittal, Coronal • Analysis Results • Spatially Localized Data • Often visualization is used as a ‘reasonableness check’ on the automated calculations Wikipedia

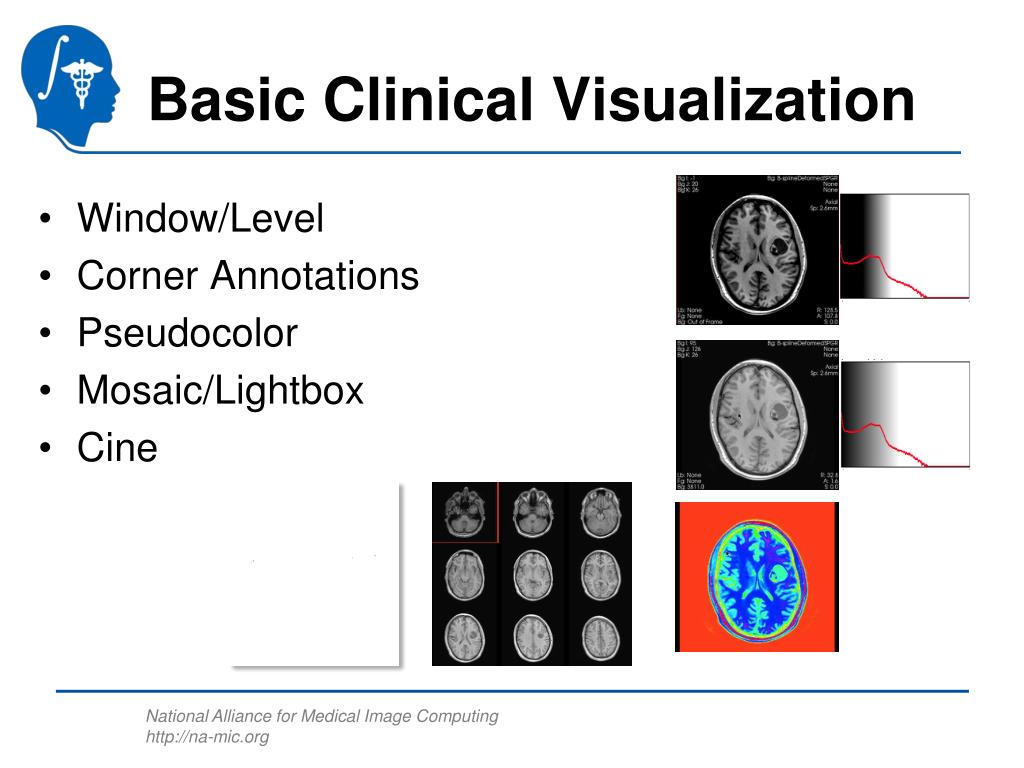

  6. Basic Clinical Visualization • Window/Level • Corner Annotations • Pseudocolor • Mosaic/Lightbox • Cine

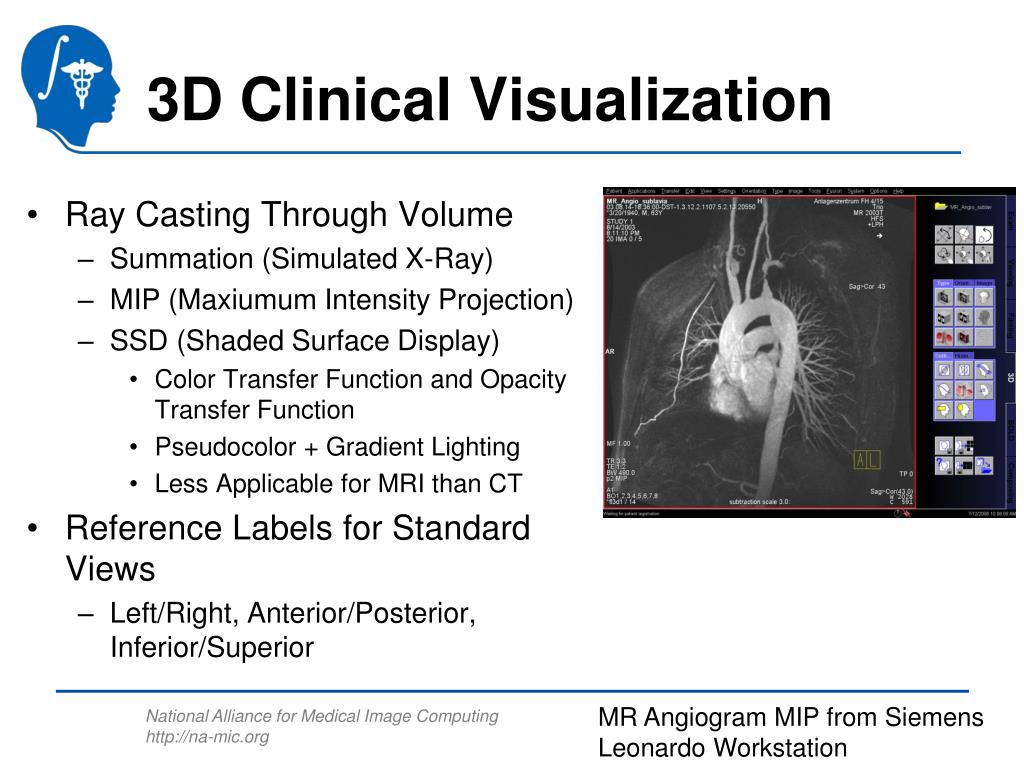

  7. 3D Clinical Visualization • Ray Casting Through Volume • Summation (Simulated X-Ray) • MIP (Maxiumum Intensity Projection) • SSD (Shaded Surface Display) • Color Transfer Function and Opacity Transfer Function • Pseudocolor + Gradient Lighting • Less Applicable for MRI than CT • Reference Labels for Standard Views • Left/Right, Anterior/Posterior, Inferior/Superior MR Angiogram MIP from Siemens Leonardo Workstation

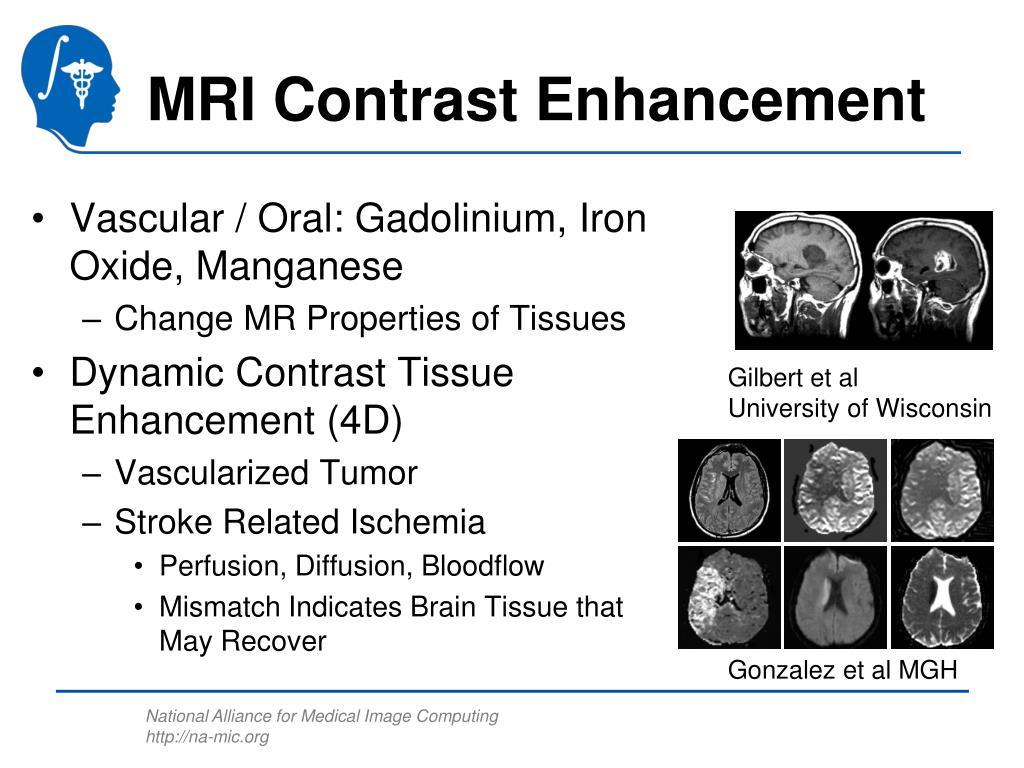

  8. MRI Contrast Enhancement • Vascular / Oral: Gadolinium, Iron Oxide, Manganese • Change MR Properties of Tissues • Dynamic Contrast Tissue Enhancement (4D) • Vascularized Tumor • Stroke Related Ischemia • Perfusion, Diffusion, Bloodflow • Mismatch Indicates Brain Tissue that May Recover Gilbert et al University of Wisconsin Gonzalez et al MGH

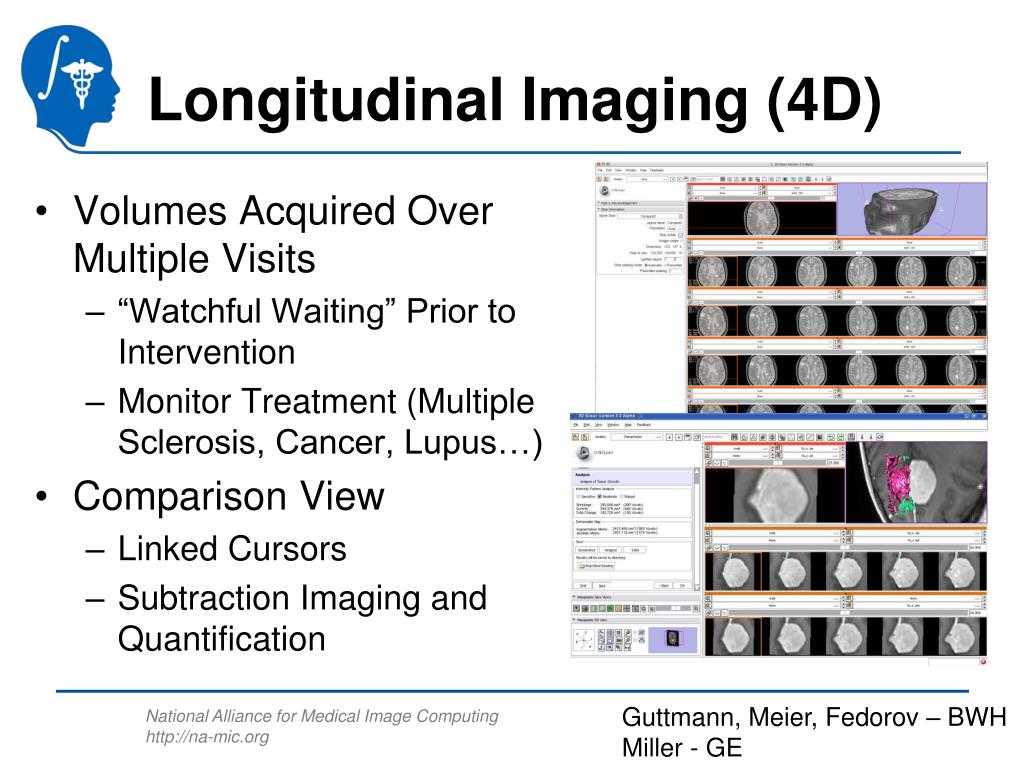

  9. Longitudinal Imaging (4D) • Volumes Acquired Over Multiple Visits • “Watchful Waiting” Prior to Intervention • Monitor Treatment (Multiple Sclerosis, Cancer, Lupus…) • Comparison View • Linked Cursors • Subtraction Imaging and Quantification Guttmann, Meier, Fedorov – BWH Miller - GE

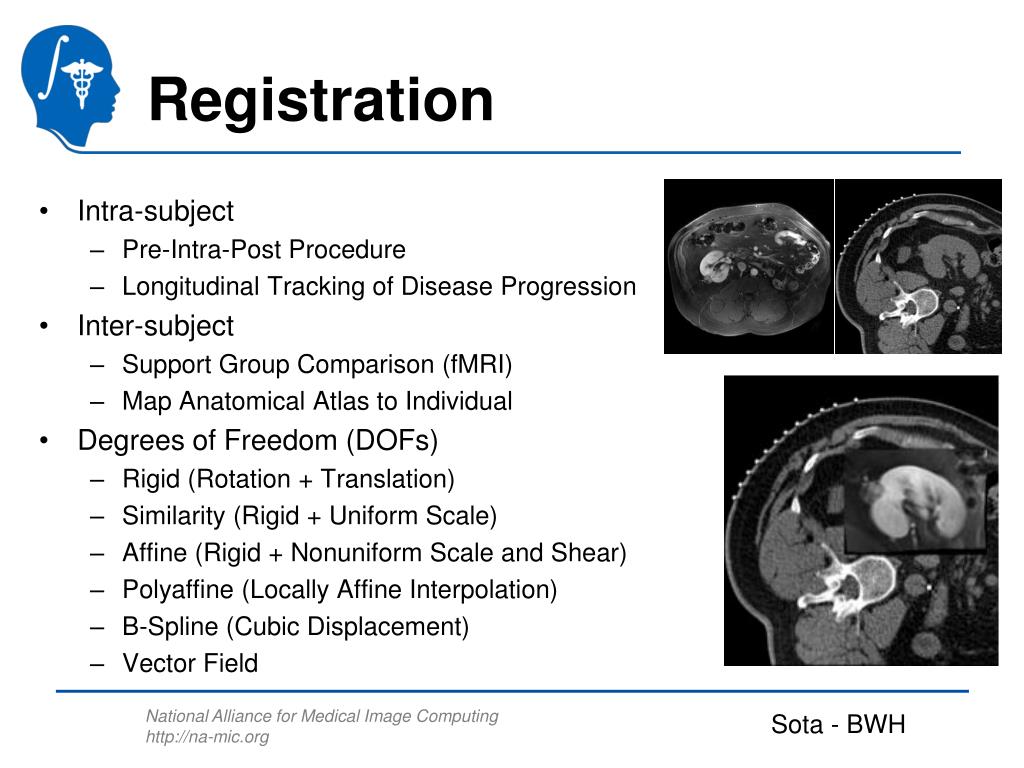

  10. Registration • Intra-subject • Pre-Intra-Post Procedure • Longitudinal Tracking of Disease Progression • Inter-subject • Support Group Comparison (fMRI) • Map Anatomical Atlas to Individual • Degrees of Freedom (DOFs) • Rigid (Rotation + Translation) • Similarity (Rigid + Uniform Scale) • Affine (Rigid + Nonuniform Scale and Shear) • Polyaffine (Locally Affine Interpolation) • B-Spline (Cubic Displacement) • Vector Field Sota - BWH

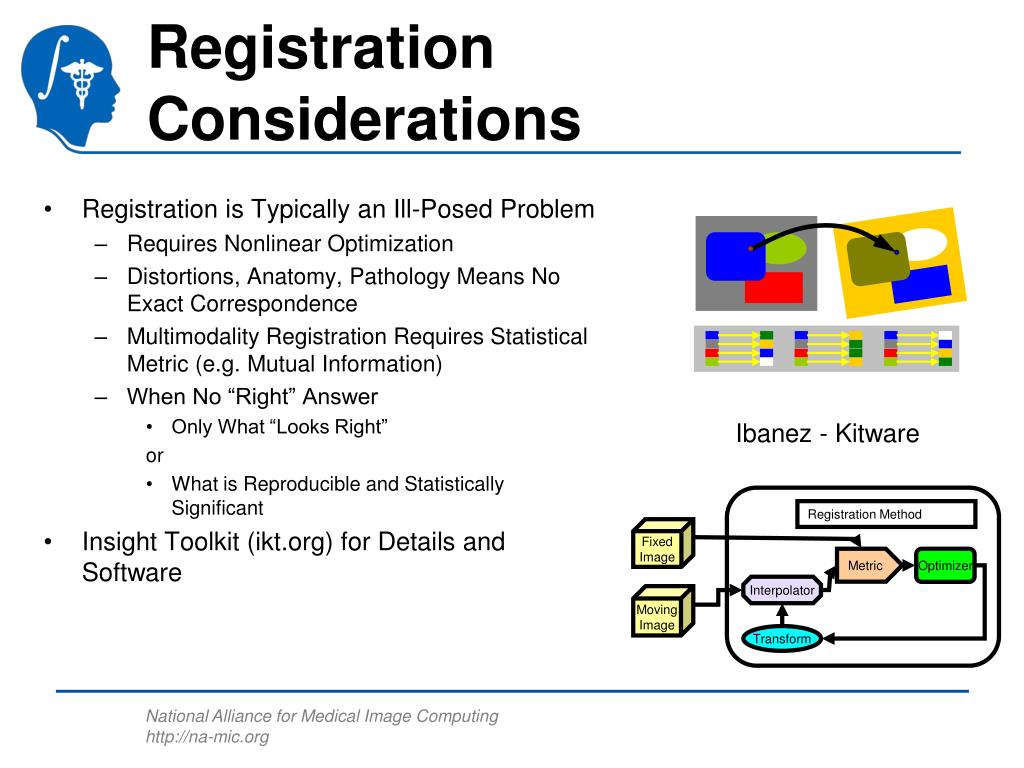

  11. Registration Considerations • Registration is Typically an Ill-Posed Problem • Requires Nonlinear Optimization • Distortions, Anatomy, Pathology Means No Exact Correspondence • Multimodality Registration Requires Statistical Metric (e.g. Mutual Information) • When No “Right” Answer • Only What “Looks Right” or • What is Reproducible and Statistically Significant • Insight Toolkit (ikt.org) for Details and Software Registration Method FixedImage Metric Optimizer Ibanez - Kitware Interpolator MovingImage Transform

  12. Registration Visualization • Cross Fade / Toggle • Color / Skeleton Overlay • Checkerboard • Vector Fields

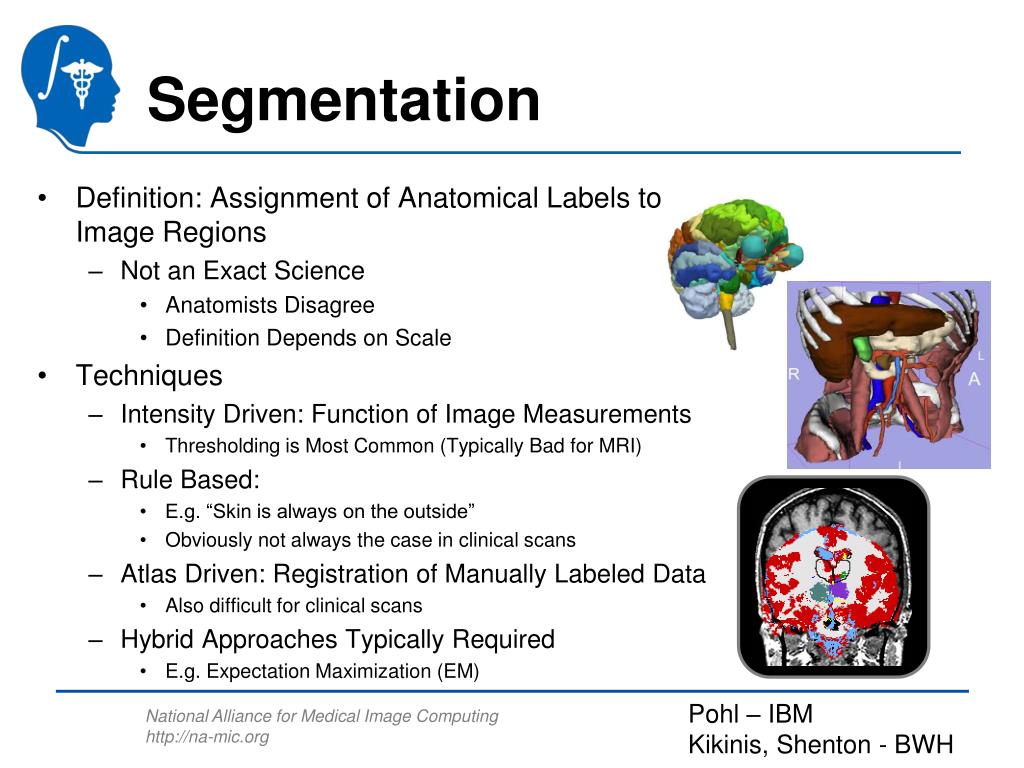

  13. Segmentation • Definition: Assignment of Anatomical Labels to Image Regions • Not an Exact Science • Anatomists Disagree • Definition Depends on Scale • Techniques • Intensity Driven: Function of Image Measurements • Thresholding is Most Common (Typically Bad for MRI) • Rule Based: • E.g. “Skin is always on the outside” • Obviously not always the case in clinical scans • Atlas Driven: Registration of Manually Labeled Data • Also difficult for clinical scans • Hybrid Approaches Typically Required • E.g. Expectation Maximization (EM) Pohl – IBM Kikinis, Shenton - BWH

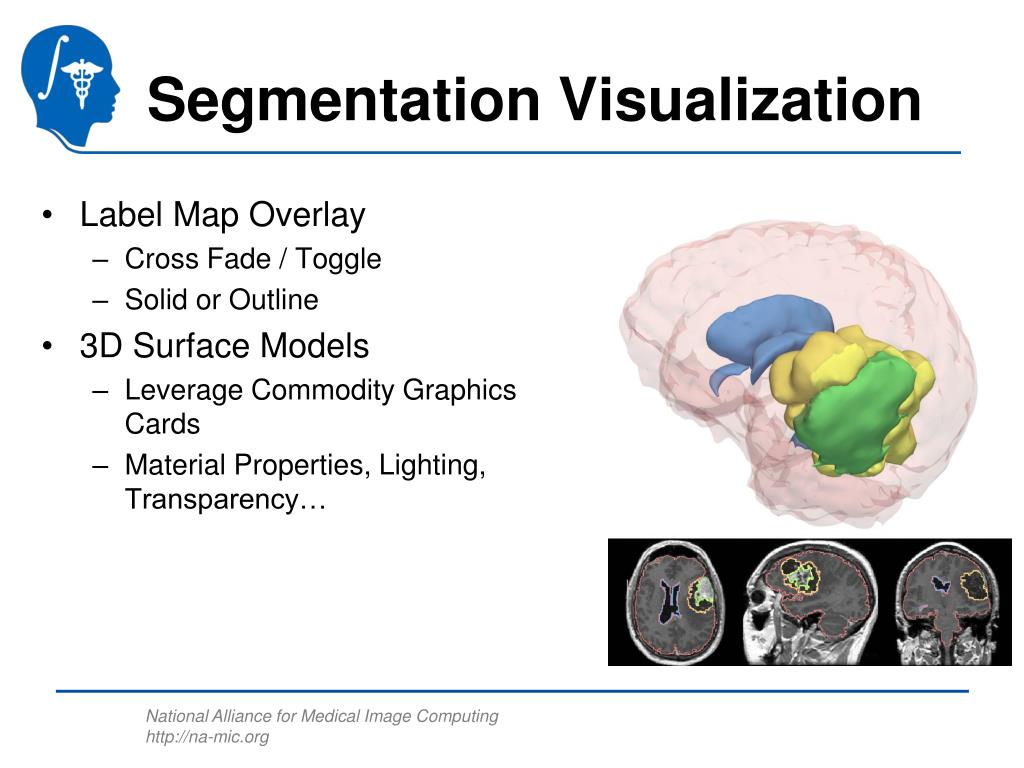

  14. Segmentation Visualization • Label Map Overlay • Cross Fade / Toggle • Solid or Outline • 3D Surface Models • Leverage Commodity Graphics Cards • Material Properties, Lighting, Transparency…

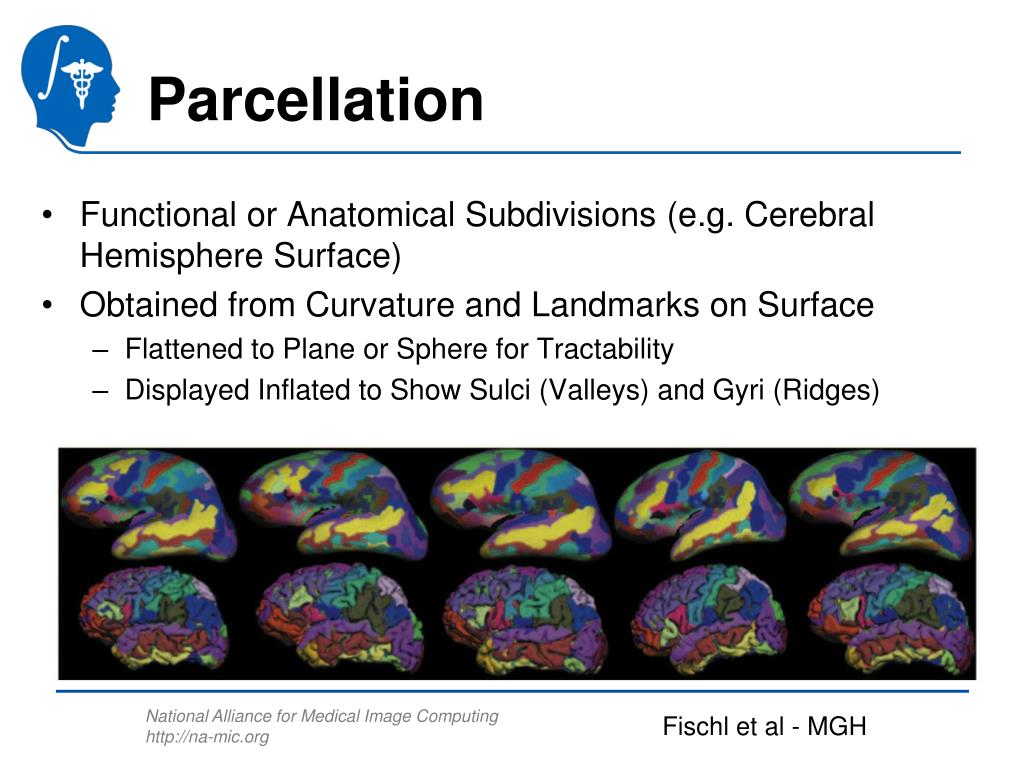

  15. Parcellation • Functional or Anatomical Subdivisions (e.g. Cerebral Hemisphere Surface) • Obtained from Curvature and Landmarks on Surface • Flattened to Plane or Sphere for Tractability • Displayed Inflated to Show Sulci (Valleys) and Gyri (Ridges) Fischl et al - MGH

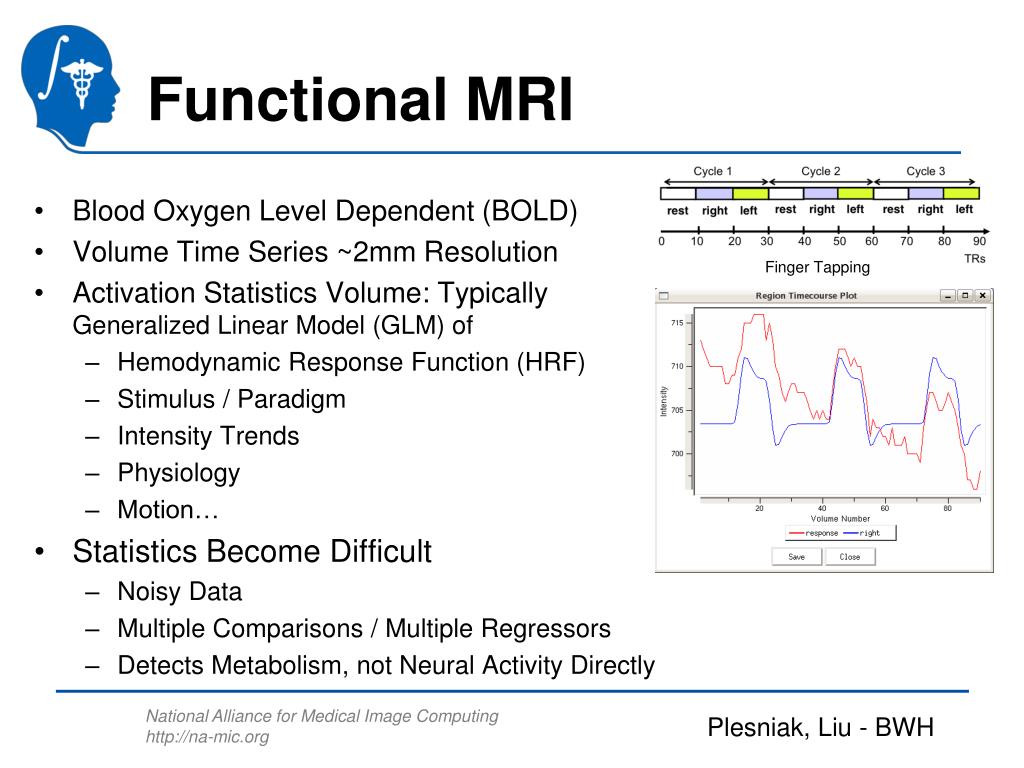

  16. Functional MRI • Blood Oxygen Level Dependent (BOLD) • Volume Time Series ~2mm Resolution • Activation Statistics Volume: Typically Generalized Linear Model (GLM) of • Hemodynamic Response Function (HRF) • Stimulus / Paradigm • Intensity Trends • Physiology • Motion… • Statistics Become Difficult • Noisy Data • Multiple Comparisons / Multiple Regressors • Detects Metabolism, not Neural Activity Directly Finger Tapping Plesniak, Liu - BWH

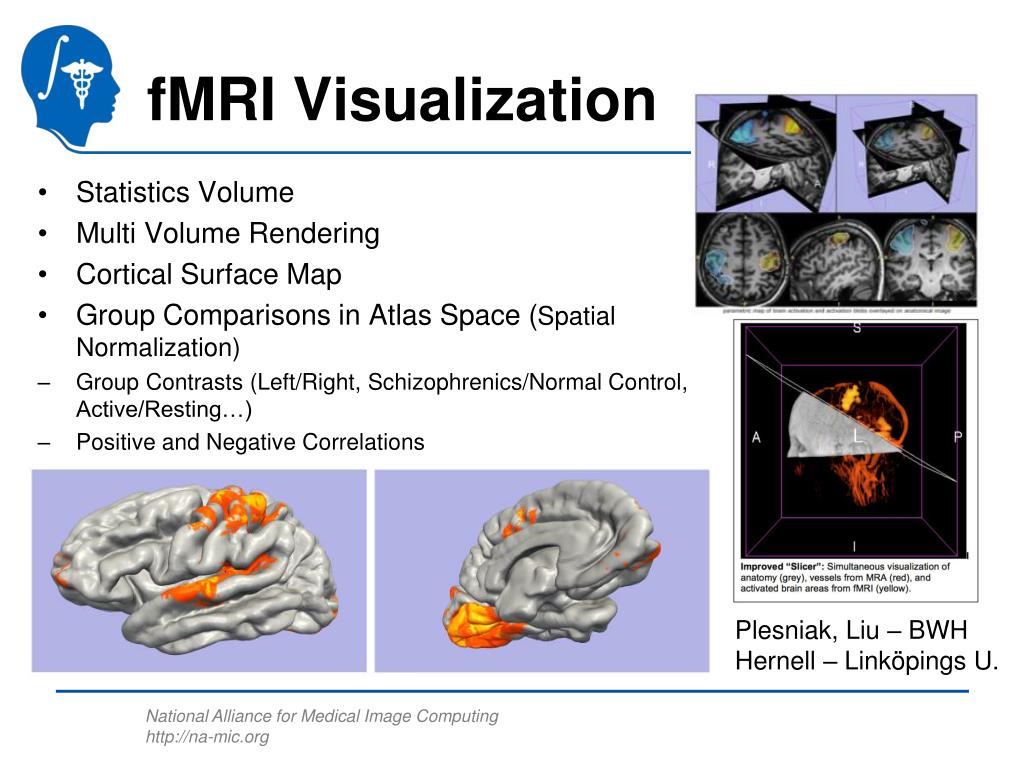

  17. fMRI Visualization • Statistics Volume • Multi Volume Rendering • Cortical Surface Map • Group Comparisons in Atlas Space (Spatial Normalization) • Group Contrasts (Left/Right, Schizophrenics/Normal Control, Active/Resting…) • Positive and Negative Correlations Plesniak, Liu – BWH Hernell – Linköpings U.

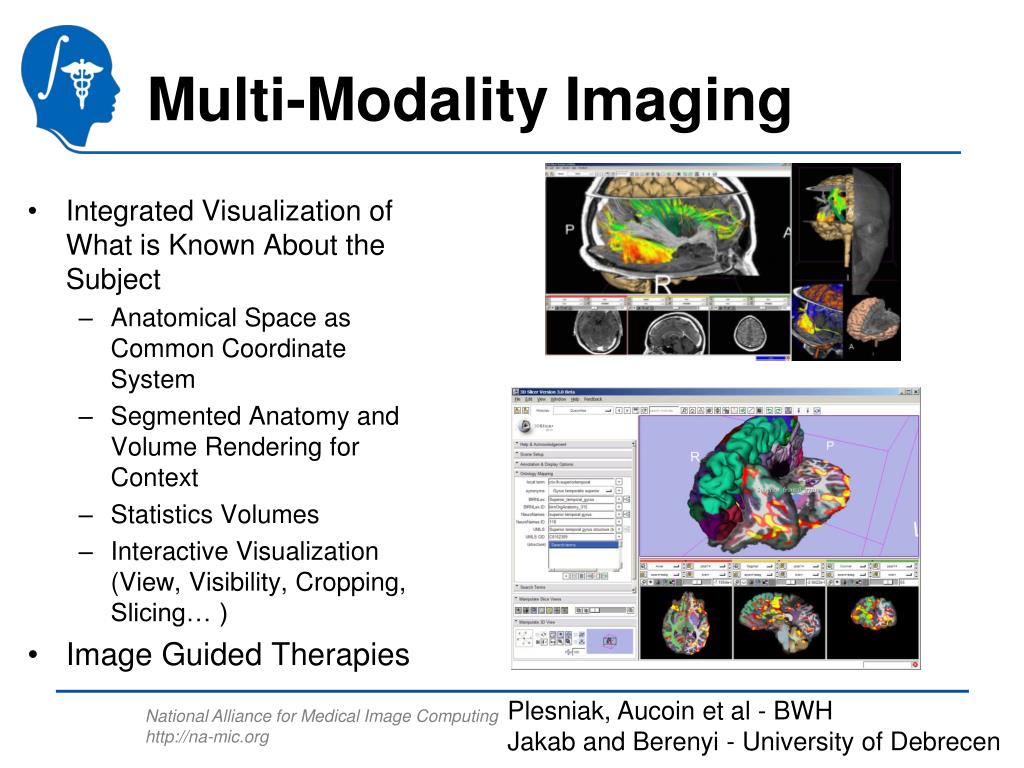

  18. Multi-Modality Imaging • Integrated Visualization of What is Known About the Subject • Anatomical Space as Common Coordinate System • Segmented Anatomy and Volume Rendering for Context • Statistics Volumes • Interactive Visualization (View, Visibility, Cropping, Slicing… ) • Image Guided Therapies Plesniak, Aucoin et al - BWH Jakab and Berenyi - University of Debrecen

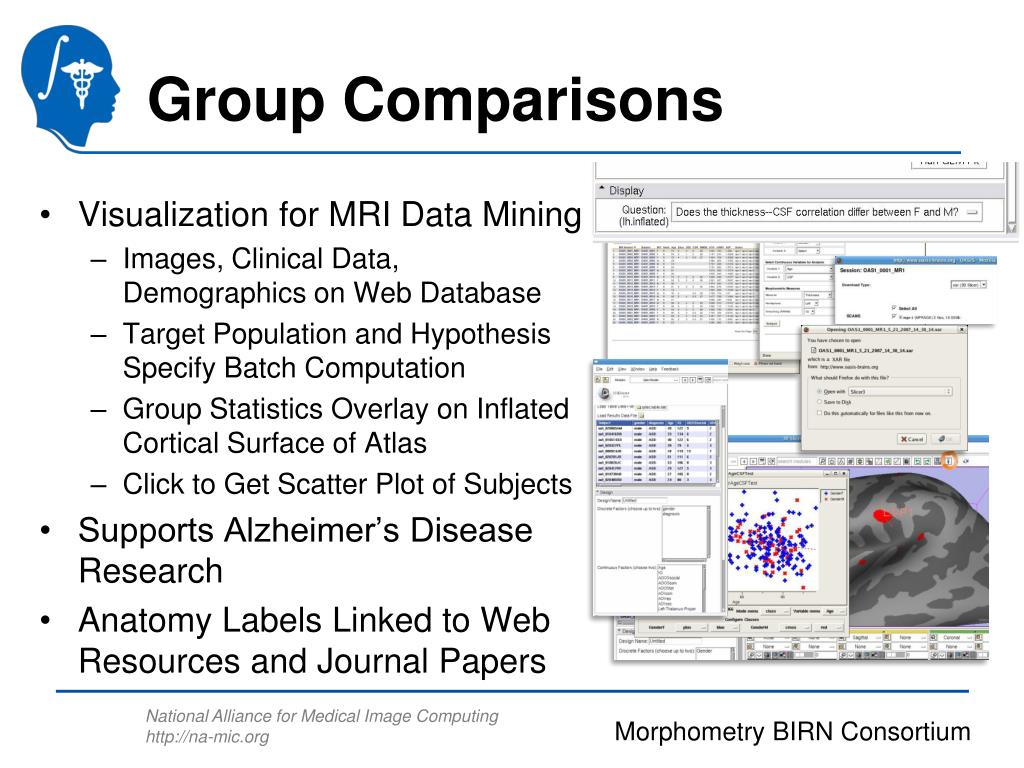

  19. Group Comparisons • Visualization for MRI Data Mining • Images, Clinical Data, Demographics on Web Database • Target Population and Hypothesis Specify Batch Computation • Group Statistics Overlay on Inflated Cortical Surface of Atlas • Click to Get Scatter Plot of Subjects • Supports Alzheimer’s Disease Research • Anatomy Labels Linked to Web Resources and Journal Papers Morphometry BIRN Consortium

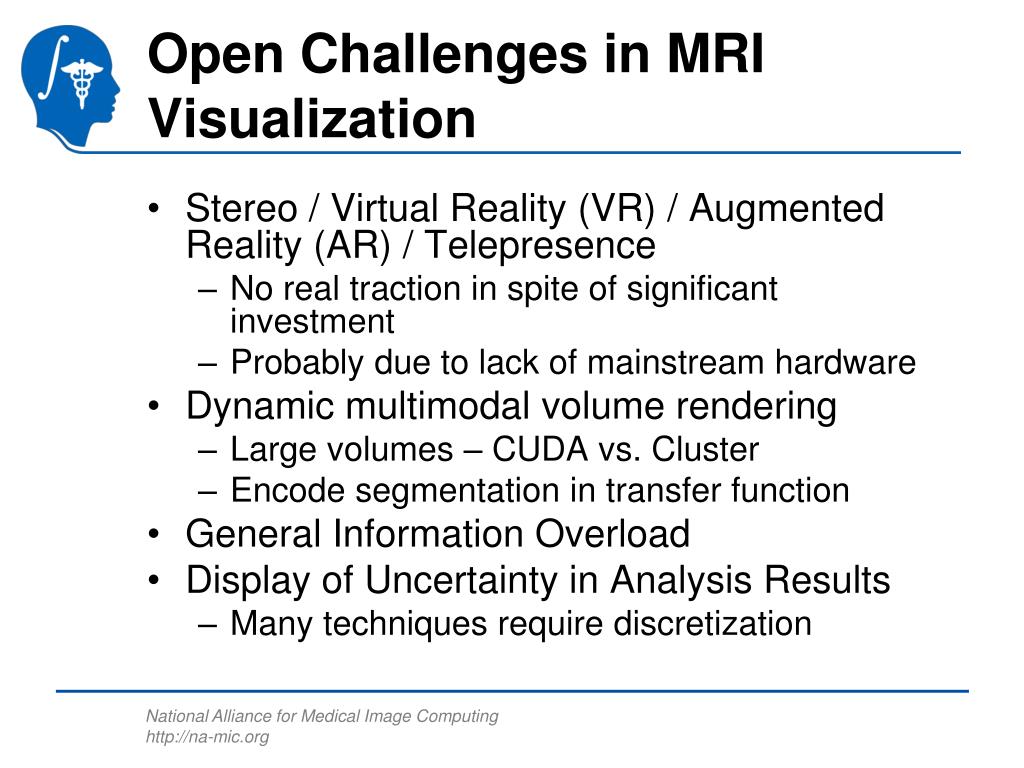

  20. Open Challenges in MRI Visualization • Stereo / Virtual Reality (VR) / Augmented Reality (AR) / Telepresence • No real traction in spite of significant investment • Probably due to lack of mainstream hardware • Dynamic multimodal volume rendering • Large volumes – CUDA vs. Cluster • Encode segmentation in transfer function • General Information Overload • Display of Uncertainty in Analysis Results • Many techniques require discretization
