Start Up : Find the x and y components of W.

Start Up : Find the x and y components of W. W = ( Wsin q , - Wcos q ). Statics Lab Procedure. For each of the three setups:. Record the mass m in kg. Measure and record the angles f and q with the protractor. Read and record the force sensor readings.

minowa
Télécharger la présentation

Start Up : Find the x and y components of W.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

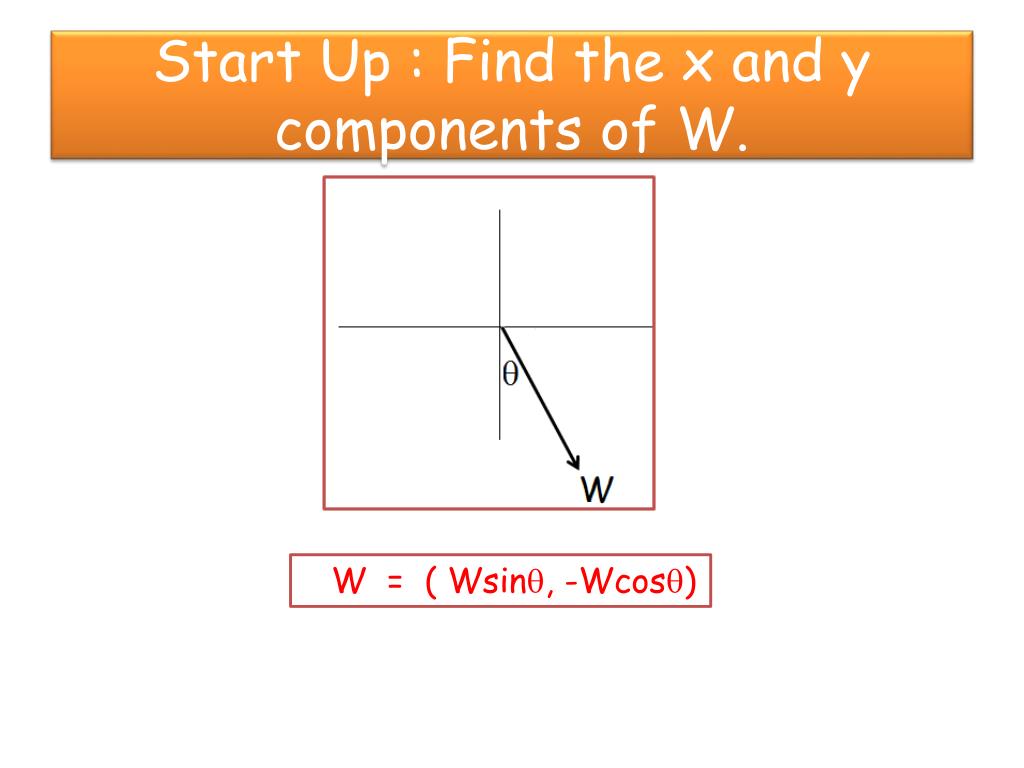

  1. Start Up : Find the x and y components of W. W = ( Wsinq, -Wcosq)

  2. Statics Lab Procedure For each of the three setups: • Record the mass m in kg. • Measure and record the angles f • and q with the protractor. • Read and record the force sensor • readings. • Solve for each tension using • Newton’s second law and a free • body diagram. • Find the percent error between your • theoretical values of the tensions • and the experimental values of the • tensions.

  3. Data Table

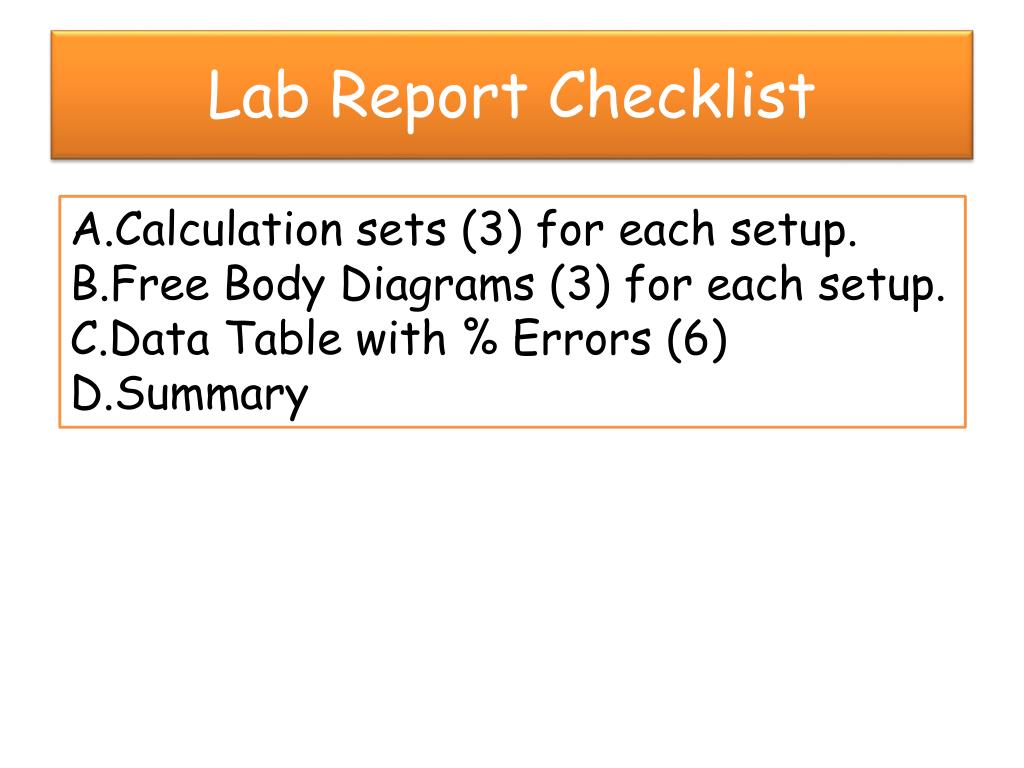

  4. Lab Report Checklist Calculation sets (3) for each setup. Free Body Diagrams (3) for each setup. Data Table with % Errors (6) Summary
