  1. Lattice TechnologyNew Product Feature Highlights January 2012 Product Release

  2. XVL Filter Ver. 7.0

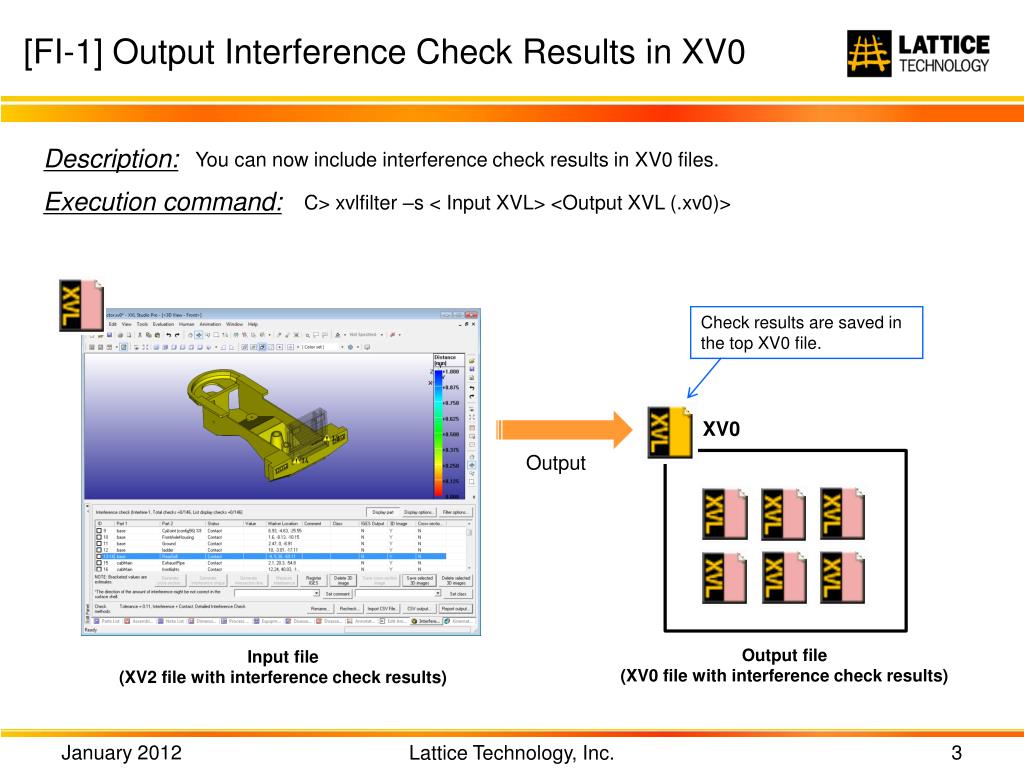

  3. [FI-1] Output Interference Check Results in XV0 Description: You can now include interference check results in XV0 files. Execution command: C> xvlfilter –s < Input XVL> <OutputXVL (.xv0)> Check results are saved in the top XV0 file. XV0 Output Output file (XV0 file with interference check results) Input file (XV2 file with interference check results) Lattice Technology, Inc.

  4. XVL Reducer Ver. 4.0

  5. [RE-1] Extended Culling Option (1) Extended Culling Description: You can delete all surfaces that are not visible in specified cameras. Execution command: C> xvlreducer –i 0 0 --viewpoints <view point list> aspect < Input XVL> <OutputXVL> Delete surfaces that are outside the view of the specified camera(s). Camera viewpoint Camera viewpoint Benefit: Viewpoint list is a text file that lists cameras to apply. Camera-1 Camera-2 … You can minimize the file size by removing surfaces that are not included in the view(s). Viewpoint list Lattice Technology, Inc.

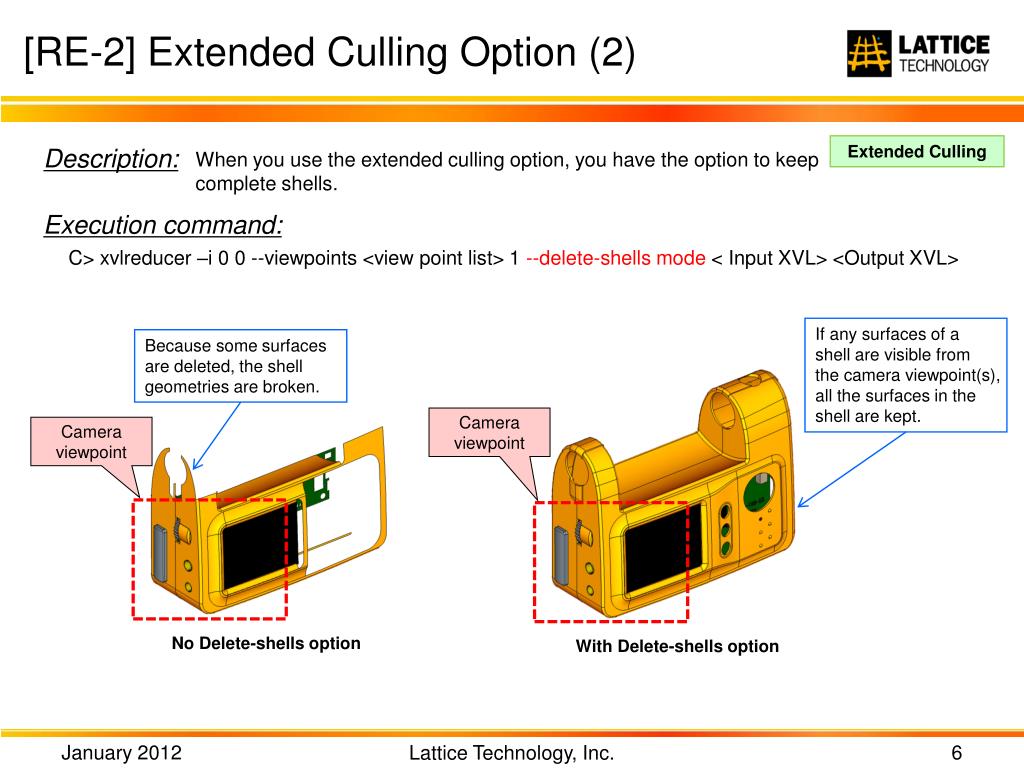

  6. [RE-2] Extended Culling Option (2) Extended Culling Description: When you use the extended culling option, you have the option to keep complete shells. Execution command: C> xvlreducer –i 0 0 --viewpoints <view point list> 1 --delete-shells mode < Input XVL> <OutputXVL> If any surfaces of a shell are visible from the camera viewpoint(s), all the surfaces in the shell are kept. Because some surfaces are deleted, the shell geometries are broken. Camera viewpoint Camera viewpoint No Delete-shells option With Delete-shells option Lattice Technology, Inc.

  7. XVL Processor Ver. 4.0a

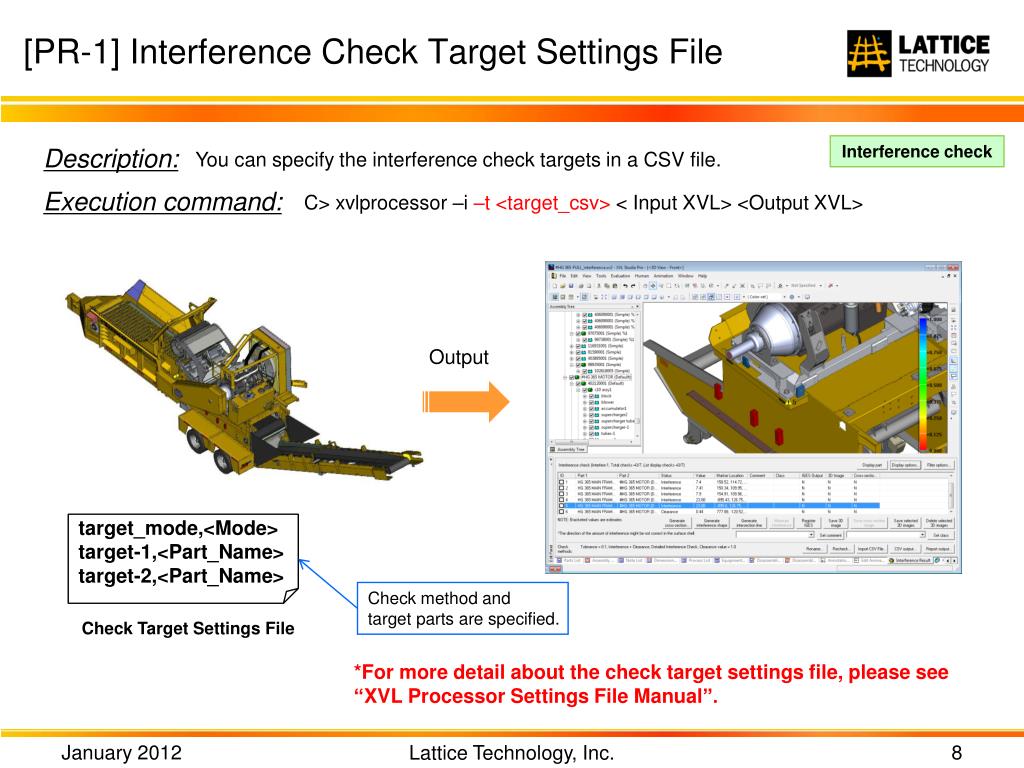

  8. [PR-1] Interference Check Target Settings File Interference check Description: You can specify the interference check targets in a CSV file. Execution command: C> xvlprocessor –i –t <target_csv> < Input XVL> <OutputXVL> Output target_mode,<Mode> target-1,<Part_Name> target-2,<Part_Name> Check method and target parts are specified. Check Target Settings File *For more detail about the check target settings file, please see “XVL Processor Settings File Manual”. Lattice Technology, Inc.

  9. [PR-2] Output Check Result CSV File Interference check Description: You can output interference check result CSV files. Execution command: C> xvlprocessor –i –f <output_csv> < Input XVL> <OutputXVL> Output XVL file with check result + Check result CSV file is created at the same time. Check result CSV file Lattice Technology, Inc.

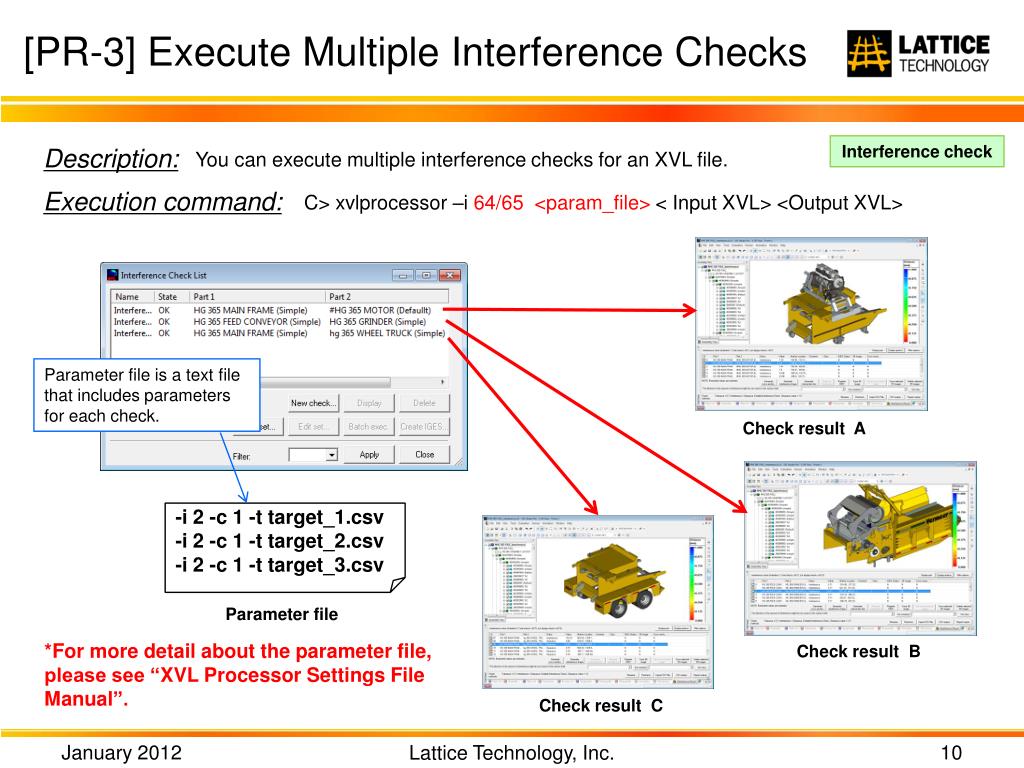

  10. [PR-3] Execute Multiple Interference Checks Interference check Description: You can execute multiple interference checks for an XVL file. Execution command: C> xvlprocessor –i 64/65 <param_file> < Input XVL> <OutputXVL> Parameter file is a text file that includes parameters for each check. Check result A -i 2 -c 1 -t target_1.csv -i 2 -c 1 -t target_2.csv -i 2 -c 1 -t target_3.csv Parameter file *For more detail about the parameter file, please see “XVL Processor Settings File Manual”. Check result B Check result C Lattice Technology, Inc.

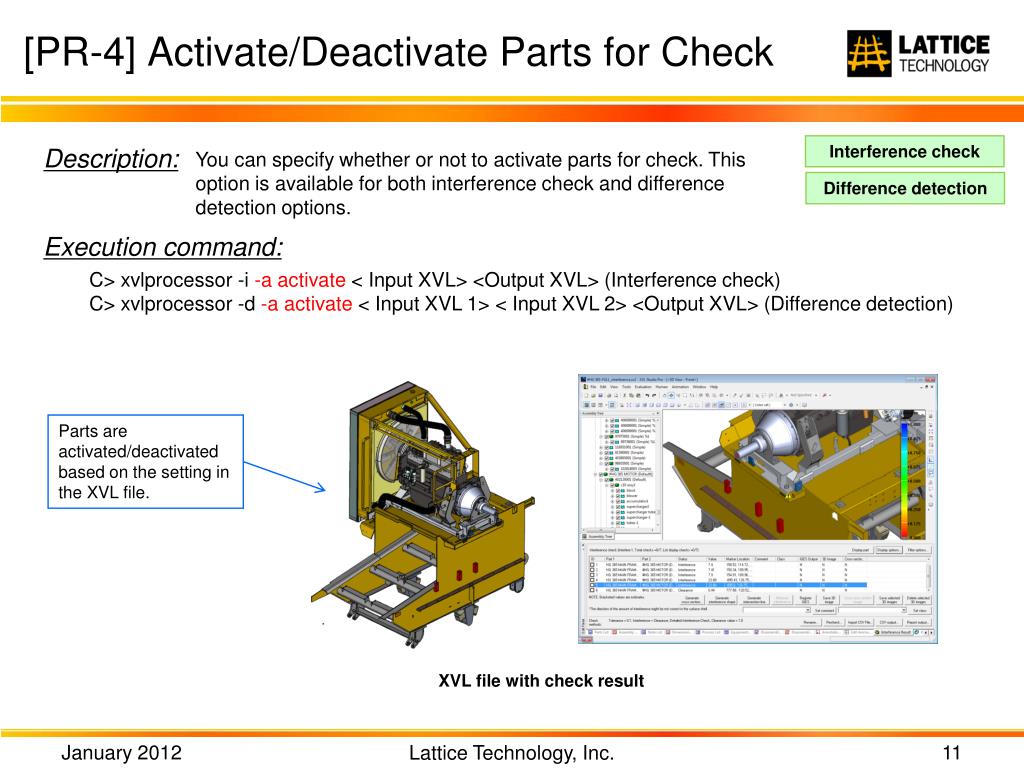

  11. [PR-4] Activate/Deactivate Parts for Check Interference check Description: You can specify whether or not to activate parts for check. This option is available for both interference check and difference detection options. Difference detection Execution command: C> xvlprocessor -i -a activate < Input XVL> <OutputXVL> (Interference check) C> xvlprocessor -d -a activate < Input XVL 1> < Input XVL 2> <OutputXVL> (Difference detection) Parts are activated/deactivated based on the setting in the XVL file. XVL file with check result Lattice Technology, Inc.

  12. [PR-5] Export Check Result in XV0 File Interference check Description: You can output check results in the top xv0 file. Difference detection Execution command: C> xvlprocessor -i -x 1< Input XVL> <OutputXVL (.xv0)> (Interference check) C> xvlprocessor -d -x 1< Input XVL 1> < Input XVL 2> <OutputXVL (.xv0)> (Deference detection) • Only one file (top xv0 file) is output. All child parts are linked to this file. • Check result is included in this file. Output Input file = XV0 Assembly files Output file = XV0 Assembly file Lattice Technology, Inc.

  13. Questions? E. support@lattice3d.com T. +1.415.274.1670 F. +1.415.274.1671 W. www.lattice3d.com Lattice Technology, Inc.
