  1. Lattice TechnologyNew Product Feature Highlights January 2012 Product Release

  2. XVL Studio Ver. 10.1b

  3. General Features

  4. [S-1] Sub Menus Description: You can add sub menus to customized toolbars. Menu: [Tools] > [Customize] Sub Menus Both main menus and sub menus are included in the customized tool bar. Benefit: More flexibility for customized toolbars. Lattice Technology, Inc.

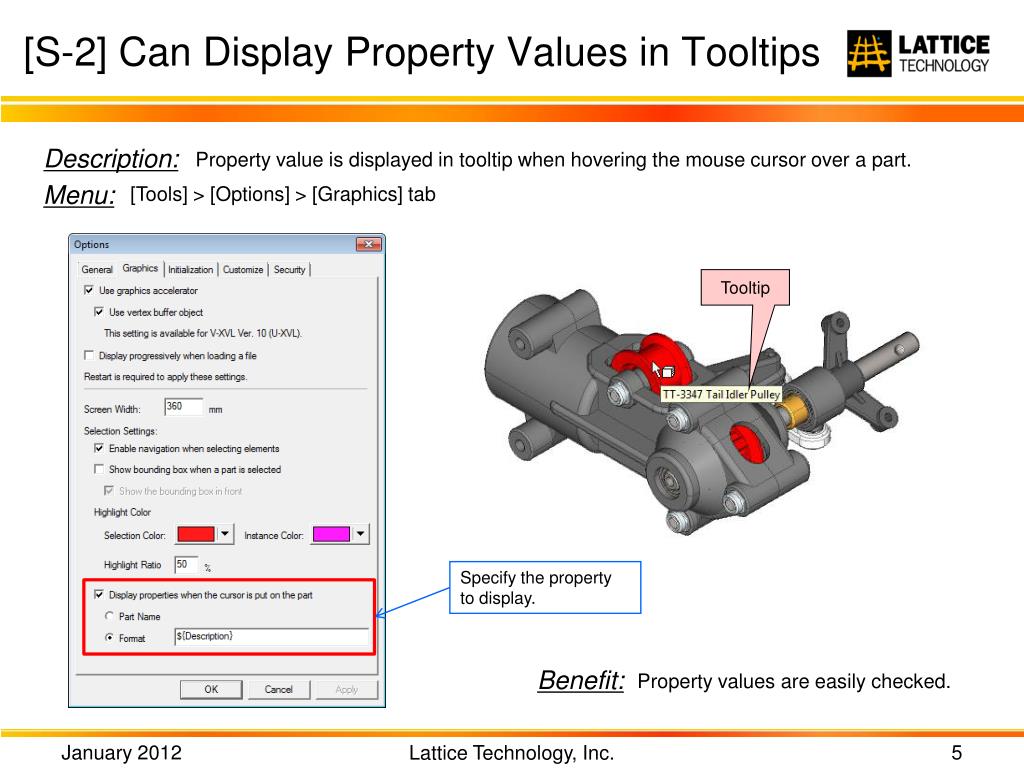

  5. [S-2] Can Display Property Values in Tooltips Description: Property value is displayed in tooltip when hovering the mouse cursor over a part. Menu: [Tools] > [Options] > [Graphics] tab Tooltip Specify the property to display. Benefit: Property values are easily checked. Lattice Technology, Inc.

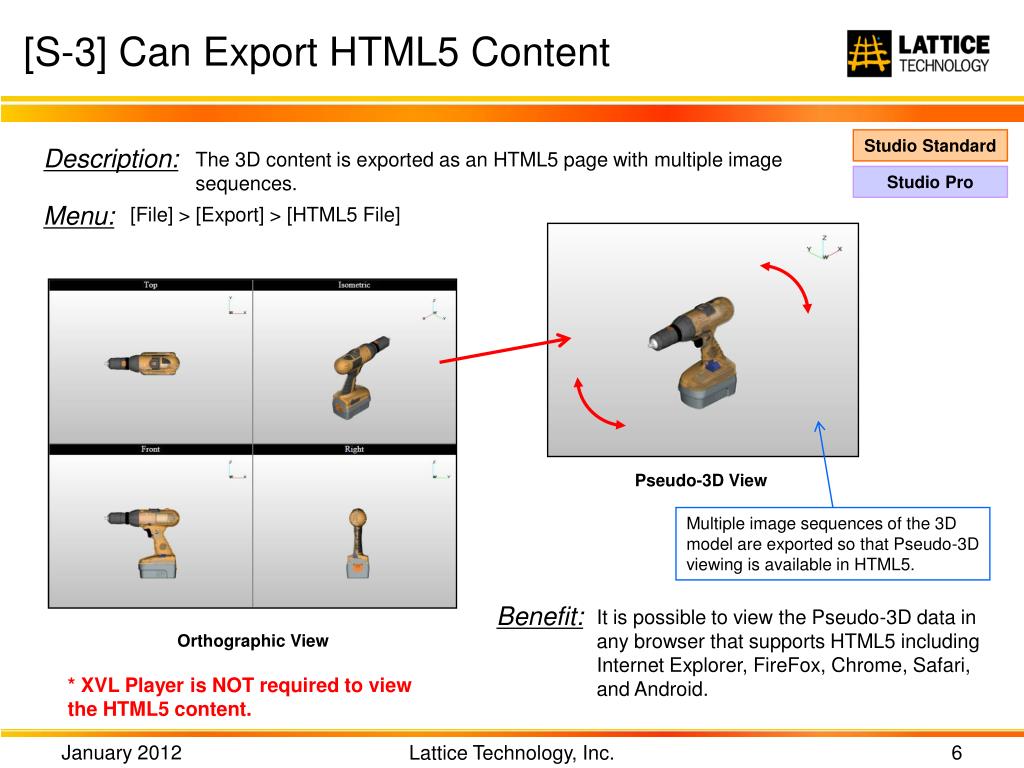

  6. [S-3] Can Export HTML5 Content Studio Standard Description: The 3D content is exported as an HTML5 page with multiple image sequences. Studio Pro Menu: [File] > [Export] > [HTML5 File] Pseudo-3D View Multiple image sequences of the 3D model are exported so that Pseudo-3D viewing is available in HTML5. Benefit: It is possible to view the Pseudo-3D data in any browser that supports HTML5 including Internet Explorer, FireFox, Chrome, Safari, and Android. Orthographic View * XVL Player is NOT required to view the HTML5 content. Lattice Technology, Inc.

  7. DMU Features

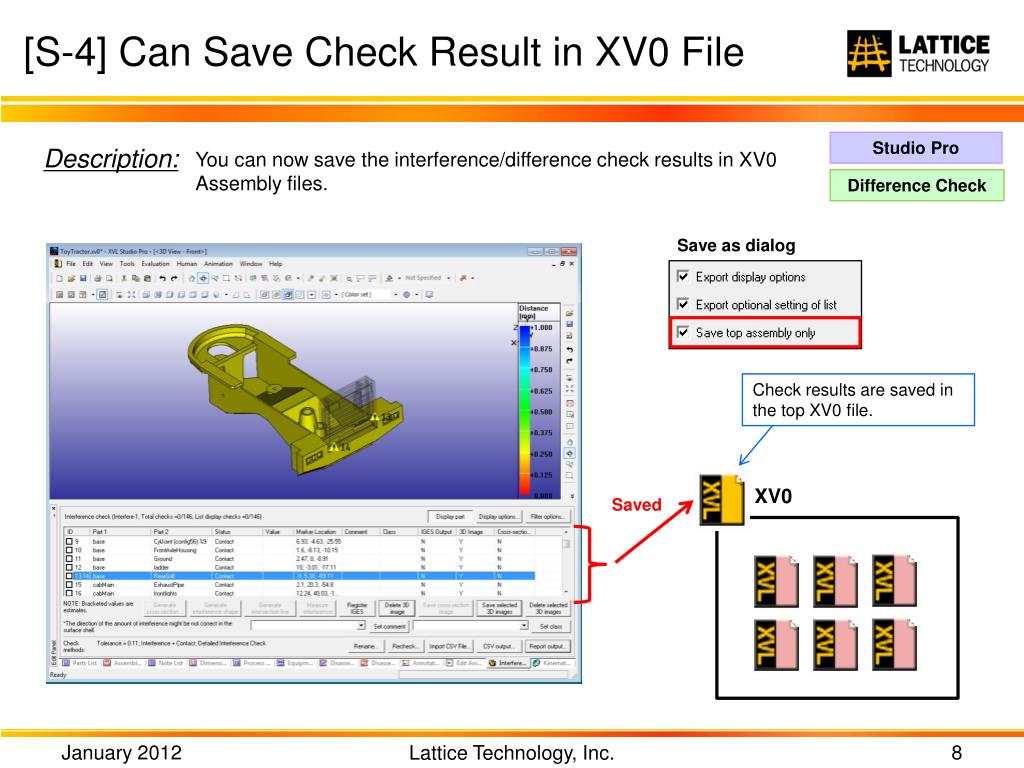

  8. [S-4] Can Save Check Result in XV0 File Studio Pro Description: You can now save the interference/difference check results in XV0 Assembly files. Difference Check Save as dialog Check results are saved in the top XV0 file. XV0 Saved Lattice Technology, Inc.

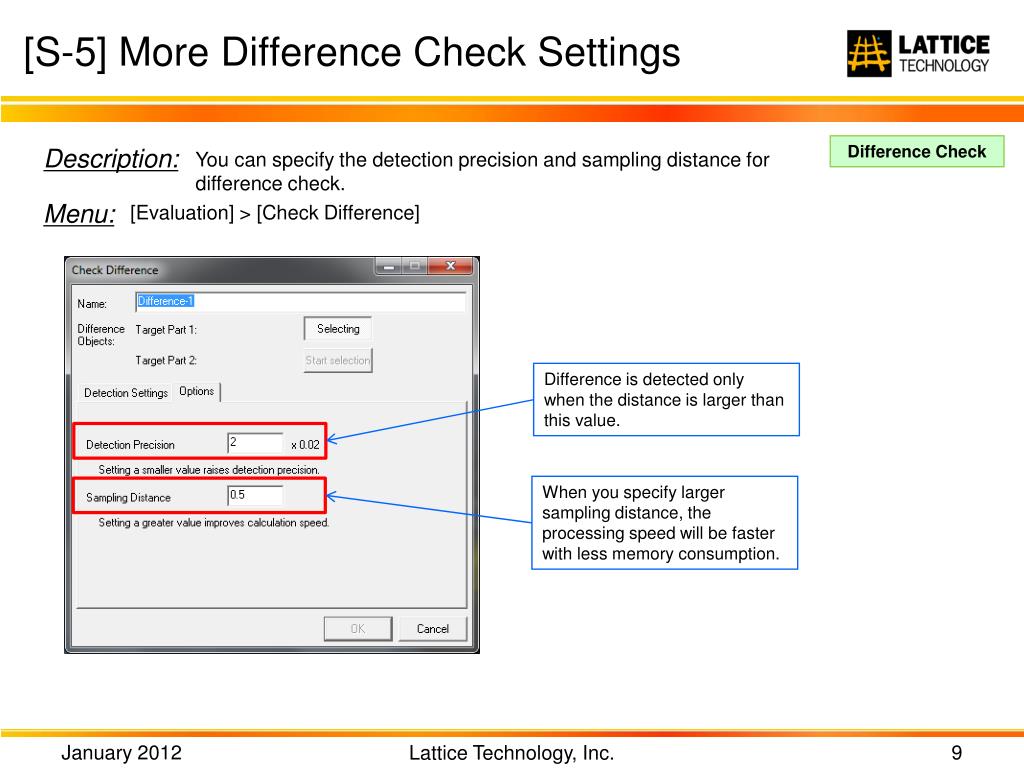

  9. [S-5] More Difference Check Settings Difference Check Description: You can specify the detection precision and sampling distance for difference check. Menu: [Evaluation] > [Check Difference] Difference is detected only when the distance is larger than this value. When you specify larger sampling distance, the processing speed will be faster with less memory consumption. Lattice Technology, Inc.

  10. [S-6] Can Rotate the Profile View Studio Pro Description: You can rotate the Cross-section profile in the Profile View window. Menu: [Profile View / Dynamic Profile View] Profile view Use “Examine” to rotate the profile in 2D. Benefit: You can view the profile in the appropriate view direction. Lattice Technology, Inc.

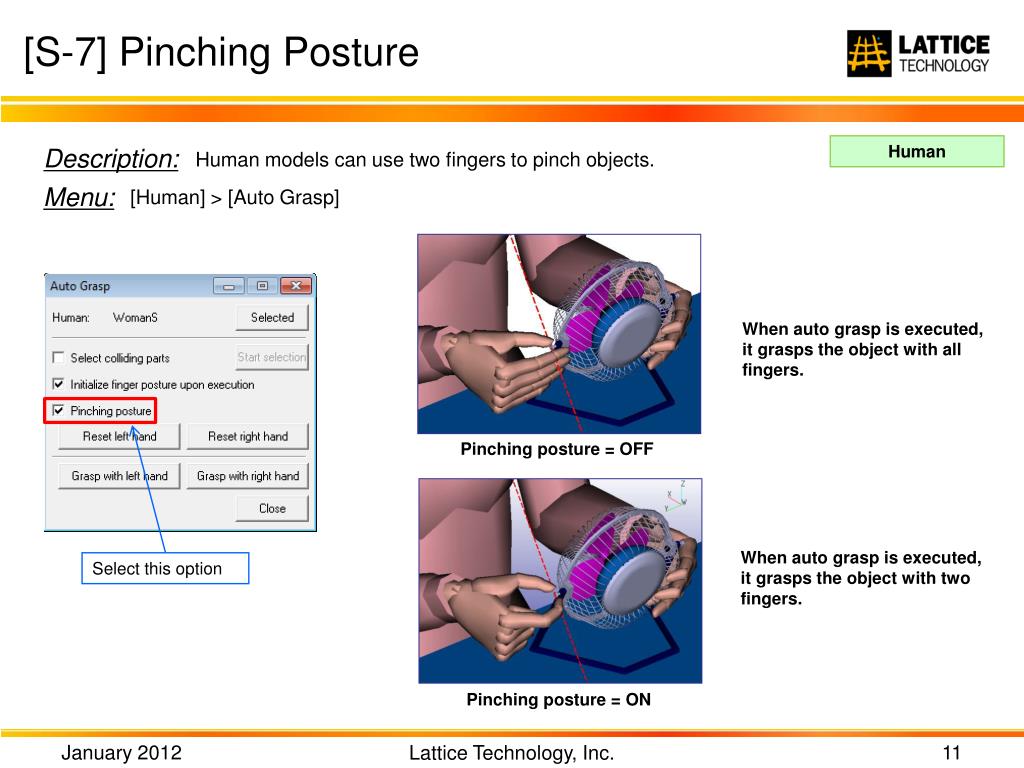

  11. [S-7] Pinching Posture Human Description: Human models can use two fingers to pinch objects. Menu: [Human] > [Auto Grasp] When auto grasp is executed, it grasps the object with all fingers. Pinching posture = OFF When auto grasp is executed, it grasps the object with two fingers. Select this option Pinching posture = ON Lattice Technology, Inc.

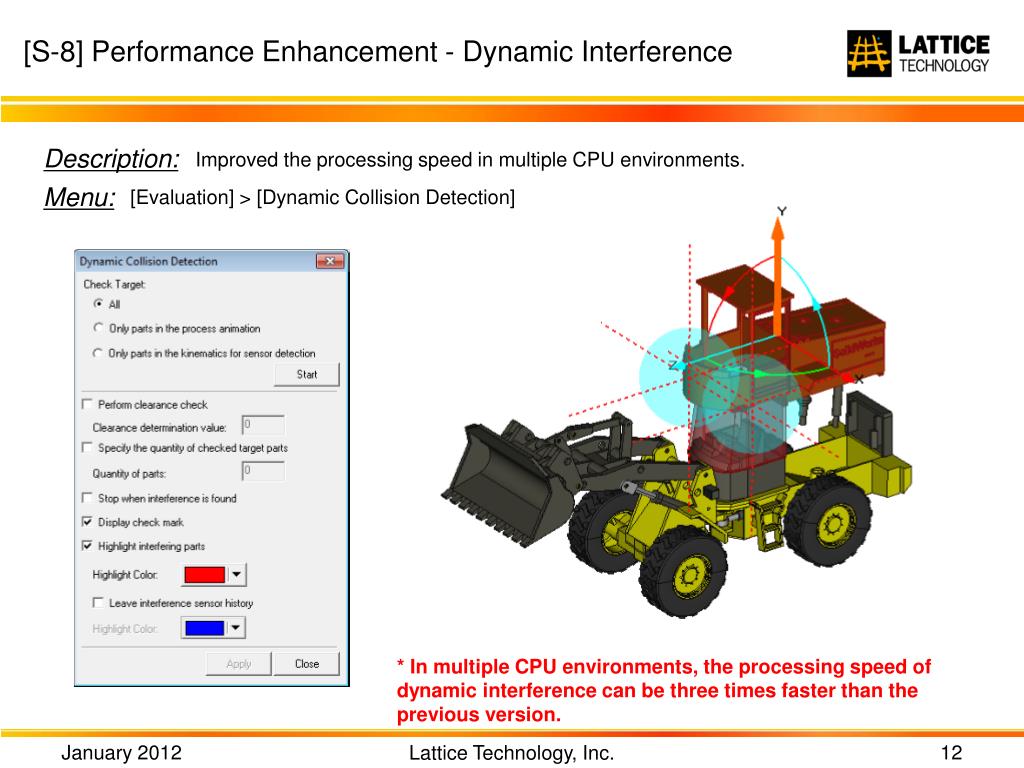

  12. [S-8] Performance Enhancement - Dynamic Interference Description: Improved the processing speed in multiple CPU environments. Menu: [Evaluation] > [Dynamic Collision Detection] * In multiple CPU environments, the processing speed of dynamic interference can be three times faster than the previous version. Lattice Technology, Inc.

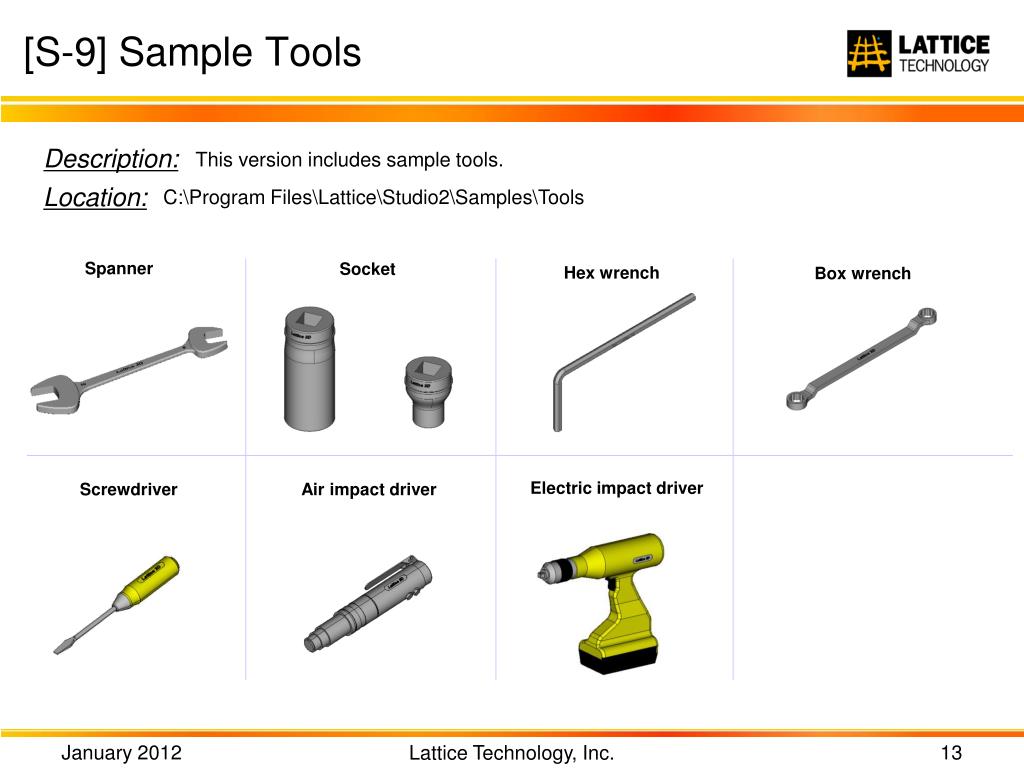

  13. [S-9] Sample Tools Description: This version includes sample tools. Location: C:\Program Files\Lattice\Studio2\Samples\Tools Spanner Socket Hex wrench Box wrench Electric impact driver Screwdriver Air impact driver Lattice Technology, Inc.

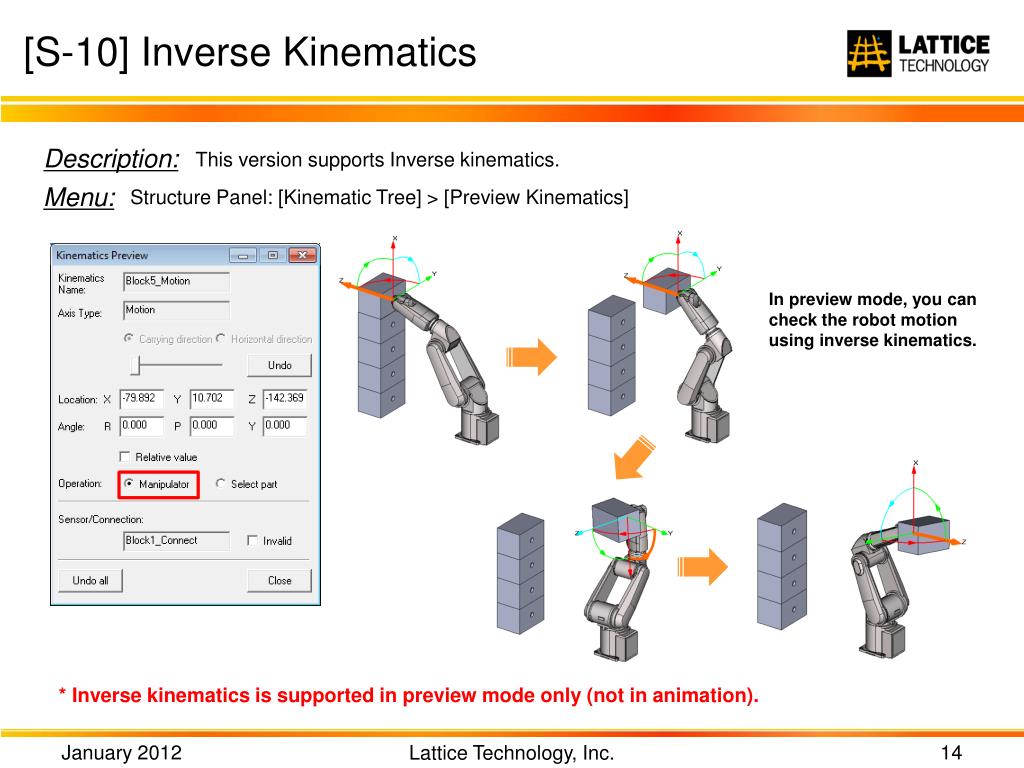

  14. [S-10] Inverse Kinematics Description: This version supports Inverse kinematics. Menu: Structure Panel: [Kinematic Tree] > [Preview Kinematics] In preview mode, you can check the robot motion using inverse kinematics. * Inverse kinematics is supported in preview mode only (not in animation). Lattice Technology, Inc.

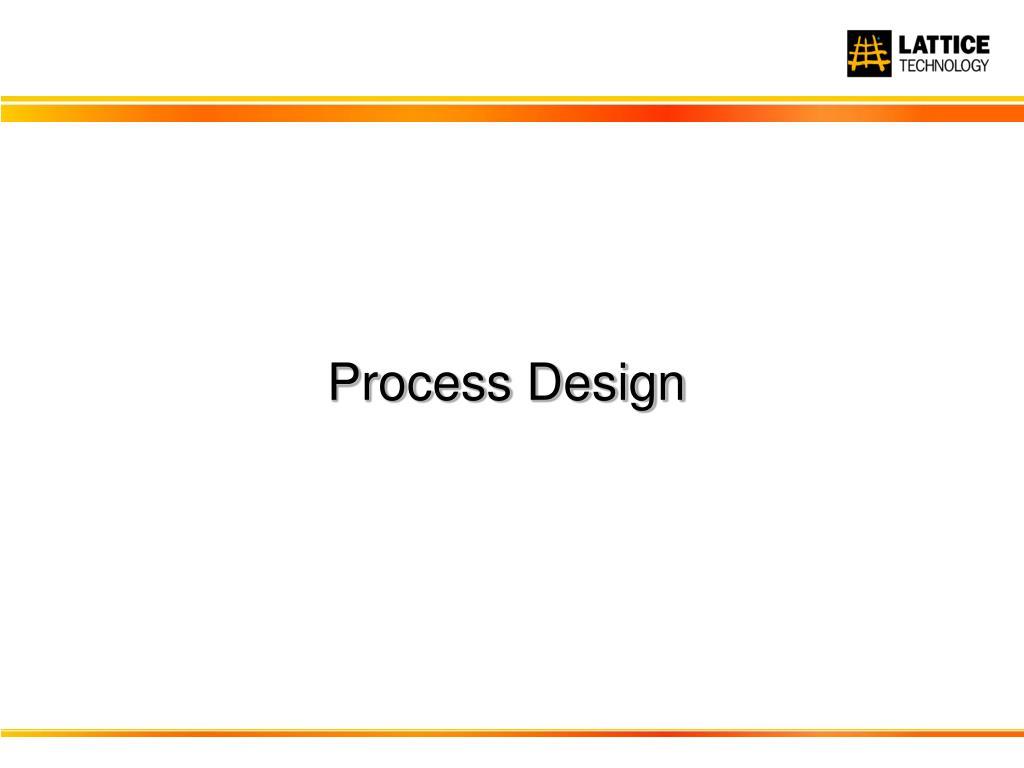

  15. Process Design

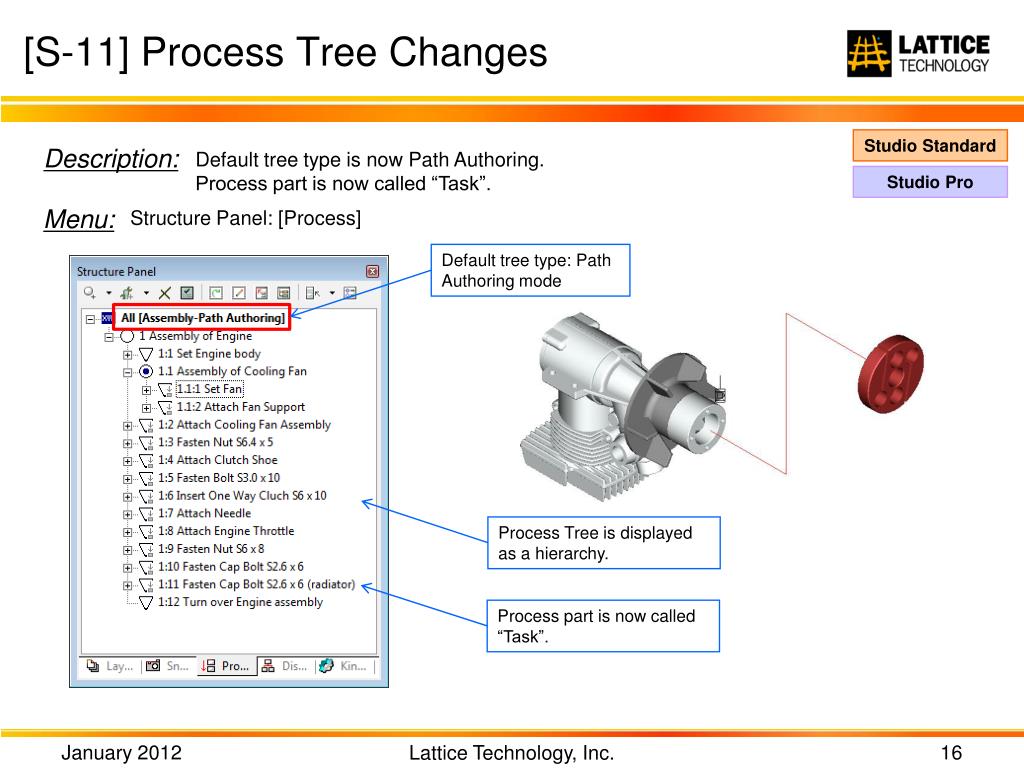

  16. [S-11] Process Tree Changes Studio Standard Description: Default tree type is now Path Authoring. Process part is now called “Task”. Studio Pro Menu: Structure Panel: [Process] Default tree type: Path Authoring mode Process Tree is displayed as a hierarchy. Process part is now called “Task”. Lattice Technology, Inc.

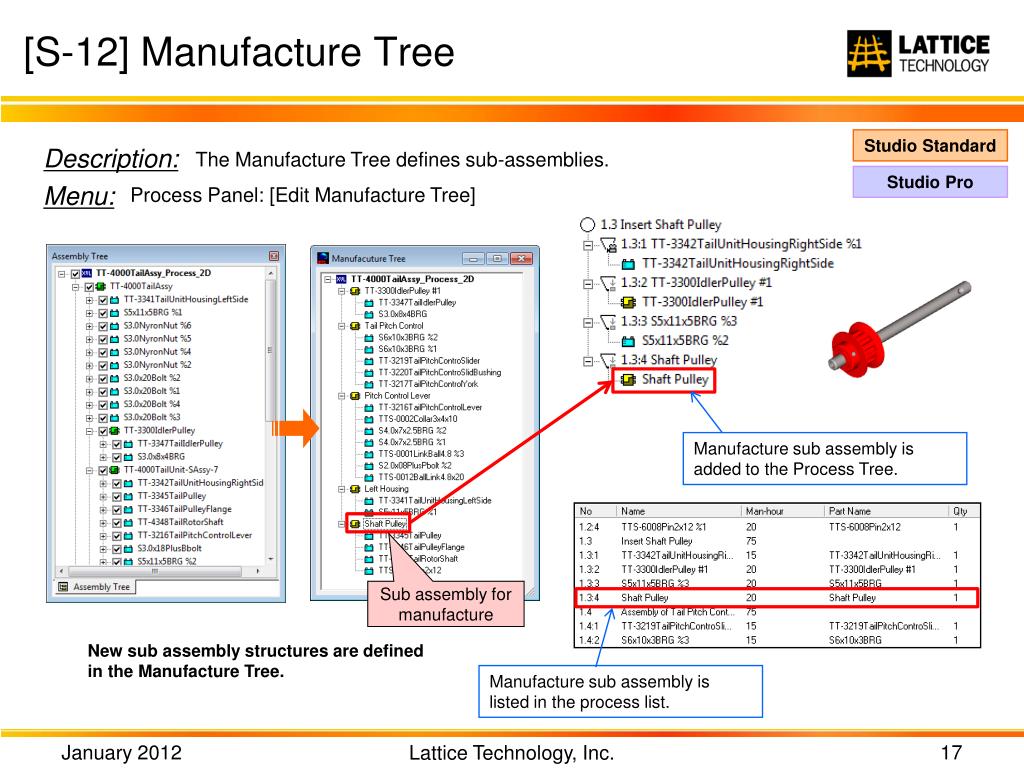

  17. [S-12] Manufacture Tree Studio Standard Description: The Manufacture Tree defines sub-assemblies. Studio Pro Menu: Process Panel: [Edit Manufacture Tree] Manufacture sub assembly is added to the Process Tree. Sub assembly for manufacture New sub assembly structures are defined in the Manufacture Tree. Manufacture sub assembly is listed in the process list. Lattice Technology, Inc.

  18. [S-13] Automatic Process Animation (Path Authoring) Studio Standard Description: Path Authoring processes can create process animations automatically. Studio Pro Menu: Process Panel: [Operation] menu > [Auto Path Generate] Property dialog Can specify the part disassembly direction for “Path Authoring” animations the same way as for “Normal” process animations. * NOTE: Automatic animations can be generated for tasks, but not for base processes. Lattice Technology, Inc.

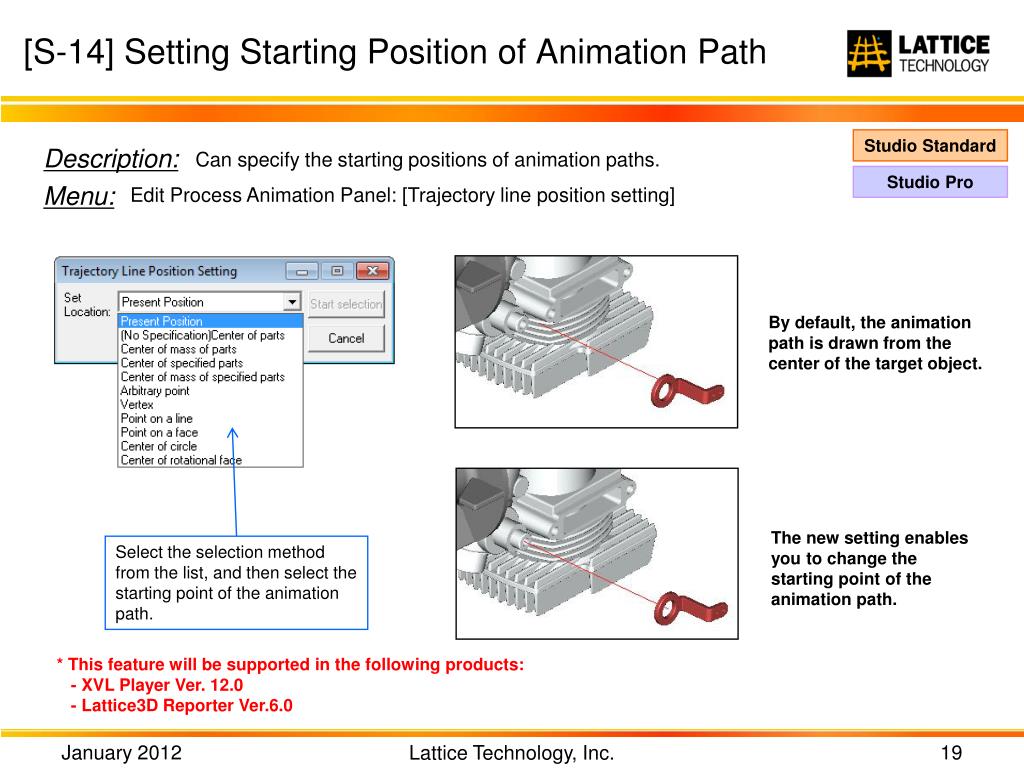

  19. [S-14] Setting Starting Position of Animation Path Studio Standard Description: Can specify the starting positions of animation paths. Studio Pro Menu: Edit Process Animation Panel: [Trajectory line position setting] By default, the animation path is drawn from the center of the target object. The new setting enables you to change the starting point of the animation path. Select the selection method from the list, and then select the starting point of the animation path. * This feature will be supported in the following products: - XVL Player Ver. 12.0 - Lattice3D Reporter Ver.6.0 Lattice Technology, Inc.

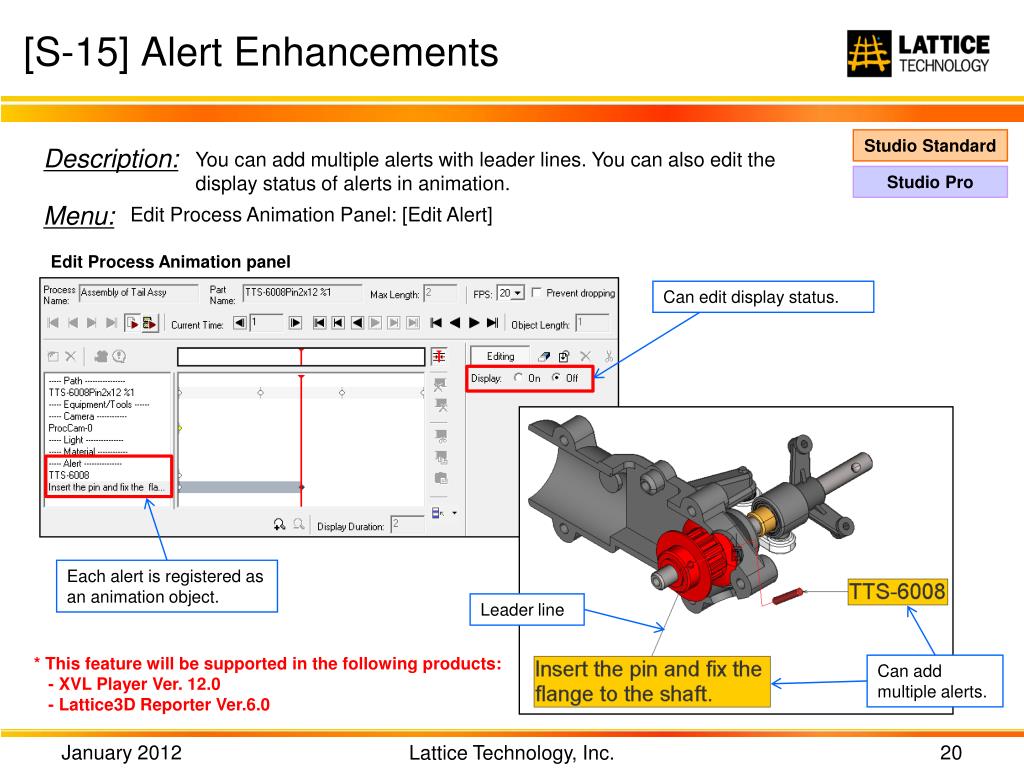

  20. [S-15] Alert Enhancements Studio Standard Description: You can add multiple alerts with leader lines. You can also edit the display status of alerts in animation. Studio Pro Menu: Edit Process Animation Panel: [Edit Alert] Edit Process Animation panel Can edit display status. Each alert is registered as an animation object. Leader line * This feature will be supported in the following products: - XVL Player Ver. 12.0 - Lattice3D Reporter Ver.6.0 Can add multiple alerts. Lattice Technology, Inc.

  21. [S-16] Export Process Objects in IGES Studio Standard Description: You can export the parts associated with selected processes/tasks in IGES format. Studio Pro Menu: Process Panel: [Operation] > [Export Geometry File] Export IGES Exported IGES data can be imported into CAD systems. Benefit: Exported IGES data can be imported into CAD systems for use as reference parts when designing tooling for the task. Lattice Technology, Inc.

  22. Illustration

  23. [S-17] Smooth Edge Extraction Illustration Description: A new control enables extraction of smooth edges. Menu: [File] > [Export] > [Illustration File]: Style 1 tab Illustration Output dialog (Style 1 tab) Set the Extraction Coefficient to control the edge extraction. Extraction Limit =135 deg Includes necessary lines Misses some necessary lines Includes some unnecessary lines Does not include unnecessary lines Extraction Coefficient = ON Benefit: Produces better quality illustrations. Extraction Limit =135 deg Extraction Limit =180 deg Extraction Coefficient = OFF Lattice Technology, Inc.

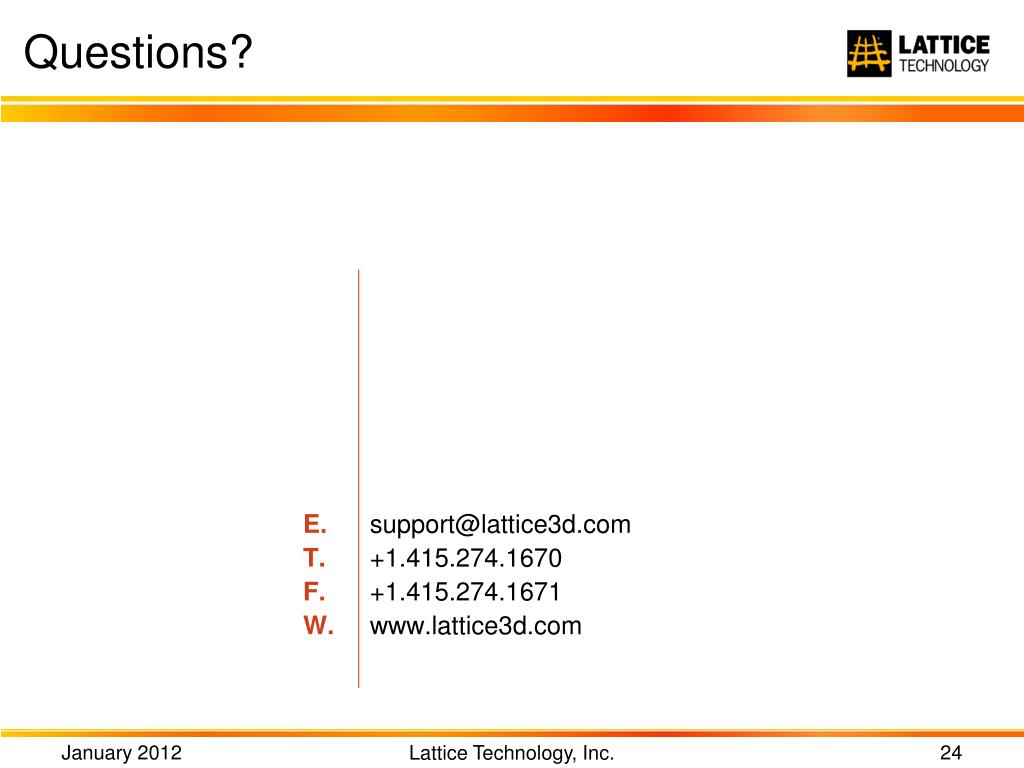

  24. Questions? E. support@lattice3d.com T. +1.415.274.1670 F. +1.415.274.1671 W. www.lattice3d.com Lattice Technology, Inc.
