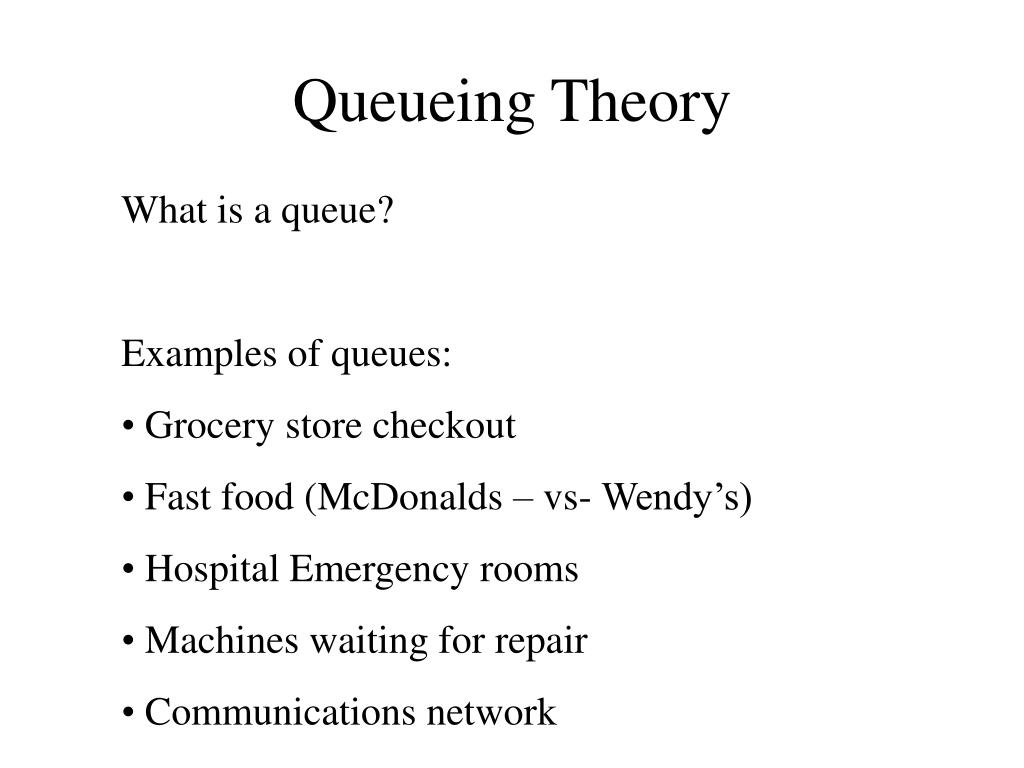

  1. Queueing Theory • What is a queue? • Examples of queues: • Grocery store checkout • Fast food (McDonalds – vs- Wendy’s) • Hospital Emergency rooms • Machines waiting for repair • Communications network

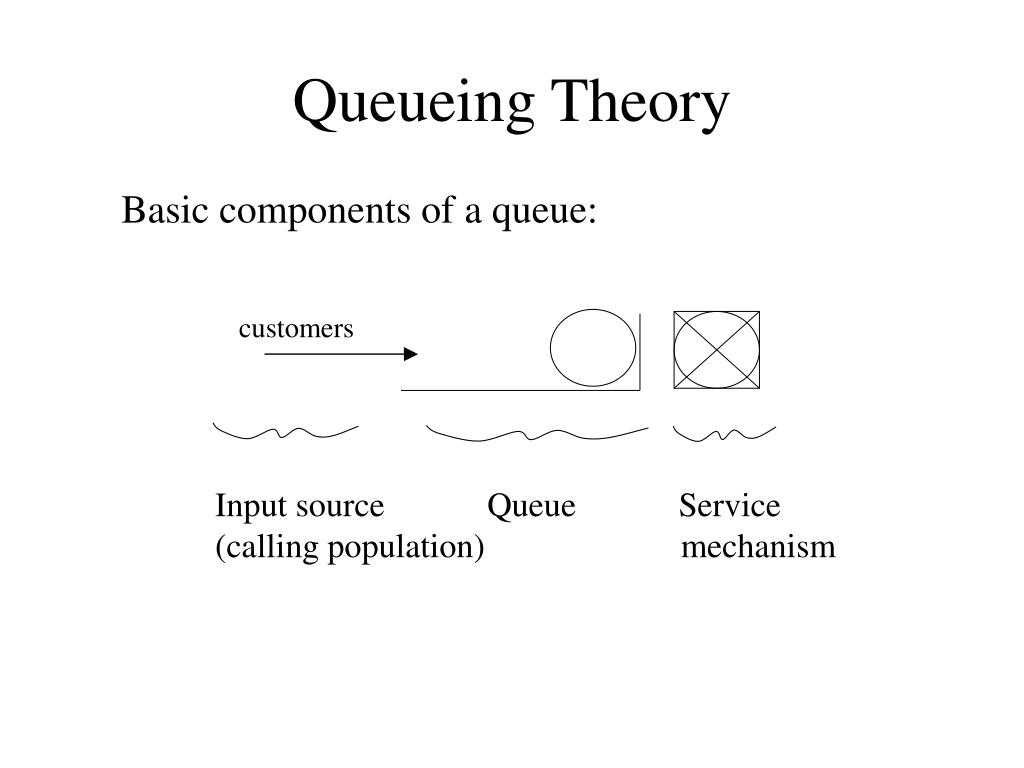

  2. Queueing Theory Basic components of a queue: customers Input source Queue Service (calling population) mechanism

  3. Queueing Theory • Queueing System Characteristics • Input source: • population size (assumed infinite) • customer generation pattern (assumed Poisson w rate or equivalently, exponential with an inter-arrival time ) • arrival behavior (balking, blocking) • Queue: • queue size (finite or infinite) • queue discipline (assumed FIFO, other include random, LIFO, priority, etc..)

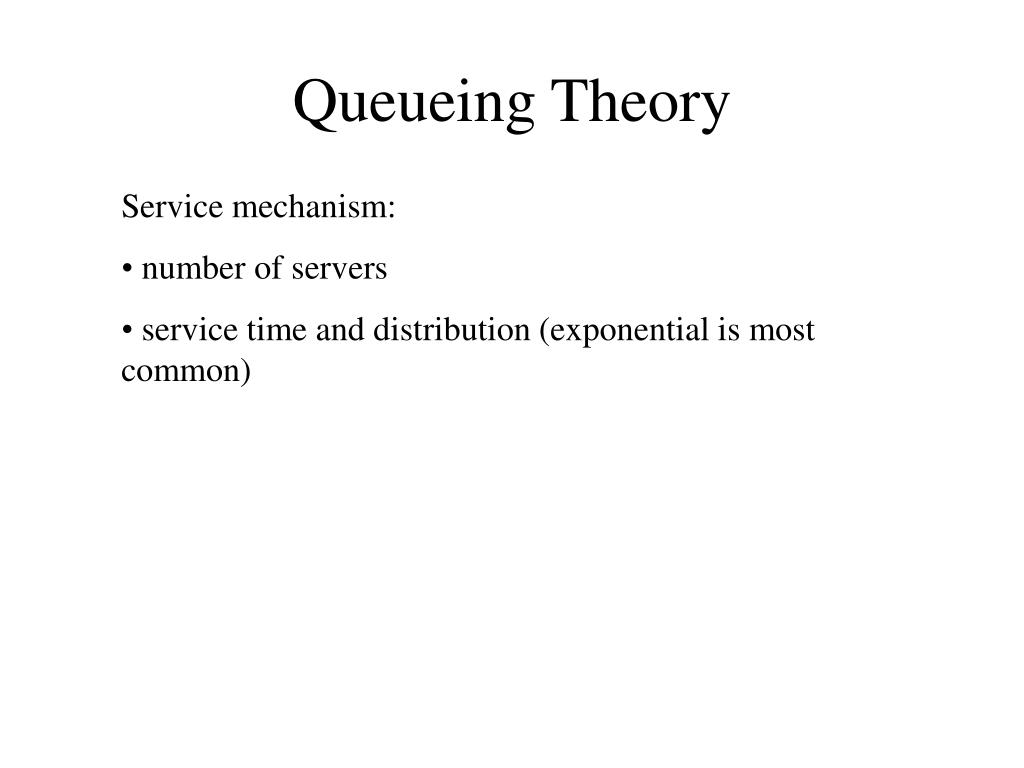

  4. Queueing Theory • Service mechanism: • number of servers • service time and distribution (exponential is most common)

  5. Queueing Theory Naming convention: a / b / c / d / e / f a – distribution of inter-arrival times b – distribution of service time c – number of servers Where M – exponential distribution (Markovian) D – degenerate distribution (constant times) Ek – Erlang distribution (with shape k) G = general distribuiton Ex. M/M/1 or M/G/1

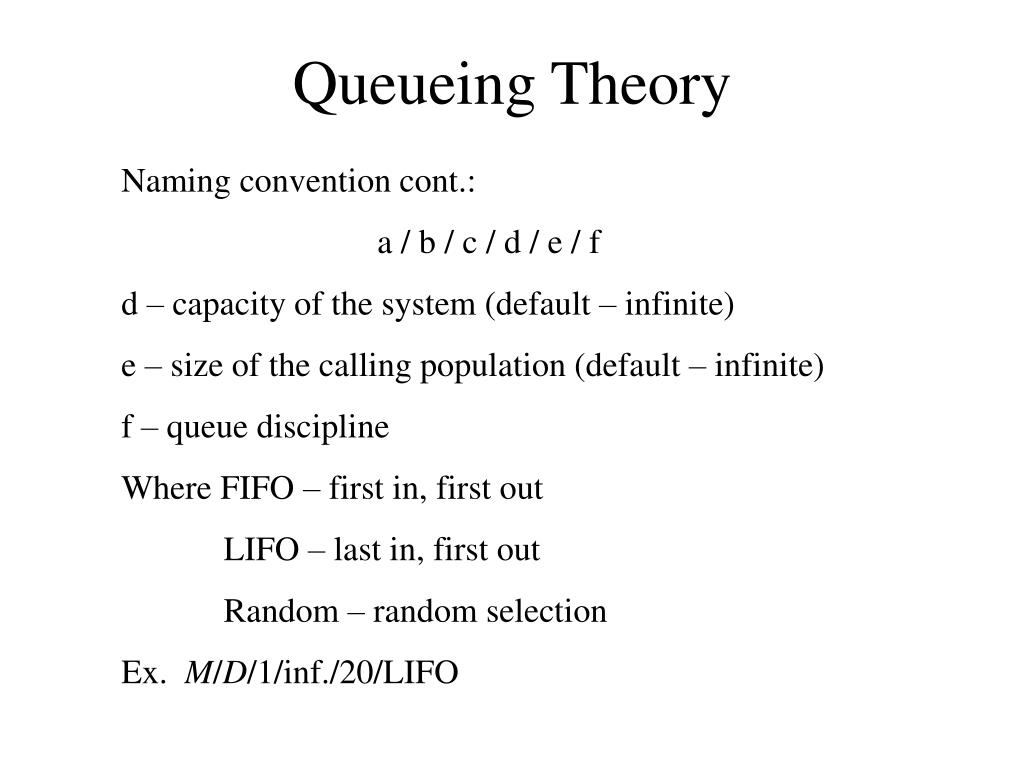

  6. Queueing Theory Naming convention cont.: a / b / c / d / e / f d – capacity of the system (default – infinite) e – size of the calling population (default – infinite) f – queue discipline Where FIFO – first in, first out LIFO – last in, first out Random – random selection Ex. M/D/1/inf./20/LIFO

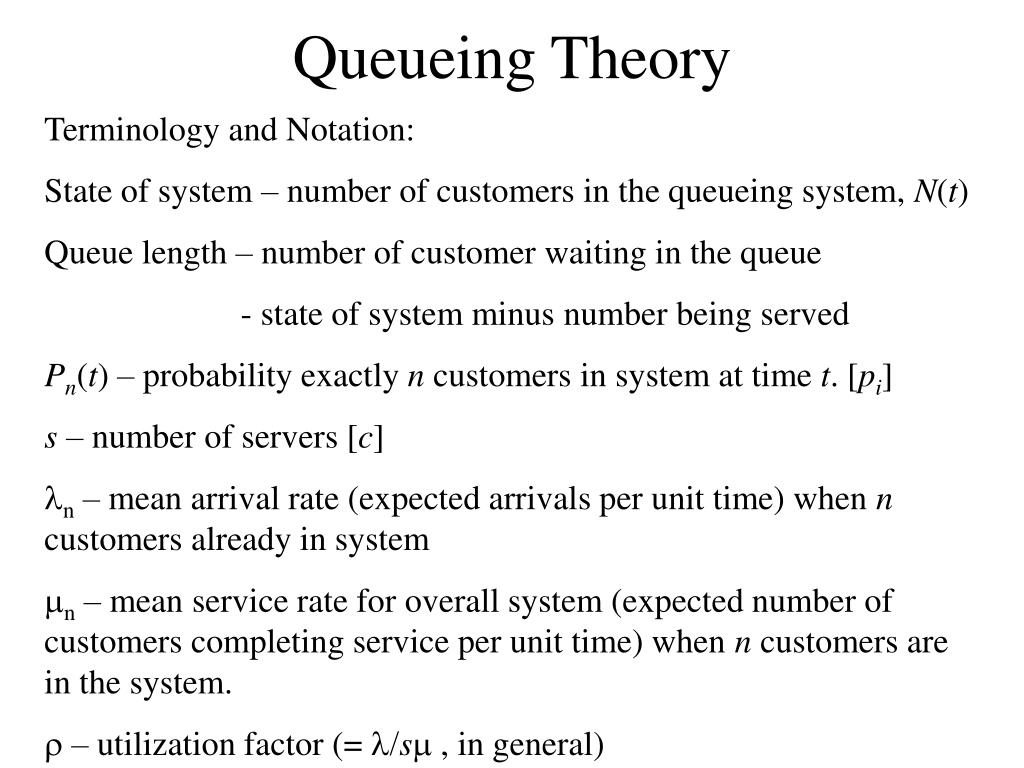

  7. Queueing Theory Terminology and Notation: State of system – number of customers in the queueing system, N(t) Queue length – number of customer waiting in the queue - state of system minus number being served Pn(t) – probability exactly n customers in system at time t. [pi] s – number of servers [c] ln – mean arrival rate (expected arrivals per unit time) when n customers already in system mn – mean service rate for overall system (expected number of customers completing service per unit time) when n customers are in the system. r – utilization factor (= l/sm , in general)

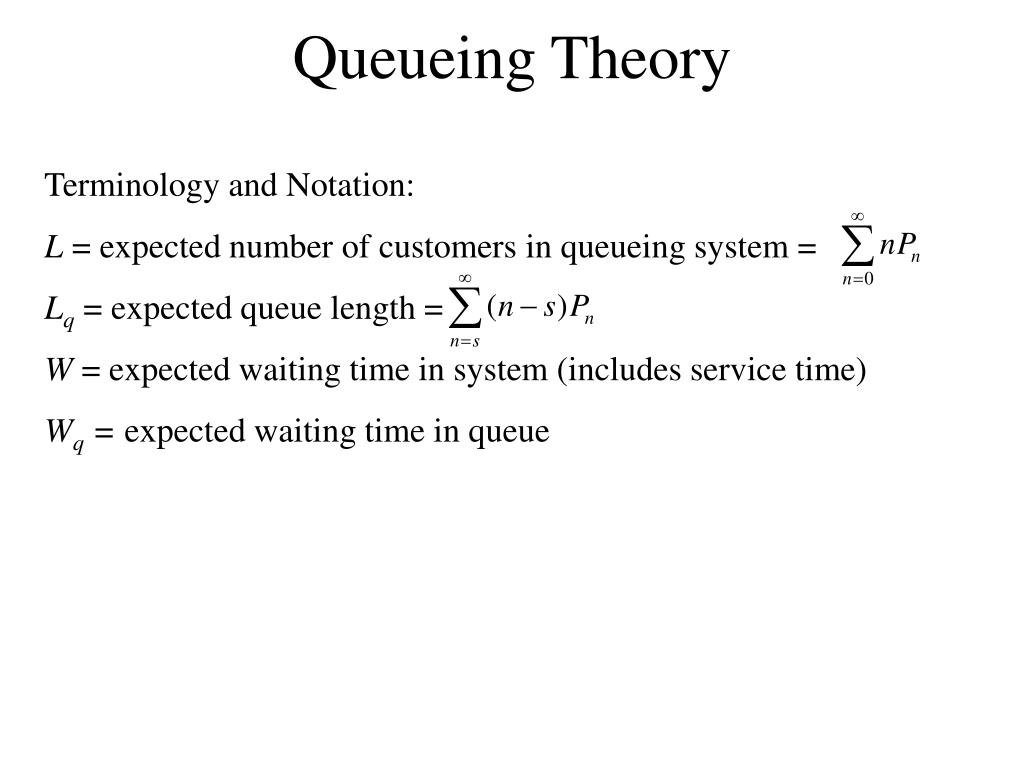

  8. Queueing Theory Terminology and Notation: L = expected number of customers in queueing system = Lq = expected queue length = W = expected waiting time in system (includes service time) Wq = expected waiting time in queue

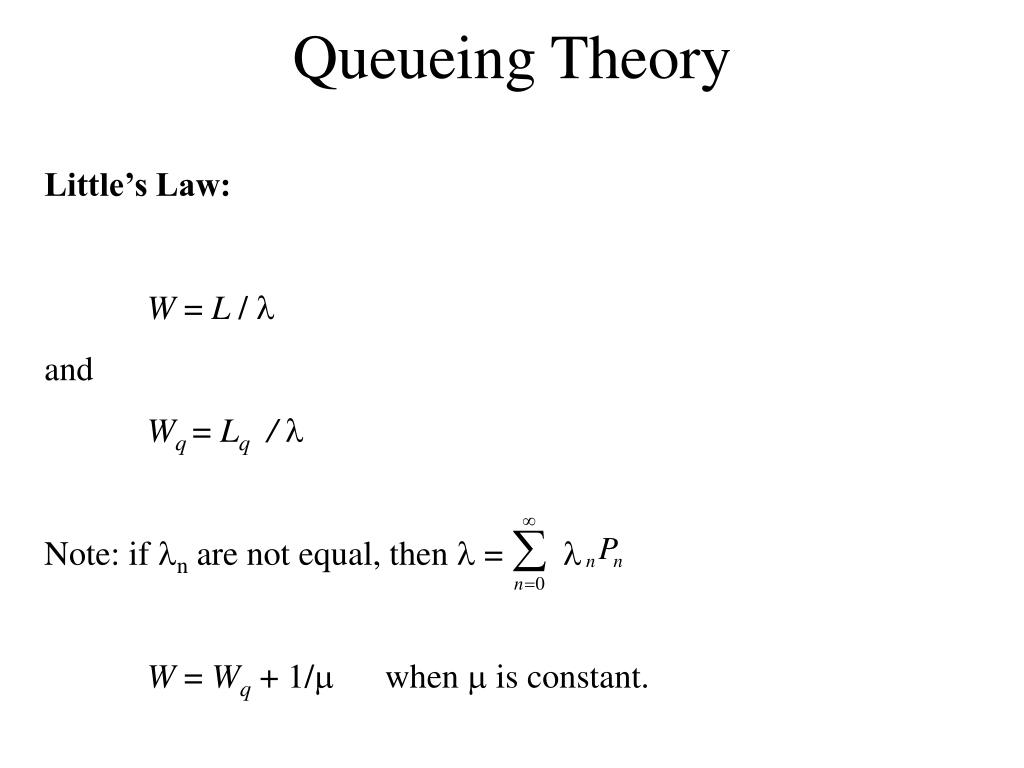

  9. Queueing Theory Little’s Law: W = L / l and Wq = Lq / l Note: if ln are not equal, then l = l W = Wq + 1/m when m is constant.

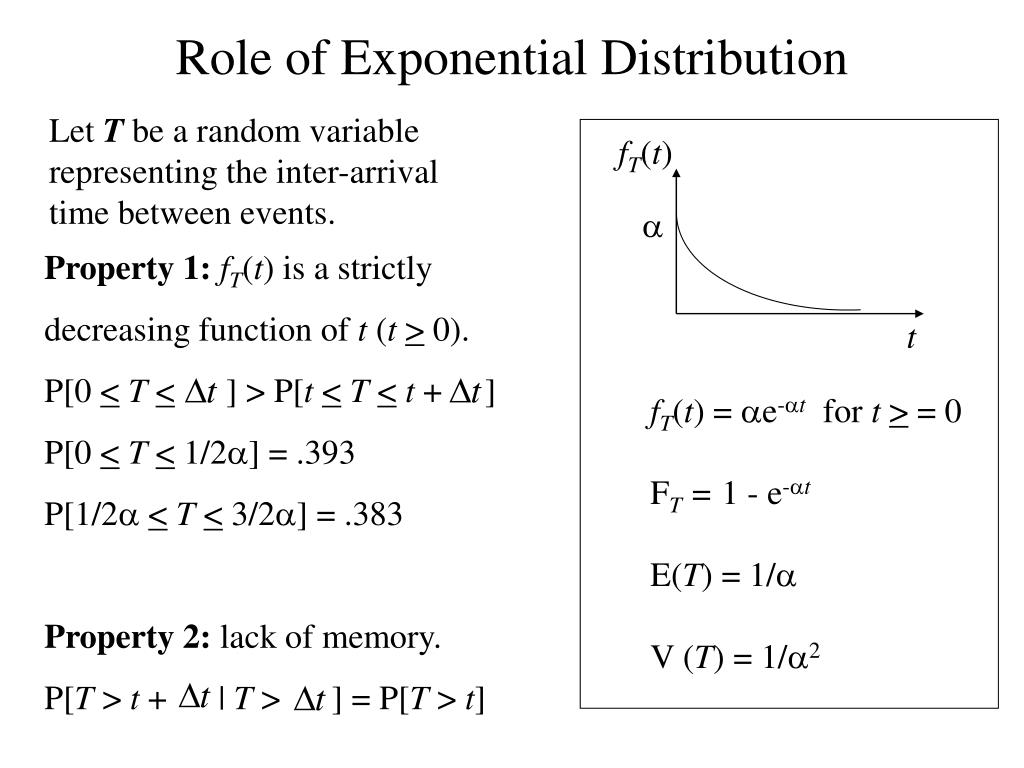

  10. Role of Exponential Distribution Let T be a random variable representing the inter-arrival time between events. fT(t) a Property 1: fT(t) is a strictly decreasing function of t (t> 0). P[0 <T<] > P[t<T<t +] P[0 <T< 1/2a] = .393 P[1/2a<T< 3/2a] = .383 Property 2: lack of memory. P[T > t + | T > ] = P[T > t] t fT(t) = ae-atfor t> = 0 FT = 1 - e-at E(T) = 1/a V (T) = 1/a2

  11. Role of Exponential Distribution Property 3: the minimum of several independent exponential random variables has an exponential distribution. Let T1, T2,…. Tn be distributed exponential with parameters a1, a2,…, an and let U = min{T1, T2,…. Tn } then: U is exponential with rate parameter a = Property 4: Relationship to Poisson distribution. Let the time between events be distributed exponentially with Parameter a. Then the number of times, X(t), this event occurs over some time t has a Poisson distribution with rate at: P[X(t) = n] = (at)ne-at/n!

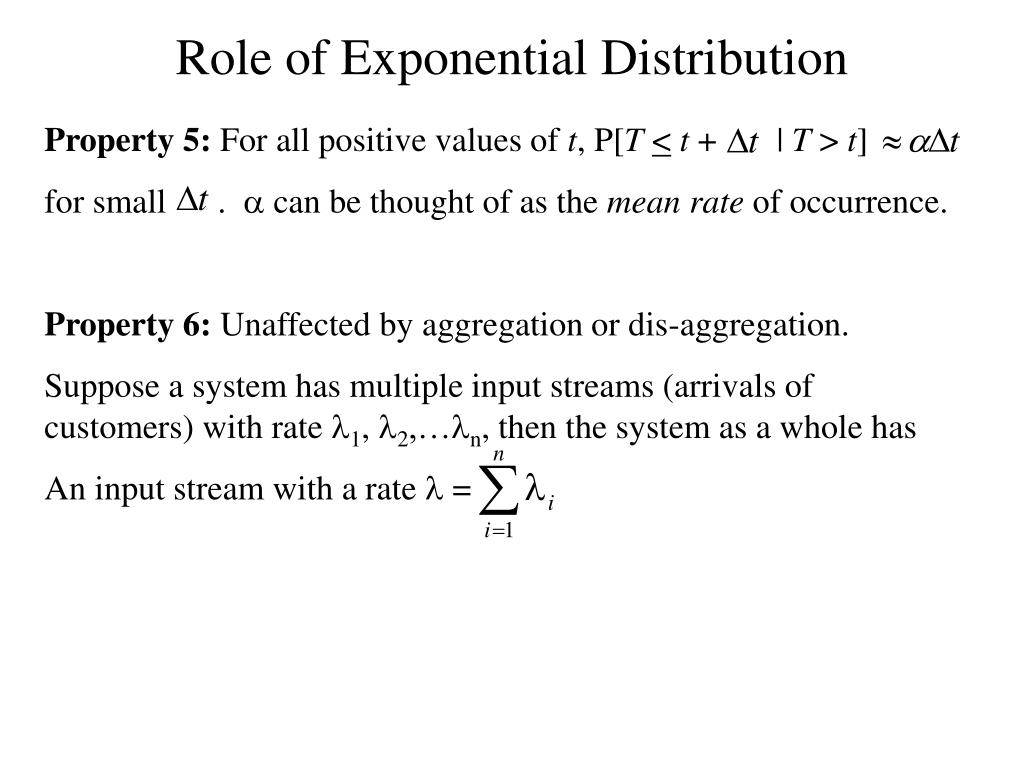

  12. Role of Exponential Distribution Property 5: For all positive values of t, P[T<t + | T > t] for small . a can be thought of as the mean rate of occurrence. Property 6: Unaffected by aggregation or dis-aggregation. Suppose a system has multiple input streams (arrivals of customers) with rate l1, l2,…ln, then the system as a whole has An input stream with a rate l =

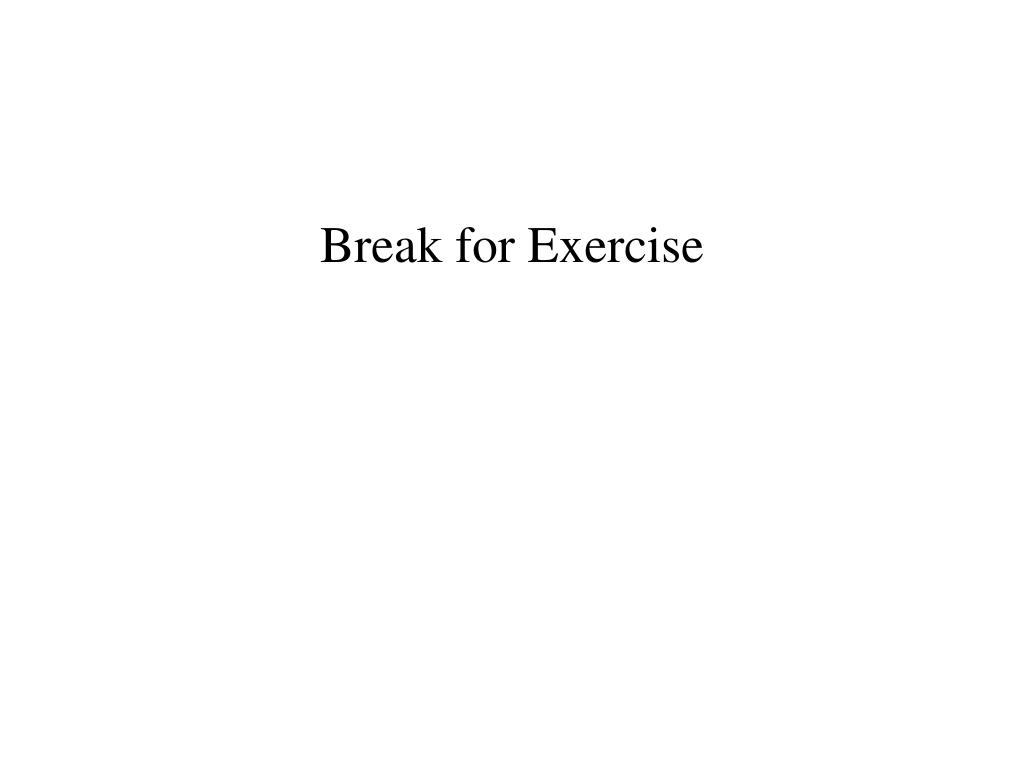

  13. Break for Exercise
