  1. Power Probe The PSP Power Probe is a three phase data logger, quality of supply monitor, and remote terminal unit for demand-side-management. Historical information of two months is kept in non volatile memory for later analysis. Communication options to the unit include direct connection to a computer or PDA serial port, dial-up modem, or real-time communication via the internet.

  2. Content Index • Probe connection to supply and load • Probe connection to PC • Probe functions • Analysis tools Home

  3. 220VAC or 110VAC 50 Hz or 60 Hz Instrument supply independent of supply to load Burden: less than 0.5 VA THREE PHASE DATA LOGGER Auxiliary Supply N L Home

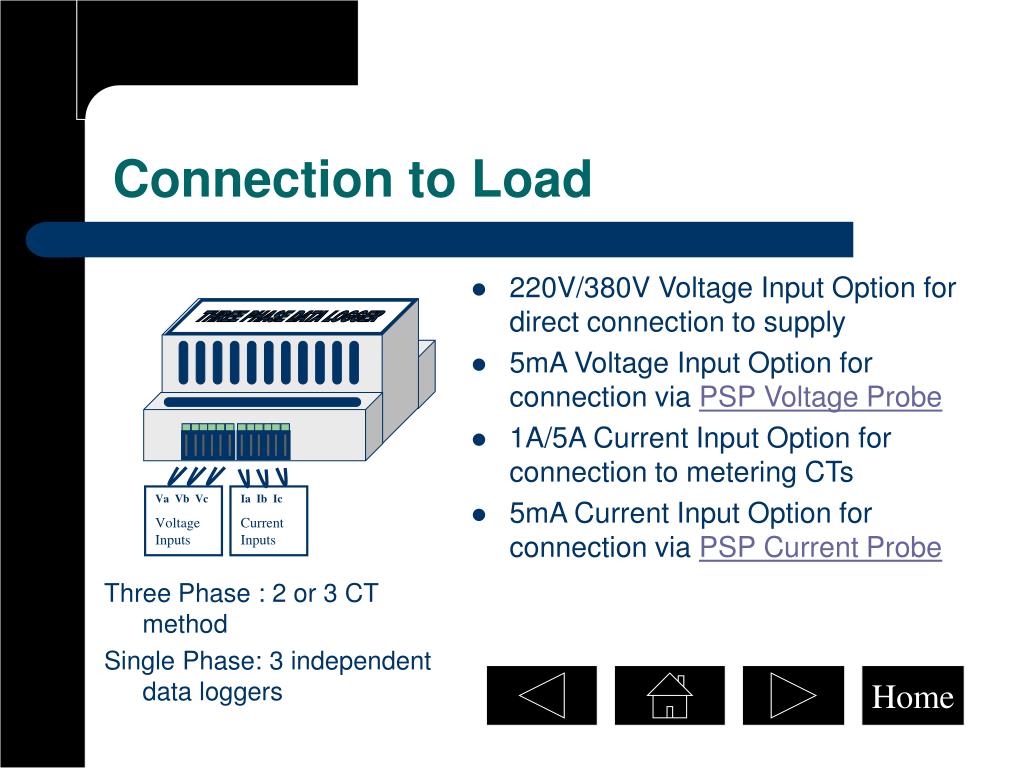

  4. 220V/380V Voltage Input Option for direct connection to supply 5mA Voltage Input Option for connection via PSP Voltage Probe 1A/5A Current Input Option for connection to metering CTs 5mA Current Input Option for connection via PSP Current Probe THREE PHASE DATA LOGGER Connection to Load Three Phase : 2 or 3 CT method Single Phase: 3 independent data loggers VaVbVc Voltage Inputs IaIbIc Current Inputs Home

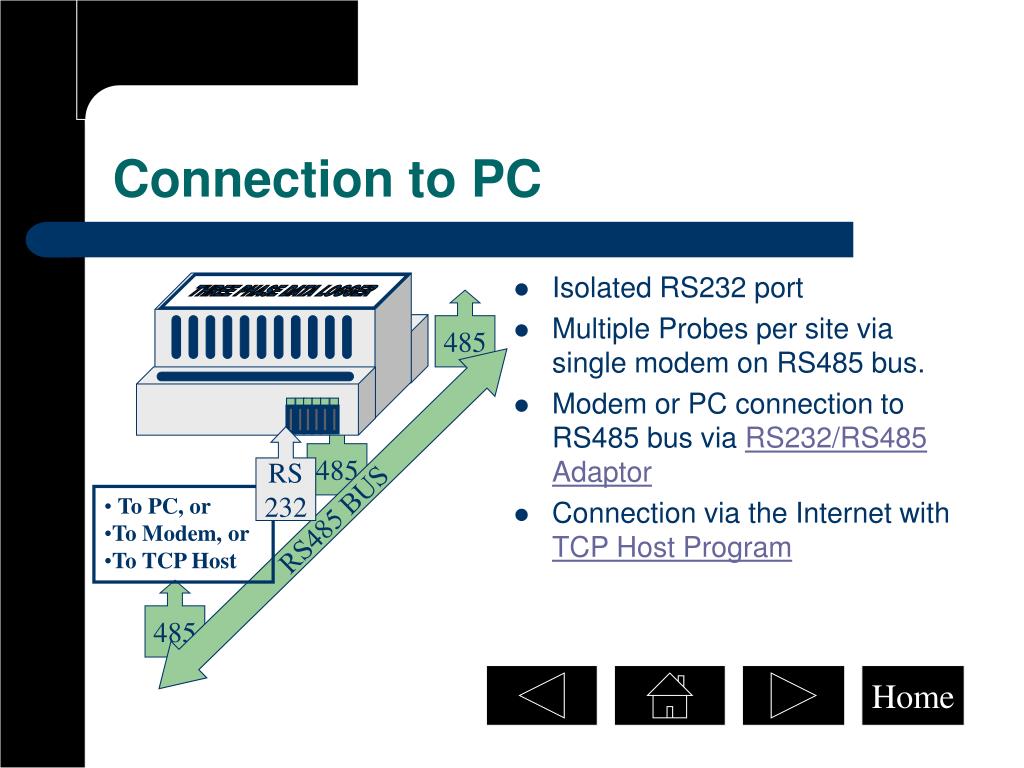

  5. Isolated RS232 port Multiple Probes per site via single modem on RS485 bus. Modem or PC connection to RS485 bus via RS232/RS485 Adaptor Connection via the Internet with TCP Host Program THREE PHASE DATA LOGGER Connection to PC 485 485 RS 232 • To PC, or • To Modem, or • To TCP Host RS485 BUS 485 Home

  6. Main selection panel Connect Communicate Analyse Connect options Local port Via modem Via HTP host on internet Organize probe data in folders Software Home

  7. Real Time Functions Setup Energy meter Quality of supply monitor Remote terminal unit Digital multi-meter Oscilloscope Meter tester The Analog Devices ADE7758 poly phase multifunction energy metering chip is the core of all measurement in the Power probe. It is presently the most advanced metering chip in the world. The full functionality of this chip is exposed via a powerful main processor and communication protocol. Independent per-phase information is kept in non-volatile memory for active energy, reactive energy, voltage peaks, voltage dips and power-downs. Functions Home

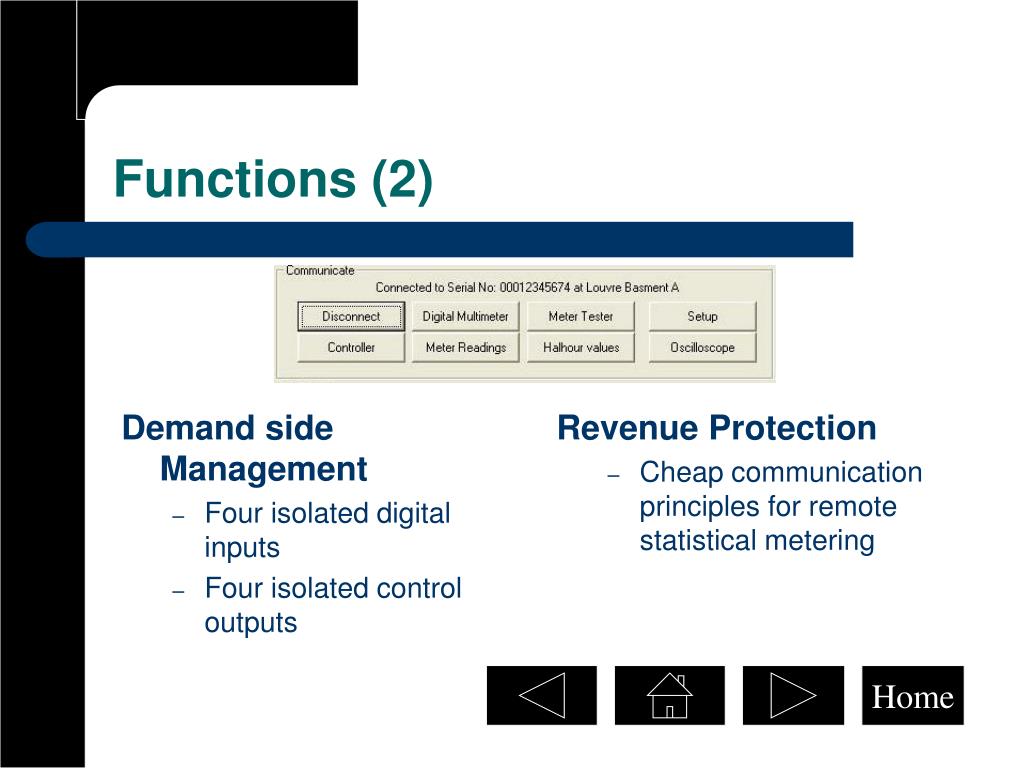

  8. Demand side Management Four isolated digital inputs Four isolated control outputs Revenue Protection Cheap communication principles for remote statistical metering Functions (2) Home

  9. Long term consumption analysis Accumulated energy consumption plots over multiple months Revenue Protection tools: Linear regression plots Data export to spreadsheet formats Analysis Tools Home

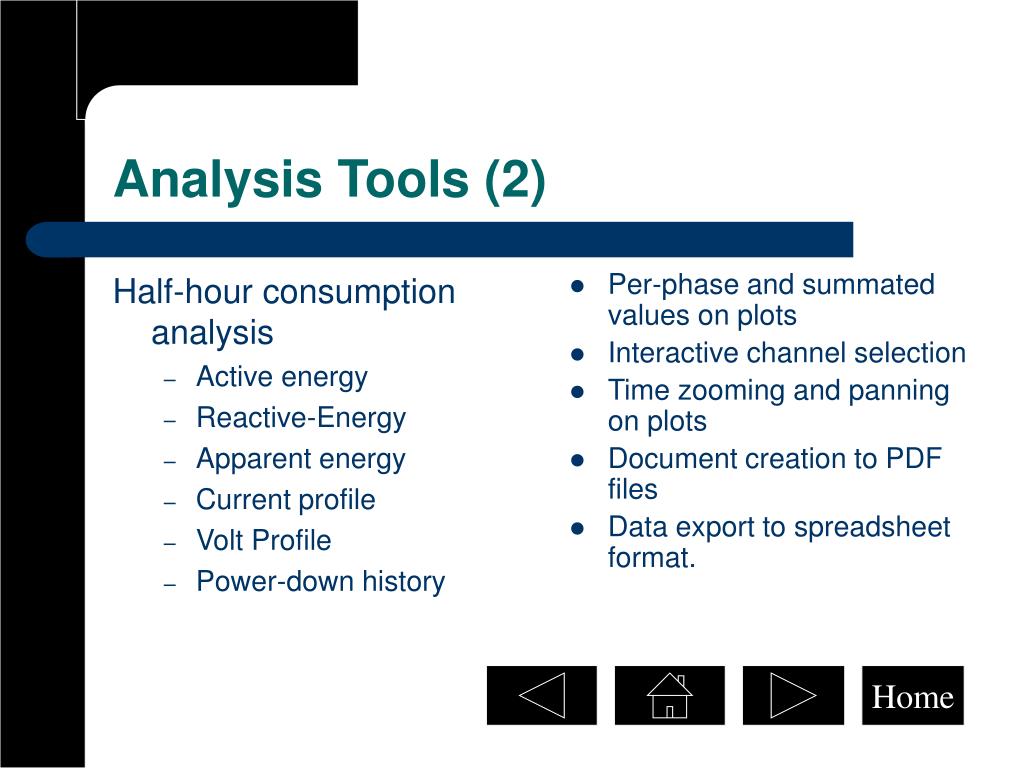

  10. Half-hour consumption analysis Active energy Reactive-Energy Apparent energy Current profile Volt Profile Power-down history Per-phase and summated values on plots Interactive channel selection Time zooming and panning on plots Document creation to PDF files Data export to spreadsheet format. Analysis Tools (2) Home

  11. Waveform Analysis Captured waveforms of voltage, current, active power, and reactive power can be exported to data-files for analysis via third-party software packages. Third-party analysis on exported data FFT analysis Energy spectrum Harmonic content Form-factor Analysis Tools (3) Home
