1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title:Enterprise Healthcare System Using a Body Area Network Date Submitted: Source: Ranjeet Kumar Patro, Giriraj Goyal, Kiran Bynam Contact: giriraj.g@samsung.com, +91-80-4181 9999 Voice: Giriraj Goyal Re: Abstract: This document highlights health care problems with contemporary life style and working environment and suggests its solutions using BAN. Purpose: To propose BAN as a viable solutions to the problem poised by today’s life style Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual's or organization's. The material in this document is subject to change in form and content after further study. The contributor's reserves the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and maybe made publicly available by P802.15. Giriraj Goyal, Samsung Electronics

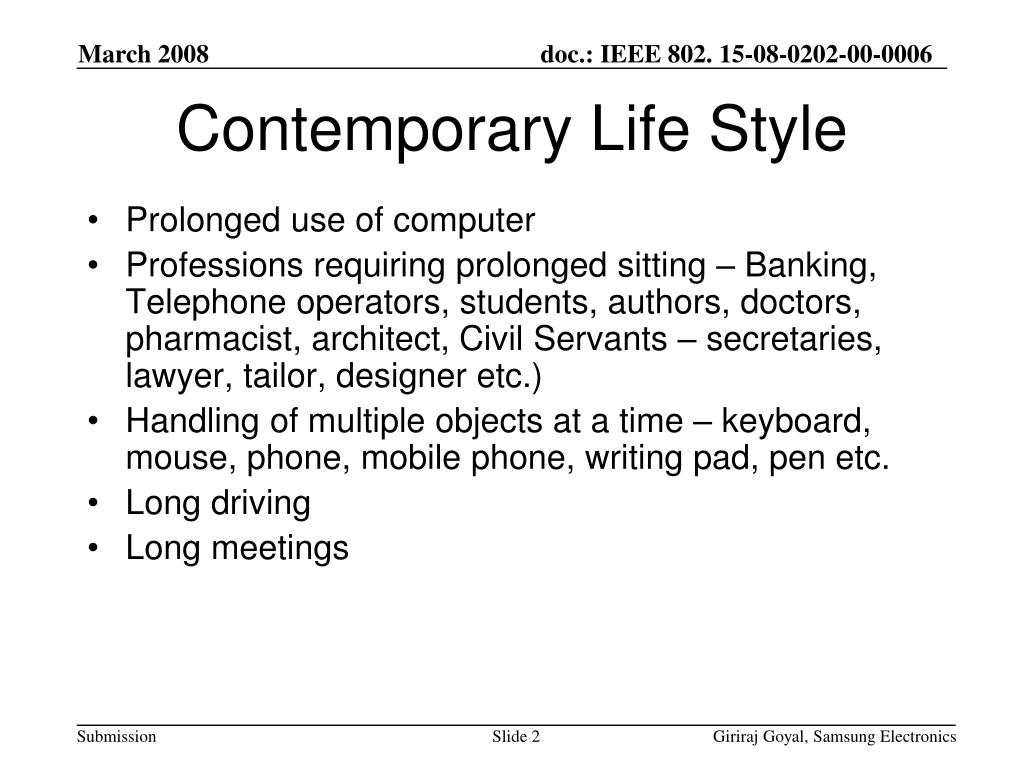

2. Contemporary Life Style • Prolonged use of computer • Professions requiring prolonged sitting – Banking, Telephone operators, students, authors, doctors, pharmacist, architect, Civil Servants – secretaries, lawyer, tailor, designer etc.) • Handling of multiple objects at a time – keyboard, mouse, phone, mobile phone, writing pad, pen etc. • Long driving • Long meetings Giriraj Goyal, Samsung Electronics

3. Body postures while using computer Giriraj Goyal, Samsung Electronics

4. Body postures while using phone and computer Holding the phone between the ear and the shoulder places a lot of stress on the joints and muscles Giriraj Goyal, Samsung Electronics

5. Repercussions of incorrect body postures • Back pain • Neck pain • Arm and wrists pain • Shoulder pain • Eye strain • Disorders of soft tissue (muscle knots, muscle tension and contractions, circulatory disorders, overuse disorders) • And list goes on…… Giriraj Goyal, Samsung Electronics

6. Back Pain • Lack of support from your chair • Improper fit of the chair, or the improper type of chair for computer use • Sitting slumped • Feet not touching the ground • Prolonged sitting, without a break • Over reaching for the keyboard or mouse Giriraj Goyal, Samsung Electronics

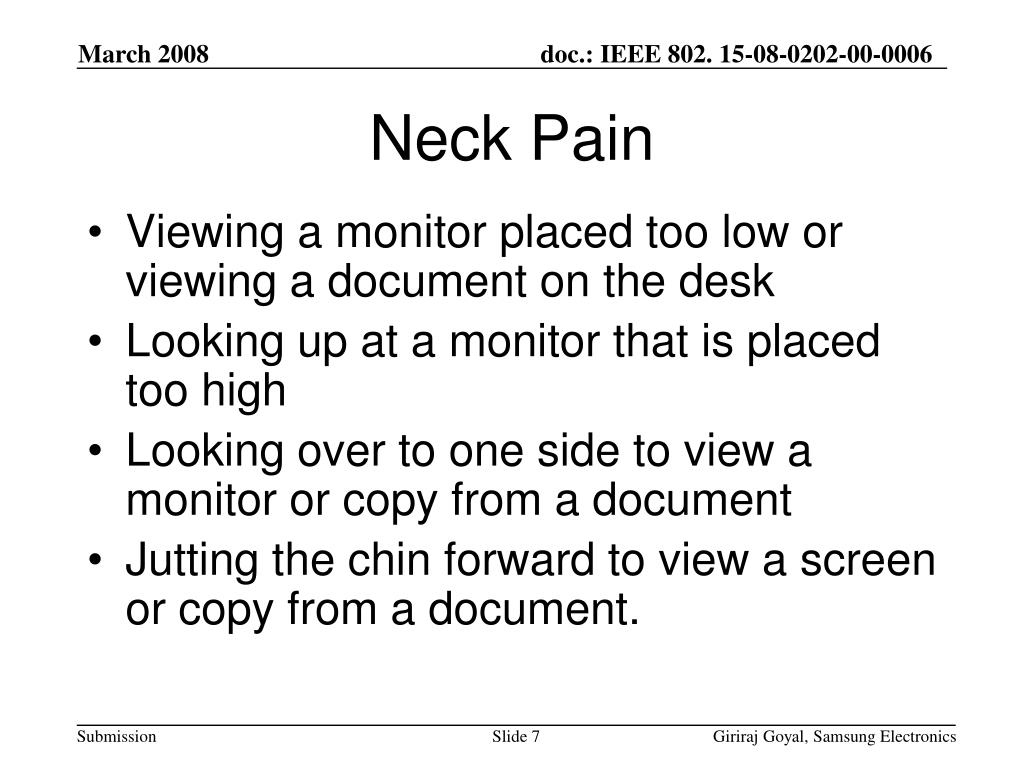

7. Neck Pain • Viewing a monitor placed too low or viewing a document on the desk • Looking up at a monitor that is placed too high • Looking over to one side to view a monitor or copy from a document • Jutting the chin forward to view a screen or copy from a document. Giriraj Goyal, Samsung Electronics

8. Arms and Wrists Pain Giriraj Goyal, Samsung Electronics

9. Ergonomics suggestions – 1/2 • Correct posture and positioning of the body • Position of keyboard and mouse • Correct position of the chair • Correct position of the computer screen • Correct usage of mouse and keyboard Giriraj Goyal, Samsung Electronics

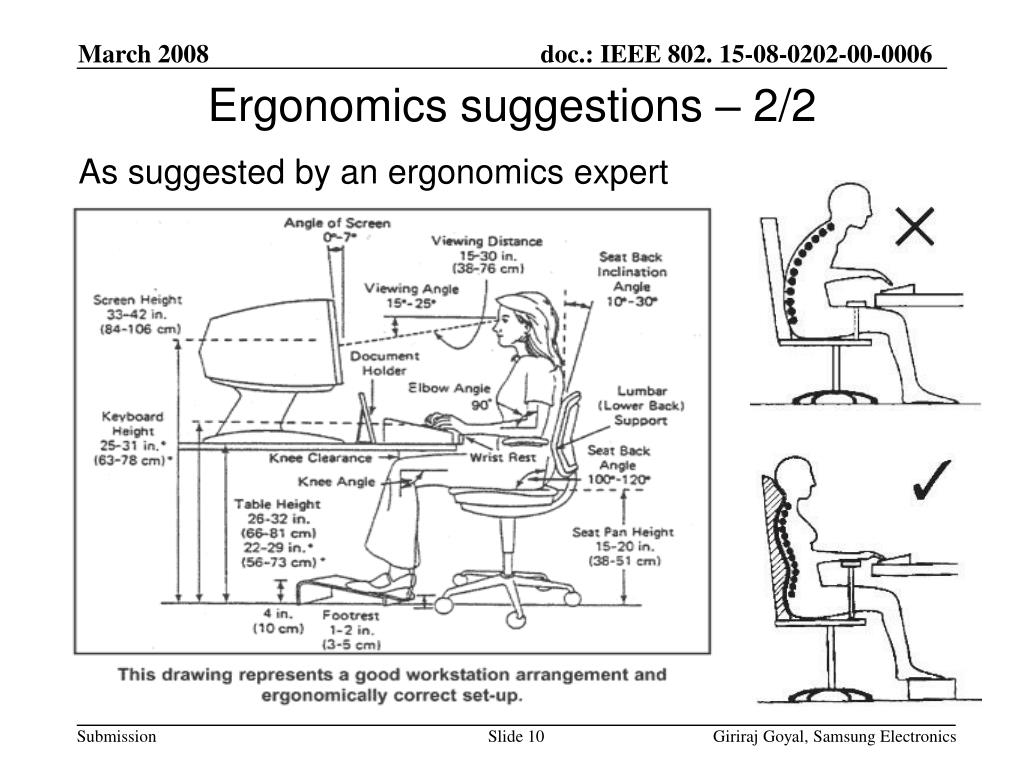

10. Ergonomics suggestions – 2/2 As suggested by an ergonomics expert Giriraj Goyal, Samsung Electronics

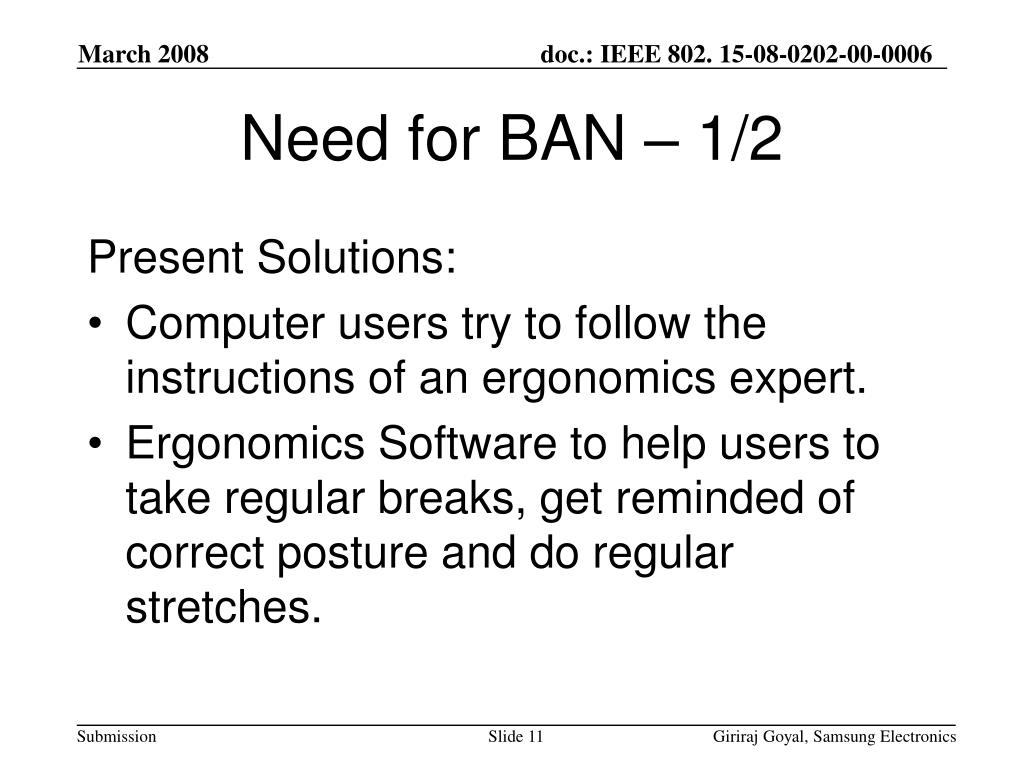

11. Need for BAN – 1/2 Present Solutions: • Computer users try to follow the instructions of an ergonomics expert. • Ergonomics Software to help users to take regular breaks, get reminded of correct posture and do regular stretches. Giriraj Goyal, Samsung Electronics

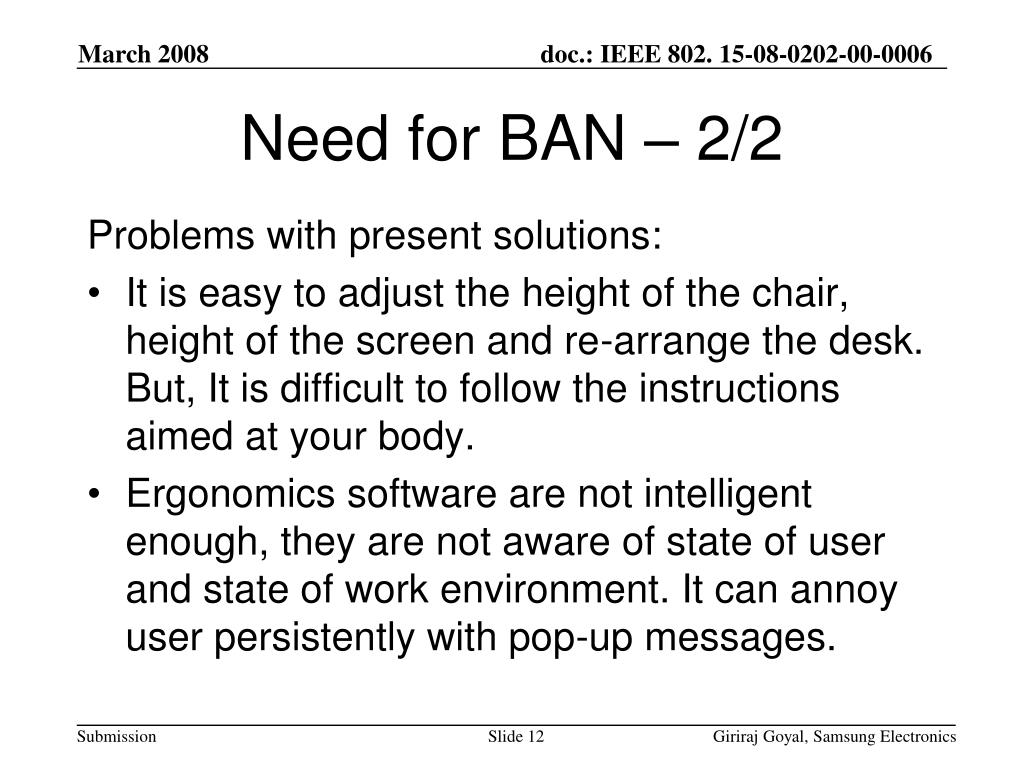

12. Need for BAN – 2/2 Problems with present solutions: • It is easy to adjust the height of the chair, height of the screen and re-arrange the desk. But, It is difficult to follow the instructions aimed at your body. • Ergonomics software are not intelligent enough, they are not aware of state of user and state of work environment. It can annoy user persistently with pop-up messages. Giriraj Goyal, Samsung Electronics

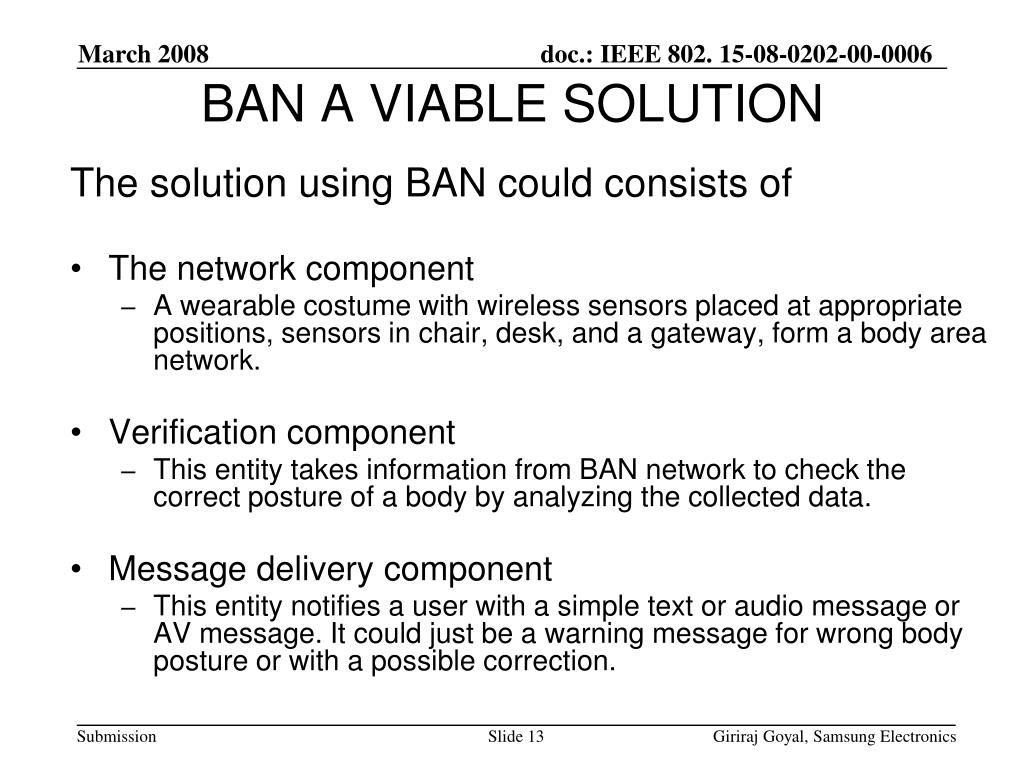

13. BAN A VIABLE SOLUTION The solution using BAN could consists of • The network component • A wearable costume with wireless sensors placed at appropriate positions, sensors in chair, desk, and a gateway, form a body area network. • Verification component • This entity takes information from BAN network to check the correct posture of a body by analyzing the collected data. • Message delivery component • This entity notifies a user with a simple text or audio message or AV message. It could just be a warning message for wrong body posture or with a possible correction. Giriraj Goyal, Samsung Electronics

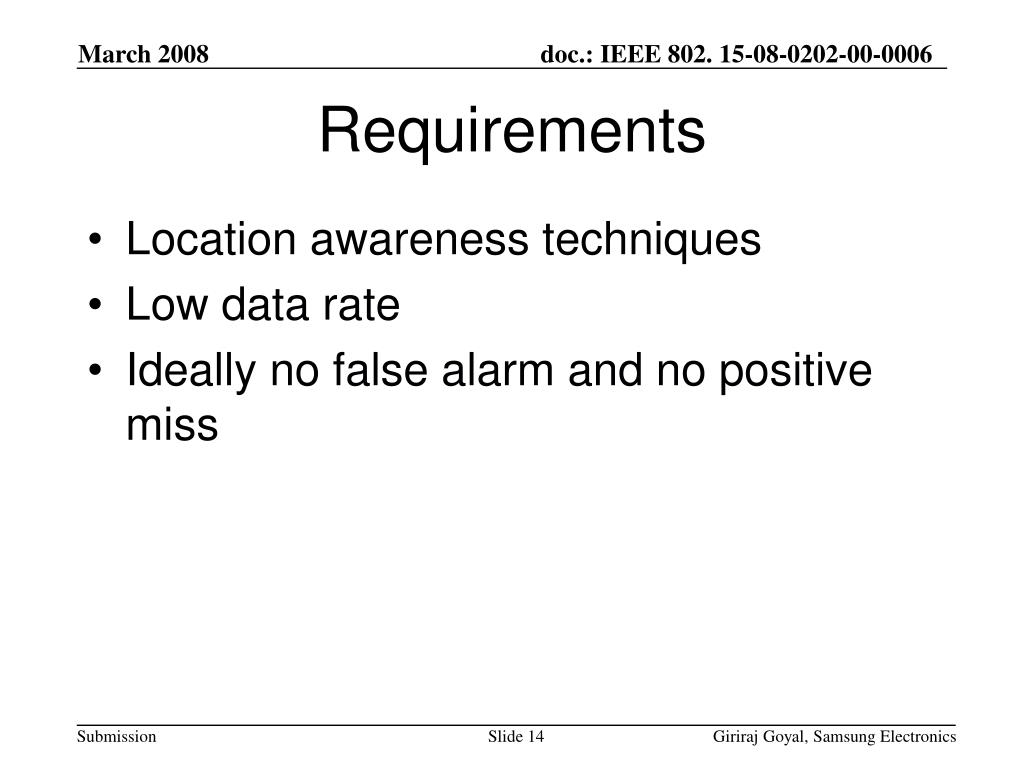

14. Requirements • Location awareness techniques • Low data rate • Ideally no false alarm and no positive miss Giriraj Goyal, Samsung Electronics

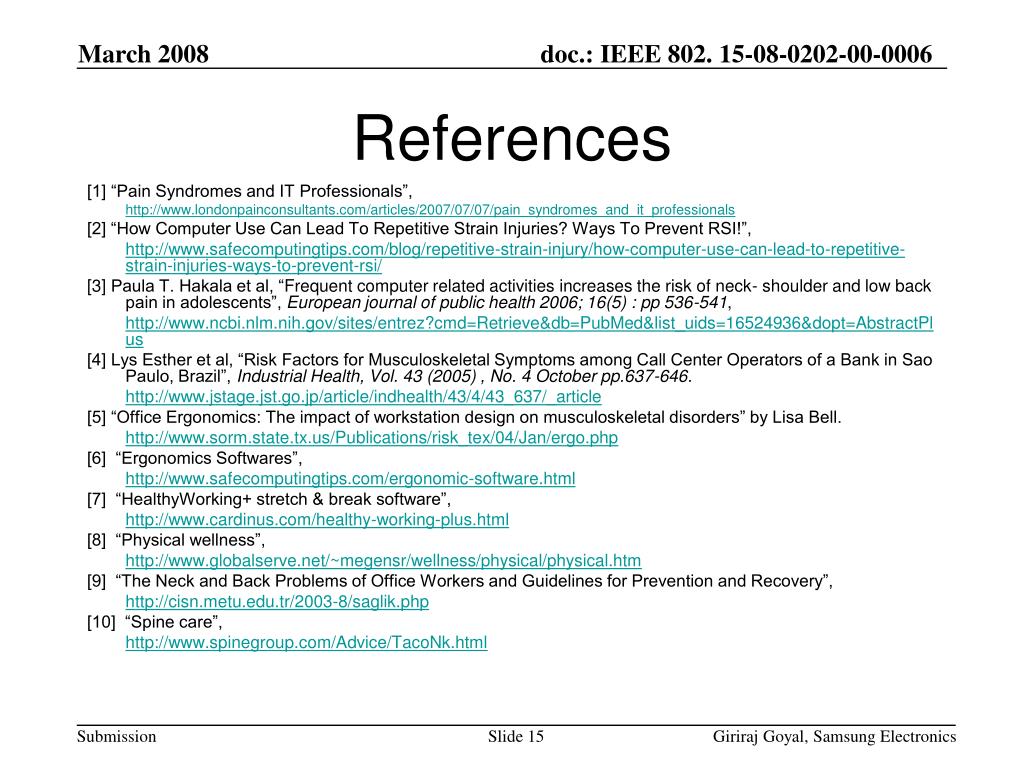

15. References [1] “Pain Syndromes and IT Professionals”, http://www.londonpainconsultants.com/articles/2007/07/07/pain_syndromes_and_it_professionals [2] “How Computer Use Can Lead To Repetitive Strain Injuries? Ways To Prevent RSI!”, http://www.safecomputingtips.com/blog/repetitive-strain-injury/how-computer-use-can-lead-to-repetitive-strain-injuries-ways-to-prevent-rsi/ [3] Paula T. Hakala et al, “Frequent computer related activities increases the risk of neck- shoulder and low back pain in adolescents”, European journal of public health 2006; 16(5) : pp 536-541, http://www.ncbi.nlm.nih.gov/sites/entrez?cmd=Retrieve&db=PubMed&list_uids=16524936&dopt=AbstractPlus [4] Lys Esther et al, “Risk Factors for Musculoskeletal Symptoms among Call Center Operators of a Bank in Sao Paulo, Brazil”, Industrial Health, Vol. 43 (2005) , No. 4 October pp.637-646. http://www.jstage.jst.go.jp/article/indhealth/43/4/43_637/_article [5] “Office Ergonomics: The impact of workstation design on musculoskeletal disorders” by Lisa Bell. http://www.sorm.state.tx.us/Publications/risk_tex/04/Jan/ergo.php [6] “Ergonomics Softwares”, http://www.safecomputingtips.com/ergonomic-software.html [7] “HealthyWorking+ stretch & break software”, http://www.cardinus.com/healthy-working-plus.html [8] “Physical wellness”, http://www.globalserve.net/~megensr/wellness/physical/physical.htm [9] “The Neck and Back Problems of Office Workers and Guidelines for Prevention and Recovery”, http://cisn.metu.edu.tr/2003-8/saglik.php [10] “Spine care”, http://www.spinegroup.com/Advice/TacoNk.html Giriraj Goyal, Samsung Electronics

16. January 2008 Thank You ! Questions ? Slide 16 Arthur Astrin Giriraj Goyal, Samsung Electronics
