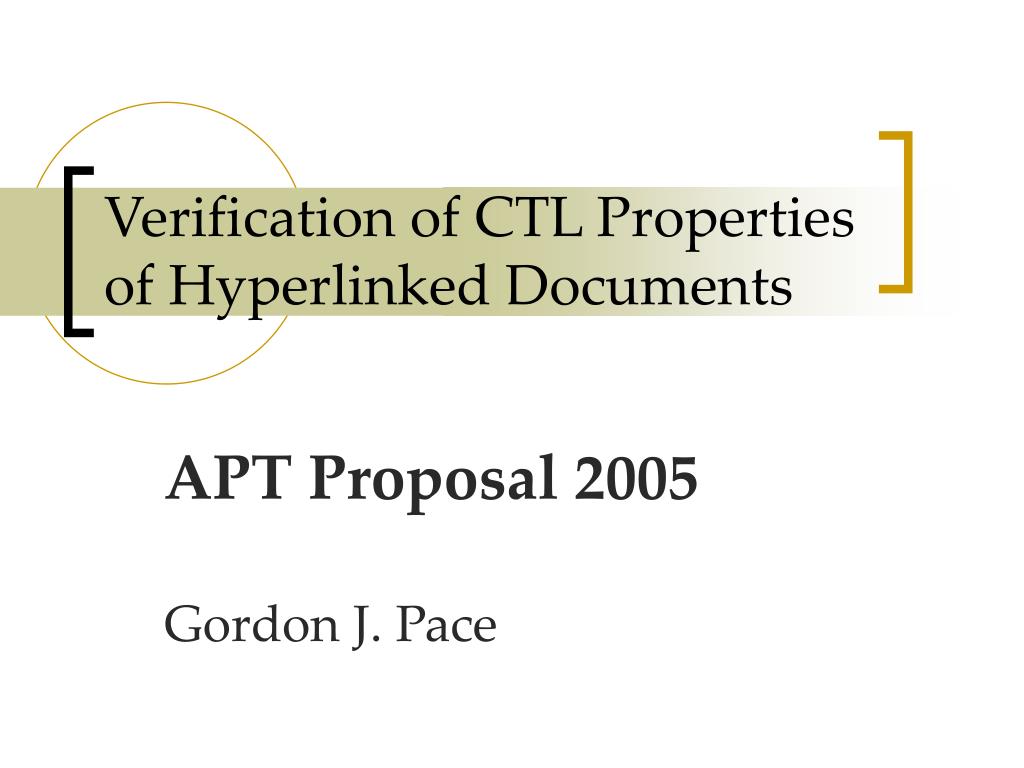

Verification of CTL Properties of Hyperlinked Documents. APT Proposal 2005 Gordon J. Pace. What is CTL?. CTL = Computation Tree Logic Logic = A language to express properties Computation Tree = A description of a process which evolves over time, which may include non-determinism branching.

noah-velasquez
Télécharger la présentation

Verification of CTL Properties of Hyperlinked Documents

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Verification of CTL Properties of Hyperlinked Documents APT Proposal 2005 Gordon J. Pace

  2. What is CTL? • CTL = Computation Tree Logic • Logic = A language to express properties • Computation Tree = A description of a process which evolves over time, which may include non-determinism branching

  3. What is a computation tree?

  4. What is a computation tree? Each blobis a state of the system

  5. What is a computation tree? Each state may satisfy some basic propositions eg Deadlock

  6. What is a computation tree? Arrows indicate how states evolve over time

  7. What is a computation tree? Multiple outgoing arrows indicate different options exist

  8. What is CTL? CTL is a logic to describe properties of systems which evolve over time, enabling us to express things such as possibility and necessity.

  9. What does CTL look like? • AG P = along any execution path (A) property P holds everywhere/globally (G). • EF P =there exists an execution path (E) along which property P finally holds (F). • A (P U Q) = along any execution path (A) property P holds until property Q becomes true.

  10. What does CTL look like? Properties (ieP and Q) are CTL formulae themselves • AG P = along any execution path (A) property P holds everywhere/globally (G). • EF P =there exists an execution path (E) along which property P finally holds (F). • A (P U Q) = along any execution path (A) property P holds until property Q becomes true.

  11. What does CTL look like? Properties (eg P and Q) are CTL formulae themselves • AG P = along any execution path (A) property P holds everywhere/globally (G). • EF P =there exists an execution path (E) along which property P finally holds (F). • A (P U Q) = along any execution path (A) property P holds until property Q becomes true. Properties may also use standard logic operators (Æ, :, ), etc)

  12. CTL Examples • A state which satisfies the property atIndex is always reachable: AG (EF atIndex)

  13. CTL Examples • Once a state which satisfies cats is visited, states which satisfy dogs may only be reached via an index state: AG (cats ) A(:dogs U atIndex))

  14. CTL Examples • Once a state which satisfies cats is visited, states which satisfy dogs may only be reached via an index state: AG (cats ) A(:dogs U atIndex))

  15. But hyperdocuments are graphs

  16. But hyperdocuments are graphs with properties dogs cats dogs index cats dogs cats dogs

  17. Graphs to Trees • The spanning tree of a graph describes all possible paths in the graph.

  18. Graphs to Trees • The spanning tree of a graph describes all possible paths in the graph.

  19. The APT • Implement an algorithm to verify CTL properties • Implement a translator from an annotated collection of hyperlinked documents into a graph

  20. The APT • Implement an algorithm to verify CTL properties • Implement a translator from an annotated collection of hyperlinked documents into a graph • Given a collection of hyperlinked documents and a CTL property, we can verify the documents for consistency.
