  1. CTL Redundancy Meeting 08-Jan-2009

  2. Questions • Clarify RowAddressRange and ColumnAddressRange as logical or physical • We need to clarify why we need each property in Redundancy block • We can use relation block to define redundant units to repair pins and resources • Can we use STIL access procedure to describe serial repair load and unload or repair data • Team needs to discuss how redundancy and repair block relate to physical organization

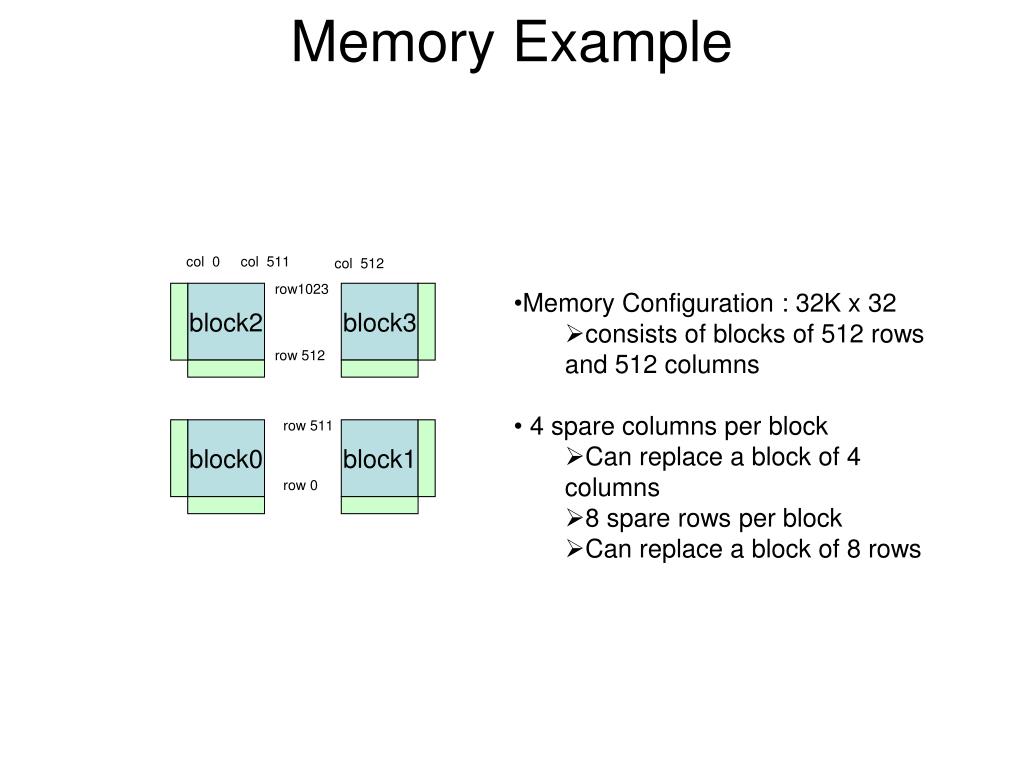

  3. col 0 col 511 col 512 row1023 block2 block3 row 512 row 511 block0 block1 row 0 Memory Example • Memory Configuration : 32K x 32 • consists of blocks of 512 rows and 512 columns • 4 spare columns per block • Can replace a block of 4 columns • 8 spare rows per block • Can replace a block of 8 rows

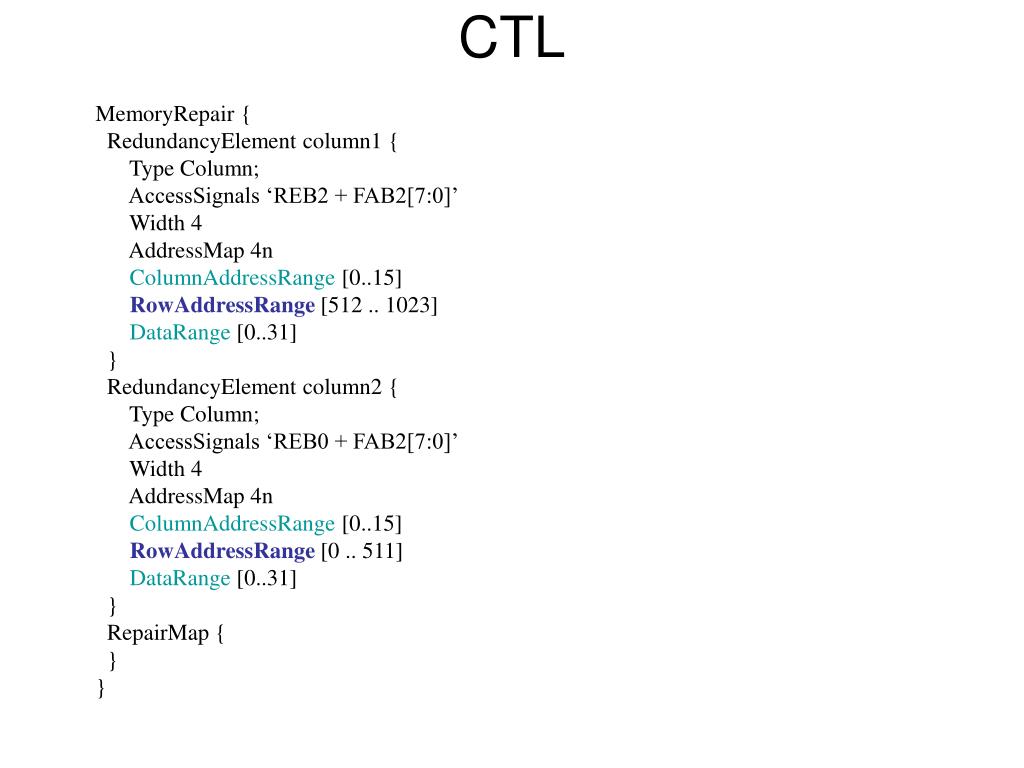

  4. CTL MemoryRepair { RedundancyElement column1 { Type Column; AccessSignals ‘REB2 + FAB2[7:0]’ Width 4 AddressMap 4n ColumnAddressRange [0..15] RowAddressRange [512 .. 1023] DataRange [0..31] } RedundancyElement column2 { Type Column; AccessSignals ‘REB0 + FAB2[7:0]’ Width 4 AddressMap 4n ColumnAddressRange [0..15] RowAddressRange [0 .. 511] DataRange [0..31] } RepairMap { } }

  5. CTL MemoryRepair { RedundancyElement row1{ Type Row; AccessSignals ‘reb2 + fab2[6:0]’ Width 8 AddressMap 8n ColumnAddressRange [0..15] RowAddressRange [512 .. 1023] DataRange [0..31] } RedundancyElement row2 { Type row; AccessSignals ‘reb0 + fab2[6:0]’ Width 8 AddressMap 8n ColumnAddressRange [0..15] RowAddressRange [0 .. 511] DataRange [0..31] } RepairMap { } }

  6. Memory 2 row 95 row 64 • Memory Configuration : 128 x 32 • consists of blocks of 32 rows • 2 spare rows – one each for upper and lower half row 31 row 0 row 32 row 63 row 96 row 127

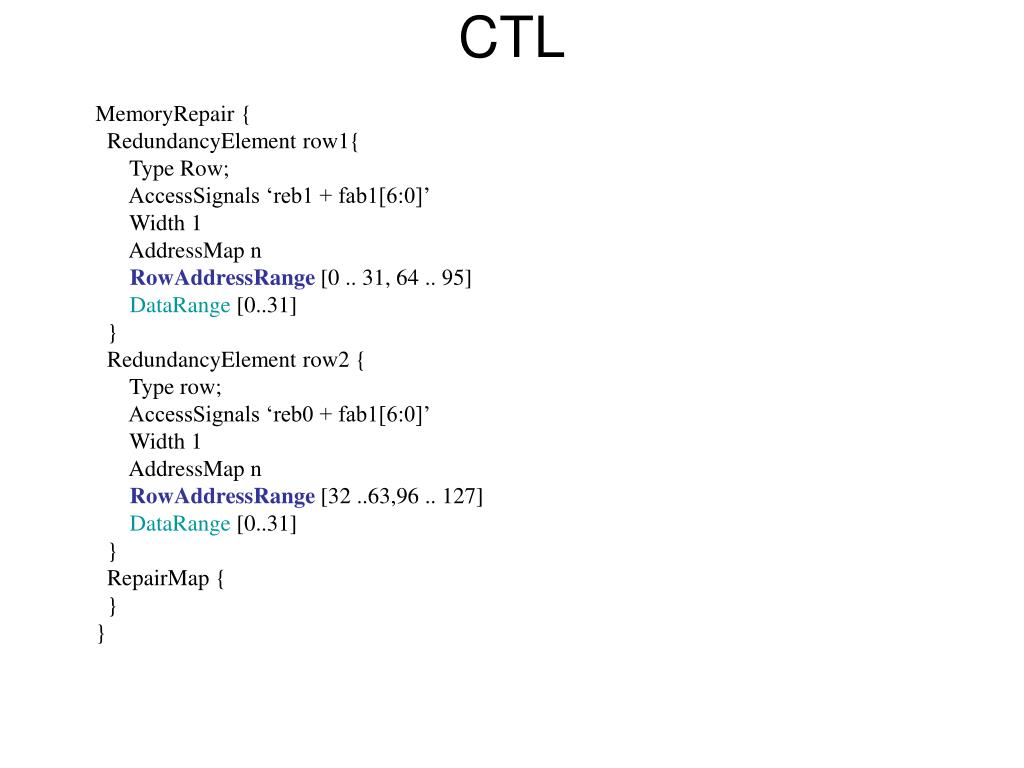

  7. CTL MemoryRepair { RedundancyElement row1{ Type Row; AccessSignals ‘reb1 + fab1[6:0]’ Width 1 AddressMap n RowAddressRange [0 .. 31, 64 .. 95] DataRange [0..31] } RedundancyElement row2 { Type row; AccessSignals ‘reb0 + fab1[6:0]’ Width 1 AddressMap n RowAddressRange [32 ..63,96 .. 127] DataRange [0..31] } RepairMap { } }

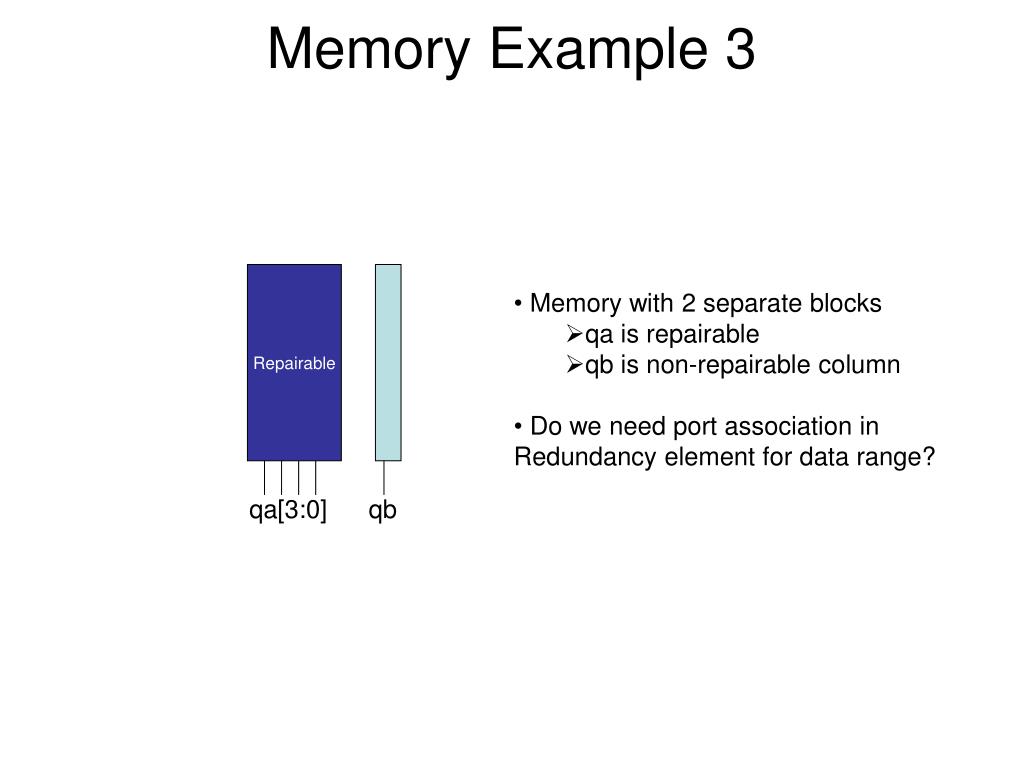

  8. Memory Example 3 Repairable • Memory with 2 separate blocks • qa is repairable • qb is non-repairable column • Do we need port association in Redundancy element for data range? qa[3:0] qb
