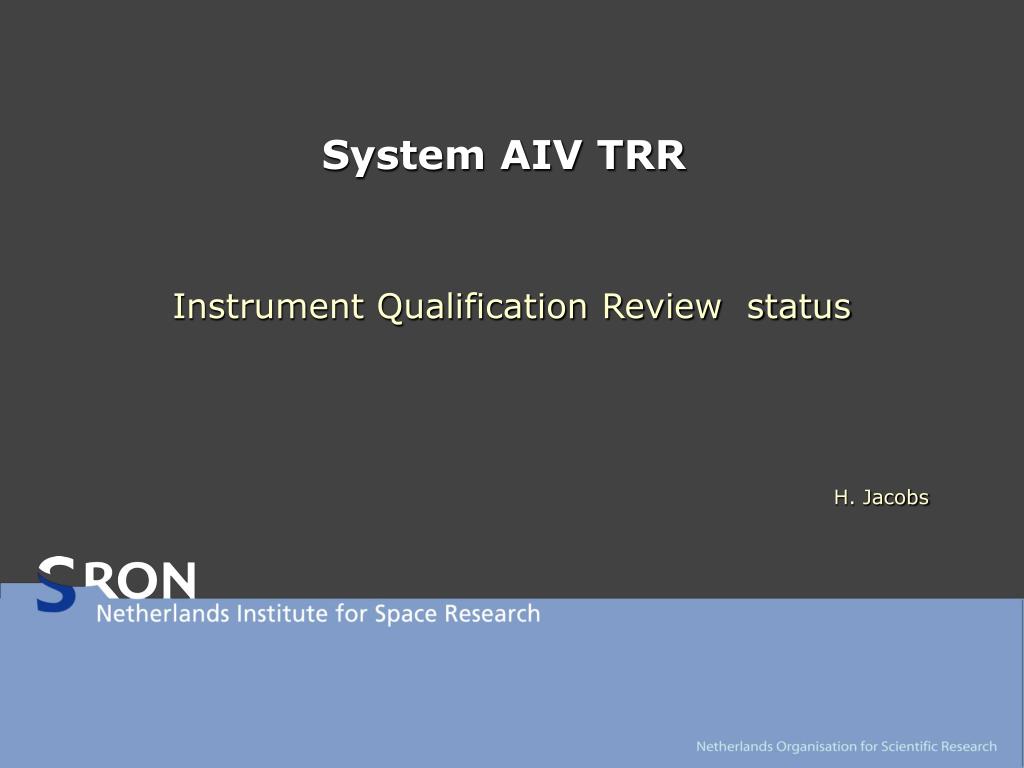

  1. System AIV TRR Instrument Qualification Review status H. Jacobs

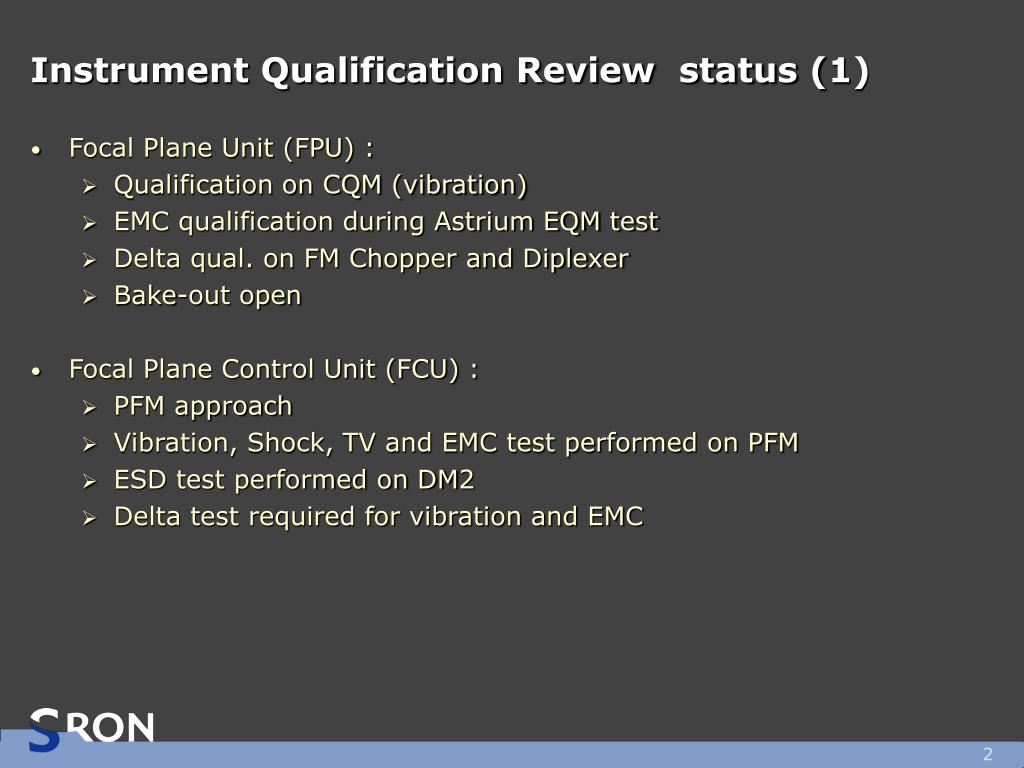

  2. Instrument Qualification Review status (1) • Focal Plane Unit (FPU) : • Qualification on CQM (vibration) • EMC qualification during Astrium EQM test • Delta qual. on FM Chopper and Diplexer • Bake-out open • Focal Plane Control Unit (FCU) : • PFM approach • Vibration, Shock, TV and EMC test performed on PFM • ESD test performed on DM2 • Delta test required for vibration and EMC

  3. Instrument Qualification Review status (2) • Instrument Control Unit (ICU) • PFM approach followed • Vibration, TV and EMC performed on PFM • Shock and ESD on CFM1 • No open items • High Resolution Spectrometer (HRSH/V) : • QM, FM approach followed • Vibration, Shock, TV and EMC/ESD performed on QM • Delta-EMC performed on FM (NCR close-out pending) • Wide Band Spectrometer (WEH/V and WHO/V) : • QM, FM approach followed • Vibration, Shock, TV and EMC/ESD performed on QM • No open items

  4. Instrument Qualification Review status (3) • Local Oscillator Unit (LOU) : • Qualification vibration test on QM (1 LOA) • Qualification vibration test on Herschel STM (full model) • LOU chain qualifications by RPG and JPL • Shock test not required • EMC/ESD test not required • Local Oscillator Control Unit (LCU) • QM/FM approach followed • Vibration, shock, TV and EMC (partly) test on QM • EMC test to be performed on FM • TV test performed on FM • Open items : EMC test on FM planned

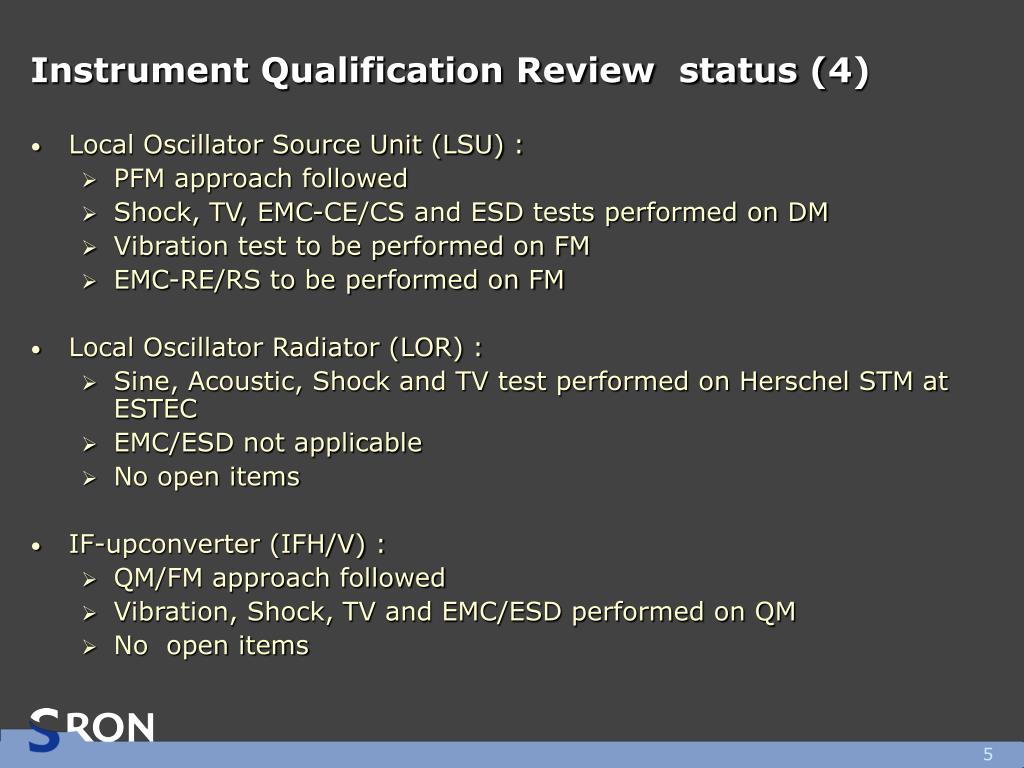

  5. Instrument Qualification Review status (4) • Local Oscillator Source Unit (LSU) : • PFM approach followed • Shock, TV, EMC-CE/CS and ESD tests performed on DM • Vibration test to be performed on FM • EMC-RE/RS to be performed on FM • Local Oscillator Radiator (LOR) : • Sine, Acoustic, Shock and TV test performed on Herschel STM at ESTEC • EMC/ESD not applicable • No open items • IF-upconverter (IFH/V) : • QM/FM approach followed • Vibration, Shock, TV and EMC/ESD performed on QM • No open items

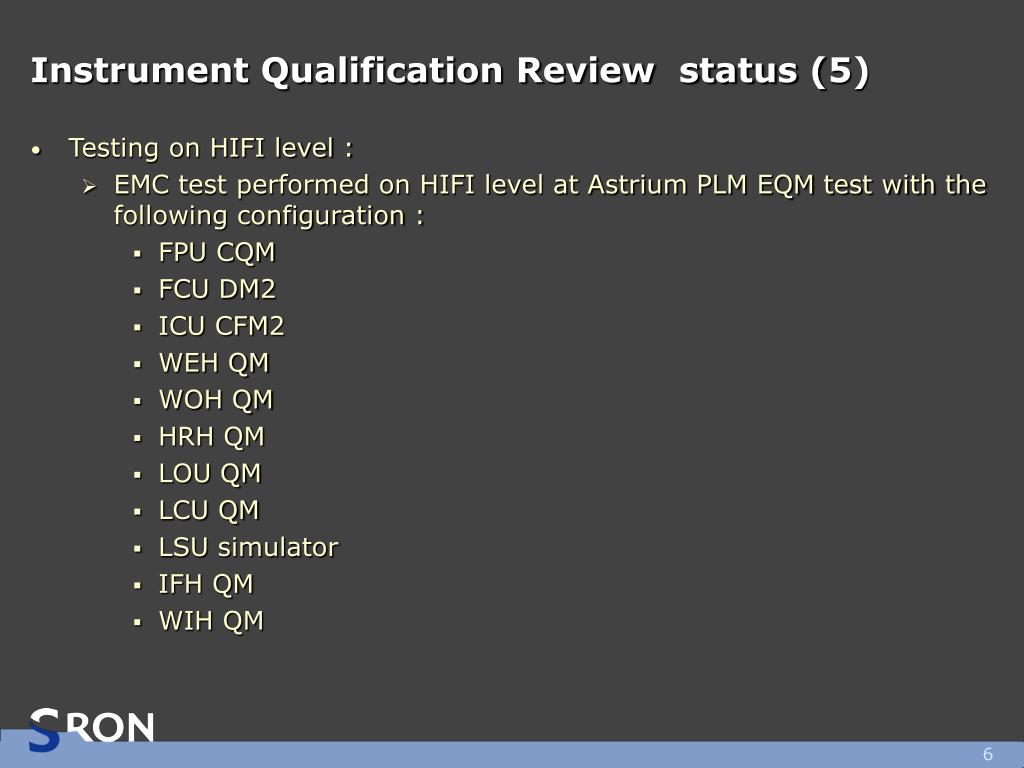

  6. Instrument Qualification Review status (5) • Testing on HIFI level : • EMC test performed on HIFI level at Astrium PLM EQM test with the following configuration : • FPU CQM • FCU DM2 • ICU CFM2 • WEH QM • WOH QM • HRH QM • LOU QM • LCU QM • LSU simulator • IFH QM • WIH QM
