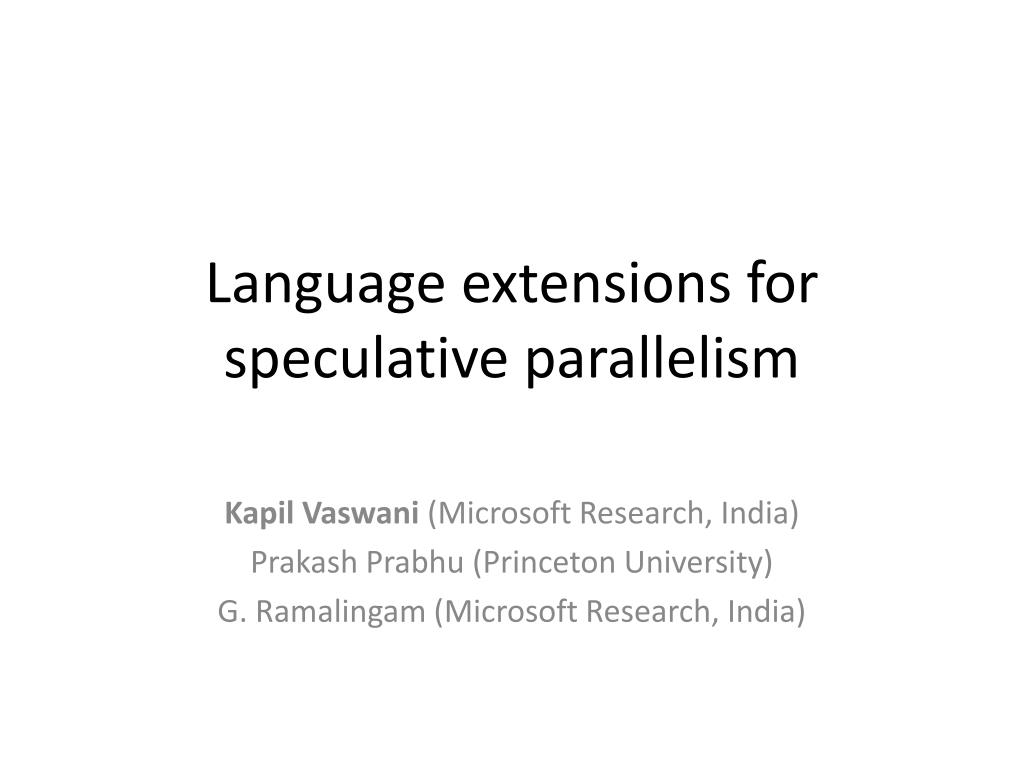

  1. Language extensions for speculative parallelism Kapil Vaswani (Microsoft Research, India) Prakash Prabhu (Princeton University) G. Ramalingam (Microsoft Research, India)

  2. Speculation • Take a risk in anticipation of gain • Widely used to optimize performance • Caching and pre-fetching • Branch prediction, speculative code motion in compilers • Speculative parallelism • Doing work in parallel anticipating later use • Software transactions and futures • Focus of this talk • Value speculation based parallelization

  3. Value speculation Producer Consumer value T Consumer Producer Prediction function Correct value T = Consumer Speculative value T’

  4. Lexical analysis <html><p><a href=“http://research.microsoft.com”>Microsoft Research</a></p></html> h Accounts for a large fraction of execution time in browsers, word processing apps < > t m l Lexical analyzer <html>, <p>, <a, href, =, http://research.microsoft.com, >, Microsoft Research, </a>, </p>, </html>

  5. Huffman decoding 1.00 0 1 010000011110010… 01000011110010… 0.60 0.40 00 01 10 11 Huffman decoder 0.30 d, 0.20 a, 0.30 010 011 e, 0.20 baaeead… c, 0.15 b, 0.15 pos = 0; while (pos < inputBuffer.size) { bitsRead = decode(inputBuffer, pos); pos = pos + bitsRead; }

  6. What’s in common? • “Sequential” loops • Cross iteration dependencies • Not directly amenable parallelization • Not hard to find  • Game playing • Planning and scheduling • Data flow analysis • Dynamic programming • Machine learning

  7. Speculative Huffman decoding 0011000010… 0110011100… … k ith chunk A A E E A D .… 0 1 0 0 0 0 1 1 1 1 0 0 1 0 0 1 0 0 0 0 1 1 1 1 0 0 1 0 B A C E A D

  8. Speculative lexical analysis (Bodik et al) <HTML><p>… … … </HTML> s1 k ith chunk s1 sik k s1

  9. Performance

  10. Language extensions

  11. Why language extensions? • Careful speculation requires thought • Prediction functions domain specific • Not always possible to automate • Writing correct speculative code non-trivial • Spawning and scheduling threads • Check predictions, cancel and re-invoke consumers • Check conflicts between producers and consumers • Deal with exceptions • Let programmer specify speculation

  12. Speculative parallel for Parallel.For (int from, int to, void delegate(Int32) work) Speculation.Parallel.For(int from, int to, T delegate (Int32, T) work, T delegate (Int32) predictor)

  13. Speculative parallel for from from + 1 from + 2 to Original loop work work work work T T T … from from + 1 from + 2 to pred pred pred pred … Speculative parallel for T T T T work work work work … = T T T T

  14. Example: speculative lexical analysis int overlap = 20; intchunk_size = total_size / p; Speculation.Parallel.For(0, p, (i, state) => { return LexicalAnalysis(i*chunk_size, (i + 1) * chunk_size, state); }, (i) => { if (i == 0) return START_STATE; else return LexicalAnalysis( (i – 1) * chunk_size – overlap, (i – 1) * chunk_size, START_STATE); ) } ); Loop iteration Prediction function

  15. Speculative parallel for • Thread creation and scheduling • Check predictions • If incorrect, cancels and re-run next iteration • One misprediction does not imply that all subsequent iterations are wrong! • Deal with speculative exceptions

  16. Safety • Safe variant • Guarantees sequential semantics • Increased sequential cost • Unsafe variant • Responsibility of managing side-effects left to the programmer • A type system that guarantees safety

  17. Speculative task Stand-alone speculative construct

  18. Example: speculative DFS intSpeculativeDFS (Heap h, int position, intsearchValue) { if (h.ValueAt(position) == searchValue) return position; Speculate ( () => { return SpeculativeDFS(h, 2 * position + 1, searchValue); }, (found) => { if (found != NOT_FOUND) return found; else return SpeculativeDFS(h, 2 * position + 2, searchValue); } () => { return NOT_FOUND; } ); } Producer Consumer Prediction function

  19. Summary • Speculation is an interesting algorithm design and programming idiom • A library that supports speculative constructs • On the lookout for more speculative patterns and idioms

  20. Questions?
