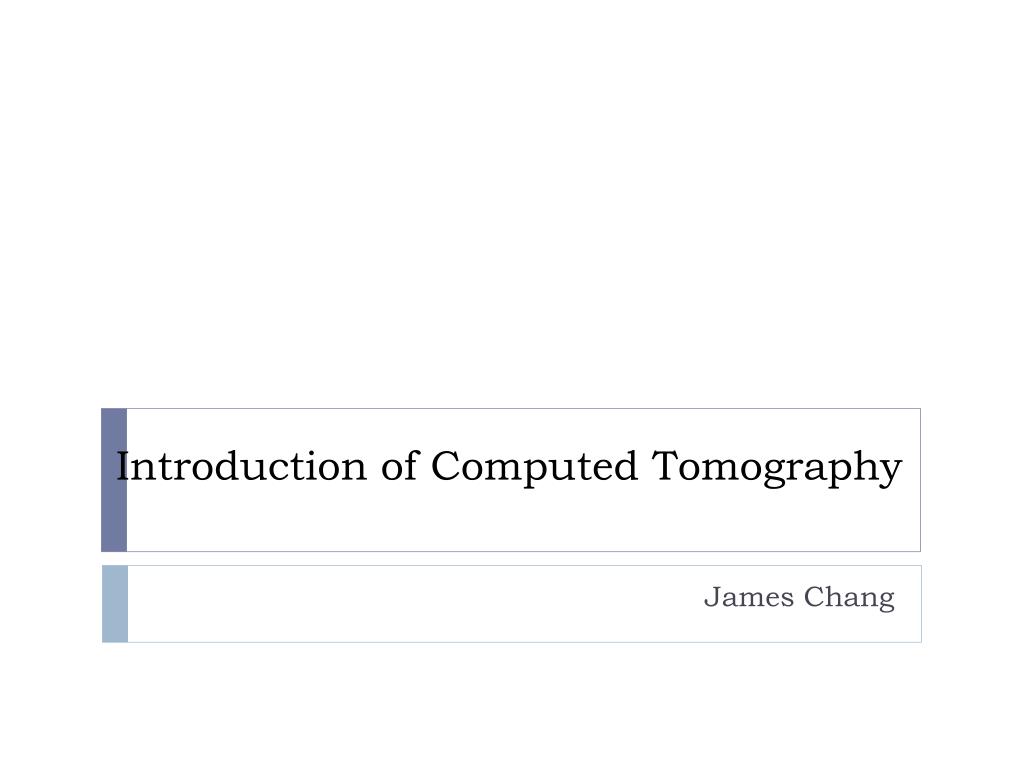

  1. Introduction of Computed Tomography James Chang

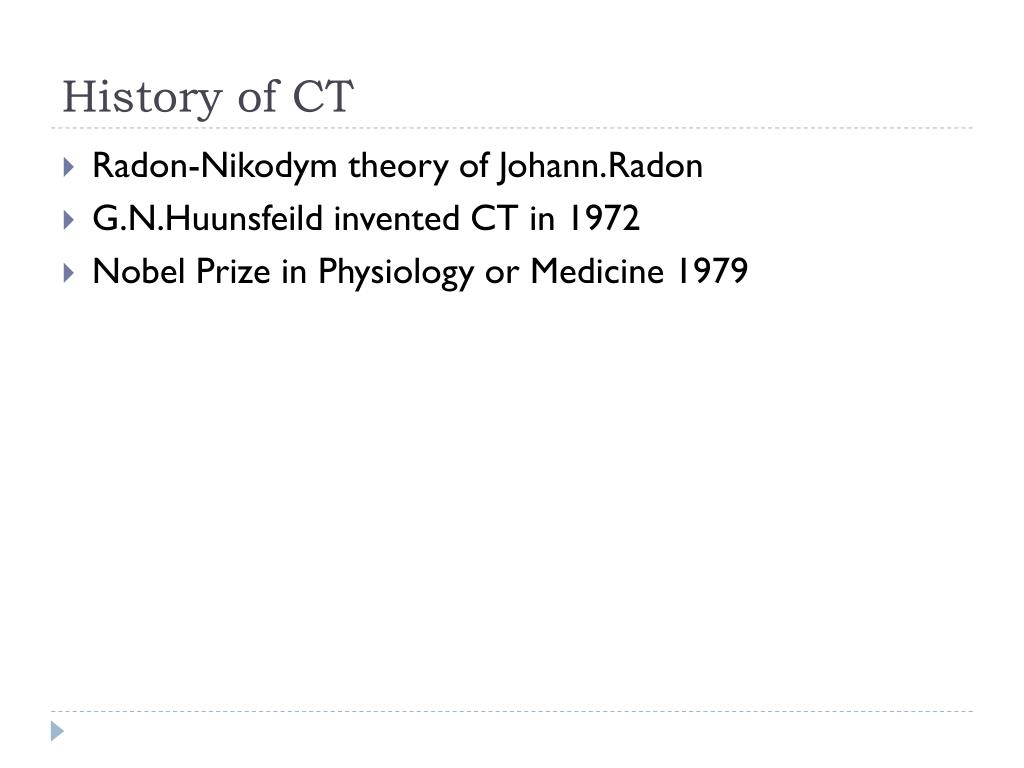

  2. History of CT • Radon-Nikodym theory of Johann.Radon • G.N.Huunsfeild invented CT in 1972 • Nobel Prize in Physiology or Medicine 1979

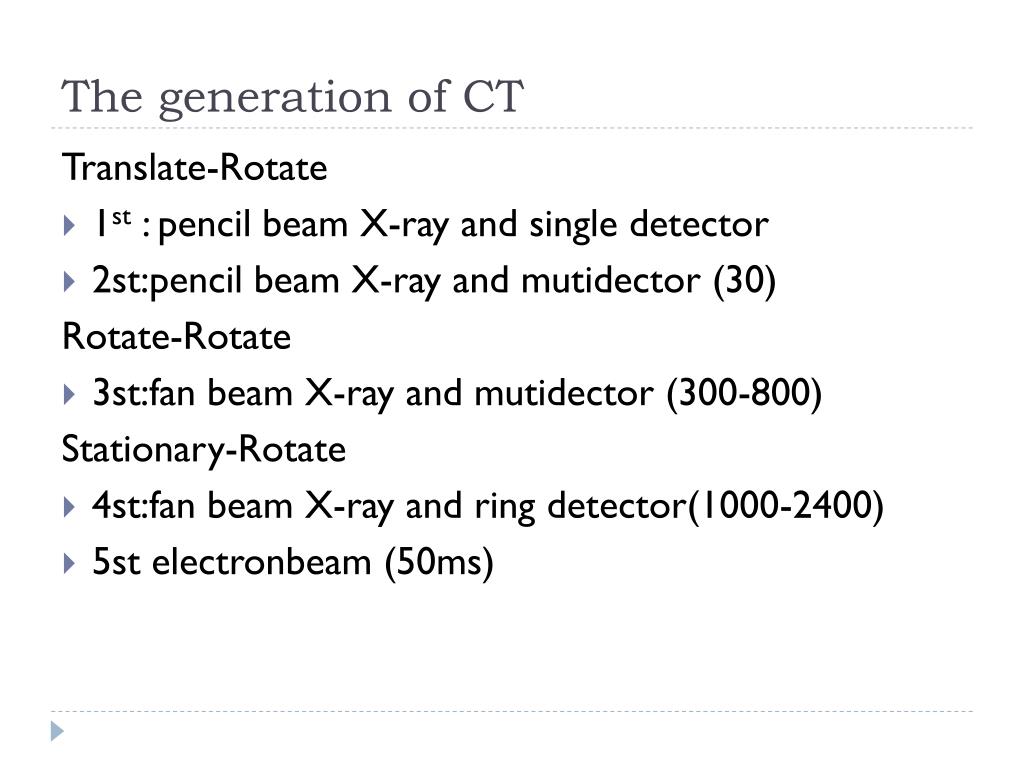

  3. The generation of CT Translate-Rotate • 1st : pencil beam X-ray and single detector • 2st:pencil beam X-ray and mutidector (30) Rotate-Rotate • 3st:fan beam X-ray and mutidector (300-800) Stationary-Rotate • 4st:fan beam X-ray and ring detector(1000-2400) • 5st electronbeam (50ms)

  4. http://xic.cc/255-667-1.do

  5. 4th Helical CT http://www.virtualmedicalcentre.com http://www.imaginis.com/ct-scan/how-does-ct-work

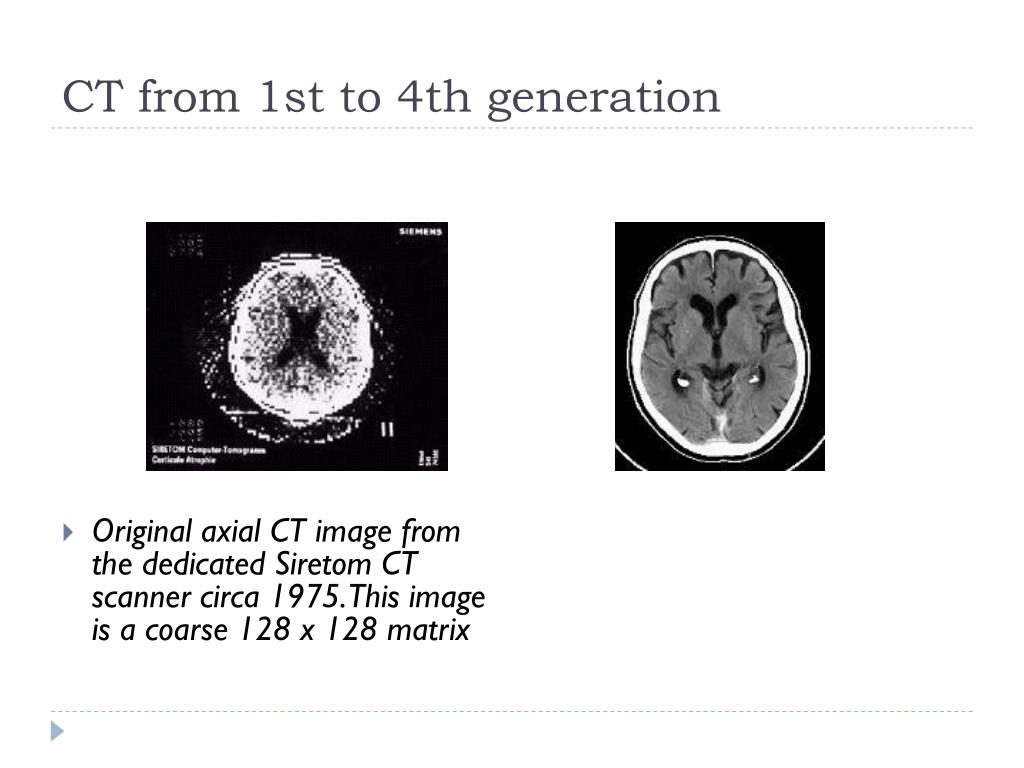

  6. CT from 1st to 4th generation • Original axial CT image from the dedicated Siretom CT scanner circa 1975. This image is a coarse 128 x 128 matrix

  7. Data Acquisition

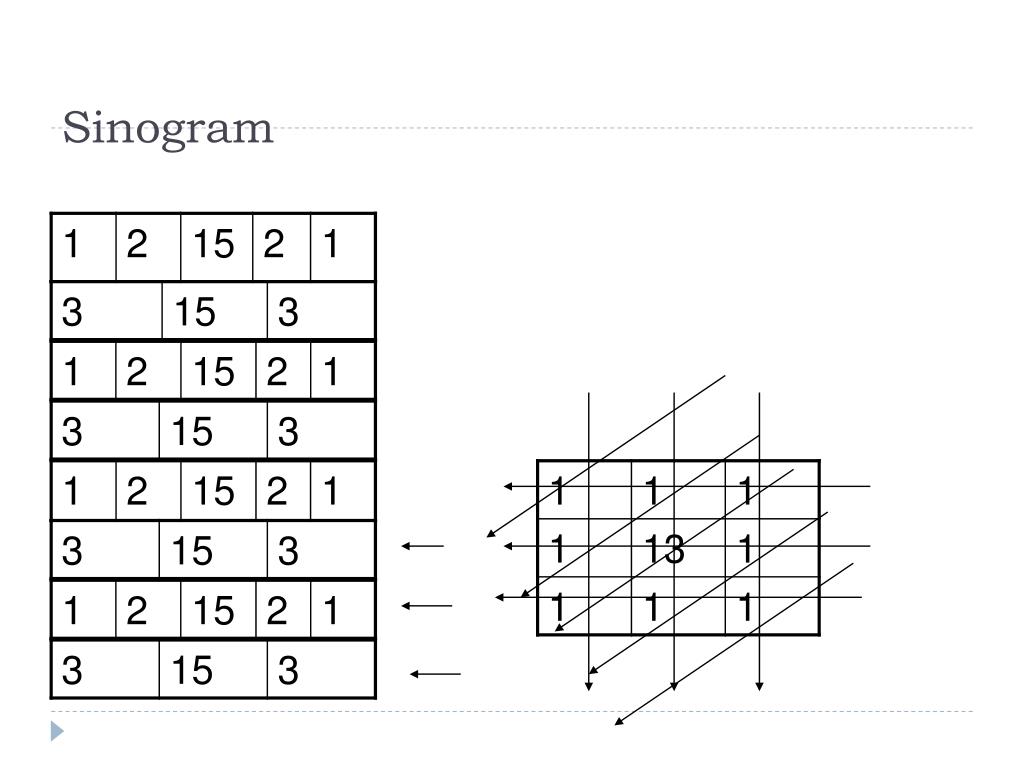

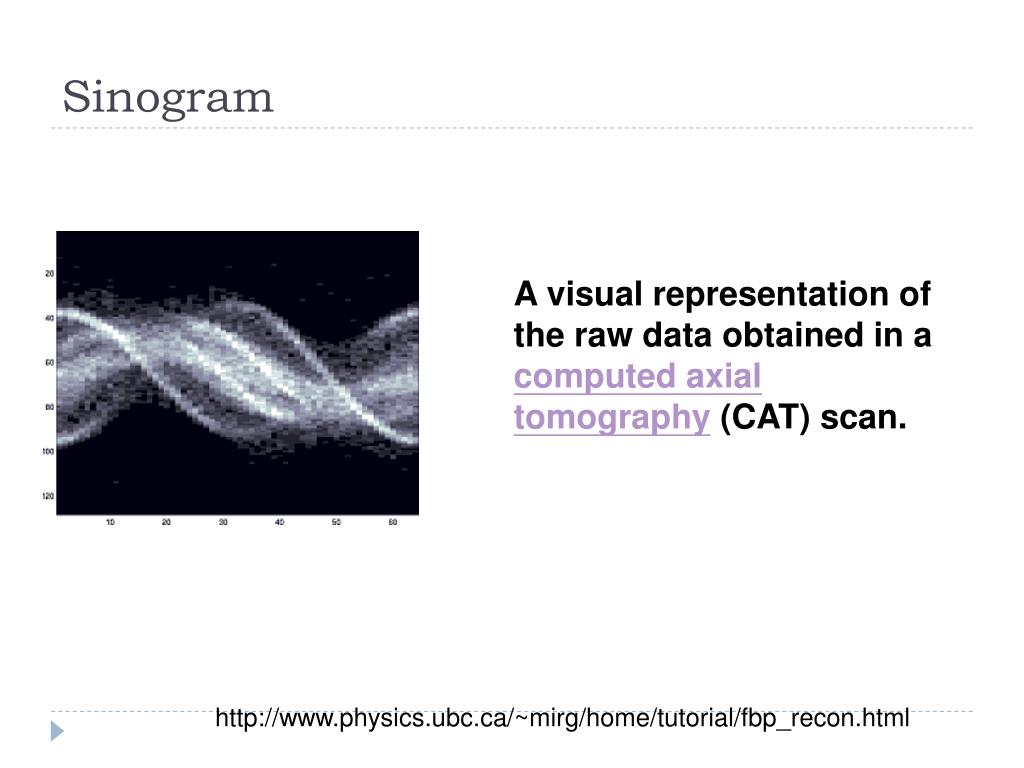

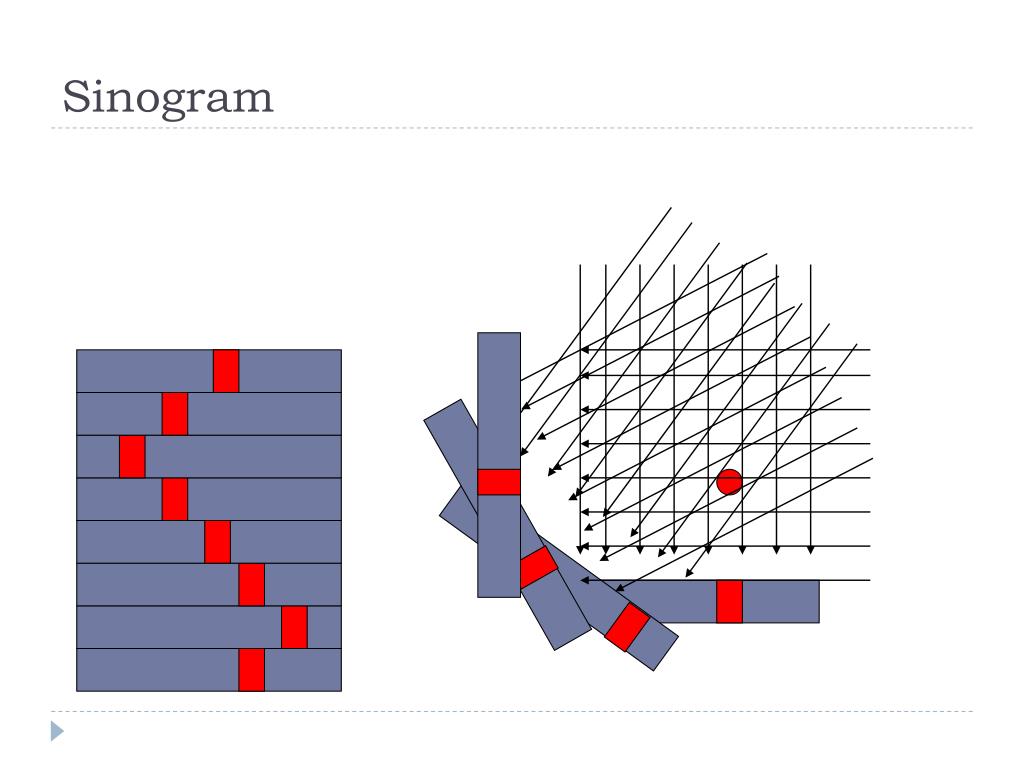

  8. Sinogram A visual representation of the raw data obtained in a computed axial tomography (CAT) scan. http://www.physics.ubc.ca/~mirg/home/tutorial/fbp_recon.html

  9. Sinogram

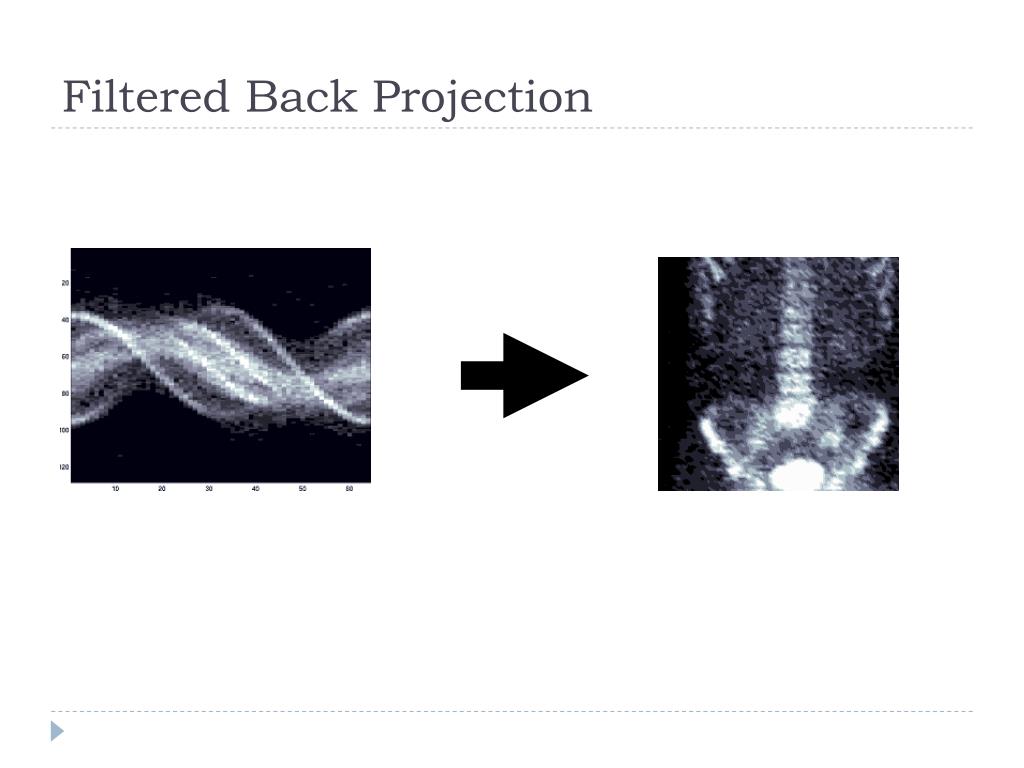

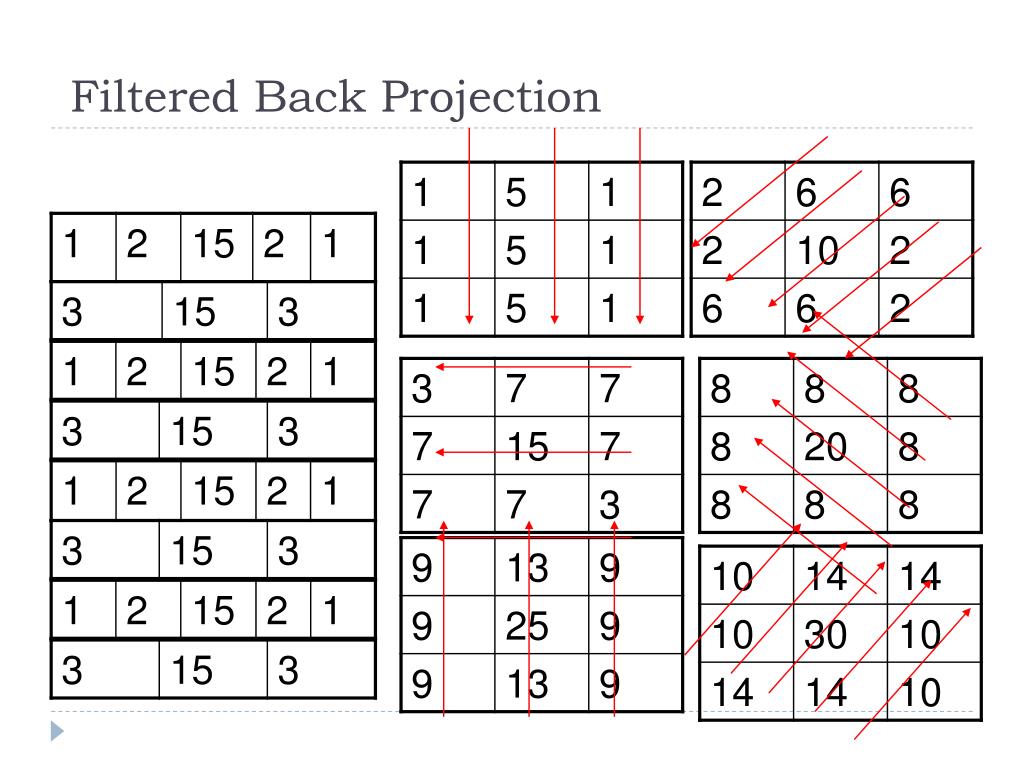

  10. Filtered Back Projection

  11. Sinogram

  12. Filtered Back Projection

  13. Filtered Back Projection Without filterPoint object becomes widely spread out

  14. Why do we Apply a Filter ? • Another diagram that illustrates this concept

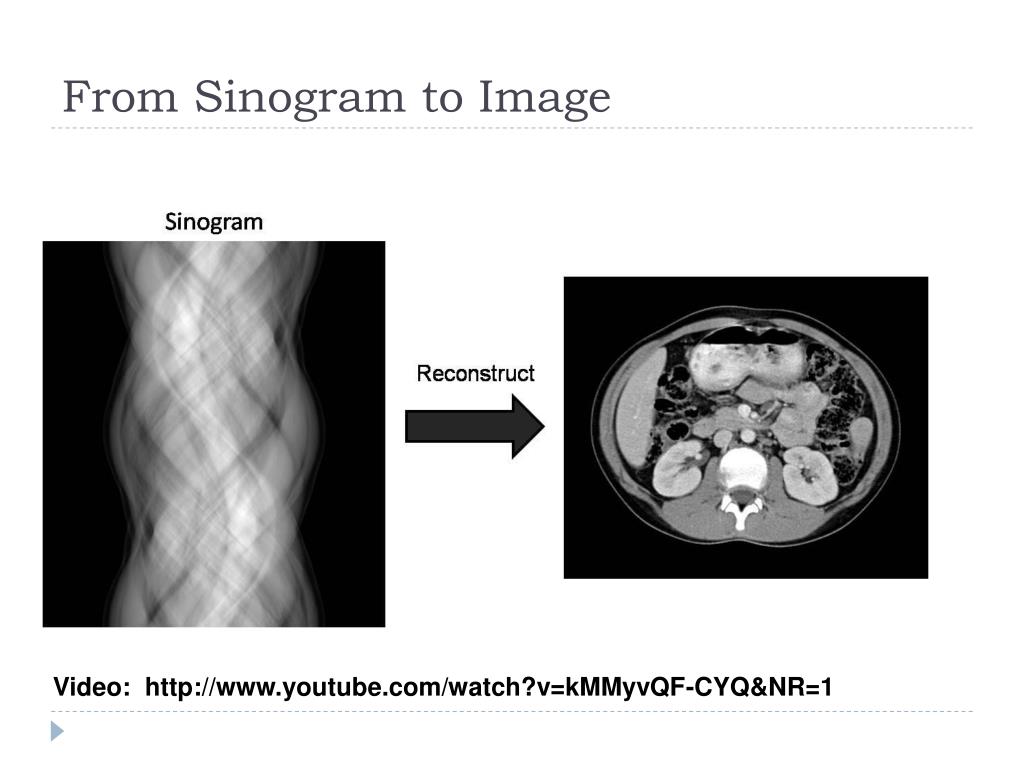

  15. From Sinogram to Image Video: http://www.youtube.com/watch?v=kMMyvQF-CYQ&NR=1

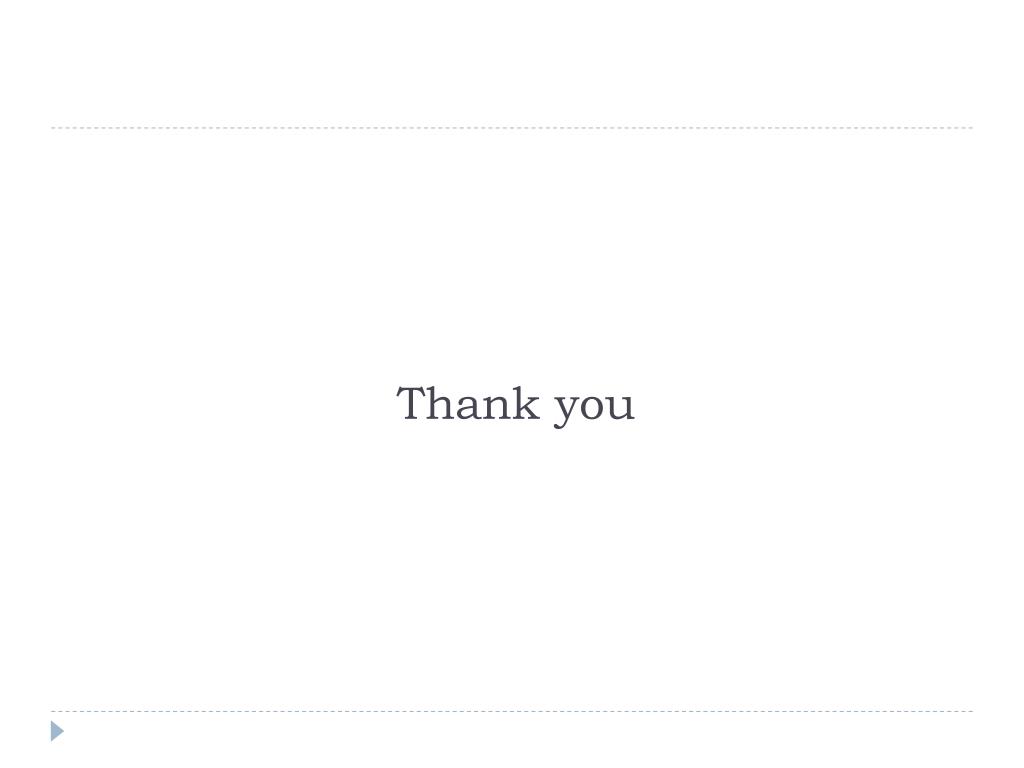

  16. Thank you
