Chapter 3: Central Forces. Introduction Interested in the “2 body” problem! Start out generally, but eventually restrict to motion of 2 bodies interacting through a central force . Central Force  Force between 2 bodies which is directed along the line between them.

oro
Télécharger la présentation

Chapter 3: Central Forces

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

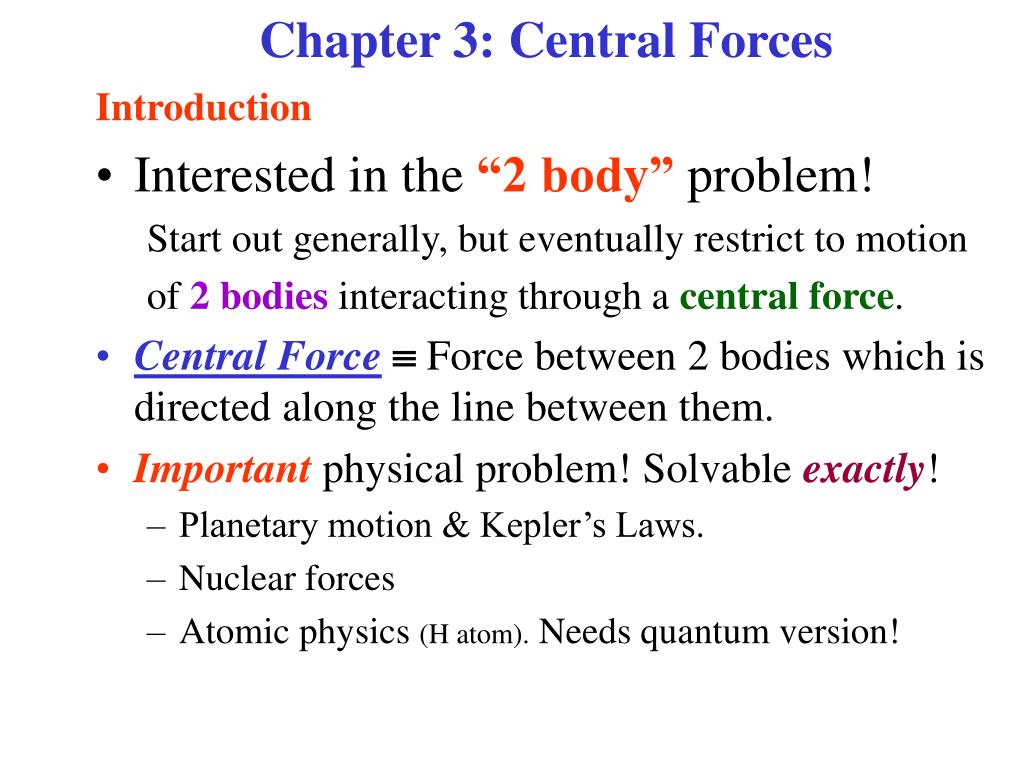

  1. Chapter 3: Central Forces Introduction • Interested in the “2 body”problem! Start out generally, but eventually restrict to motion of 2 bodies interacting through a central force. • Central Force Force between 2 bodies which is directed along the line between them. • Importantphysical problem! Solvable exactly! • Planetary motion & Kepler’s Laws. • Nuclear forces • Atomic physics (H atom). Needs quantum version!

  2. Sect. 3.1: Reduction to Equivalent 1-Body Problem • My treatment differs slightly from text’s. Same results, of course! • General 3d, 2 body problem. 2 massesm1& m2: Need 6 coordinates: For example, components of 2 position vectors r1& r2(arbitrary origin). • Assumeonly forces are due to an interaction potential U. At first, U = any function of the vector between 2 particles, r = r1 - r2, of their relative velocity r = r1 - r2, & possibly of higher derivatives of r = r1 - r2: U = U(r,r,..) • Very soon, will restrict to central forces!

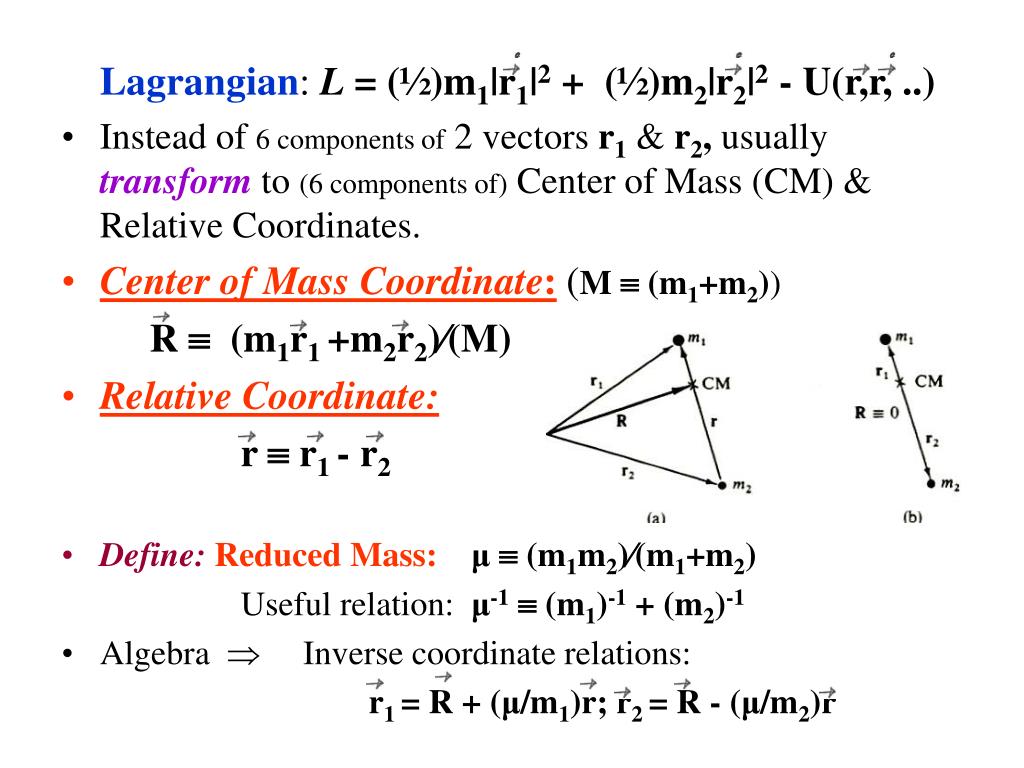

  3. Lagrangian: L = (½)m1|r1|2 + (½)m2|r2|2 - U(r,r, ..) • Instead of 6 components of 2 vectors r1& r2, usually transform to (6 components of) Center of Mass (CM) & Relative Coordinates. • Center of Mass Coordinate:(M  (m1+m2)) R  (m1r1 +m2r2)(M) • Relative Coordinate: r  r1 - r2 • Define:Reduced Mass:μ (m1m2)(m1+m2) Useful relation: μ-1 (m1)-1 + (m2)-1 • Algebra  Inverse coordinate relations: r1 = R + (μ/m1)r; r2 = R - (μ/m2)r

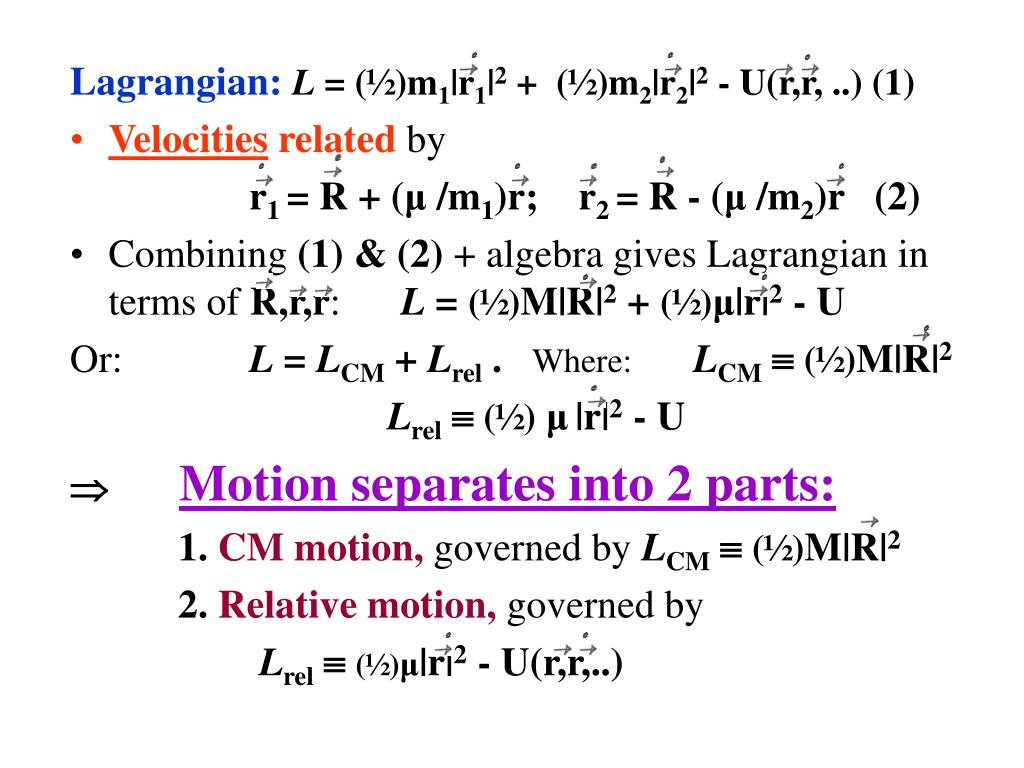

  4. Lagrangian:L = (½)m1|r1|2 + (½)m2|r2|2 - U(r,r, ..) (1) • Velocities related by r1 = R + (μ /m1)r; r2 = R - (μ /m2)r (2) • Combining (1) & (2) + algebra gives Lagrangian in terms of R,r,r: L = (½)M|R|2 + (½)μ|r|2 - U Or: L = LCM + Lrel . Where: LCM  (½)M|R|2 Lrel  (½)μ|r|2 - U  Motion separates into 2 parts: 1.CM motion, governed by LCM  (½)M|R|2 2.Relative motion, governed by Lrel  (½)μ|r|2 - U(r,r,..)

  5. CM & Relative Motion • Lagrangian for 2 body problem:L = LCM + Lrel LCM  (½)M|R|2 ; Lrel  (½)μ|r|2 - U(r,r,..)  Motion separates into 2 parts: 1. Lagrange’s Eqtns for 3 components of CM coordinate vector R clearly gives eqtns of motion independent of r. 2. Lagrange Eqtns for 3 components of relative coordinate vector r clearly gives eqtns of motion independent of R. • By transforming from (r1, r2) to (R,r): The 2 body problem has been separated into 2 one body problems!

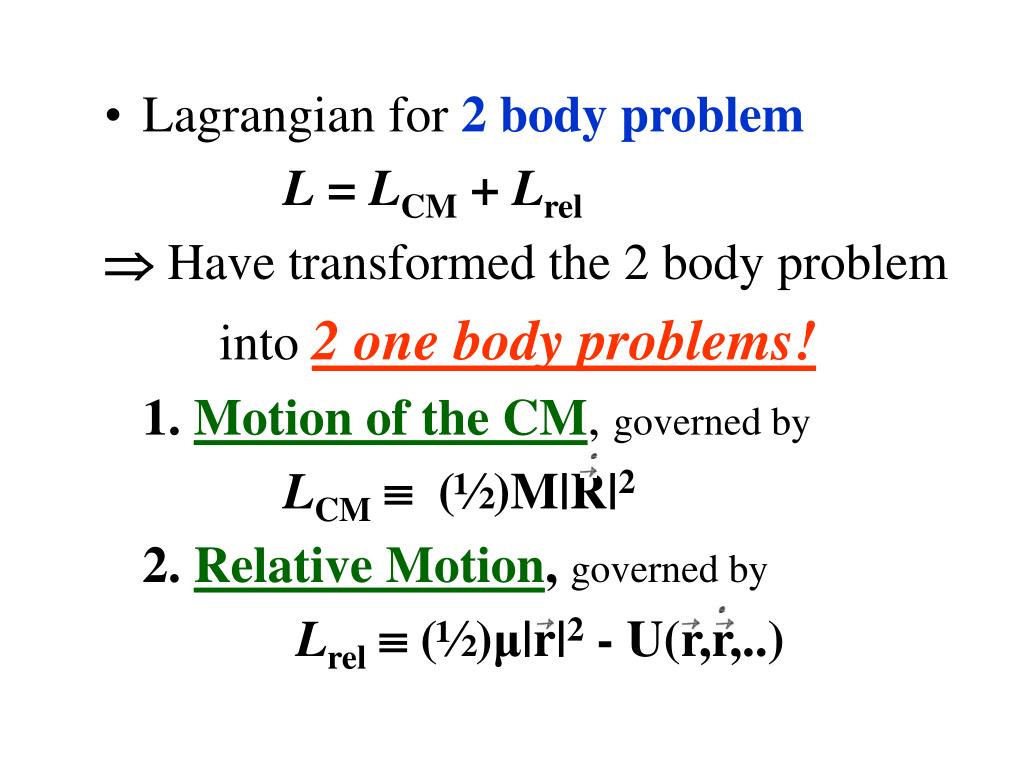

  6. Lagrangian for 2 body problem L = LCM + Lrel  Have transformed the 2 body problem into 2 one body problems! 1.Motion of the CM, governed by LCM  (½)M|R|2 2. Relative Motion,governed by Lrel  (½)μ|r|2 - U(r,r,..)

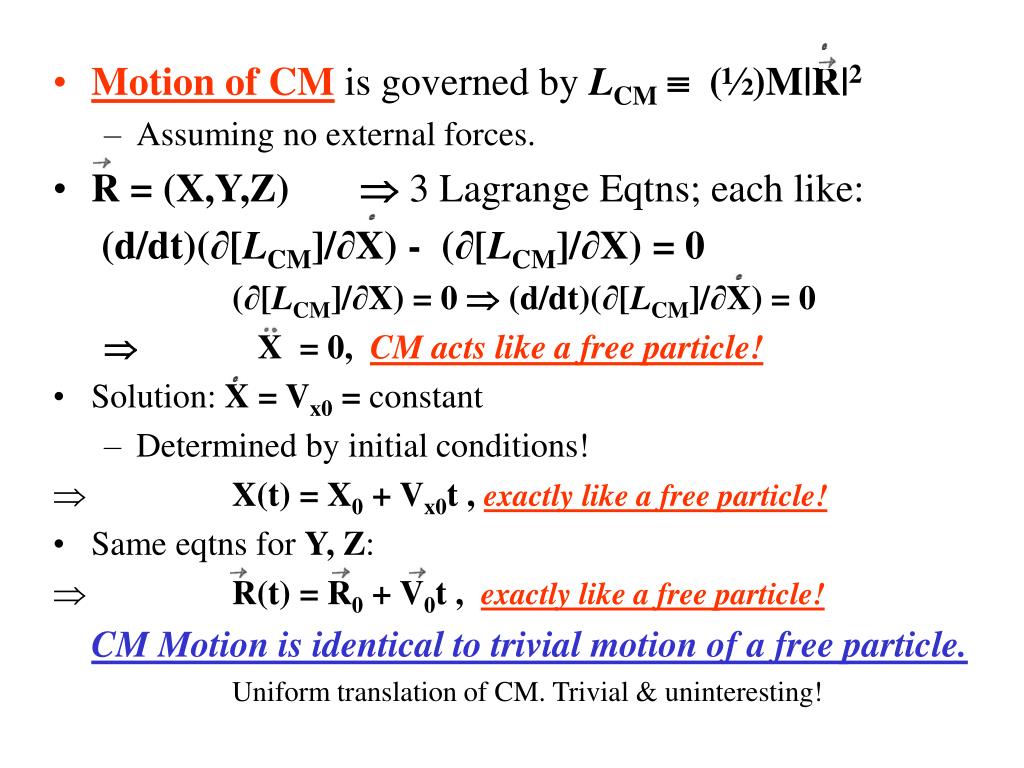

  7. Motion of CM is governed by LCM  (½)M|R|2 • Assuming no external forces. • R = (X,Y,Z) 3 Lagrange Eqtns; each like: (d/dt)(∂[LCM]/∂X) - (∂[LCM]/∂X) = 0 (∂[LCM]/∂X) = 0  (d/dt)(∂[LCM]/∂X) = 0  X = 0, CM acts like a free particle! • Solution: X = Vx0 = constant • Determined by initial conditions! X(t) = X0 + Vx0t , exactly like a free particle! • Same eqtns for Y, Z: R(t) = R0 + V0t , exactly like a free particle! CM Motion is identical to trivial motion of a free particle.Uniform translation of CM. Trivial & uninteresting!

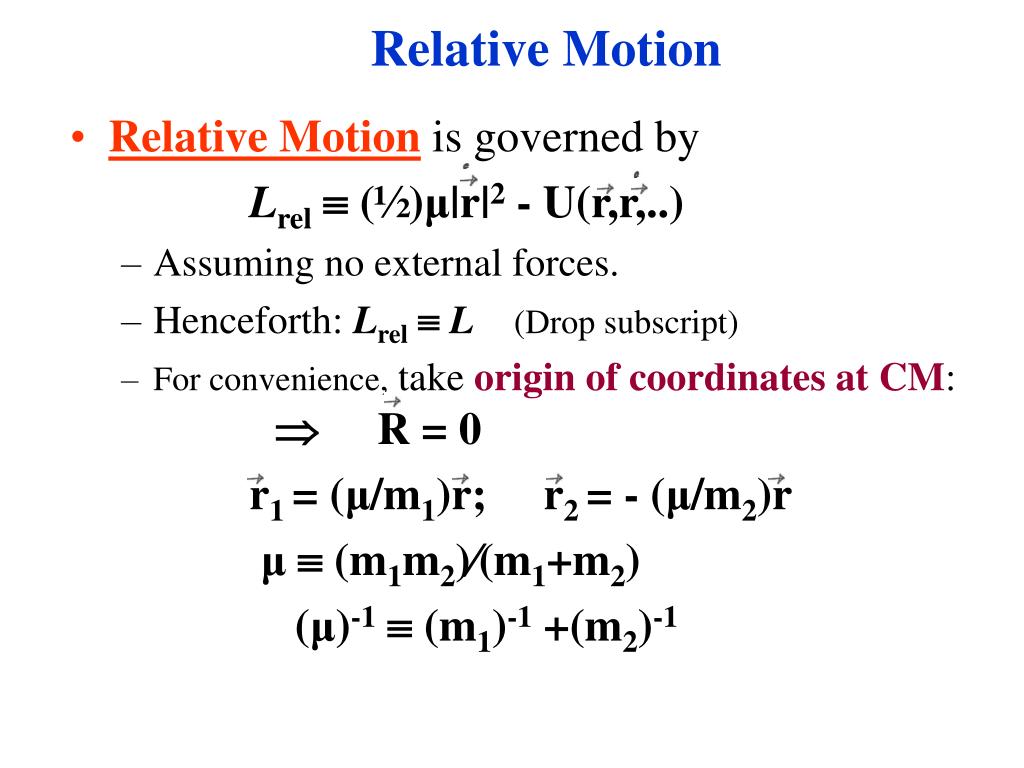

  8. 2 bodyLagrangian: L = LCM + Lrel 2 body problem is transformed to 2 one body problems! 1.Motion of the CM,governedbyLCM  (½)M|R|2 Trivialfree particle-like motion! 2. Relative Motion, governed by Lrel  (½)μ|r|2 - U(r,r,..)  2 body problem is transformed to 2 one body problems, one of which is trivial! All interesting physics is in relative motion part!  Focus on it exclusively!

  9. Relative Motion • Relative Motion is governed by Lrel  (½)μ|r|2 - U(r,r,..) • Assuming no external forces. • Henceforth: Lrel  L(Drop subscript) • For convenience, take origin of coordinates at CM:  R = 0 r1 = (μ/m1)r; r2 = - (μ/m2)r μ (m1m2)(m1+m2) (μ)-1 (m1)-1 +(m2)-1

  10. The 2 body, central force problemhas been formally reduced to an EQUIVALENT ONE BODY PROBLEM in which the motion of a “particle” of mass μin U(r,r,..) is what is to be determined! • Superimpose the uniform, free particle-like translation of CM onto the relative motion solution! • If desired, if get r(t), can get r1(t) & r2(t) from above. Usually, the relative motion (orbits) only is wanted & we stop atr(t).

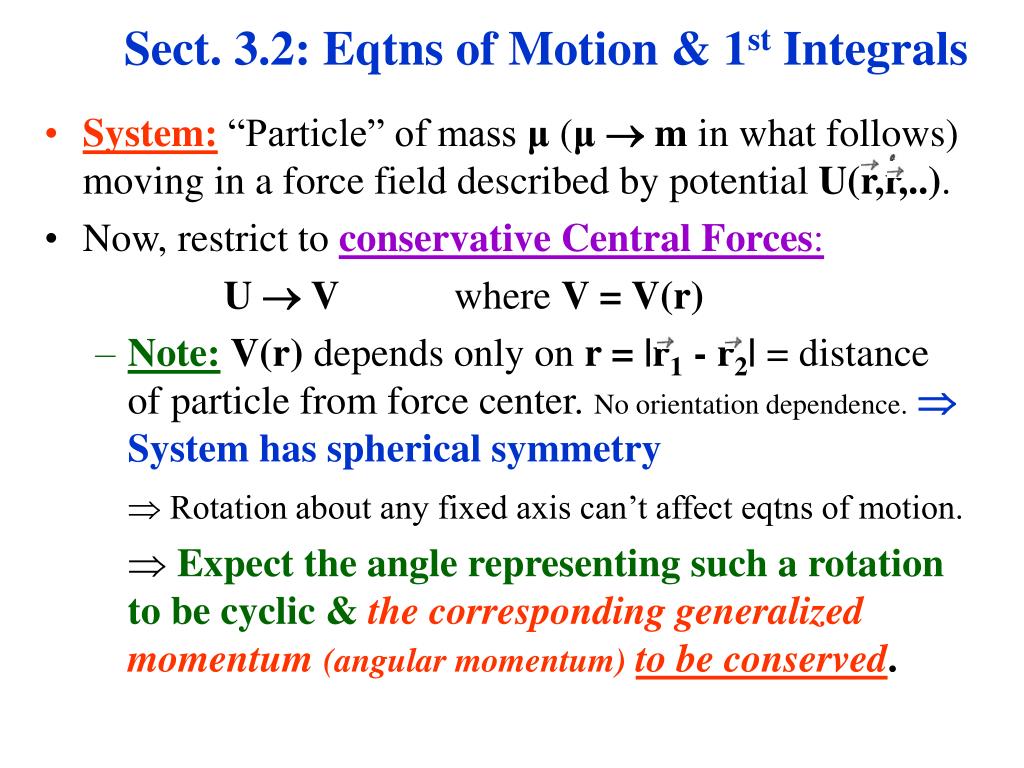

  11. Sect. 3.2: Eqtns of Motion & 1st Integrals • System: “Particle” of mass μ(μ m in what follows) moving in a force field described by potential U(r,r,..). • Now, restrict to conservative Central Forces: U  V where V = V(r) • Note:V(r) depends only on r = |r1 - r2| = distance of particle from force center. No orientation dependence. System has spherical symmetry  Rotation about any fixed axis can’t affect eqtns of motion.  Expect the angle representing such a rotation to be cyclic &the corresponding generalized momentum (angular momentum)to be conserved.

  12. Angular Momentum • By the discussion in Ch. 2: Spherical symmetry  The Angular Momentum of the system is conserved: L = r  p = constant(magnitude & direction!) Angular momentum conservation!  r & p(& thus the particle motion!) always lie in a plane  L, which is fixed in space. Figure: (See text discussion for L = 0)  The problem is effectively reduced from 3d to 2d (particle motion in a plane)!

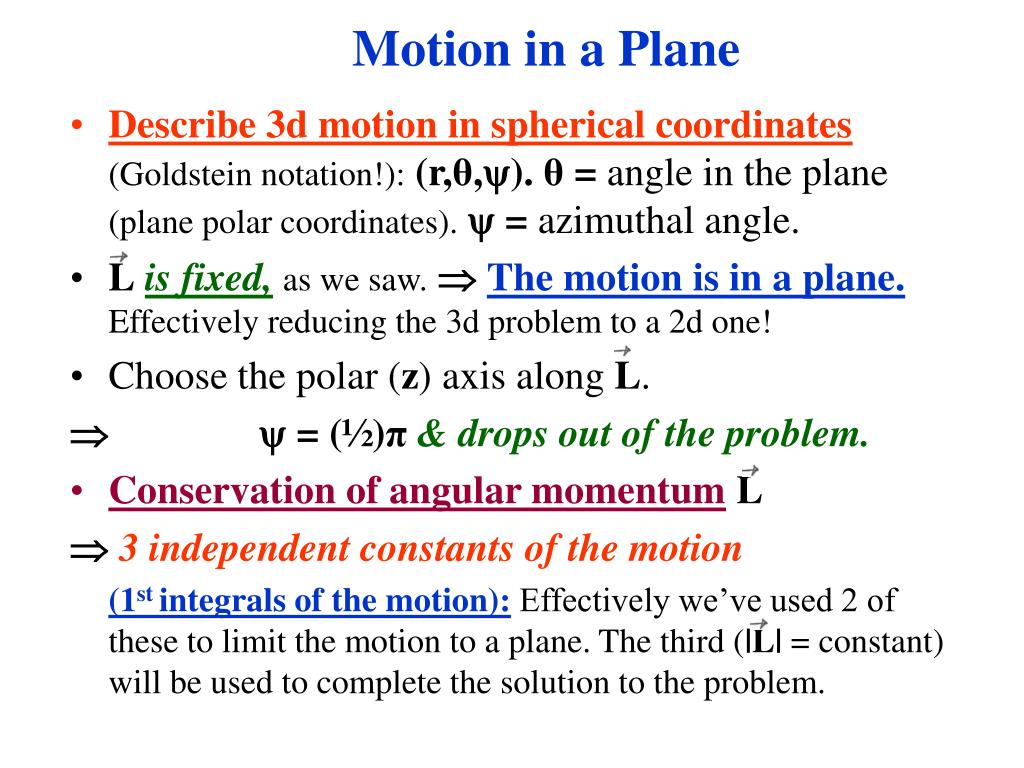

  13. Motion in a Plane • Describe 3d motion in spherical coordinates(Goldstein notation!):(r,θ,). θ = angle in the plane (plane polar coordinates). = azimuthal angle. • Lis fixed,as we saw.The motion is in a plane.Effectively reducing the 3d problem to a 2d one! • Choose the polar (z) axis along L.  = (½)π& drops out of the problem. • Conservation of angular momentumL 3 independent constants of the motion (1st integrals of the motion): Effectively we’ve used 2 of these to limit the motion to a plane. The third (|L| = constant) will be used to complete the solution to the problem.

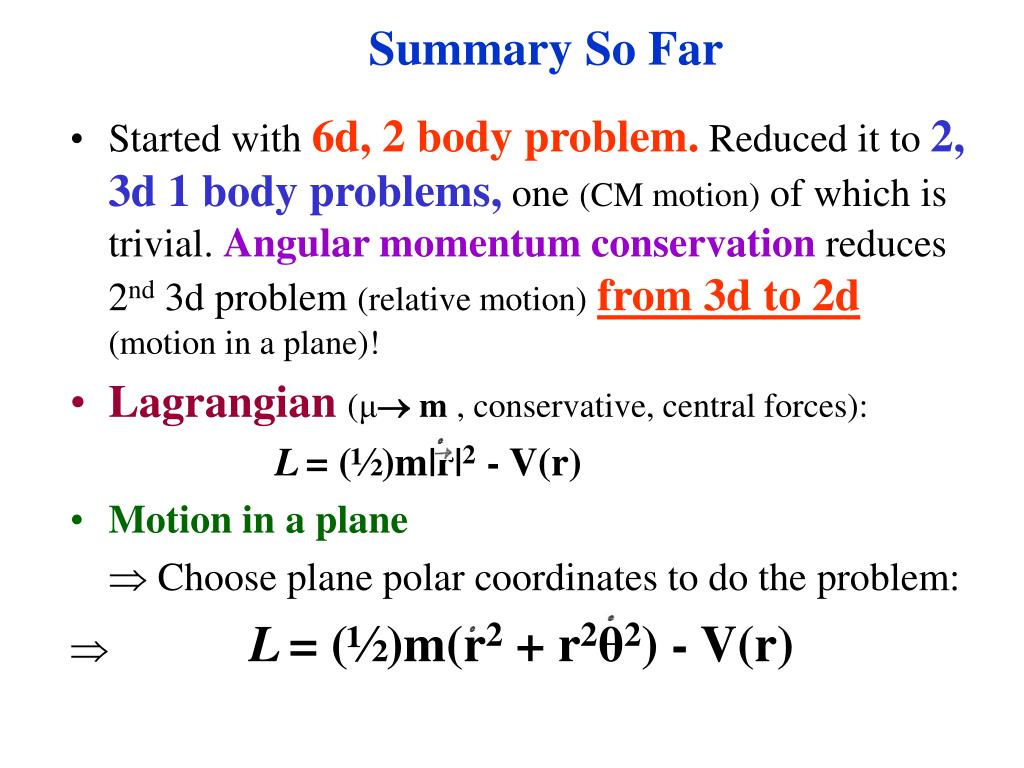

  14. Summary So Far • Started with 6d, 2 body problem. Reduced it to 2, 3d 1 body problems, one (CM motion) of which is trivial. Angular momentum conservation reduces 2nd 3d problem (relative motion)from 3d to 2d(motion in a plane)! • Lagrangian(μ m , conservative, central forces): L= (½)m|r|2 - V(r) • Motion in a plane  Choose plane polar coordinates to do the problem:  L= (½)m(r2 + r2θ2) - V(r)

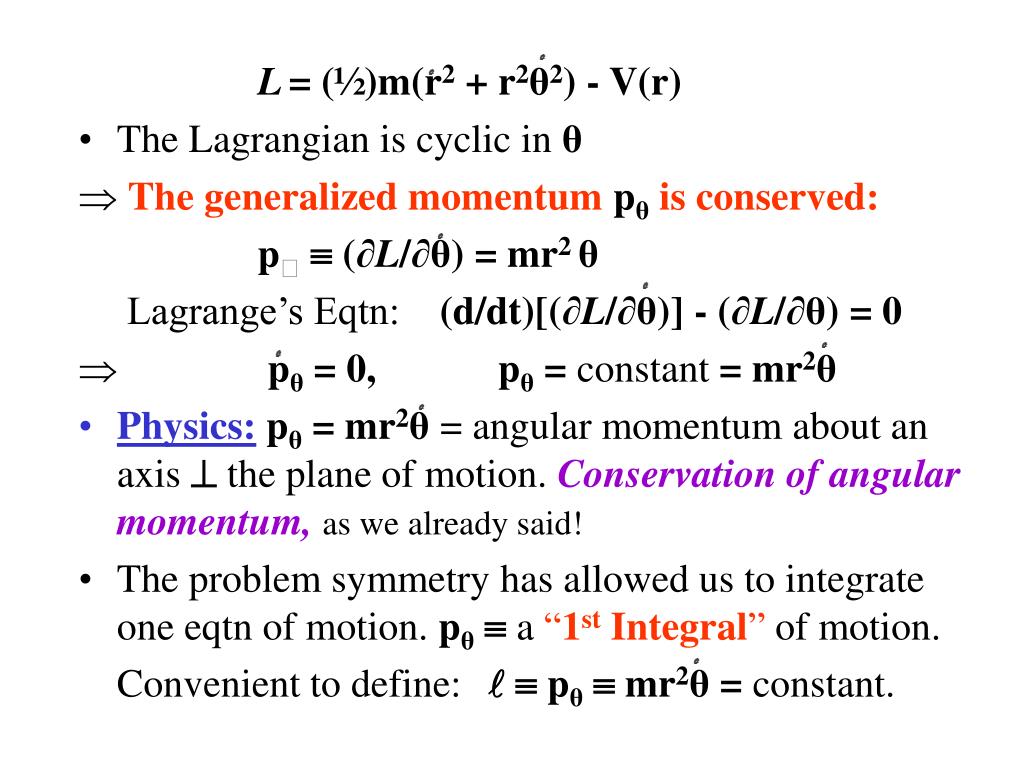

  15. L= (½)m(r2 + r2θ2) - V(r) • The Lagrangian is cyclic in θ  The generalized momentum pθis conserved: p (∂L/∂θ) = mr2 θ Lagrange’s Eqtn: (d/dt)[(∂L/∂θ)] - (∂L/∂θ) = 0  pθ= 0, pθ= constant = mr2θ • Physics: pθ = mr2θ = angular momentum about an axis  the plane of motion. Conservation of angular momentum,as we already said! • The problem symmetry has allowed us to integrate one eqtn of motion. pθ a “1st Integral” of motion. Convenient to define:   pθ mr2θ= constant.

  16. L= (½)m(r2 + r2θ2) - V(r) • In terms of   mr2θ= constant, the Lagrangian is: L= (½)mr2 + [2(2mr2)] - V(r) • Symmetry & the resulting conservation of angular momentum has reduced the effective 2d problem (2 degrees of freedom) to an effective1d problem! 1 degree of freedom, one generalized coordinate r! • Now: Set up & solve the problem using the above Lagrangian. Also, follow authors & do with energy conservation. However, first, a side issue.

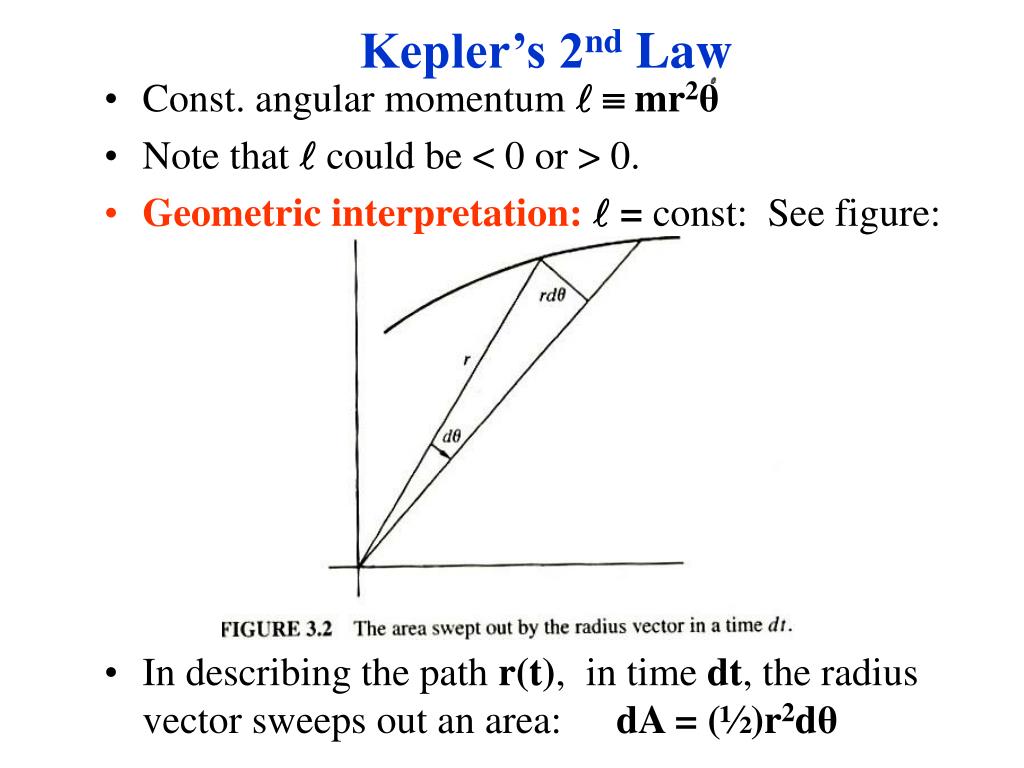

  17. Kepler’s 2nd Law • Const. angular momentum   mr2θ • Note that  could be < 0 or > 0. • Geometric interpretation: = const: See figure: • In describing the path r(t), in time dt, the radius vector sweeps out an area: dA = (½)r2dθ

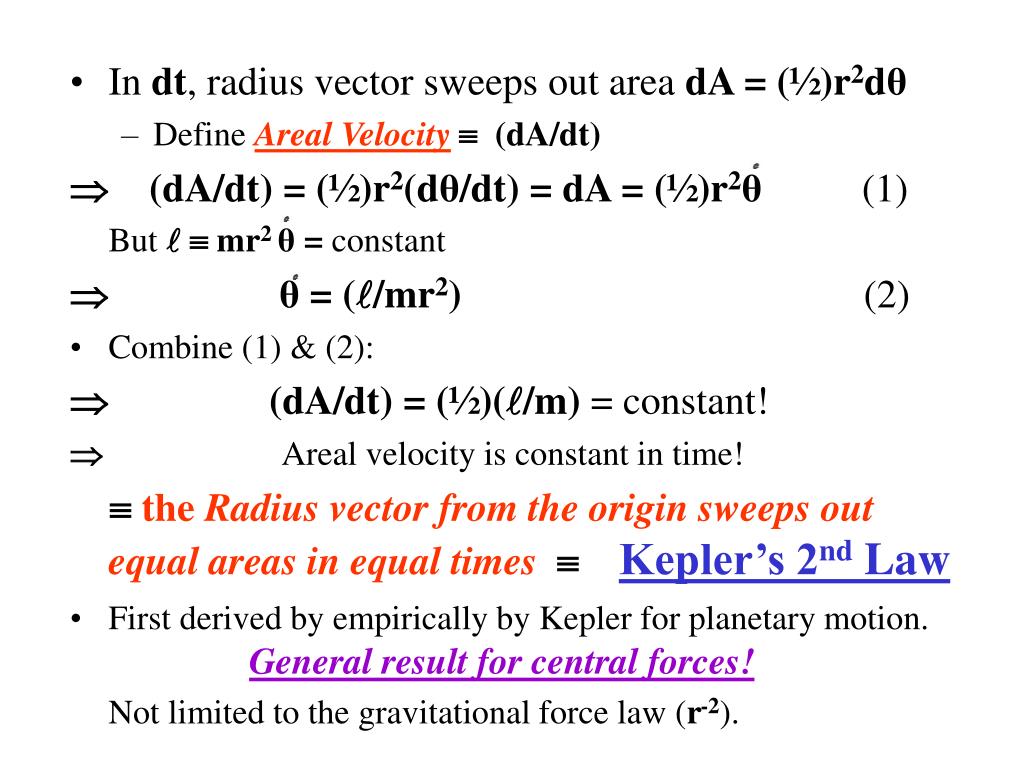

  18. In dt, radius vector sweeps out area dA = (½)r2dθ • Define Areal Velocity (dA/dt)  (dA/dt) = (½)r2(dθ/dt) = dA = (½)r2θ(1) But   mr2 θ = constant  θ = (/mr2) (2) • Combine (1) & (2):  (dA/dt) = (½)(/m) = constant!  Areal velocity is constant in time!  the Radius vector from the origin sweeps out equal areas in equal times  Kepler’s 2nd Law • First derived by empirically by Kepler for planetary motion.General result for central forces! Not limited to the gravitational force law (r-2).

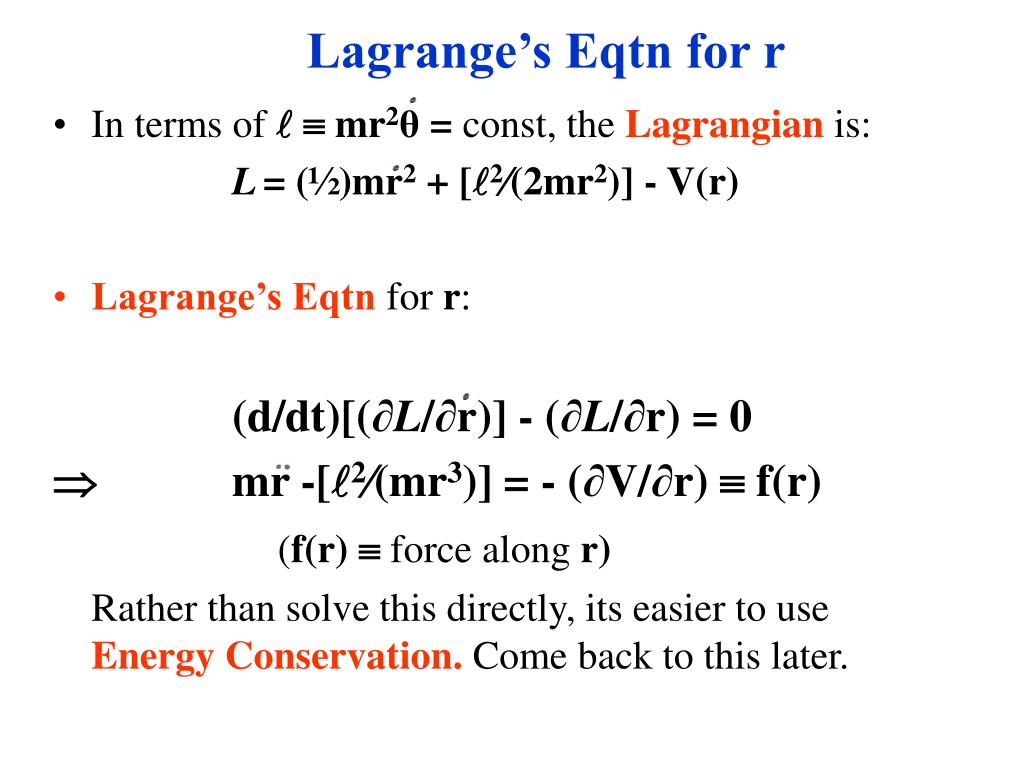

  19. Lagrange’s Eqtn for r • In terms of   mr2θ= const, the Lagrangian is: L= (½)mr2 + [2(2mr2)] - V(r) • Lagrange’s Eqtn for r: (d/dt)[(∂L/∂r)] - (∂L/∂r) = 0  mr -[2(mr3)] = - (∂V/∂r)  f(r) (f(r) force along r) Rather than solve this directly, its easier to use Energy Conservation. Come back to this later.

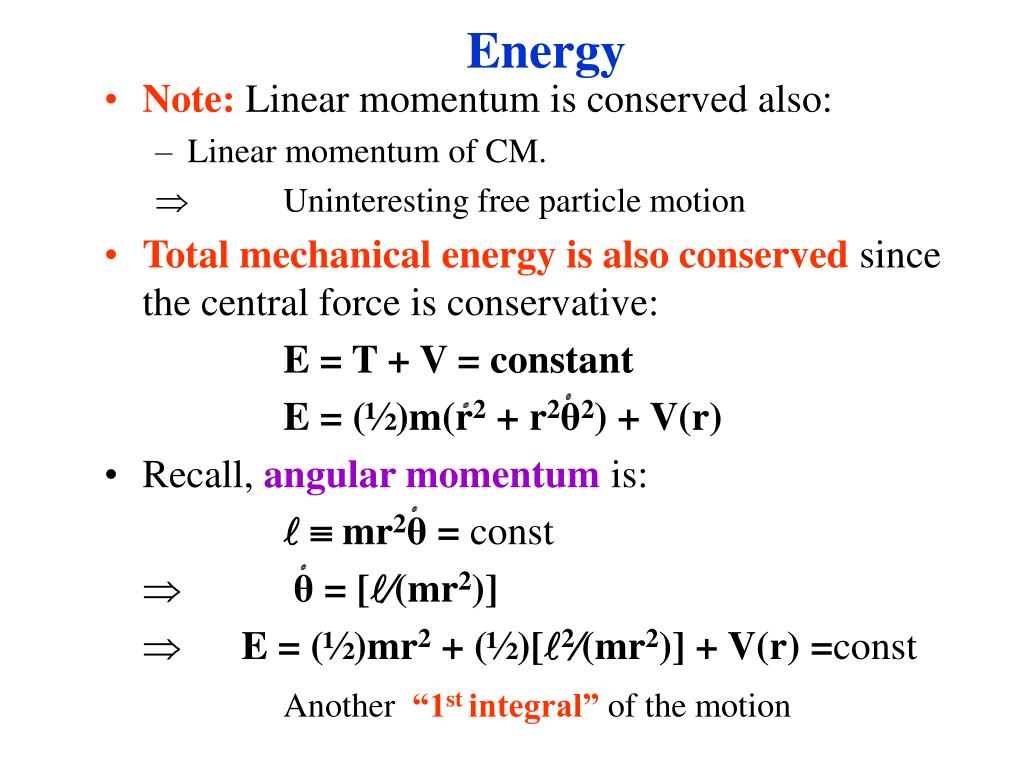

  20. Energy • Note: Linear momentum is conserved also: • Linear momentum of CM.  Uninteresting free particle motion • Total mechanical energy is also conserved since the central force is conservative: E = T + V = constant E = (½)m(r2 + r2θ2) + V(r) • Recall, angular momentum is:   mr2θ= const  θ = [(mr2)]  E = (½)mr2 + (½)[2(mr2)] + V(r) =const Another “1st integral” of the motion

  21. r(t) & θ(t) E = (½)mr2 + [2(2mr2)] + V(r) = const • Energy Conservation allows us to get solutions to the eqtns of motion in terms of r(t) & θ(t) and r(θ) or θ(r)The orbit of the particle! • Eqtn of motion to get r(t): One degree of freedom  Very similar to a 1 d problem! • Solve for r = (dr/dt) : r =  ({2/m}[E - V(r)] - [2(m2r2)])½ • Note: This gives r(r), the phase diagram for the relative coordinate & velocity. Can qualitatively analyze (r part of) motion using it, just as in 1d. • Solve for dt & formally integrate to get t(r). In principle, invert to get r(t).

  22. r =  ({2/m}[E - V(r)] - [2(m2r2)])½ • Solve for dt & formally integrate to get t(r): t(r) = ∫dr({2/m}[E - V(r)] - [2(m2r2)])-½ • Limits r0  r, r0determined by initial condition • Note the square root in denominator! • Get θ(t) in terms of r(t) using conservation of angular momentum again:   mr2θ= const  (dθ/dt) = [(mr2)]  θ(t) = (/m)∫(dt[r(t)]-2) + θ0 • Limits 0  t θ0determined by initial condition

  23. Formally,the 2 body Central Force problem has been reduced to the evaluation of 2 integrals: (Given V(r) can do them, in principle.) t(r) = ∫dr({2/m}[E - V(r)] - [2(m2r2)])-½ • Limits r0  r, r0determined by initial condition θ(t) = (/m)∫(dt[r(t)]-2) + θ0 • Limits 0  t, θ0determined by initial condition • To solve the problem, need 4 integration constants: E, , r0 , θ0

  24. Orbits • Often, we are much more interested in the path in the r, θ plane: r(θ) or θ(r)The orbit. • Note that (chain rule): (dθ/dr) = (dθ/dt)(dt/dr) = (dθ/dt)(dr/dt) Or: (dθ/dr) = (θ/r) Also,   mr2θ= const  θ = [/(mr2)] Use r =  ({2/m}[E - V(r)] - [2(m2r2)])½  (dθ/dr) =  [/(mr2)]({2/m}[E - V(r)] - [2(m2r2)])-½ Or: (dθ/dr) =  (/r2)(2m)-½[E - V(r) -{2(2mr2)}]-½ • Integrating this will giveθ(r) .

  25. Formally: (dθ/dr) =  (/r2)(2m)-½[E - V(r) -{2(2mr2)}]-½ • Integrating this gives a formal eqtn for the orbit: θ(r) = ∫ (/r2)(2m)-½[E - V(r) - {2(2mr2)}]-½ dr • Once the central force is specified, we know V(r) & can, in principle, do the integral & get the orbit θ(r), or, (if this can be inverted!) r(θ).  This is quite remarkable! Assuming only a central force law & nothing else: We have reduced the original 6 d problem of 2 particles to a 2 d problem with only 1 degree of freedom. The solution for the orbit can be obtained simply by doing the above (1d) integral!
