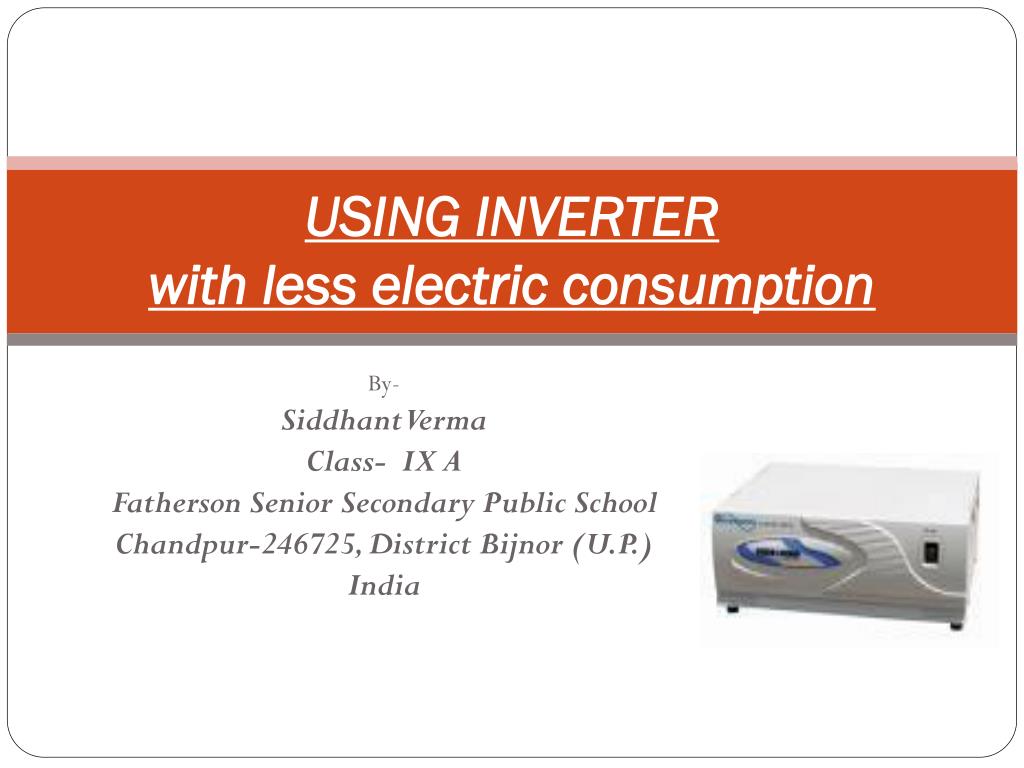

  1. USING INVERTERwith less electric consumption By- Siddhant Verma Class- IX A Fatherson Senior Secondary Public School Chandpur-246725, District Bijnor (U.P.) India

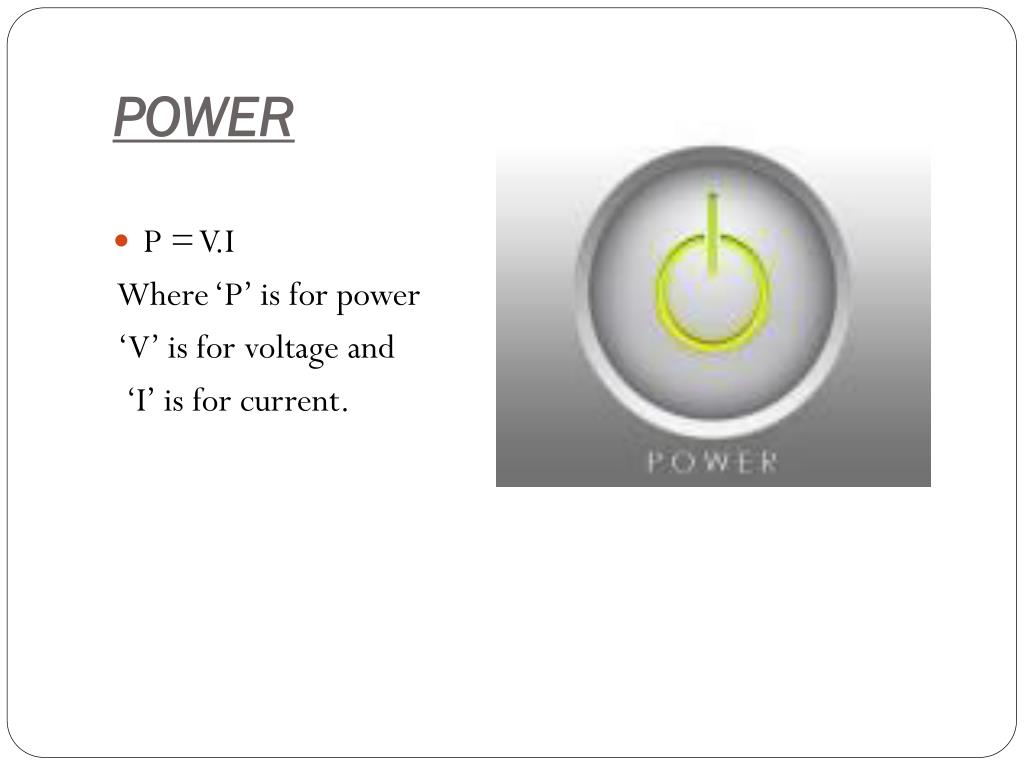

  2. POWER • P = V.I Where ‘P’ is for power ‘V’ is for voltage and ‘I’ is for current.

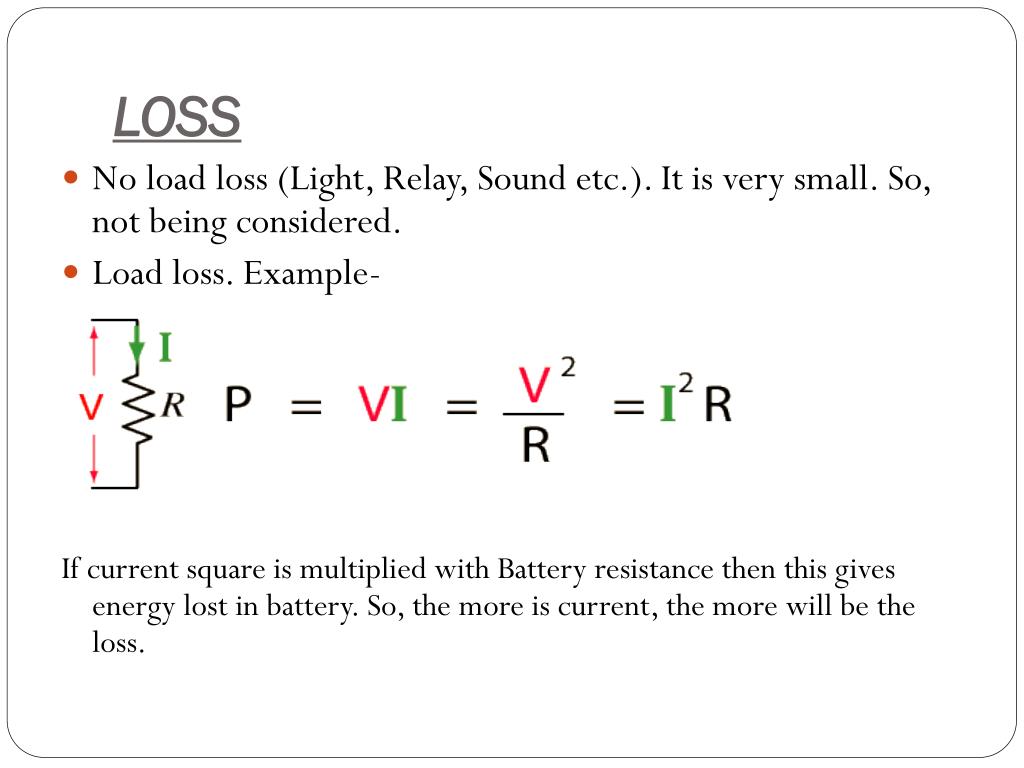

  3. LOSS • No load loss (Light, Relay, Sound etc.). It is very small. So, not being considered. • Load loss. Example- If current square is multiplied with Battery resistance then this gives energy lost in battery. So, the more is current, the more will be the loss.

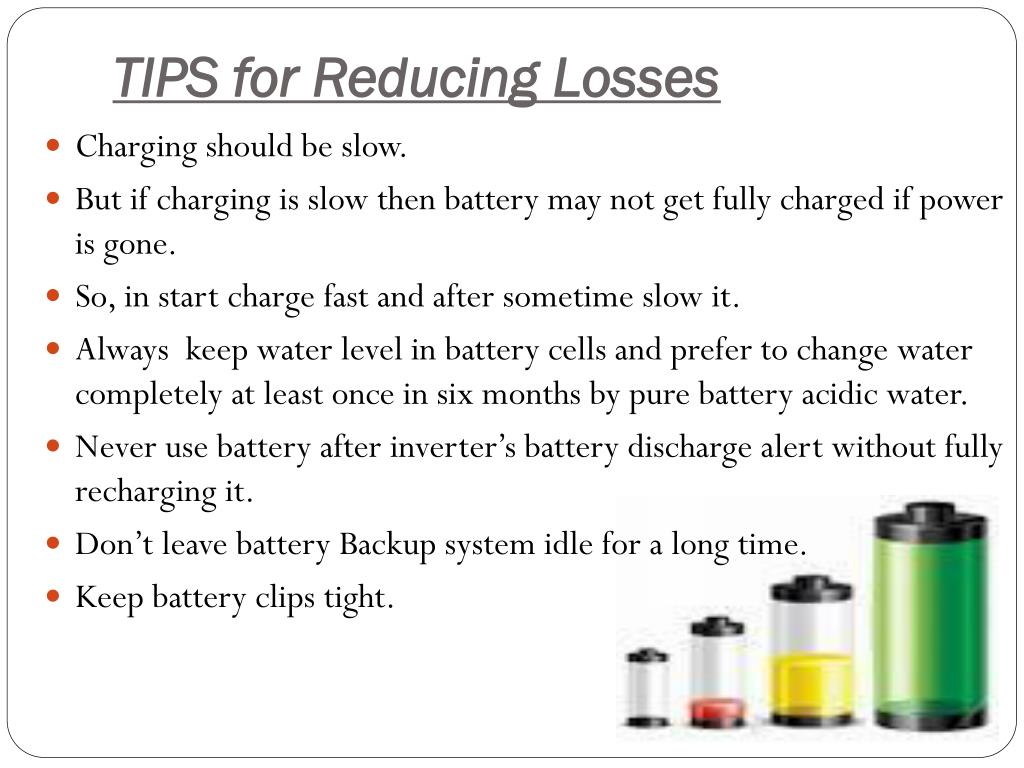

  4. TIPS for Reducing Losses • Charging should be slow. • But if charging is slow then battery may not get fully charged if power is gone. • So, in start charge fast and after sometime slow it. • Always keep water level in battery cells and prefer to change water completely at least once in six months by pure battery acidic water. • Never use battery after inverter’s battery discharge alert without fully recharging it. • Don’t leave battery Backup system idle for a long time. • Keep battery clips tight.

  5. Testing Scheme Neutral Supply Out Supply In Ampere A INVERTER M M Meter Meter

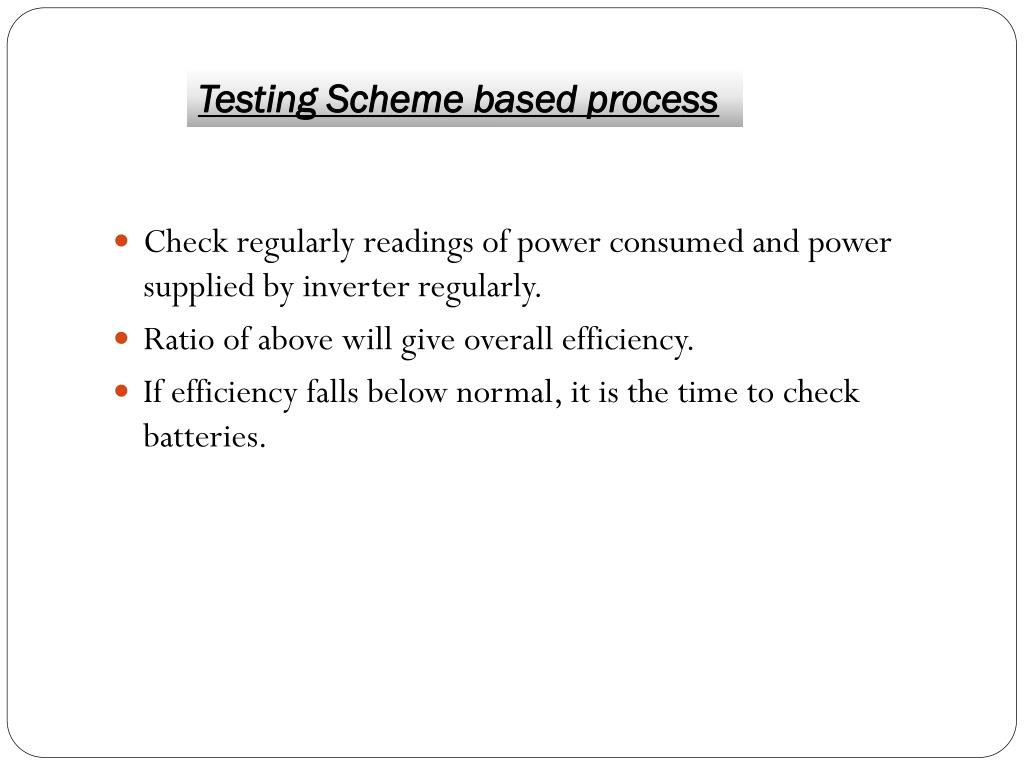

  6. Testing Scheme based process • Check regularly readings of power consumed and power supplied by inverter regularly. • Ratio of above will give overall efficiency. • If efficiency falls below normal, it is the time to check batteries.

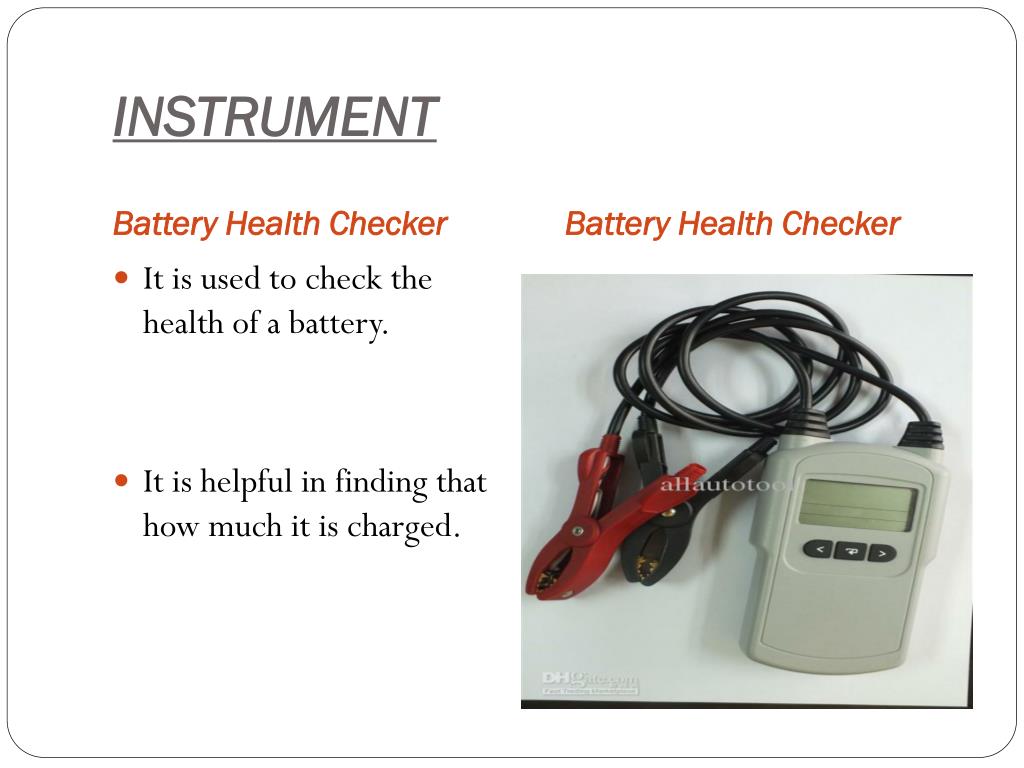

  7. INSTRUMENT Battery Health Checker Battery Health Checker It is used to check the health of a battery. It is helpful in finding that how much it is charged.

  8. PREVENTION • If Battery is old then it sometime heats due to extra use of it. • In battery water is required to prevent battery heating. • If water is not given it then blast may be there.

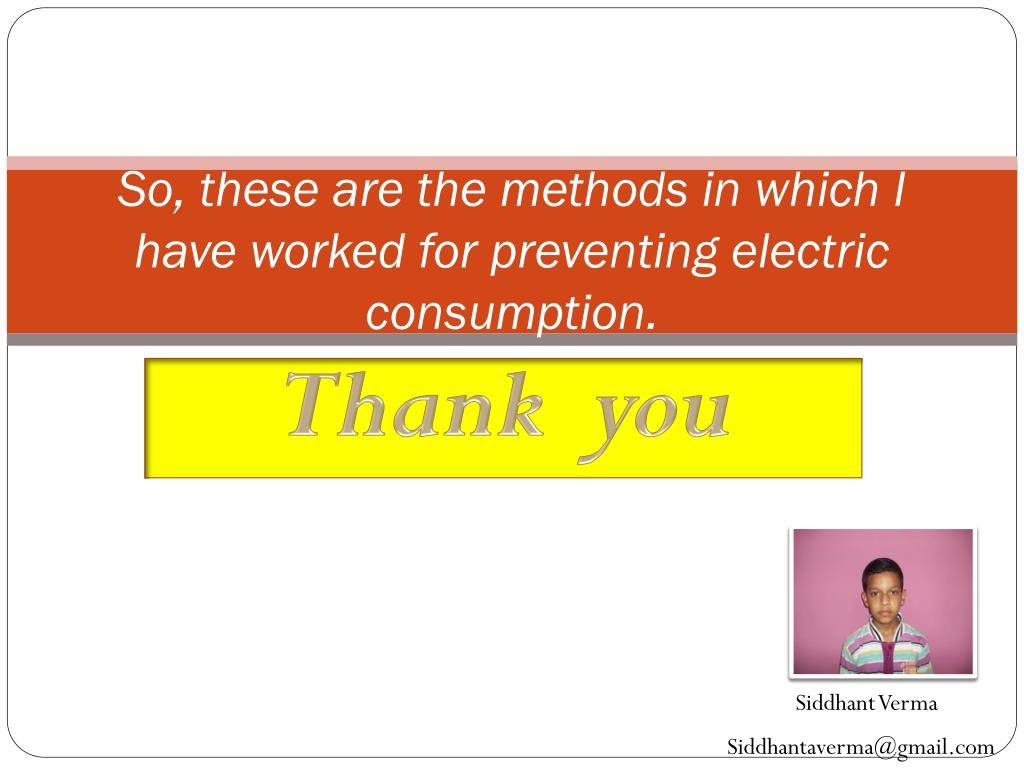

  9. So, these are the methods in which I have worked for preventing electric consumption. Thank you Siddhant Verma Siddhantaverma@gmail.com
