Network Flow Multiple Sources and Sinks

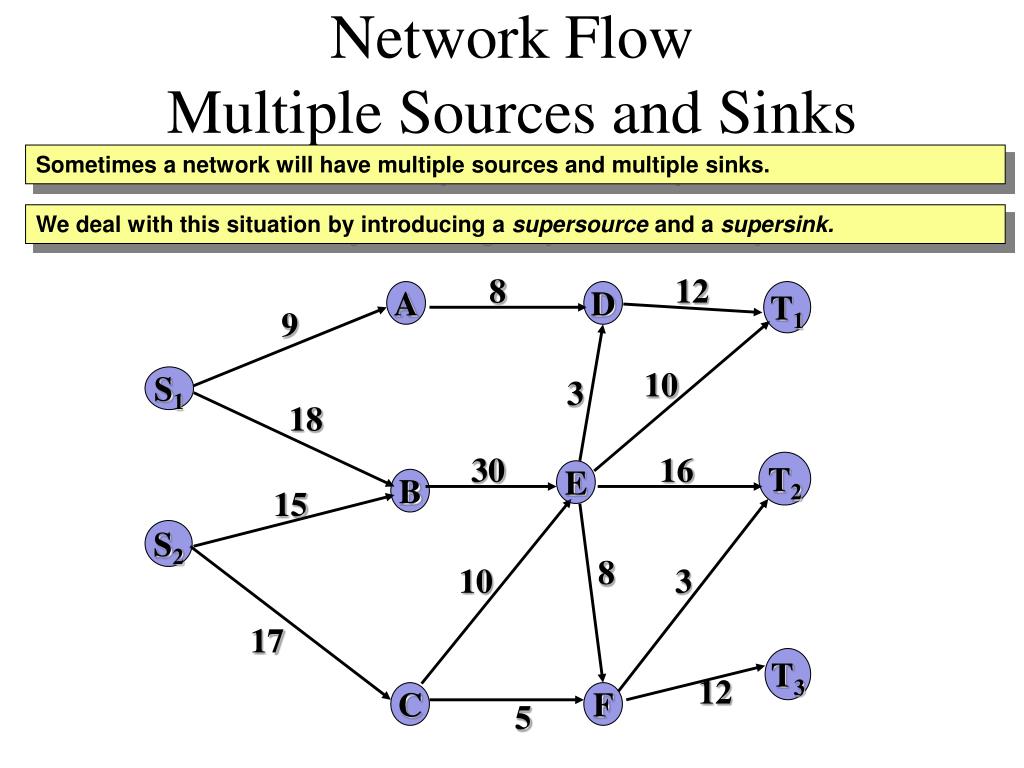

Network Flow Multiple Sources and Sinks. Sometimes a network will have multiple sources and multiple sinks. We deal with this situation by introducing a supersource and a supersink. 8. 12. A. D. T 1. 9. 10. S 1. 3. 18. 30. 16. T 2. E. B. 15. S 2. 8. 10. 3. 17. T 3. 12.

overton
Télécharger la présentation

Network Flow Multiple Sources and Sinks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Network Flow Multiple Sources and Sinks Sometimes a network will have multiple sources and multiple sinks. We deal with this situation by introducing a supersource and a supersink. 8 12 A D T1 9 10 S1 3 18 30 16 T2 E B 15 S2 8 10 3 17 T3 12 C F 5

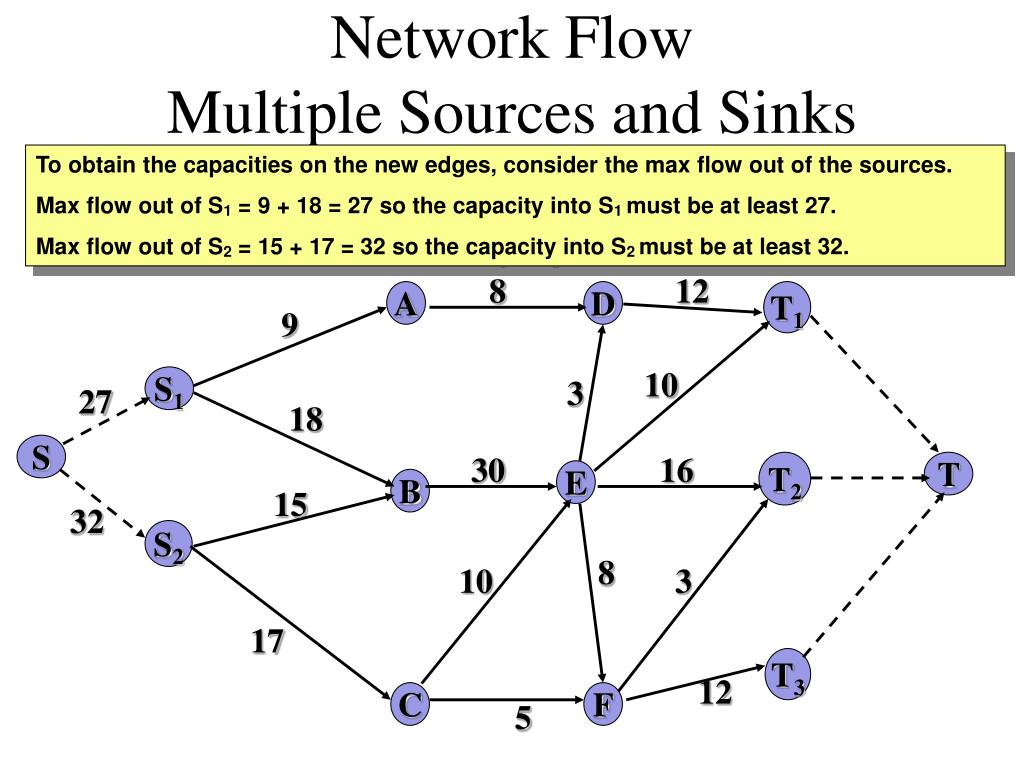

  2. S T Network Flow Multiple Sources and Sinks To obtain the capacities on the new edges, consider the max flow out of the sources. Max flow out of S1 = 9 + 18 = 27 so the capacity into S1must be at least 27. Max flow out of S2 = 15 + 17 = 32 so the capacity into S2must be at least 32. 8 12 A D T1 9 10 S1 3 27 18 30 16 T2 E B 15 32 S2 8 10 3 17 T3 12 C F 5

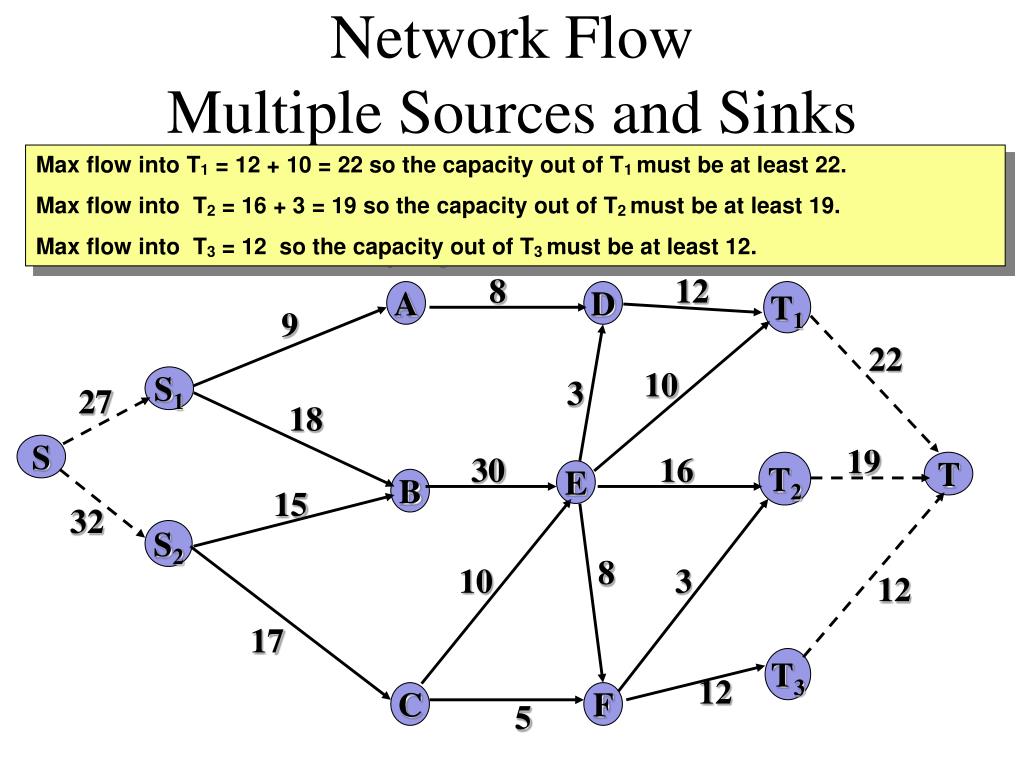

  3. S T Network Flow Multiple Sources and Sinks Max flow into T1 = 12 + 10 = 22 so the capacity out of T1must be at least 22. Max flow into T2 = 16 + 3 = 19 so the capacity out of T2must be at least 19. Max flow into T3 = 12 so the capacity out of T3must be at least 12. 8 12 A D T1 9 22 10 S1 3 27 18 19 30 16 T2 E B 15 32 S2 8 10 3 12 17 T3 12 C F 5

  4. S T Network Flow Multiple Sources and Sinks The minimum cut consists of edges AD, ED, ET2, EF ad CF and DT or vertex sets S, S1, S2, A, B, C, E and D, T1, T2, T3, T The capacity of the cut is 8 + 3 + 10 + 16 + 8 + 5 = 50 What is the minimum cut for this network? 8 12 A D T1 9 22 10 S1 3 27 18 19 30 16 T2 E B 15 32 S2 8 10 3 12 17 T3 12 C F 5

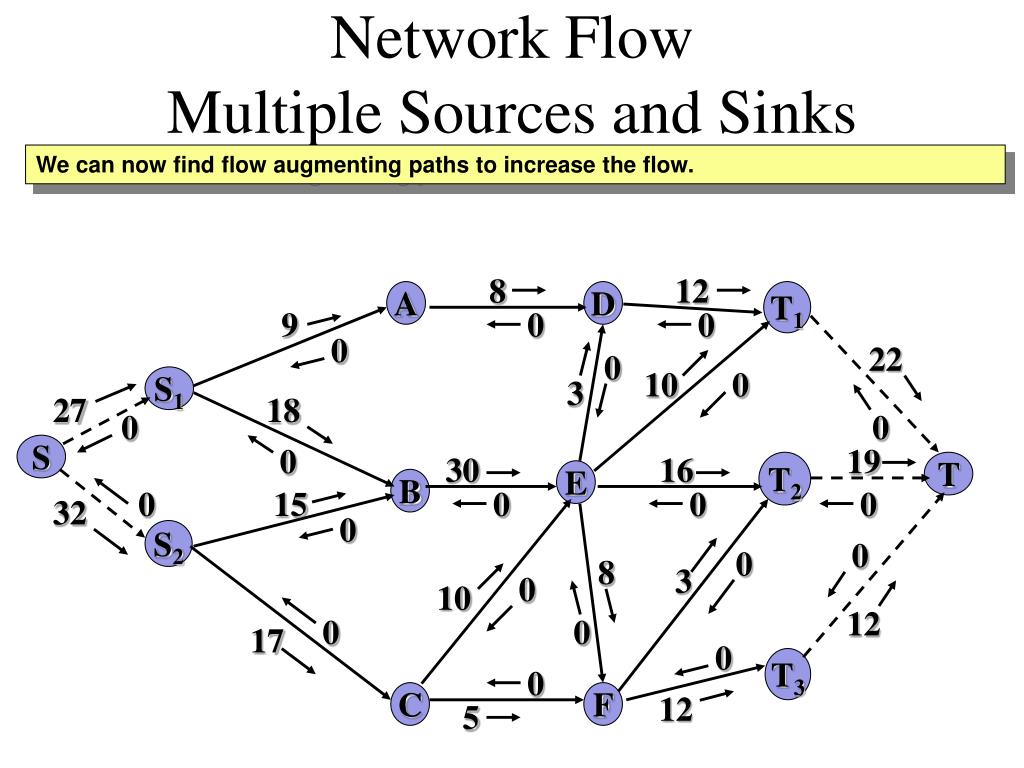

  5. Network Flow Multiple Sources and Sinks We can now find flow augmenting paths to increase the flow. 8 12 A D T1 9 0 0 0 22 0 10 0 S1 3 27 18 0 0 S 0 19 30 16 T2 T E B 0 15 0 0 0 32 0 S2 0 0 8 3 0 10 12 0 0 17 0 T3 0 C F 12 5

  6. Network Flow Multiple Sources and Sinks SS2BET2T can be increased by 15. 8 12 A D T1 9 0 0 0 22 0 10 0 S1 3 27 18 0 0 S 0 19 30 16 T2 T E B 0 15 0 0 0 32 0 S2 0 0 8 3 0 10 12 0 0 17 0 T3 0 C F 12 5

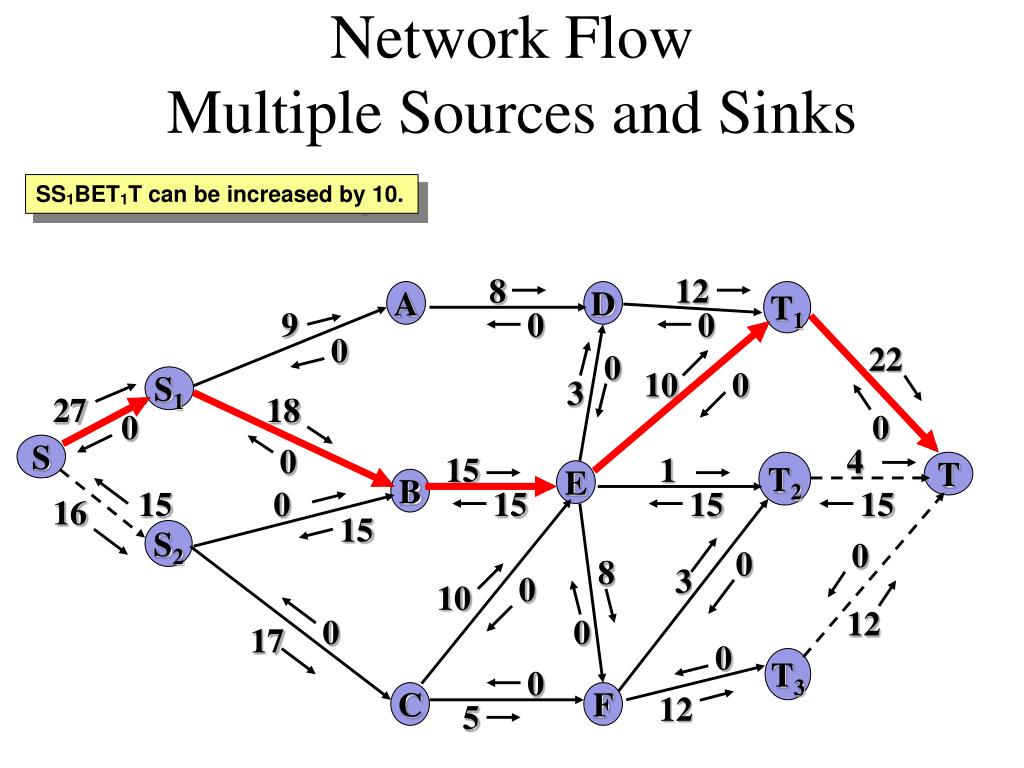

  7. Network Flow Multiple Sources and Sinks SS1BET1T can be increased by 10. 8 12 A D T1 9 0 0 0 22 0 10 0 S1 3 27 18 0 0 S 0 4 15 1 T2 T E B 15 0 15 15 15 16 15 S2 0 0 8 3 0 10 12 0 0 17 0 T3 0 C F 12 5

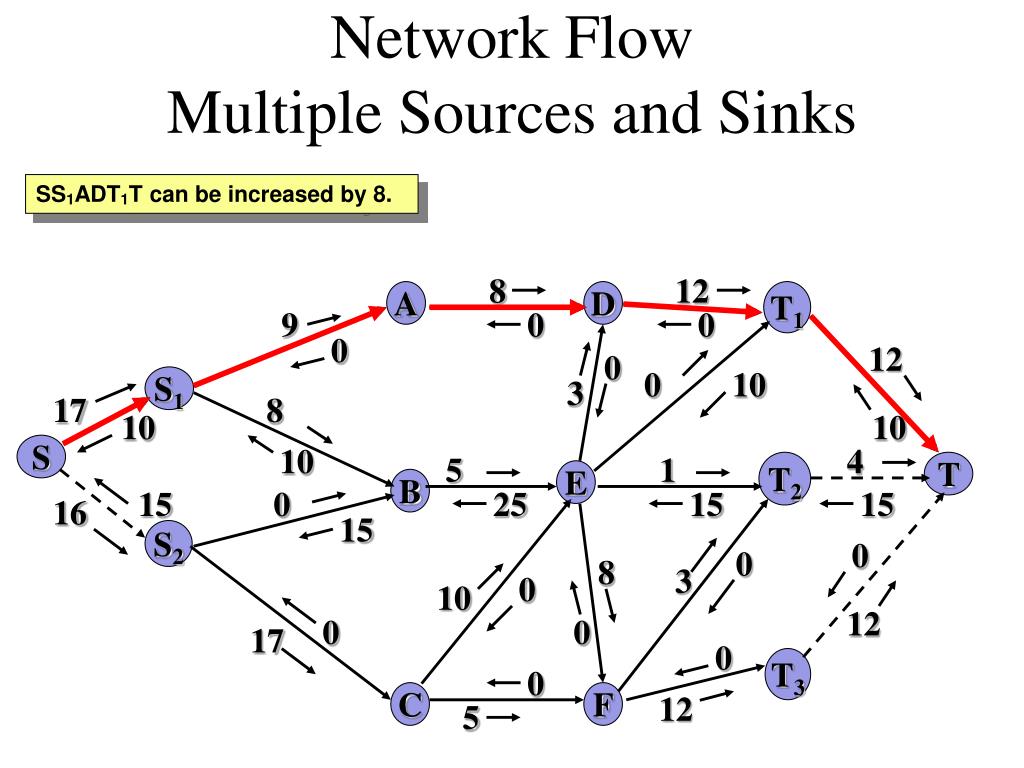

  8. Network Flow Multiple Sources and Sinks SS1ADT1T can be increased by 8. 8 12 A D T1 9 0 0 0 12 0 0 10 S1 3 17 8 10 10 S 10 4 5 1 T2 T E B 15 0 25 15 15 16 15 S2 0 0 8 3 0 10 12 0 0 17 0 T3 0 C F 12 5

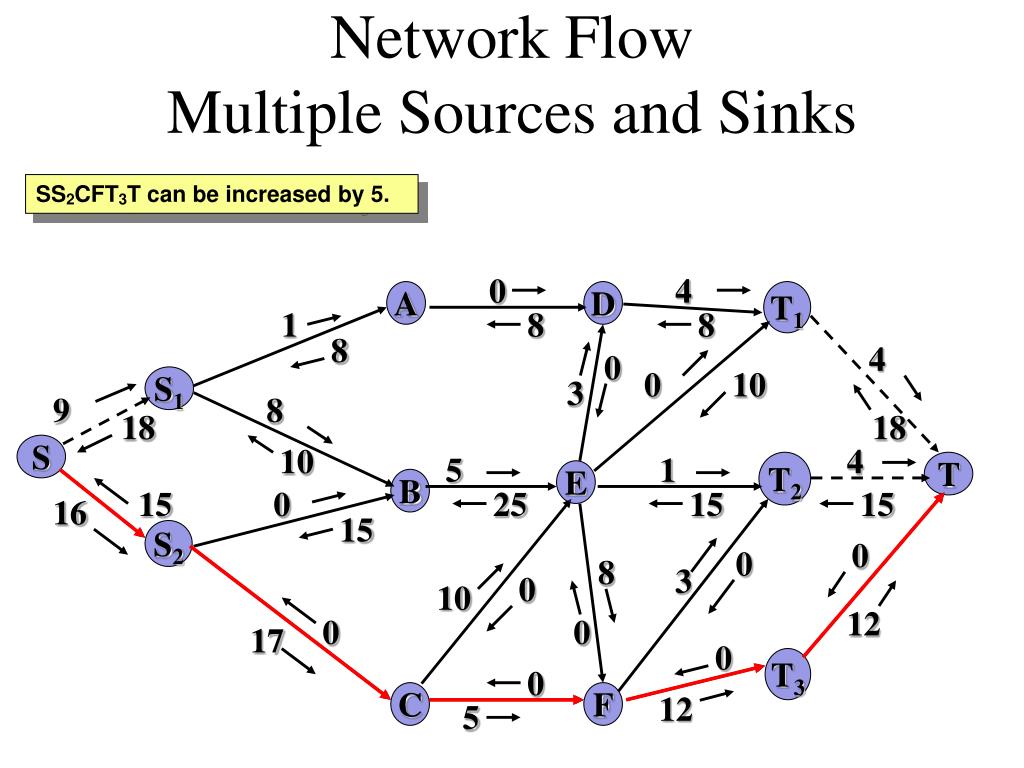

  9. Network Flow Multiple Sources and Sinks SS2CFT3T can be increased by 5. 0 4 A D T1 1 8 8 8 4 0 0 10 S1 3 9 8 18 18 S 10 4 5 1 T2 T E B 15 0 25 15 15 16 15 S2 0 0 8 3 0 10 12 0 0 17 0 T3 0 C F 12 5

  10. Network Flow Multiple Sources and Sinks SS2CEFT2T can be increased by 3. 0 4 A D T1 1 8 8 8 4 0 0 10 S1 3 9 8 18 18 S 10 4 5 1 T2 T E B 20 0 25 15 15 11 15 S2 5 0 8 3 0 10 7 5 0 12 5 T3 5 C F 7 0

  11. Network Flow Multiple Sources and Sinks SS2CEFT3T can be increased by 5. 0 4 A D T1 1 8 8 8 4 0 0 10 S1 3 9 8 18 18 S 10 1 5 1 T2 T E B 23 0 25 15 18 8 15 S2 5 3 5 0 3 7 7 8 3 9 5 T3 5 C F 7 0

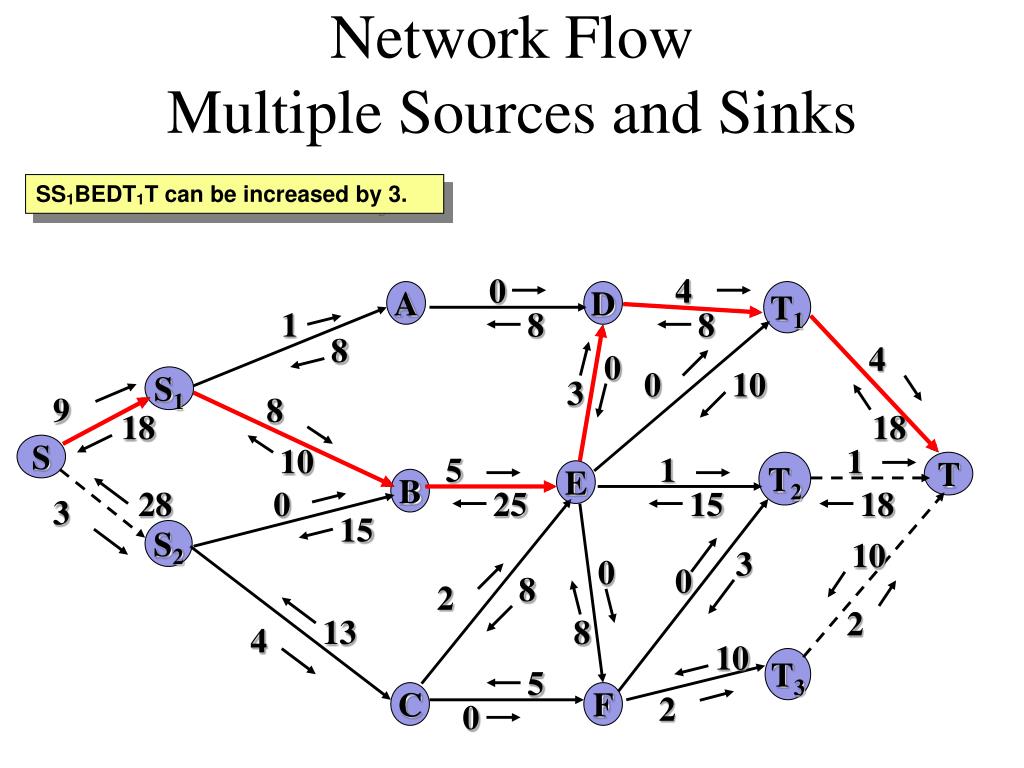

  12. Network Flow Multiple Sources and Sinks SS1BEDT1T can be increased by 3. 0 4 A D T1 1 8 8 8 4 0 0 10 S1 3 9 8 18 18 S 10 1 5 1 T2 T E B 28 0 25 15 18 3 15 S2 10 3 0 0 8 2 2 13 8 4 10 T3 5 C F 2 0

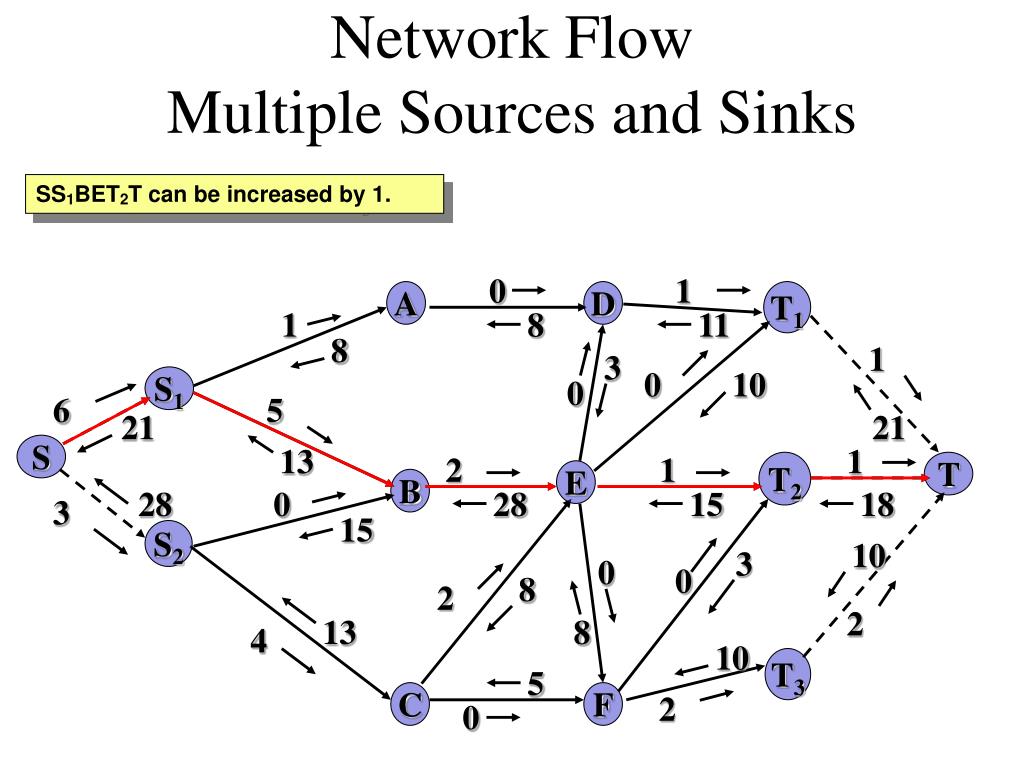

  13. Network Flow Multiple Sources and Sinks SS1BET2T can be increased by 1. 0 1 A D T1 1 8 11 8 1 3 0 10 S1 0 6 5 21 21 S 13 1 2 1 T2 T E B 28 0 28 15 18 3 15 S2 10 3 0 0 8 2 2 13 8 4 10 T3 5 C F 2 0

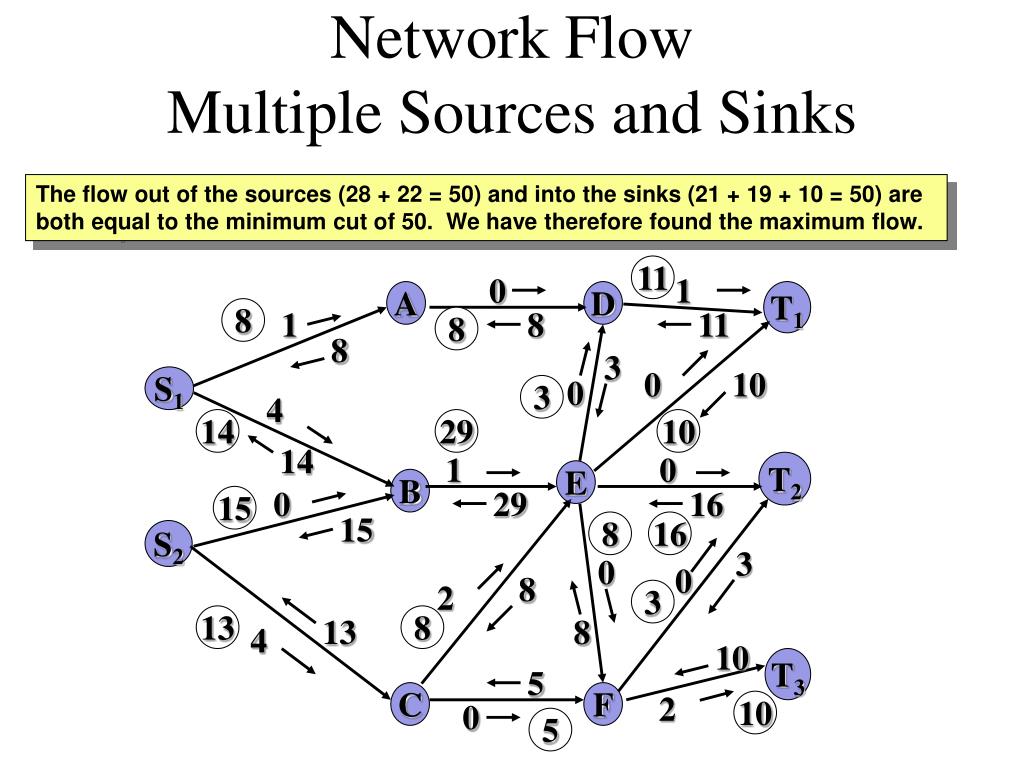

  14. Network Flow Multiple Sources and Sinks The flow out of the sources (28 + 22 = 50) and into the sinks (21 + 19 + 10 = 50) are both equal to the minimum cut of 50. We have therefore found the maximum flow. 11 0 1 A D T1 8 1 8 11 8 8 3 0 10 S1 0 3 4 14 29 10 14 1 0 T2 E B 0 29 16 15 15 8 16 S2 3 0 0 8 2 3 13 13 8 8 4 10 T3 5 C F 2 0 10 5
