  1. Proteus Framework Achieving proficiency with the core framework architecture

  2. Namespace Protection • INamespace provides collision protection • Namespace like package • ID like class name • Ref ID is arbitrary text, typically used when loading definitions from an XML document

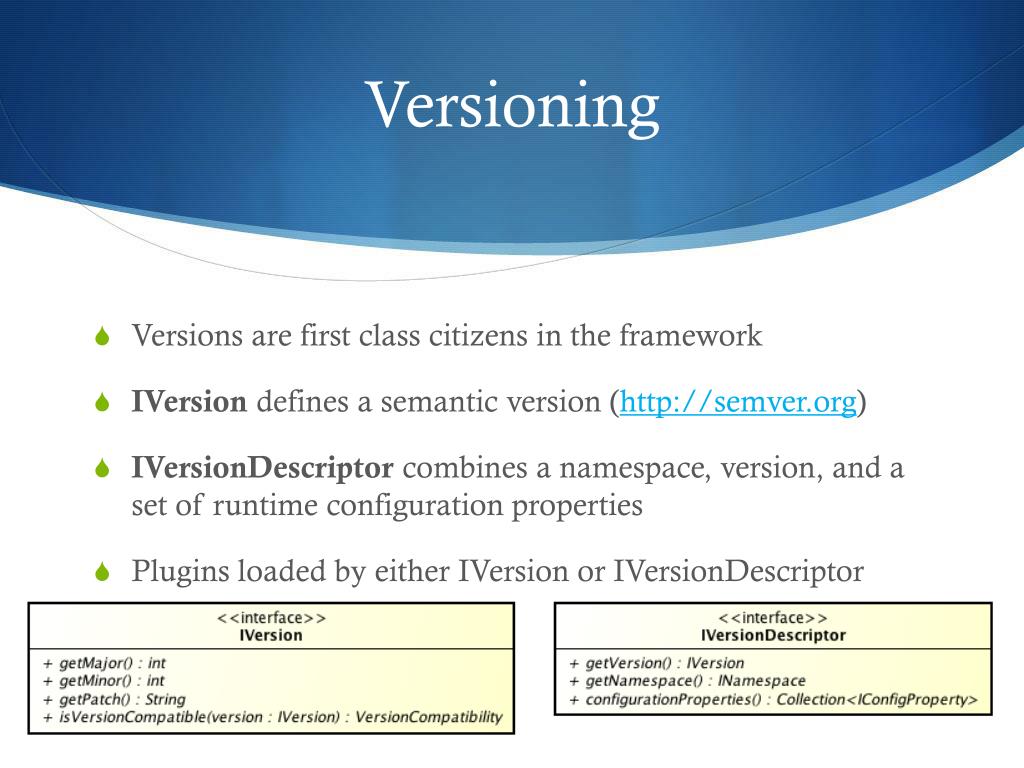

  3. Versioning • Versions are first class citizens in the framework • IVersion defines a semantic version (http://semver.org) • IVersionDescriptor combines a namespace, version, and a set of runtime configuration properties • Plugins loaded by either IVersion or IVersionDescriptor

  4. Displayable Name • IDisplayableName combines a namespace, glyph, and a human readable name/description

  5. Standard Plugin

  6. Standard Plugin • Namespace protected • Displayable name • Includes an optional custom glyph used to visually depict the plugin to the application user • Configurable via a runtime (instantiation time) set of properties • Delegate consumer • Framework delegate is injected into the plugin, letting it gain access to other plugins and platform services, if installed

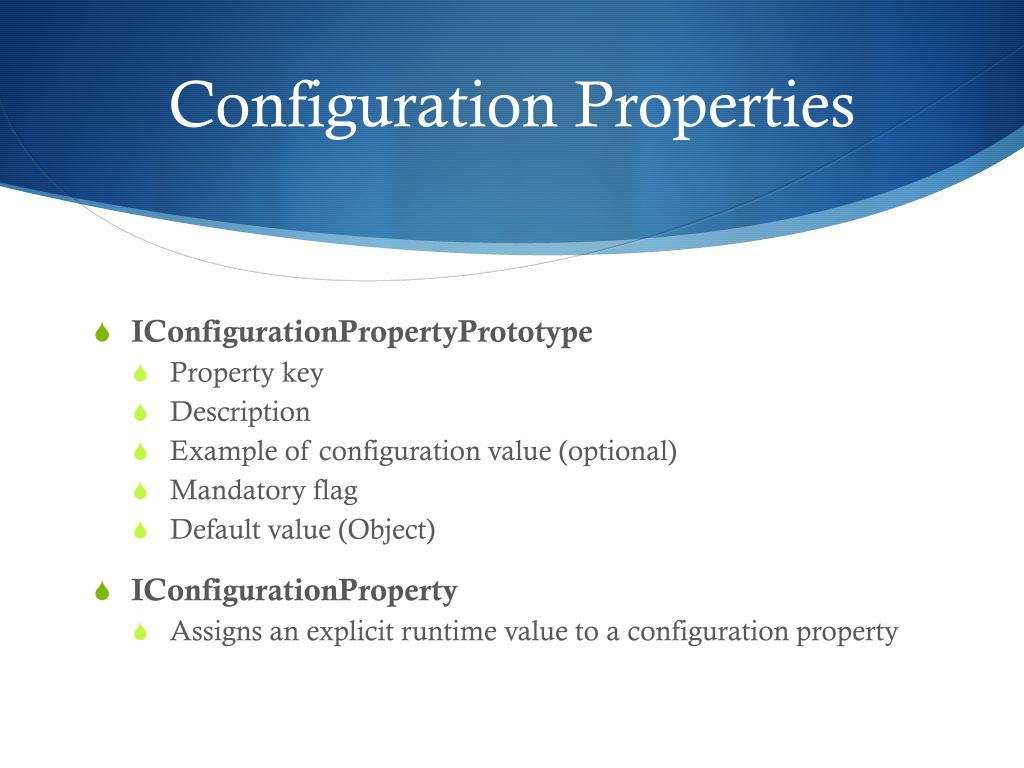

  7. Configuration Properties • IConfigurationPropertyPrototype • Property key • Description • Example of configuration value (optional) • Mandatory flag • Default value (Object) • IConfigurationProperty • Assigns an explicit runtime value to a configuration property

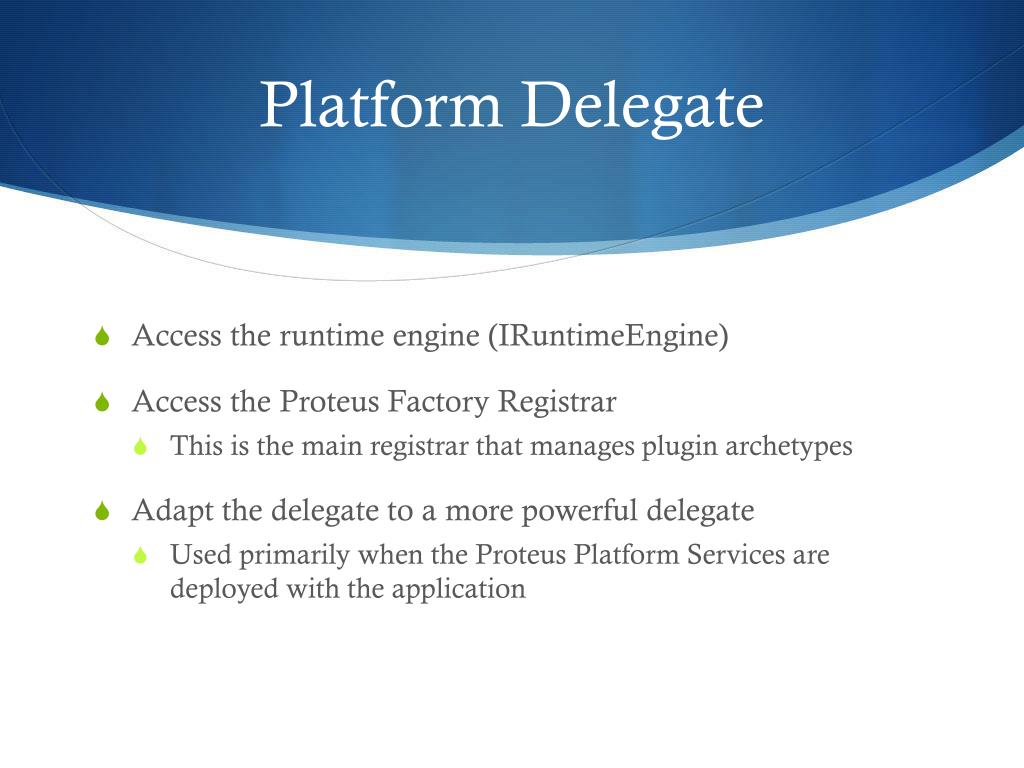

  8. Platform Delegate • Access the runtime engine (IRuntimeEngine) • Access the Proteus Factory Registrar • This is the main registrar that manages plugin archetypes • Adapt the delegate to a more powerful delegate • Used primarily when the Proteus Platform Services are deployed with the application

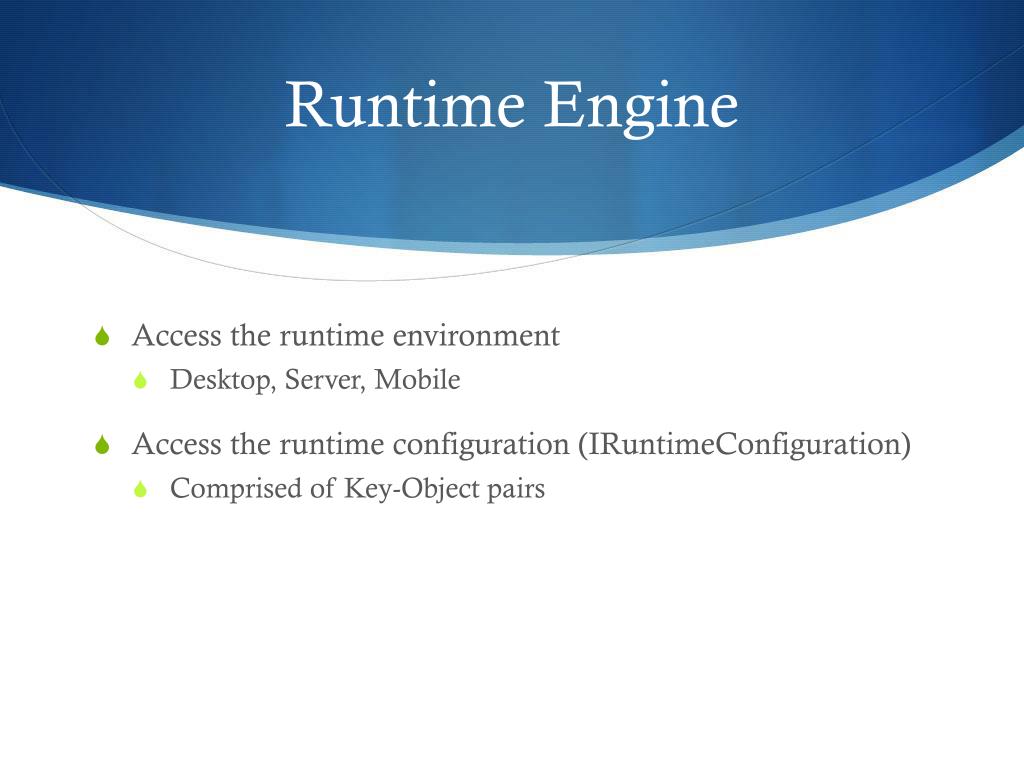

  9. Runtime Engine • Access the runtime environment • Desktop, Server, Mobile • Access the runtime configuration (IRuntimeConfiguration) • Comprised of Key-Object pairs

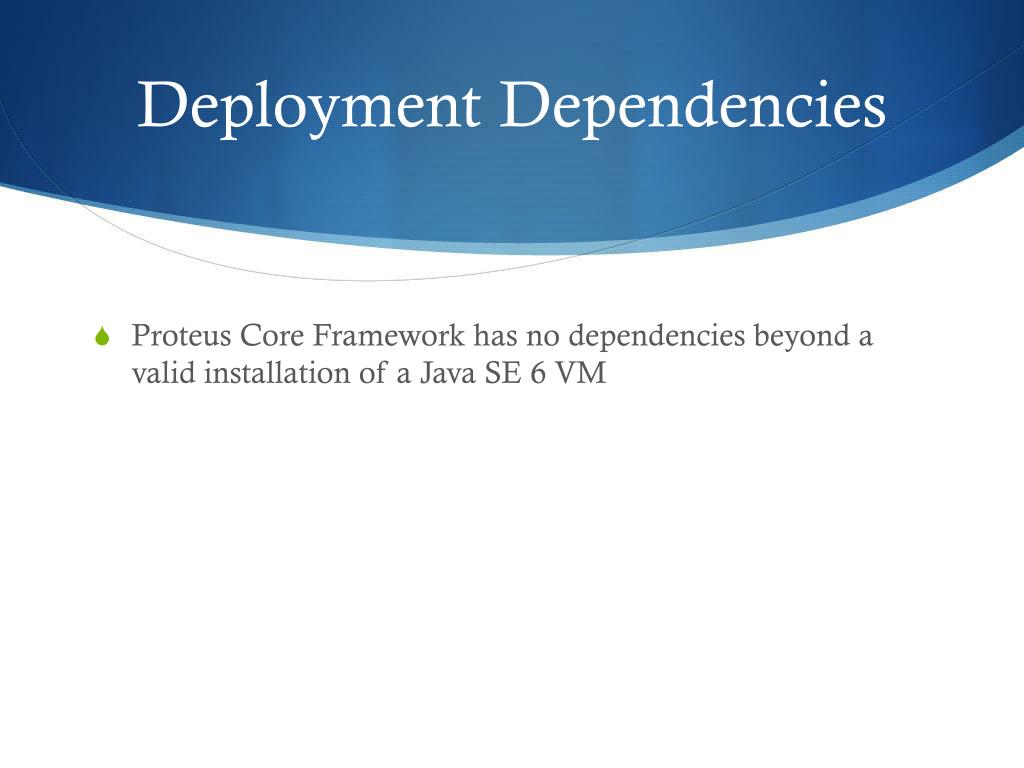

  10. Deployment Dependencies • Proteus Core Framework has no dependencies beyond a valid installation of a Java SE 6 VM
