  1. What Can Models Tell UsAbout On-Site Systems? David Radcliffe & Larry West University of Georgia Presented at the On-Site Wastewater Treatment Conference October 25-27, 2005 North Carolina State University

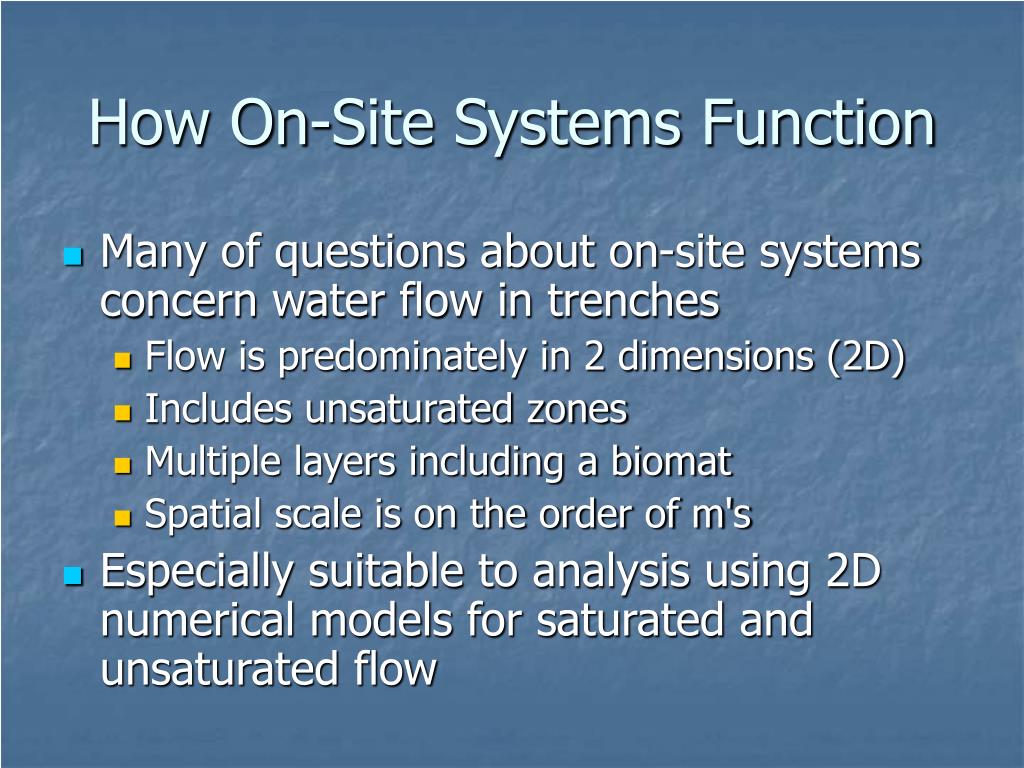

  2. How On-Site Systems Function • Many of questions about on-site systems concern water flow in trenches • Flow is predominately in 2 dimensions (2D) • Includes unsaturated zones • Multiple layers including a biomat • Spatial scale is on the order of m's • Especially suitable to analysis using 2D numerical models for saturated and unsaturated flow

  3. 2D Numerical Models • EPA has called for use of these types of models to understand on-site systems • May be especially suitable for comparing systems with different geometries • Models may not predict accurate absolute values unless they are calibrated • But they are likely to show accurate relative differences between systems

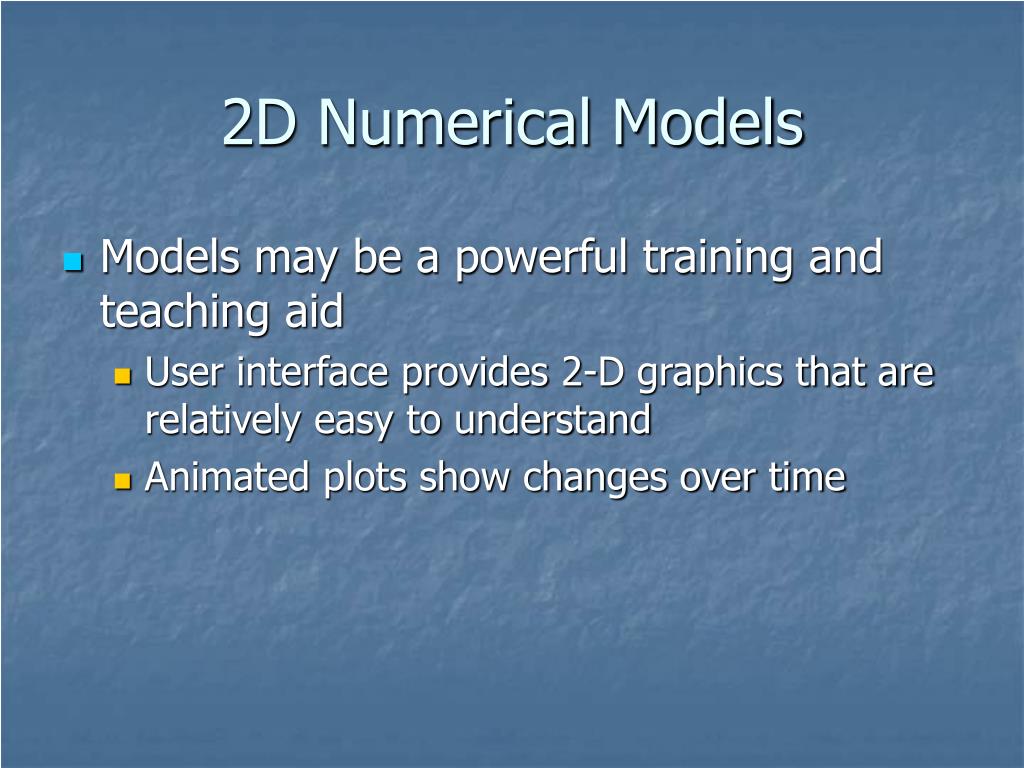

  4. 2D Numerical Models • Models may be a powerful training and teaching aid • User interface provides 2-D graphics that are relatively easy to understand • Animated plots show changes over time

  5. HYDRUS-2D • State-of-the-art 2D numerical model • Developed by scientists at US Salinity Lab (Simunek et al. (1998) • Recent improvements in code and user-interface • Fast and relatively easy to use • Still takes a lot of time to run problems right • Users need good knowledge of soil physics • Input of soil hydraulic properties • Can use texture as input and get soil properties from database • Or input Ksat and water retention properties of soil horizons

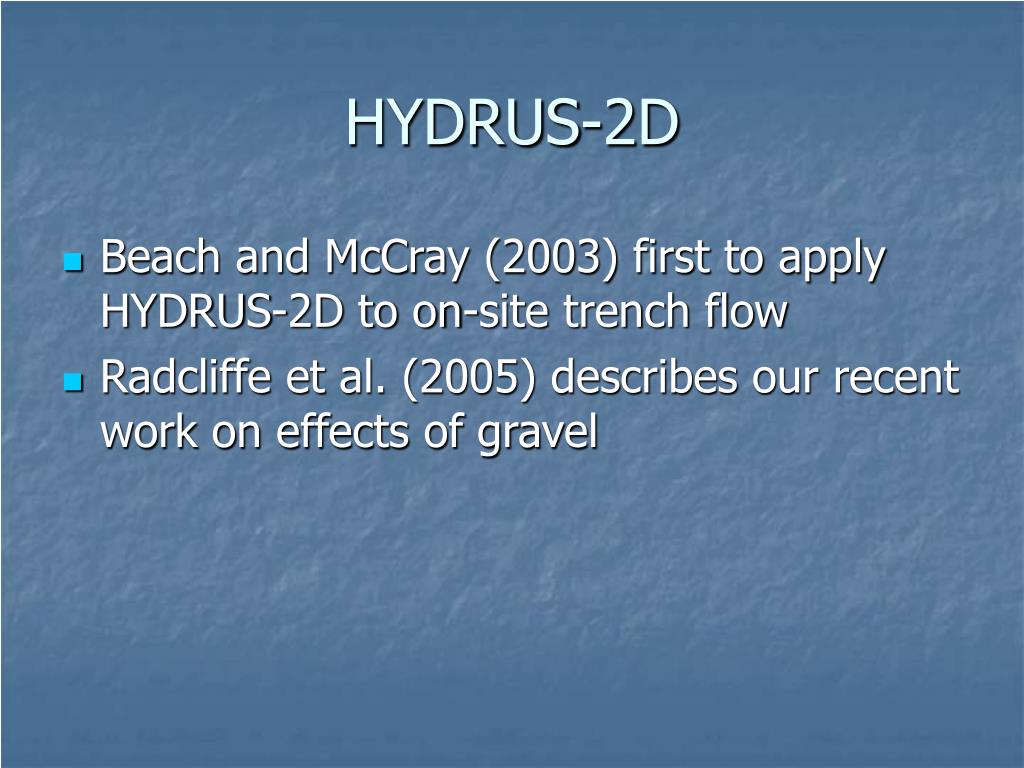

  6. HYDRUS-2D • Beach and McCray (2003) first to apply HYDRUS-2D to on-site trench flow • Radcliffe et al. (2005) describes our recent work on effects of gravel

  7. Models • Models should be able to tell us something we don’t know already • Quantify concepts that we already have in mind • Surprise us with new concepts • Identify research gaps • This is especially likely to happen in 2D • Intuition (at least mine) is not so good

  8. Objective • Demonstrate what we have been able to learn about how on-site systems function using HYDRUS-2D

  9. Topics • 1D Infiltration • Borehole infiltration • Biomat effects • Trench interactions • Gravel effects • Sidewall effects • Consumptive use of water • Potential future uses

  10. 1D Infiltration • Soil 100 cm deep and 100 cm wide • Two comparisons using Cecil soil • Uniform soil • Cecil Ap (Ksat = 230 cm/day) • Layered soil • Cecil Ap to depth of 40 cm • Cecil Bt2 below (Ksat = 2.47 cm/day) • Free water at soil surface • Show simulations for time = 0 to 0.07 days • Numerical models and grid system

  11. Soil surface 100 cm 100 cm

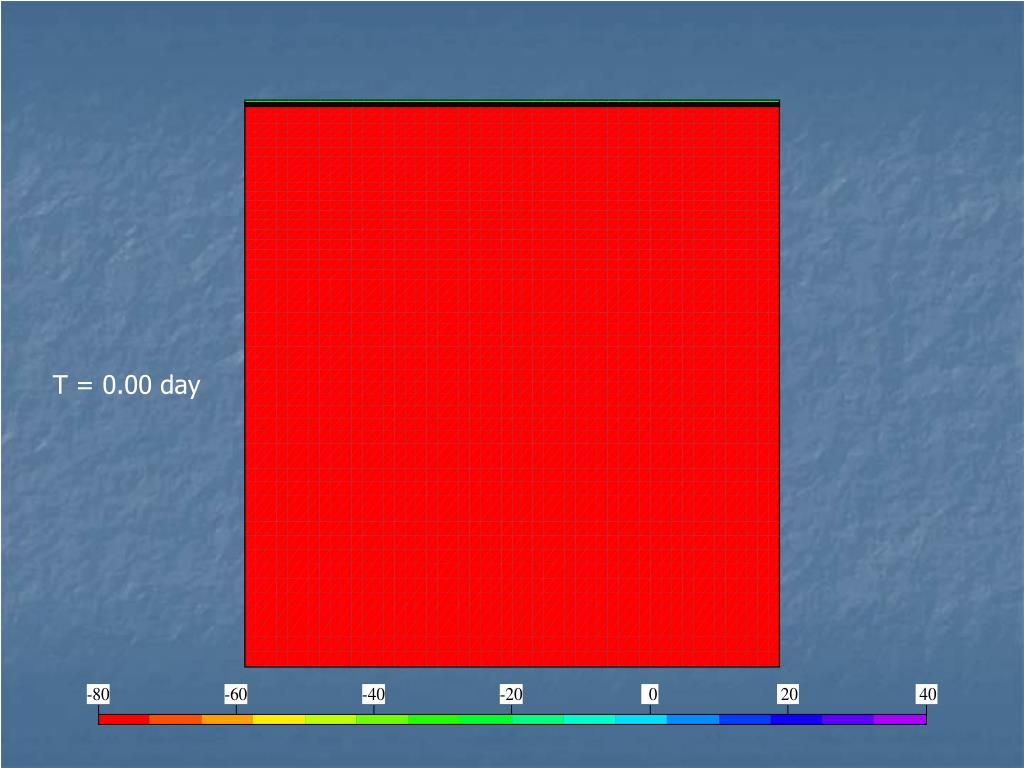

  12. T = 0.00 day

  13. T = 0.01 day

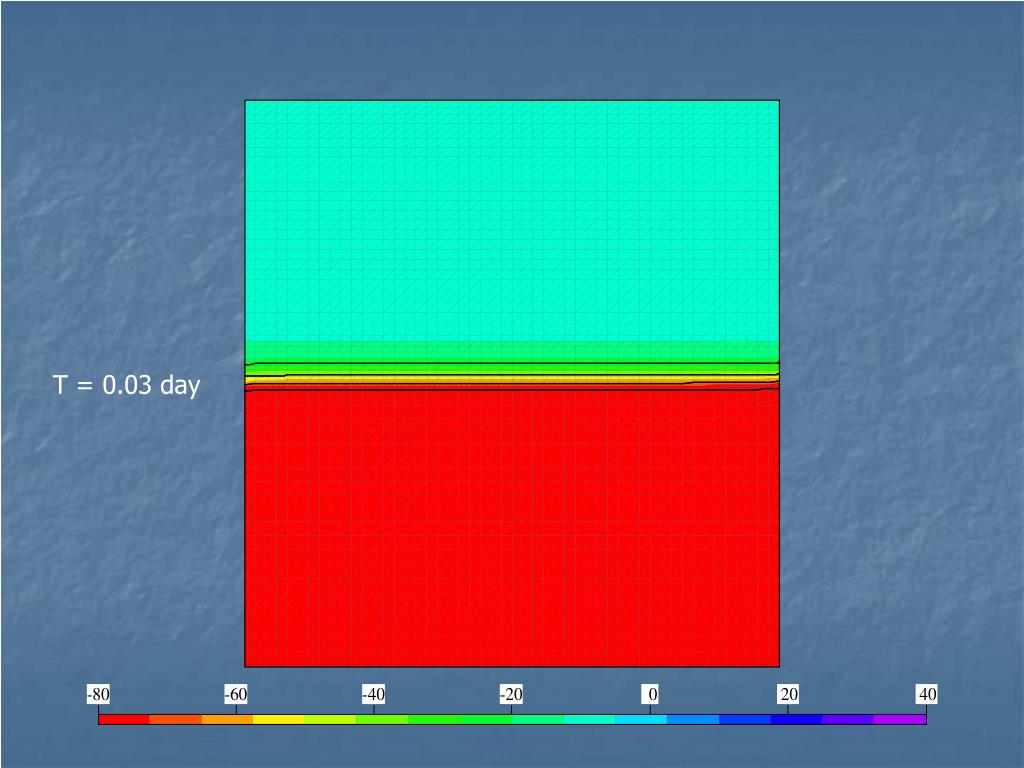

  14. T = 0.02 day

  15. T = 0.03 day

  16. T = 0.04 day

  17. T = 0.05 day

  18. T = 0.06 day

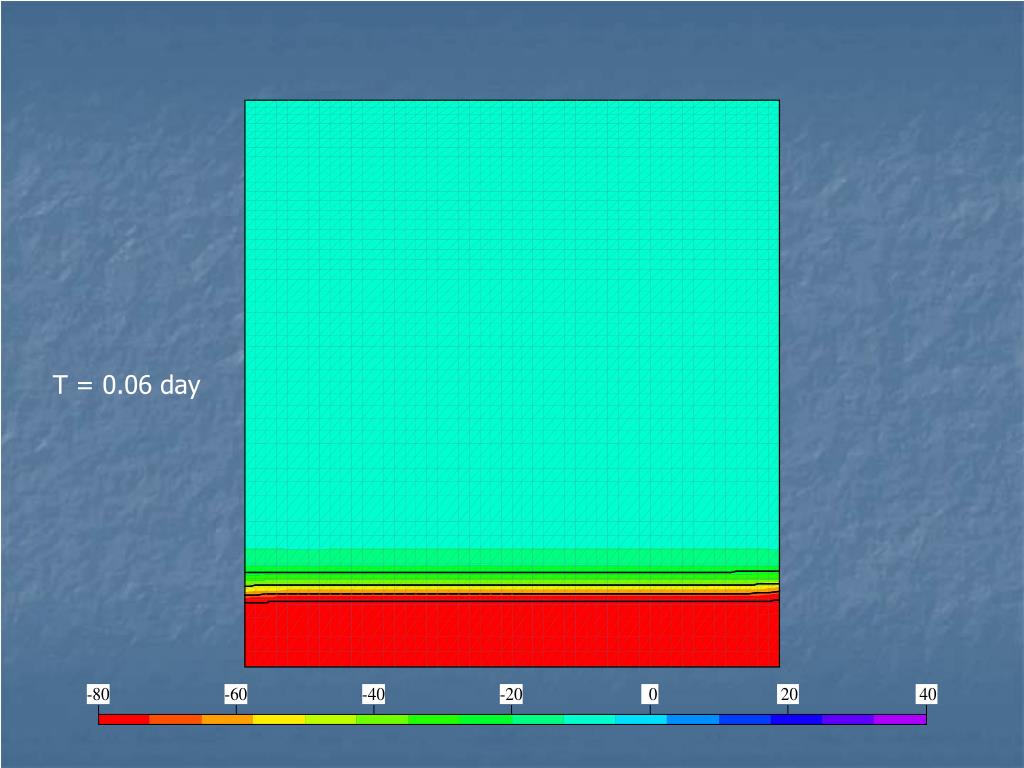

  19. T = 0.07 day

  20. 40 cm

  21. T = 0.00 day

  22. T = 0.01 day

  23. T = 0.02 day

  24. T = 0.03 day

  25. T = 0.04 day

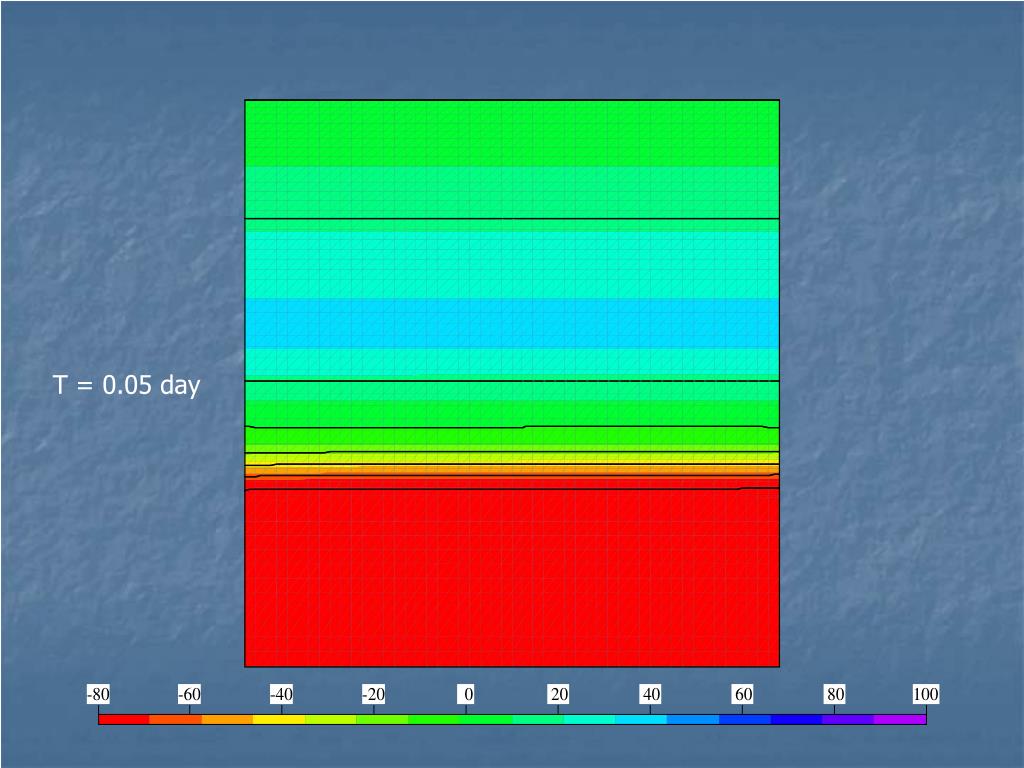

  26. T = 0.05 day

  27. T = 0.06 day

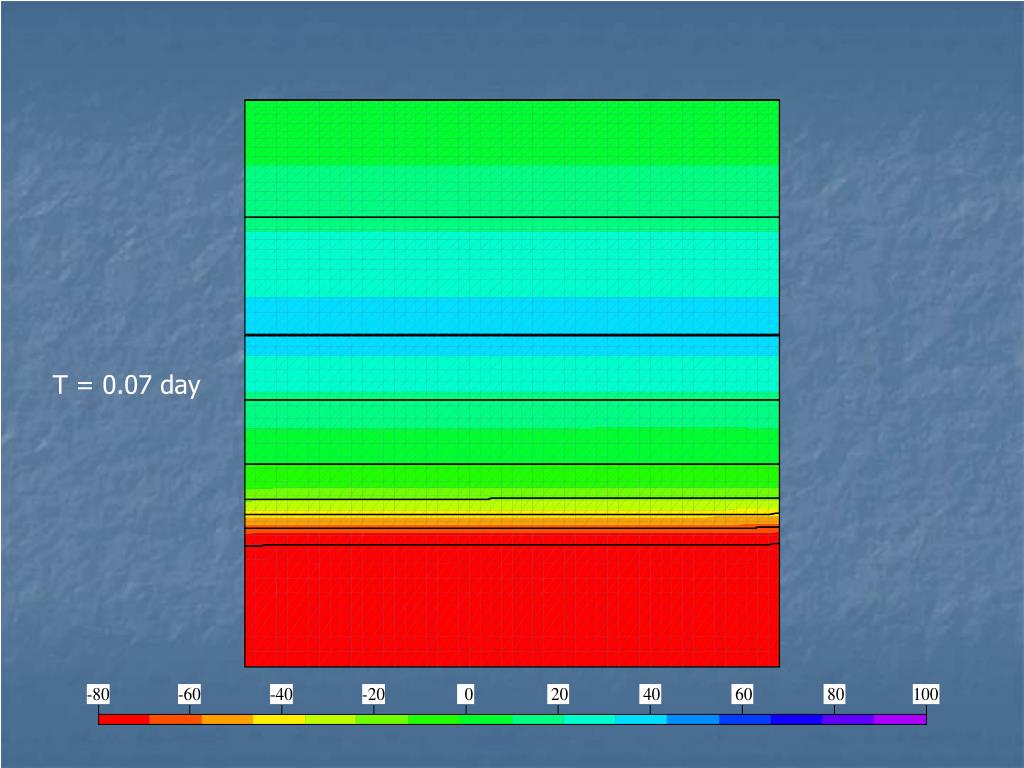

  28. T = 0.07 day

  29. Topics • 1D Infiltration • Borehole infiltration • Biomat effects • Trench interactions • Gravel effects • Sidewall effects • Consumptive use of water • Potential future uses

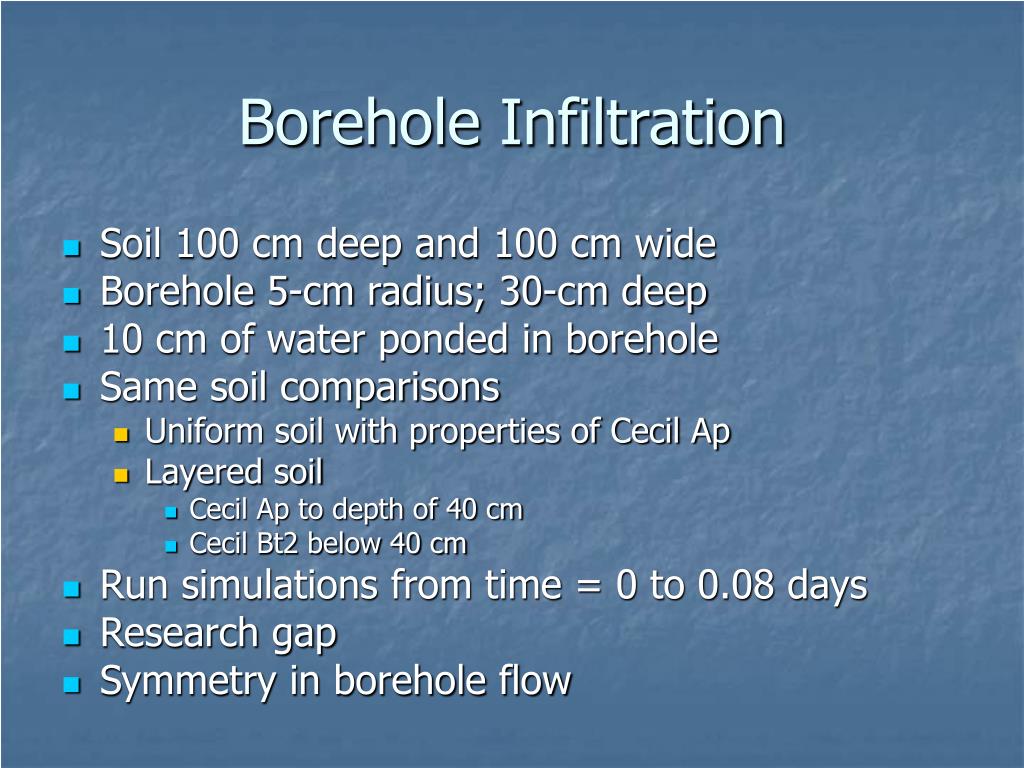

  30. Borehole Infiltration • Soil 100 cm deep and 100 cm wide • Borehole 5-cm radius; 30-cm deep • 10 cm of water ponded in borehole • Same soil comparisons • Uniform soil with properties of Cecil Ap • Layered soil • Cecil Ap to depth of 40 cm • Cecil Bt2 below 40 cm • Run simulations from time = 0 to 0.08 days • Research gap • Symmetry in borehole flow

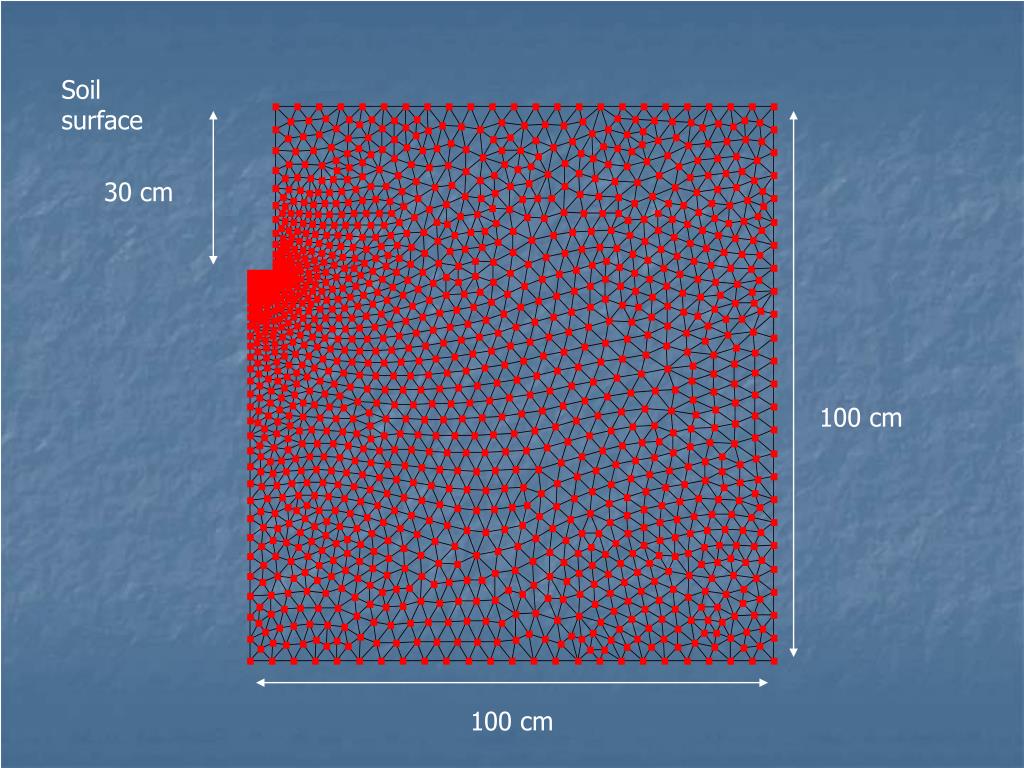

  31. Soil surface 30 cm 100 cm 100 cm

  32. T = 0.00 days

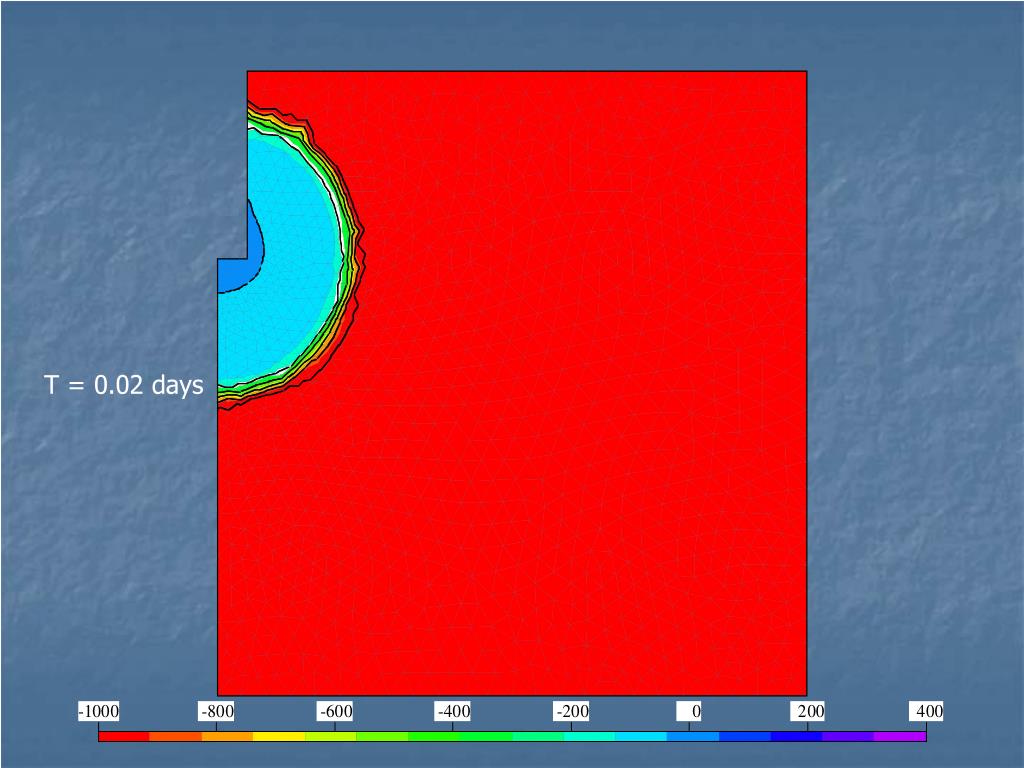

  33. T = 0.02 days

  34. T = 0.04 days

  35. T = 0.06 days

  36. T = 0.08 days

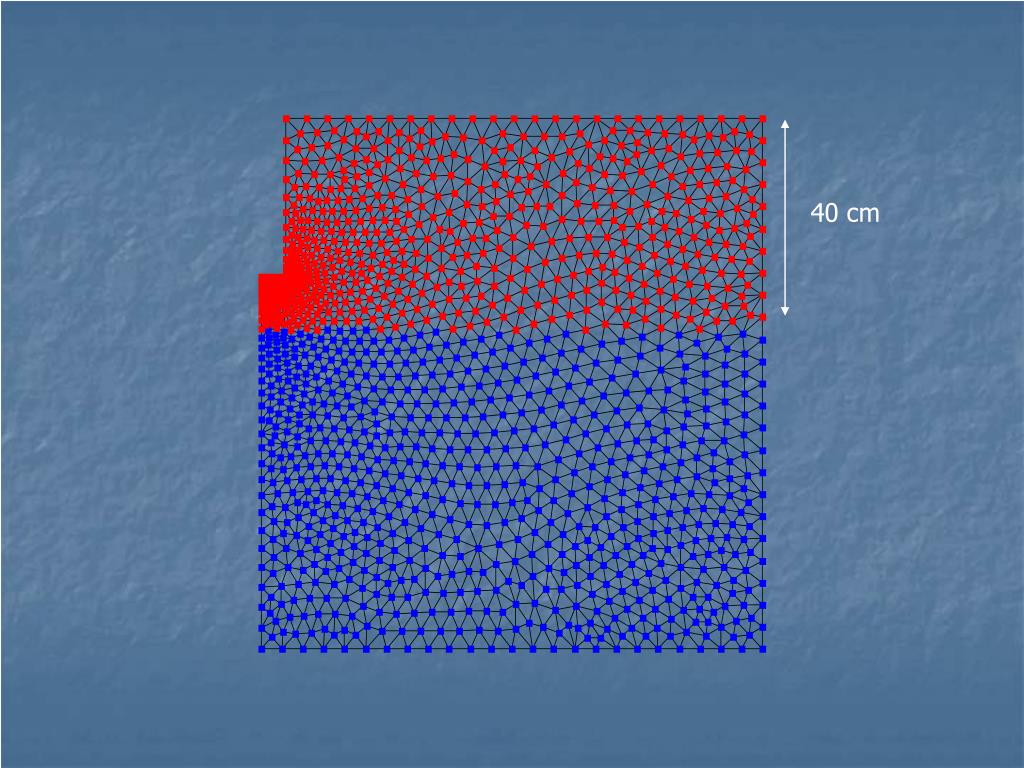

  37. 40 cm

  38. T = 0.00 days

  39. T = 0.02 days

  40. T = 0.04 days

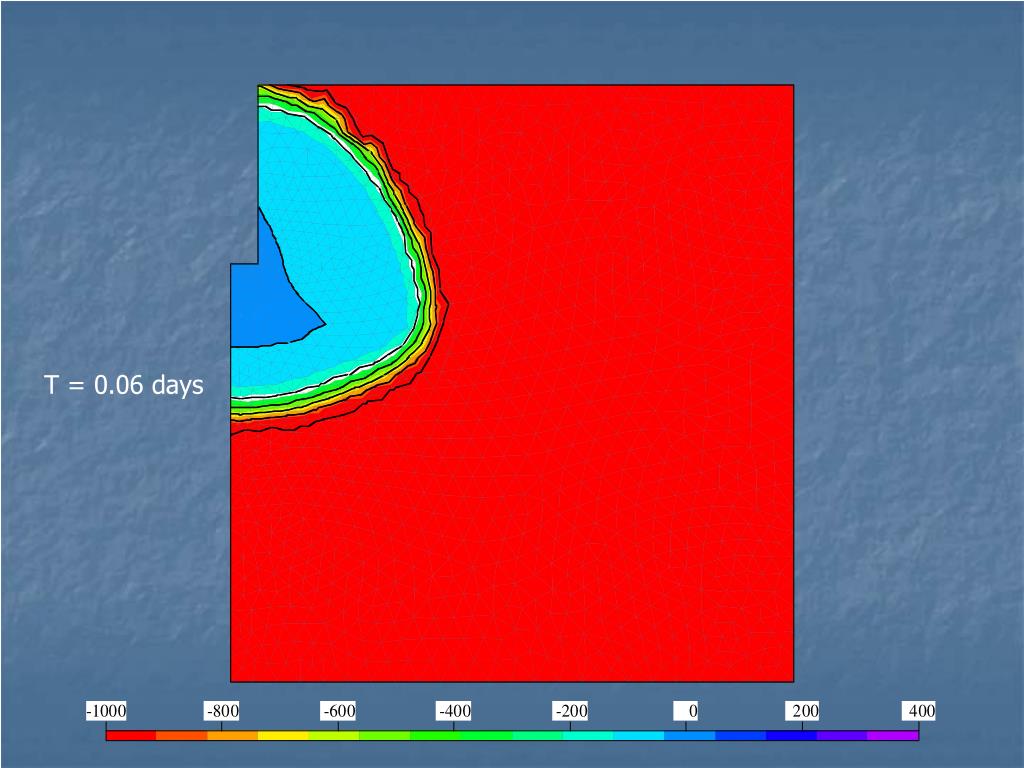

  41. T = 0.06 days

  42. T = 0.08 days

  43. Research Gap • How best to measure Ksat using borehole measurements in layered soils? • May be difficult to obtain steady flow in a layered soil using long times to reach “equilibrium” • As wetting front expands it encounters new horizons • No abrupt drop when this happens • May be best to use shorter times
