  1. Sangfor WAN Optimization SANGFOR TECHNOLOGIES COMPANY LIMITED

  2. Wide Area Network Construction • Concentrated Data and Distributed Employees VOIP Finance ERP Lotus VOD Mail Database Video conference

  3. Further Challenges Redundant Data Latency & Packet loss Limited Bandwidth Protocol Chattiness 3

  4. Issues to Business & Solution by WANO Latency & Packet loss Transmission Optimization Redundant data Data Reduction Sangfor WAN Optimization Protocol chattiness Application Proxy Bandwidth Management WANO makes WAN like LAN！

  5. Sangfor WANO Solution Infrastructure • Transmission optimization: Upgrade transmission environment • Data Reduction: Upgrade bandwidth throughput • Application proxy: Upgrade application efficiency • Bandwidth management: Guarantee critical business application Reduce Redundant Data A A C B E A C D A B B E High latency, high packet loss C A A B D D B D C A D C C E C C D E D E E D C Bandwidth management

  6. Transmission Optimization Latency Technology Normal Transmission HTP Flash-Link Web-push TCP Proxy

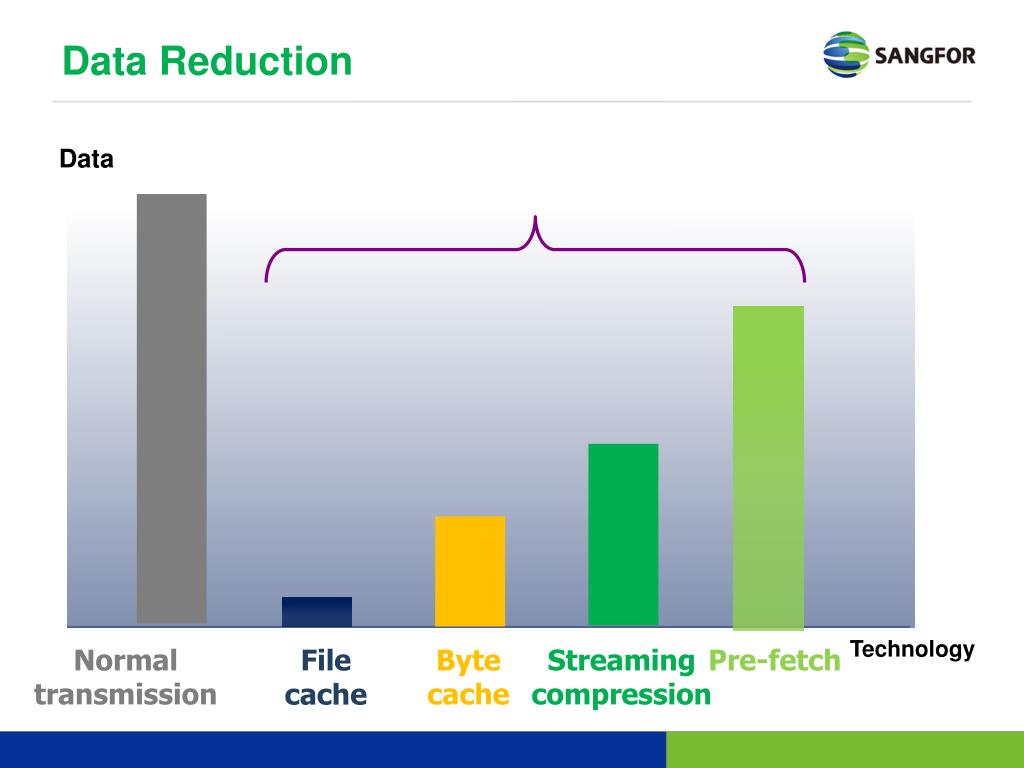

  7. Data Reduction Data Technology Normal transmission Byte cache Streaming compression Pre-fetch File cache

  8. Application Proxy WAN Data center Branch Local WAN • MAPI, HTTP/HTTPS, CIFS, Oracle EBS, Citrix, RDP, SMTP proxy

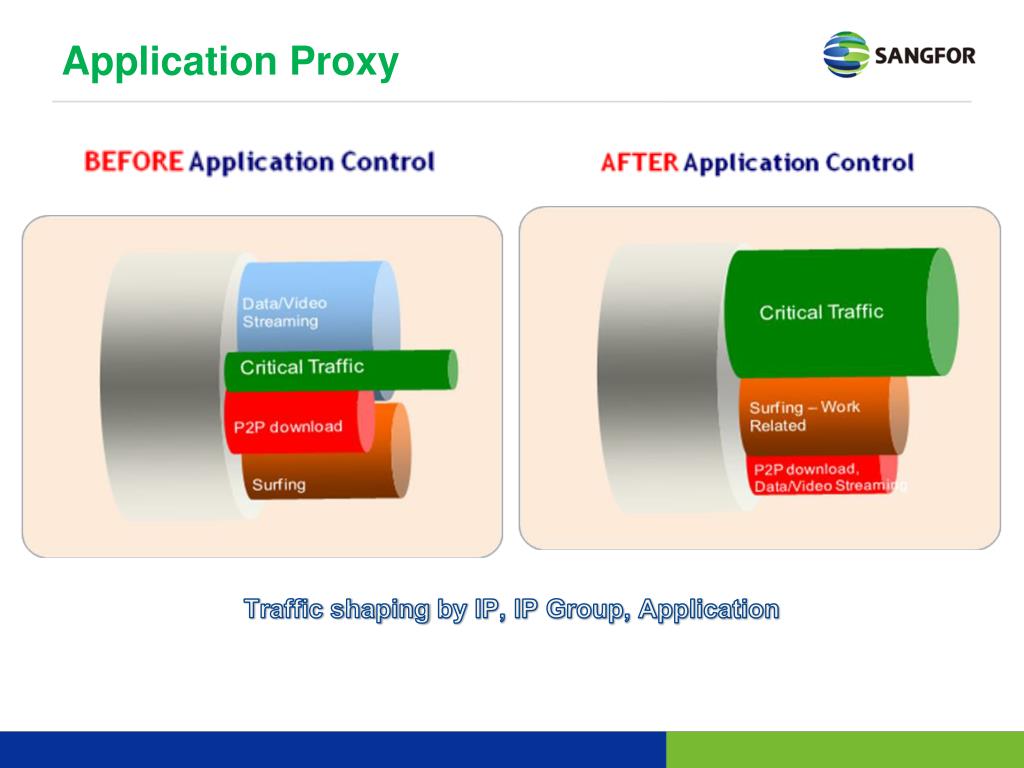

  9. Application Proxy Traffic shaping by IP, IP Group, Application

  10. WANO Benefits & Best Practice

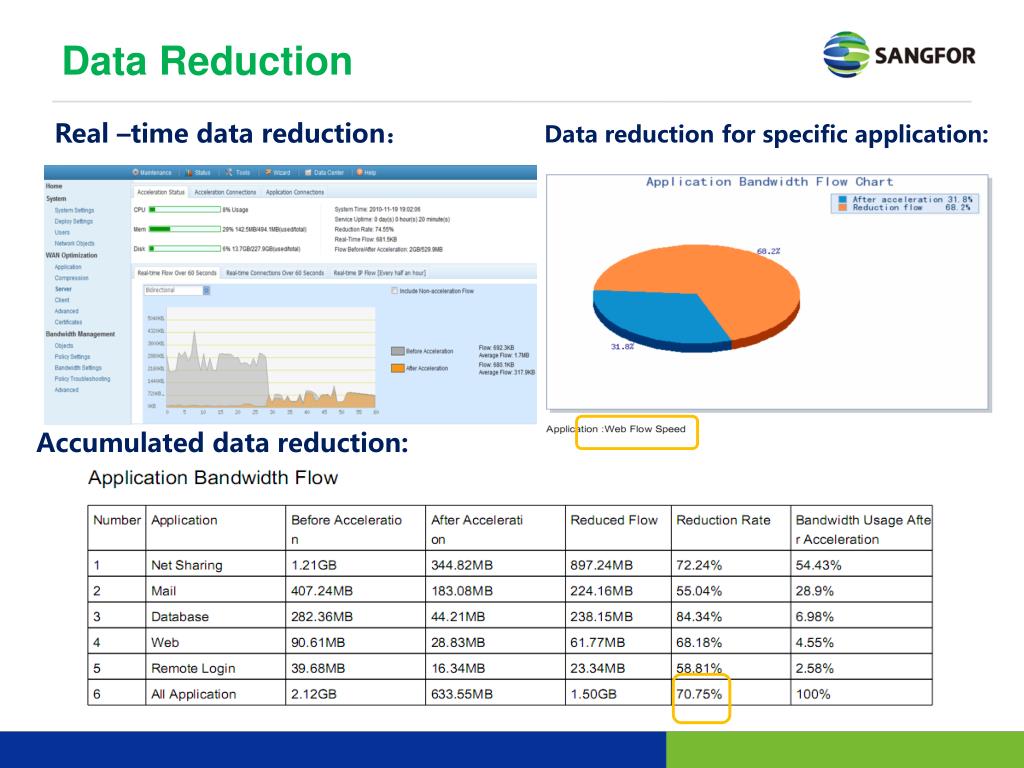

  11. Data Reduction Datareduction forspecific application: Real –time data reduction： Accumulated data reduction:

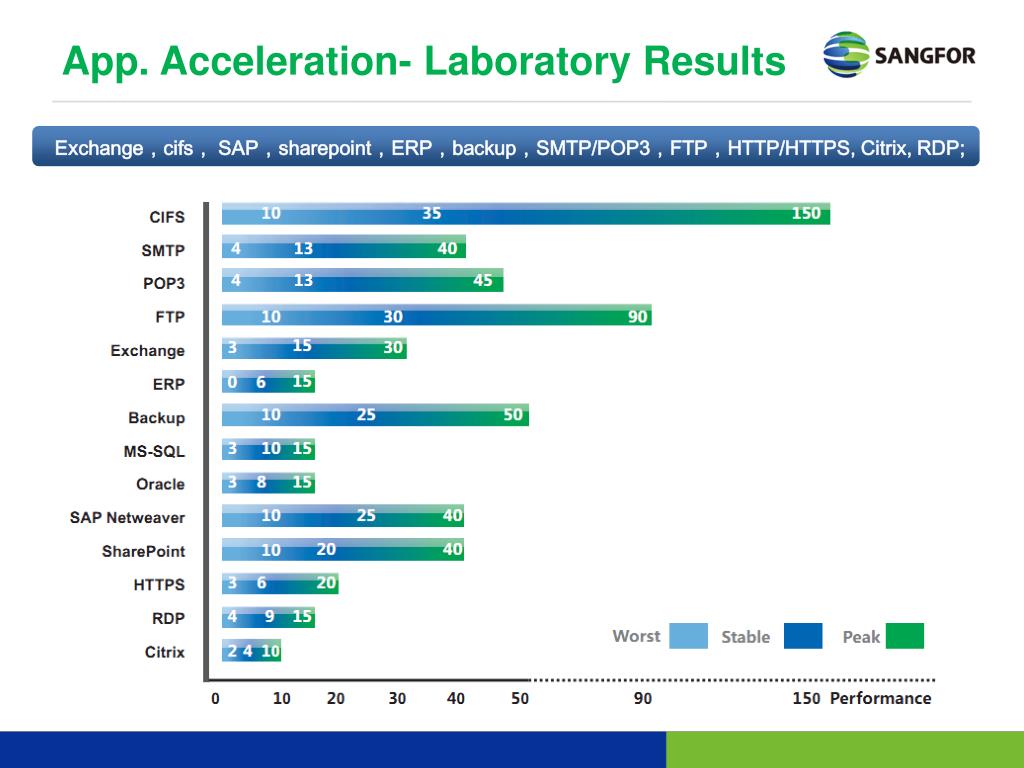

  12. App. Acceleration- Laboratory Results Exchange，cifs， SAP，sharepoint，ERP，backup，SMTP/POP3，FTP，HTTP/HTTPS, Citrix, RDP;

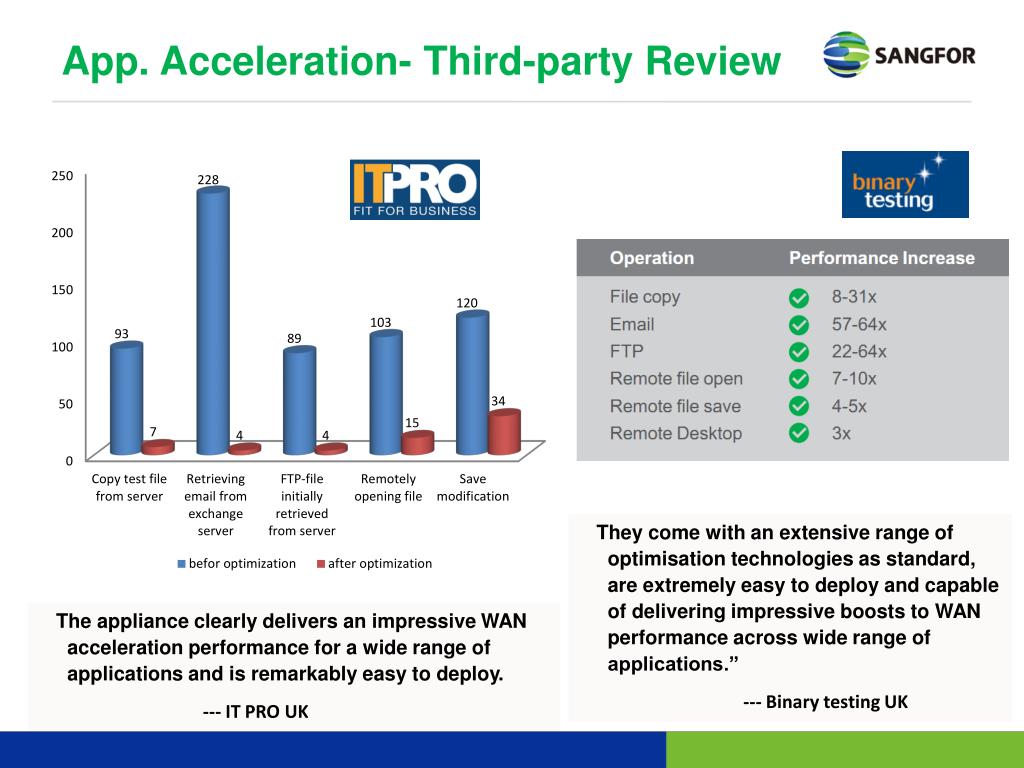

  13. App. Acceleration- Third-party Review • They come with an extensive range of optimisation technologies as standard, are extremely easy to deploy and capable of delivering impressive boosts to WAN performance across wide range of applications.” • --- Binary testing UK • The appliance clearly delivers an impressive WAN acceleration performance for a wide range of applications and is remarkably easy to deploy. • --- IT PRO UK

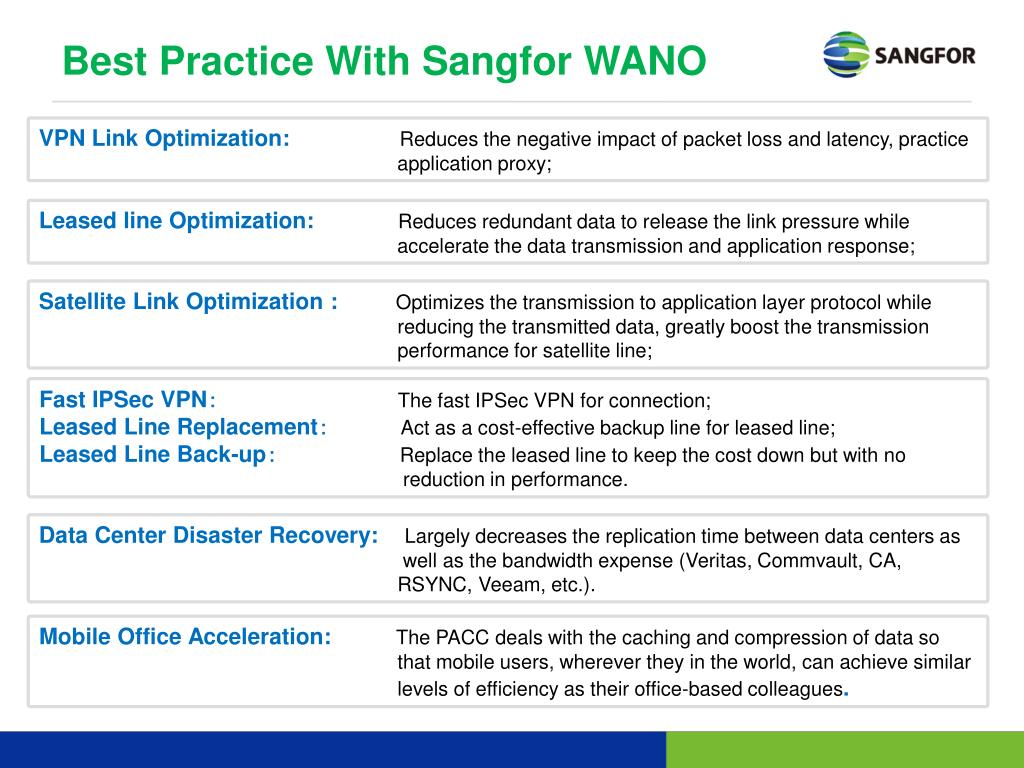

  14. Best Practice With Sangfor WANO • VPN Link Optimization: Reduces the negative impact of packet loss and latency, practice • application proxy; • Leased line Optimization: Reduces redundant data to release the link pressure while • accelerate the data transmission and application response; • Satellite Link Optimization : Optimizes the transmission to application layer protocol while • reducing the transmitted data, greatly boost the transmission performance for satellite line; • Fast IPSec VPN：The fast IPSec VPN for connection; • Leased Line Replacement： Act as a cost-effective backup line for leased line; • Leased Line Back-up：Replace the leased line to keep the cost down but with no • reduction in performance. • Data Center Disaster Recovery: Largely decreases the replication time between data centers as • well as the bandwidth expense (Veritas, Commvault, CA, RSYNC, Veeam, etc.). • Mobile Office Acceleration: The PACC deals with the caching and compression of data so • that mobile users, wherever they in the world, can achieve similar levels of efficiency as their office-based colleagues.

  15. Typical Topology

  16. Economical Benefits • < 12 • Time/month • Sangfor WANO • construction Cost • Bandwidth cost /USD • Monthly bandwidth cost Less than ONE YEAR payback time！

  17. Operational Benefits • Smoothly accelerate the business systems: Promote business efficiency without lengthy transformation of existing applications or networks. • Increase productivity: Applications running much faster and users not having to wait for data to be delivered to or received from other locations. • Cost Avoidance: Organizations don’t have to pay for expensive, high capacity lines benefiting from WANO’s data reduction and acceleration capabilities. • Shorten the cycle of business expansion: Unlike the long-term cycle of private line networking, the deployment cycle of WAN optimization solution is fairly short). • Greater Flexibility: Branches can be added and moved, either temporarily or permanently, without any need to change the way the WAN works or is structured . • Mobile Efficiency: Mobile users get faster transmissions and lower usage costs due to reduced data • Promote IT integration, reduce IT operating costs.

  18. WANO Advantages & Case study

  19. Solution Advantages • Technology: • Multiple optimization technologies • Poor network environment accelerated the most • 30%-95% data reduction capability • More application protocols to support • Operation: • Built-in IPSec VPN & firewall for WAN networking • Built-in BM for WAN visibility and traffic shaping • Cost-effective mobile acceleration solution • High ROI performance

  20. High- Reputed WANO Solution

  21. Ministry of Defence Malaysia http://www.mod.gov.my • Customer: Ministry of Defence Malaysia • Established on 31 August 1957; • Mission: Strengthen the management of strategic importance to national defence, national sovereignty and integrity secure. • Challenges: • Satellite link with over 600ms latency to connect the remote sites. • To enable efficient communication, the MOD has built a video conference system. However, the latency and limited bandwidth problems have almost caused the video conference unusable; • The FTP was also very slow due to limited bandwidth and the poor network environment;

  22. Ministry of Defence Malaysia http://www.mod.gov.my • Optimization Policies • Enable byte cache to reduce redundant data for FTP application, releasing the bandwidth pressure; • Enable bandwidth management to guarantee bandwidth for video conference; • Transmission optimization protocol was enabled to optimize TCP protocol; • Benefits • The effective data reduction technologies reduced large amount of redundant data, significantly accelerate the FTP transmission while leaving more bandwidth for video conference. • 70% bandwidth was guaranteed for video conference. With sufficient bandwidth, the end users’ experience was greatly improved. • Transmission optimization has reduced negative impact of latency and optimized the transmission environment.

  23. Customers’ Opinions • “The set-up we’ve got now is absolutely perfect and has made a terrific improvement to users’ experience. We’re delighted with the service from Sangfor and just wish we’d been with them from the start”. • Mark Pashley, IT Systems Administrator • (UK)

  24. Thank You 4th Floor, Building 2, Financial Base, No. 8 Kefa Rd, Technology Park, Nanshan District Shenzhen, Guangdong Province, P. R. China P. C.: 518052 Tel: +86-755-8633 6171 Fax: +86-755-8662 7753 Email: marketing@sangfor.com
