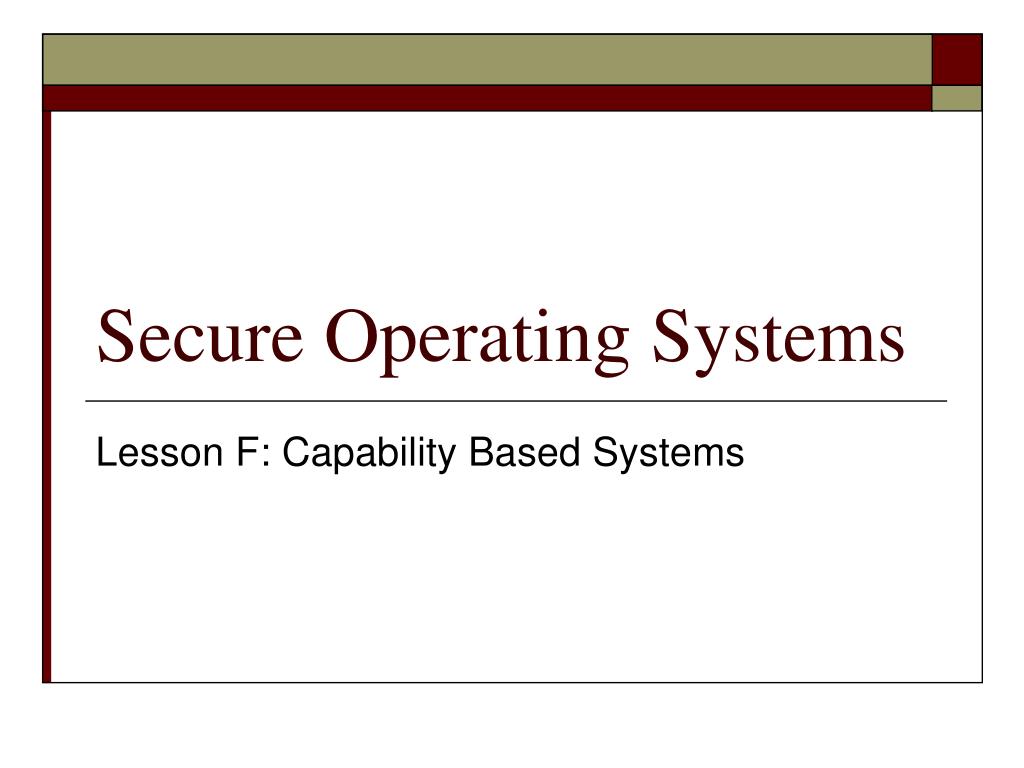

  1. Secure Operating Systems Lesson F: Capability Based Systems

  2. Where are we? • Half way through Windows, but I feel the need for a break; I’m depressed about security so I need to look at something hopeful: Capability based systems

  3. Capabilities • Old idea, goes back to the mid-sixties (Dennis and Van Horn, 1966) • Capabilities provide: • Single mechanism to address primary and secondary memory • Single mechanism to address both hardware and software resources • Solve or simplify many problems, but also create some 

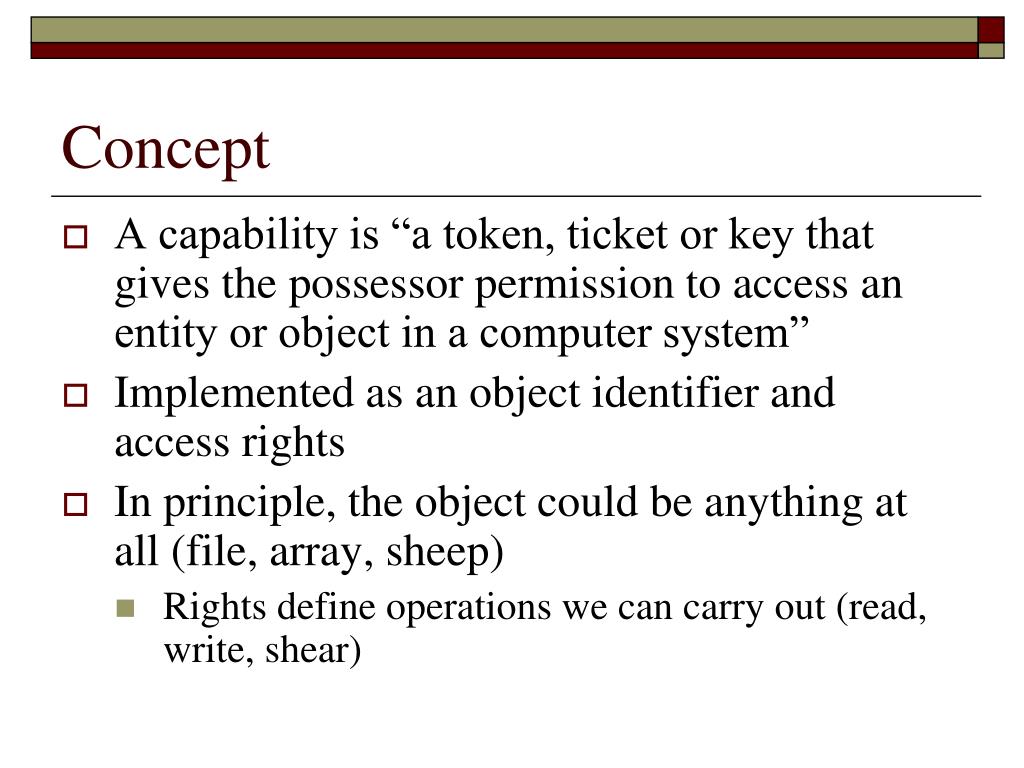

  4. Concept • A capability is “a token, ticket or key that gives the possessor permission to access an entity or object in a computer system” • Implemented as an object identifier and access rights • In principle, the object could be anything at all (file, array, sheep) • Rights define operations we can carry out (read, write, shear)

  5. Capability List • Each program would have a capability list – this defines all the objects available • Thus, a capability provides addressing and access rights to the object • Because of this, the system must prevent capability object manipulation (i.e. forged capabilities) • Does this sound like HANDLES yet?  • When a new file is created, a new capability is added to the capability list

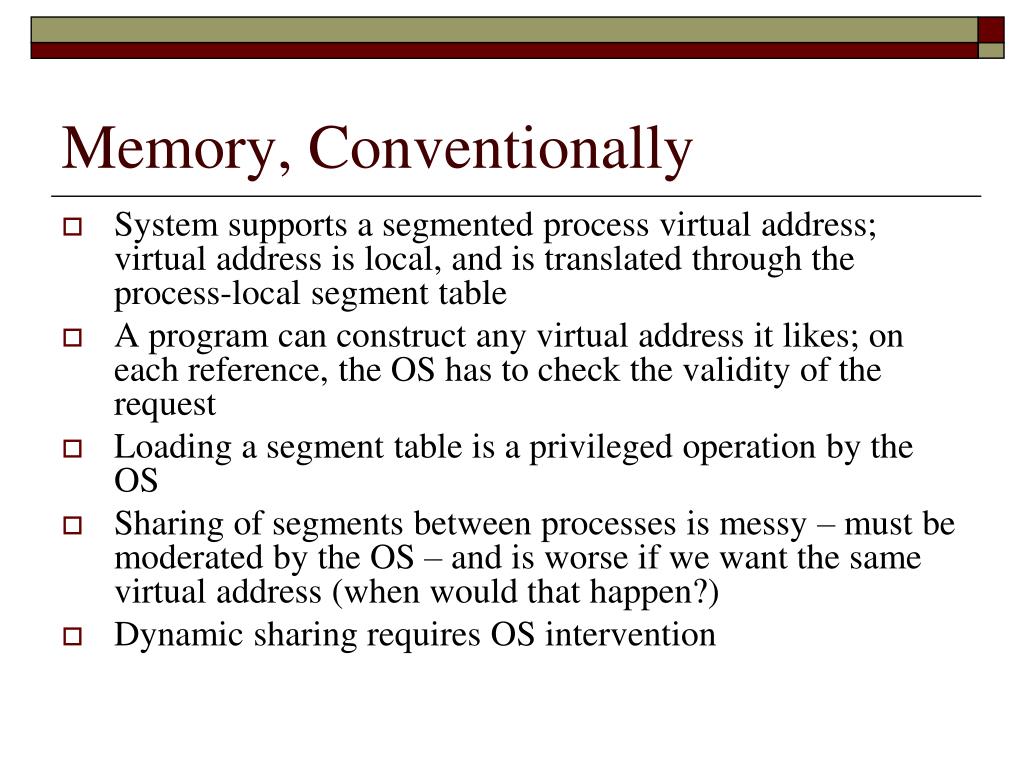

  6. Memory, Conventionally • System supports a segmented process virtual address; virtual address is local, and is translated through the process-local segment table • A program can construct any virtual address it likes; on each reference, the OS has to check the validity of the request • Loading a segment table is a privileged operation by the OS • Sharing of segments between processes is messy – must be moderated by the OS – and is worse if we want the same virtual address (when would that happen?) • Dynamic sharing requires OS intervention

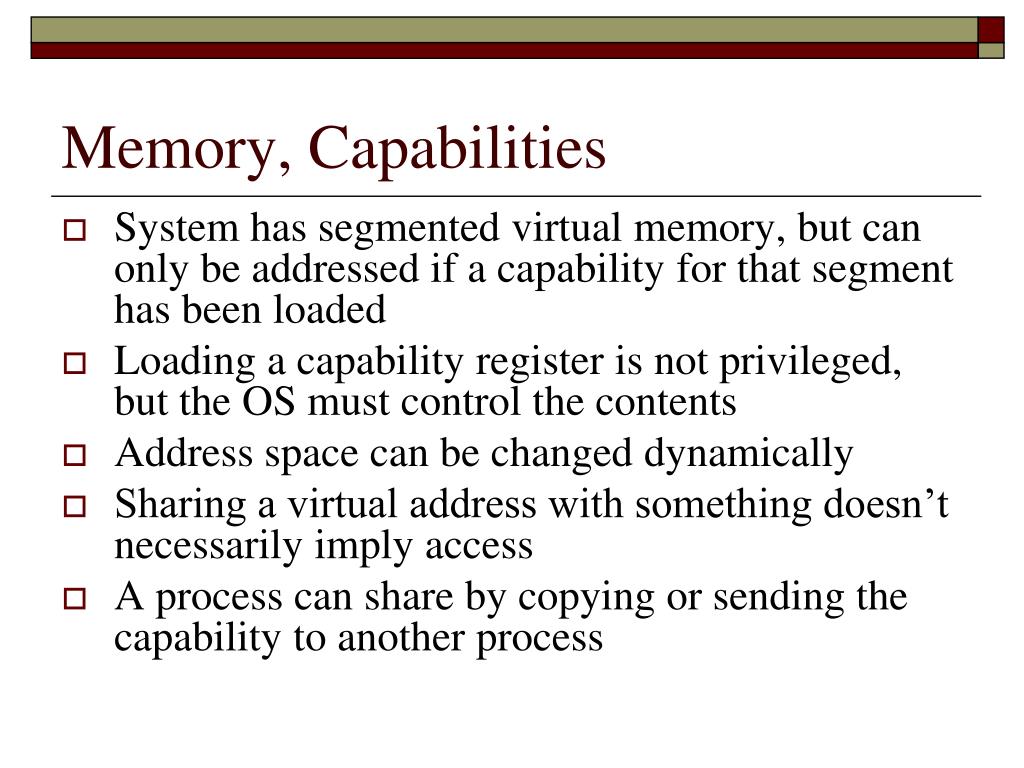

  7. Memory, Capabilities • System has segmented virtual memory, but can only be addressed if a capability for that segment has been loaded • Loading a capability register is not privileged, but the OS must control the contents • Address space can be changed dynamically • Sharing a virtual address with something doesn’t necessarily imply access • A process can share by copying or sending the capability to another process

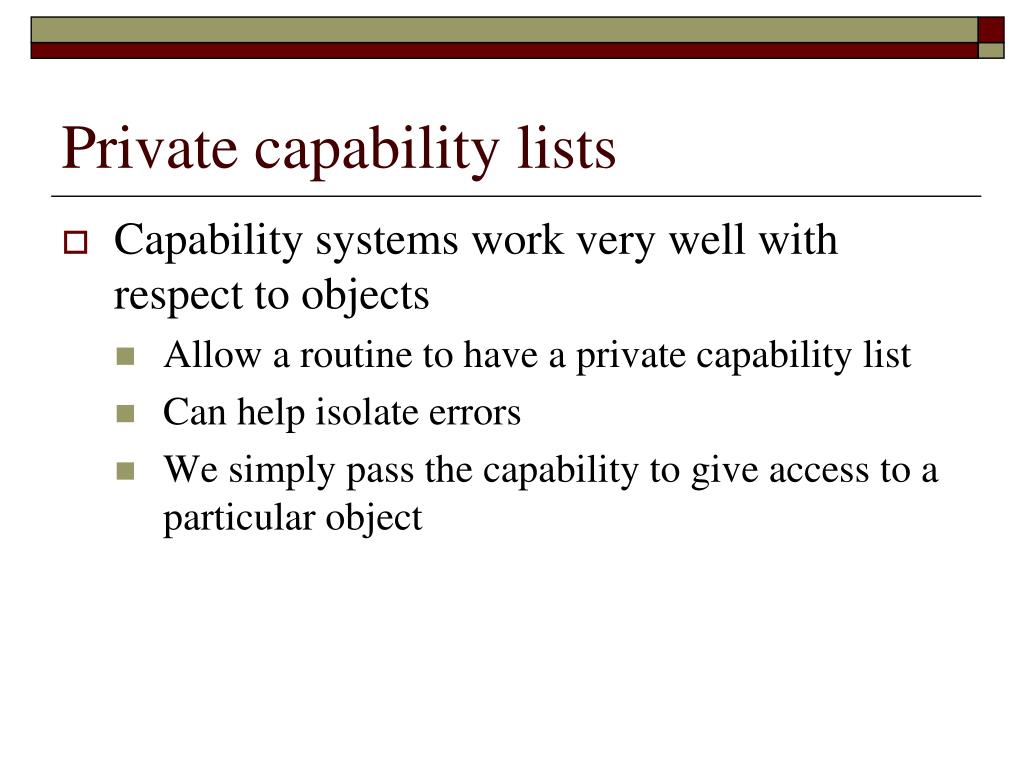

  8. Private capability lists • Capability systems work very well with respect to objects • Allow a routine to have a private capability list • Can help isolate errors • We simply pass the capability to give access to a particular object

  9. Temporal advantages • A huge advantage of capabilities is that a capability exists system wide • Thus, in a traditional system, an address is only meaningful within a particular process • In a capability system, addresses (capabilities) are independent of the process using it • Use the unique identifier to determine if something should be freed

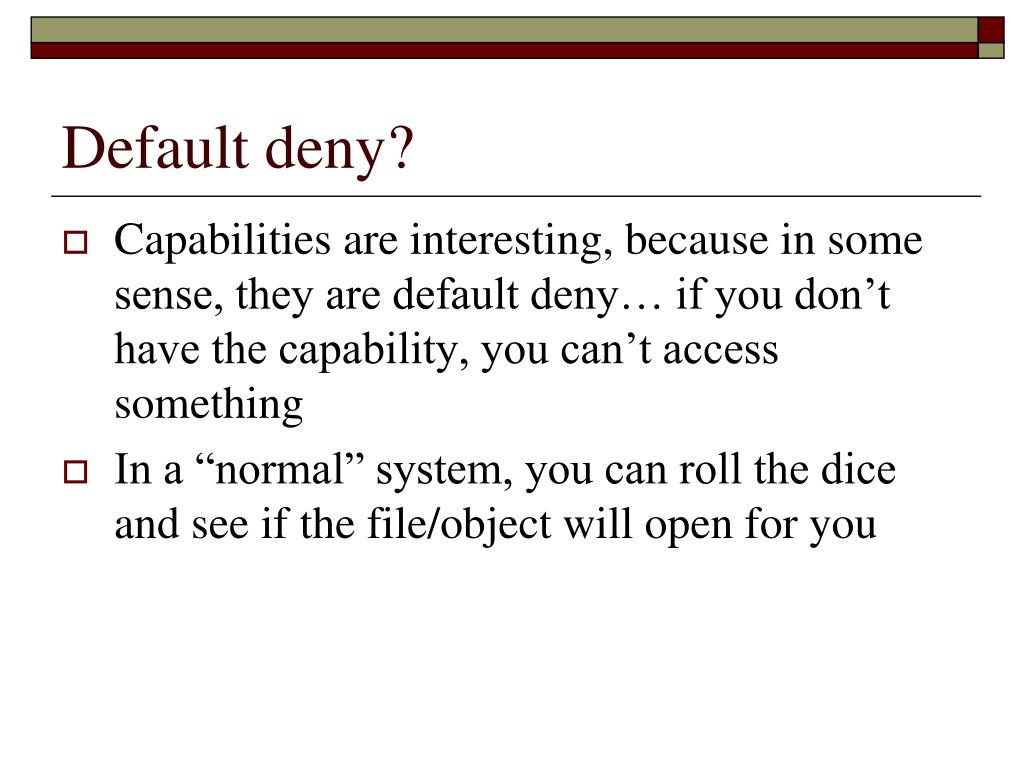

  10. Default deny? • Capabilities are interesting, because in some sense, they are default deny… if you don’t have the capability, you can’t access something • In a “normal” system, you can roll the dice and see if the file/object will open for you

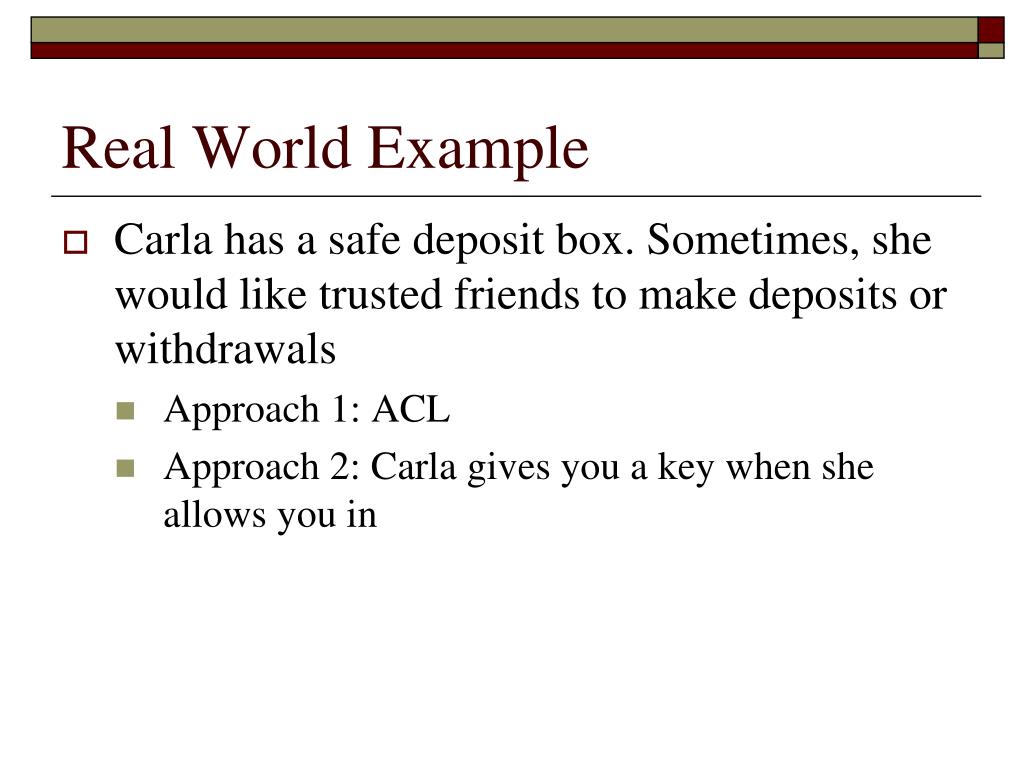

  11. Real World Example • Carla has a safe deposit box. Sometimes, she would like trusted friends to make deposits or withdrawals • Approach 1: ACL • Approach 2: Carla gives you a key when she allows you in

  12. The trade off ACL Capability Once the keys are given out, the bank is out of the loop The lock/key system must be very secure; hard to copy a key The owner can give out a key to anyone, anytime One a key is out of Carla’s sight she doesn’t know what happens to it Carla can ask for her key back when she is done • Bank must maintain a list for each box • Bank must ensure the validity of the list at all times • Bank must prove identity • To allow a new person, Carla needs to visit the bank • A friend cannot extend the privilege • Removal requires a visit to the bank

  13. Issues: Storage • A capability based system doesn’t really have a privileged mode of operation; it’s just about what capabilities you have • The hardware must be able to detect every attempt to forge or modify a capability • Remember, must store identifier or name and the privileges the capability grants

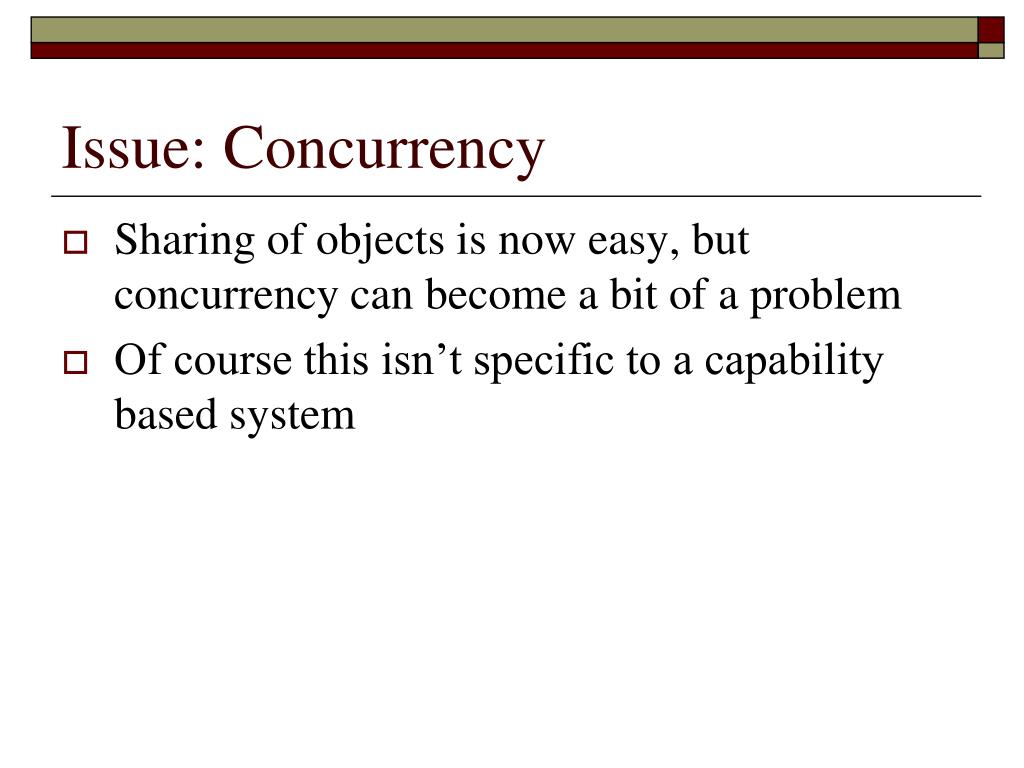

  14. Issue: Concurrency • Sharing of objects is now easy, but concurrency can become a bit of a problem • Of course this isn’t specific to a capability based system

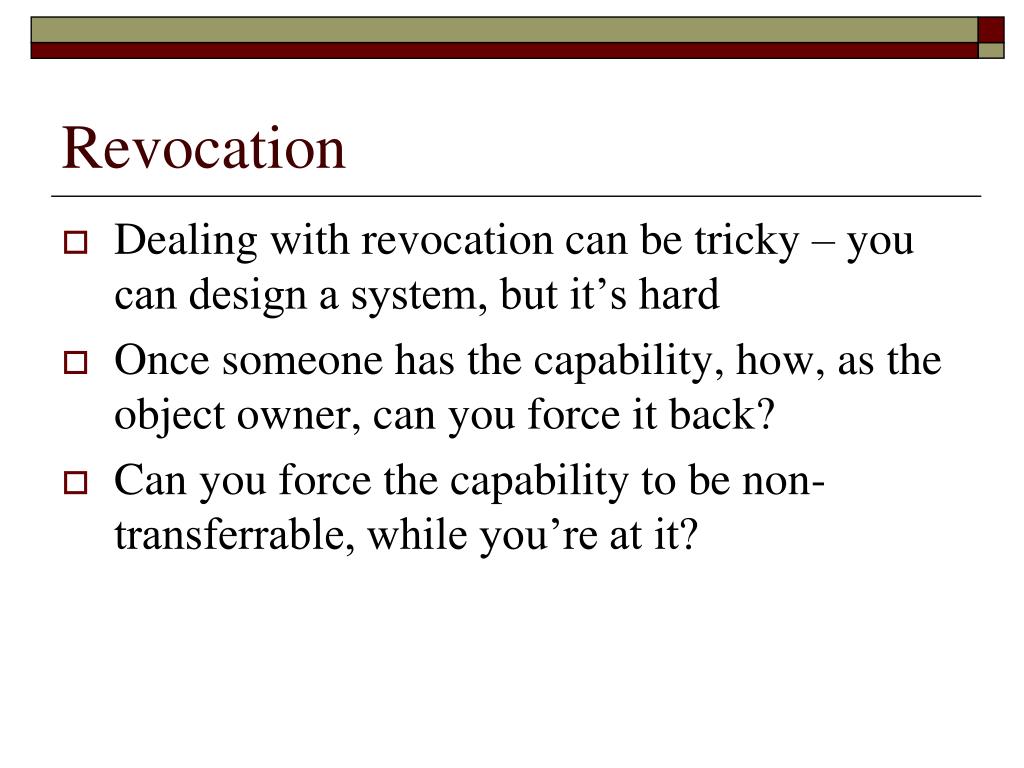

  15. Revocation • Dealing with revocation can be tricky – you can design a system, but it’s hard • Once someone has the capability, how, as the object owner, can you force it back? • Can you force the capability to be non-transferrable, while you’re at it?

  16. To Do • Read Capability-Based Computer Systems, Ch 1 and Ch 10 • This will be on the final 

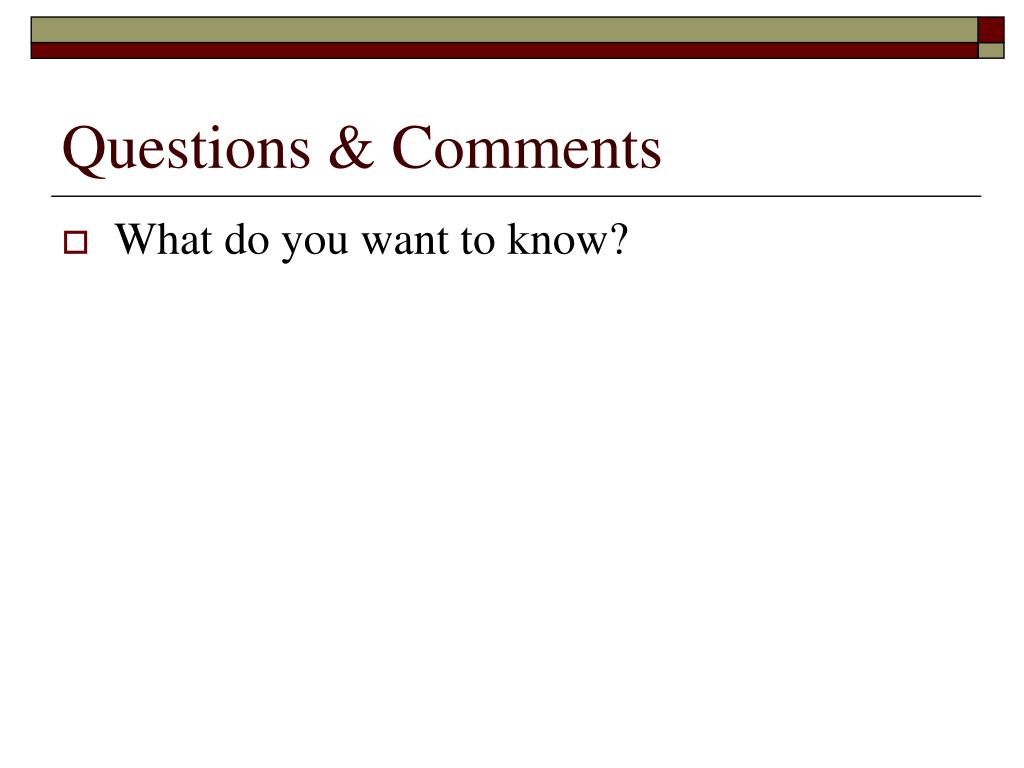

  17. Questions & Comments • What do you want to know?
