  1. Probing the symmetry energywith heavy ions Zbigniew Chajęcki National Superconducting Cyclotron Laboratory Michigan State University B. Lynch, B. Tsang, M. Kilburn, D. Coupland, M. Youngs

  2. Outline • Symmetry energy • Probing Symmetry Energy with heavy ions • n/p , t/3He spectrum • isospin diffusion • correlations • neutron and proton emission time and symmetry energy (particle emission chronology) • pion production • Summary Z. Ch. - WWND 2011, Feb 6-13, 2011

  3. Nuclear Equation of State Examples of possible research areas in NSCL/FRIB Astrophysics Nuclear structure Nuclear reactions • mass and size of neutron stars • nature of neutron stars and dense nuclear matter • origin of elements heavier than iron in the cosmos • nuclear reactions that drive stars and stellar explosions? • n/p ratios • t/³He ratios • Isospin diffusion • Isoscaling • proton-proton correlations • etc... • Neutron skin thickness • GMR • PDR • Isobaric Analog States • nature of the nuclear force that binds protons and neutrons into stable nuclei and rare isotopes • etc... E/A (,) = E/A (,0) + d2S() d = (n- p)/ (n+ p) = (N-Z)/A Z. Ch. - WWND 2011, Feb 6-13, 2011

  4. EOS: symmetric matter and neutron matter • Crucial to obtain • stellar radii • moments of interia • maximum masses • neutron star cooling rates • crustal vibration frequencies E/A (,) = E/A (,0) + d2S() d = (n- p)/ (n+ p) = (N-Z)/A   1 Brown, Phys. Rev. Lett. 85, 5296 (2001) stiff Neutron matter EOS E/A [MeV] soft The density dependence of symmetry energy is largely unconstrained. Z. Ch. - WWND 2011, Feb 6-13, 2011

  5. Probes of the symmetry energy To maximize sensitivity, reduce systematic errors: Vary isospin of detected particle Vary isospin asymmetry =(N-Z)/A of reaction. Low densities (<0): Neutron/proton spectra and flows Isospin diffusion Correlations High densities (20) : Neutron/proton spectra and flows + vs. - production Correlations E/A (,) = E/A (,0) + d2S()d = (n- p)/ (n+ p) = (N-Z)/A stiff soft >0 <0 symmetry energy S()= 12.5·(ρ/ρ0)2/3 + Sint·(ρ/ρ0)  Z. Ch. - WWND 2011, Feb 6-13, 2011

  6. International Collaboration Symmetry Energy Project Collaboration Determination of the Equation of State of Asymmetric Nuclear MatterNSCL MSU, USA: B. Tsang & W. Lynch, Gary Westfall, Pawel Danielewicz, Edward Brown, Andrew Steiner Rutgers University: Jolie Cizewski Smith College : Malgorzata Pfabe University of Texas, El Paso: Jorge Lopez Texas A&M University : Sherry Yennello Western Michigan University : Michael Famiano RIKEN, JP: Hiroshi Sakurai, Shunji Nishimura, Yoichi Nakai, Atsushi Taketani Kyoto University: Tetsuya MurakamiRikkyo University, JP: Jiro Murata, Kazuo Ieki Tohoku University: Akira Ono GSI DE: Wolfgang Trautmann, Yvonne Leifels, Marcus Bleicher Daresbury Laboratory, UK: Roy Lemmon INFN LNS Catania, IT: Giuseppe Verde, Angelo Pagano, Paulo Russotto, Massimo di Toro, Maria Colonna, Aldo Bonasera, Vincenzo Greco SUBATECH FR: Christoph Hartnack GANIL FR: Abdou Chbihi, John Frankland, Jean-Pierre WieleczkoRuđer Bosković Institute, Zoran Basrak, China Institute of Atomic Energy: Yingxun Zhang, Zhuxia Li Brazil: Sergio Souza, Raul Donangelo, Brett Carlson E/A (,) = E/A (,0) + d2S() d = (n- p)/ (n+ p) = (N-Z)/A RIBF FRIB MSU GSI ? FAIR Z. Ch. - WWND 2011, Feb 6-13, 2011

  7. Modeling heavy-ion collisions : transport models Danielewicz, Bertsch, NPA533 (1991) 712 B. A. Li et al., PRL 78 (1997) 1644 • BUU - Boltzmann-Uehling-Uhlenbeck • Simulates two nuclei colliding Micha Kilburn • Parameter space • not only about the symmetry energy • also important to understand e.g. an effect of cross section (free x-section, in-medium x-section), reduced mass • Production of clusters: d,t, 3He (alphas) Z. Ch. - WWND 2011, Feb 6-13, 2011

  8. Probing Symmetry Energy:Experimental Observables Z. Ch. - WWND 2011, Feb 6-13, 2011

  9. n/p yield ratios F2 F1 stiff F3 gi soft S(r)=12.5(r/ro)2/3+17.6(r/ro) ImQMD F1=2u2/(1+u) F2=u F3=u soft Y(n)/Y(p) soft u = stiff stiff • n and p potentials have opposite sign • n and p energy spectra depend on the symmetry energy and softer density dependence emits more neutrons at low density =0.3 Uasy (MeV) • More n’s are emitted from the n-rich system and softer iso-EOS Z. Ch. - WWND 2011, Feb 6-13, 2011

  10. t/3He yield ratios L-W Chen et al., PRC 69 (2004) 054606 t/3He ratio sensitive to the symmetry energy (similarly as n/p) - advantage: easier to measure However, the magnitude of the ratio depends also on the details within the symmetry energy potential Z. Ch. - WWND 2011, Feb 6-13, 2011

  11. Probing Symmetry Energy with n’s and p’s Density dependence of the symmetry energy with emitted neutrons and protons & Investigation of transport model parameters. Famiano, Coupland, Youngs NSCL experiments 05049 & 09042 Z. Ch. - WWND 2011, Feb 6-13, 2011

  12. Measurement of n/p spectral ratios: probes the pressure due to asymmetry term at 0. Probe expulsion of neutrons from bound neutron-rich system by symmetry energy. Has been probed by direct measurements of neutrons vs. proton emission rates in central Sn+Sn collisions. gi Esym=12.7(r/ro)2/3+19(r/ro) Double Ratios 124Sn+124Sn;Y(n)/Y(p) 112Sn+112Sn;Y(n)/Y(p) soft stiff minimize systematic errors • Double ratio removes the sensitivity to neutron efficiency and energy calibration. Z. Ch. - WWND 2011, Feb 6-13, 2011

  13. Isospin diffusion is measured with fragments emitted from the neck region. Probe the symmetry energy at subsaturation densities in semi-peripheral collisions, e.g. 124Sn + 112Sn at b=6 fm Isospin “diffuse” through low-density neck region Symmetry energy drives system towards equilibrium. =(N-Z)/A stiff EOS  small diffusion; |Ri|>>0 soft EOS  fast equilibrium; Ri0 Experimental observable: Isospin dependence Projectile 124Sn Target 112Sn stiff soft Z. Ch. - WWND 2011, Feb 6-13, 2011

  14. Isospin diffusion is measured with fragments emitted from the neck region. Probe the symmetry energy at subsaturation densities in semi-peripheral collisions, e.g. 124Sn + 112Sn at b=6 fm Isospin “diffuse” through low-density neck region Symmetry energy drives system towards equilibrium. stiff EOS  small diffusion; |Ri|>>0 soft EOS  fast equilibrium; Ri0 Experimental observable: Isospin dependence S()= 12.5·(ρ/ρ0)2/3 + Sint·(ρ/ρ0)  Z. Ch. - WWND 2011, Feb 6-13, 2011

  15. Emission of p’s and n’s: Sensitivity to SymEn 52Ca 48Ca Stiff EoS L-W Chen et al., PRL90 (2003) 162701 Soft EoS Soft EoS (γ=0.5) Stiff EoS (γ=2) p’s emitted after n’s later emission times p’s and n’s emitted at similar time fasteremission times Z. Ch. - WWND 2011, Feb 6-13, 2011

  16. Sym.En. and correlations Soft EoS Stiff EoS L-W Chen et al., PRL90 (2003) 162701 Stiff EoS Soft EoS Soft Stiff n-n, p-p, n-p correlations sensitive to the symmetry energy Z. Ch. - WWND 2011, Feb 6-13, 2011

  17. proton-proton correlations Theoretical CF: Koonin-Pratt equation S.E. Koonin, PLB70 (1977) 43 S.Pratt et al., PRC42 (1990) 2646 … 2-particle wave function … source function (p,p) correlation function (p,p) correlation function S-wave interraction Coulomb uncorrelated |q| = 0.5 |p1 - p2| |q| = 0.5 |p1 - p2| p1 Experimental correlation function: x1 r x2 p2 few fm P(p1,p2) P(p1)P(p2) |q| = 0.5 |p1 - p2| Z. Ch. - WWND 2011, Feb 6-13, 2011

  18. NSCL experiments 05045: HiRA + 4 detector November 2006 = High Resolution Array beam • 4π detector => impact parameter + reaction plane • HiRA => light charge particle correlations (angular coverage 20-60º in LAB, • 63 cm from target (= ball center)) Reaction systems: 40Ca + 40Ca @ 80 MeV/u 48Ca + 48Ca @ 80 MeV/u Z. Ch. - WWND 2011, Feb 6-13, 2011

  19. Telescope 4x CsI(Tl) 4cm Si-E 1.5 mm Si-DE 65mm pixel 32 strips v.(front) 32 strips h. (back) 32 strips v. (front) Beam • ASIC readout • up to 20 Telescopes • 62.3 x 62.3 mm2 active area • strip pitch 2 mm • 1024 Pixels per telescope @ 63 cm from target => Δθ<0.2º Z. Ch. - WWND 2011, Feb 6-13, 2011

  20. Detector performance High resolution at low relative momentum good PID Z. Ch. - WWND 2011, Feb 6-13, 2011

  21. Initial size effect R=r0 A1/3 R(40Ca) = 4.3 fm R(48Ca) = 4.6 fm R 48Ca+ 48Ca > R 40Ca+ 40Ca Z. Ch. - WWND 2011, Feb 6-13, 2011

  22. Comparing data to pBUU Backward angle Forward angle BUU Pararameters No dependence on symmetry energy Rostock in-medium reduction Producing clusters BUU does reasonably well Except at forward angles - Spectator source Where evaporation and secondary decays are important! Micha Kilburn Z. Ch. - WWND 2011, Feb 6-13, 2011

  23. Emission of p’s and n’s: Sensitivity to SymEn 52Ca 48Ca Stiff EoS L-W Chen et al., PRL90 (2003) 162701 Soft EoS Soft EoS (γ=0.5) Stiff EoS (γ=2) p’s emitted after n’s later emission times p’s and n’s emitted at similar time fasteremission times Z. Ch. - WWND 2011, Feb 6-13, 2011

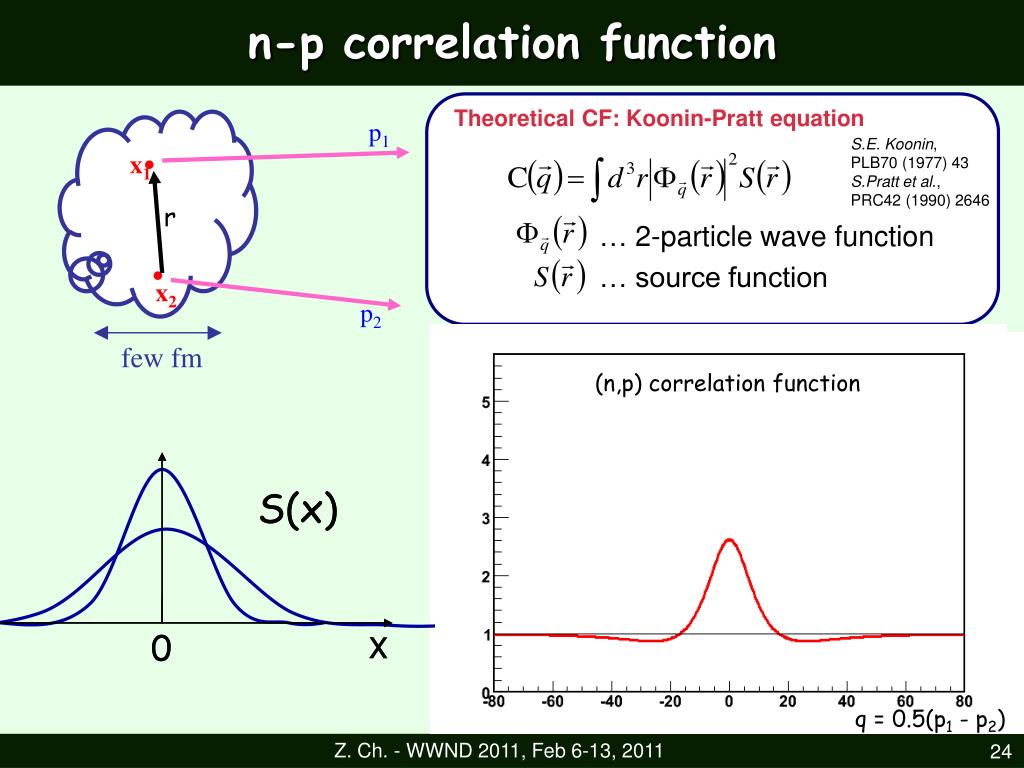

  24. n-p correlation function (n,p) correlation function (n,p) correlation function S(x) S(x) x x 0 0 Theoretical CF: Koonin-Pratt equation p1 S.E. Koonin, PLB70 (1977) 43 S.Pratt et al., PRC42 (1990) 2646 x1 r … 2-particle wave function … source function x2 p2 few fm q = 0.5(p1 - p2) Z. Ch. - WWND 2011, Feb 6-13, 2011

  25. Emission of p’s and n’s: Sensitivity to SymEn 52Ca 48Ca Stiff EoS L-W Chen et al., PRL90 (2003) 162701 Soft EoS Soft EoS (γ=0.5) Stiff EoS (γ=2) p’s emitted after n’s later emission times p’s and n’s emitted at similar time fasteremission times Z. Ch. - WWND 2011, Feb 6-13, 2011

  26. Possible emission configurations (stiff sym. pot.) n n n n p p p p Catching up Catching up qx<0 qx>0 Moving away Moving away qx<0 qx>0 (n,p) correlation function q=pp -pn =(qx, qy=0,qz=0); r=(x, y=0,z=0) qx<0 qx>0 S(x) x 0 q = 0.5(pp - pn) Z. Ch. - WWND 2011, Feb 6-13, 2011

  27. Emission of p’s and n’s: Sensitivity to SymEn 52Ca 48Ca Stiff EoS L-W Chen et al., PRL90 (2003) 162701 Soft EoS Soft EoS (γ=0.5) Stiff EoS (γ=2) p’s emitted after n’s later emission times p’s and n’s emitted at similar time fasteremission times Z. Ch. - WWND 2011, Feb 6-13, 2011

  28. Sensitivity to particle emission (soft sym. pot.) n n p p Experimentally, we measure the CF, not the source distribution! Moving away Catching up qx<0 qx>0 (n,p) correlation function qx<0 qx>0 S(x) x 0 q=pp -pn =(qx, qy=0,qz=0); r=(x, y=0,z=0) qx = 0.5(px,p - px,n) Z. Ch. - WWND 2011, Feb 6-13, 2011

  29. Relating asymmetry in the CF to space-time asymmetry Stiff EoS Soft EoS (n,p) correlation function qx<0 qx>0 S(x) <x> x 0 qx = 0.5(px,p - px,n) Clasically, average separation b/t protons and neutrons Not expected if n,p emitted from the same source (no n-p differential flow) =0 Protons emitted later Z. Ch. - WWND 2011, Feb 6-13, 2011

  30. High density probe: pion production Double ratio involves comparison between neutron rich 132Sn+124Sn and neutron deficient 112Sn+112Sn reactions. Double ratio maximizes sensitivity to asymmetry term. Largely removes sensitivity to difference between - and +acceptances. Yong et al., Phys. Rev. C 73, 034603 (2006) soft stiff Z. Ch. - WWND 2011, Feb 6-13, 2011

  31. Summary • The density dependence of the symmetry energy is of fundamental importance to nuclear physics and neutron star physics. • Observables in HI collisions provide unique opportunities to probe the symmetry energy over a wide range of density especially for dense asymmetric matter • Calculations suggest a number of promising observables that can probe the density dependence of the symmetry energy. • Need more guidance from theory regarding observables beyond normal nuclear matter density • The availability of intense fast rare isotope beams at a variety of energies at FRIB & FAIR allows increased precisions in probing the symmetry energy at a wide range of densities • Experimental programs are being developed to do such measurements at MSU/FRIB, RIKEN/RIBF and GSI/FAIR Z. Ch. - WWND 2011, Feb 6-13, 2011
