1 / 23

Ground Water

Ground Water. Geochemistry at Sulfate Reduction- Methangenesis Transition Zone in an Anoxic Groundwater. Kristina Loen Wei Zheng. Introduction. Groundwater important of drinking Pollution industry/agriculture: near surface abandoned, obtained from deeper anoxic aquifers.

rangle
Télécharger la présentation

Ground Water

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ground Water

  2. Geochemistry at Sulfate Reduction-Methangenesis Transition Zone in an Anoxic Groundwater Kristina Loen Wei Zheng

  3. Introduction • Groundwater important of drinking • Pollution industry/agriculture: near surface abandoned, obtained from deeper anoxic aquifers. • Anoxic redox processes important for water quality in deep aquifers • Anoxic RØMØ aquifer: inorganic geochemical processes+microbiologically mediated redox processes+thermodynamics

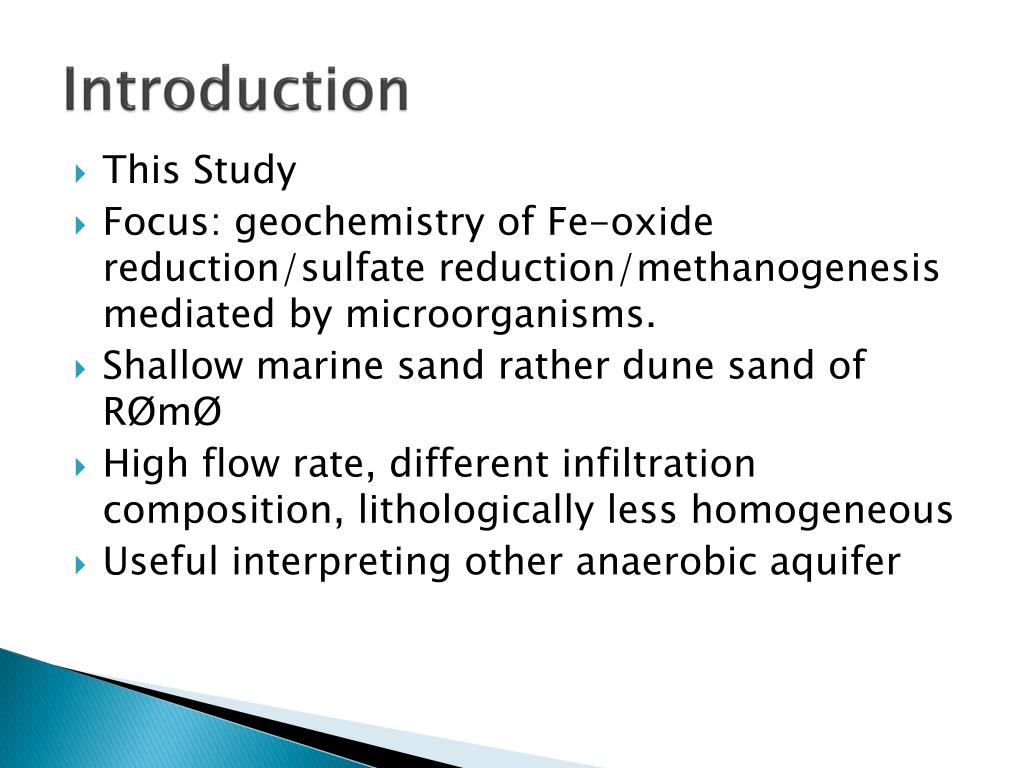

  4. Introduction • This Study • Focus: geochemistry of Fe-oxide reduction/sulfate reduction/methanogenesis mediated by microorganisms. • Shallow marine sand rather dune sand of RØmØ • High flow rate, different infiltration composition, lithologically less homogeneous • Useful interpreting other anaerobic aquifer

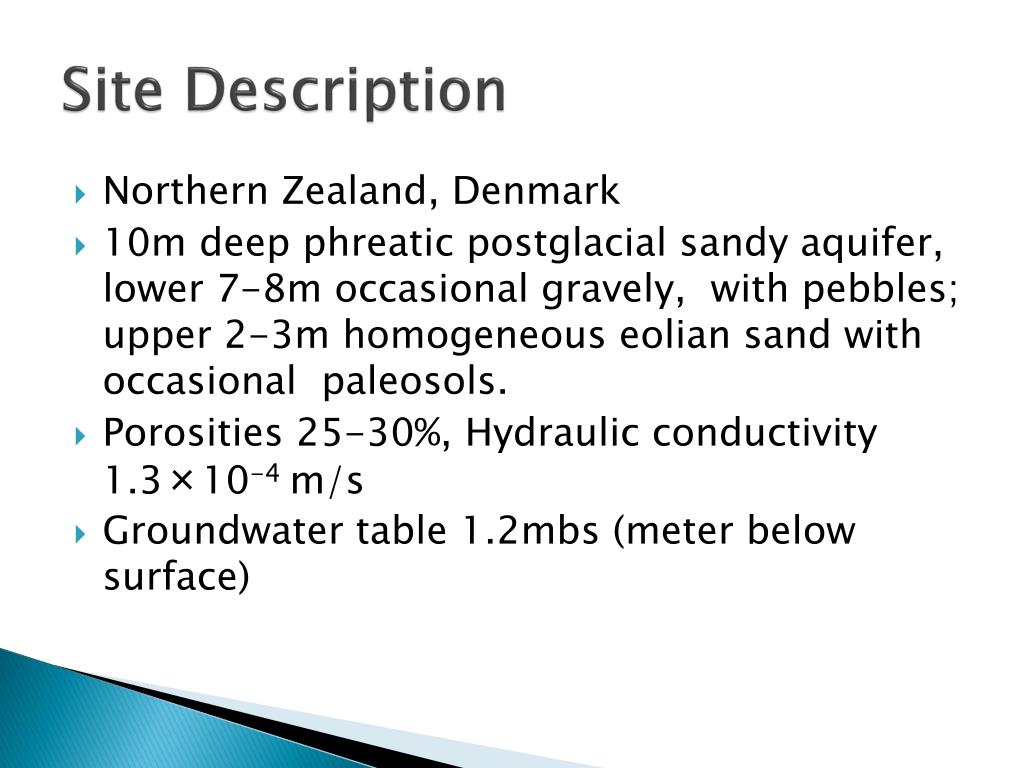

  5. Site Description • Northern Zealand, Denmark • 10m deep phreatic postglacial sandy aquifer, lower 7-8m occasional gravely, with pebbles; upper 2-3m homogeneous eolian sand with occasional paleosols. • Porosities 25-30%, Hydraulic conductivity 1.3×10-4 m/s • Groundwater table 1.2mbs (meter below surface)

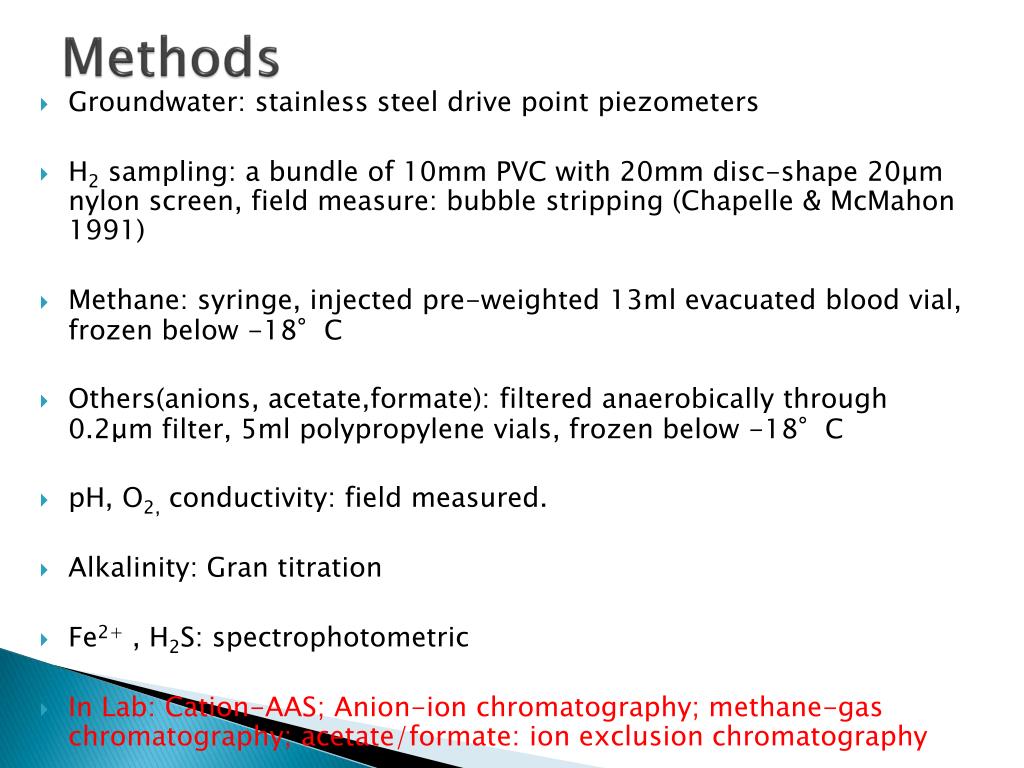

  6. Methods • Groundwater: stainless steel drive point piezometers • H2 sampling: a bundle of 10mm PVC with 20mm disc-shape 20μm nylon screen, field measure: bubble stripping (Chapelle & McMahon 1991) • Methane: syringe, injected pre-weighted 13ml evacuated blood vial, frozen below -18°C • Others(anions, acetate,formate): filtered anaerobically through 0.2μm filter, 5ml polypropylene vials, frozen below -18°C • pH, O2, conductivity: field measured. • Alkalinity: Gran titration • Fe2+ , H2S: spectrophotometric • In Lab: Cation-AAS; Anion-ion chromatography; methane-gas chromatography; acetate/formate: ion exclusion chromatography

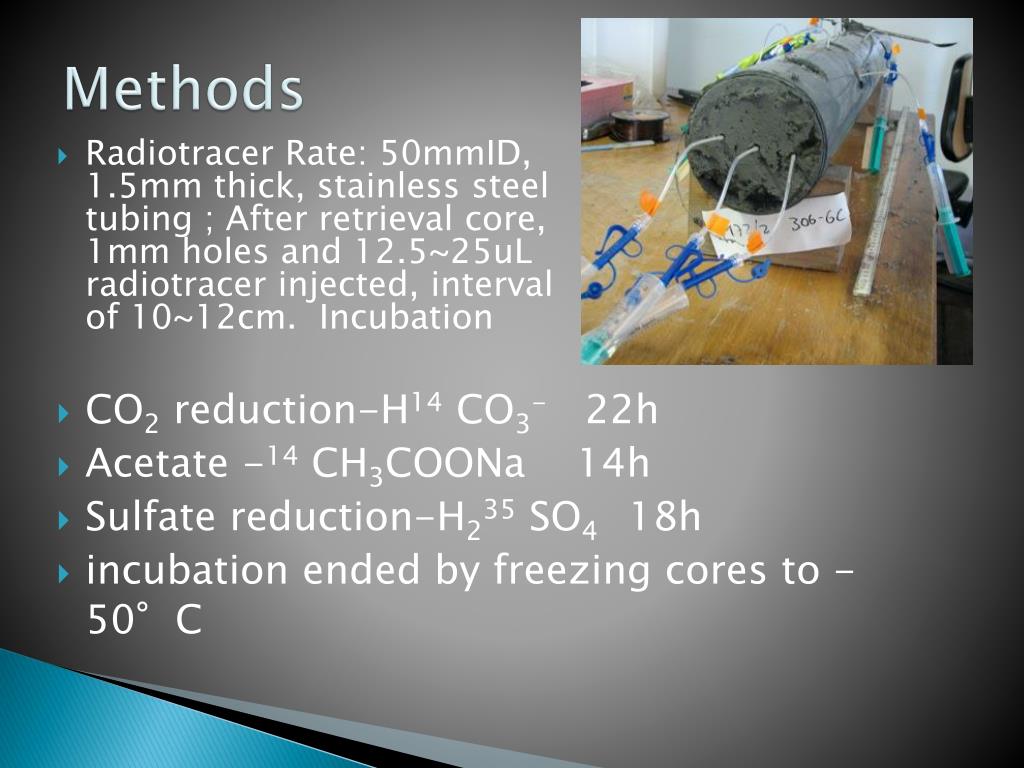

  7. Methods • CO2 reduction-H14 CO3- 22h • Acetate -14 CH3COONa 14h • Sulfate reduction-H235 SO4 18h • incubation ended by freezing cores to -50°C • Radiotracer Rate: 50mmID, 1.5mm thick, stainless steel tubing ; After retrieval core, 1mm holes and 12.5~25uL radiotracer injected, interval of 10~12cm. Incubation

  8. Methods α=1.06 (SRR-Sulfate Reduction Rate) (Jakobsen&Postma 1994) α=1.08 (Hansen, 1998) • (CO2 Reduction Rate) • α=1.08 (Acetate Turnover Rate)

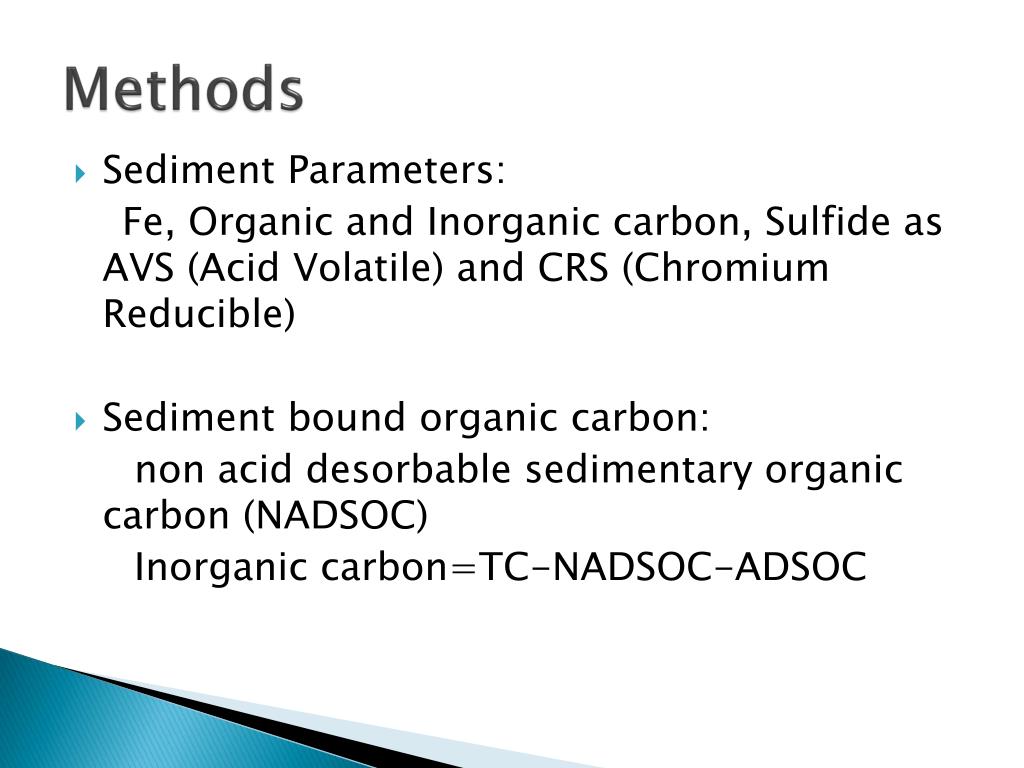

  9. Methods • Sediment Parameters: Fe, Organic and Inorganic carbon, Sulfide as AVS (Acid Volatile) and CRS (Chromium Reducible) • Sediment bound organic carbon: non acid desorbable sedimentary organic carbon (NADSOC) Inorganic carbon=TC-NADSOC-ADSOC

  10. Results Reduction of Fe-oxides With increase Ca, Mg Inorganic compounds /shell

  11. Results Dry Deposition /Earlier Inundation

  12. Results Fe-oxidereduction/sulfate reduction/ increase in methane Dry Deposition in Pyrite Oxidation

  13. Results

  14. Results Degrade/Oxidation Organic Matter release

  15. Transport organic matter from surface to aquifer

  16. Equilibrium Control

  17. Exchange • Na+ slightly delayed in terms of vertical transportation • Ion exchange affect cations, also affect Ca2+, Mg2+ , K+ • Mg2+ displace Ca2+ • Ca2+ affected by dissolution of calcite, ion exchange release Ca2+ , precipitate Ca2+ • Al3+ not affected by ion exchange

  18. Rates and Sediment Composition • Sulfate reduction rate highly correlated with where sulfide found in sediment • AVS (Acid Volatile Sulfur) only in 5~6 mbs, transform of AVS to CRS (Chromium Reduced Sulfur) • Sulfate reduction rate extremely small, sulfate input higher, so sulfate reduction took place in large volume of sediment. • Organic matter low

  19. Bioenergetics

  20. Bioenergetics Average -4.5kJ/mol, adequate for ATP synthesis High Low

  21. Conclusion Similar to RØmØ aquifer, but • No pool AVS below sulfate reducing zone, indicating enough sulfide for conversion, related to higher measurable sulfide concentration • H2 level high enough to sustain methanogenesis, removing need for stagnant microniches. • Data indicating influx organic matter from soil, sustaining redox processes in system

  22. Questions?
