  1. 3GPP2 Vision: System Release 6 & 7 Jane Brownley Chair, Vision Ad Hoc Jane.Brownley@alcatel-lucent.com

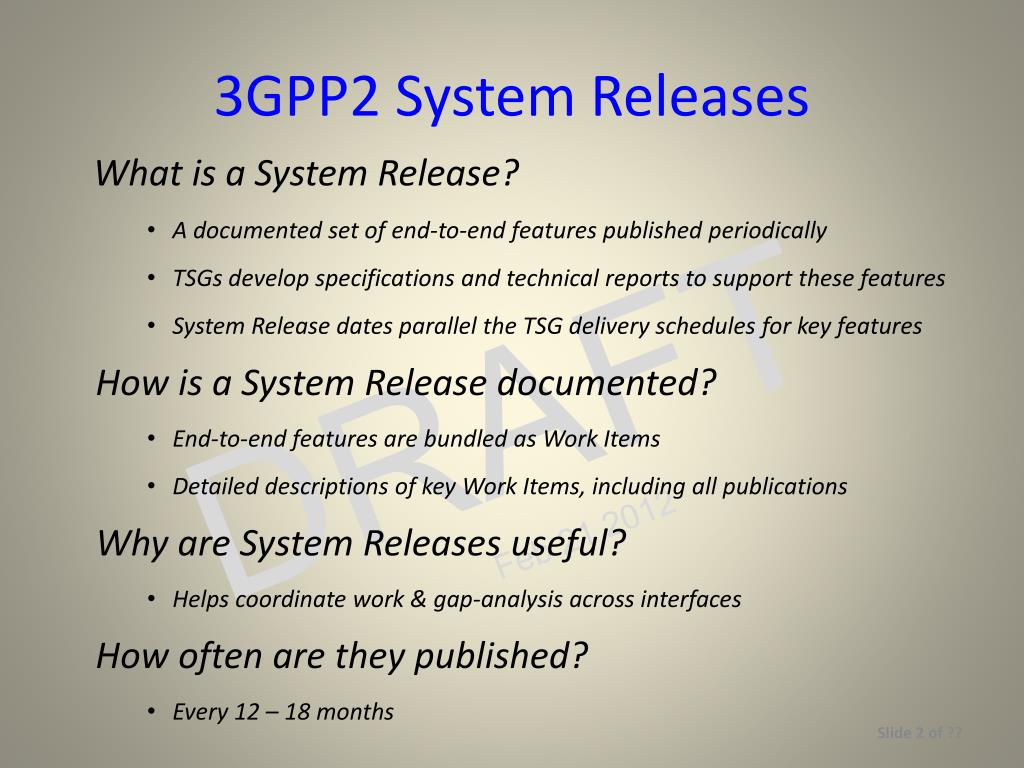

  2. What is a System Release? A documented set of end-to-end features published periodically TSGs develop specifications and technical reports to support these features System Release dates parallel the TSG delivery schedules for key features How is a System Release documented? End-to-end features are bundled as Work Items Detailed descriptions of key Work Items, including all publications Why are System Releases useful? Helps coordinate work & gap-analysis across interfaces How often are they published? Every 12 – 18 months 3GPP2 System Releases

  3. 3GPP2 Technical Specifications Groups (TSGs) completed specifications for System Release 6 in April 2011: Femtocell Support Technology Interworking Enhanced Radio & Network Capabilities System Release 6 Delivers

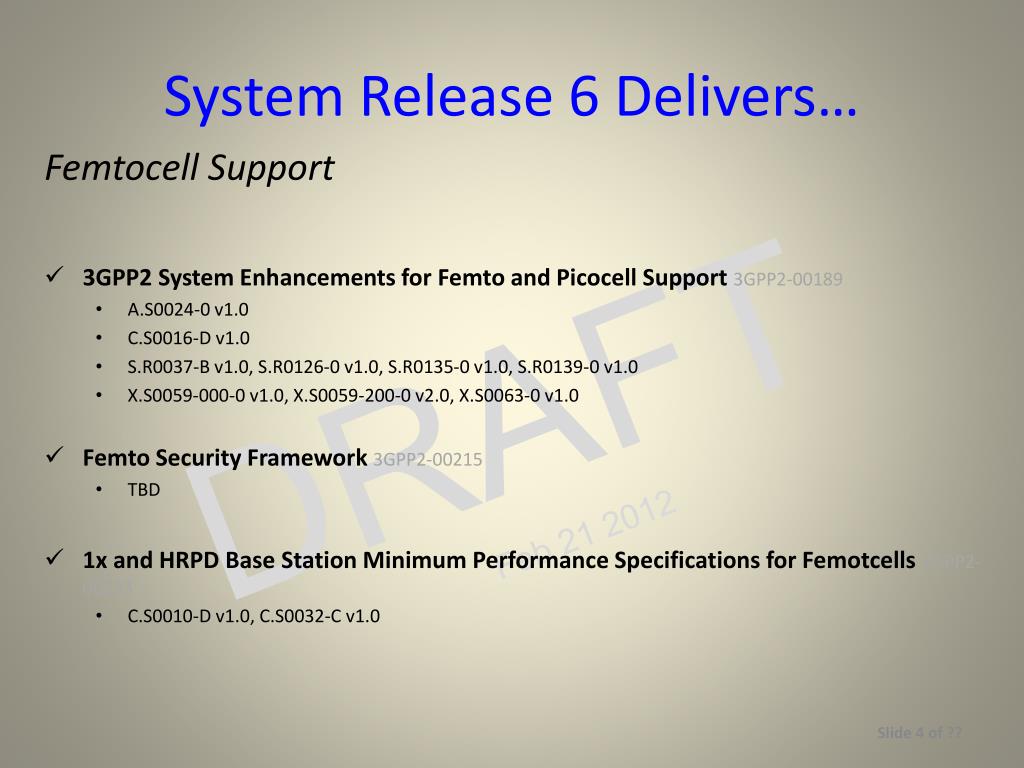

  4. Femtocell Support 3GPP2 System Enhancements for Femto and Picocell Support3GPP2-00189 A.S0024-0 v1.0 C.S0016-D v1.0 S.R0037-B v1.0, S.R0126-0 v1.0, S.R0135-0 v1.0, S.R0139-0 v1.0 X.S0059-000-0 v1.0, X.S0059-200-0 v2.0, X.S0063-0 v1.0 Femto Security Framework3GPP2-00215 TBD 1x and HRPD Base Station Minimum Performance Specifications for Femotcells3GPP2-00233 C.S0010-D v1.0, C.S0032-C v1.0 System Release 6 Delivers…

  5. Technology Interworking 3GPP2 cdma2000 (HRPD and 1xRTT) and 3GPP E-UTRAN (LTE) Mobility Interworking and Inter-Technology Handoff3GPP2-00195 A.S0008-C v3.0, A.S0009-C v3.0, A.S0022-0 v2.0 C.R1001-G v1.0 , C.S0067-A v1.0 S.R0138-0 v1.0, S.R0129-0 v1.0 X.S0042-A v1.0, X.S0057-0 v2.0, X.S0057-A v1.0 Inter-Technology Handoff Support for HRPD-WiMAX3GPP2-0196 C.S0086-0 v1.0 S.R0128-0 v1.0 X.S0058-0 v1.0, X.S0058-0 v2.0 WLAN-cdma2000 1x Circuit-Switched Voice Interworking3GPP2-00062-A S.R0037-A v1.0, S.R0087-A v1.0 X.S0028-000-A v1.0, X.S0028-200-A v1.0, X.S0042-0 v1.0, X.S0048-0 v1.0 System Release 6 Delivers…

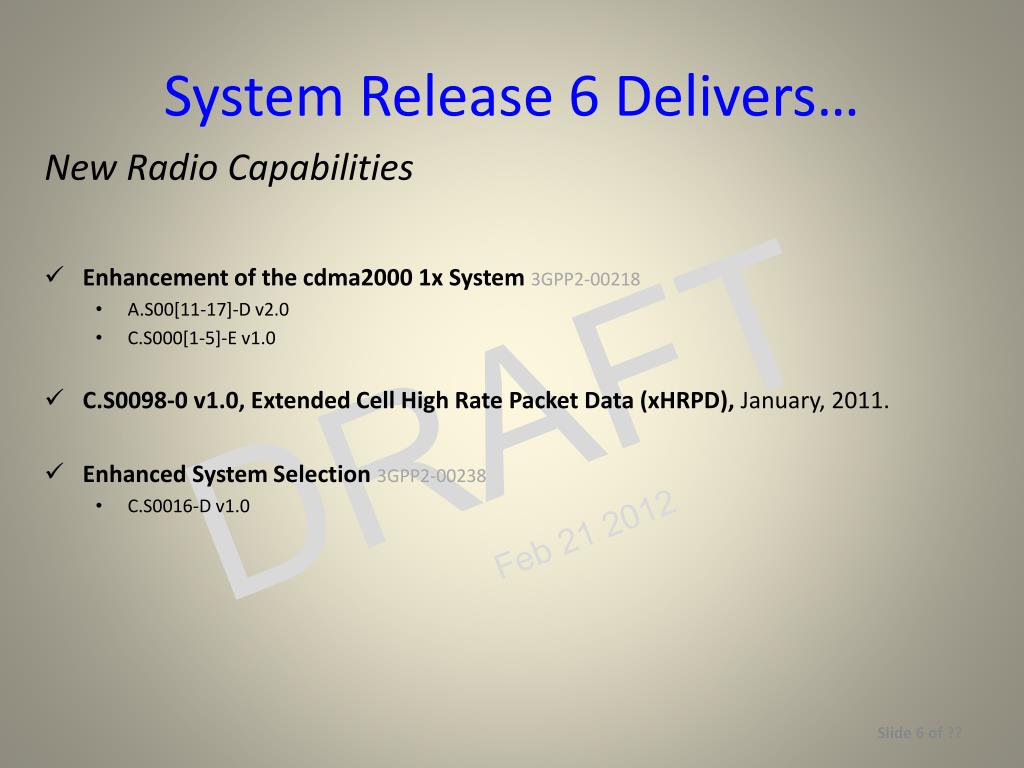

  6. New Radio Capabilities Enhancement of the cdma2000 1x System3GPP2-00218 A.S00[11-17]-D v2.0 C.S000[1-5]-E v1.0 C.S0098-0 v1.0, Extended Cell High Rate Packet Data (xHRPD), January, 2011. Enhanced System Selection3GPP2-00238 C.S0016-D v1.0 System Release 6 Delivers…

  7. New Core Network Capabilities X.S0066-0 v1.0, Accounting at the HA/LMA in cdma2000 Systems. USSD… System Release 6 Delivers…

  8. 3GPP2 TSGs are currently developing specifications for System Release 7: System-wide Enhancements for M2M Deployment Energy Saving & Improved Network Management HRPD Security, Enhancements & Interworking of Voice Services System Release 7 Underway

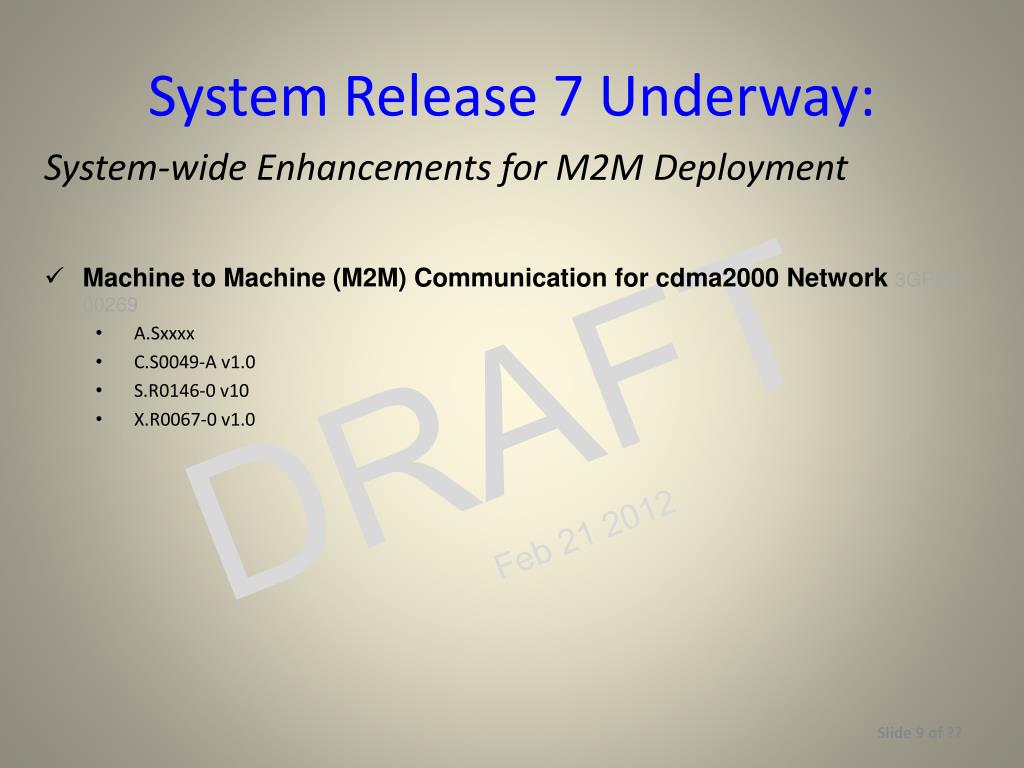

  9. System Release 7 Underway: System-wide Enhancements for M2M Deployment • Machine to Machine (M2M) Communication for cdma2000 Network3GPP2-00269 • A.Sxxxx • C.S0049-A v1.0 • S.R0146-0 v10 • X.R0067-0 v1.0

  10. System Release 7 Underway… Energy Saving & Improved Network Management • Self-Organizing Networks (SON) 3GPP2-00299 • A.S0010-0 v1.0 • A.R1050-0 v1.0 • GREEN…

  11. System Release 7 Underway… HRPD Security, Enhancements & Interworking of Voice Services • Advanced Security Framework for both HRPD and eHRPD3GPP2-00265 • S.R1045-0 v1.0 • BroadCast/MultiCast Service Enhancements on HRPD System3GPP2-00230 • A.S0019-0 v1.0, C.S0054-A v1.0, C.S0063-A v2.0, X.S0022-A v1.0, X.S0022-A v2.0 • Interworking between LMSD and IMS3GPP2-00239 • X.S0025-A v1.0

  12. Summary of Releases 1 - 5 TBD

  13. Thank You! For more information, please visit http://www.3gpp2.org.

  14. Additional Slides

  15. Femtocell Support 3GPP2 System Enhancements for Femto and Picocell Support (Work Item 3GPP2-00189), including enhancements to the core network to support large numbers of distributed radio access nodes connected to the cdma2000 core network over non-trusted All-IP networks. Femto Security Framework (Work Item 3GPP2-00215), specifying the security architecture, methods and procedures between femtocells and a Security Gateway Function in the cdma2000 packet core network, along with other system level security aspects. 1x and HRPD Base Station Minimum Performance Specifications for Femotcells (3GPP2-00233), supplementing the femtocells to enable better performance and to reduce complexity of the development, deployment and operation of these femtocells. System Release 6 Delivers…

  16. Technology Interworking 3GPP2 cdma2000 (HRPD and 1xRTT) and 3GPP E-UTRAN (LTE) Mobility Interworking and Inter-Technology Handoff (Work Item 3GPP2-00195), delivering service continuity solutions to support mobility and handoff between 3GPP2 (1xRTT/HRPD) and 3GPP E-UTRAN (LTE). Inter-Technology Handoff Support for HRPD-WiMAX (Work Item 3GPP2-0196), supporting seamless handoff while in an active state, allowing dual-mode terminal devices to transition with minimal or no disruption of active services, as well as supporting bi-directional tunnels between HRPD and WiMAX to support active state handoff for packet service continuity. WLAN-cdma2000 1x Circuit-Switched Voice Interworking (Work Item 3GPP2-00062-A), including the support for the new scenario to provide continuity of a 3GPP2 circuit-switched voice service while switching network connections between VoIP via WLAN and a circuit-based voice call via the 3GPP2 system. System Release 6 Delivers…

  17. New Radio Capabilities Enhancement of the cdma2000 1x System (Work Item 3GPP2-00218), delivering significant increases in the system capacity, especially for voice services, thereby improving user experience. C.S0098-0 v1.0, Extended Cell High Rate Packet Data (xHRPD), January, 2011. This specification enhances the HRPD air interface to support range extension for cells in deployments such as satellite and rural settings. Enhanced System Selection (Work Item 3GPP2-00238), improving the radio access for Over-the-Air Service Provisioning (OTASP) by enhancing system selection procedures wherein the Access Terminal (AT) are able to autonomously select sector/carriers, even those not advertised in Neighbor Lists. System Release 6 Delivers…

  18. New Core Network Capabilities X.S0066-0 v1.0, Accounting at the HA/LMA in cdma2000 Systems. This document covers accounting on an IP Session basis at the Home Agent (HA) for PMIPv4 and Local Mobility Agent (LMA) for PMIPv6 modes of operation. Accounting is the function within the cdma2000 network and the associated billing system whereby information related to a chargeable event is collected, formatted, transferred and evaluated in order to make it possible to determine resource usage for which the subscriber may be billed. USSD… System Release 6 Delivers…

  19. System Release 7 Underway: System-wide Enhancements for M2M Deployment • Machine to Machine (M2M) Communication for cdma2000 Network (Work Item 3GPP2-00269). M2M will include network architecture enhancements for large numbers of M2M devices, M2M addressing and numbering schemes, optimization of radio and network resource usage for massive M2M data communications to allow both MS and network initiated services, efficiency to optimize for small payload transmission, M2M security issues, and optimizations for the access and core networks (both packet and circuit-switched) for device battery usage, M2M communication performance, signaling overhead and system capacity. The radio enhancements identified as cdma2000 1x Rev F for M2M Enhancements are also planned for this Release 7 feature.

  20. System Release 7 Underway… Energy Saving & Improved Network Management • Self-Organizing Networks (SON) (Work Item 3GPP2-00299). Self-organizing networks improves the ability of network elements to automatically communicate information between themselves in order to allow each element to configure itself relative to the other elements in the network. With the goal of saving time and minimizing human-based procedural errors, this work includes both intra-CDMA and inter-RAT (Radio Access Technologies) SON communications. • GREEN…

  21. System Release 7 Underway… HRPD Security, Enhancements & Interworking of Voice Services • Advanced Security Framework for both HRPD and eHRPD (Work Item 3GPP2-00265), introducing support for Air-Interface Application Layer Security (AALS) with HRPD and eHRPD access networks, including authentication, key distribution & management, interworking with AALS within the legacy security. • BroadCast/MultiCast Service Enhancements on HRPD System (Work Item 3GPP2-00230), supporting BCMCS on Femtocells and usage-based accounting. • Interworking between LMSD and IMS (Work Item 3GPP2-00239) to deliver interworking of Legacy Mobile Station Domain voice services IP Multimedia Subsystem (IMS) Session Initiation Protocol (SIP) voice services defined by 3GPP Release 9. Voice services include call origination, termination and legacy supplementary service like 3-way calling, flexible alerting and call transfer.
