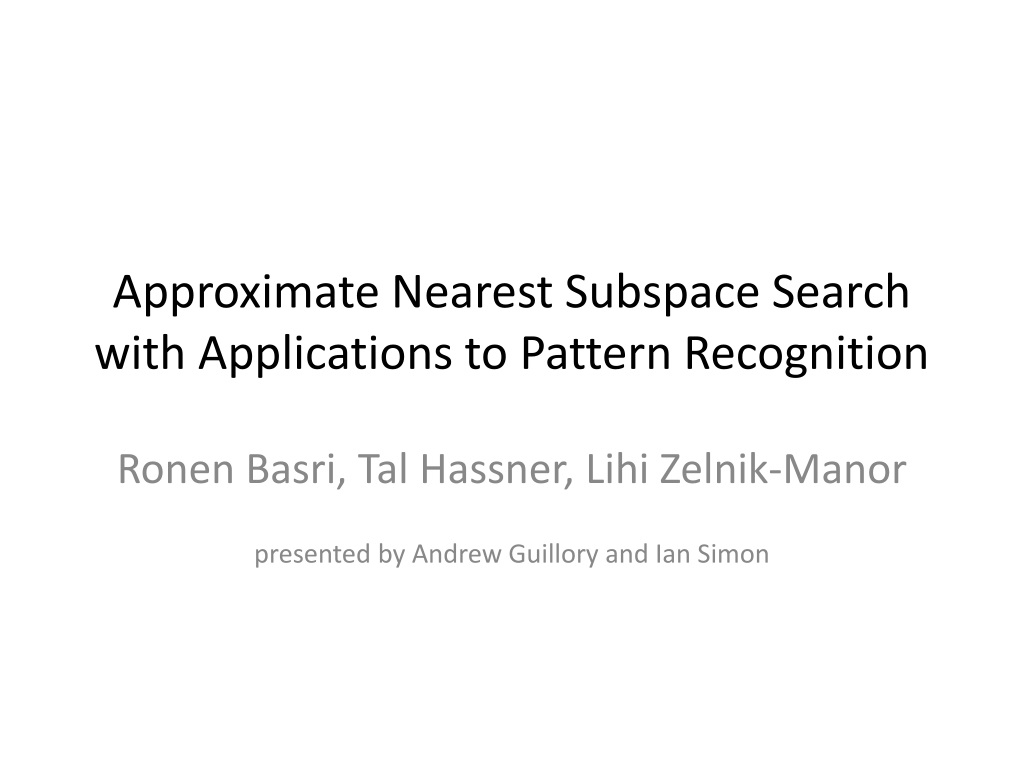

  1. Approximate Nearest Subspace Search with Applications to Pattern Recognition Ronen Basri, Tal Hassner, LihiZelnik-Manor presented by Andrew Guillory and Ian Simon

  2. The Problem • Given n linear subspaces Si:

  3. The Problem • Given n linear subspaces Si: • And a query point q:

  4. The Problem • Given n linear subspaces Si: • And a query point q: • Find the subspace Si that minimizes dist(Si,q).

  5. Why? • object appearance variation = subspace • fast queries on object database

  6. Why? • object appearance variation = subspace • fast queries on object database • Other reasons?

  7. Approach • Solve by reduction to nearest neighbor. • point-to-point distances

  8. Approach • Solve by reduction to nearest neighbor. • point-to-point distances not actual reduction

  9. Approach • Solve by reduction to nearest neighbor. • point-to-point distances • In higher-dimensional space. not actual reduction

  10. Point-Subspace Distance • Use squared distance.

  11. Point-Subspace Distance • Use squared distance.

  12. Point-Subspace Distance • Use squared distance. • Squared point-subspace distancecan be represented as a dot product.

  13. The Reduction • Let: Remember:

  14. The Reduction • Let: • Then: Remember:

  15. The Reduction

  16. The Reduction constant over query

  17. The Reduction ? constant over query

  18. The Reduction ? constant over query ZTZ = I

  19. The Reduction ? constant over query ZTZ = I Z is d-by-(d-k), columns orthonormal.

  20. The Reduction ? constant over query ZTZ = I Z is d-by-(d-k), columns orthonormal.

  21. The Reduction • For query point q:

  22. The Reduction • For query point q: • Can we decrease the additive constant?

  23. Observation 1 • All data points lie on a hyperplane.

  24. Observation 1 • All data points lie on a hyperplane. • Let: • Now the hyperplane contains the origin.

  25. Observation 2 • After hyperplane projection: • All data points lie on a hypersphere.

  26. Observation 2 • After hyperplane projection: • All data points lie on a hypersphere. • Let: • Now the query point lies on the hypersphere.

  27. Observation 2 • After hyperplane projection: • All data points lie on a hypersphere. • Let: • Now the query point lies on the hypersphere.

  28. Reduction Geometry • What is happening?

  29. Reduction Geometry • What is happening?

  30. Finally • Additive constant depends only on dimension of points and subspaces. • This applies to linear subspaces, all of the same dimension.

  31. Extensions • subspaces of different dimension • lines and planes, e.g. • Not all data points have the same norm. • Add extra dimension to fix this.

  32. Extensions • subspaces of different dimension • lines and planes, e.g. • Not all data points have the same norm. • Add extra dimension to fix this. • affine subspaces • Again, not all data pointshave the same norm.

  33. Approximate Nearest Neighbor Search • Find point x with distance d(x, q) <= (1 + ε) mini d(xi,q) • Tree based approaches: KD-trees, metric / ball trees, cover trees • Locality sensitive hashing • This paper uses multiple KD-Trees with (different) random projections

  34. KD-Trees • Decompose space into axis aligned rectangles Image from Dan Pelleg

  35. Random Projections • Multiply data with a random matrix X with X(i,j) drawn from N(0,1) • Several different justifications • Johnson-Lindenstrauss (data set that is small compared to dimensionality) • Compressed Sensing (data set that is sparse in some linear basis) • RP-Trees (data set that has small doubling dimension)

  36. Results • Two goals • show their method is fast • show nearest subspace is useful • Four experiments • Synthetic Experiments • Image Approximation • Yale Faces • Yale Patches

  37. Image Reconstruction

  38. Yale Faces

  39. Questions / Issues • Should random projections be applied before or after the reduction? • Why does the effective distance error go down with the ambient dimensionality? • The reduction tends to make query points far away from the points in the database. Are there better approximate nearest neighbor algorithms in this case?
