QUIKR RIG-UP

QUIKR RIG-UP. SINGLE PERSON RIG-UP FROM COMPACT FOLD CONFIGURATION. COMPACT FOLD, REAR VIEW. 3 ROOT RIBS REMOVED EACH SIDE TO ALLOW FOLD. SPREADING WINGS WHILST PULLING CORD. SEMI-TENSION WING, INSERT BATTENS. PULL UP CROSSBOOM, SECURE ON STUD AND FIT SAFETY PIN. REMOVE RIGGING TOOL.

robin-francis
Télécharger la présentation

QUIKR RIG-UP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. QUIKR RIG-UP SINGLE PERSON RIG-UP FROM COMPACT FOLD CONFIGURATION

  2. COMPACT FOLD, REAR VIEW

  3. 3 ROOT RIBS REMOVED EACH SIDE TO ALLOW FOLD

  4. SPREADING WINGS WHILST PULLING CORD

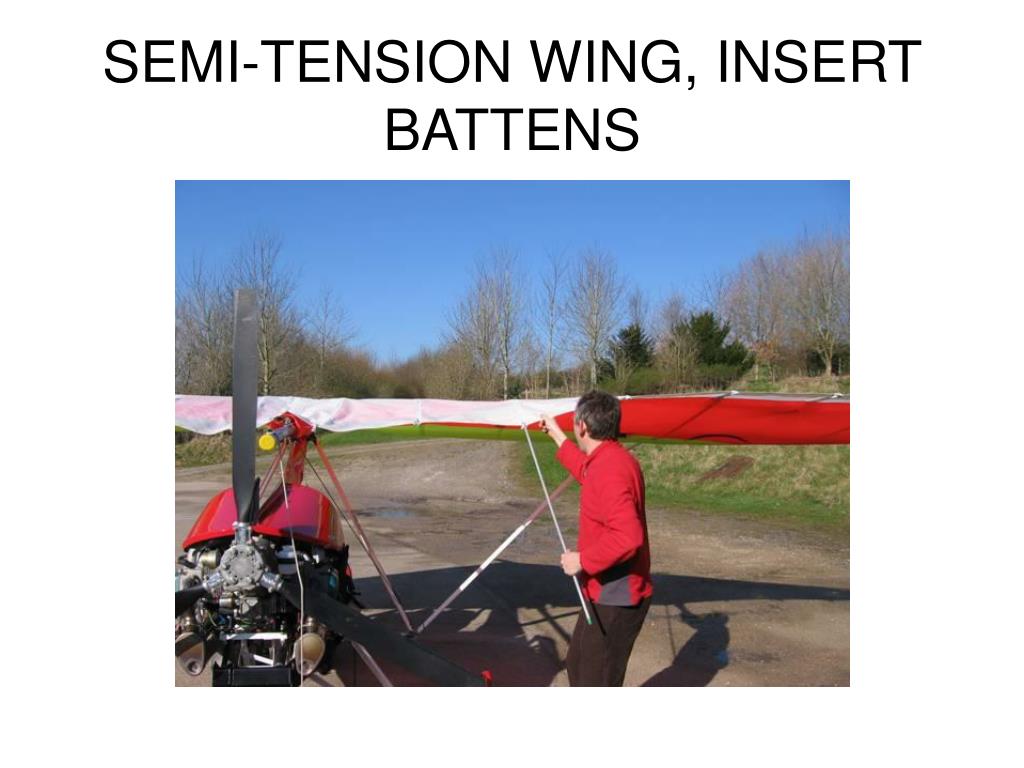

  5. SEMI-TENSION WING, INSERT BATTENS

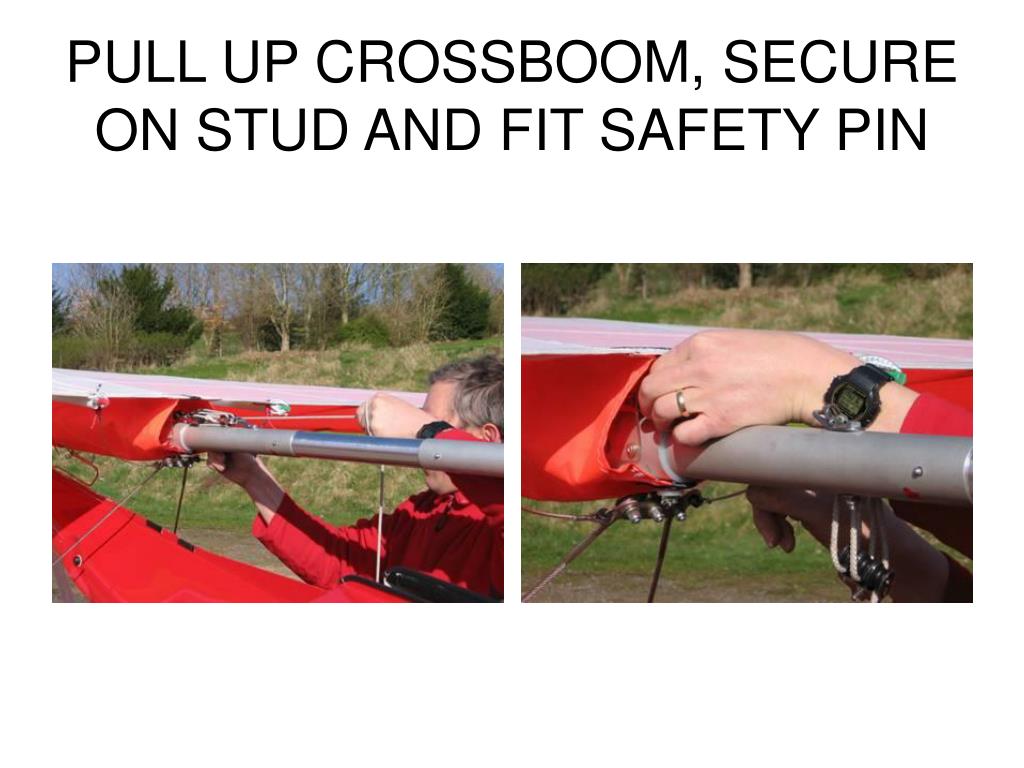

  6. PULL UP CROSSBOOM, SECURE ON STUD AND FIT SAFETY PIN

  7. REMOVE RIGGING TOOL

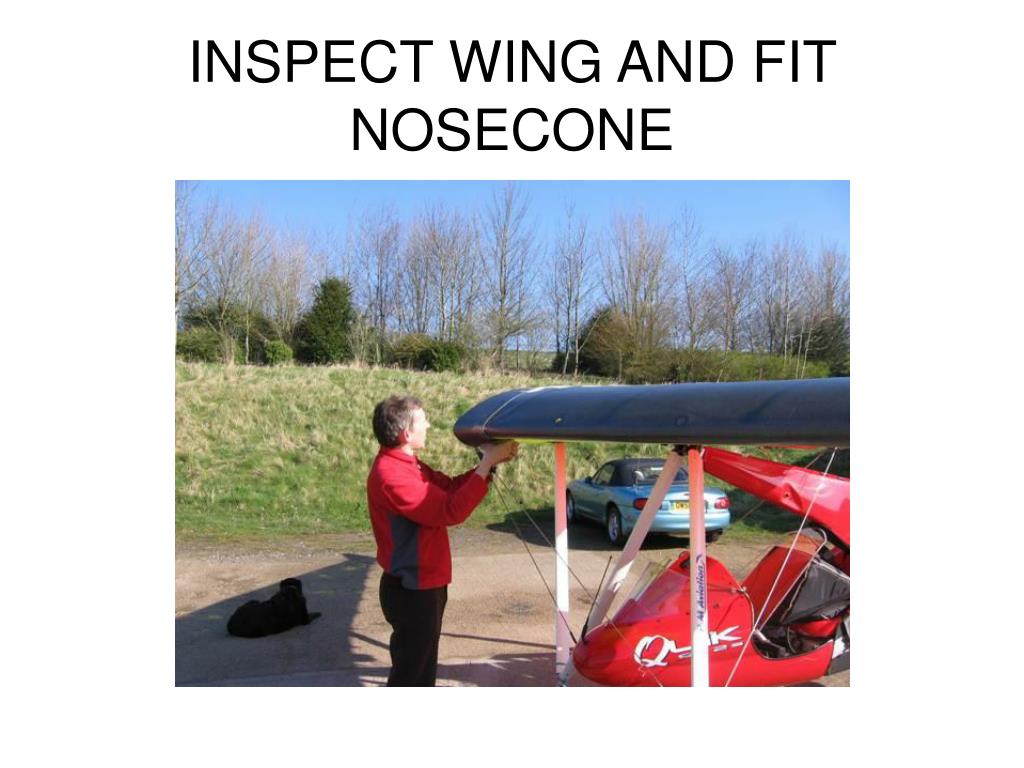

  8. INSPECT WING AND FIT NOSECONE

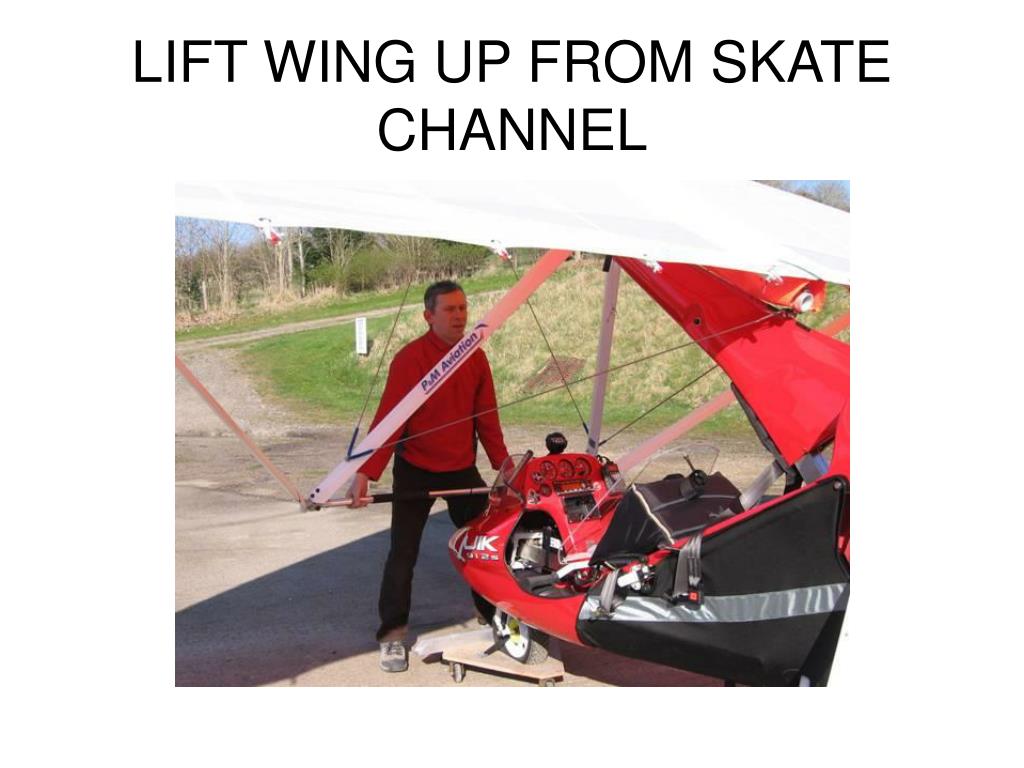

  9. LIFT WING UP FROM SKATE CHANNEL

  10. FIT OVER CENTRE CATCH

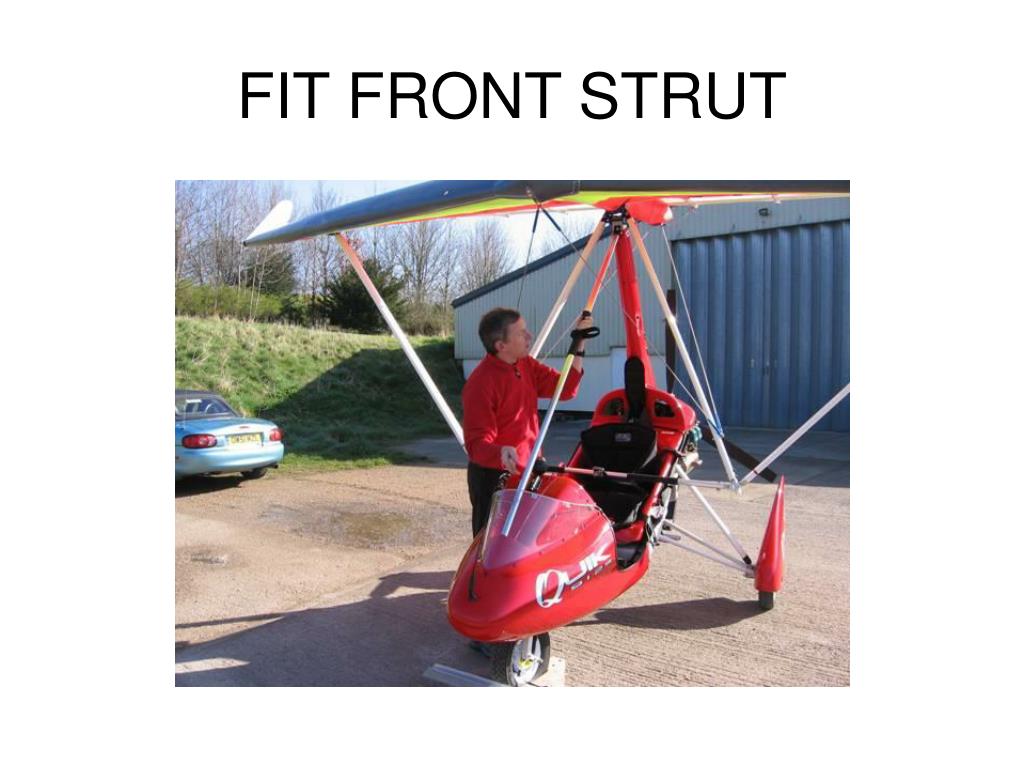

  11. FIT FRONT STRUT

  12. ATTACH FRONT STRUT 3 PINS AND RINGS

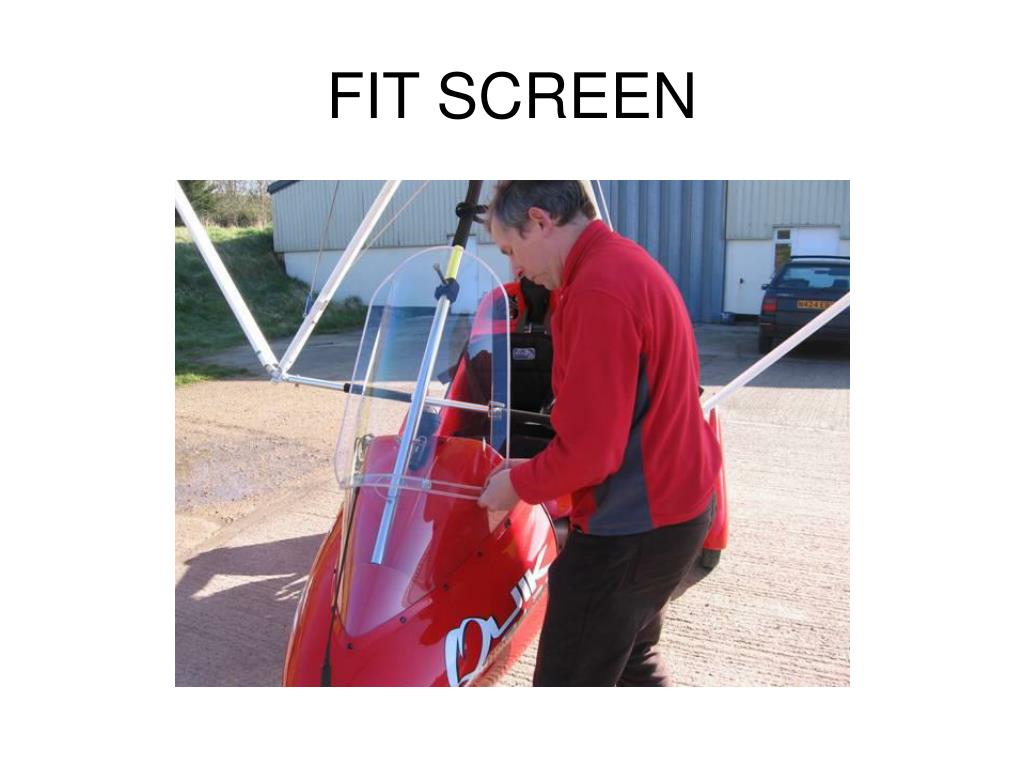

  13. FIT SCREEN

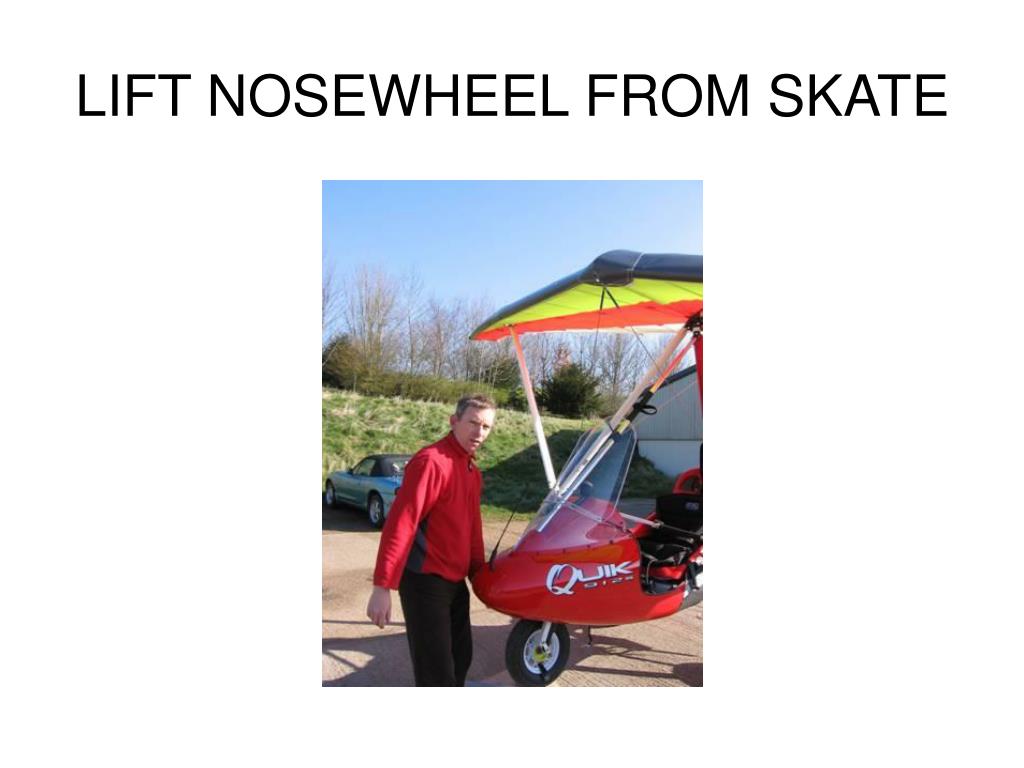

  14. LIFT NOSEWHEEL FROM SKATE

  15. PREFLIGHT CHECK AND FLY
