  1. An Introduction toWebsphere Application Server Integration Capabilities Daniel Schnaider IT Specialist Global Technology Unit

  2. Agenda • Integration importance • Integration Requirements • Why it isn’t enough? • The new Integration Framework • Integration Framework capabilities • How to get started!

  3. Stages of e-business adoption Phase I Phase II Access Enterprise Integration Eyebrow /breadcrumb (text below business unit or product name): 14pt Arial Regular, lightgray R192 | G192 | B192 IntegrateInternally IntegrateExternally Access Publish Transact Source reference:10pt Arial Regular, white Text slide withhorizontal bar charts

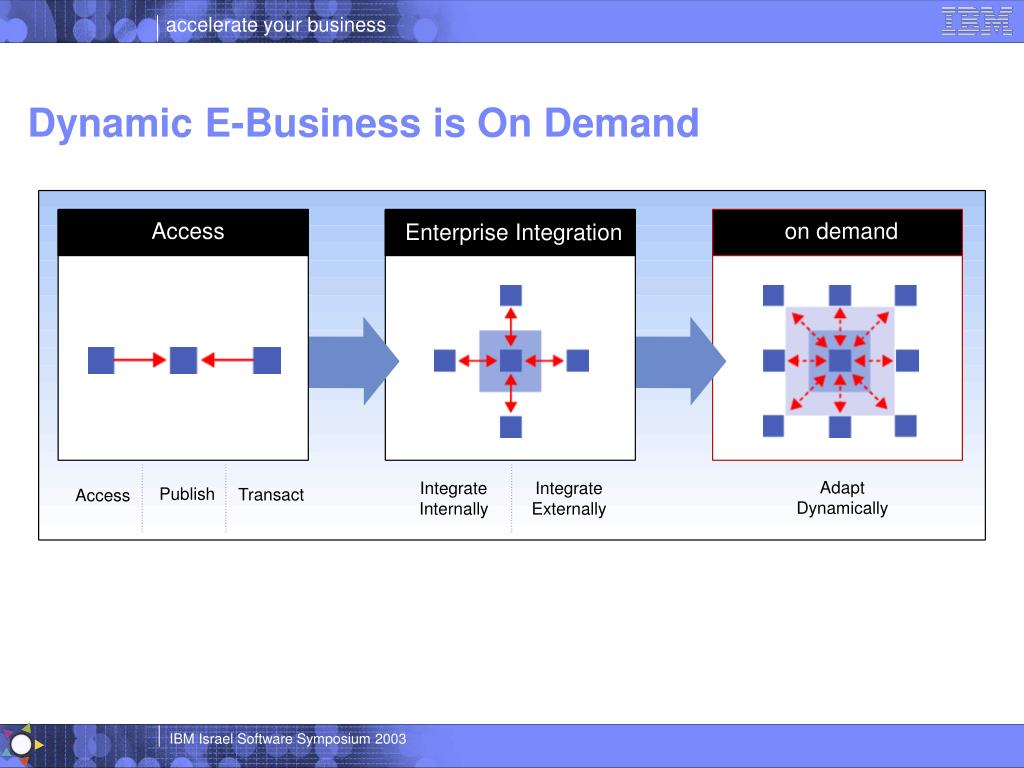

  4. Dynamic E-Business is On Demand Access on demand Enterprise Integration Eyebrow /breadcrumb (text below business unit or product name): 14pt Arial Regular, lightgray R192 | G192 | B192 AdaptDynamically IntegrateInternally IntegrateExternally Publish Transact Access Source reference:10pt Arial Regular, white Text slide withhorizontal bar charts

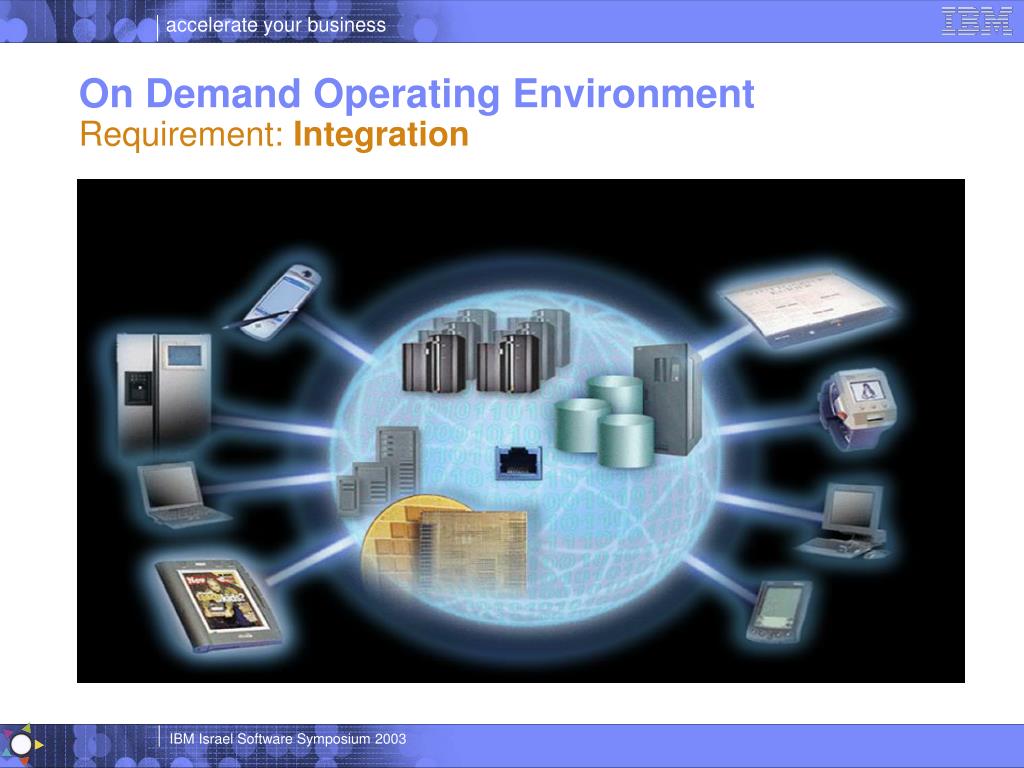

  5. On Demand Operating EnvironmentRequirement: Integration

  6. On Demand Operating EnvironmentRequirement: Open Standards Linux XML WSDL JCA JMS

  7. On Demand Operating EnvironmentRequirement: Virtualized

  8. On Demand Operating EnvironmentRequirement:Autonomic Self-protecting Self-optimizing Self-healing Self-configuring

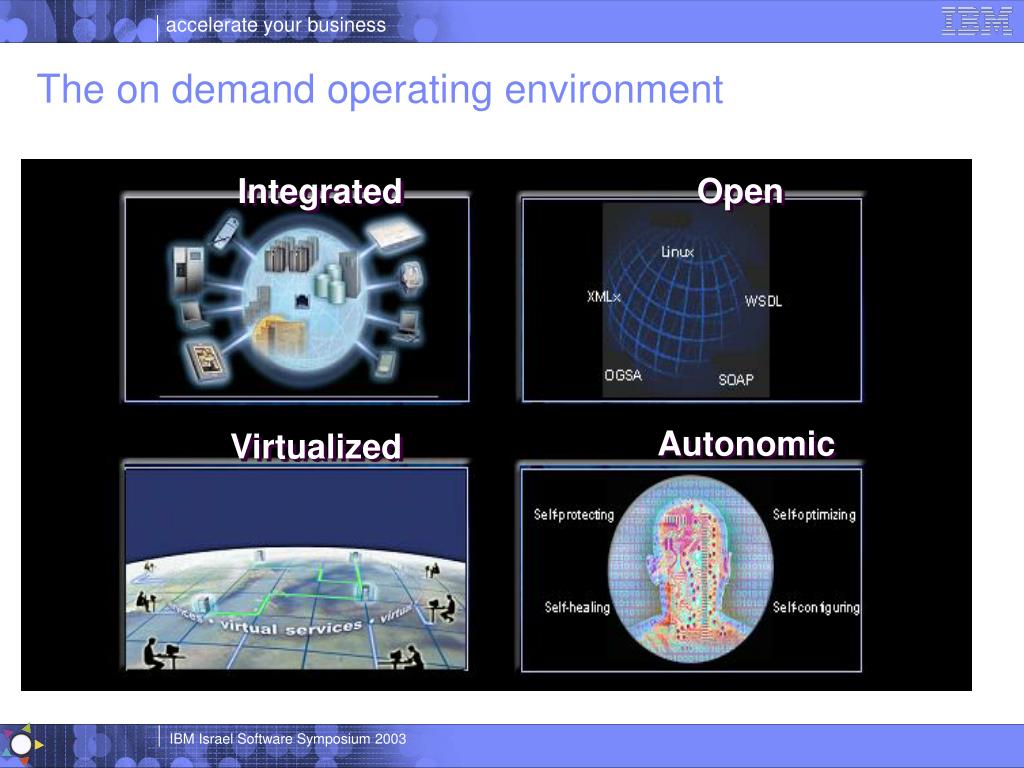

  9. The on demand operating environment Open Integrated Autonomic Virtualized

  10. Integration alternatives for ISVs… Websphere

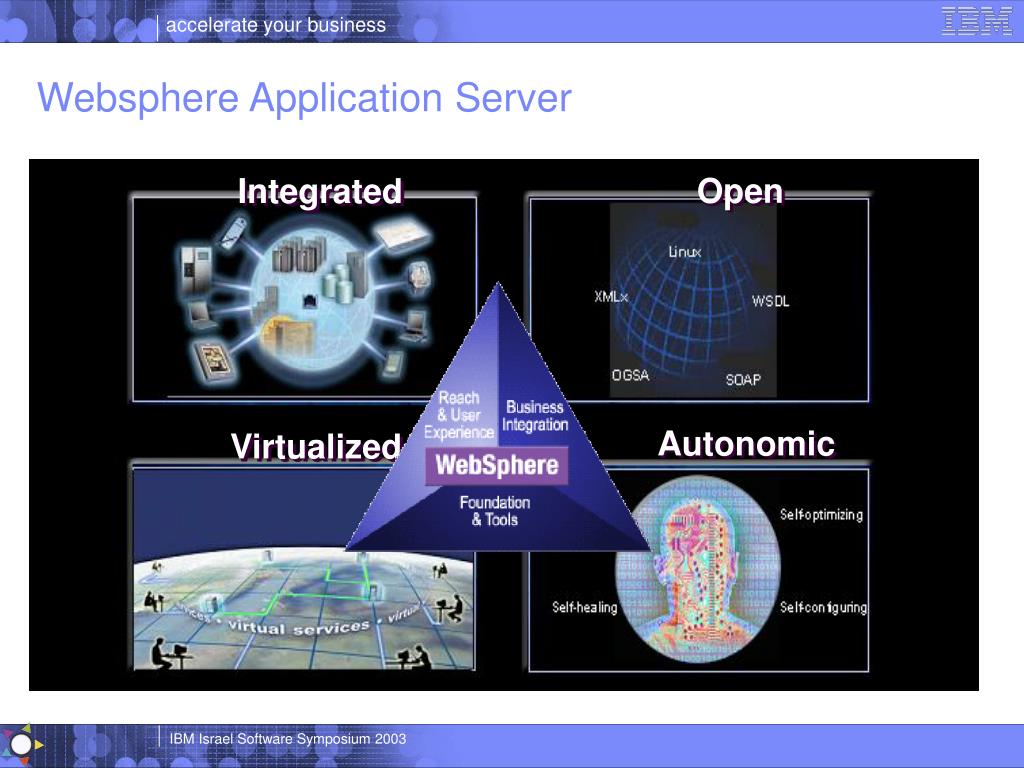

  11. Websphere Application Server Open Integrated Autonomic Virtualized

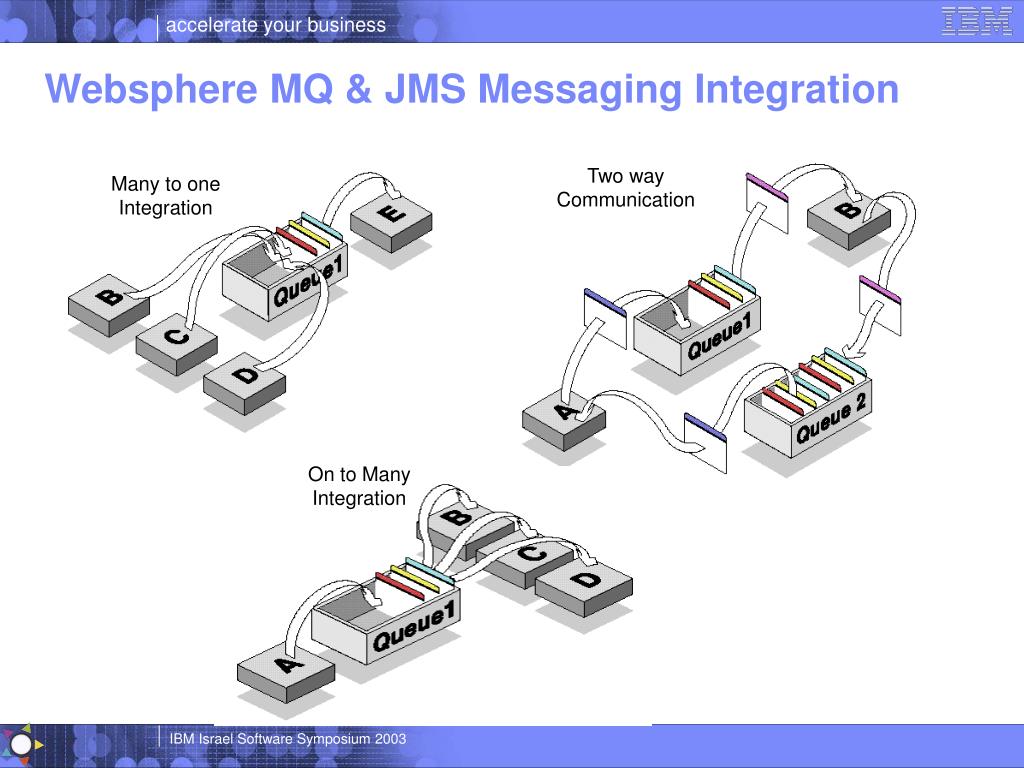

  12. Websphere MQ & JMS Messaging Integration Two way Communication Many to one Integration On to Many Integration

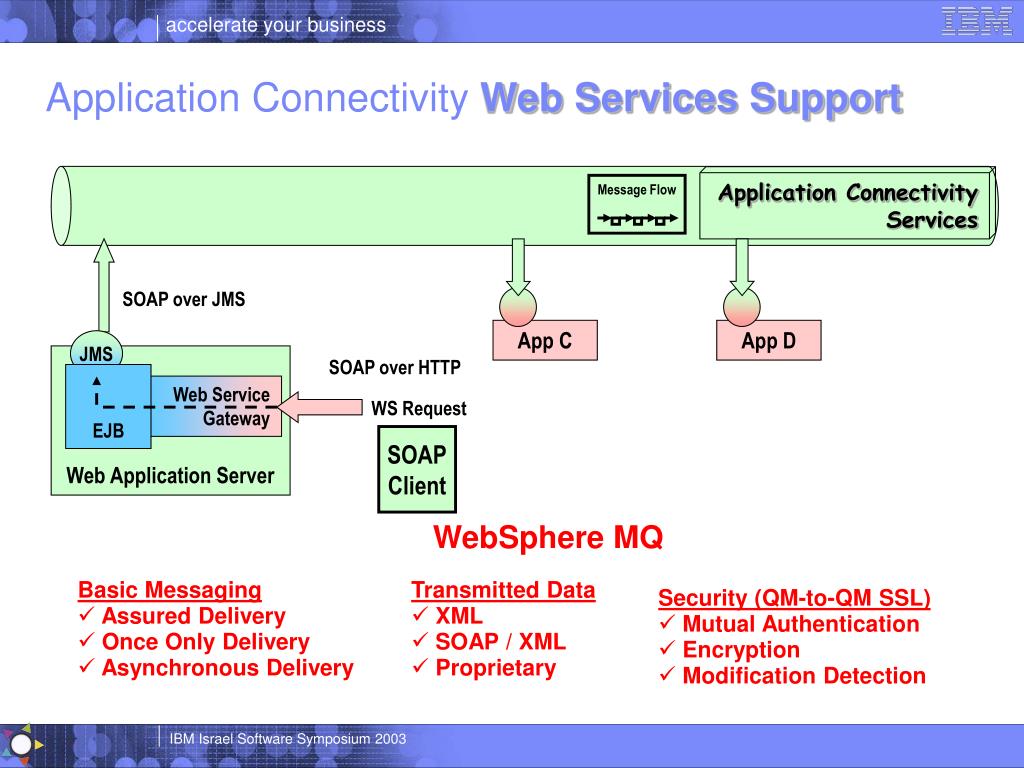

  13. Message Flow Application Connectivity Web Services Support Application Connectivity Services SOAP over JMS App C App D JMS Web Application Server SOAP over HTTP WS Request EJB Web Service Gateway SOAP Client WebSphere MQ Basic Messaging • Assured Delivery • Once Only Delivery • Asynchronous Delivery Transmitted Data • XML • SOAP / XML • Proprietary Security (QM-to-QM SSL) • Mutual Authentication • Encryption • Modification Detection

  14. JCA – J2EE Connector Architecture

  15. Adapters • Application Adapters • Ariba Buyer • Clarify CRM • eMatrix • i2 • i2 Active Data Warehouse • IndusConnect Framework • Maximo MEA • MetaSolv Applications • mySAP.com • NightFire Applications • Oracle Applications • PeopleSoft • Portal Infranet • QAD MFG/PRO • Retek • Siebel eBusiness Applications • Spirent Applications • Telcordia Applications • WebSphere Commerce Technology Adapters, Data Handlers • Adapter for e-mail • COM • CORBA • Exchange • FIX Protocol • Healthcare Data Protocols • iSeries • JCA • JDBC • JMS • JText • Lotus Domino • SWIFT • XML • Web Services • WebSphere MQ • WebSphere MQ Integrator • WebSphere MQ Workflow • Data Handler for XML • Data Handler for EDI Mainframe Adapters • CICS • IMS Transaction Manager • IMS Database Manager • Adapter for VSAM • DB2 Databases • ADABAS • Natural • IDMS Database • e-Business Products • Trading Partner Interchange Trading Networks • Trading Partner Interchange Solo • Trading Partner Interchange On-Ramp • iSoft Peer to Peer Agent

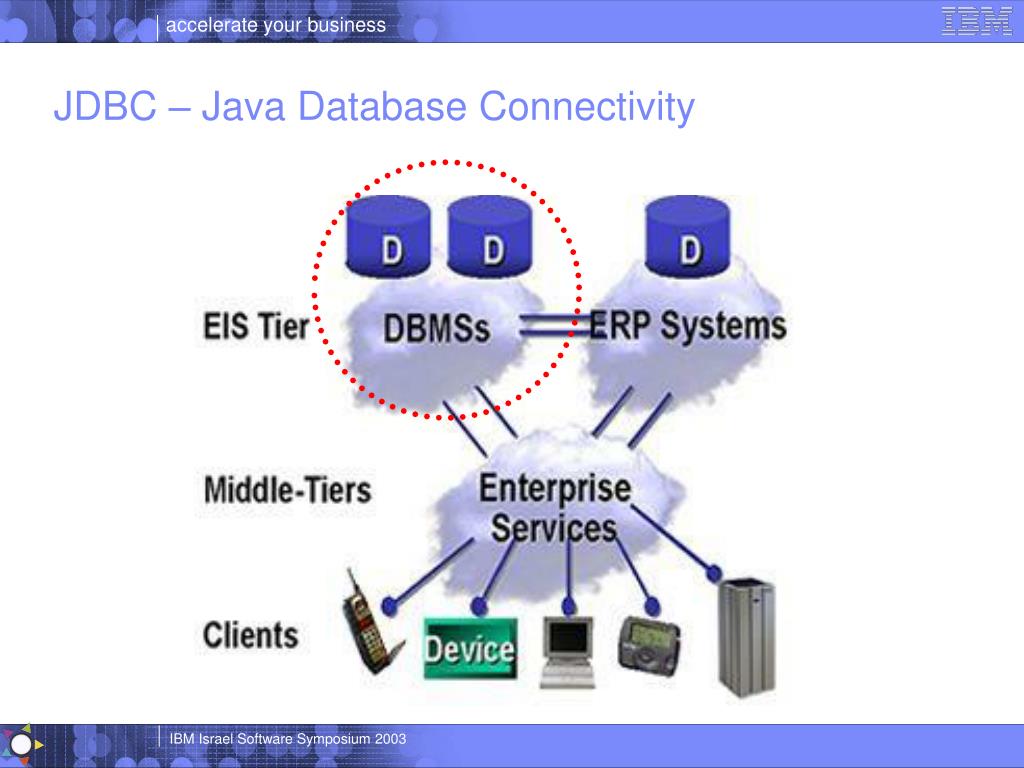

  16. JDBC – Java Database Connectivity

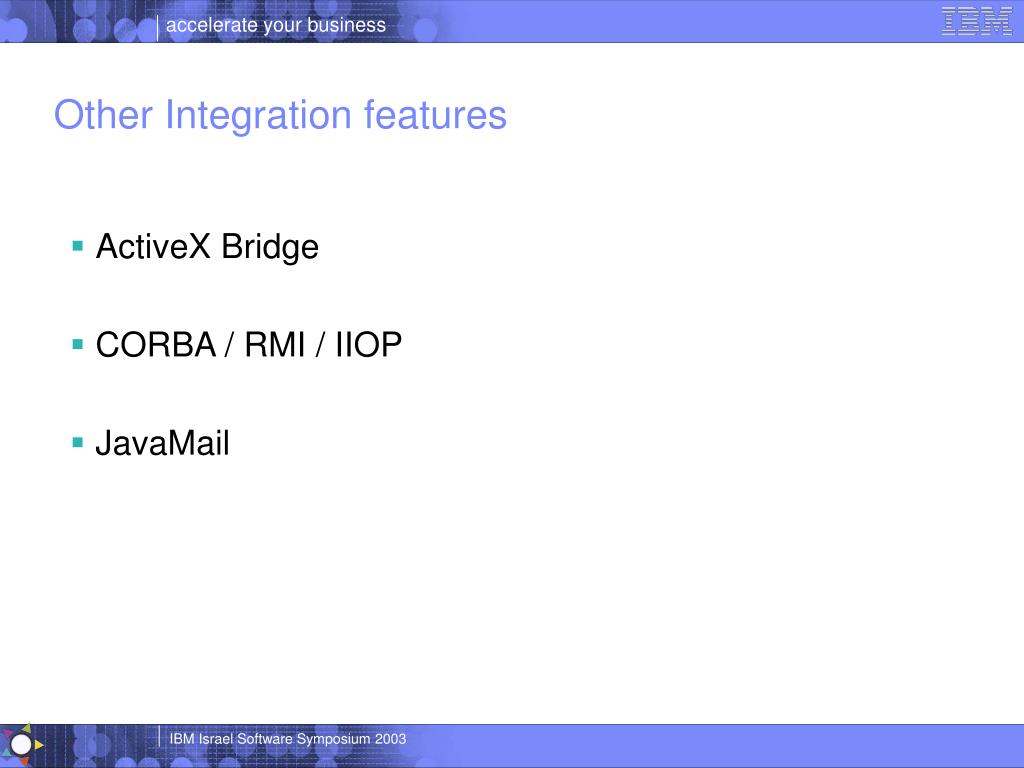

  17. Other Integration features • ActiveX Bridge • CORBA / RMI / IIOP • JavaMail

  18. Scheduler

  19. Business Processes with Human Interaction:Stock order Orders exceeding the limit of 100,000 $ must be approved by a human.

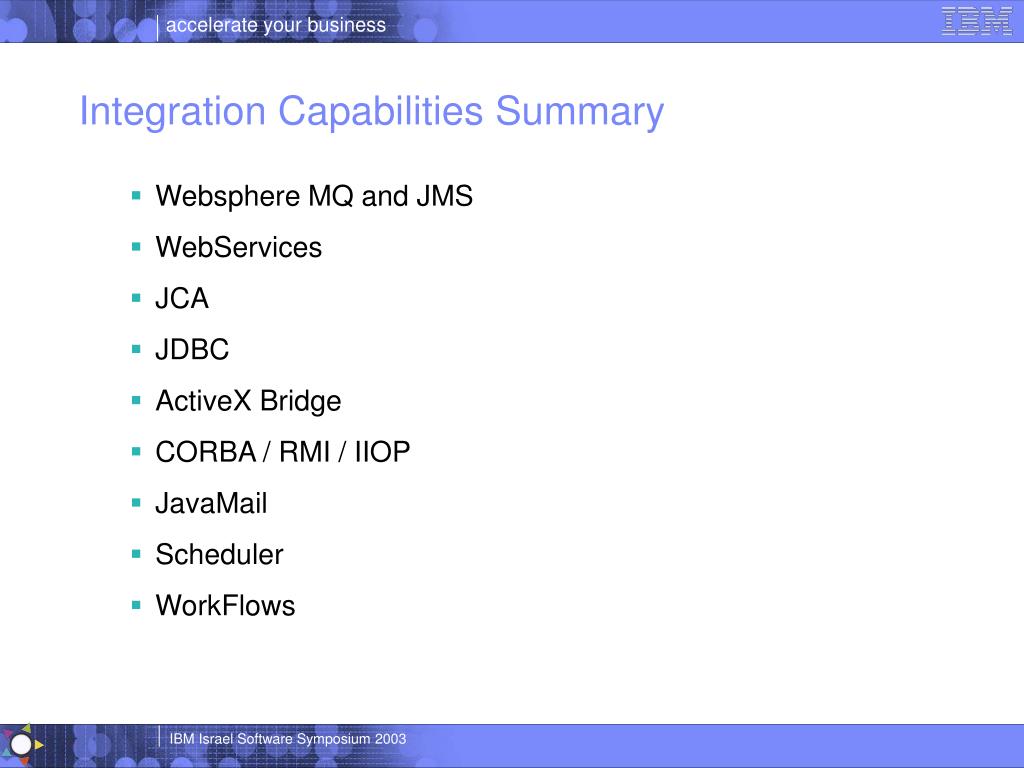

  20. Integration Capabilities Summary • Websphere MQ and JMS • WebServices • JCA • JDBC • ActiveX Bridge • CORBA / RMI / IIOP • JavaMail • Scheduler • WorkFlows

  21. אנא מלאו את טופס המשוב A7 קוד ההרצאה:
