Module 5

1. Module 5 Hardware

2. What Computers Do Process Information Produce Output Receive Input Store Information

3. 4 Primary Components of a Computer Secondary - hard disks - removable disks - CDs - tapes Primary - memory - RAM - ROM Storage Devices Input Devices Processing Output Devices - keyboard - mouse - scanner - digital camera - touchpad • CPU • Control Unit • Arithmetic & Logic Unit - monitor - printer - speakers

4. Processing - CPU • “Central Processing Unit” • http://www.howstuffworks.com/microprocessor1.htm • evolution of processors • the “brains” of the computer, where calculations take place • two parts: • ALU - Arithmetic Logic Unit • electronic circuitry that does all arithmetic and logic operations • Control Unit • circuitry that directs all other parts of the computer

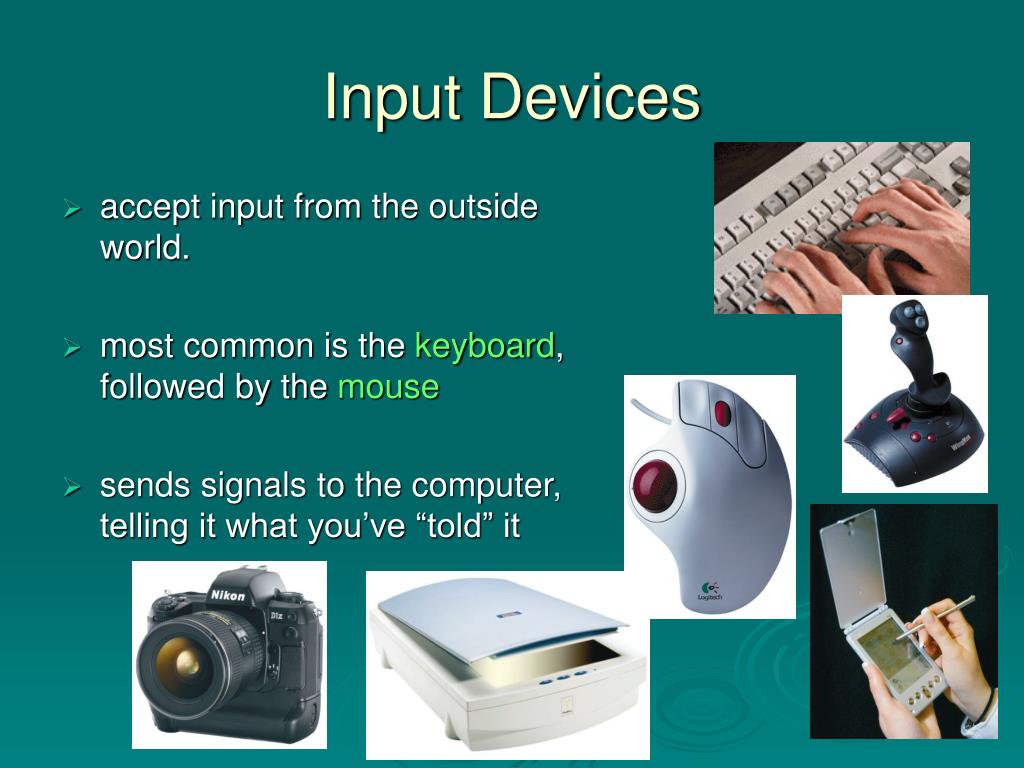

5. Input Devices • accept input from the outside world. • most common is the keyboard, followed by the mouse • sends signals to the computer, telling it what you’ve “told” it

6. Output Devices • sends output to the outside world • converts and displays the computer’s internal bit patterns to a format that humans can understand • Main output devices are • monitors for immediate visual output • printers for permanent paper output

7. Screen Output • A monitor or video display terminal (VDT) displays characters, graphics, photographic images, animation and video. • Video adapter—connects the monitor to the computer • VRAM or video memory—a special portion of RAM to hold video images (the more video memory, the more detail of a picture displayed)

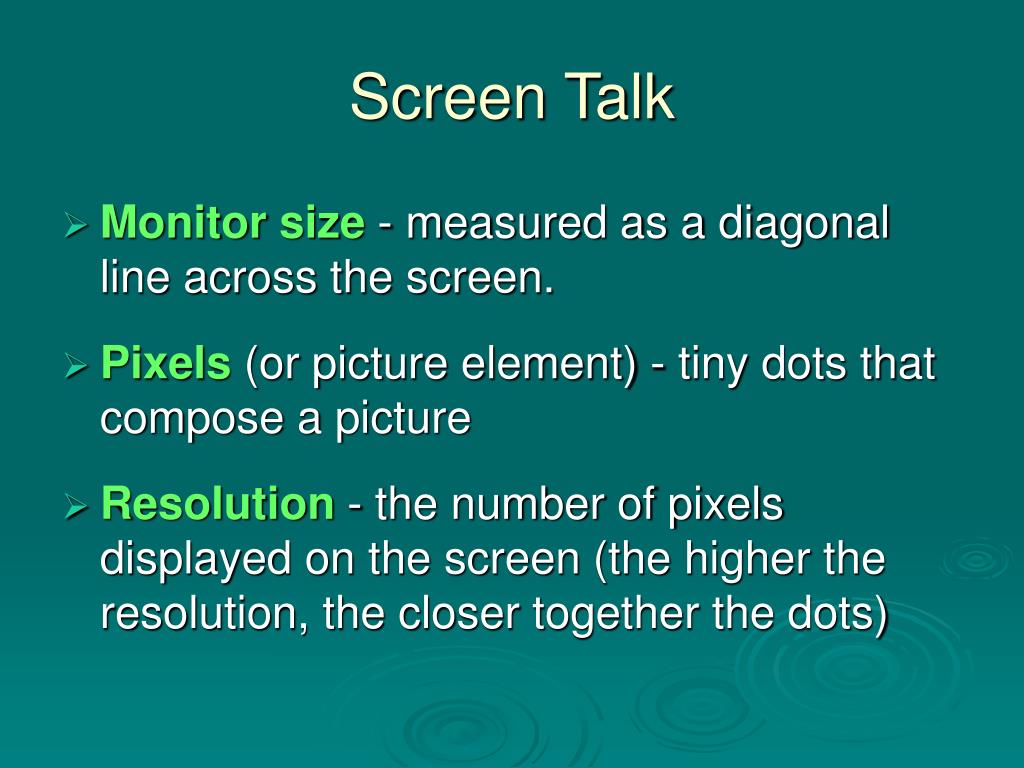

8. Screen Talk • Monitor size - measured as a diagonal line across the screen. • Pixels(or picture element) - tiny dots that compose a picture • Resolution- the number of pixels displayed on the screen (the higher the resolution, the closer together the dots)

9. Image Quality • Image quality is affected by resolution and color depth (or bit depth) • Color depth refers to the number of different colors a monitor displays at the same time

10. 4-bit depth 1-bit depth 8-bit depth 16-bit depth Examples of Color Depth

11. Paper Output • Printers produce paper output or hard copy • 2 kinds of printers: • Impact printers • Non-impact printers

12. Impact Printers • Line printer • Used by mainframes to produce massive printouts • Limited to printing characters • Dot matrix printer • Images created by a matrix of tiny dots • Low print quality • Low cost

13. Non-impact Printers • A laser beam reflected off a rotating drum to create patterns of electrical charges • Faster and more expensive than dot matrix printer • High-resolution output Laser Printer

14. More on Non-impact Printers • Sprays ink onto paper to produce printed text and graphic images • Prints fewer pages/minute than laser printer • High-quality color costing less than laser printer Ink-jet Printer

15. Storage devices

16. Storage/Memory Devices • Divided into two groups: • Primary storage • usually a temporary storage for the data and programs currently in operation or currently being accessed. • it’s fastest and most expensive • Secondary storage • long-term storage locations • cheap but slower than primary memory • some are portable/removable • larger capacity than primary memory

17. Primary Storage - RAM • RAM: Random Access Memory • very fast - access times < 1 billionth of a second – in nanoseconds • volatile storage - once the computer is turned off, everything is lost • this is where data and programs currently being used reside • a document that has not yet been “saved” is in RAM and will be lost if the computer freezes or the power goes off

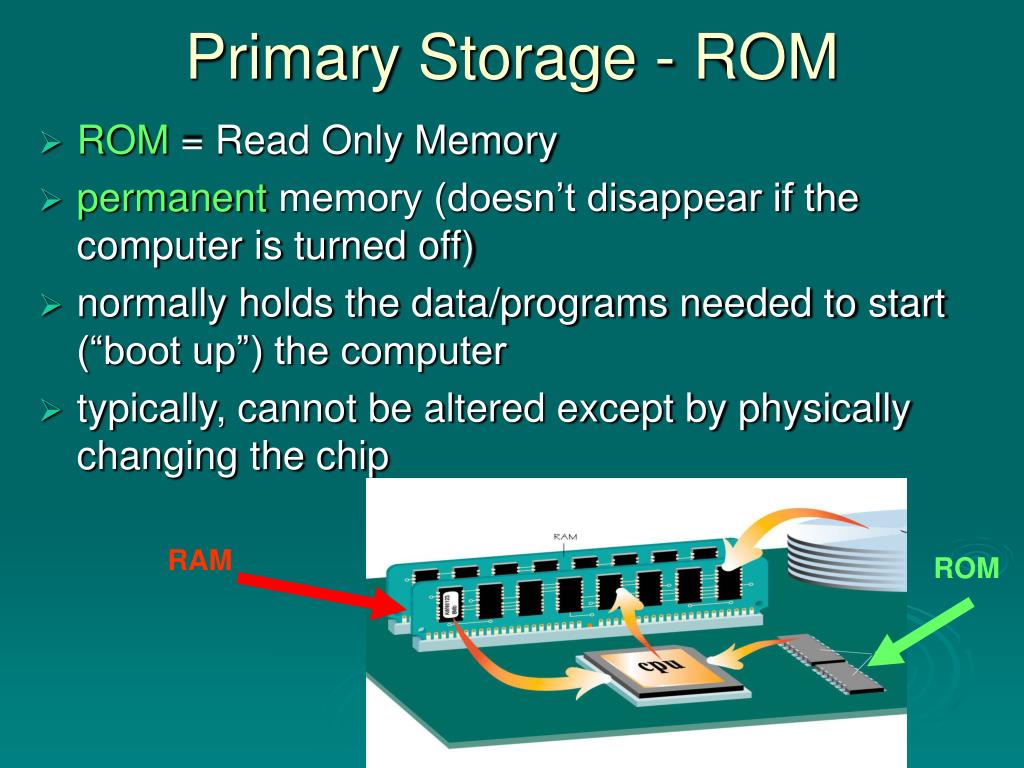

18. Primary Storage - ROM • ROM = Read Only Memory • permanent memory (doesn’t disappear if the computer is turned off) • normally holds the data/programs needed to start (“boot up”) the computer • typically, cannot be altered except by physically changing the chip RAM ROM

19. Secondary Storage • Secondary storage devices are computer peripherals capable of performing both input and output functions • Information is stored semi-permanently on tape and disk drives • Examples of storage devices • Magnetic tapes and disks • Zip, Jaz and SuperDisks • Optical disks

20. Secondary storage - Magnetic Tape • Magnetic tapes • Sequential access • Can store large amounts of information in a small space at a relatively low cost • Limitation: sequential access • Used mainly for backup purposes

21. Magnetic Media • Magnetic drives • Random access • Floppy disks for inexpensive, portable storage • Hard disks are typically non-removable, rigid disks that spin continuously and rapidly thus providing much faster access than a floppy disk. • Removable media (Zip & Jaz disks) provide high-capacity portable storage.

22. Hard Disk • magnetic storage • data is saved until something is written over it (or it gets damaged somehow) • data saved on “platters” and read with a “head” • platters spin at 3600-7200RPM • head can move to center and back to edge about 50 times per second • platters divided into “tracks” and “sectors” to make it easier to retrieve data.

23. Optical Media • Not as fast as magnetic hard disks • Massive storage capacity and reliability Optical disk drive uses laser beams to read and write bits of information on the disk surface.

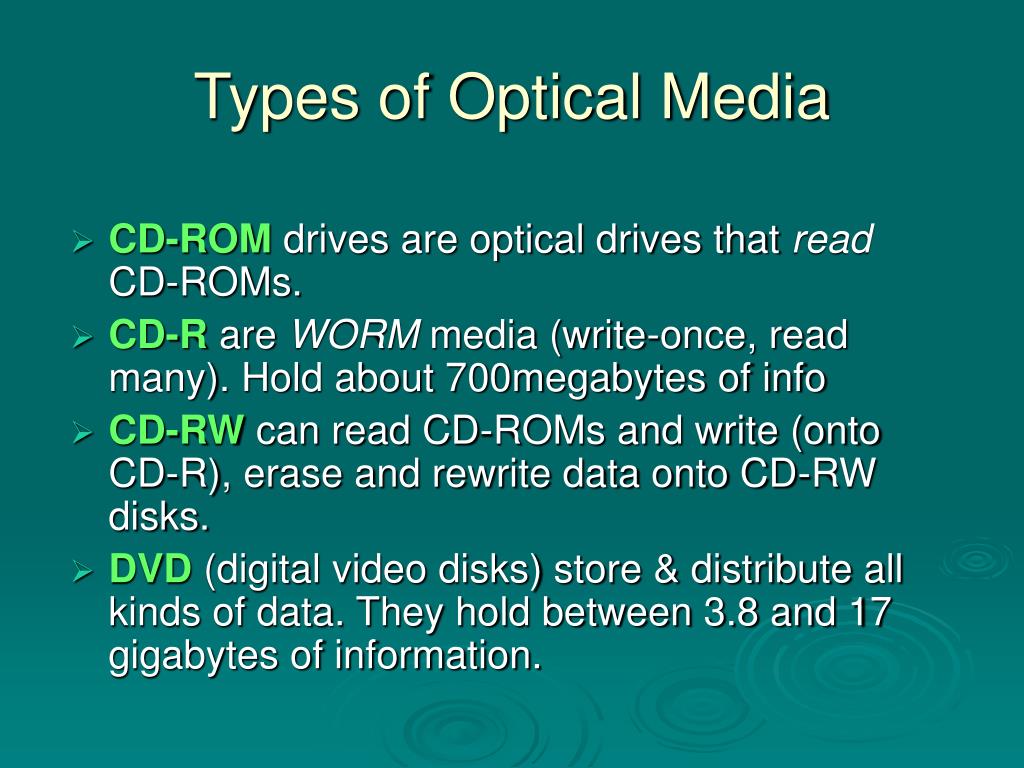

24. Types of Optical Media • CD-ROM drives are optical drives that read CD-ROMs. • CD-R are WORM media (write-once, read many). Hold about 700megabytes of info • CD-RWcan read CD-ROMs and write (onto CD-R), erase and rewrite data onto CD-RW disks. • DVD(digital video disks) store & distribute all kinds of data. They hold between 3.8 and 17 gigabytes of information.

25. Solid-state Storage Devices • Flash memory is an erasable memory chip. • Compact alternative • No moving parts • Designed for specific applications such as storing pictures in digital cameras • Likely to eventually replace disk and tape storage

26. Processing

27. The CPU The microprocessor that makes up your personal computer’s central processing unit, or CPU, is the ultimate computer brain, messenger, ringmaster and boss. All the other components—RAM, disk drives, the monitor— exist only to bridge the gap between you and the processor. Ron White, in How Computers Work

28. The CPU • The CPU: • interprets and executes instructions • performs arithmetic and logical data manipulations • communicates with the other parts of the computer system.

29. The CPU CPU • The CPU is a complex collection of electronic circuits. • When all of those circuits are built into a single silicon chip, the chip is referred to as amicroprocessor. • The circuit board that contains a computer’s CPU is called the motherboard or system board. motherboard

30. CPU Speed • A computer’s speed is determined in part by the speed of its internal clock • The clock is a timing device that produces electrical pulses to synchronize the computer’s operations. • A computer’s clock speed is measured in units called megahertz (MHz), for millions of clock cycles per second

31. CPU Speed • Parallel processingplaces multiple processors in a computer. • Most supercomputers have multiple processors that divide jobs into pieces and work in parallel on the pieces.

32. Ports and Slots Tying things together

33. Ports and Slots • The system or motherboard includes several standard ports: • Serial Portfor attaching devices that send/receive messages one bit at a time (modems) • Parallel Portfor attaching devices that send/receive bits in groups (printers) • Keyboard/Mouse Portfor attaching a keyboard and a mouse

34. More on Ports and Slots • Other ports are typically included on expansion boards rather than the system board: • Video Portused to plug in a color monitor into the video board • Microphone, speaker, headphone, MIDI ports used to attach sound equipment • SCSI port allows several peripherals to be strung together and attached to a single port

35. Expansion Made Easy With the open architecture of the PC and the introduction of new interfaces, you can now hot swap devices. • USB(Universal Serial Bus) transmits a hundred times faster than a PC serial port • Firewire (IEEE 1394) can move data between devices at 400 or more megabits per second • high speed makes it ideal for data-intensive work like digital video

36. Bits and Bytes

37. 1 2 3 Text Pictures Numbers Sounds Information Information comes in many forms Computers store information in digital form

38. Bit Basics • A bit (binary digit) • is the smallest unit of information • can have two values: 1 or 0 • can represent numbers, codes, orinstructions On/off

39. Bits as Numbers • Each switch can be used to store a tiny amount of information, such as: • An answer to a yes/no question • A signal to turn on a light • Larger chunks of information are stored by grouping bits as units • 8 bits (byte) = 256 different messages

40. Bits As Codes ASCII – American Standard Code for Information Interchange Most widely used code, represents each character as a unique 8-bit code.

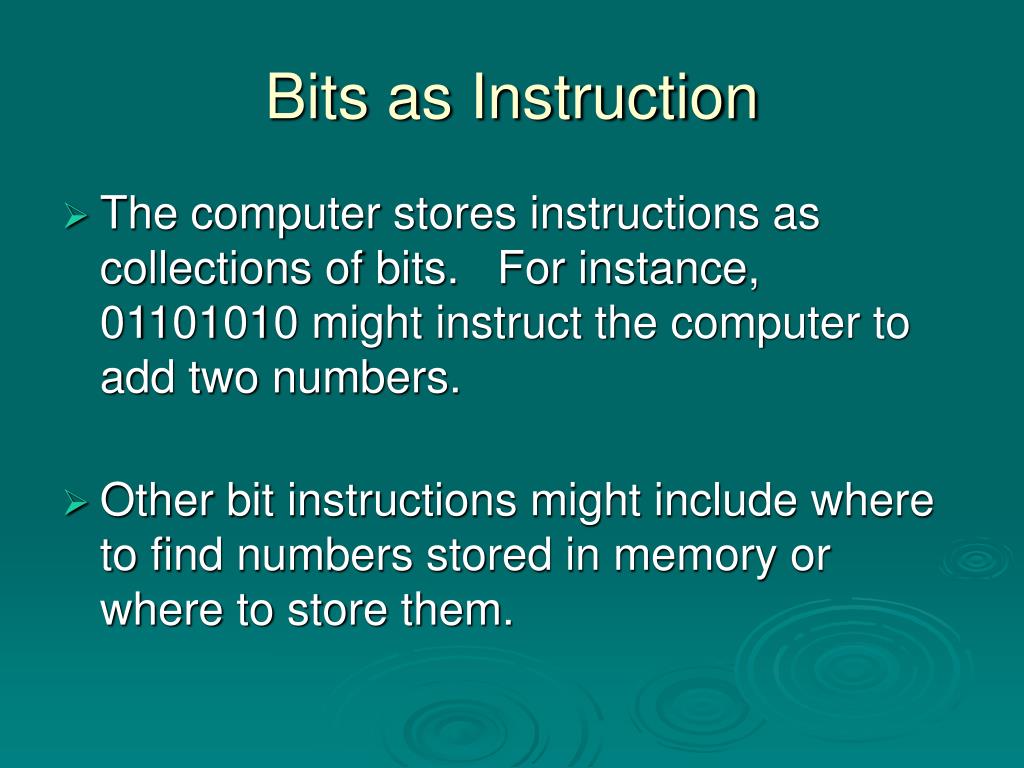

41. Bits as Instruction • The computer stores instructions as collections of bits. For instance, 01101010 might instruct the computer to add two numbers. • Other bit instructions might include where to find numbers stored in memory or where to store them.

42. Byte Kilobyte (KB) Megabytes (MB) Gigabytes (GB) Terabytes (TB) = 8 bits ≈1 Thousand Bytes ≈1 Million Bytes ≈1 Billion Bytes ≈1 Trillion Bytes Bits, Bytes, and Buzzwords Terms used to describe file size or memory size:

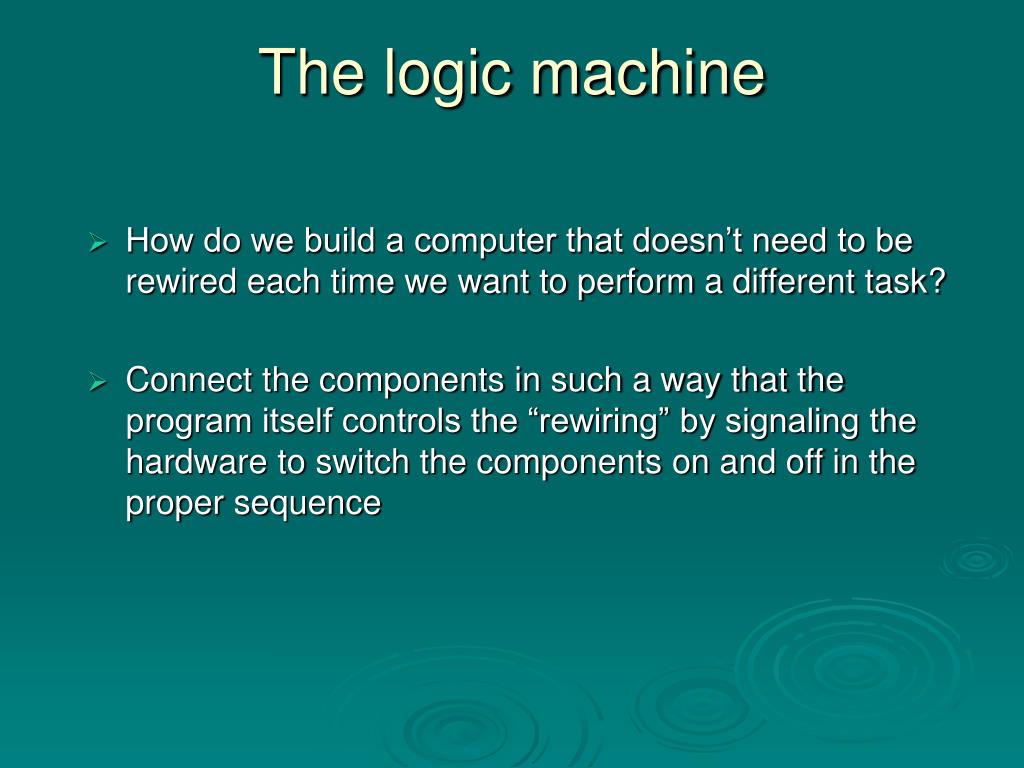

43. The logic machine • How do we build a computer that doesn’t need to be rewired each time we want to perform a different task? • Connect the components in such a way that the program itself controls the “rewiring” by signaling the hardware to switch the components on and off in the proper sequence

44. Logic Gates • Using switches, we can reproduce the logical operators • AND • OR • NOT • 0 = false = off • 1 = true = on

45. AND AND is written like a multiply

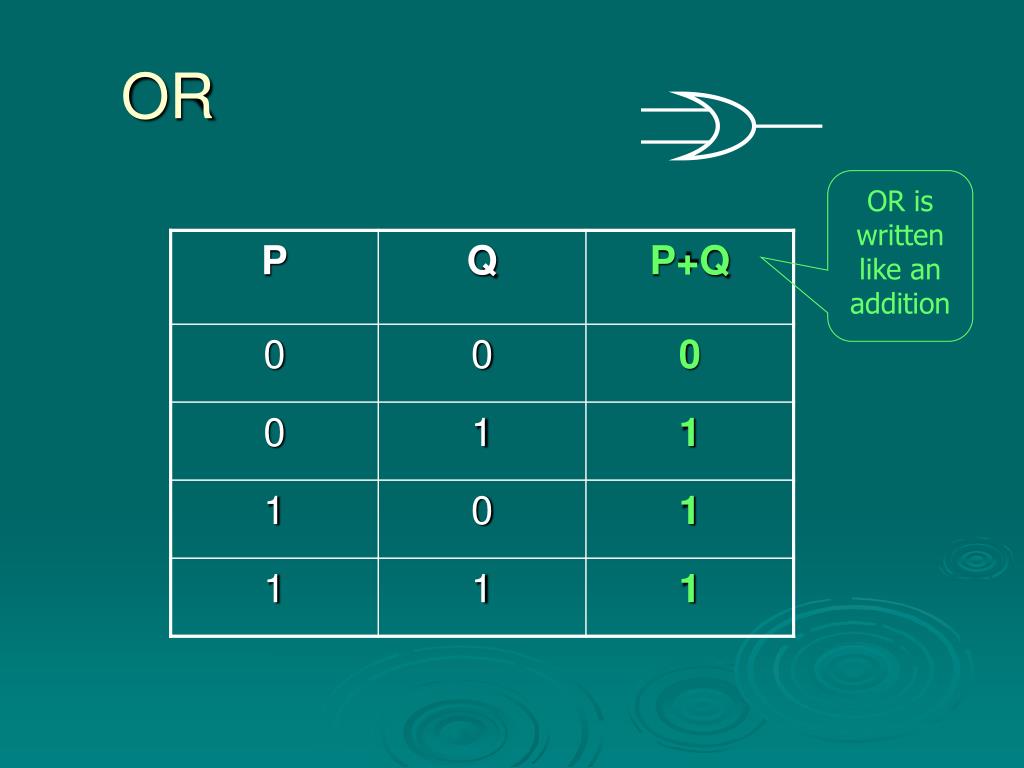

46. OR OR is written like an addition

47. NOT NOT is written with an ’ after the letter

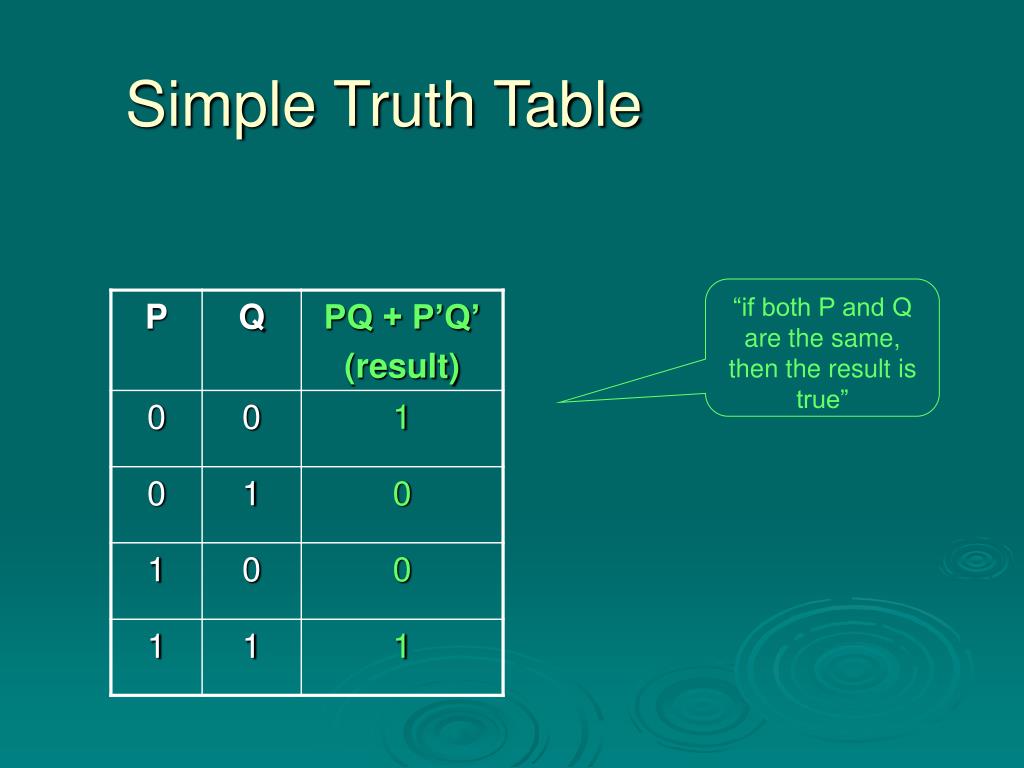

48. Simple Truth Table “if both P and Q are the same, then the result is true”

49. Example: check to see if P and Q are equal • Step 1: build Truth Table • The truth table for “P and Q are equal” looks like: P = 0, Q = 0 they are equal so result is true (1) P = 1, Q = 1 they are equal, so result is true (1)

50. Step 2: • Build an AND statement for each line where Result = 1 the ’ means NOT… so P’ means that P is off/0 P’ AND Q’ = P’Q’ P AND Q = PQ
