  1. PROCESS CONTROL DESIGN CRITERIA DESIGNS FOR SPECIFIC SERVICES

  2. DISTILLATION CONTROL • PRESSURE CONTROL • COLUMNS ARE OPERATED AT CONSTANT PRESSURE • PRESSURE CONTROL CAN BE UTILIZE • VACUUM CONTROL FOR SUBAMBIENT OPERATION, WITH CONDENSATE TEMPERATURE CONTROL TO ASSURE TOTAL CONDENSATION • CONDENSER CONTROL FOR PRESSURIZED COLUMNS, WITH PURGE TO ELIMINATE ACCUMULATION OF NON-CONDENSIBLE COMPONENTS http://coweb.cc.gatech.edu/process/uploads/distillationcolumn.gif

  3. TC PC VACUUM SYSTEM CONDENSER OVERPRESSURE PURGE VALVE SUB-AMBIENT DISTILLATION SYSTEM DISTILLATE RECEIVER COLUMN TYPICAL ARRANGEMENT FOR DISTILLATION PRESSURE CONTROL FOR SUB- AMBIENT SYSTEM

  4. PC CONDENSER OVERPRESSURE PURGE VALVE AMBIENT OR SUPER –AMBIENT DISTILLATION SYSTEM DISTILLATE RECEIVER COLUMN TYPICAL ARRANGEMENT FOR DISTILLATION PRESSURE CONTROL FOR ABOVE AMBIENT SYSTEM

  5. REFLUX CONTROL • USE LEVEL CONTROL ON DISTILLATE RECEIVER TO CONTROL DISTILLATE RATE • USE FLOW-FLOW RATIO CONTROL TO CONTROL REFLUX RATE • NOTE THAT THIS REFLUX RATIO SETPOINT CAN BE ADJUSTED USING AN ANALYZER SENSOR • USE TEMPERATURE CONTROL FOR CONDENSER WATER FLOW

  6. LC COLUMN STEAM TC BOIL-UP CONTROL FOR DISTILLATION SYSTEM BOTTOMS REBOILER BOILUP CONTROL

  7. BOILUP CONTROL • THE SUMP LEVEL CONTROL SERVES TO SET THE BOTTOMS FLOW RATE • THE VAPORIZATION RATE CAN BE CONTROLLED USING THE LOWER TRAY TEMPERATURE • OTHER OPTIONS ARE AVAILABLE www.aspentech.com/publication_files/An_Integrated_Approach_for_Distillation_Column_Control.pdf

  8. REACTOR HEAT EXCHANGER CIRCULATION PUMP TC HEATING OR COOLING MEDIA REACTOR CONTROL

  9. REACTOR CONTROL • CSTR • FOR EXOTHERMIC OR ENDOTHERMIC REACTIONS, LOCATE THE HEAT TRANSFER UNIT OUTSIDE THE REACTOR AND USE A JACKET OR AN INTERNAL COIL • PFR • CONTROLLED LIKE A HEAT EXCHANGER

  10. I FS B A S PUMP FLOW CONTROLS • PUMPS SHOULD INCLUDE A SWITCH TO ACTIVATE/SWITCH THE SPARE UNIT LL

  11. I I RD LL HH TANK RELIEF DESIGNS • TANKS SHOULD BE ALARMED FOR LEVEL AND/OR PRESSURE AND/OR TEMPERATURE • PRESSURE RELIEF SHOULD BE PROVIDED FOR TANKS CONTAINING HAZARDOUS MATERIALS TO FLARE PS HH LS INERT GAS

  12. Cl2 RXTR PLC USE PLCs FOR BATCH OPERATIONS • USE RECIPE FROM SUPERPRO

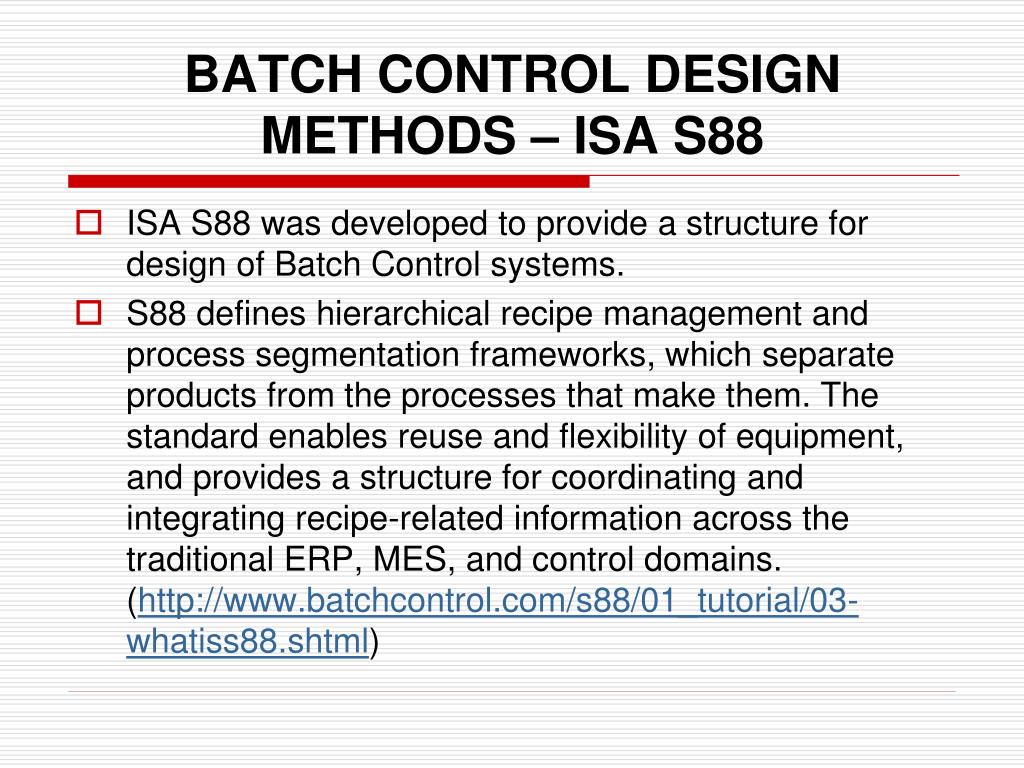

  13. BATCH CONTROL DESIGN METHODS – ISA S88 • ISA S88 was developed to provide a structure for design of Batch Control systems. • S88 defines hierarchical recipe management and process segmentation frameworks, which separate products from the processes that make them. The standard enables reuse and flexibility of equipment, and provides a structure for coordinating and integrating recipe-related information across the traditional ERP, MES, and control domains. (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)

  14. S88 - DEFINITIONS • Separate the recipe from equipment control • (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)

  15. S88 - DEFINITIONS • Everything breaks into pieces • (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)

  16. RECIPE DEFINITIONS • Recipes are provided for different levels • (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)

  17. RECIPE EXAMPLE • Recipe for making ice cream • (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)

  18. RECIPE EXAMPLE • Ice cream Recipe • (http://www.batchcontrol.com/s88/01_tutorial/03-whatiss88.shtml)
