  1. Edge-Triggered D Flip-Flops Discussion 10.2 Example 26

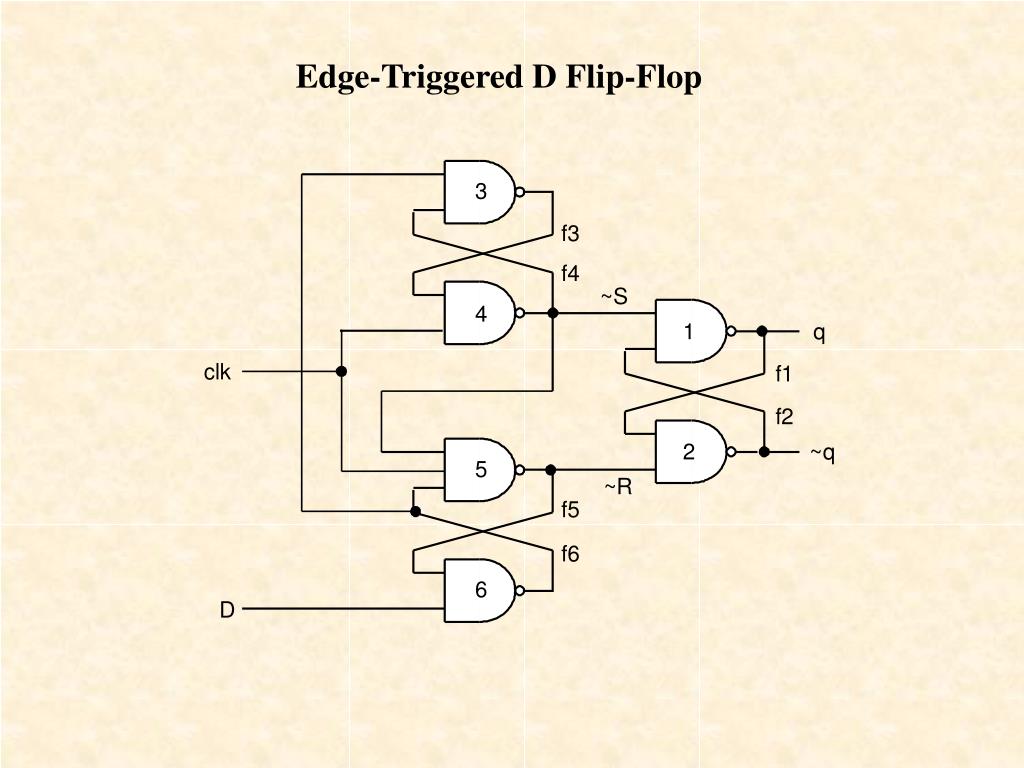

  2. Edge-Triggered D Flip-Flop

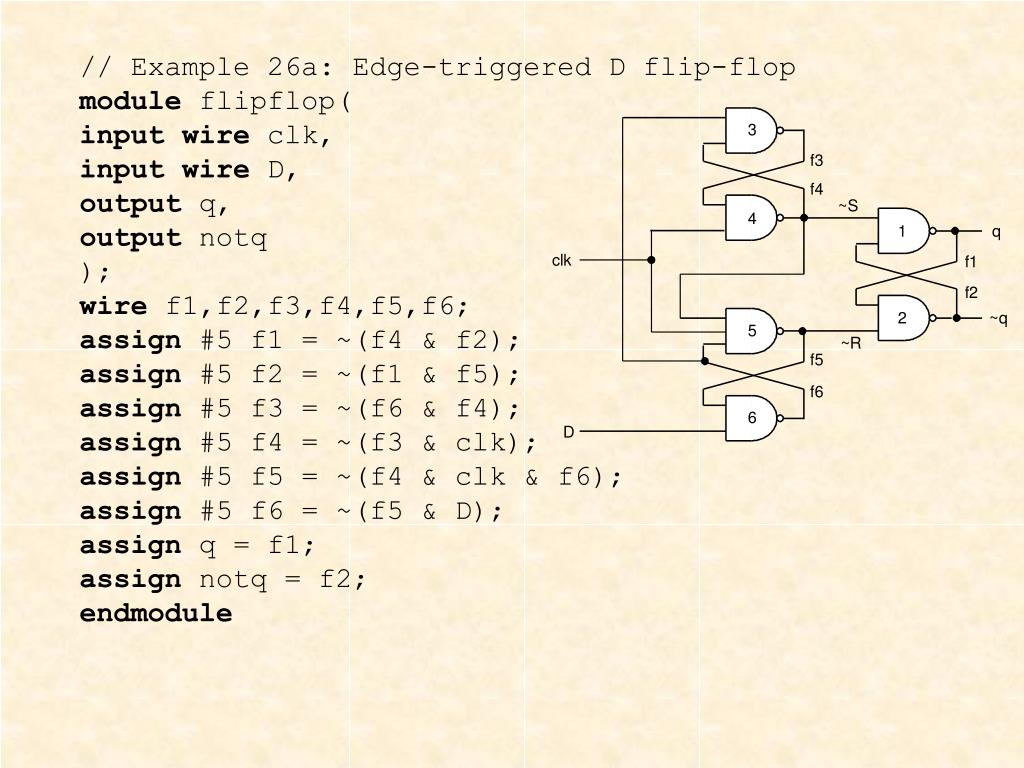

  3. // Example 26a: Edge-triggered D flip-flop module flipflop( input wire clk, input wire D, output q, output notq ); wire f1,f2,f3,f4,f5,f6; assign #5 f1 = ~(f4 & f2); assign #5 f2 = ~(f1 & f5); assign #5 f3 = ~(f6 & f4); assign #5 f4 = ~(f3 & clk); assign #5 f5 = ~(f4 & clk & f6); assign #5 f6 = ~(f5 & D); assign q = f1; assign notq = f2; endmodule

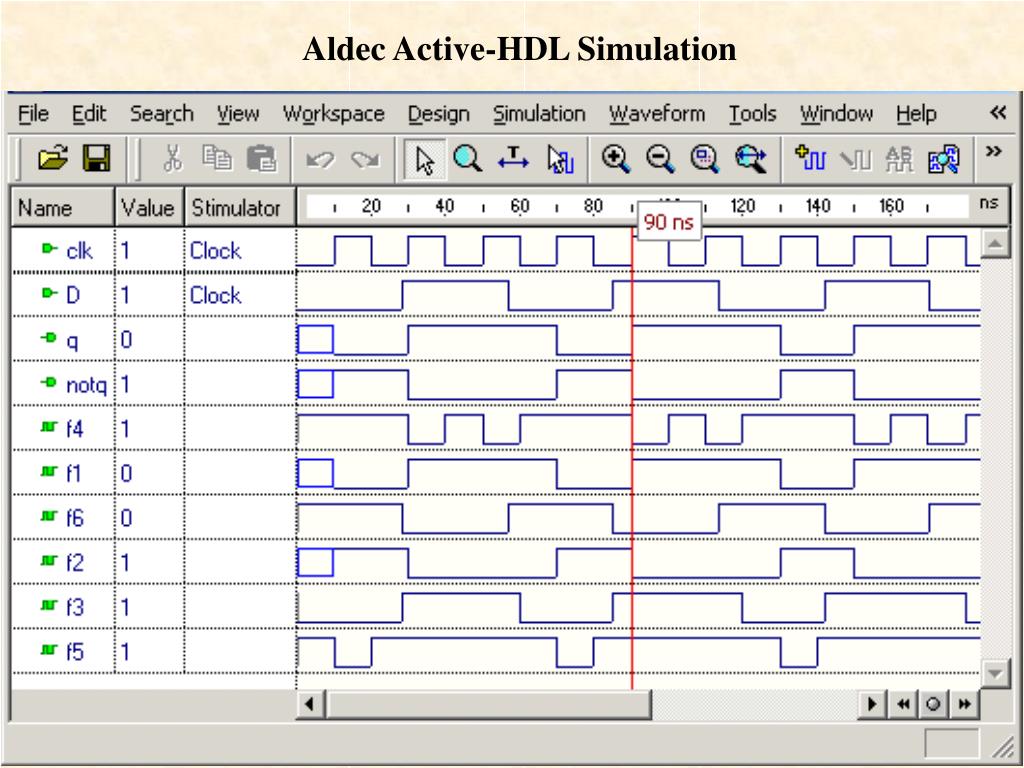

  4. Aldec Active-HDL Simulation

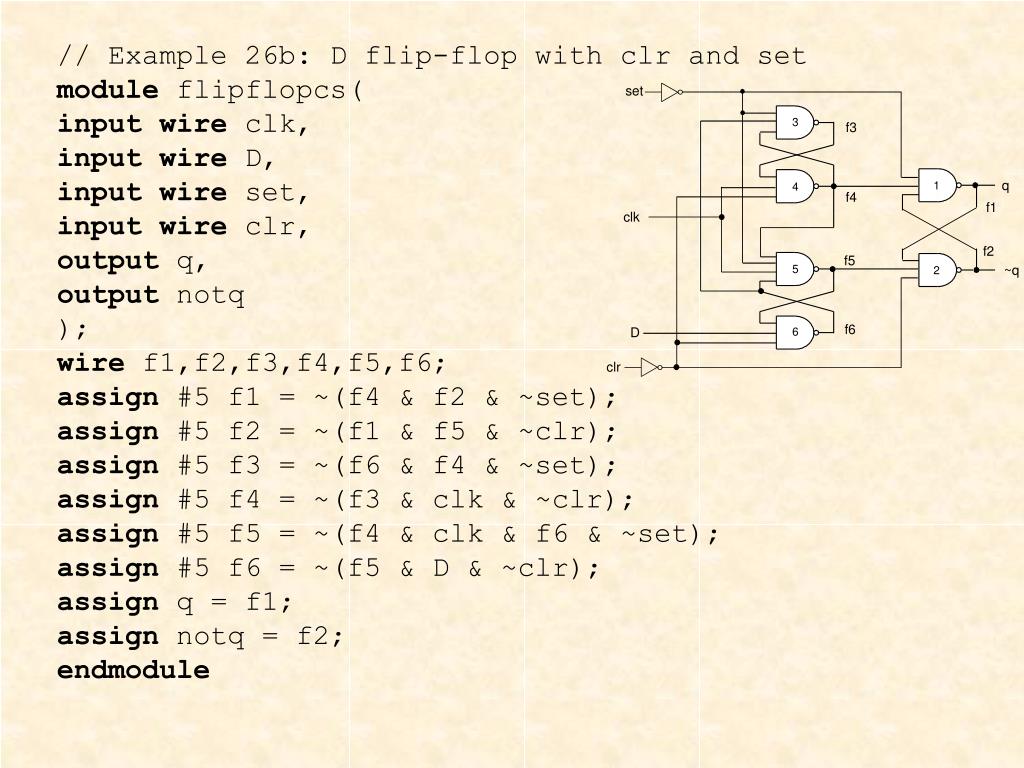

  5. Edge-Triggered D Flip-Flop with set and clear

  6. // Example 26b: D flip-flop with clr and set module flipflopcs( input wire clk, input wire D, input wire set, input wire clr, output q, output notq ); wire f1,f2,f3,f4,f5,f6; assign #5 f1 = ~(f4 & f2 & ~set); assign #5 f2 = ~(f1 & f5 & ~clr); assign #5 f3 = ~(f6 & f4 & ~set); assign #5 f4 = ~(f3 & clk & ~clr); assign #5 f5 = ~(f4 & clk & f6 & ~set); assign #5 f6 = ~(f5 & D & ~clr); assign q = f1; assign notq = f2; endmodule

  7. Aldec Active-HDL Simulation
