  1. Visualization of FTK& Tiny Triplet Finder Jinyuan Wu and Tiehui Liu Fermilab January 2010 Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  2. Assumption • Pixel and SCT barrels are considered. • Total number of channels (From Fig. 2.1 of TP): • B0: 20K • B1: 16K • B2: 14K • SCT3, 4, 5, 6: 5K each. • Total number of clusters (1/1.3 of above): • B0: 15K • B1: 12K • B2: 11K • SCT3, 4, 5, 6: 3.8K each. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  3. The R-phi View of Pixels • Pixel modules are tilted. • For hits on B0 found in rows along z-axis, several “R-phi Corridors” can be defined. • In each r-phi corridor, distances between pixel planes are relatively well defined. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  4. The R-Phi Corridors • Consider 1 mm impact parameter, the possible range of tracks passing through a 1 mm r-phi bin in B0 spread in large range. For Pt = +- 1 GeV, the range in B2 is about 14 mm. • For a r-phi corridor passing a bin each in B0 and B1, 1 mm each, the range on B2 is about 4mm. • More than 30 hit patterns for each bin in B0 can be counted above. • There are about 30 patterns/bin x 300 bins ~ 9K patterns in r-phi view. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  5. The Thin Road Bins • The size of the bins in the Thin Road scheme is (1 mm x 60 mm) in (r-phi & z). Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  6. Random Hits in the Thin Road Bins 0.9 hits/bin 1.4 hits/bin 3.7 hits/bin • Nearly all bins are on. • With or without pixel will not help given this bin size. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  7. Binning in Z Direction • Let’s dream we can further divide in z-direction. • Consider (1 mm x 1.9 mm) in r-phi & z for B1. • In B2, the bin size above is (1.7 mm x 3 mm). Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  8. Hits with Finer Bins 0.084 hits/bin 0.045 hits/bin • For each hit on B0, a z range of +- 90 mm on B2 must be checked in order to cover eta +- 1 range. • With 3 mm binning in z: • 180 mm / 3 mm = 60. • With binning in z-direction, things become not hopeless. • In r-z view, there can be 60 roads (when eta = +-1) in each Pt corridor. (x20 than the Thin Road scheme) Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  9. Roads in a Pt Corridor • For each hit in B0, there can be many roads in r-z view, depending on eta range (eta +- 0.2 are shown above). • The similar set of roads repeat along z. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  10. The R-Z Region to Work With • The 2 sigma collision point is +-100 mm and a corresponding cut can be made to reduce fake rate. • The region to work with for eta = +- 1 is shown above. • For each bin (3mm) at B0, a range of about 180 mm, or 60 bins on B2 is searched. • For each bin in B0, there are more than 120 hit patterns. • There are about 100 bins at B0. Total number of patterns: 120 x 100 = 12K. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  11. Good, But • Using the Thin Road scheme as a starting point, adding x20 z-binning provides finer constraints in r-z view and reducing fake tracks becomes possible. • The number of required patterns in B0 alone is 12K x 9K = 108M, (hand estimate only without considering multiple scattering etc.). • Increasing AM size? Maybe it is OK for 108M. But it is endless when bins become finer, when strip layers are included, etc. • There exist clever approaches. Too many patterns? • Reuse • Reuse • Reuse • Tiny Triplet Finder is a scheme of reusing hit patterns. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  12. Classification of Pattern Recognition Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  13. The Tiny Triplet Finder • Triplet: e.g., 3 hits in a straight line in a plane. A semi-formal definition: n items satisfying n-2 constraints. • Tiny = Small silicon resource usage. • Typical implementation of triplet finding with N bins: • Hough transform: O(N^2) histogram bins. • AM: O(N^2) roads. • Tiny Triplet Finder: O(N*log(N)) shifting elements. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  14. Tiny Triplet Finder for FTK, Step (1a) • Choose a narrow row (0.5 mm) of pixels along z-axis on B0 as seeds. • Divide B1 into bins in r-phi view. The width of B1 bin is chosen to be (0.5 mm)*R1/R0 = 1.1 mm. • Define the r-phi corridors. • An r-phi corridor contains the seed bin in B0, a bin in B1 and the projected range (3.7 mm) in B2. • Note that ranges of different corridors in B2 overlap each other. • Up to 7 corridors can be defined. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  15. Tiny Triplet Finder for FTK, Step (1b) • For each r-phi corridor, book hit patterns of B2 and B1 (not B0) to register arrays. • Bin sizes (r-phi x z): • B1: (1 mm x 1.9 mm) no overlap. • B2: (3.7 mm x 3 mm) with overlap in r-phi but not z. • 7 sets of the register arrays are needed corresponding to 7 r-phi corridors. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  16. Tiny Triplet Finder for FTK, Step (2) • For a hit in B0, align the two arrays to search for a valid road. • For another hit in B0, shift the two arrays to reuse the road patterns. • Only one set of the road patterns is needed. Other sets of patterns becomes available by shifting. • However, shifting is not free. See next two pages. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  17. Actual Hardware Implementation Logarithmic Shifter Logarithmic Shifter Bit-wise Coincident Logic Bit Array Bit Array • Fill the B1 and B2 bit arrays. (n1 clock cycles) • Loop over B0 hits, shift bit arrays and check for coincidence. (n0 clock cycles) *R1/R3 *R2/R3 Triplet Map Output To Encoder Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  18. The Logarithmic Shifter # of bits: N Shift distance: L # of stages: log2L Total LE usage: N*log2L S1 S2 S4 • A shift of X bit of the bit pattern is done in one clock cycle rather than X cycles. • Logarithmic shifter is also known as “barrel shifter”, but the term “logarithmic” reflects nature of implementation, resource usage and propagation delay better. • If number of bins x2, just add one layer, rather than x4 of total silicon resource. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

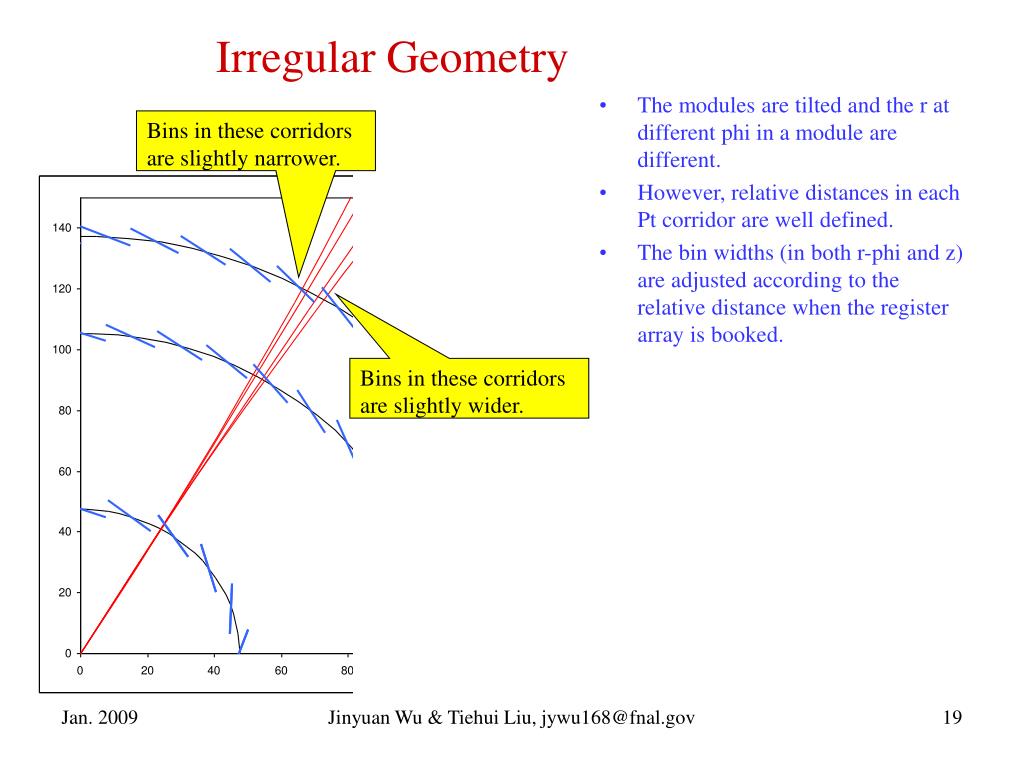

  19. Irregular Geometry • The modules are tilted and the r at different phi in a module are different. • However, relative distances in each Pt corridor are well defined. • The bin widths (in both r-phi and z) are adjusted according to the relative distance when the register array is booked. Bins in these corridors are slightly narrower. Bins in these corridors are slightly wider. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  20. Adding Strip Layers • The occupancy of the pixel layers are high. • Additional constraints may be needed. • It may be necessary of do coincidence for all 7 layers. (Perhaps, 6-out-of-7?). Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  21. Using Outer Strip Layer Hits as Seeds • It is also possible to use strip layer hits as seeds. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

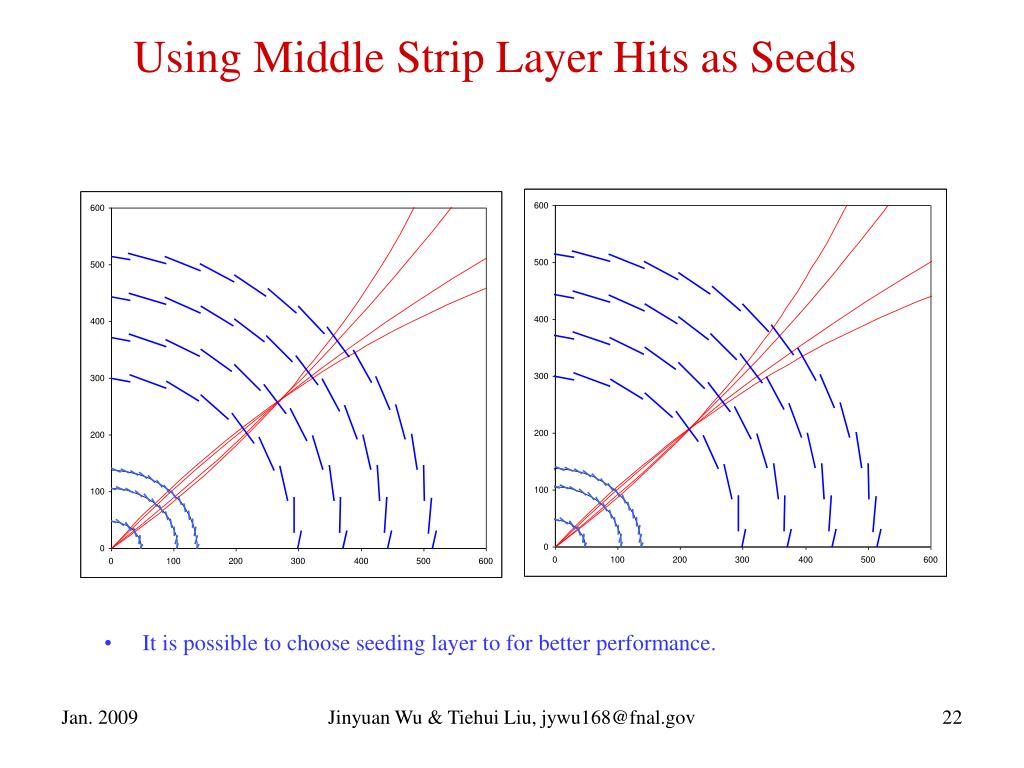

  22. Using Middle Strip Layer Hits as Seeds • It is possible to choose seeding layer to for better performance. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  23. Tiny Triplet Finder for More Then 3 Layers Seed Layer • The triplet finder can also search coincidence in more than 3 layers. • A coincidence for 5 layers is shown above. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  24. Booking Bins in z for Strip Layers Book a bit pattern for the stereo layer. Fake hits may exist but they can be eliminated after track finding. For any hit strip in axial layer, copy selected bit pattern for z-bins. • Use stereo and axial strips to book bins in both r-phi and z- directions. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  25. How Tiny Triplet Finder Fits into FTK Project FTK Pattern Recognition R&D Platform FTK Pattern Recognition R&D Platform FTK Pattern Recognition R&D Platform • From DF (or maybe DO), output an additional copy of HITS information via S-links. • Another set of crate carrying Tiny Triplet Finder or other R&D scheme can be tested. • The found patterns + hits can be fed into existing track fitter for further cleanup. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov

  26. Summary • Using z information in pixel helps. • However, number of patterns increases a lot. • Tiny Triplet Finder reuse patterns so that binning in z becomes doable. • The Tiny Triplet Finder or other pattern recognition schemes can be tested in parallel with the baseline AM approach. • We wish to attract colleagues to work on simulation with z- binning to understand efficiency and fake triplet rate. Jinyuan Wu & Tiehui Liu, jywu168@fnal.gov
