  1. Wavertree Pillar Palm Presented By: The University of Wisconsin Platteville Senior Design

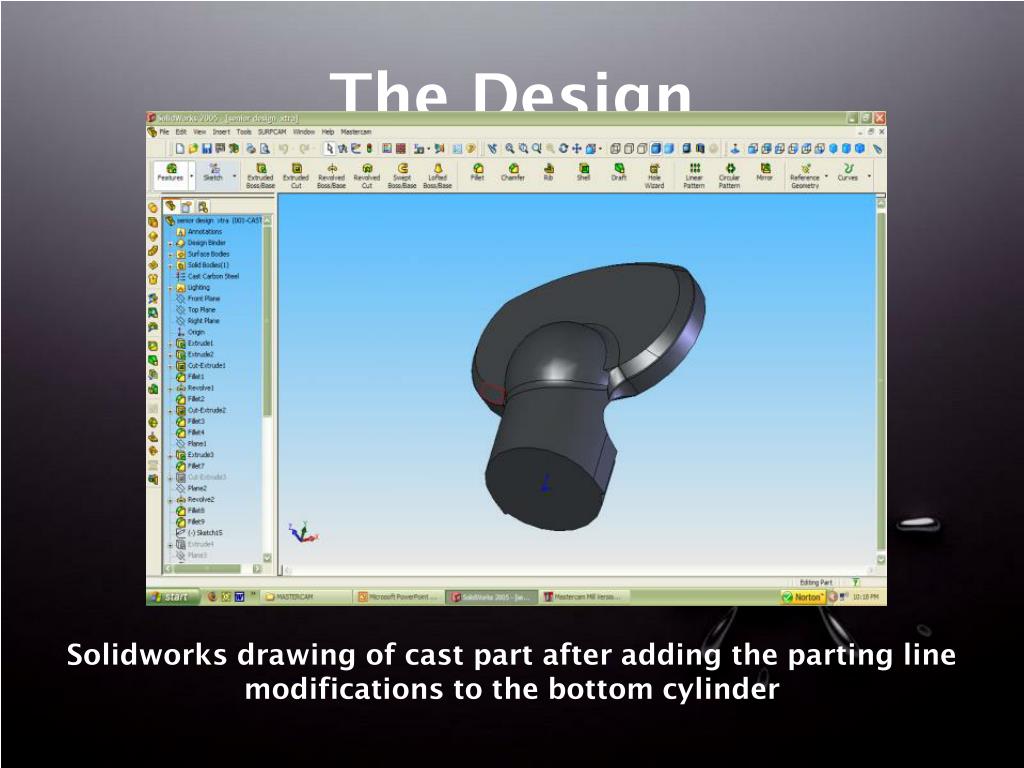

  2. The Design Solidworks drawing ofcast part after adding the parting line modifications to the bottom cylinder

  3. The Design Rivet Holes Chamfer & Step Solidworks drawing of final product after all steps completed

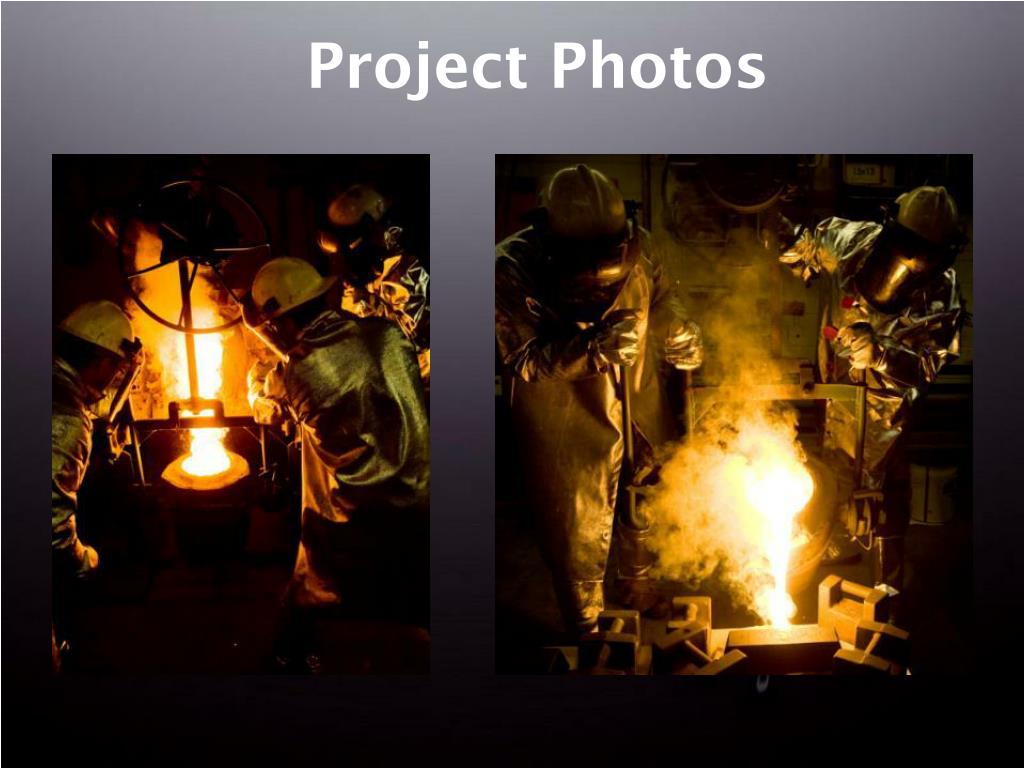

  4. Project Photos

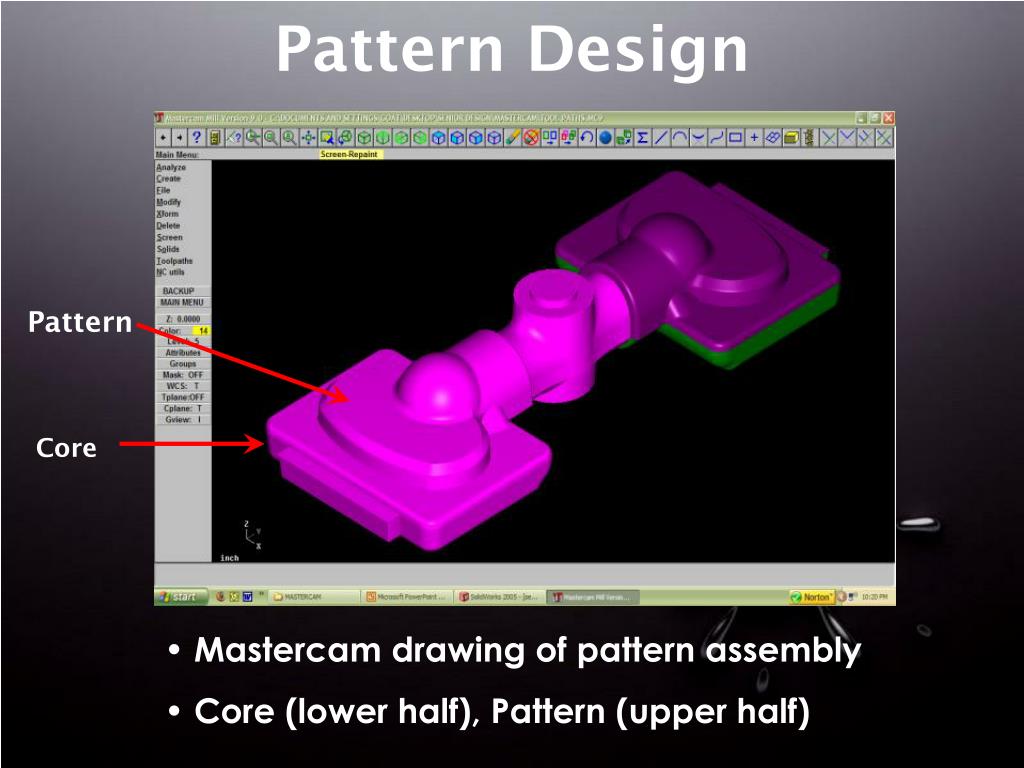

  5. Pattern Design Pattern Core • Mastercam drawing of pattern assembly • Core (lower half), Pattern (upper half)

  6. Project Photos

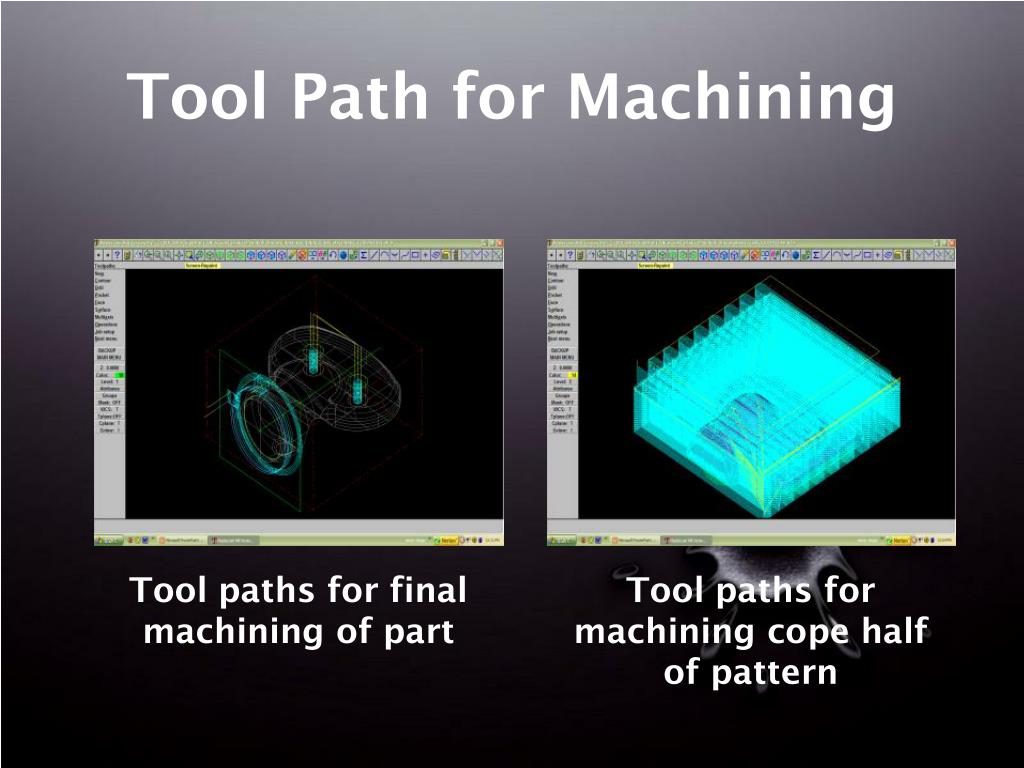

  7. Tool Path for Machining Tool paths for final machining of part Tool paths for machining cope half of pattern

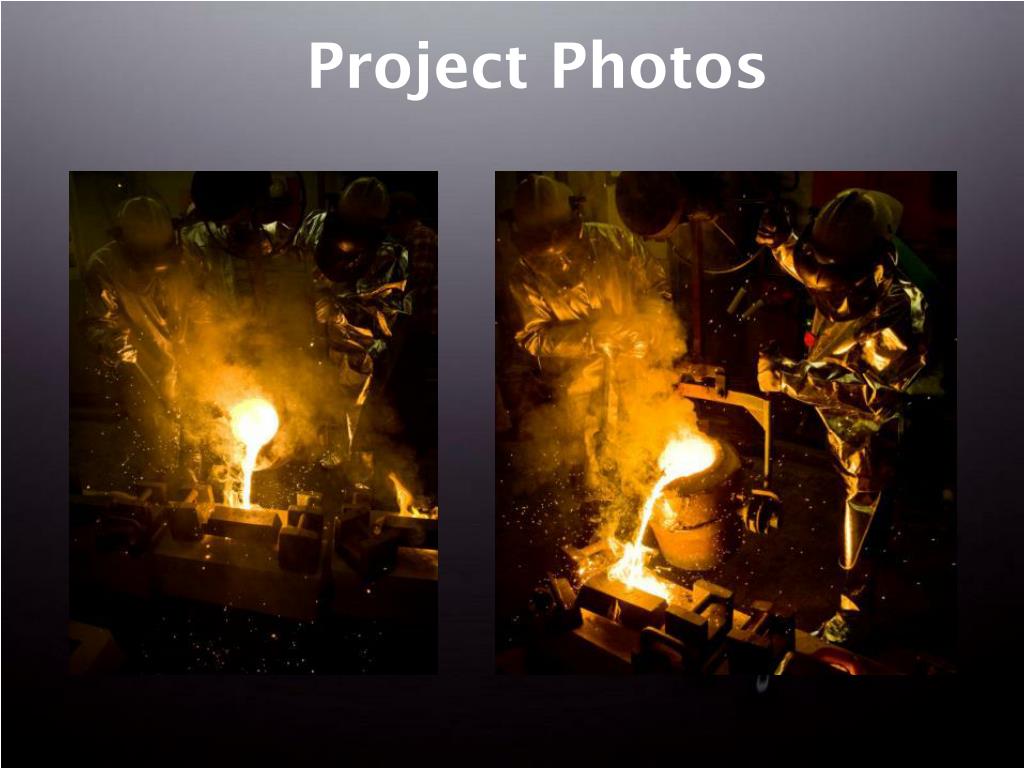

  8. Project Photos

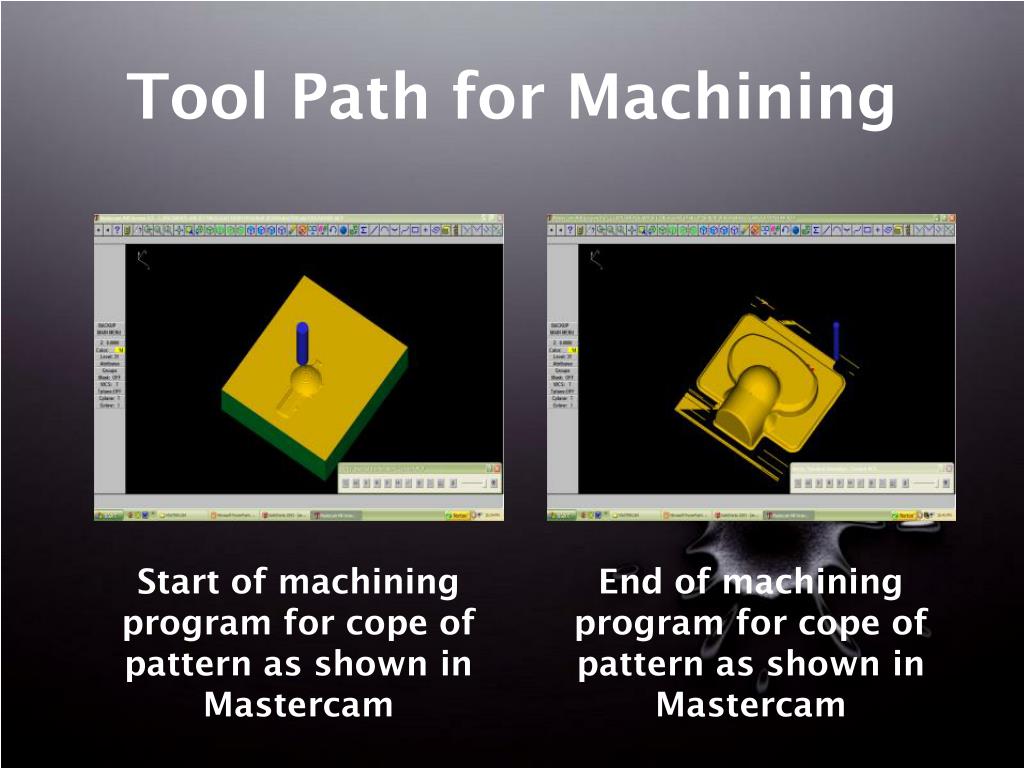

  9. Tool Path for Machining Start of machining program for cope of pattern as shown in Mastercam End of machining program for cope of pattern as shown in Mastercam

  10. Solidification Modeling(MagmaSoft Program) Video of Solidification in MagmaSoft Niyama criterion in MagmaSoft

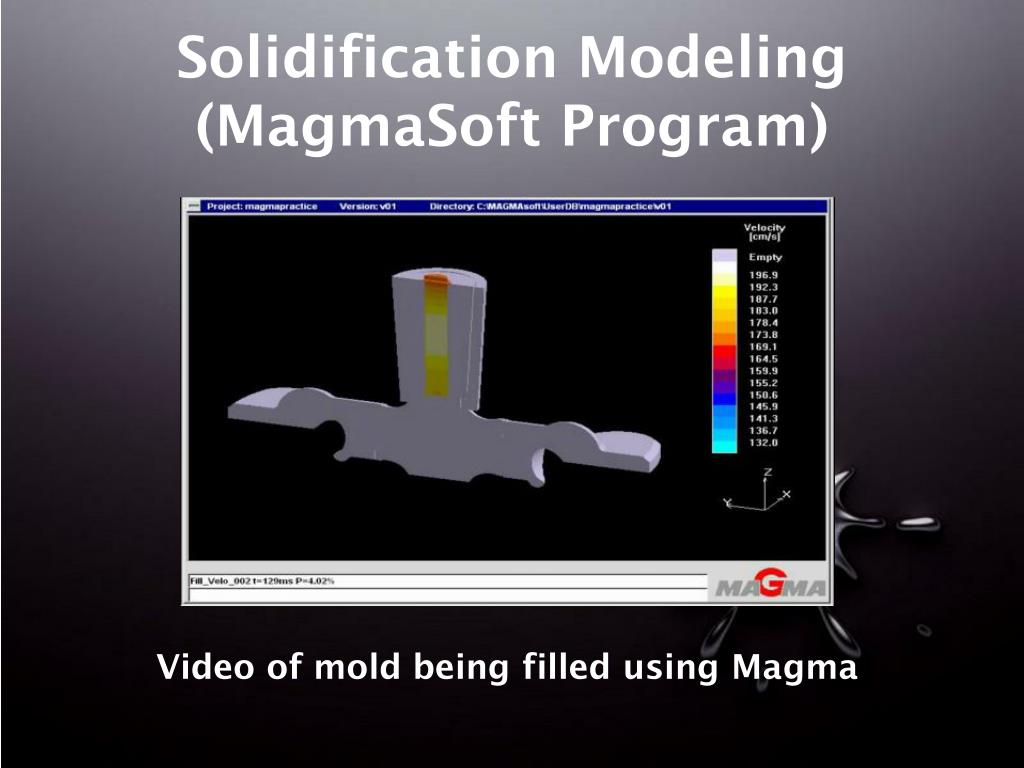

  11. Solidification Modeling(MagmaSoft Program) Video of mold being filled using Magma

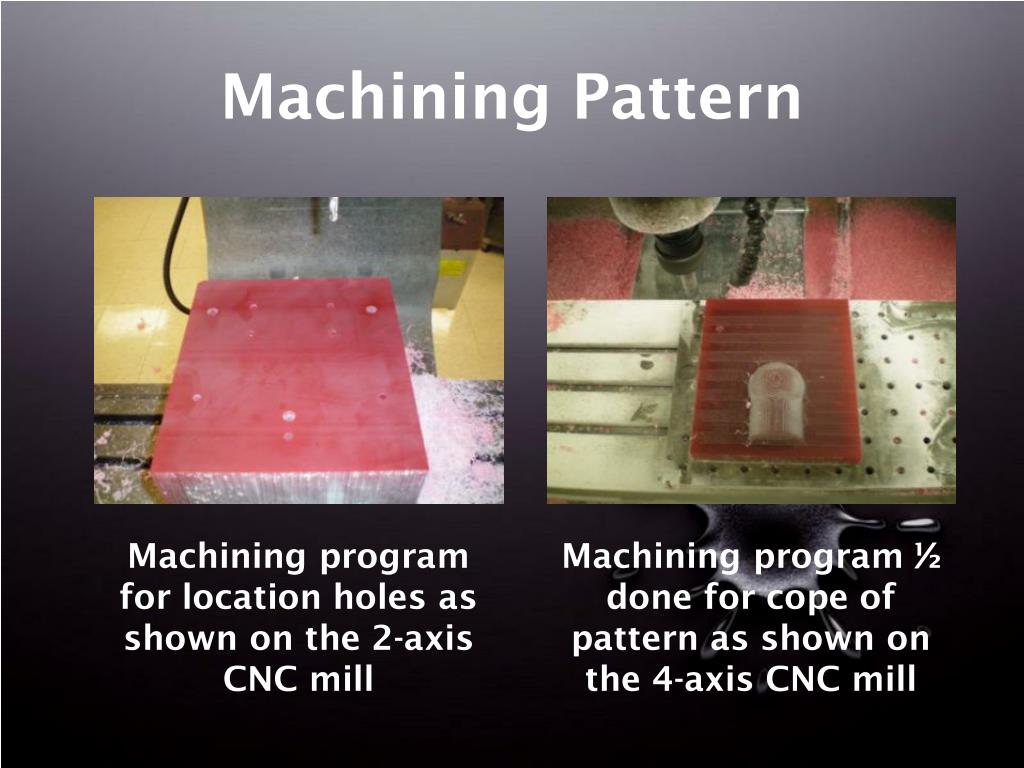

  12. Machining Pattern Machining program for location holes as shown on the 2-axis CNC mill Machining program ½ done for cope of pattern as shown on the 4-axis CNC mill

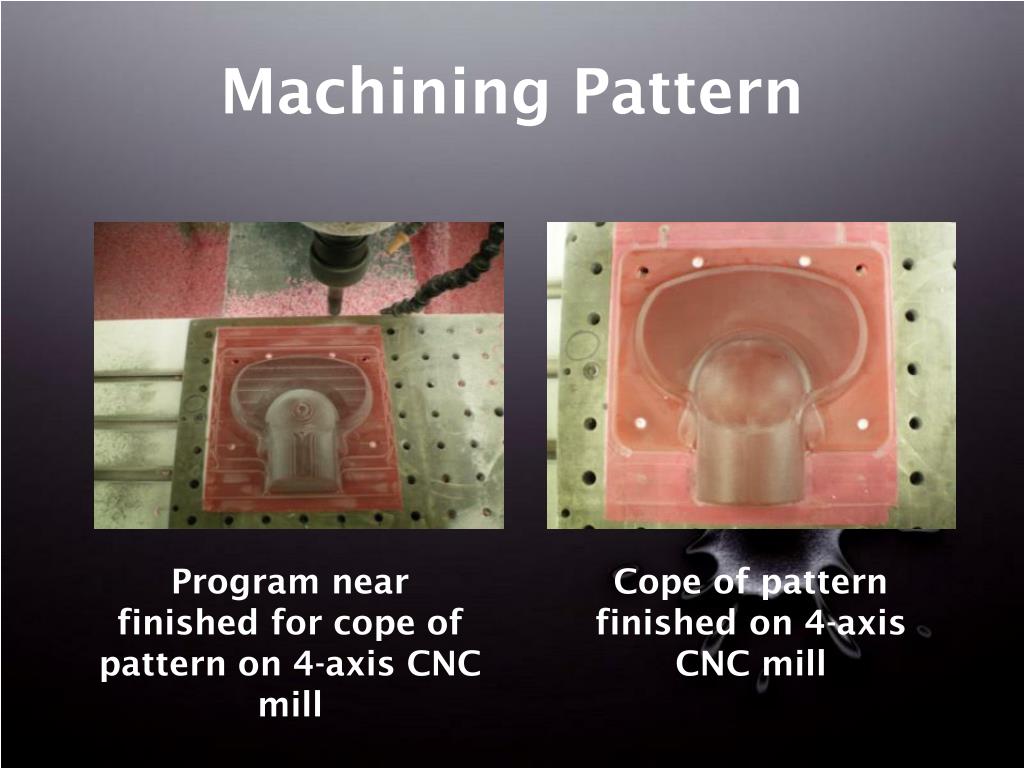

  13. Machining Pattern Program near finished for cope of pattern on 4-axis CNC mill Cope of pattern finished on 4-axis CNC mill

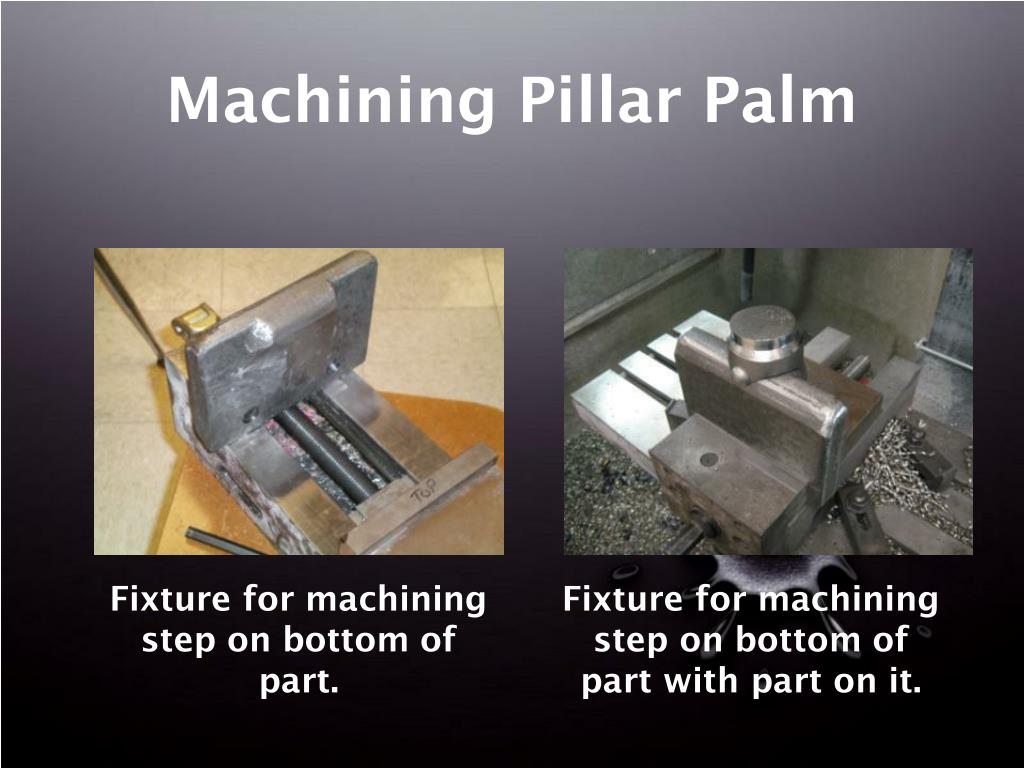

  14. Machining Pillar Palm Fixture for machining step on bottom of part. Fixture for machining step on bottom of part with part on it.

  15. Drilling Rivet Holes Fixture for machining holes in palm with part being machined ½” endmill milling holes after drilling operation

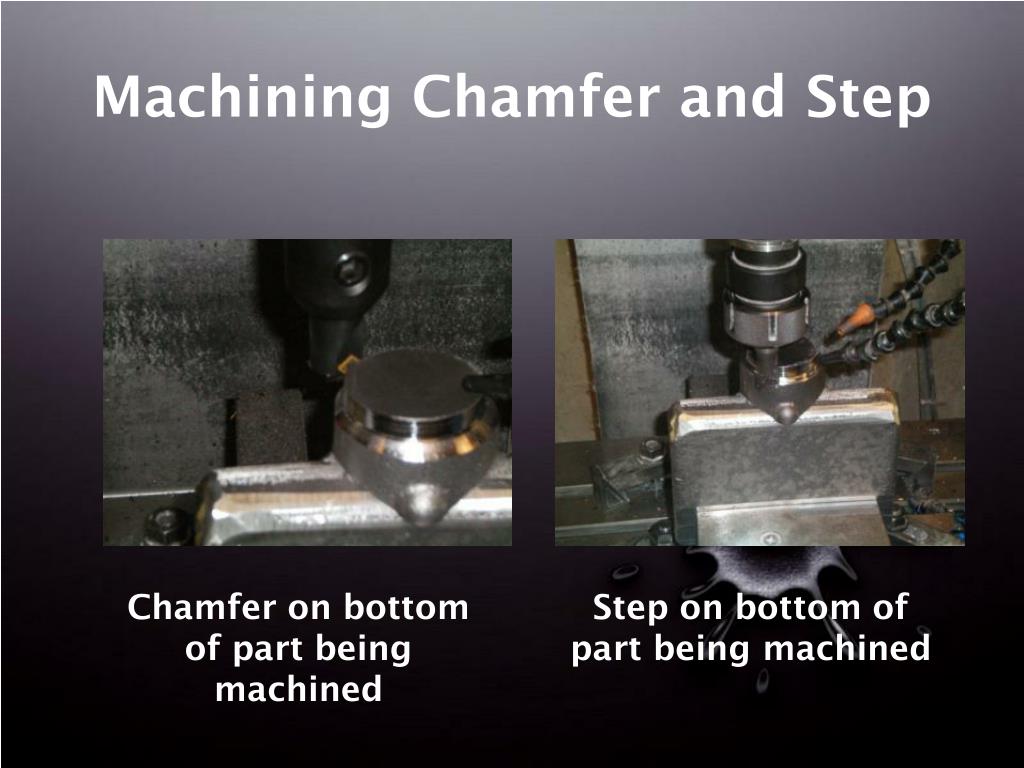

  16. Machining Chamfer and Step Chamfer on bottom of part being machined Step on bottom of part being machined

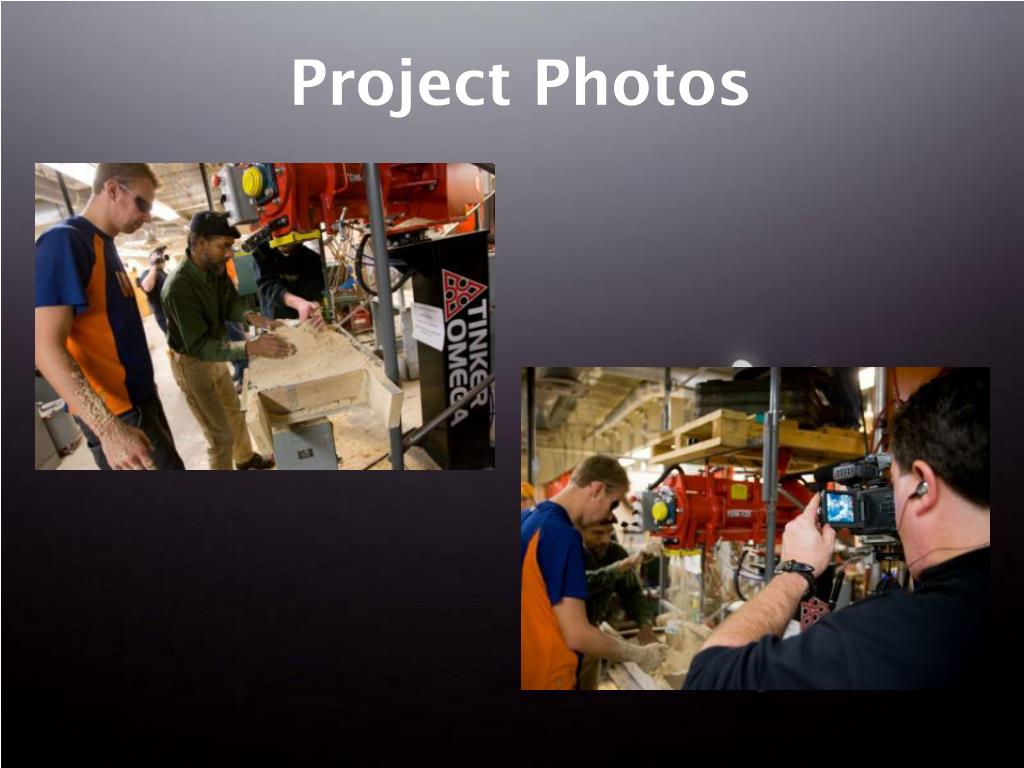

  17. Project Photos

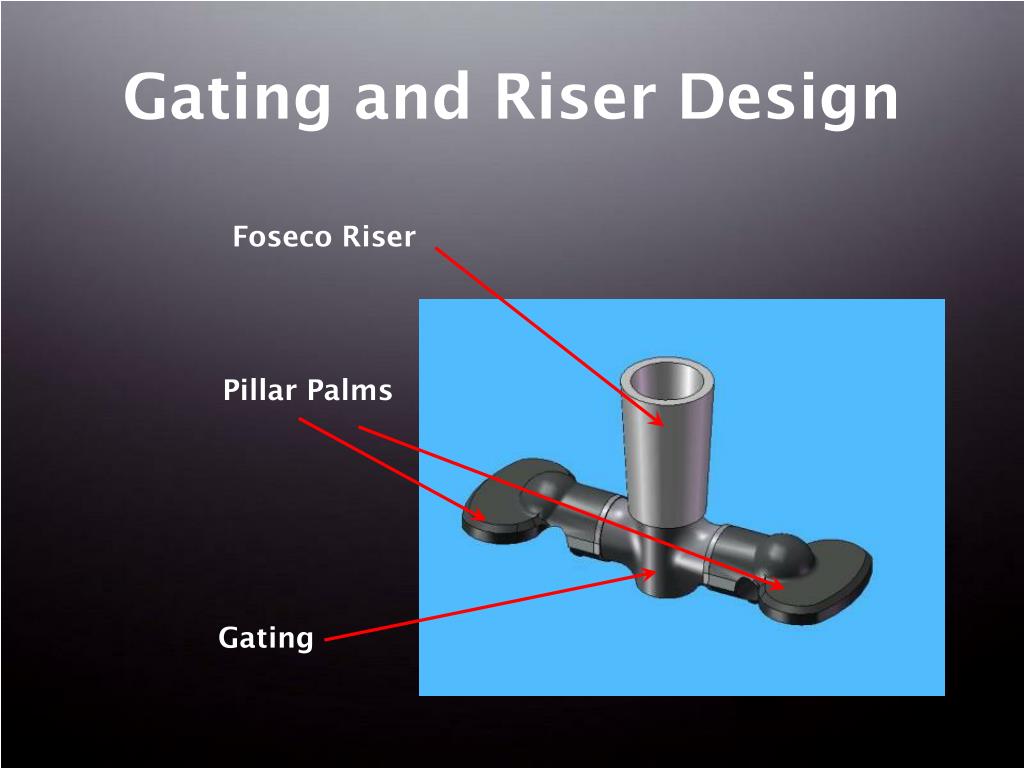

  18. Gating and Riser Design Foseco Riser Pillar Palms Gating

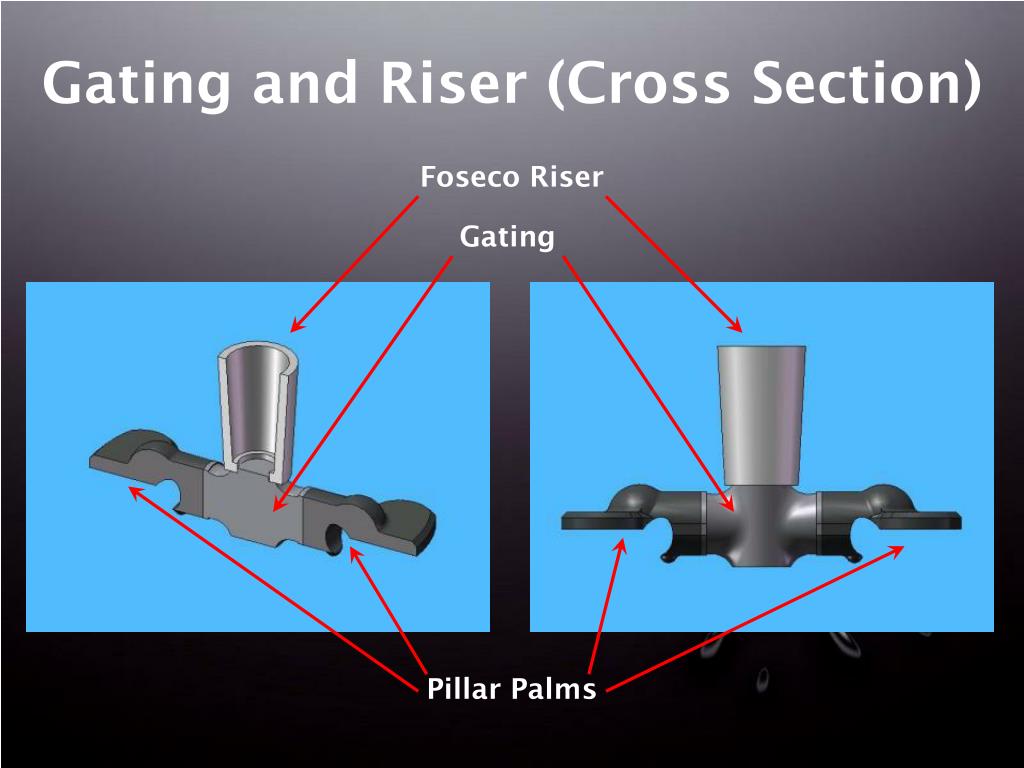

  19. Gating and Riser (Cross Section) Foseco Riser Gating Pillar Palms

  20. Project Photos

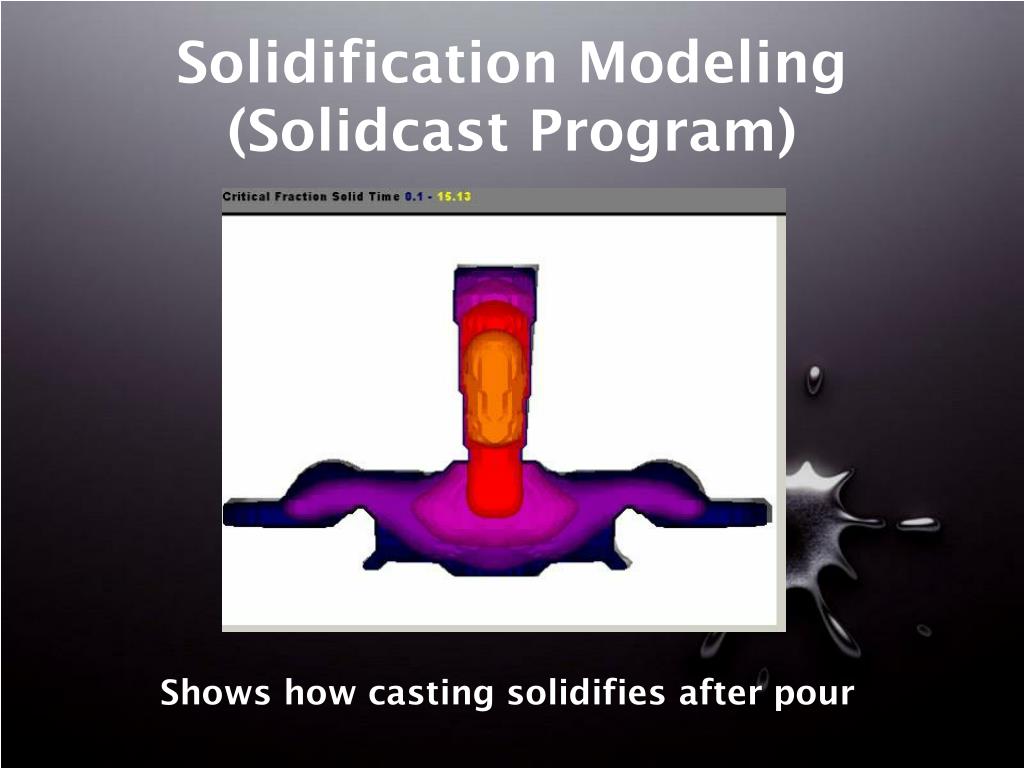

  21. Solidification Modeling(Solidcast Program) Shows how casting solidifies after pour

  22. A27 Steel Chemical Composition Required 5 test pours to obtain correct composition 5 test heats = 663 pounds of steel 14 Heats total = 1848 lbs melted Composition Equivalent to Mild Steel 0.192% Carbon (C) 0.974% Manganese (Mn) 0.794% Silicon (Si)

  23. Personal Protective Equipment • Hard hat with shield • Safety glasses • Aluminized jacket • Aluminized apron • Aluminized spats • (cover legs and ankles) • Aluminized gloves • Steel toed shoes

  24. PPE Required For Grinding • Hard hat with shield • Ear plugs • Safety glasses • Flame resistant jacket • Steel toed shoes

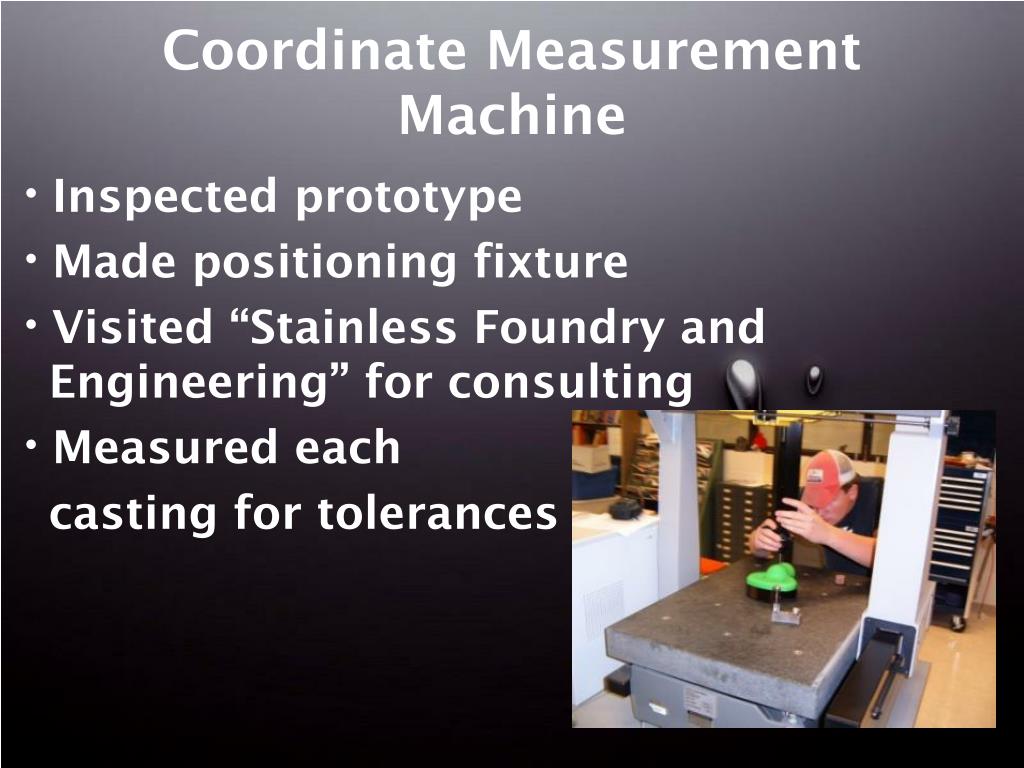

  25. Coordinate Measurement Machine Inspected prototype Made positioning fixture Visited “Stainless Foundry and Engineering” for consulting Measured each casting for tolerances

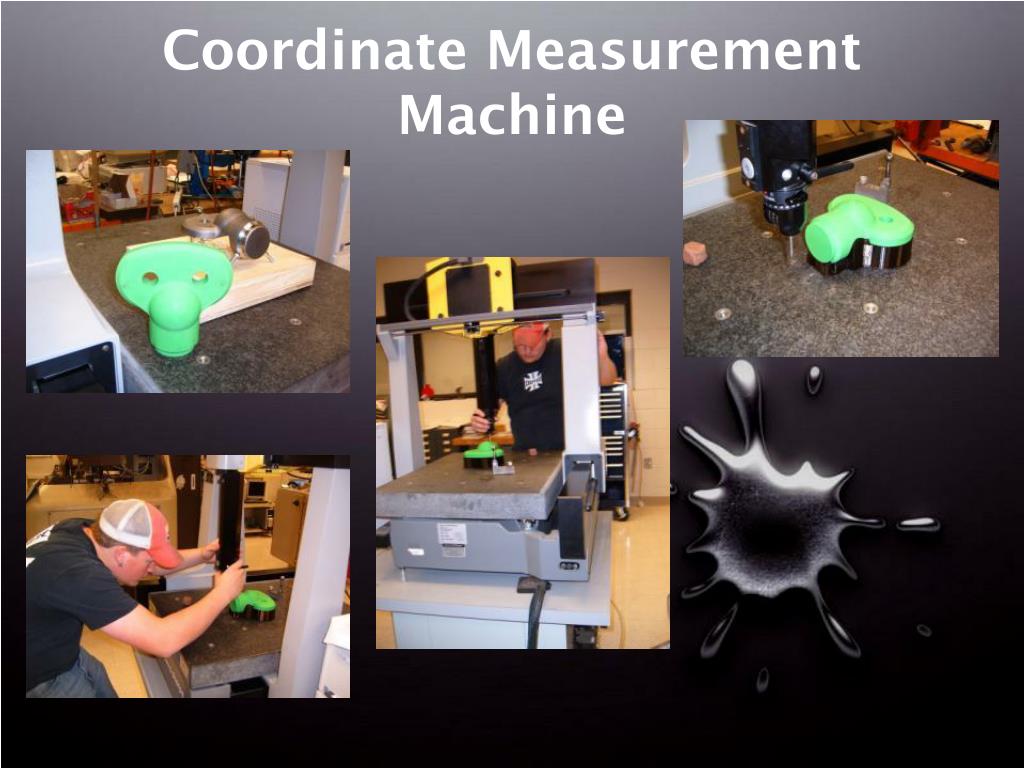

  26. Coordinate Measurement Machine

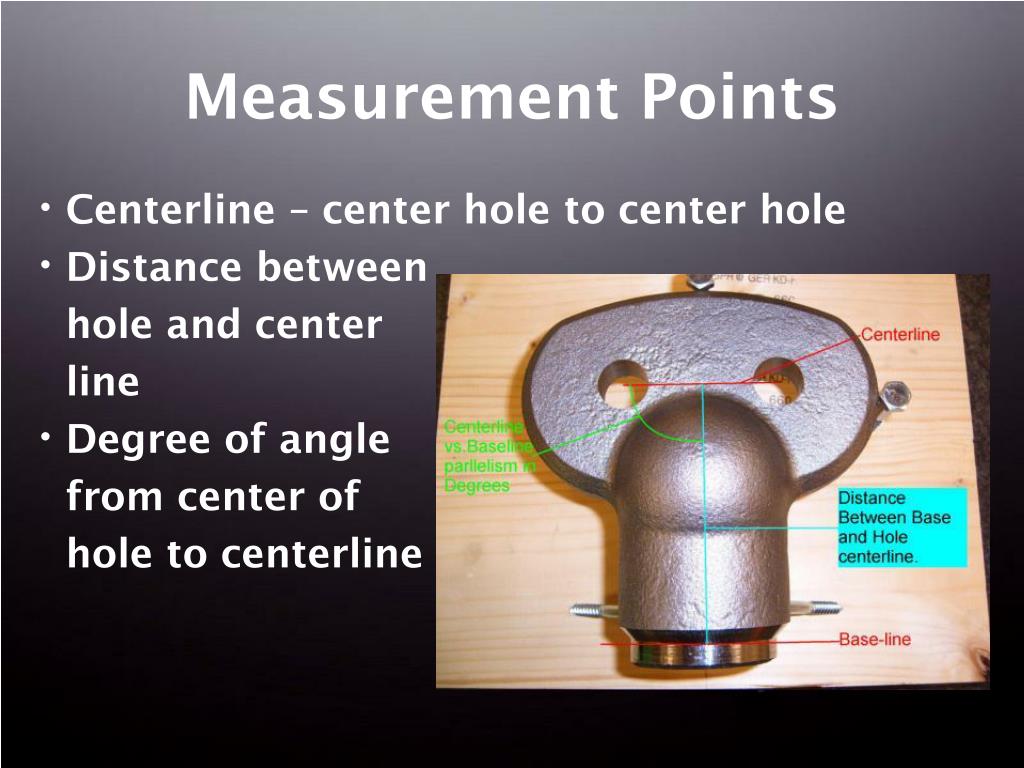

  27. Measurement Points • Centerline – center hole to center hole • Distance between • hole and center • line • Degree of angle • from center of • hole to centerline

  28. Project Photos

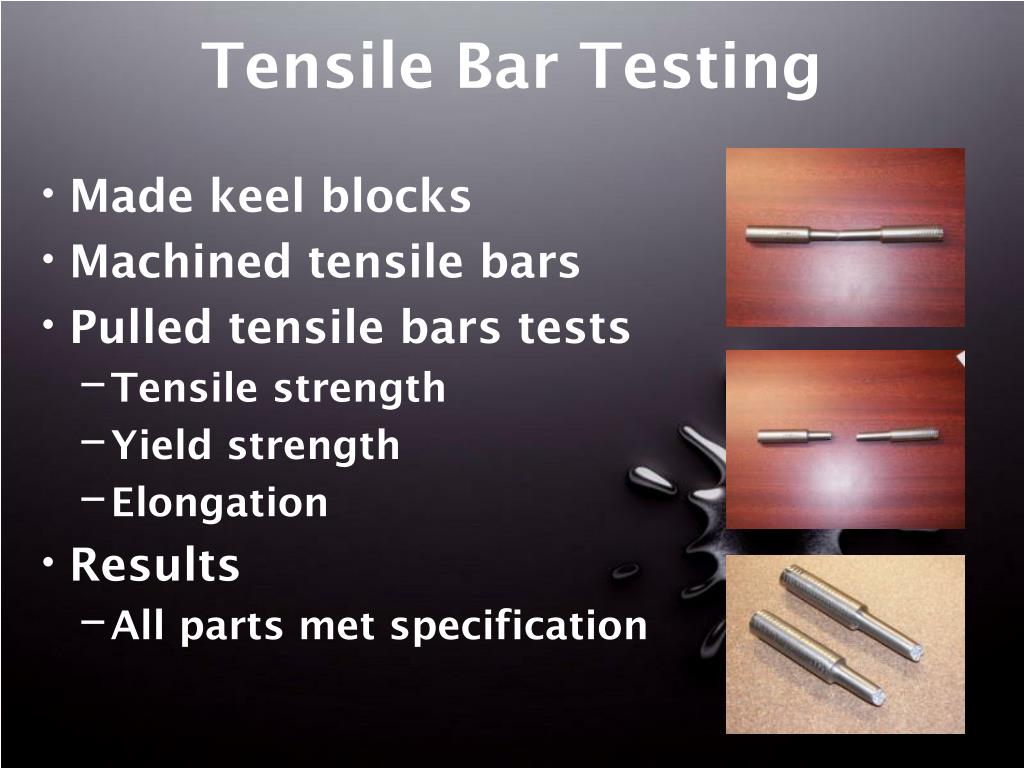

  29. Tensile Bar Testing Made keel blocks Machined tensile bars Pulled tensile bars tests Tensile strength Yield strength Elongation Results All parts met specification

  30. Project Photos

  31. Donations Make the Difference Without donations this project would not be possible

  32. Thank You to our Donating Companies J. B. DeVENNE

  33. Project Photos

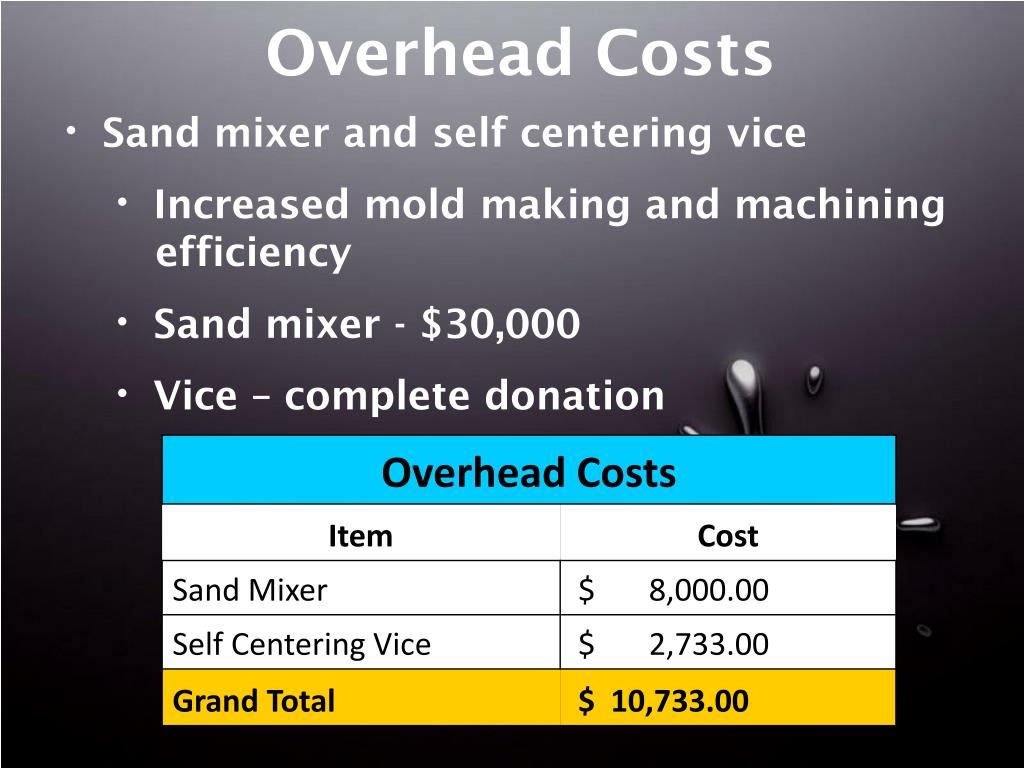

  34. Overhead Costs • Sand mixer and self centering vice • Increased mold making and machining efficiency • Sand mixer - $30,000 • Vice – complete donation

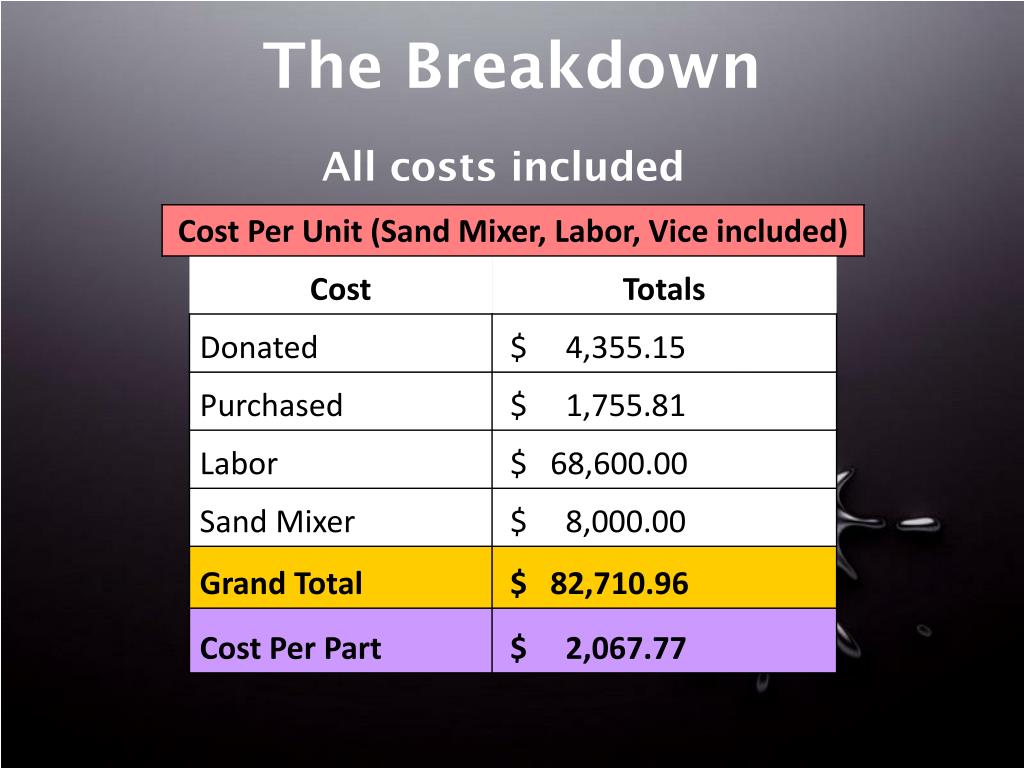

  35. The Breakdown All costs included

  36. No sand mixer, vice or labor included in total cost Platteville students are free labor The Breakdown

  37. Project Photos

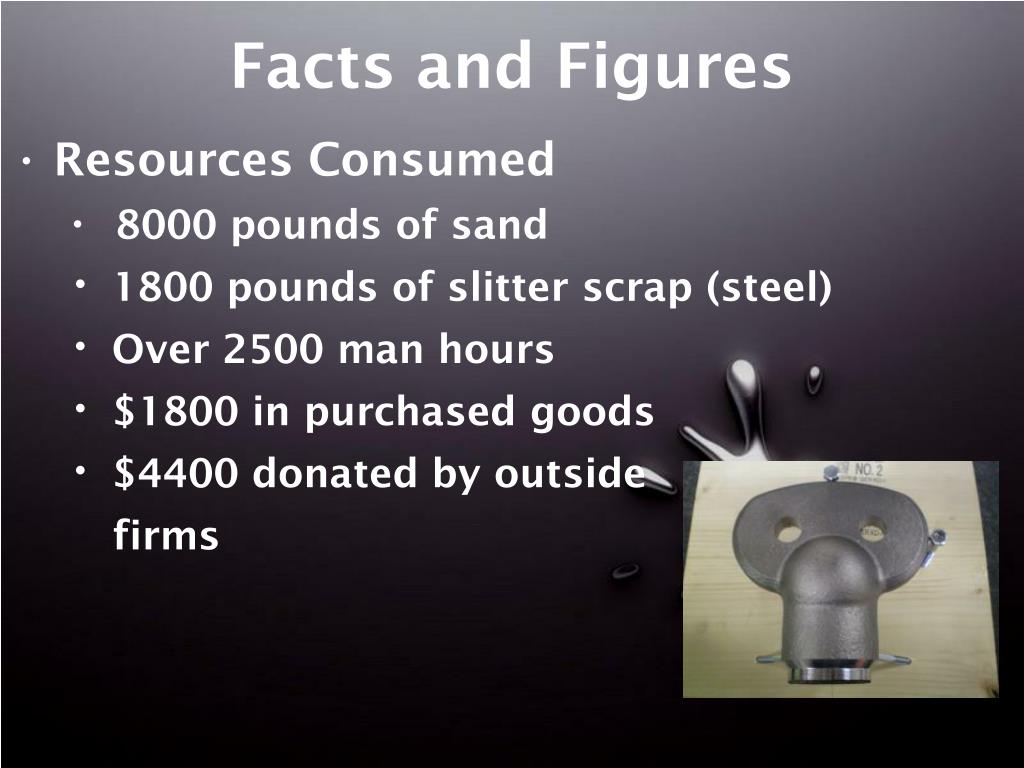

  38. Facts and Figures • Resources Consumed • 8000 pounds of sand • 1800 pounds of slitter scrap (steel) • Over 2500 man hours • $1800 in purchased goods • $4400 donated by outside • firms

  39. Project Photos

  40. Project Photos

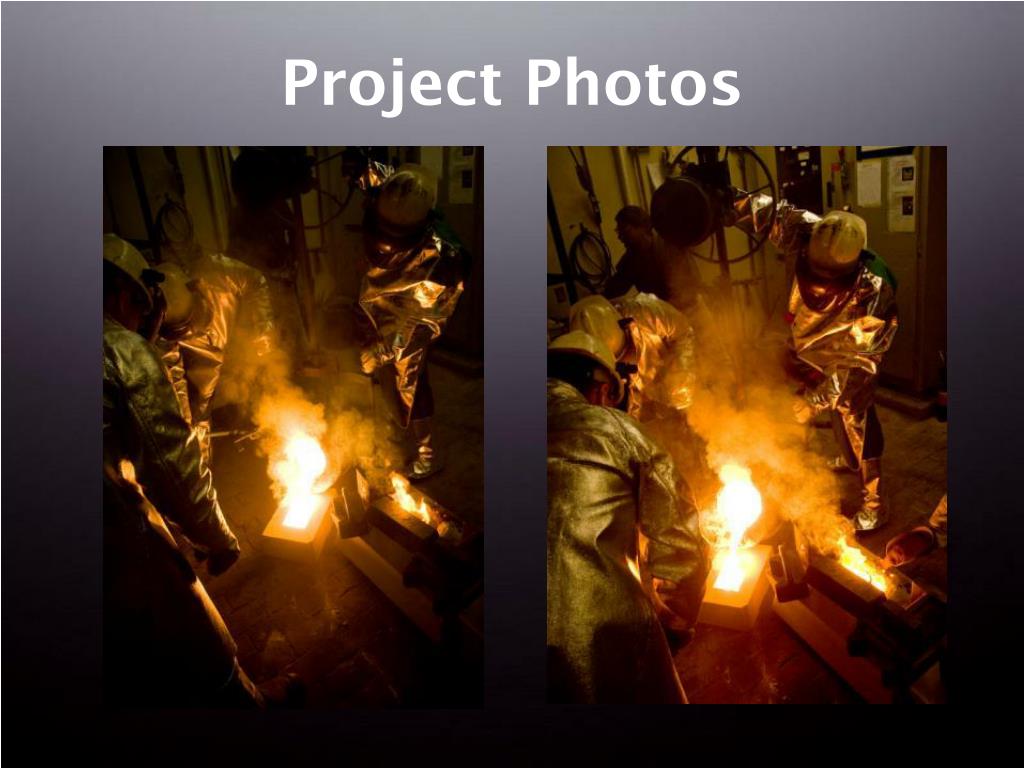

  41. Project Photos

  42. Thank You Dr. Kyle Metzloff Ph D. IS 4610 Professor Ray Monroe Steel Founders Society (SFSA) Philip Harrison Penumbra Design Benji Johnson Magma Soft Greg Gauerke Perfect Pattern – Core Box Build Scott Sharpee Neenah Foundry

  43. The University of Wisconsin Platteville Thanks you for your support
