  1. Year 2 - Chapter 4/Cisco 3 - Module 4LAN Design Cisco Press: CCNA Instructor’s Manual

  2. LAN Design Goals • Functionality • The network must work. • Scalability • The network must be able to grow and contract to meet the needs of the organization. • Adaptability • The network must adapt to new technologies. • Manageability • The network must support network monitoring and management. Cisco Press: CCNA Instructor’s Manual

  3. Critical Components of LAN Design • Function and Placement of Servers • Intranets • Collision Detection (Ethernet) • Segmentation • Bandwidth Versus Broadcast Domains Cisco Press: CCNA Instructor’s Manual

  4. Server Placement • Servers can be categorized into two distinct classes: • Enterprise servers • Workgroup (departmental) servers Cisco Press: CCNA Instructor’s Manual

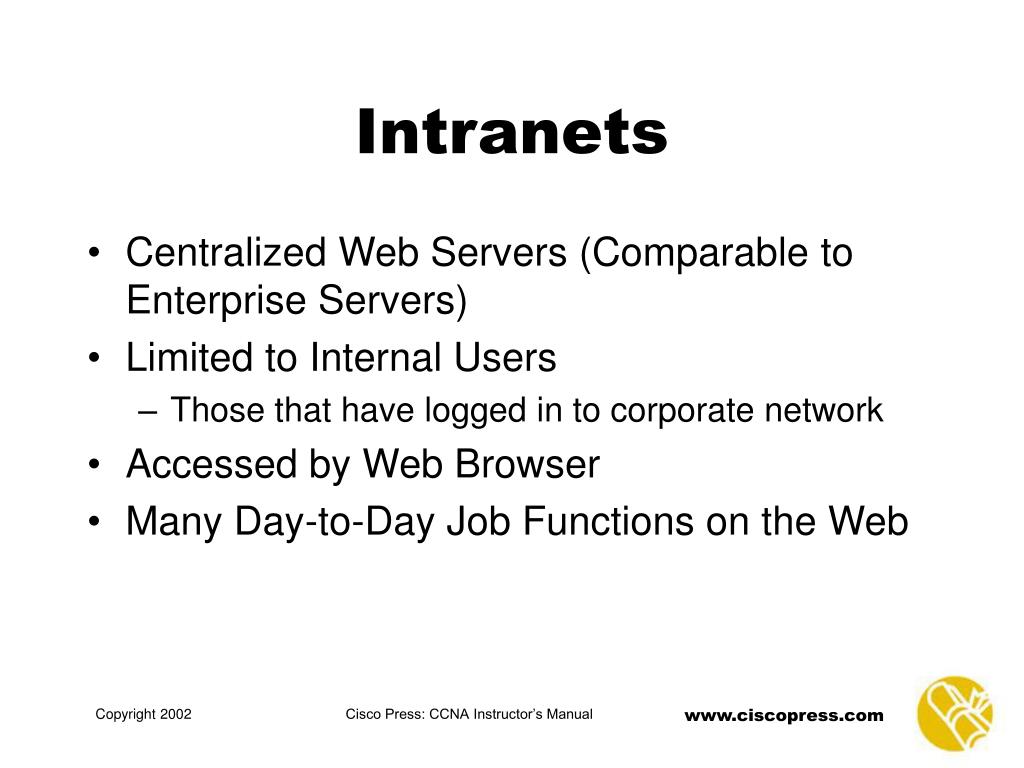

  5. Intranets • Centralized Web Servers (Comparable to Enterprise Servers) • Limited to Internal Users • Those that have logged in to corporate network • Accessed by Web Browser • Many Day-to-Day Job Functions on the Web Cisco Press: CCNA Instructor’s Manual

  6. Collision Detection (Ethernet) • Legacy Ethernet • Contention refers to excessive collisions caused by too many devices vying for services. • Broadcasts becomes excessive when: • Too many client packets looking for services • Too many server packets announcing services • Too many routing table updates • Too many broadcast-dependent protocols, such as ARP, DHCP, and so forth Cisco Press: CCNA Instructor’s Manual

  7. Broadcast and Collision Domains Cisco Press: CCNA Instructor’s Manual

  8. Network Design Methodology • Gathering Requirements • Analyzing Requirements • Designing the Network Topology • Designing the Layer 1, 2, and 3 LAN structure • Documenting the logical and physical network Cisco Press: CCNA Instructor’s Manual

  9. Gathering Requirements • Who will be using the network? • What resources do they need to access? • What is their level of skill? • What are their attitudes toward computers and applications? • What data and processes are mission-critical? • What protocols are allowed on the network? • What desktop hosts (OSs) are supported? • Who has authority over addressing, naming, topology design, and configuration? • What about the existing computer hardware and software? • How are these resources currently linked and shared? • What financial resources are available? • Who controls these resources? Cisco Press: CCNA Instructor’s Manual

  10. Develop a Physical Topology Cisco Press: CCNA Instructor’s Manual

  11. OSI Layer 1, 2, and 3 Issues Cisco Press: CCNA Instructor’s Manual

  12. Layer 1 Topology: Signaling Method, Medium Type, and Maximum Length Cisco Press: CCNA Instructor’s Manual

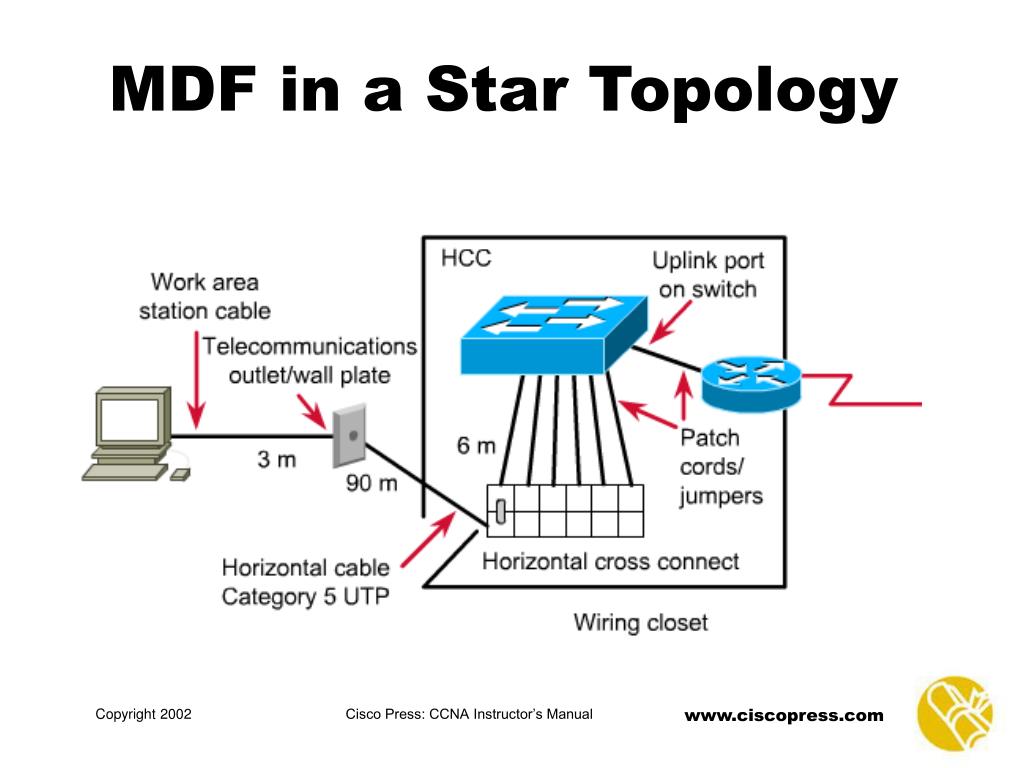

  13. MDF in a Star Topology Cisco Press: CCNA Instructor’s Manual

  14. MDFs and IDFs Cisco Press: CCNA Instructor’s Manual

  15. Extended Star Cisco Press: CCNA Instructor’s Manual

  16. Fast Ethernet or Gigabit Ethernet Fast Ethernet or Gigabit Ethernet 10BaseT, 100BaseTX, and 1000BaseX Ethernet • 10 Mbps (and 100 Mbps) to desktops • Vertical cabling 100 Mbps (or Gigabit) between MDFs and IDFs • 100 Mbps (or Gigabit) server to network • Often multiple links combined into channels to provide increased bandwidth in vertical runs and server connections Cisco Press: CCNA Instructor’s Manual

  17. Elements of a Logical Topology Diagram Cisco Press: CCNA Instructor’s Manual

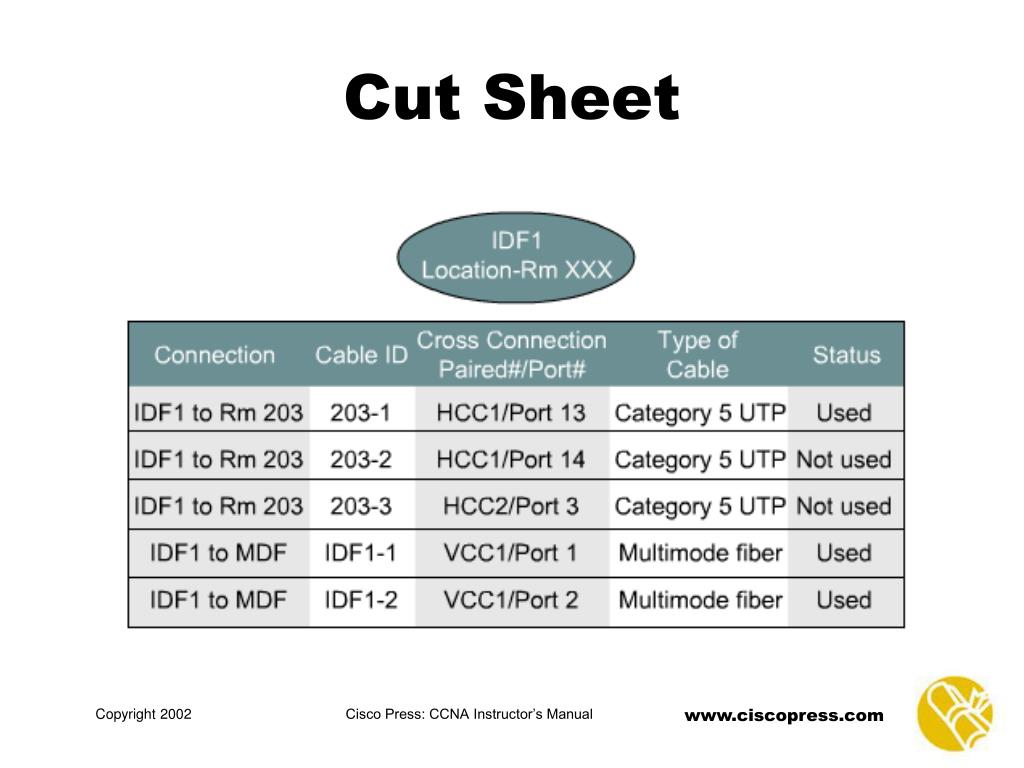

  18. Cut Sheet Cisco Press: CCNA Instructor’s Manual

  19. Select Layer 2 Devices Cisco Press: CCNA Instructor’s Manual

  20. Asymmetric Switching Cisco Press: CCNA Instructor’s Manual

  21. Switches to Reduce Congestion Cisco Press: CCNA Instructor’s Manual

  22. Determining the Number of Cable Runs and Drops Cisco Press: CCNA Instructor’s Manual

  23. Hubs Share (Split) Bandwidth Cisco Press: CCNA Instructor’s Manual

  24. Switches, Hubs, and Collision Domains Switches combined with full-duplex create collision-free domains. Cisco Press: CCNA Instructor’s Manual

  25. Layer 3 Design Cisco Press: CCNA Instructor’s Manual

  26. VLANs in the Design Cisco Press: CCNA Instructor’s Manual

  27. Routers Provides Logical Structure to a Network Cisco Press: CCNA Instructor’s Manual

  28. Diagramming a Standards-Based LAN with Routers Cisco Press: CCNA Instructor’s Manual

  29. Logical Maps Cisco Press: CCNA Instructor’s Manual

  30. Addressing Maps Cisco Press: CCNA Instructor’s Manual

  31. Physical Maps Cisco Press: CCNA Instructor’s Manual
