  1. Early Diagnosis of leprosy based on Multiple Assays Beijing Tropical Medicine Research Institute Email: weny8@163.com 2013-9-16

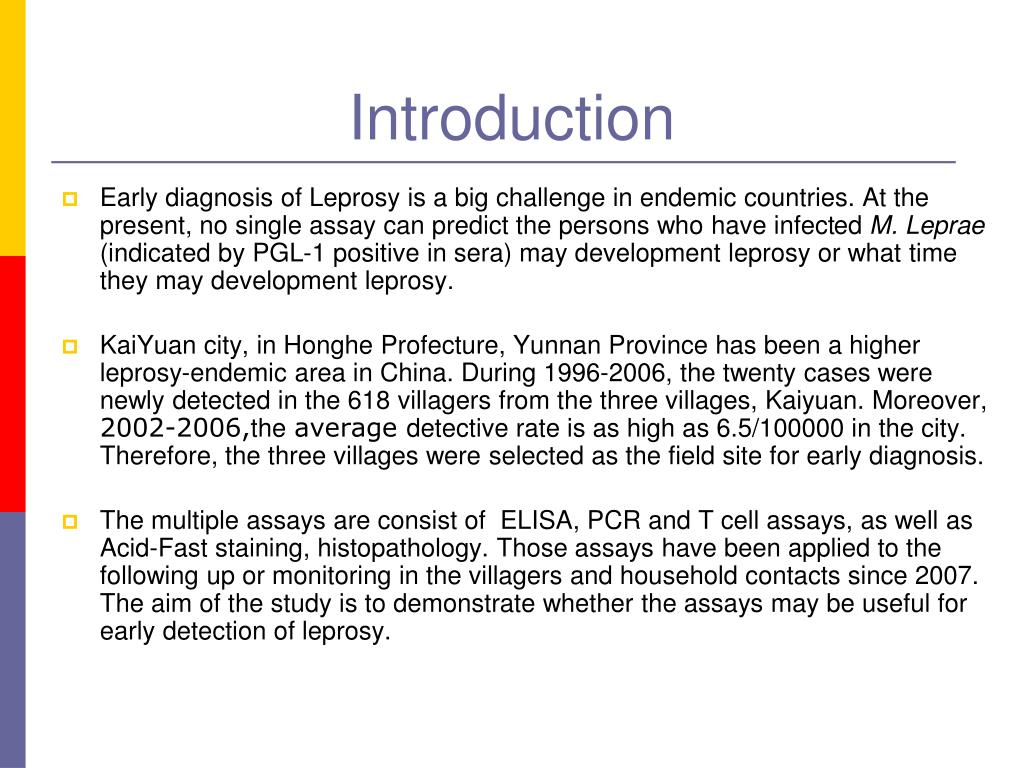

  2. Introduction Early diagnosis of Leprosy is a big challenge in endemic countries. At the present, no single assay can predict the persons who have infectedM. Leprae (indicated by PGL-1 positive in sera) may development leprosy or what time they may development leprosy. KaiYuan city, in Honghe Profecture, Yunnan Province has been a higher leprosy-endemic area in China. During 1996-2006, the twenty cases were newly detected in the 618 villagers from the three villages, Kaiyuan. Moreover, 2002-2006,the average detective rate is as high as 6.5/100000 in the city. Therefore, the three villages were selected as the field site for early diagnosis. The multiple assays are consist of ELISA, PCR and T cell assays, as well as Acid-Fast staining, histopathology. Those assays have been applied to the following up or monitoring in the villagers and household contacts since 2007. The aim of the study is to demonstrate whether the assays may be useful for early detection of leprosy.

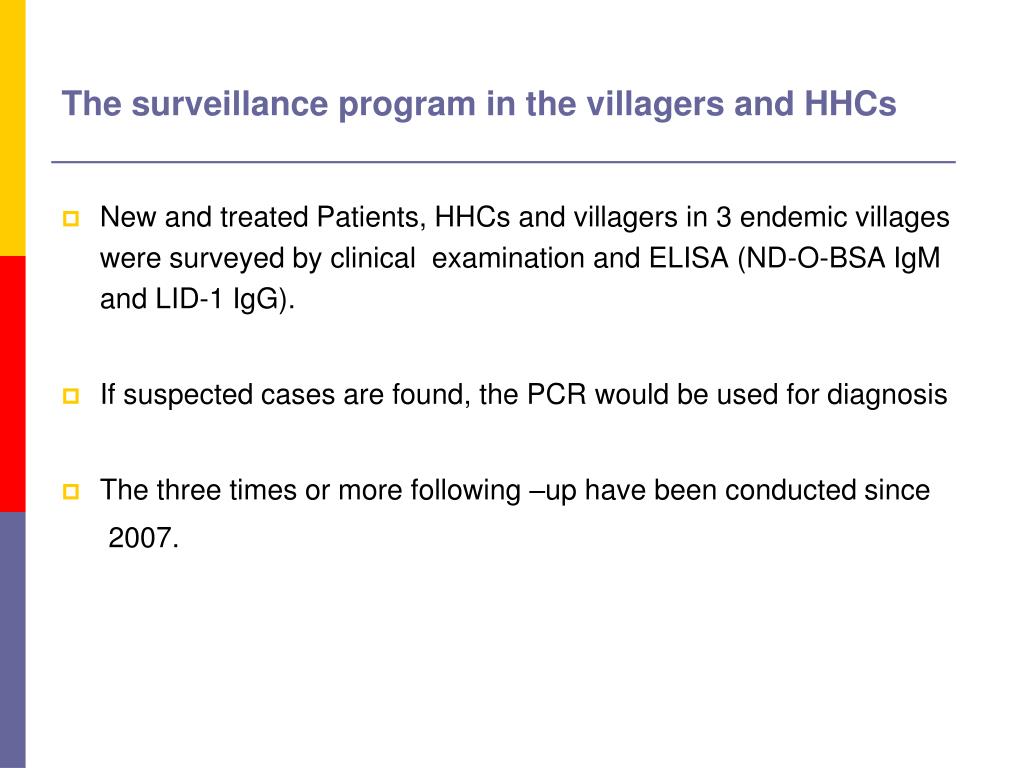

  3. The surveillance program in the villagers and HHCs New and treated Patients, HHCs and villagers in 3 endemic villages were surveyed by clinical examination and ELISA (ND-O-BSA IgM and LID-1 IgG). If suspected cases are found, the PCR would be used for diagnosis The three times or more following –up have been conducted since 2007.

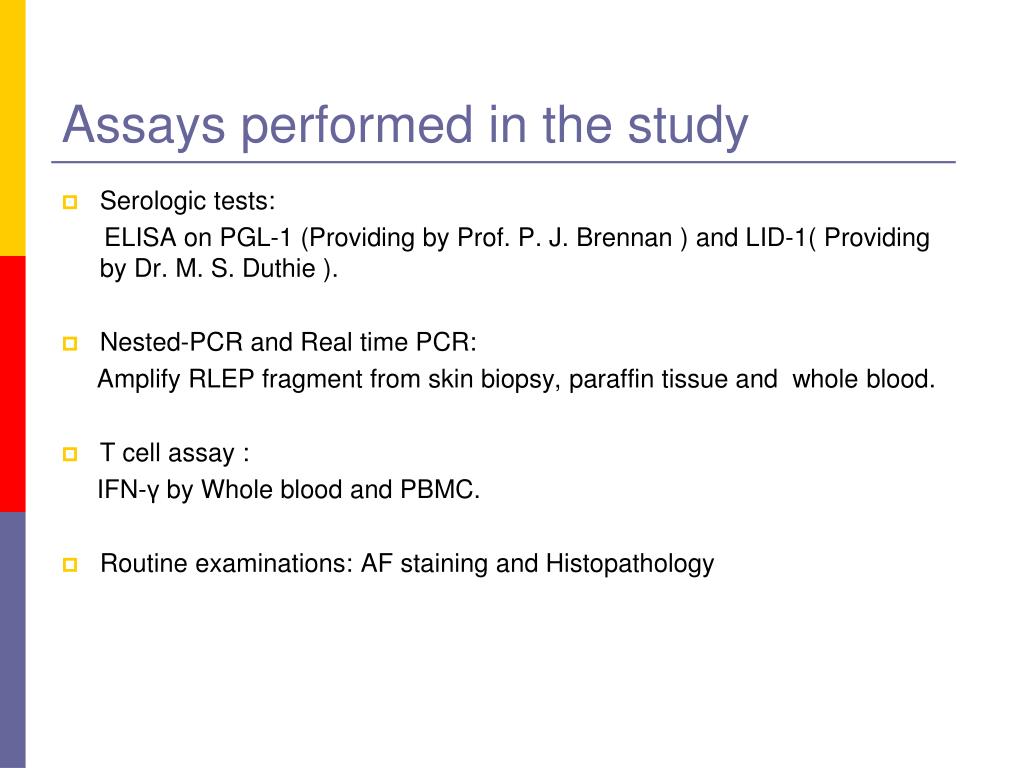

  4. Assays performed in the study Serologic tests: ELISA on PGL-1 (Providing by Prof. P. J. Brennan ) and LID-1( Providing by Dr. M. S.Duthie ). Nested-PCR and Real time PCR: Amplify RLEP fragment from skin biopsy, paraffin tissue and whole blood. T cell assay : IFN-γ by Whole blood and PBMC. Routine examinations: AF staining and Histopathology

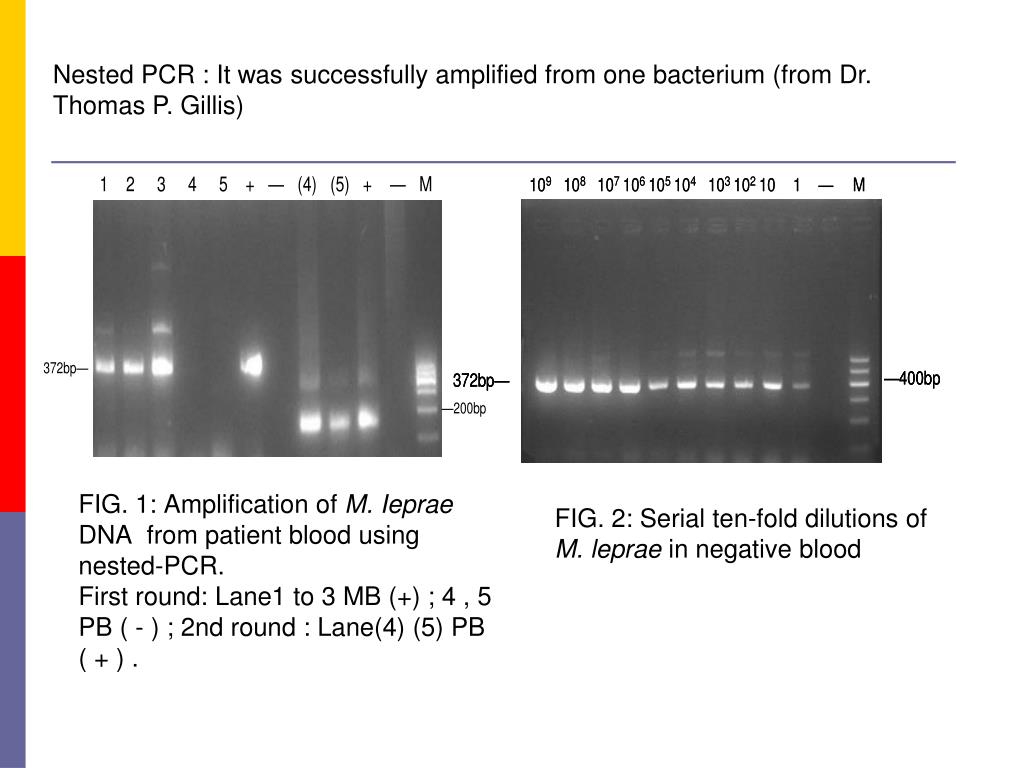

  5. FIG. 1: Amplification of M. Ieprae DNA from patient blood using nested-PCR.First round:Lane1 to 3 MB (+) ; 4 , 5 PB ( - ) ; 2nd round : Lane(4) (5) PB ( + ) . Nested PCR : It was successfully amplified from one bacterium (from Dr. Thomas P. Gillis) FIG. 2: Serial ten-fold dilutions of M. leprae in negative blood

  6. TaqMan real time PCR Amplification Plot： A: 107 copies /μlplasmid； B: 106 copies /μlplasmid； C: 105 copies /μlplasmid； D: 104 copies /μlplasmid； E: 103 copies /μlplasmid； F: 102 copies /μlplasmid G: 10 copies /μlplasmid。

  7. Synthesize peptides Select unique proteins from M. leprae database based on comparative genomic analyses Synthesize peptides to be used in vitroPBMC/whole blood stimulation assays 21 peptides chosen from 14 different M. leprae proteins were synthesized for in vitro testing

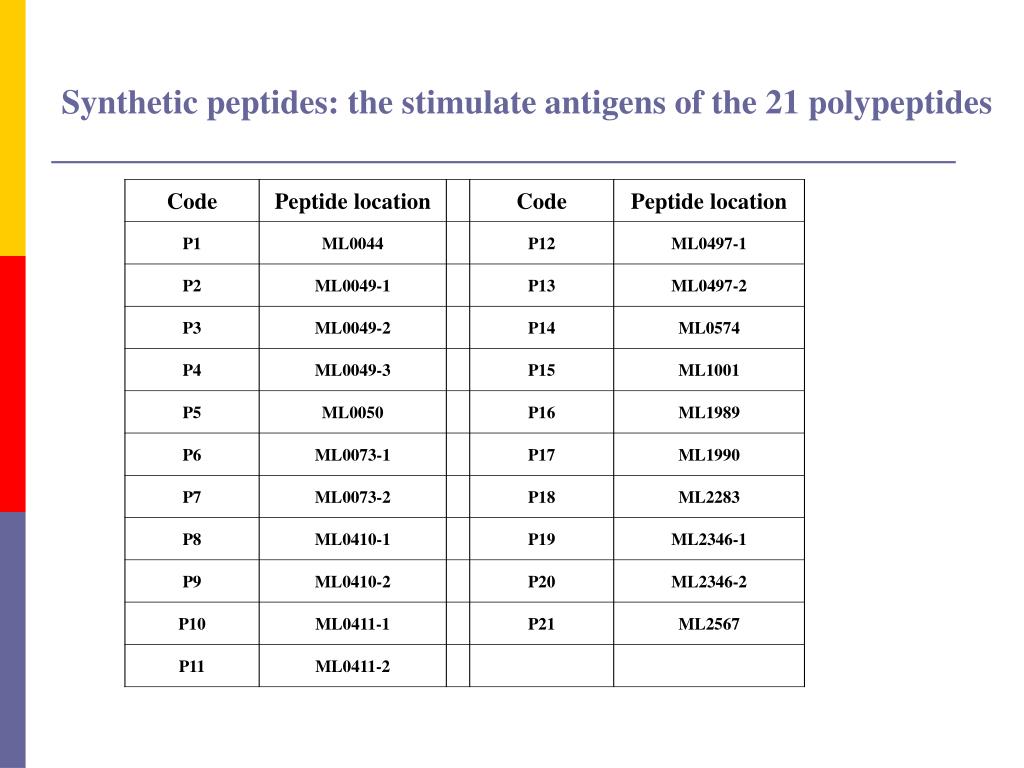

  8. Synthetic peptides: the stimulate antigens of the 21 polypeptides

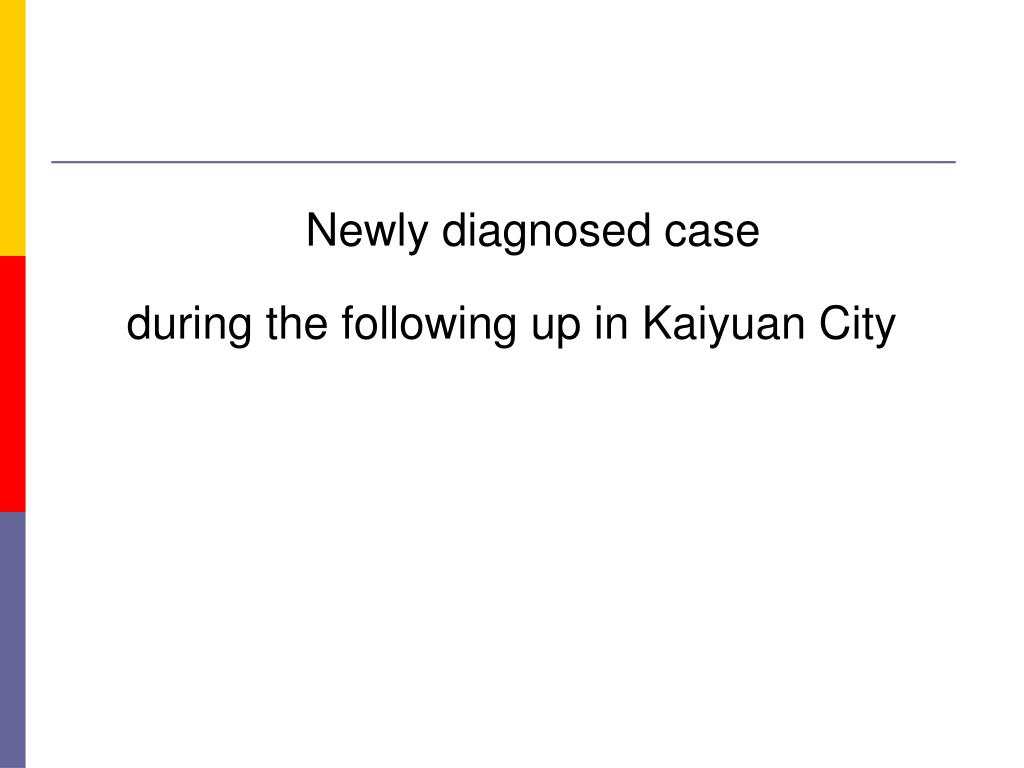

  9. Newly diagnosed case during the following up in Kaiyuan City

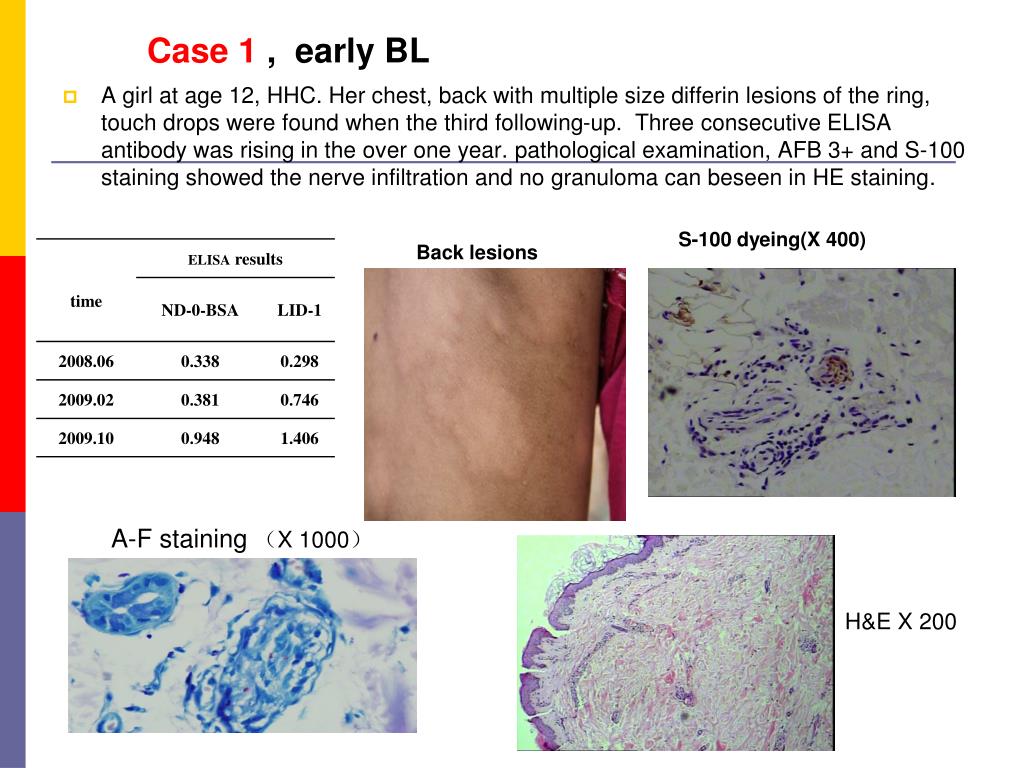

  10. A girl at age 12, HHC. Her chest, back with multiple size differin lesions of the ring, touch drops were found when the third following-up. Three consecutive ELISA antibody was rising in the over one year. pathological examination, AFB 3+ and S-100 staining showed the nerve infiltration and no granuloma can beseen in HE staining. Case 1, early BL S-100 dyeing(X 400) Back lesions A-F staining （X 1000） H&E X 200

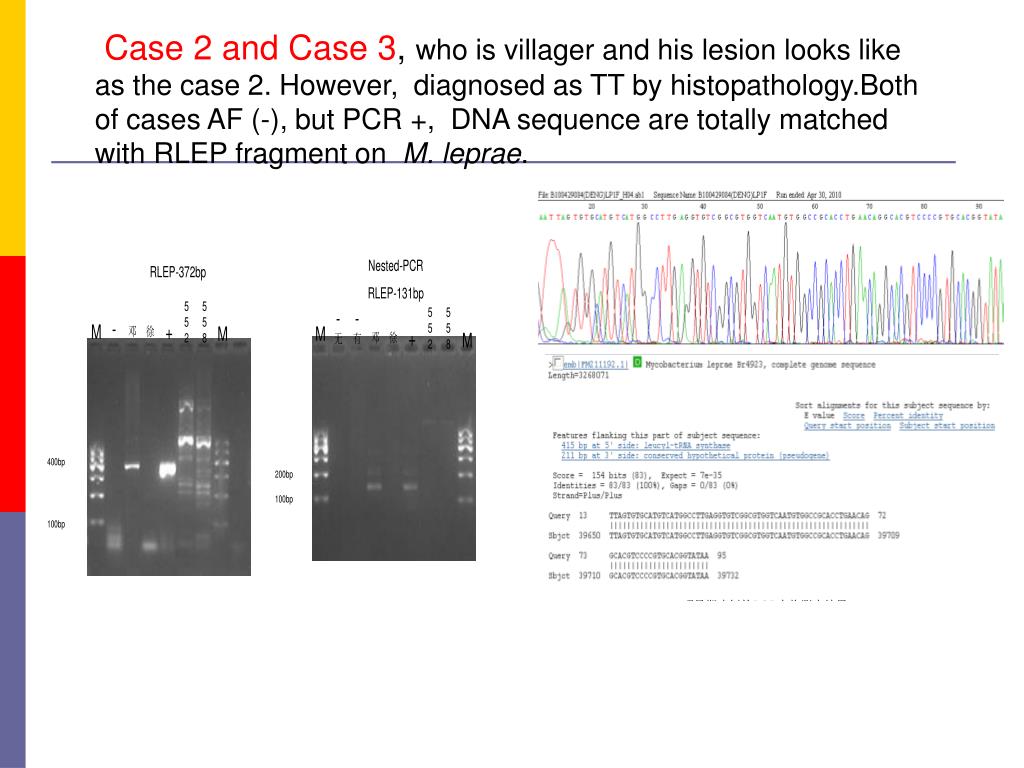

  11. Case 2 and Case 3, who is villager and hislesion looks like as the case 2. However, diagnosed as TT by histopathology.Both of cases AF (-), but PCR +, DNA sequence are totally matched with RLEP fragment on M. leprae.

  12. Case4(out-patient in Beijing) A 40 year-old woman, the 5 lesions on leg,foot and buttocks. Not lost of sense Pathological examination:, and epithelioid cells infiltration around blood vascular ,adnexal and granuloma . The AF (-). Suspecting as sarcoidosis but PCR (+) . Now the lesions are significantly regressed after a half year of MDT. The patient was diagnosed with BT.

  13. Evaluation on T cell assay basedon the peptides

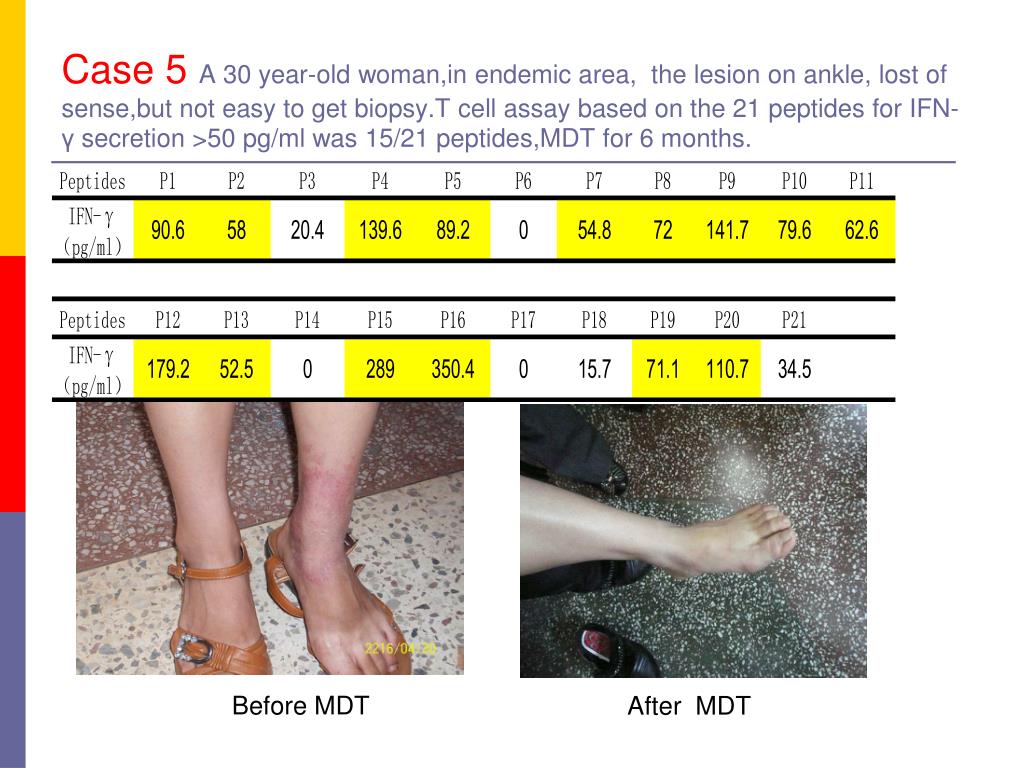

  14. Case 5A 30 year-old woman,in endemic area, the lesion on ankle, lost of sense,but not easy to get biopsy.T cell assay basedon the 21 peptides for IFN- γ secretion >50 pg/ml was 15/21 peptides,MDT for 6 months. Before MDT After MDT

  15. Preliminary summary on T cell assay basedon the 21 peptides Although we succeeded in the diagnosis one case and no cross reaction with TB and normal groups. However, the results 0f all 21 peptides for both PBMC or whole blood assay on MB:24, PB:6 and HHC:17 showed no peptide may induce IFN-γ in significant differences between the petients and control. In addition, the experimental repeatability is not good. The design or selection of the peptides and proteins require to further study.

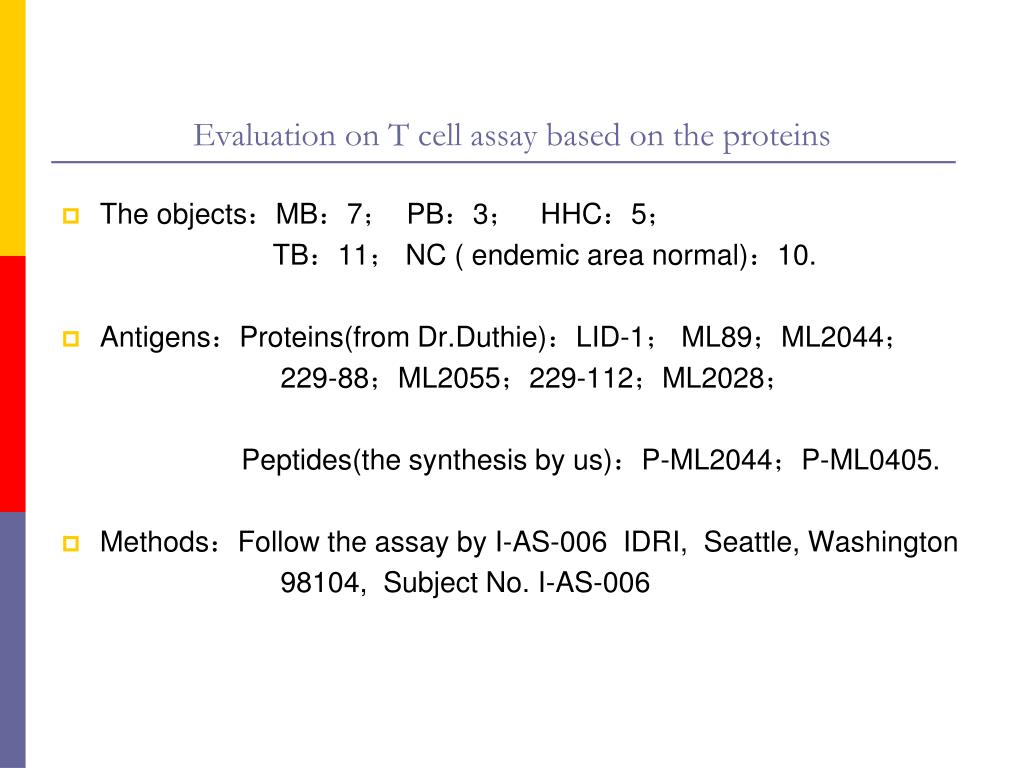

  16. Evaluation on T cell assay basedon the proteins The objects：MB：7； PB：3； HHC：5； TB：11； NC ( endemic area normal)：10. Antigens：Proteins(from Dr.Duthie)：LID-1； ML89；ML2044； 229-88；ML2055；229-112；ML2028； Peptides(the synthesis by us)：P-ML2044；P-ML0405. Methods：Follow the assay by I-AS-006 IDRI, Seattle, Washington 98104, Subject No. I-AS-006

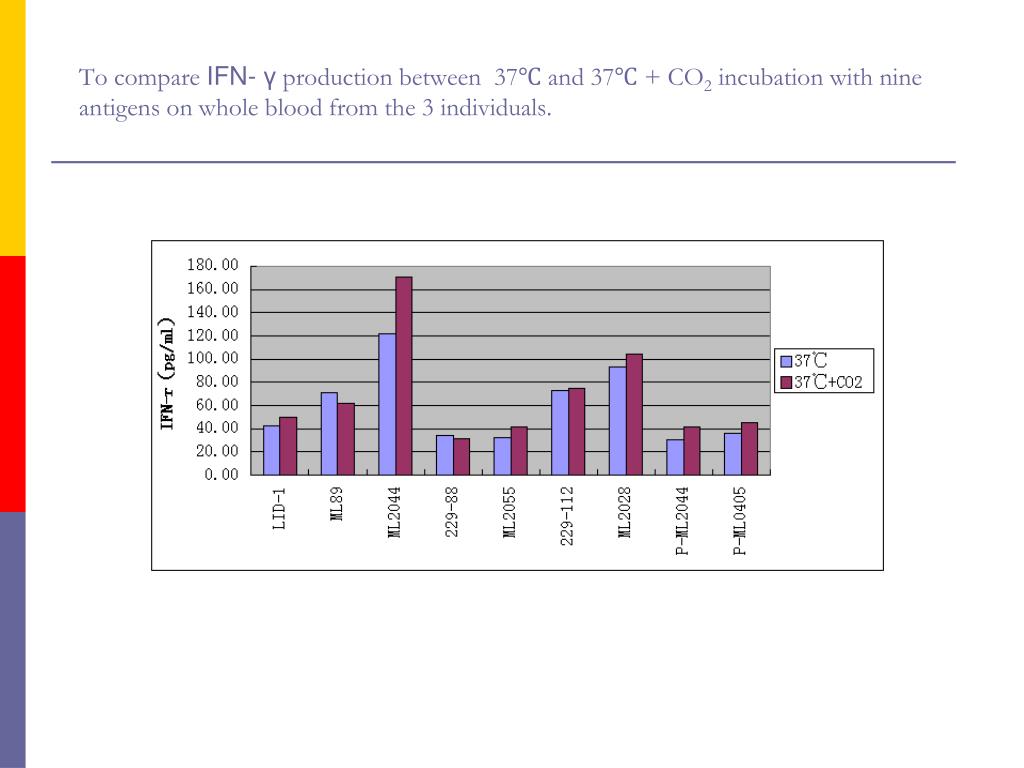

  17. To compare IFN- γ production between 37℃ and 37℃ + CO2 incubation with nine antigens on whole blood from the 3 individuals.

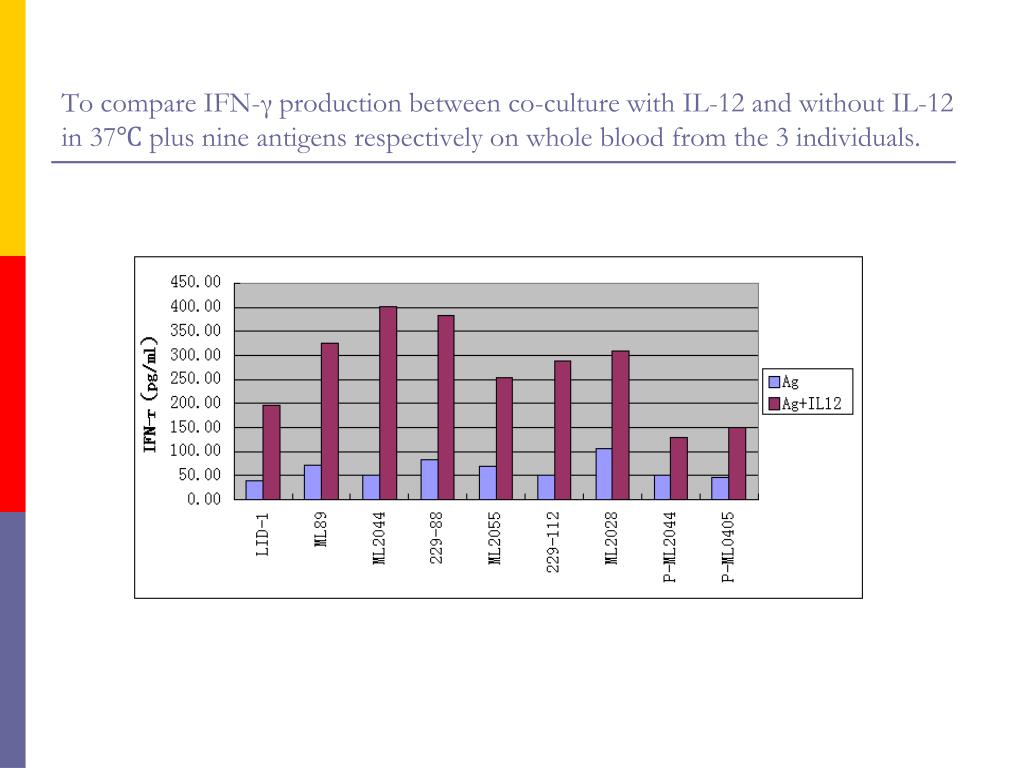

  18. To compare IFN-γ production between co-culture with IL-12 and without IL-12 in 37℃ plus nine antigens respectively on whole blood from the 3 individuals.

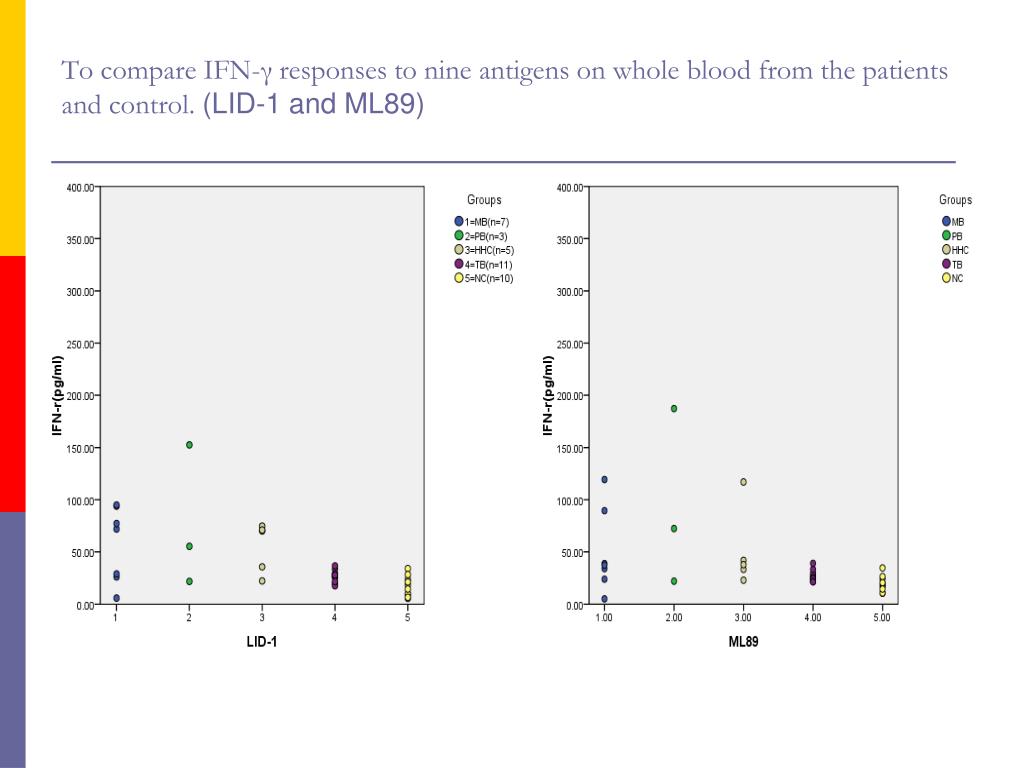

  19. To compare IFN-γ responses to nine antigens on whole blood from the patients and control. (LID-1 and ML89)

  20. Results(ML2044 and 229-88)

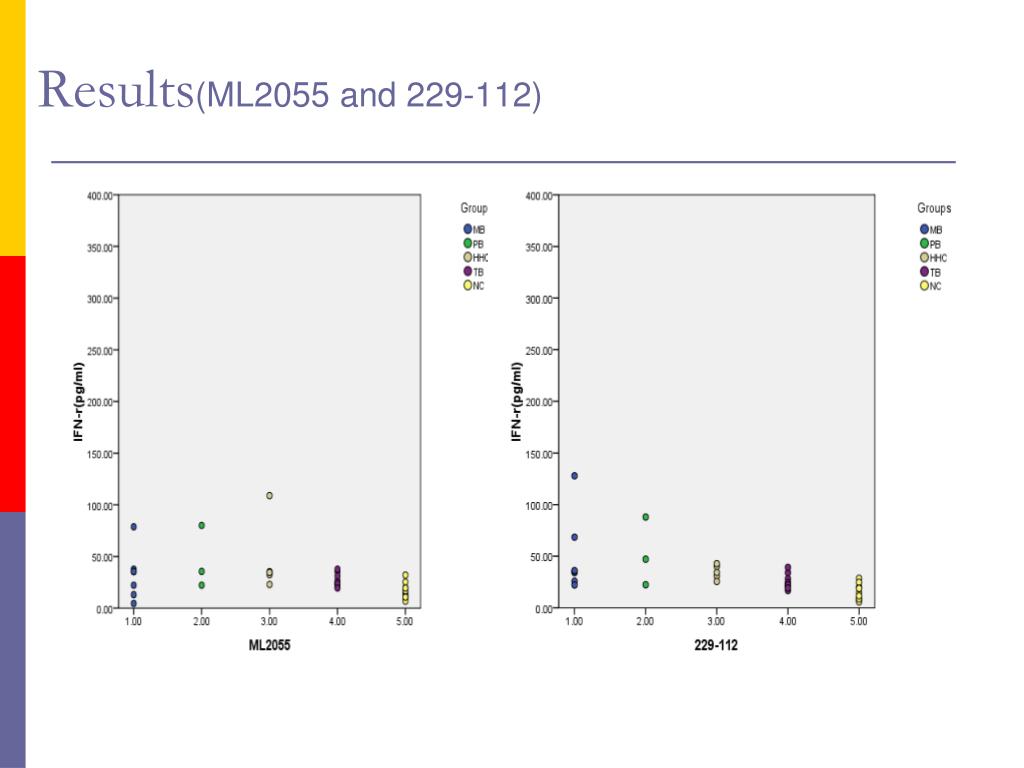

  21. Results(ML2055 and 229-112)

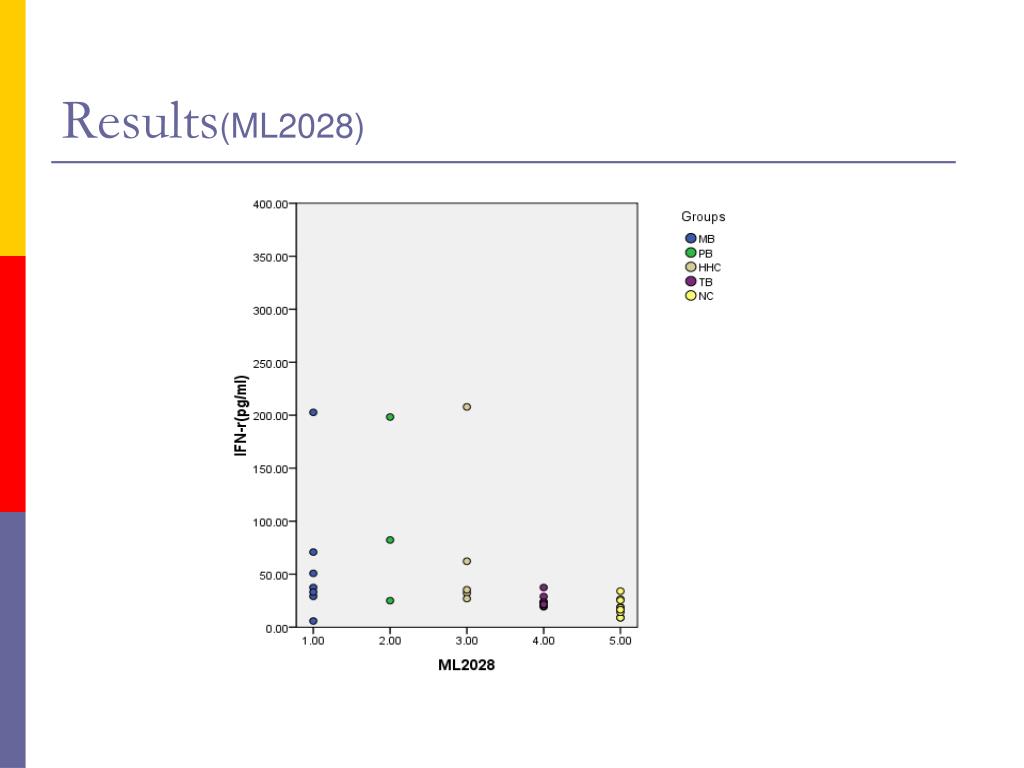

  22. Results(ML2028)

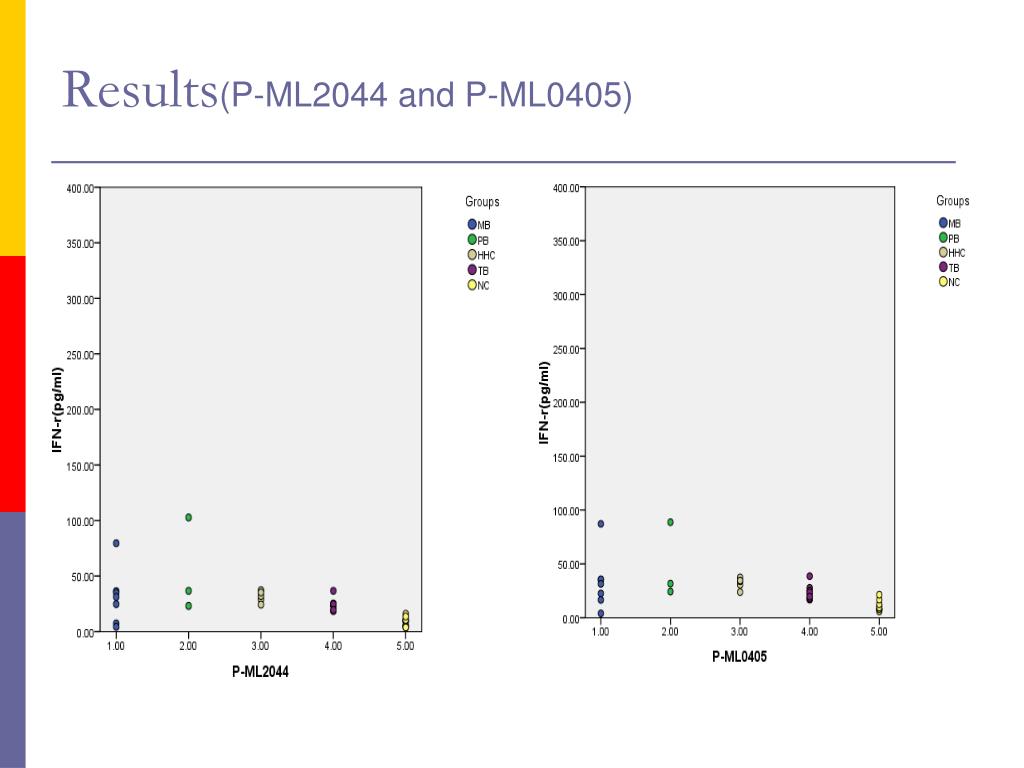

  23. Results(P-ML2044 and P-ML0405)

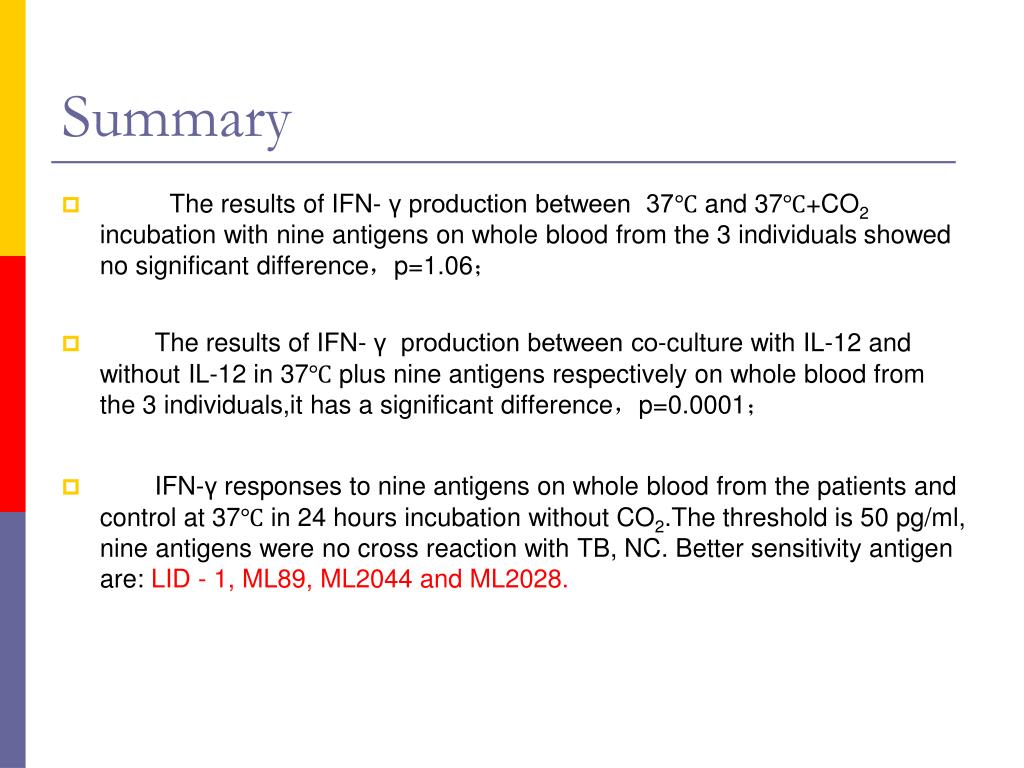

  24. Summary The results of IFN- γ production between 37℃ and 37℃+CO2 incubation with nine antigens on whole blood from the 3 individuals showed no significant difference，p=1.06； The results of IFN- γ production between co-culture with IL-12 and without IL-12 in 37℃ plus nine antigens respectively on whole blood from the 3 individuals,it has a significant difference，p=0.0001； IFN-γ responses to nine antigens on whole blood from the patients and control at 37℃ in 24 hours incubation without CO2.The threshold is 50 pg/ml, nine antigens were no cross reaction with TB, NC. Better sensitivity antigen are: LID - 1, ML89, ML2044 and ML2028.

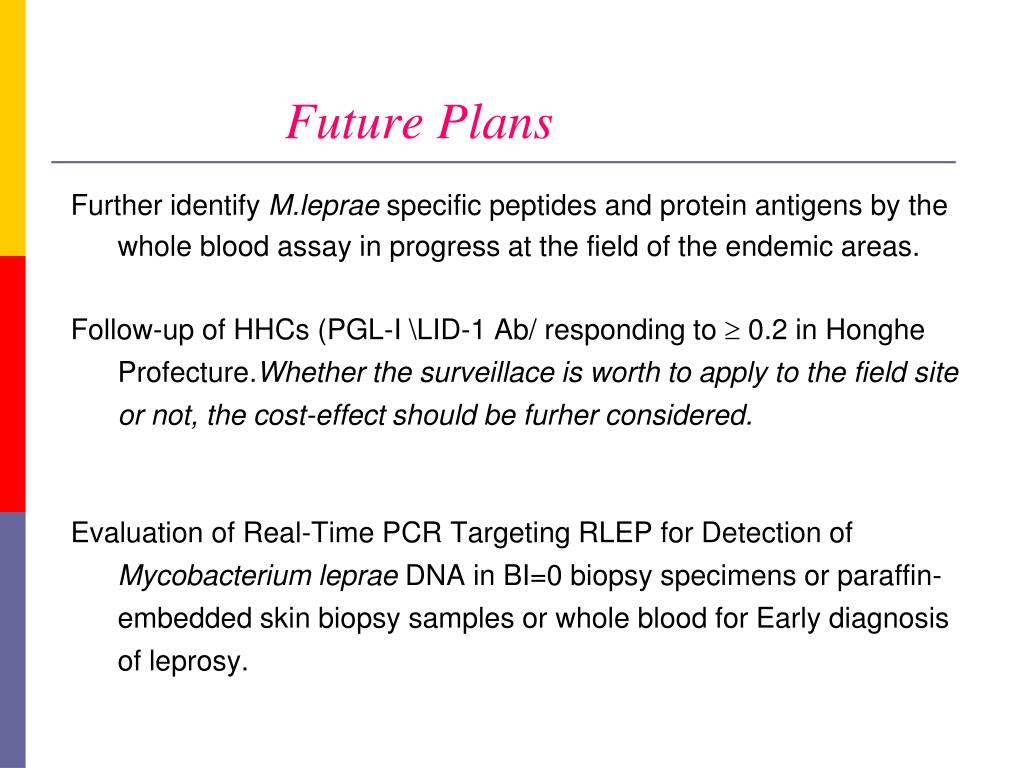

  25. Future Plans Further identify M.leprae specific peptides and protein antigens by the whole blood assay in progress at the field of the endemic areas. Follow-up of HHCs (PGL-I \LID-1 Ab/ responding to  0.2 in Honghe Profecture.Whether the surveillace is worth to apply to thefield site or not, the cost-effect should be furherconsidered. Evaluation of Real-Time PCR Targeting RLEP for Detection of Mycobacterium leprae DNA in BI=0 biopsy specimens or paraffin-embedded skin biopsy samples or whole blood for Early diagnosis of leprosy.

  26. Thank You Lunar Year of Tiger Celebration with cured patients with their families, at Jiuhua Shanzhuang (hot spring resort), Jan 29, 2010.
