Perpendicular Lines

Perpendicular Lines. Geometry CP2(Holt 3-4) K.Santos. Perpendicular Bisector. Perpendicular bisector of a segment is a line perpendicular to a segment at the segment’s midpoint. (could be a segment or ray) s M t Line s is perpendicular to line t at it’s midpoint M .

sirius
Télécharger la présentation

Perpendicular Lines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

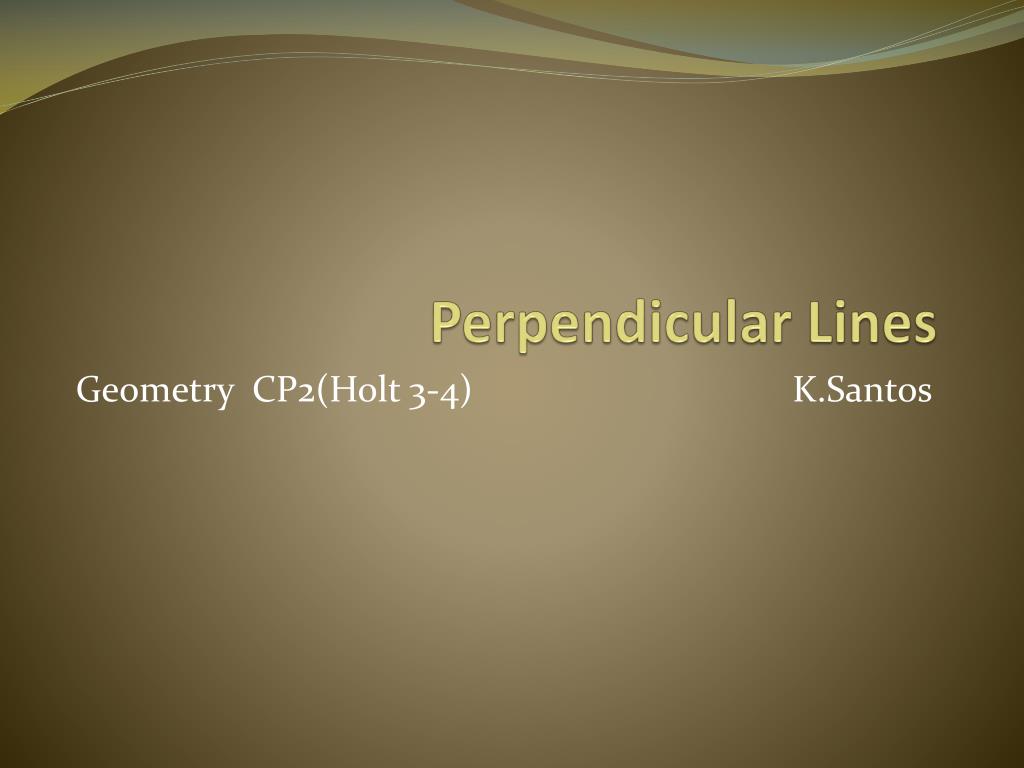

  1. Perpendicular Lines Geometry CP2(Holt 3-4) K.Santos

  2. Perpendicular Bisector Perpendicular bisector of a segment is a line perpendicular to a segment at the segment’s midpoint. (could be a segment or ray) s M t Line s is perpendicular to line t at it’s midpoint M

  3. Distance from a point to a line The shortest segment from a point to a line is perpendicular to the line. Distance form a point to a line is the length of the perpendicular segment from the point to the line.

  4. Theorem (3-4-1) If two intersecting lines form a linear pair of congruent angles, then the lines are perpendicular. Given: <1 and < 2 are a linear pair n Then: m ⊥ n 1 2 m

  5. Perpendicular Transversal Theorem (3-4-2) In a plane, if a line is perpendicular to one of two parallel lines, then it is perpendicular to the other line. a b Given: a||b t┴a t Then: t ┴b

  6. Theorem (3-4-3) Theorem: If two coplanar lines are perpendicular to the same line, then the two lines are parallel to each other. Given: a┴ t a b┴t Then: a||b b t

  7. Theorem If two coplanar lines are parallel to the same line, then they are parallel to each other. t Given: a ||b a b ||c b Then: a || c c

  8. Example: Use the picture at the right to answer the questions below: C P B x – 8 12 Name the shortest segment from point A to . Write and solve an inequality for x. AC > AP x – 8 > 12 x > 20

  9. Example Given the information below what can you conclude about lines a and d? a ||b a b┴c c||db a ___ d? cd Draw a picture with all the line in it and then make a conclusion about lines a and d. a ┴ d
