How to make ImmPort data fit for secondary use

1. How to make ImmPort data fit for secondary use Barry Smith http://ontology.buffalo.edu/smith

2. Goals of ImmPort • Accelerate a more collaborative and coordinated research environment • Create an integrated database that broadens the usefulness of scientific data • Advance the pace and quality of scientific discovery • Integrate relevant data sets from participating laboratories, public and government databases, and private data sources • Promote rapid availability of important findings • Provide analysis tools to advance immunological research

3. Improve immunology research through enhanced • Collaboration • Coordination • Discoverability • Integration • Analyzability Hypothesis: all of these ends will be promoted by describing ImmPort data using terms from shared high quality ontologies

4. ImmPort data is already being tagged with ontology terms For example • where data is prepared to meet FDA requirements • where data is published to meet NIH mandates for reusability • in the post-submission phase, where data is analyzed by third parties But this tagging is • partial • uncoordinated • uses ontologies and analysis tools of varying quality

6. SDY 165: Characterization of in vitro Stimulated B Cells from Human Subjects shared to Semi-Public Workspace (SPW) Project

7. SDY 165: Characterization of in vitro Stimulated B Cells from Human Subjects shared to Semi-Public Workspace (SPW) Project During the human B cell (Bc) recall response, rapid cell division results in multiple Bc subpopulations. RNA microarray and functional analyses showed that proliferating CD27lo cells are a transient pre-plasmablast population, expressing genes associated with Bc receptor editing. Undivided cells had an active transcriptional program of non-ASC B cell functions, including cytokine secretion and costimulation, suggesting a link between innate and adaptive Bc responses. Transcriptome analysis suggested a gene regulatory network for CD27lo and CD27hi Bc differentiation.  • In vitro stimulated B cells from human subjects • B cell receptor editing

8. SDY 165: Characterization of in vitro Stimulated B Cells from Human Subjects shared to Semi-Public Workspace (SPW) Project

9. Pubmed 22468229

10. Discoverability: examples • Find [ImmPort] data pertaining to in vitro stimulated B cells from human subjects • Find studies of genes associated with B cell receptor editing in human subjects • Find all data in public and government databases relating to B cell receptor editing

11. Discoverability through literature search Two queries: • In vitro stimulated B cells from human subjects • B cell receptor editing on • Pubmed • MeSH (Medical Subject Headings) • Google

12. Pubmed 22468229

13. PubMed retrieves 144 results for “In vitro stimulated B cells from human Subjects” – Zand paper not found

14. PubMed retrieves 0 results for “Zand[Author] AND In vitro stimulated B cells from human subjects”

15. Pubmed retrieves 179 results for “B cell receptor editing” – Zand paper not found

16. MeSH results for “In vitro stimulated B cells from human subjects”

17. MeSH results for “in vitro stimulated B cells from human subjects”

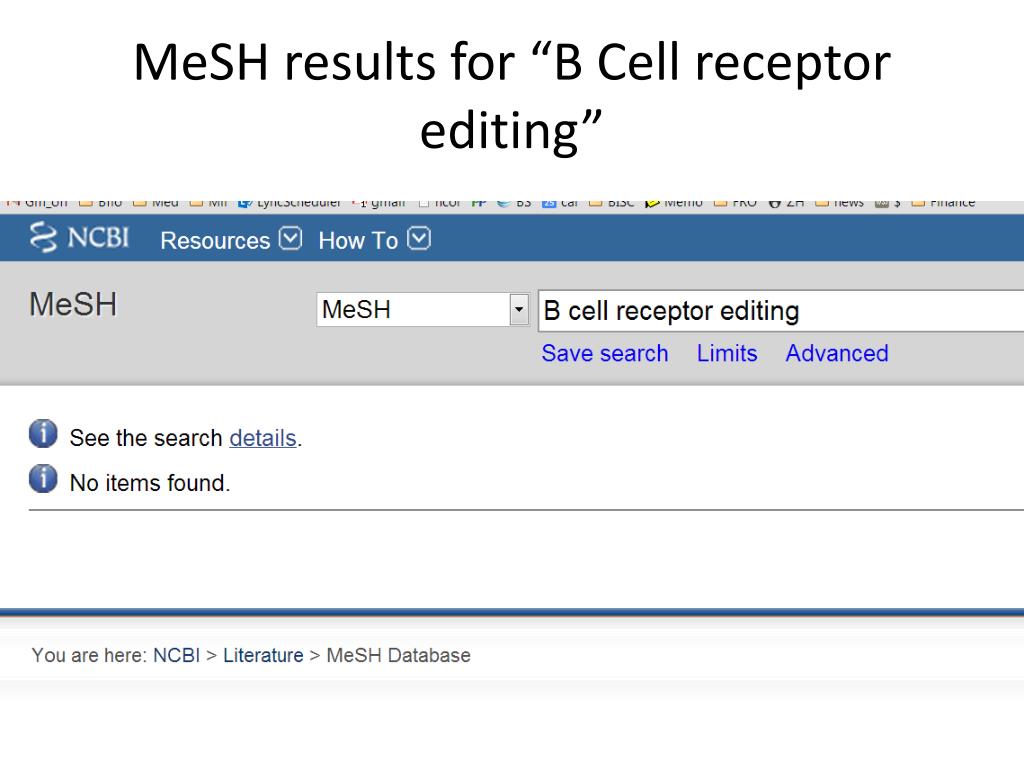

18. MeSH results for “B Cell receptor editing”

19. Google retrieves 180 results for “In vitro stimulated B cells from human subjects” – Zand paper not found

20. Jackpot

21. How to make this [ImmPort data] SDY 165: Characterization of in vitro Stimulated B Cells from Human Subjects shared to Semi-Public Workspace (SPW) Project During the human B cell (Bc) recall response, rapid cell division results in multiple Bc subpopulations. RNA microarray and functional analyses showed that proliferating CD27lo cells are a transient pre-plasmablast population, expressing genes associated with Bc receptor editing. Undivided cells had an active transcriptional program of non-ASC B cell functions, including cytokine secretion and costimulation, suggesting a link between innate and adaptive Bc responses. Transcriptome analysis suggested a gene regulatory network for CD27lo and CD27hi Bc differentiation.  discoverable?

22. B cell receptor editing GO:0002452

23. GO definition GO provides a definition

24. and position in GO hierarchy -- hierarchy allows logical reasoning

25. GOPubMed: 179 results for “B cell receptor editing”

26. (B cell receptor editing Zand) AND ("Zand"[au]) why are zero documents retrieved?

27. Proposal1. Tag ImmPort SDY abstracts with GO URIs2. Publish the results to the GO Annotation database During the human B cell recall response, rapid cell division results in multiple B cell subpopulations. RNA microarray and functional analyses showed that proliferating CD27lo cells are a transient pre-plasmablast population, expressing genes associated with B cell receptor editing. Undivided cells had an active transcriptional program of non-ASC B cell functions, including cytokine secretion and costimulation, suggesting a link between innate and adaptive Bc responses. Transcriptome analysis suggested a gene regulatory network for CD27lo and CD27hi Bc differentiation.

28. But GO is not enough See http://ncorwiki.buffalo.edu/index.php/ Immunology_Ontologies immune disorders infectious diseases allergies immune epitopes, etc. etc. For special case of Flow Cytometry and CyTOF: ImmPort Ontology Meeting, Stanford, September 4-5, 2013: http://x.co/1W1Om

29. Files in SDY 165

30. lk_race.txt American Indian or Alaska Native Asian Black or African American Native Hawaiian or Other Pacific Islander Not_Specified Other Unknown White

31. ImmPort Templates https://immport.niaid.nih.gov/immportWeb/experimental/displaySubmitTemplates.do

32. ImmPort Templates: Race https://immport.niaid.nih.gov/immportWeb/experimental/displaySubmitTemplates.do

33. ImmPort Templates How specify Race if Race = ‘Other’?

34. ImmPort Templates How specify “Subject Phenotype”?

35. NG / BISC proposal create controlled vocabularies (ontology drop down lists) for fields currently populated by submitters with free text

36. Files in SDY 165

38. lk_sample_type proposal: where controlled vocabularies exist, provide definitions for all terms

39. Two kinds of definitions • human readable definitions support consistency of data entry • logical definitions • allow logical analysis of data • support aggregation of data • allow automatic validation of consistent data entry Definitions can often be taken over from already existing public domain ontologies such as GO • use of ready-made definitions supports discoverability, and creates automatic linkage to huge bodies of public domain data

40. ImmPort Antibody Registry (Diehl, et al) from BD Lyoplate Screening Panels Human Surface Markers

41. Discoverability

42. Where did this lk_sample_type list come from?

43. CDISC • Clinical Data Interchange Standards Consortium • http://www.cdisc.org/

44. CDISC Glossary

45. SDTM • Study Data Tabulation Model developed by FDA as part of CDISC • for Race, Gender, Ethnicity, … • no human readable definitions • no logical definitions Jan 2013: release of CDISC SDTM Model by CDISC2RDF (Kerstin Forsberg of AstraZeneca)

46. PHUSE (EU, Roche, AstraZeneca, FDA, …) project to incorporate ontology technology into CDISC

47. BRIDG • http://bridgmodel.nci.nih.gov/files/BRIDG_Model_3.2_html/index.htm • Biomedical Research Integrated Domain Group (BRIDG) Project

48. BRIDG 3.2 Domain Analysis Model

49. Other strategies to simplify creation of structured data for submission into ImmPort • ELN: Electronic Lab Notebooks • PRIME: “Contur ELN has been automating the process of data deposition into ImmPort, making it much easier for our researchers to submit data to ImmPort” • CTMS: Clinical Trial Management Systems • EHR: Electronic Health Records • experiments to prepopulate EHR data into CTMS and from there into case report forms (and into ImmPort?) • Minimal Information Checklists

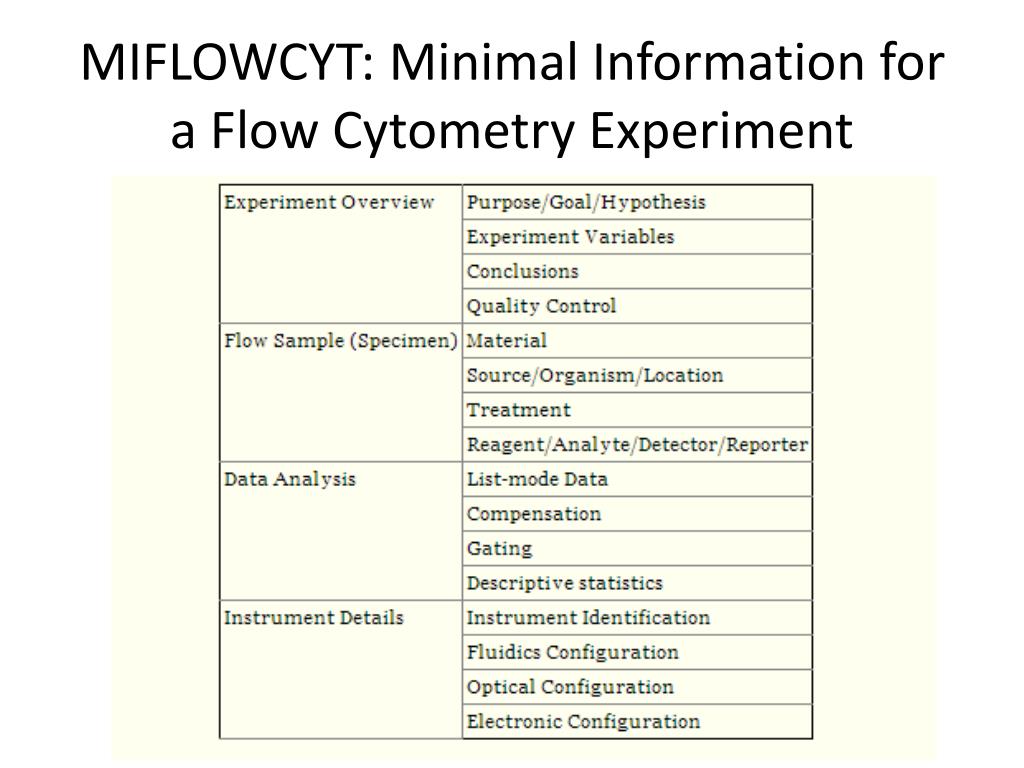

50. MIFLOWCYT: Minimal Information for a Flow Cytometry Experiment
