BOHRTEC PROCESS TECHNOLOGY

BOHRTEC PROCESS TECHNOLOGY. Process technology for lying a drainage piping under ground water. Process technology for lying a drainage piping under ground water 1. Injection. Process technology for lying a drainage piping under ground water 2. Core drilling.

sonja
Télécharger la présentation

BOHRTEC PROCESS TECHNOLOGY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. BOHRTEC PROCESS TECHNOLOGY Process technology for lying a drainage piping under ground water

  2. Process technology for lying a drainage piping under ground water1. Injection

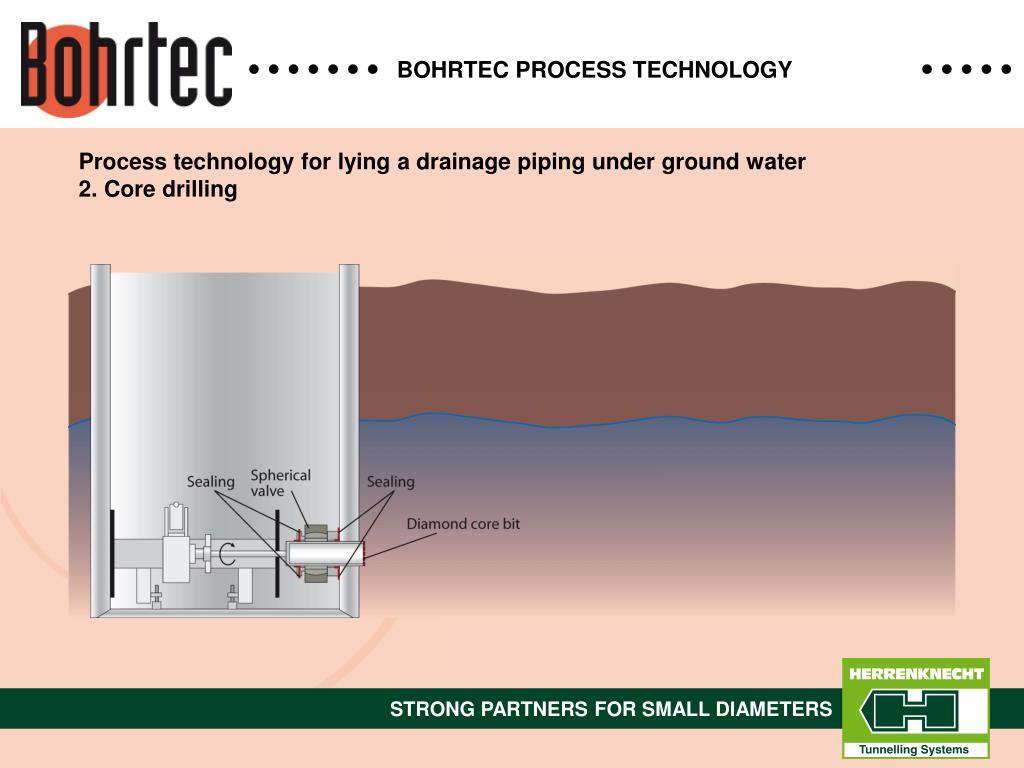

  3. Process technology for lying a drainage piping under ground water2. Core drilling

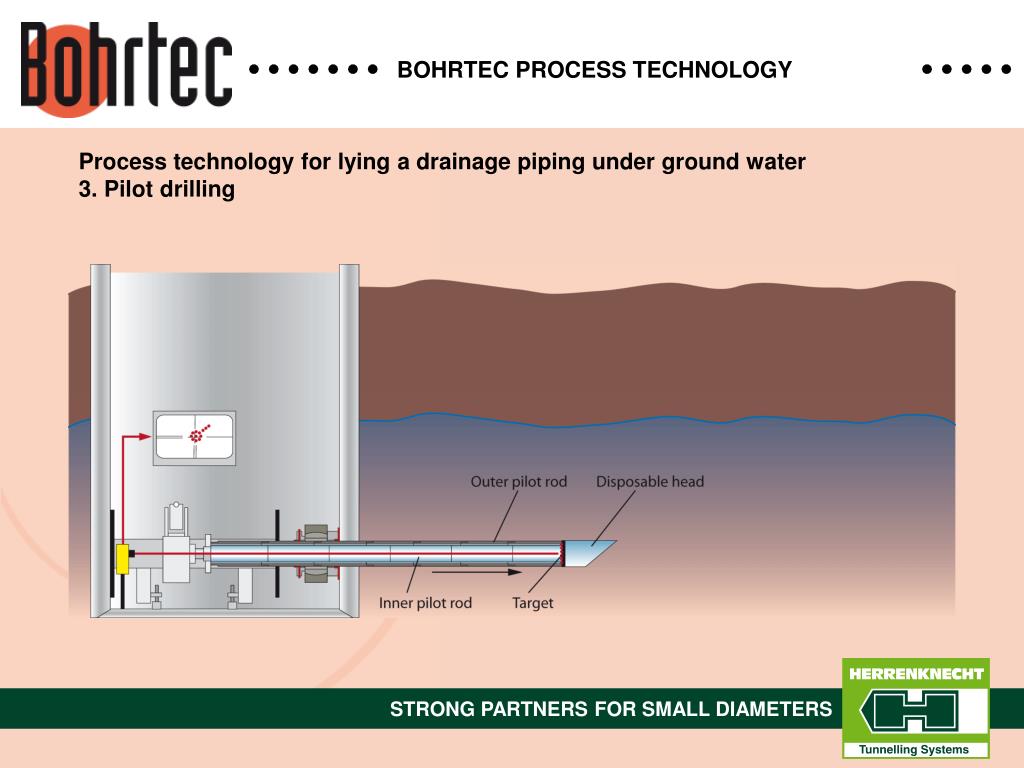

  4. Process technology for lying a drainage piping under ground water3. Pilot drilling

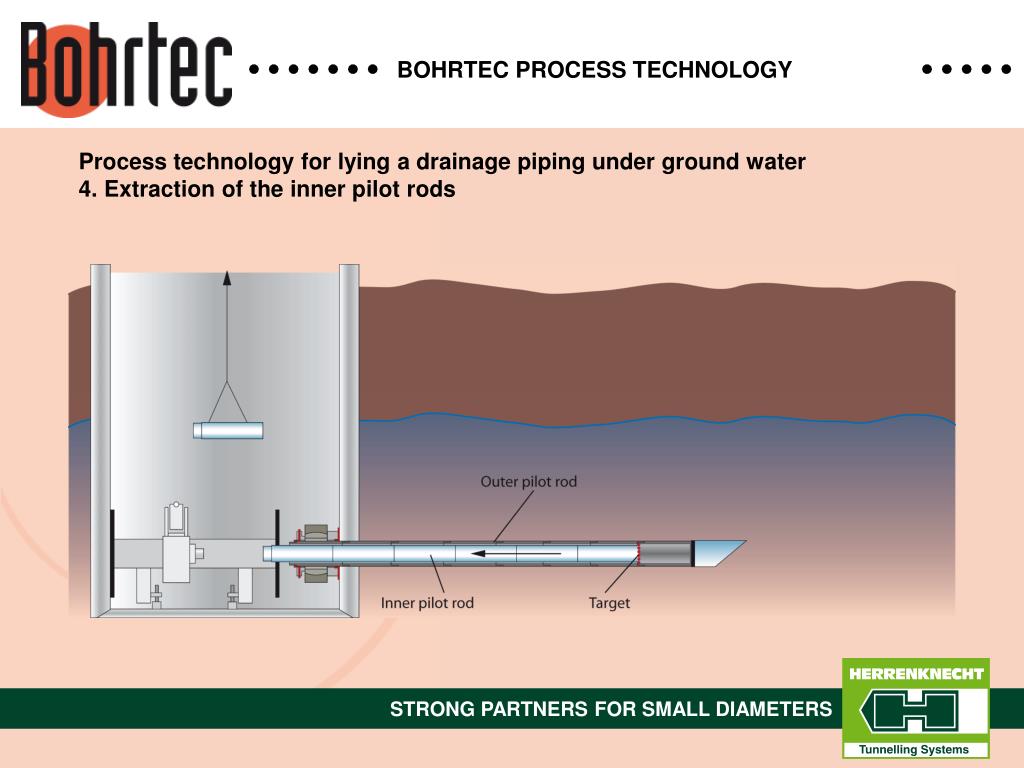

  5. Process technology for lying a drainage piping under ground water4. Extraction of the inner pilot rods

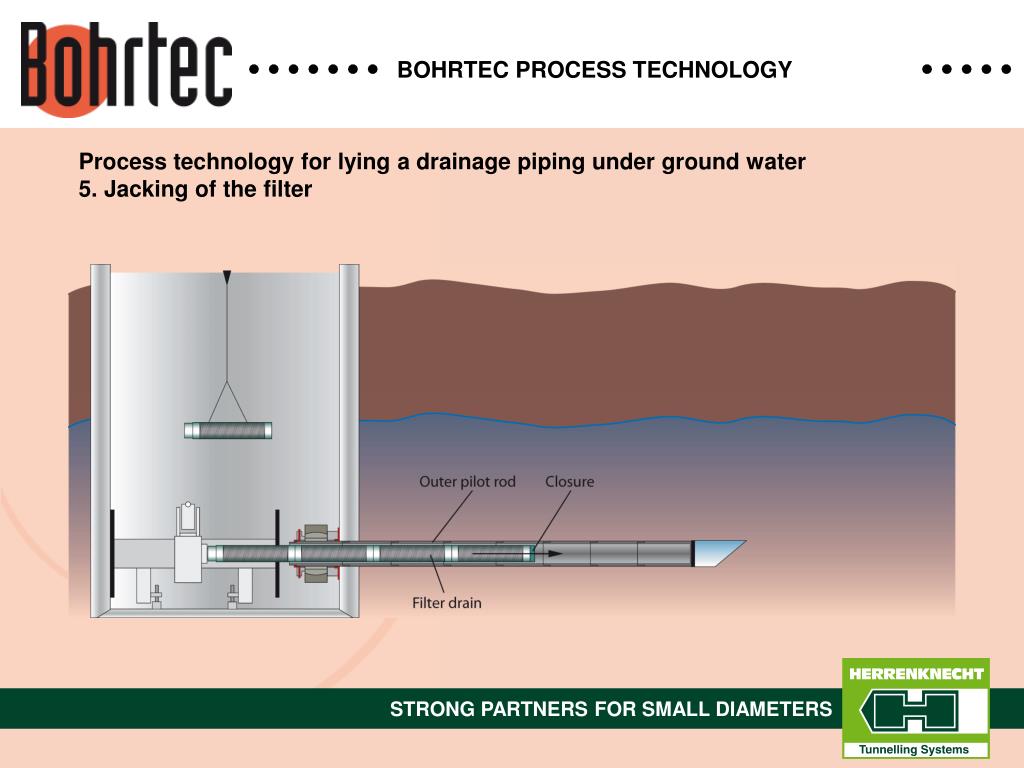

  6. Process technology for lying a drainage piping under ground water5. Jacking of the filter

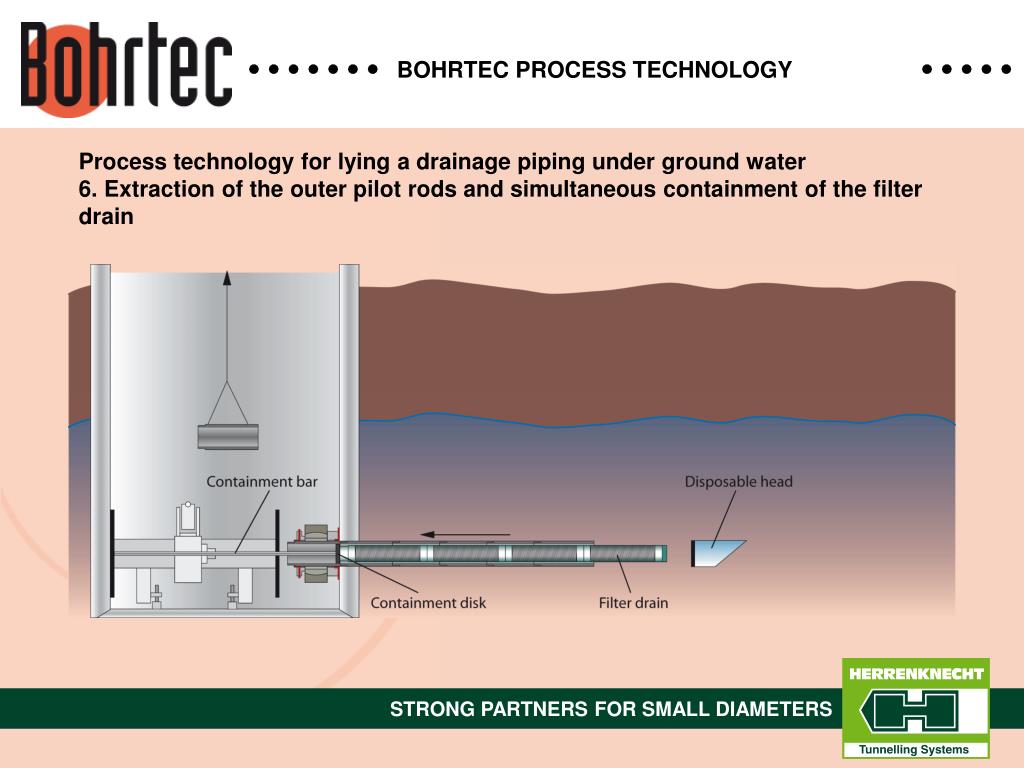

  7. Process technology for lying a drainage piping under ground water6. Extraction of the outer pilot rods and simultaneous containment of the filter drain
