  1. Scaling to New Heights Retrospective IEEE/ACM SC2002 Conference Baltimore, MD

  2. Introduction • More than 80 researchers from universities, research centers, and corporations around the country attended the first "Scaling to New Heights" workshop, May 20 and 21, at PSC. • Sponsored by the NSF leading-edge centers (NCSA, PSC, SDSC) together with the Center for Computational Sciences (ORNL) and NERSC, the workshop included a poster session, invited and contributed talks, and a panel. • Participants examined issues involved in adapting and developing research software to effectively exploit systems comprised of thousands of processors. The following slides represent a collection of ideas from the workshop

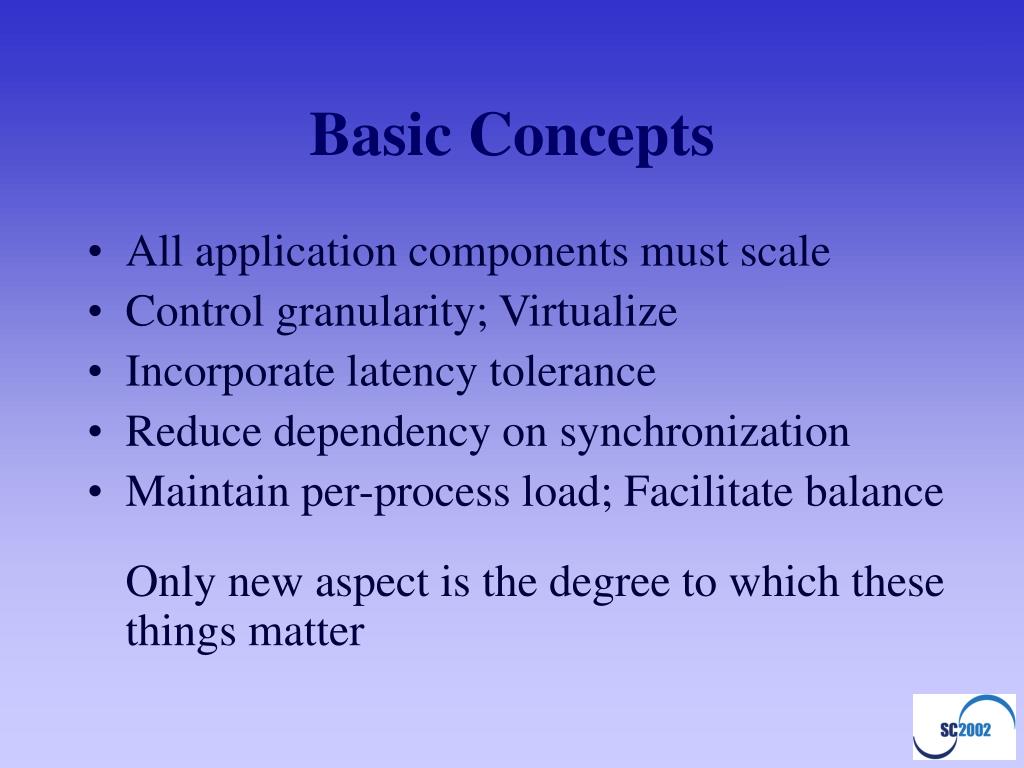

  3. Basic Concepts • All application components must scale • Control granularity; Virtualize • Incorporate latency tolerance • Reduce dependency on synchronization • Maintain per-process load; Facilitate balance Only new aspect is the degree to which these things matter

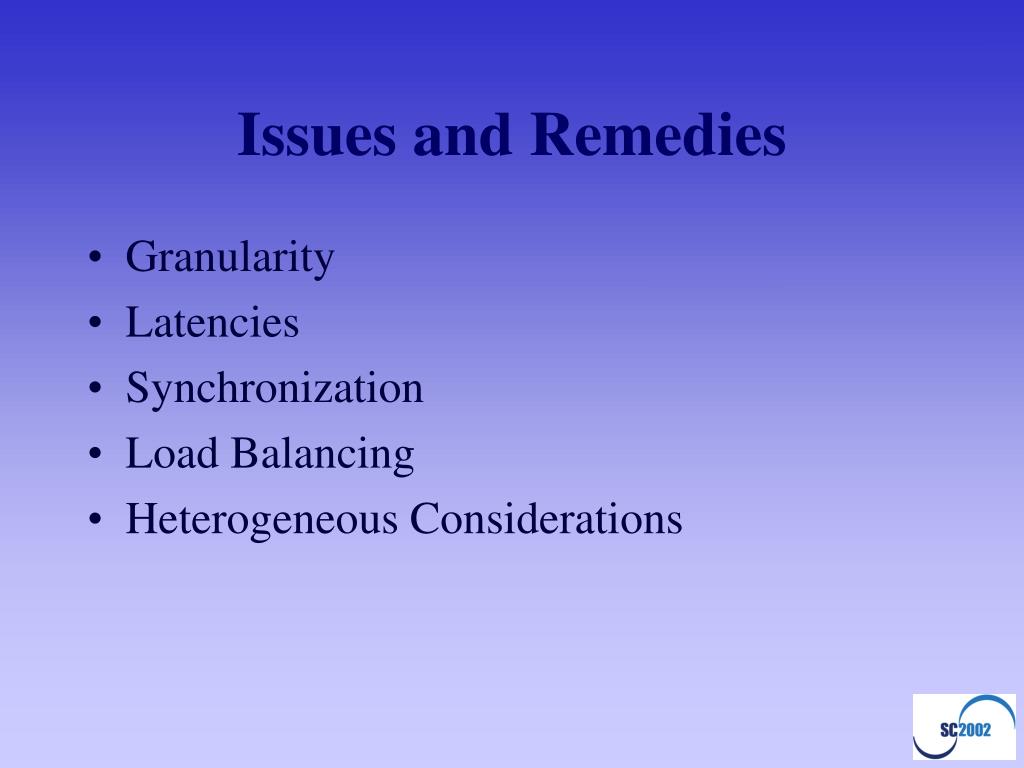

  4. Issues and Remedies • Granularity • Latencies • Synchronization • Load Balancing • Heterogeneous Considerations

  5. Granularity Define problem in terms of a large number of small objects independent of the process count • Object design considerations • Caching and other local effects • Communication-to-computation ratio • Control granularity through virtualization • Maintain per-process load level • Manage comms within virtual blocks, e.g. Converse • Facilitate dynamic load balancing

  6. Latencies • Network • Latency reduction lags improvement in flop rates; Much easier to grow bandwidth • Overlap communications and computations; Pipeline larger messages • Don’t wait – Speculate! • Software Overheads • Can be more significant than network delays • NUMA architectures Scalable designs must accommodate latencies

  7. Synchronization • Cost increases with the process count • Synchronization doesn’t scale well • Latencies come into play here too • Distributed resource exacerbates problems • Heterogeneity another significant obstacle • Regular communication patterns are often characterized by many synchronizations • Best suited to homogeneous co-located clusters Transition to asynchronous models?

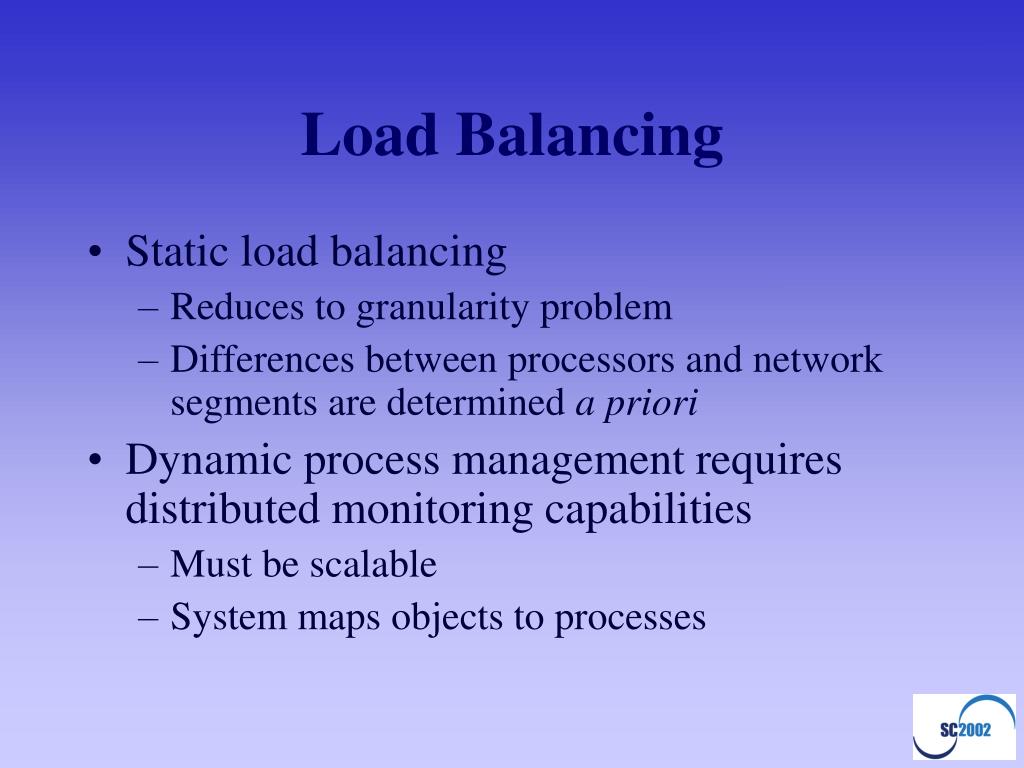

  8. Load Balancing • Static load balancing • Reduces to granularity problem • Differences between processors and network segments are determined a priori • Dynamic process management requires distributed monitoring capabilities • Must be scalable • System maps objects to processes

  9. Heterogeneous Considerations • Similar but different processors or network components configured within a single cluster • Different clock rates, NICs, etc. • Distinct processors, networking segments, and operating systems operating at a distance • Grid resources Elevates significance of dynamic load balancing; Data-driven objects immediately adaptable

  10. Speedup Processors Poor Scalability?

  11. Speedup Processors Good Scalability?

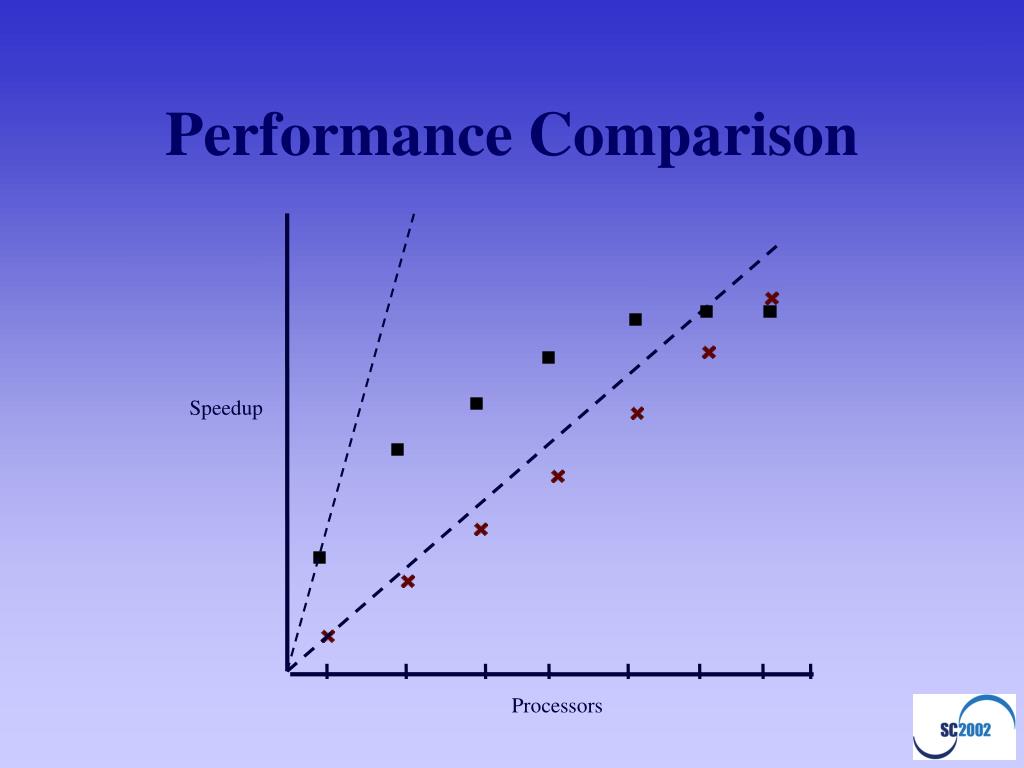

  12. Speedup Processors Performance Comparison

  13. Tools • Automated algorithm selection and performance tuning by empirical means, e.g. ATLAS • Generate space of algorithms and search for fastest implementations by running them • Scalability prediction, e.g. PMaC Lab • Develop performance models (machine profiles; application signatures) and trending patterns Identify/fix bottlenecks; choose new methods?

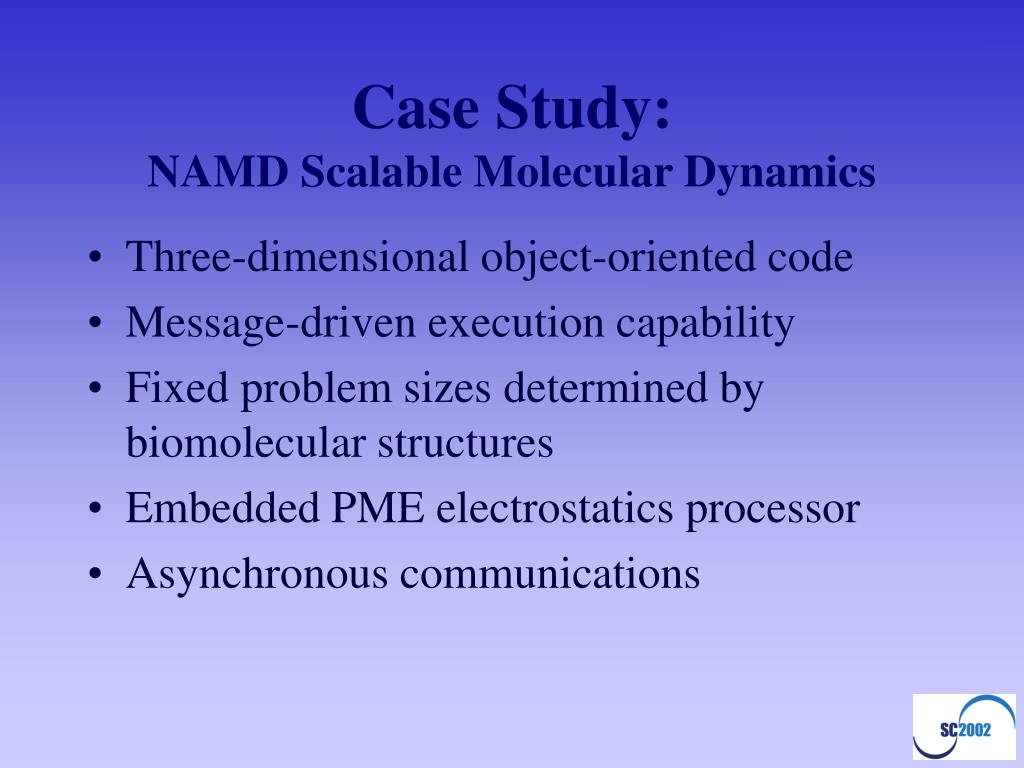

  14. Case Study:NAMD Scalable Molecular Dynamics • Three-dimensional object-oriented code • Message-driven execution capability • Fixed problem sizes determined by biomolecular structures • Embedded PME electrostatics processor • Asynchronous communications

  15. Case Study:Summary • As more processes are used to solve the given fixed-size problems, benchmark times decrease to a few milliseconds • PME communication times and operating system loads are significant in this range • Scaling to many thousands of processes is almost certainly achievable now given a large enough problem • 700 atoms/process x 3,000 processes = 2.1M atoms

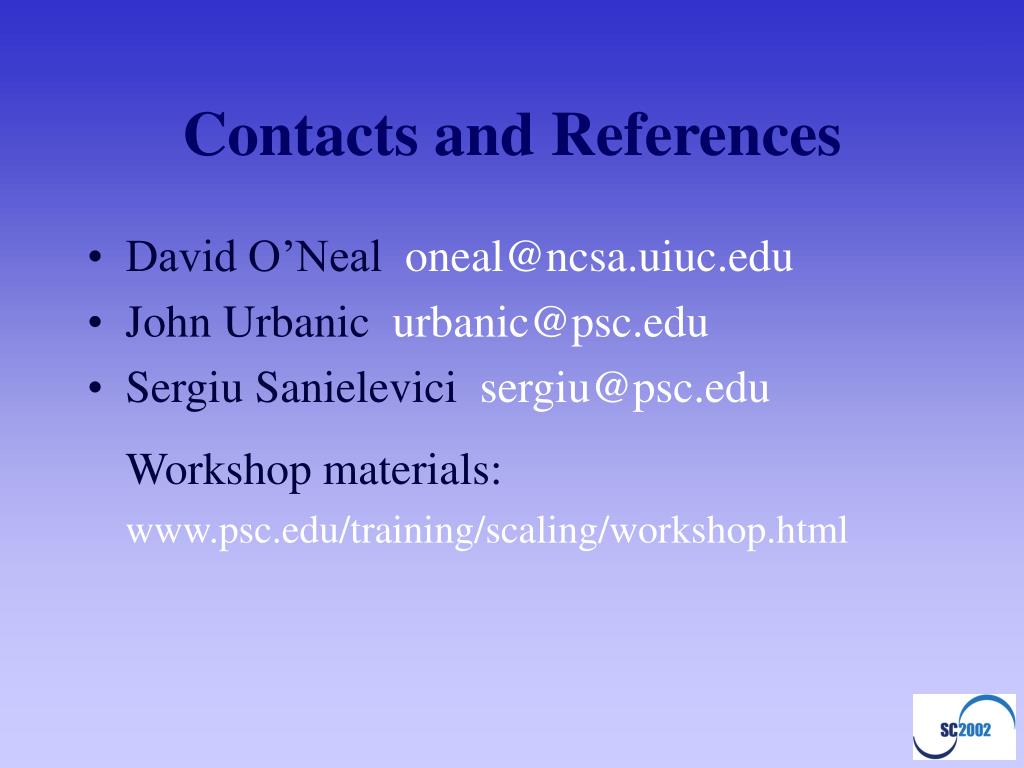

  16. Contacts and References • David O’Neal oneal@ncsa.uiuc.edu • John Urbanic urbanic@psc.edu • Sergiu Sanielevici sergiu@psc.edu Workshop materials: www.psc.edu/training/scaling/workshop.html

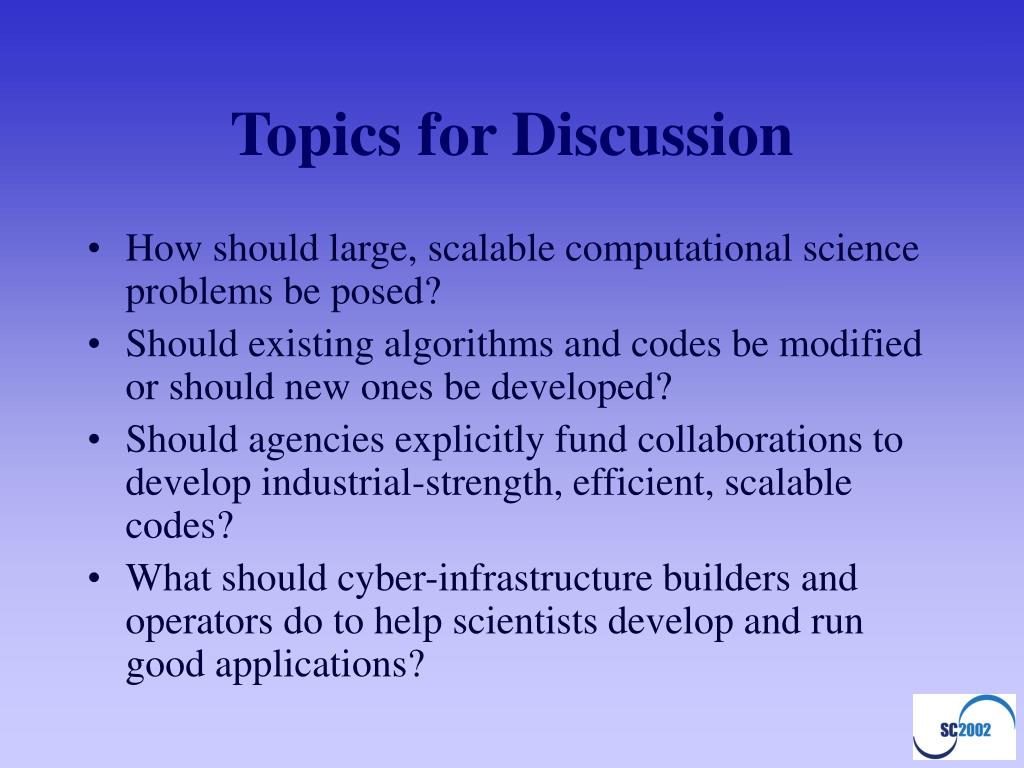

  17. Topics for Discussion • How should large, scalable computational science problems be posed? • Should existing algorithms and codes be modified or should new ones be developed? • Should agencies explicitly fund collaborations to develop industrial-strength, efficient, scalable codes? • What should cyber-infrastructure builders and operators do to help scientists develop and run good applications?
