  1. Parallel Processing & Distributed Systems Chapter 2 Thoai Nam

  2. Chapter 2: Parallel Computer Models & Classification • Model of Parallel Computation: • PRAM, BSP, Phase Parallel • Pipeline, Processor Array, Multiprocessor, Data Flow Computer • Flynn Classification: • SISD, SIMD, MISD, MIMD • Speedup: • Amdahl, Gustafson • Pipeline Computer Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

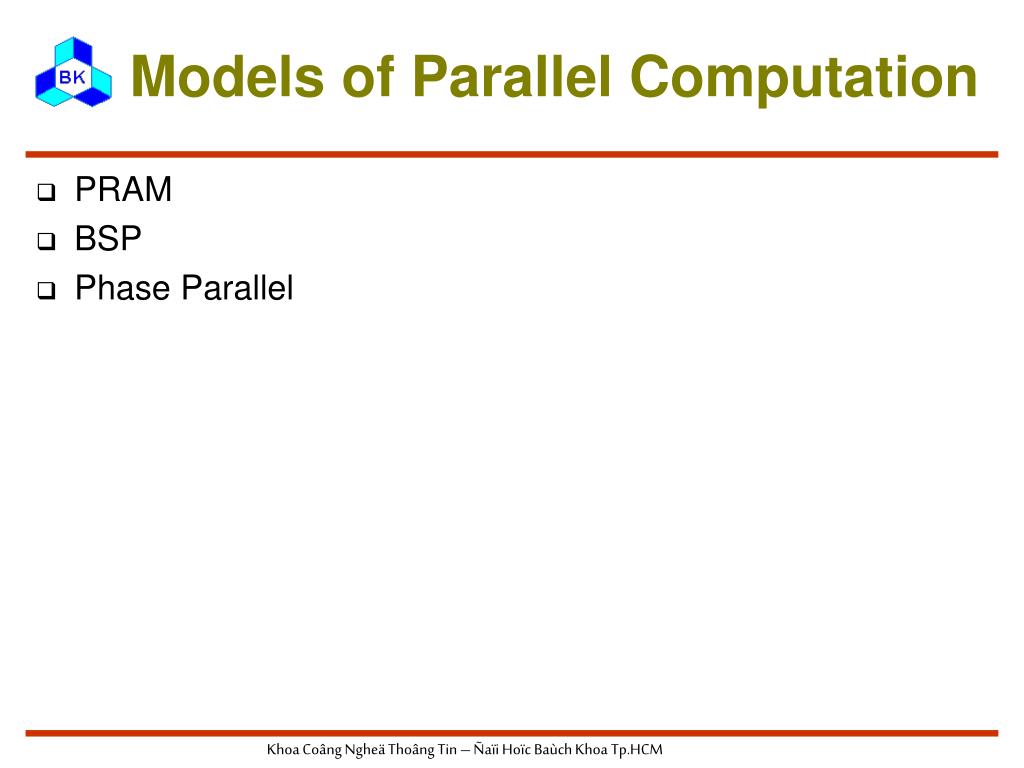

  3. Models of Parallel Computation • PRAM • BSP • Phase Parallel Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

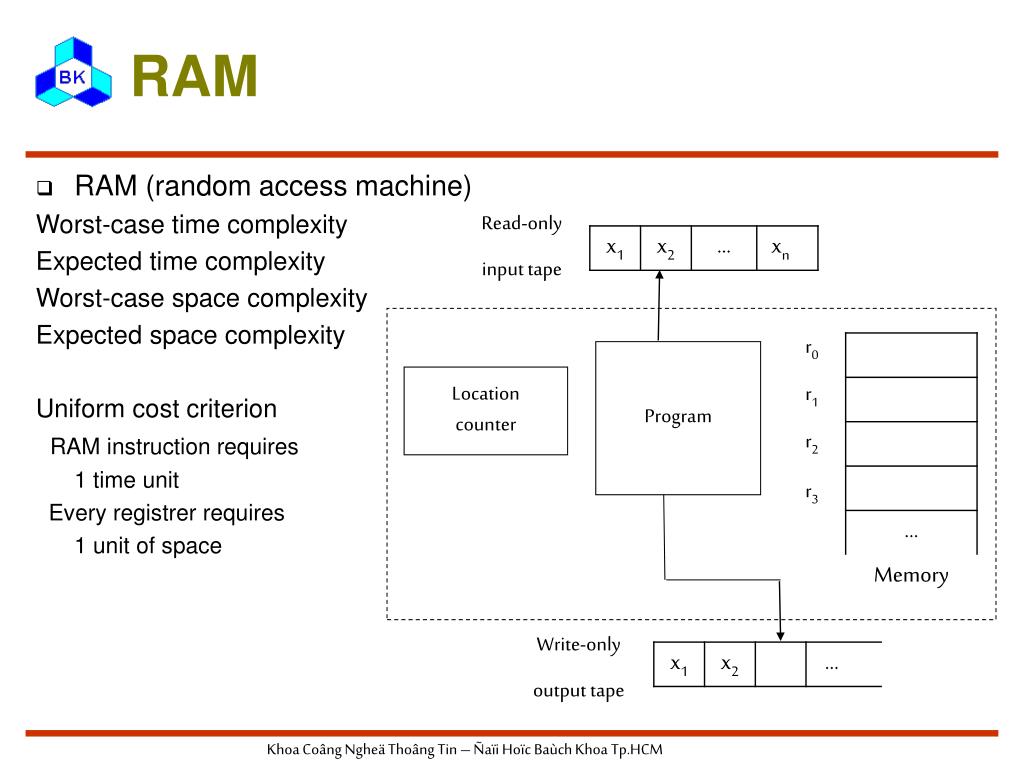

  4. RAM • RAM (random access machine) Worst-case time complexity Expected time complexity Worst-case space complexity Expected space complexity Uniform cost criterion RAM instruction requires 1 time unit Every registrer requires 1 unit of space Read-only input tape r0 Program Location counter r1 r2 r3 Write-only output tape Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  5. PRAM (1) • PRAM Control Private memory Private memory Private memory P1 Pn P2 … Interconnection network Global memory Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  6. PRAM (2) • A control unit • An unbounded set of processors, each with its own private memory and an unique index • Input stored in global memory or a single active processing element • Step: (1) read a value from a single private/global memory location (2) perform a RAM operation (3) write into a single private/global memory location • During a computation step: a processor may activate another processor • All active, enable processors must execute the same instruction (albeit on different memory location) • Computation terminates when the last processor halts Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  7. PRAM(3) • Definition: The cost of a PRAM computation is the product of the parallel time complexity and the number of processors used. Ex: a PRAM algorithm that has time complexity O(log p) using p processors has cost O(p log p) Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

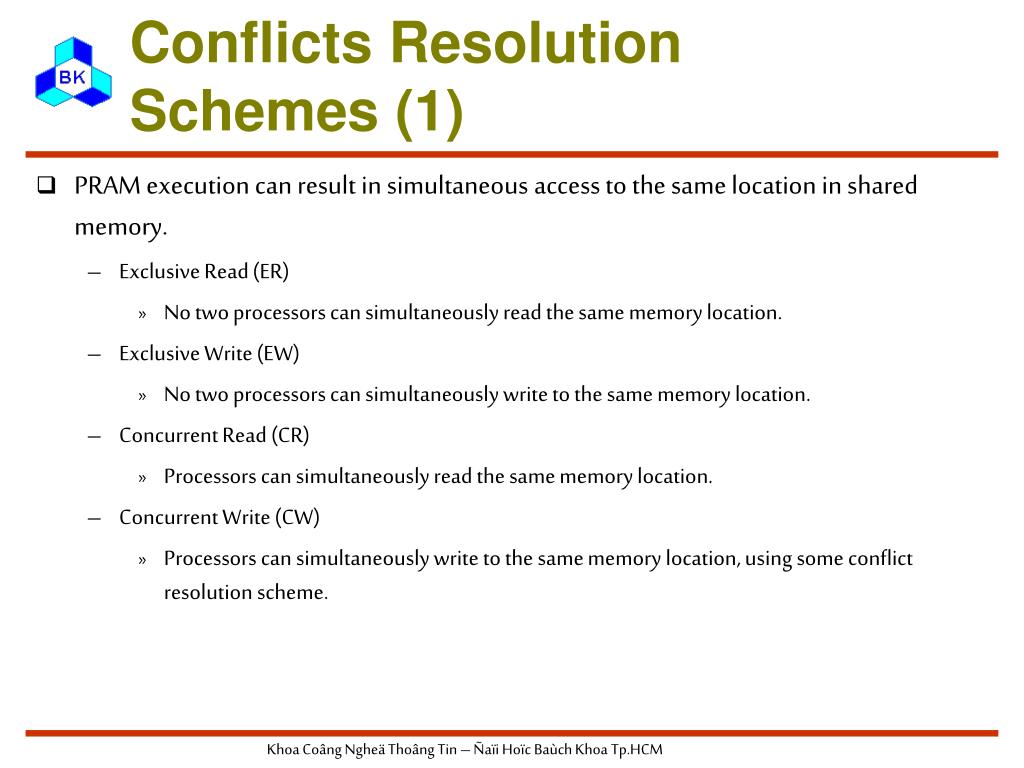

  8. Conflicts Resolution Schemes (1) • PRAM execution can result in simultaneous access to the same location in shared memory. • Exclusive Read (ER) • No two processors can simultaneously read the same memory location. • Exclusive Write (EW) • No two processors can simultaneously write to the same memory location. • Concurrent Read (CR) • Processors can simultaneously read the same memory location. • Concurrent Write (CW) • Processors can simultaneously write to the same memory location, using some conflict resolution scheme. Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  9. Conflicts Resolution Schemes(2) • Common/Identical CRCW • All processors writing to the same memory location must be writing the same value. • The software must ensure that different values are not attempted to be written. • Arbitrary CRCW • Different values may be written to the same memory location, and an arbitrary one succeeds. • Priority CRCW • An index is associated with the processors and when more than one processor write occurs, the lowest-numbered processor succeeds. • The hardware must resolve any conflicts Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  10. PRAM Algorithm • Begin with a single active processor active • Two phases: • A sufficient number of processors are activated • These activated processors perform the computation in parallel • log p activation steps: p processors to become active • The number of active processors can be double by executing a single instruction Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  11. Parallel Reduction (1) Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

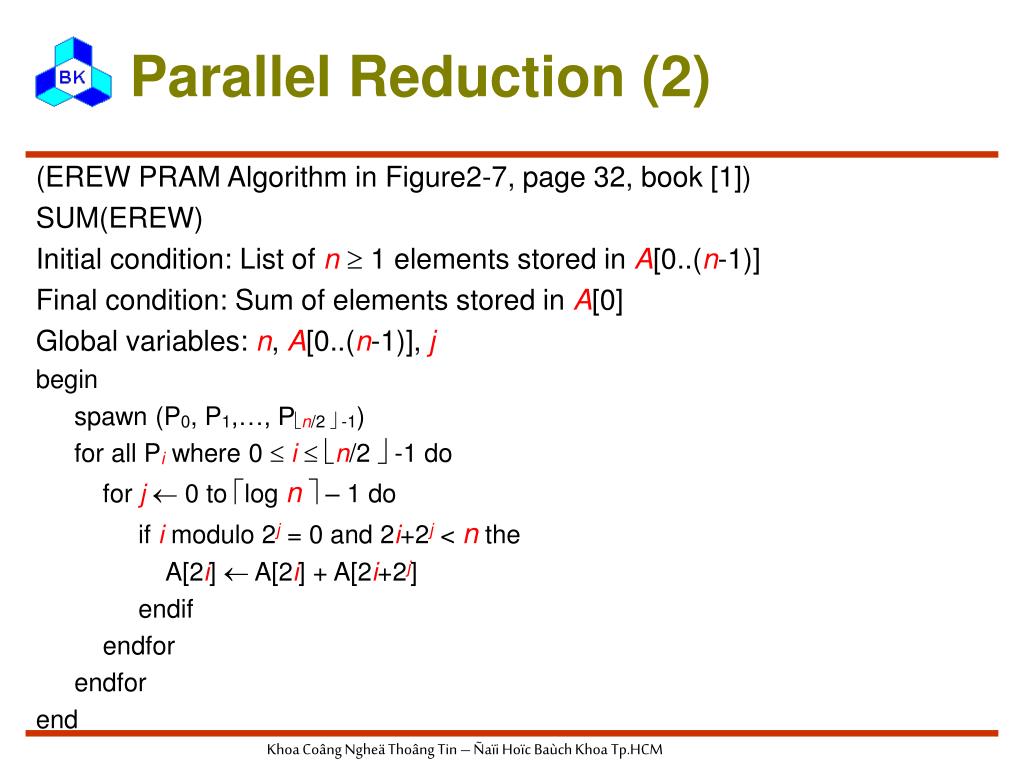

  12. Parallel Reduction (2) (EREW PRAM Algorithm in Figure2-7, page 32, book [1]) SUM(EREW) Initial condition: List of n 1 elements stored in A[0..(n-1)] Final condition: Sum of elements stored in A[0] Global variables: n, A[0..(n-1)], j begin spawn (P0, P1,…, Pn/2  -1) for all Pi where 0  i  n/2  -1 do for j 0 to log n  – 1 do if i modulo 2j = 0 and 2i+2j < n the A[2i]  A[2i] + A[2i+2j] endif endfor endfor end Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  13. BSP • BSP(Bulk Synchronous Parallel) Model • Proposed by Leslie Valiant of Harvard University • Developed by W.F.McColl of Oxford University Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

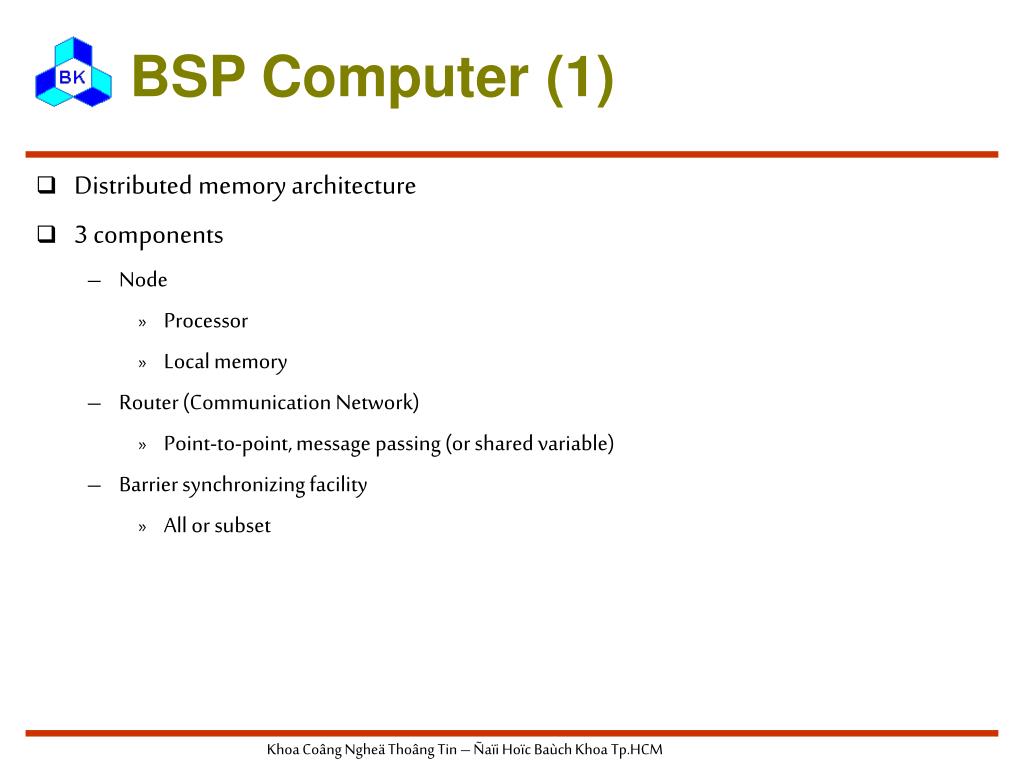

  14. BSP Computer (1) • Distributed memory architecture • 3 components • Node • Processor • Local memory • Router (Communication Network) • Point-to-point, message passing (or shared variable) • Barrier synchronizing facility • All or subset Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  15. P P P M M M BSP Computer (2) Node (w) Node Node Barrier (l) Communication Network (g) Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

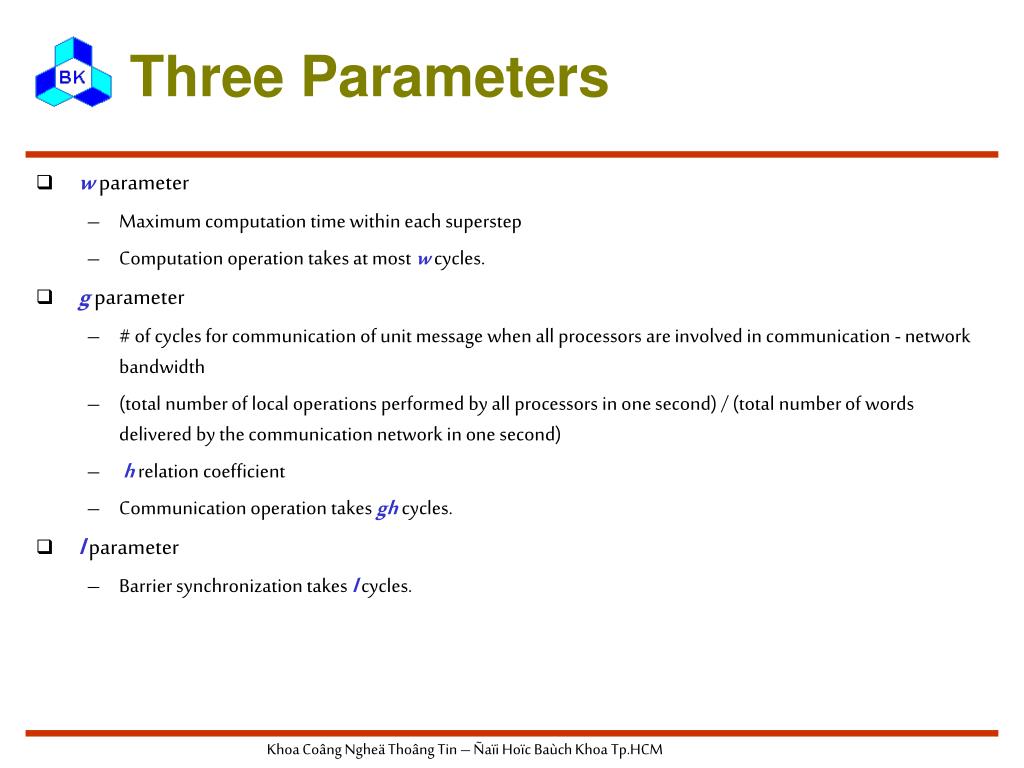

  16. Three Parameters • w parameter • Maximum computation time within each superstep • Computation operation takes at most w cycles. • g parameter • # of cycles for communication of unit message when all processors are involved in communication - network bandwidth • (total number of local operations performed by all processors in one second) / (total number of words delivered by the communication network in one second) • h relation coefficient • Communication operation takes gh cycles. • l parameter • Barrier synchronization takes l cycles. Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  17. BSP Program (1) • A BSP computation consists of S super steps. • A superstep is a sequence of steps followed by a barrier synchronization. • Superstep • Any remote memory accesses take effect at barrier - loosely synchronous Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

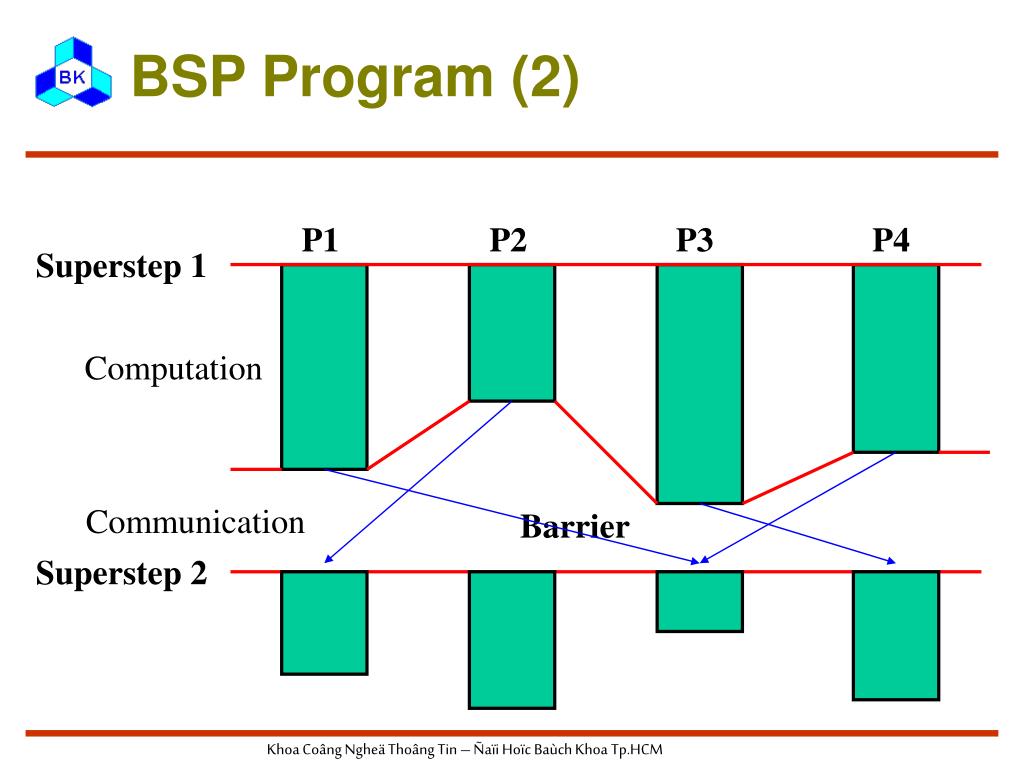

  18. BSP Program (2) P1 P2 P3 P4 Superstep 1 Computation Communication Barrier Superstep 2 Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

  19. BSP Algorithm Design • 2 variables for time complexity • N: # time steps (local operations) per super step. • h-relation: each node sends and receives at most h messages • gh is time steps for communication within a super step • Time complexity • Valiant's original: max{w, gh, l} • overlapped communication and computation • McColl's revised: N + gh + l = Ntot + Ncom g + sl • Algorithm design • Ntot = T / p, minimize Ncom and S. Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM

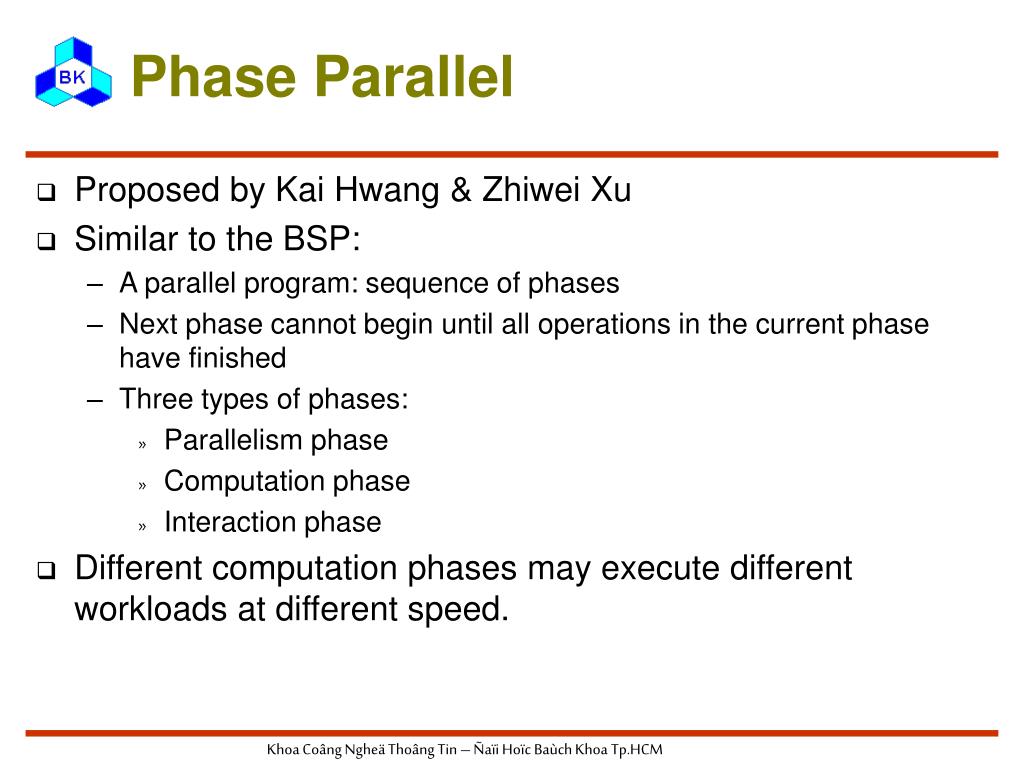

  20. Phase Parallel • Proposed by Kai Hwang & Zhiwei Xu • Similar to the BSP: • A parallel program: sequence of phases • Next phase cannot begin until all operations in the current phase have finished • Three types of phases: • Parallelism phase • Computation phase • Interaction phase • Different computation phases may execute different workloads at different speed. Khoa Coâng Ngheä Thoâng Tin – Ñaïi Hoïc Baùch Khoa Tp.HCM
