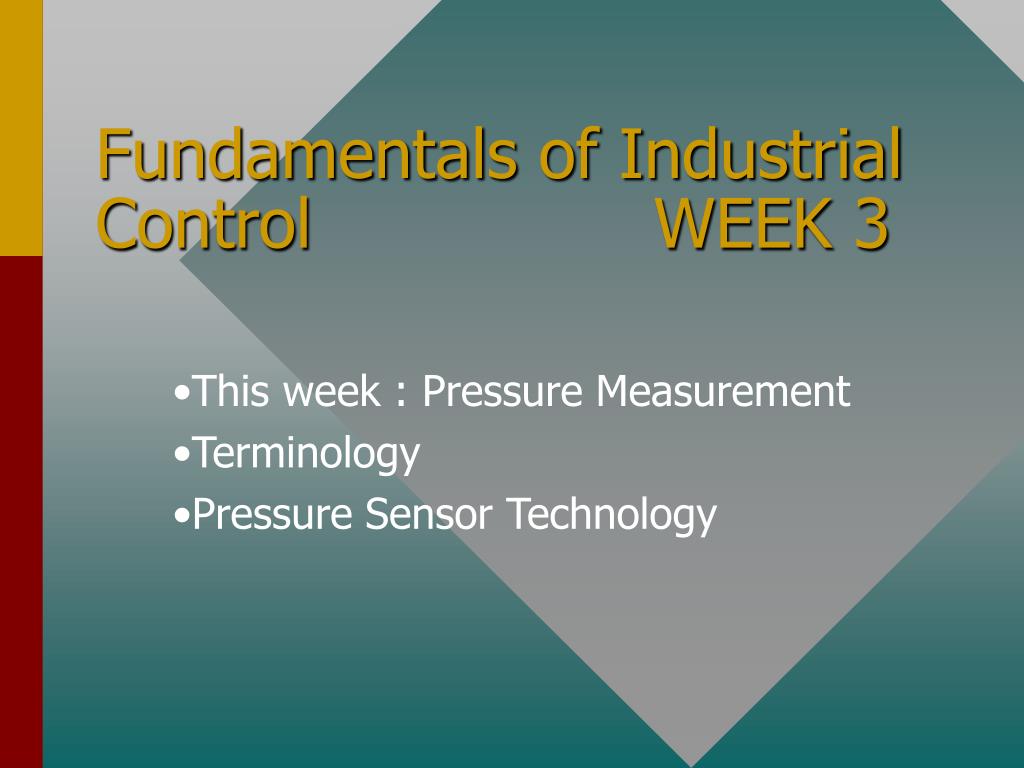

  1. Fundamentals of Industrial Control WEEK 3 This week : Pressure Measurement Terminology Pressure Sensor Technology

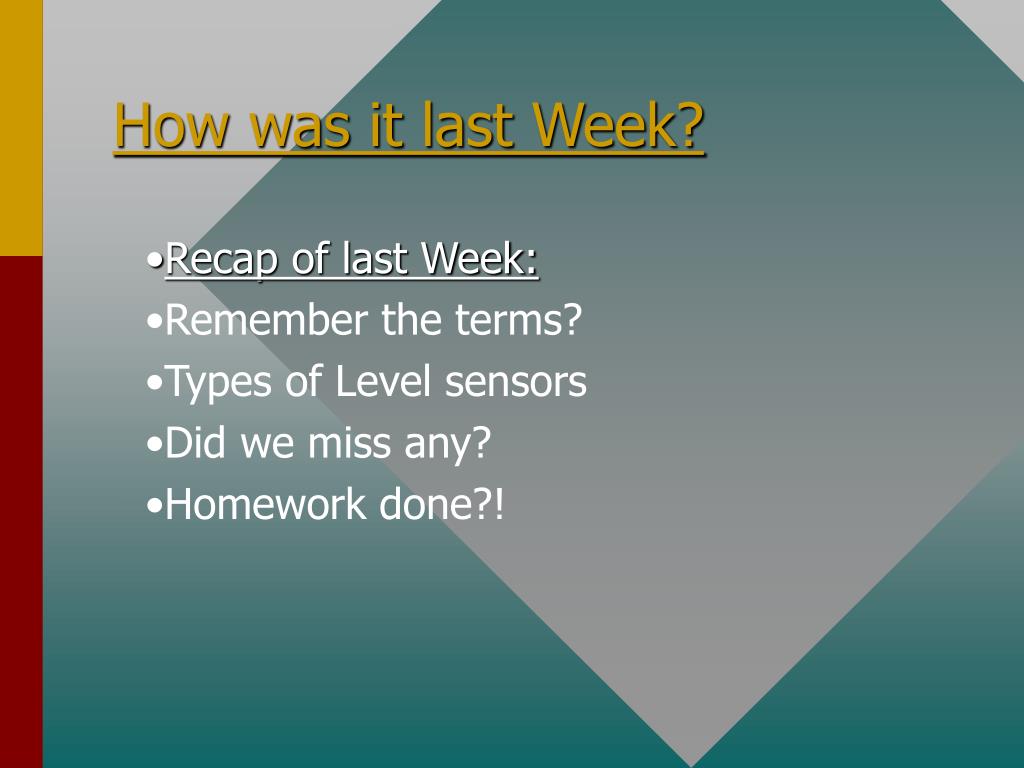

  2. How was it last Week? Recap of last Week: Remember the terms? Types of Level sensors Did we miss any? Homework done?!

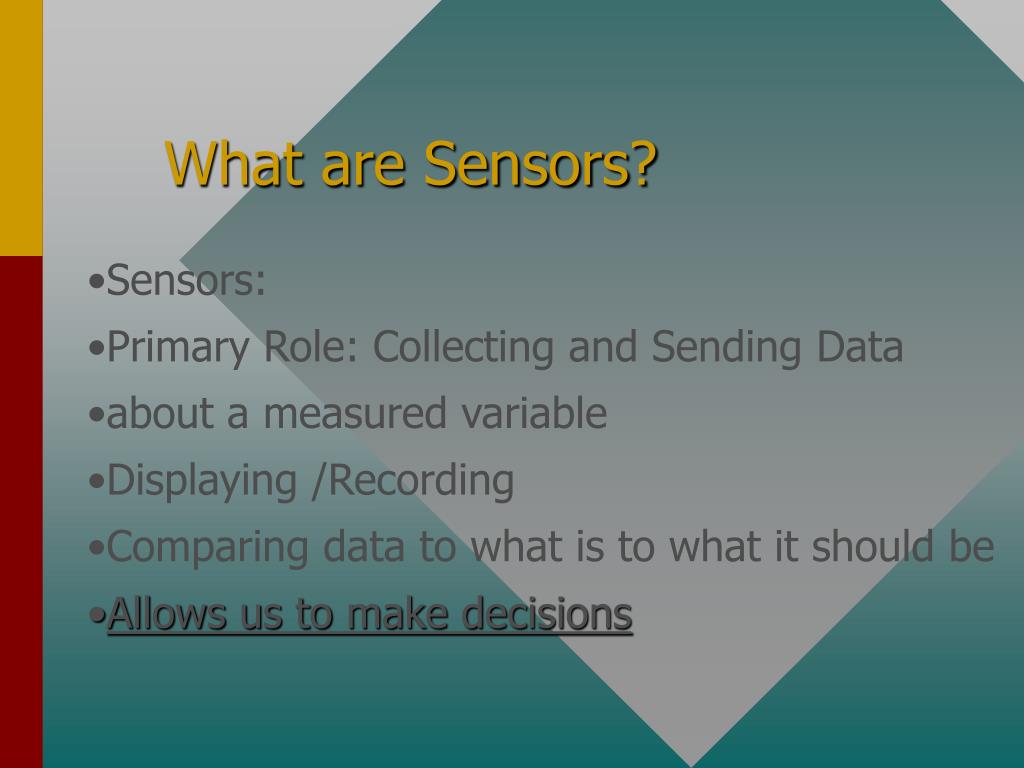

  3. What are Sensors? Sensors: Primary Role: Collecting and Sending Data about a measured variable Displaying /Recording Comparing data to what is to what it should be Allows us to make decisions

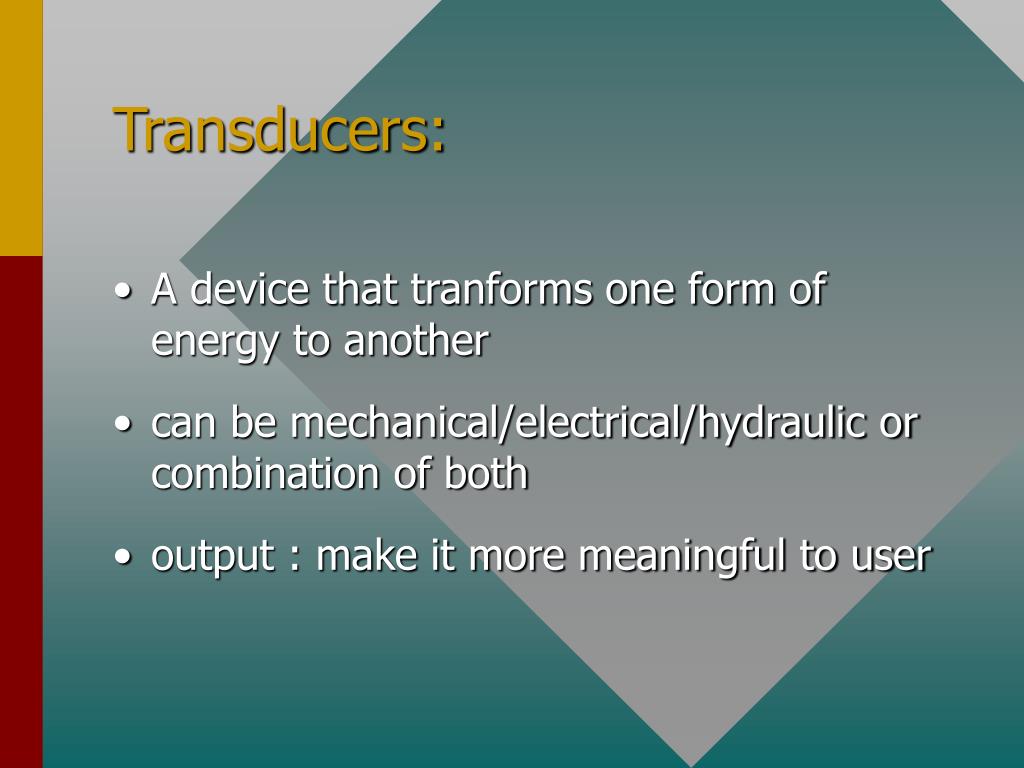

  4. Transducers: • A device that tranforms one form of energy to another • can be mechanical/electrical/hydraulic or combination of both • output : make it more meaningful to user

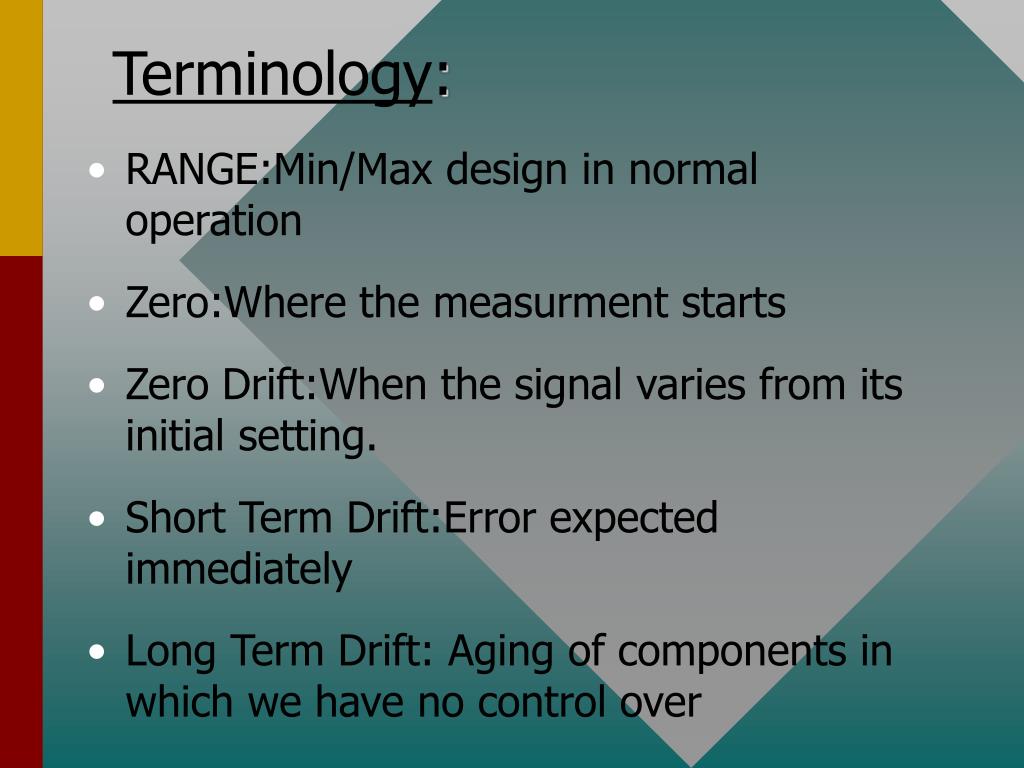

  5. Terminology: • RANGE:Min/Max design in normal operation • Zero:Where the measurment starts • Zero Drift:When the signal varies from its initial setting. • Short Term Drift:Error expected immediately • Long Term Drift: Aging of components in which we have no control over

  6. Terminology: • Sensitivity:The amount of sensor output change with respect the amount of input signal applied. • Resolution: The smallest amount of change in input that can be seen by a sensor. • Response: The time it takes to sense a change in input before it changes the output

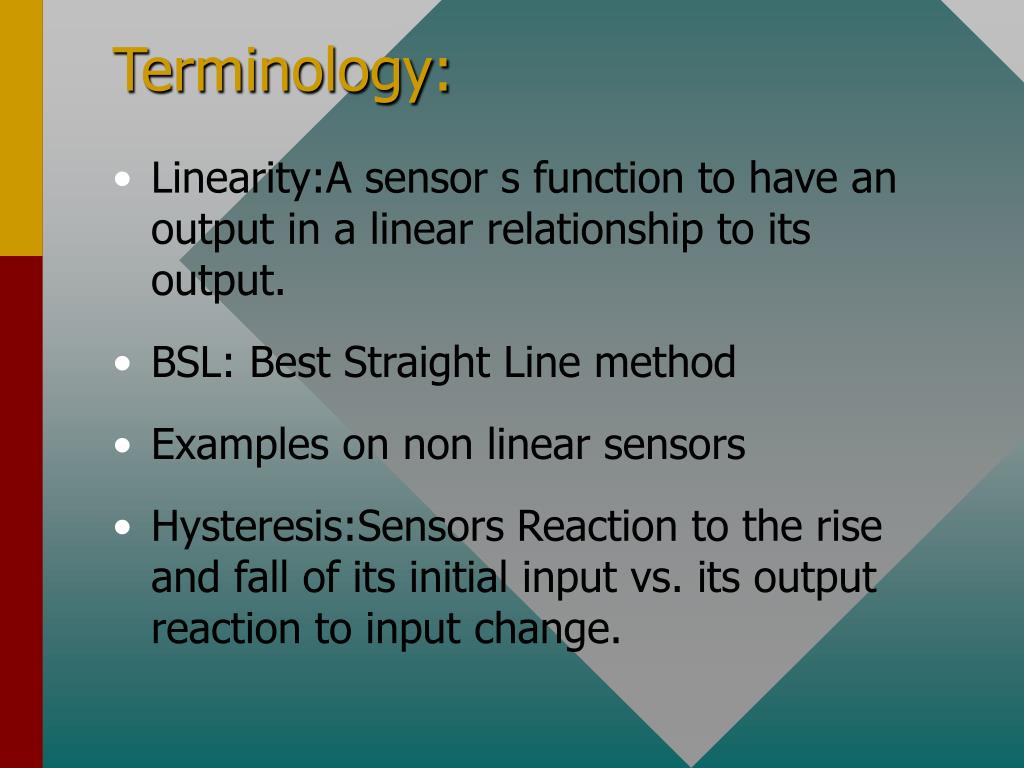

  7. Terminology: • Linearity:A sensor s function to have an output in a linear relationship to its output. • BSL: Best Straight Line method • Examples on non linear sensors • Hysteresis:Sensors Reaction to the rise and fall of its initial input vs. its output reaction to input change.

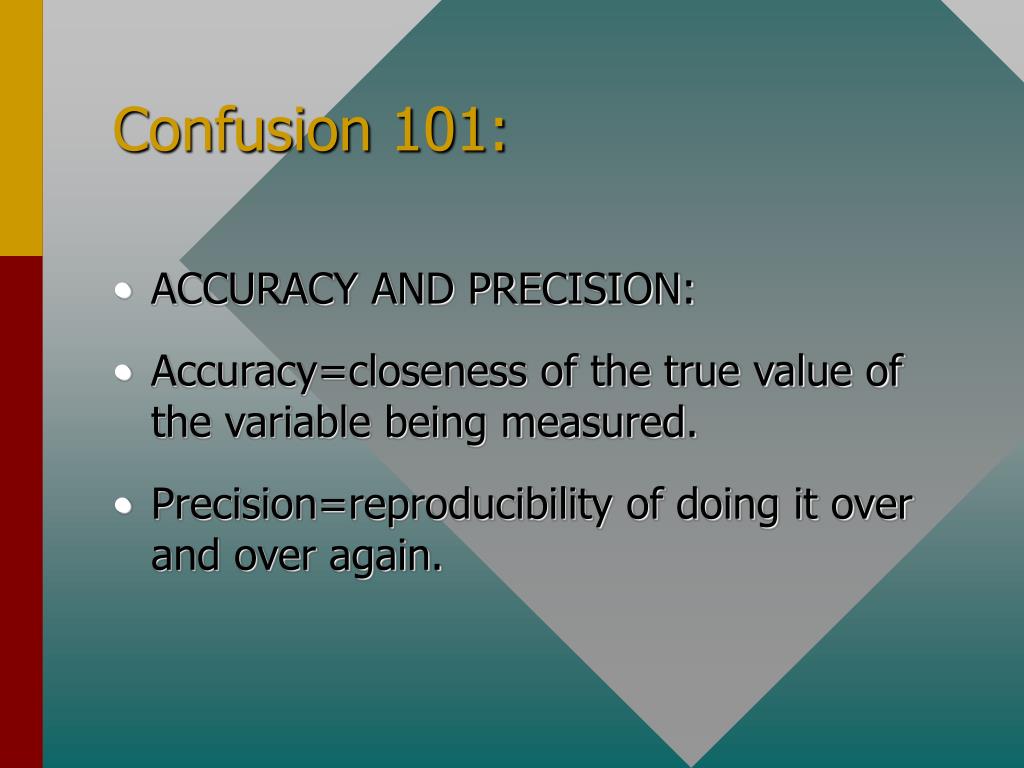

  8. Confusion 101: • ACCURACY AND PRECISION: • Accuracy=closeness of the true value of the variable being measured. • Precision=reproducibility of doing it over and over again.

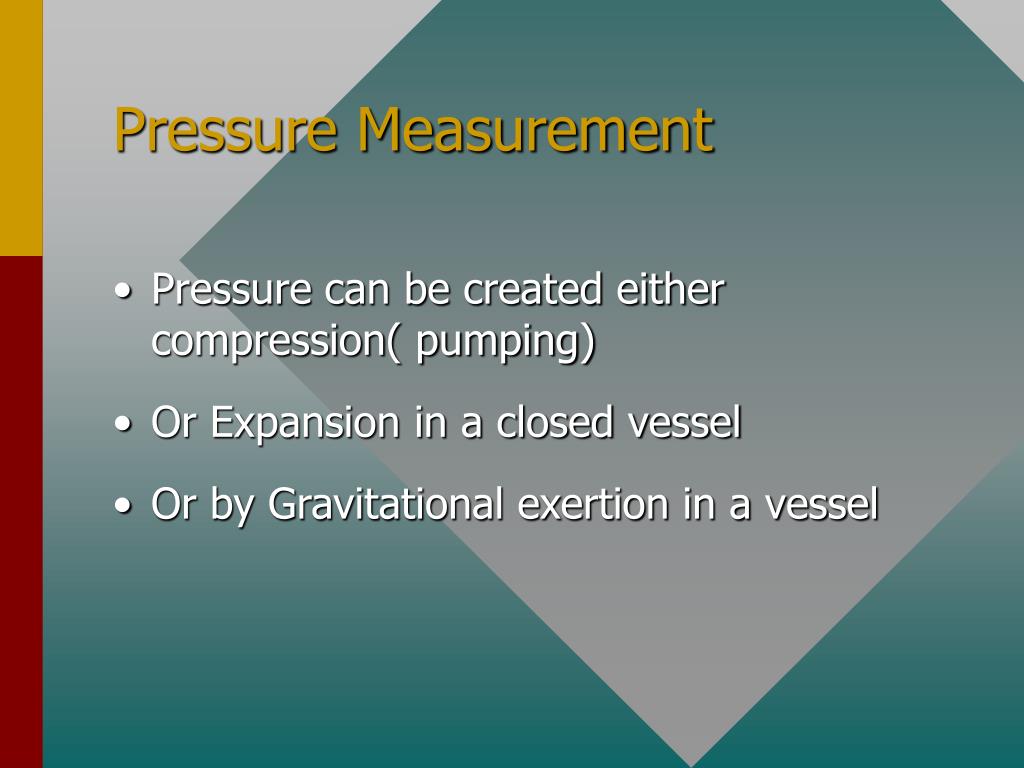

  9. Pressure Measurement • Pressure can be created either compression( pumping) • Or Expansion in a closed vessel • Or by Gravitational exertion in a vessel

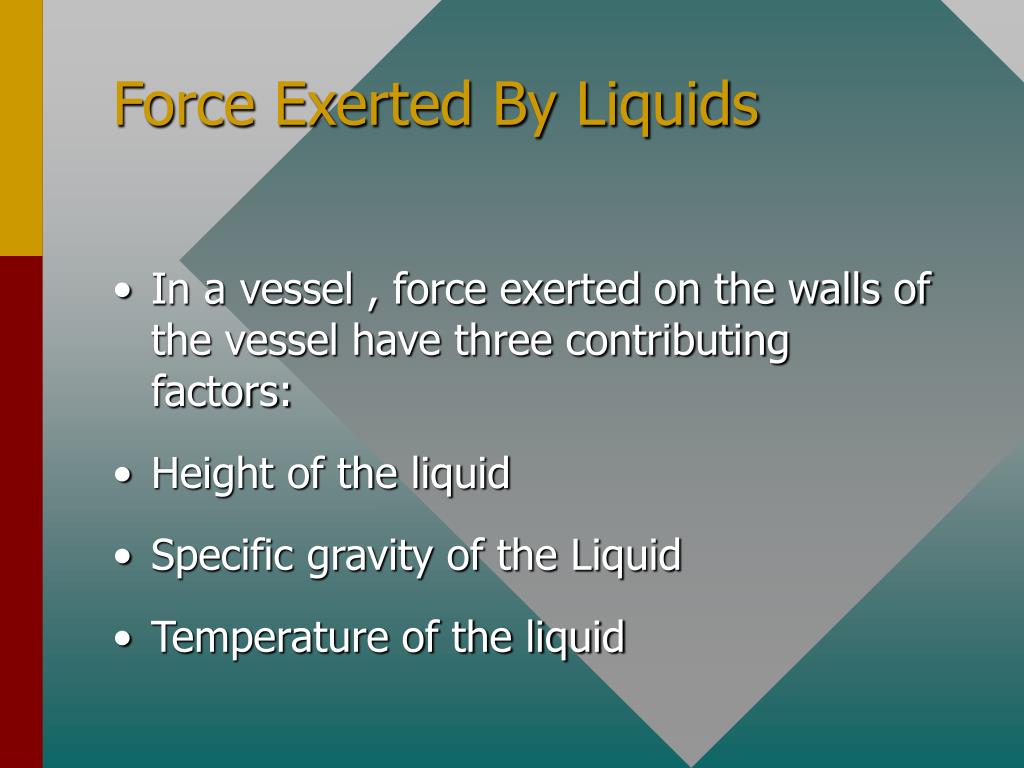

  10. Force Exerted By Liquids • In a vessel , force exerted on the walls of the vessel have three contributing factors: • Height of the liquid • Specific gravity of the Liquid • Temperature of the liquid

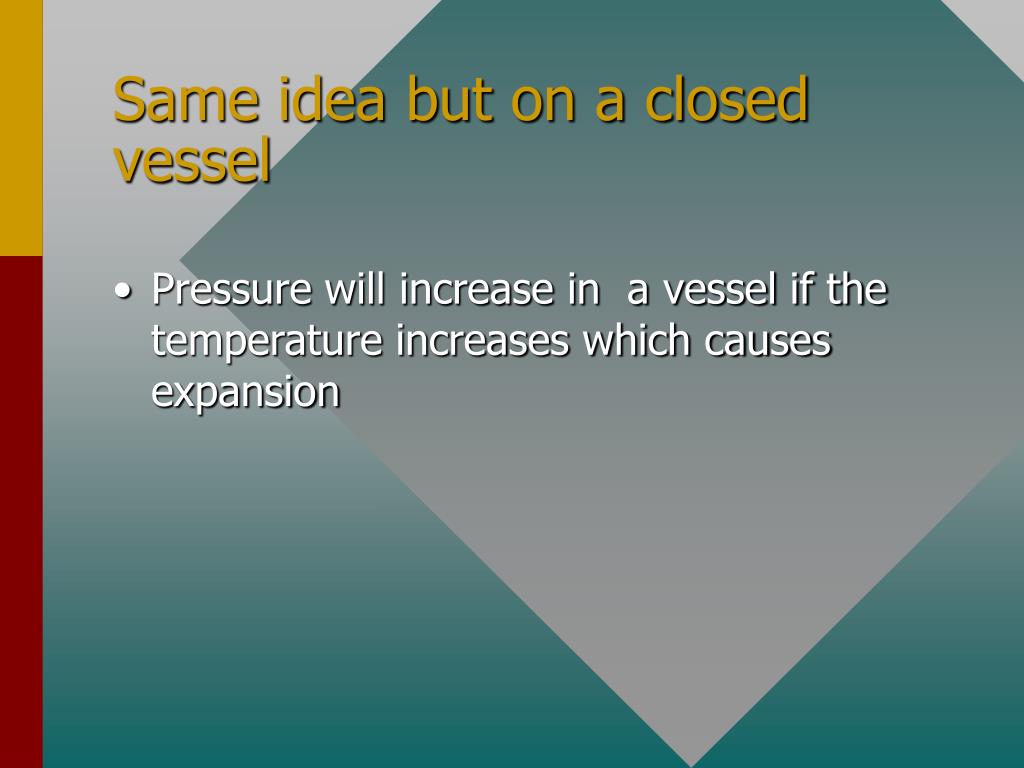

  11. Same idea but on a closed vessel • Pressure will increase in a vessel if the temperature increases which causes expansion

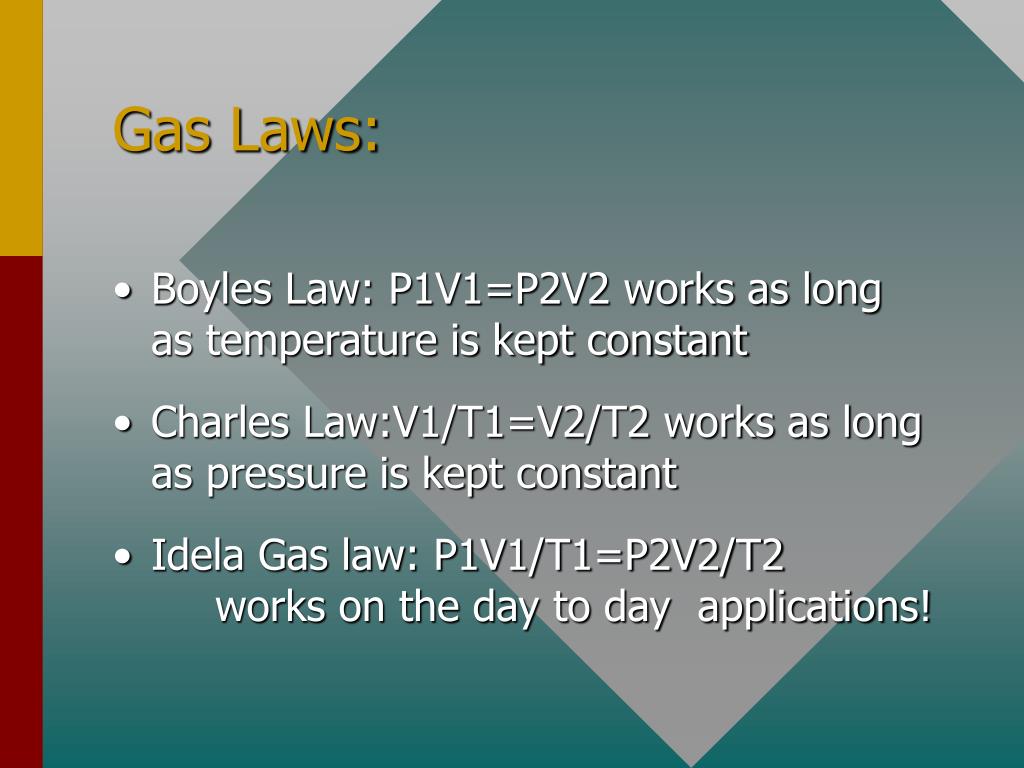

  12. Gas Laws: • Boyles Law: P1V1=P2V2 works as long as temperature is kept constant • Charles Law:V1/T1=V2/T2 works as long as pressure is kept constant • Idela Gas law: P1V1/T1=P2V2/T2 works on the day to day applications!

  13. Pressure Measurement • Law Class 101 is now finished for the Day...

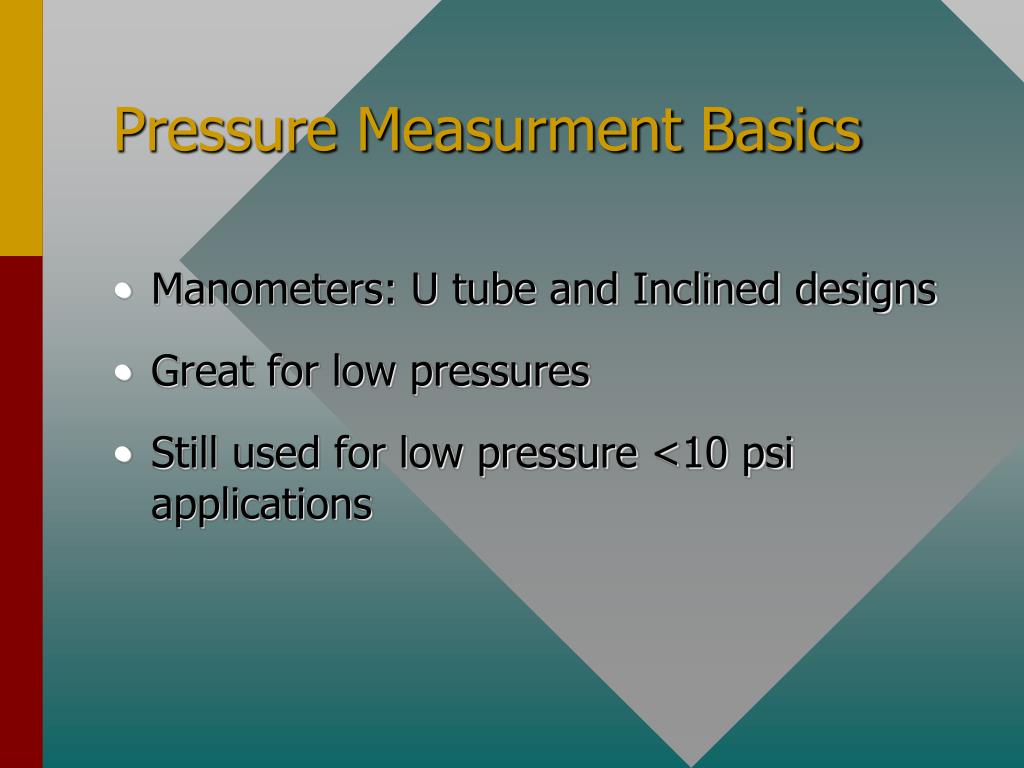

  14. Pressure Measurment Basics • Manometers: U tube and Inclined designs • Great for low pressures • Still used for low pressure <10 psi applications

  15. 27.8” of H2O=1 PSI U -Tubes No. 246 solid plastic inclined style stationary gage with 0-6" w.c. range.

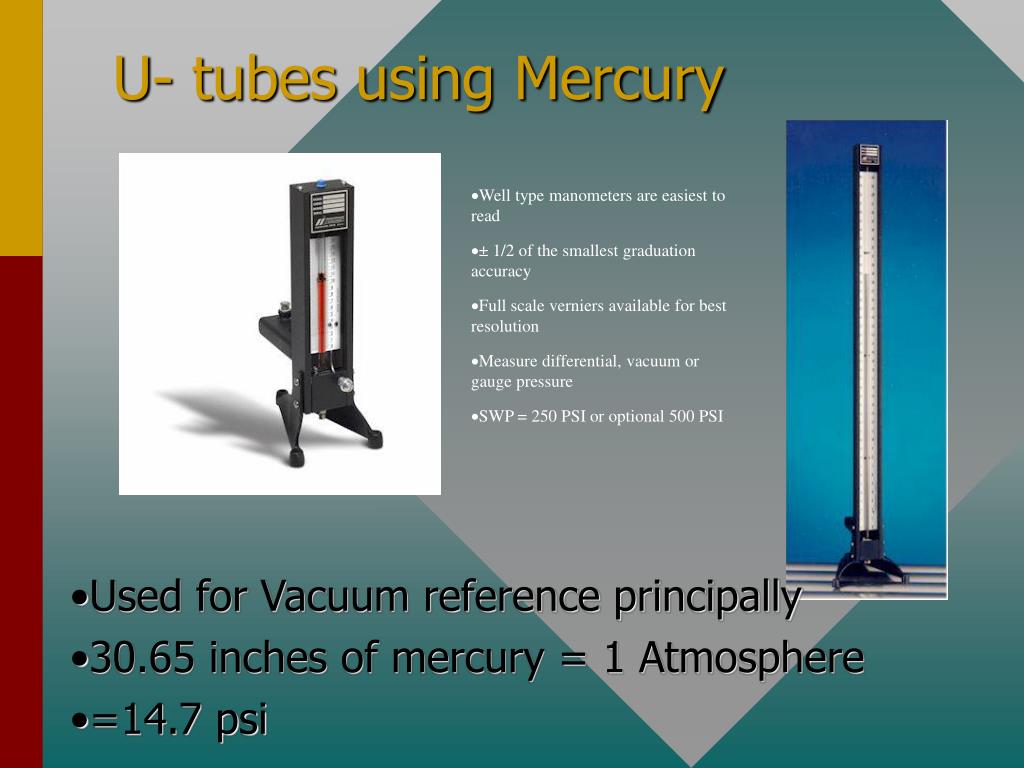

  16. U- tubes using Mercury • Well type manometers are easiest to read • ± 1/2 of the smallest graduation accuracy • Full scale verniers available for best resolution • Measure differential, vacuum or gauge pressure • SWP = 250 PSI or optional 500 PSI Used for Vacuum reference principally 30.65 inches of mercury = 1 Atmosphere =14.7 psi

  17. G and A PSIG vs PSIA Pounds per square inch Gauge = reference to atmosphere on earth Pounds per square inch Absolute = Reference to “Space Vacuum” PSIG= PSIA+ 14.7

  18. Is It Break Time Yet ?

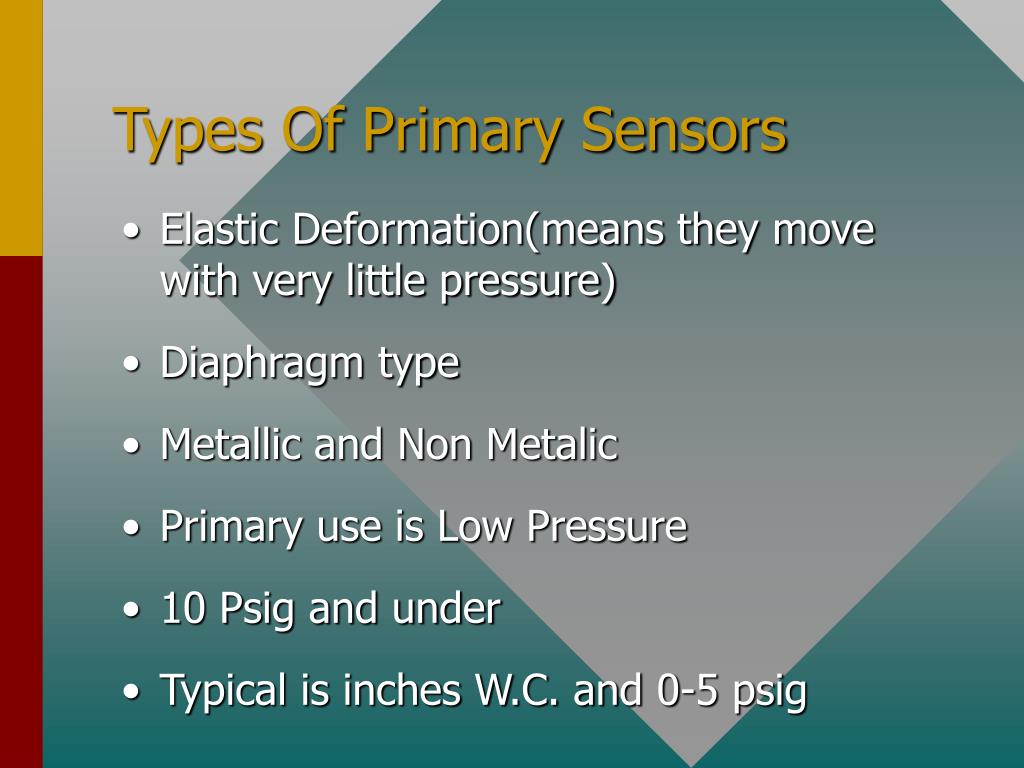

  19. Types Of Primary Sensors • Elastic Deformation(means they move with very little pressure) • Diaphragm type • Metallic and Non Metalic • Primary use is Low Pressure • 10 Psig and under • Typical is inches W.C. and 0-5 psig

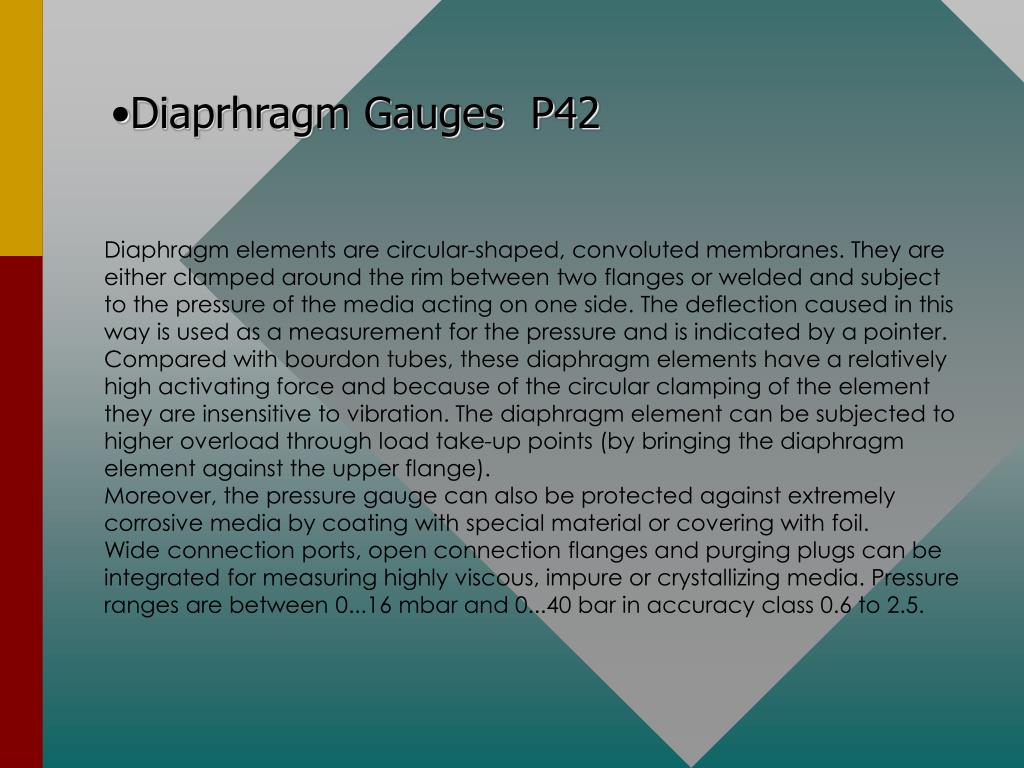

  20. Diaprhragm Gauges P42 Diaphragm elements are circular-shaped, convoluted membranes. They are either clamped around the rim between two flanges or welded and subject to the pressure of the media acting on one side. The deflection caused in this way is used as a measurement for the pressure and is indicated by a pointer. Compared with bourdon tubes, these diaphragm elements have a relatively high activating force and because of the circular clamping of the element they are insensitive to vibration. The diaphragm element can be subjected to higher overload through load take-up points (by bringing the diaphragm element against the upper flange). Moreover, the pressure gauge can also be protected against extremely corrosive media by coating with special material or covering with foil.Wide connection ports, open connection flanges and purging plugs can be integrated for measuring highly viscous, impure or crystallizing media. Pressure ranges are between 0...16 mbar and 0...40 bar in accuracy class 0.6 to 2.5.

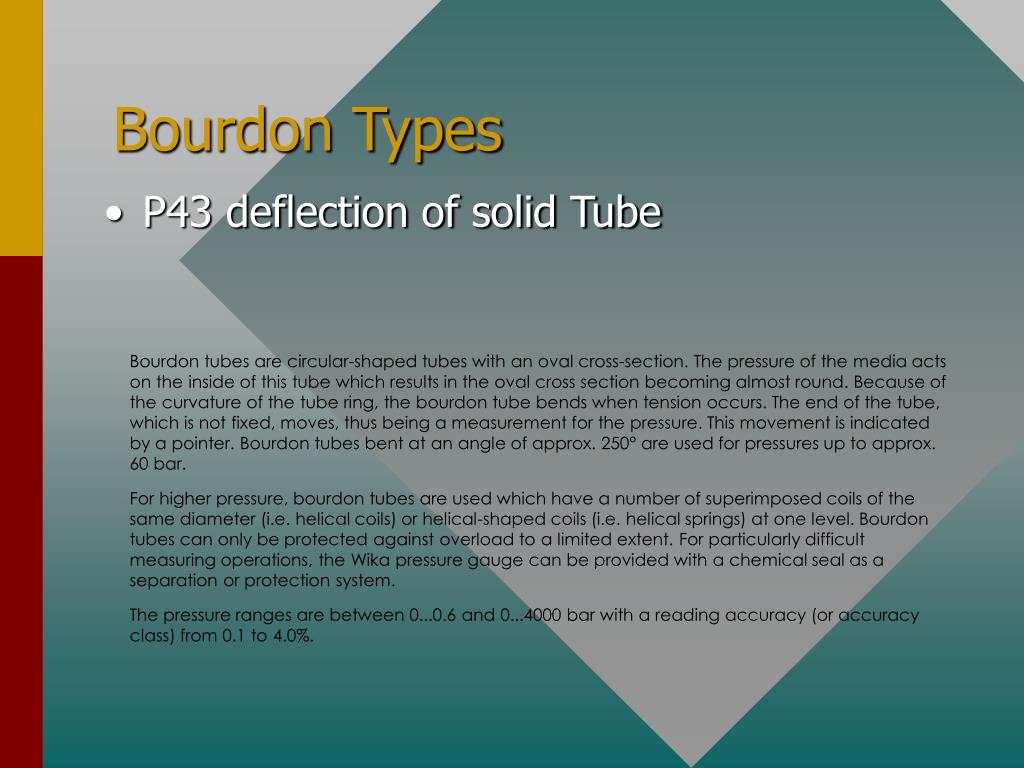

  21. Bourdon Types • P43 deflection of solid Tube Bourdon tubes are circular-shaped tubes with an oval cross-section. The pressure of the media acts on the inside of this tube which results in the oval cross section becoming almost round. Because of the curvature of the tube ring, the bourdon tube bends when tension occurs. The end of the tube, which is not fixed, moves, thus being a measurement for the pressure. This movement is indicated by a pointer. Bourdon tubes bent at an angle of approx. 250° are used for pressures up to approx. 60 bar. For higher pressure, bourdon tubes are used which have a number of superimposed coils of the same diameter (i.e. helical coils) or helical-shaped coils (i.e. helical springs) at one level. Bourdon tubes can only be protected against overload to a limited extent. For particularly difficult measuring operations, the Wika pressure gauge can be provided with a chemical seal as a separation or protection system. The pressure ranges are between 0...0.6 and 0...4000 bar with a reading accuracy (or accuracy class) from 0.1 to 4.0%.

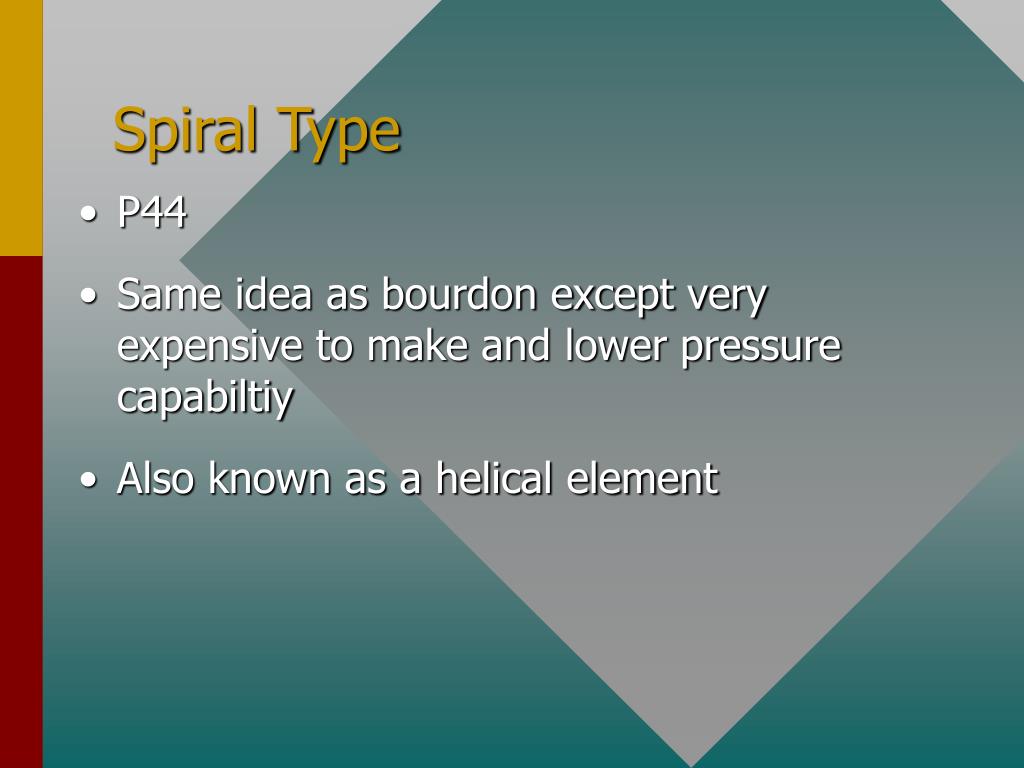

  22. Spiral Type • P44 • Same idea as bourdon except very expensive to make and lower pressure capabiltiy • Also known as a helical element

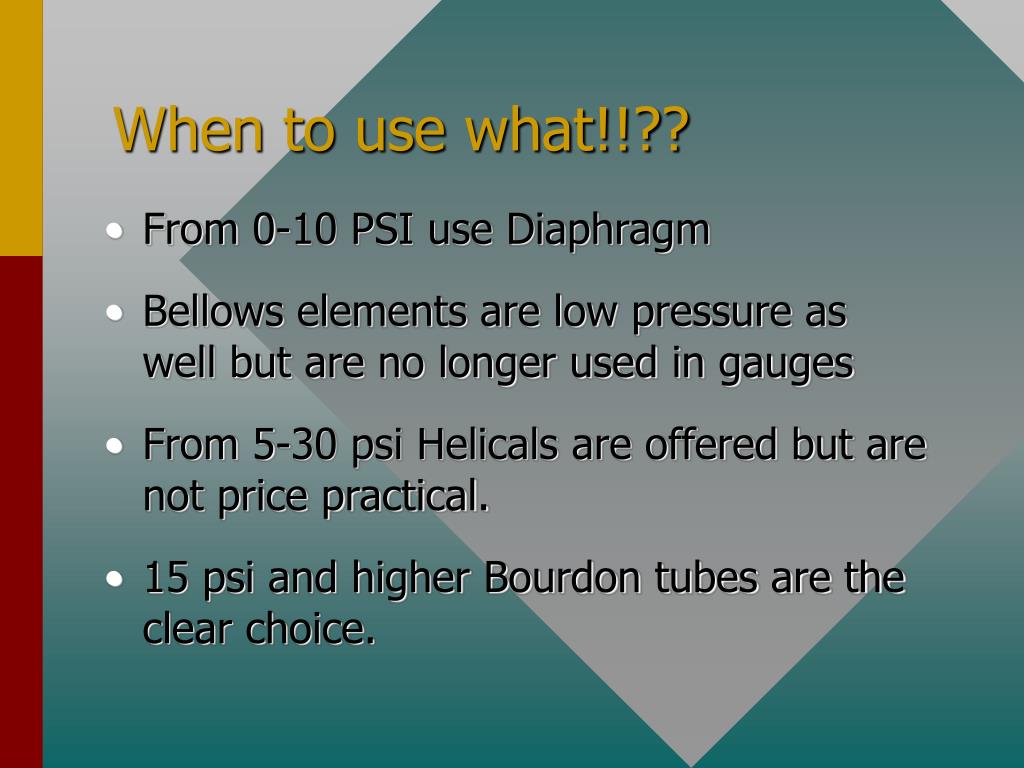

  23. When to use what!!?? • From 0-10 PSI use Diaphragm • Bellows elements are low pressure as well but are no longer used in gauges • From 5-30 psi Helicals are offered but are not price practical. • 15 psi and higher Bourdon tubes are the clear choice.

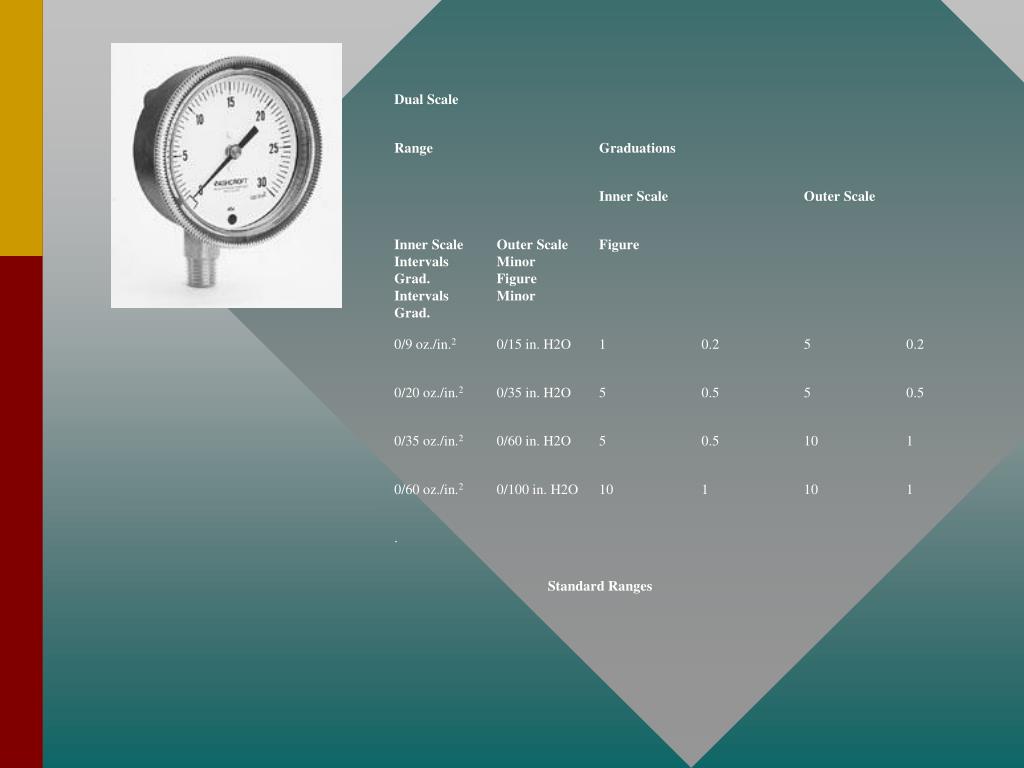

  24. Dual Scale RangeGraduations Inner ScaleOuter Scale Inner ScaleOuter ScaleFigure IntervalsMinor Grad.Figure IntervalsMinor Grad. 0/9 oz./in.2 0/15 in. H2O 1 0.2 5 0.2 0/20 oz./in.2 0/35 in. H2O 5 0.5 5 0.5 0/35 oz./in.2 0/60 in. H2O 5 0.5 10 1 0/60 oz./in.2 0/100 in. H2O 10 1 10 1 . Standard Ranges

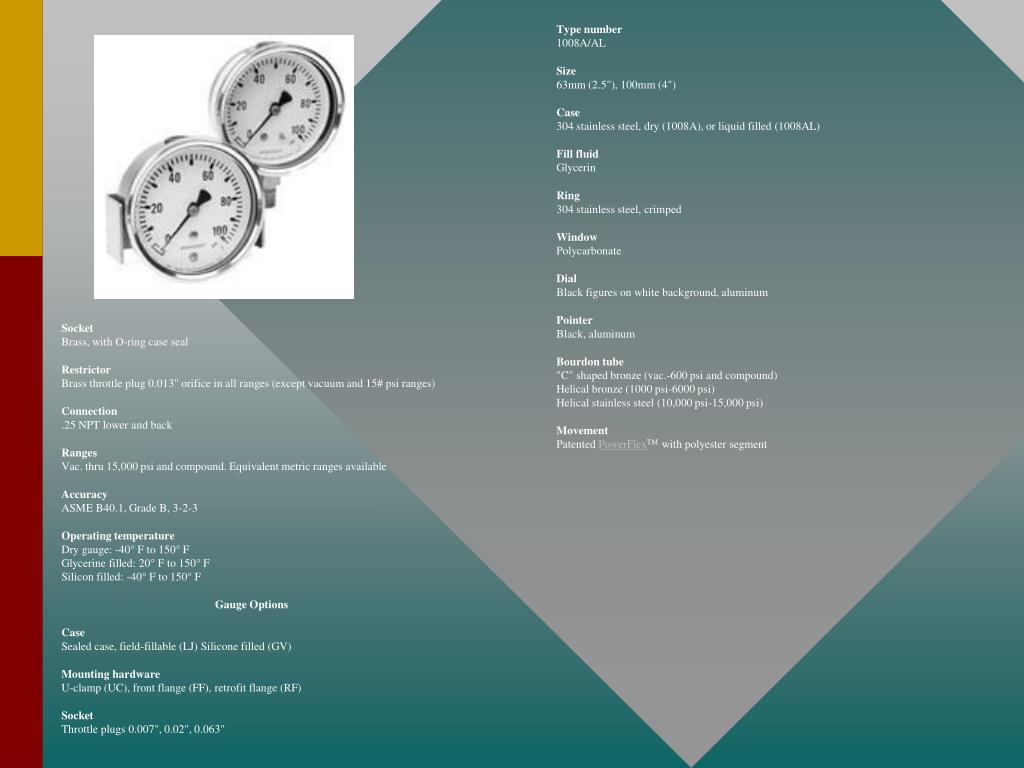

  25. Type number1008A/AL Size63mm (2.5"), 100mm (4") Case304 stainless steel, dry (1008A), or liquid filled (1008AL) Fill fluidGlycerin Ring304 stainless steel, crimped WindowPolycarbonate DialBlack figures on white background, aluminum PointerBlack, aluminum Bourdon tube"C" shaped bronze (vac.-600 psi and compound) Helical bronze (1000 psi-6000 psi) Helical stainless steel (10,000 psi-15,000 psi) MovementPatented PowerFlexTM with polyester segment SocketBrass, with O-ring case seal RestrictorBrass throttle plug 0.013" orifice in all ranges (except vacuum and 15# psi ranges) Connection.25 NPT lower and back RangesVac. thru 15,000 psi and compound. Equivalent metric ranges available AccuracyASME B40.1, Grade B, 3-2-3 Operating temperatureDry gauge: -40° F to 150° F Glycerine filled: 20° F to 150° F Silicon filled: -40° F to 150° F Gauge Options CaseSealed case, field-fillable (LJ) Silicone filled (GV) Mounting hardwareU-clamp (UC), front flange (FF), retrofit flange (RF) SocketThrottle plugs 0.007", 0.02", 0.063"

  26. Process gauges are .5% accuracy Pressure psiCompound psi 0/15 30" Hg/15 psi 0/30 30" Hg/30 psi 0/60 30" Hg/60 psi 0/100 30" Hg/100 psi 0/160 30" Hg/150 psi 0/200 30" Hg/300 psi 0/300 0/400 Vacuum 0/600 30/0 in. Hg 0/800 34/0 ft H20 0/1000 0/1500 0/2000 0/3000 0/5000 NOTE: Equivalent standard kg/cm2, and kPa metric ranges are available. 0/10,000 0/20,000 0/30,000

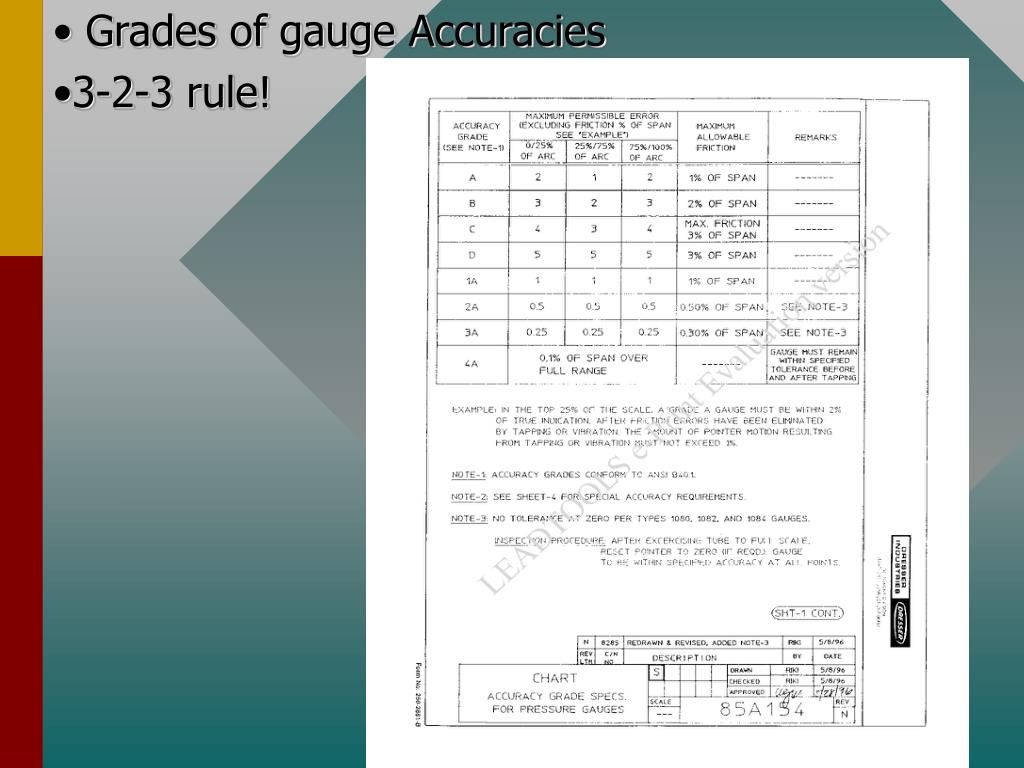

  27. Grades of gauge Accuracies 3-2-3 rule!

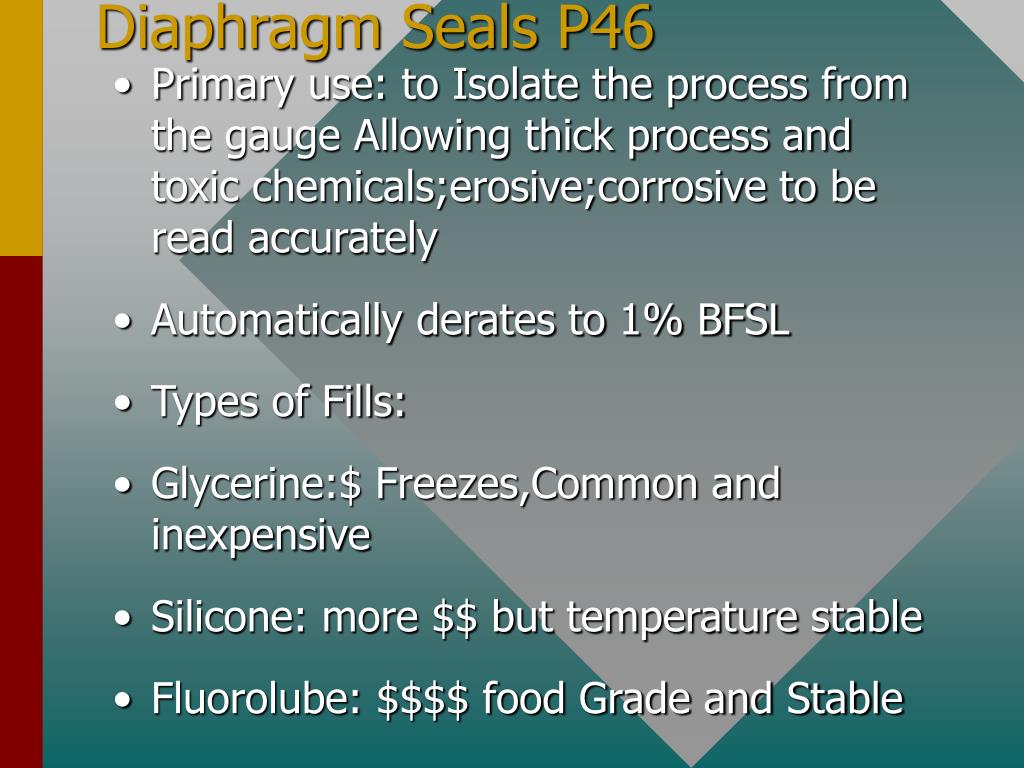

  28. Diaphragm Seals P46 • Primary use: to Isolate the process from the gauge Allowing thick process and toxic chemicals;erosive;corrosive to be read accurately • Automatically derates to 1% BFSL • Types of Fills: • Glycerine:$ Freezes,Common and inexpensive • Silicone: more $$ but temperature stable • Fluorolube: $$$$ food Grade and Stable

  29. Diaphragm Seals

  30. Diaphragm seals

  31. Accessories • Siphons: to isolate water/vapour from high temp steam.

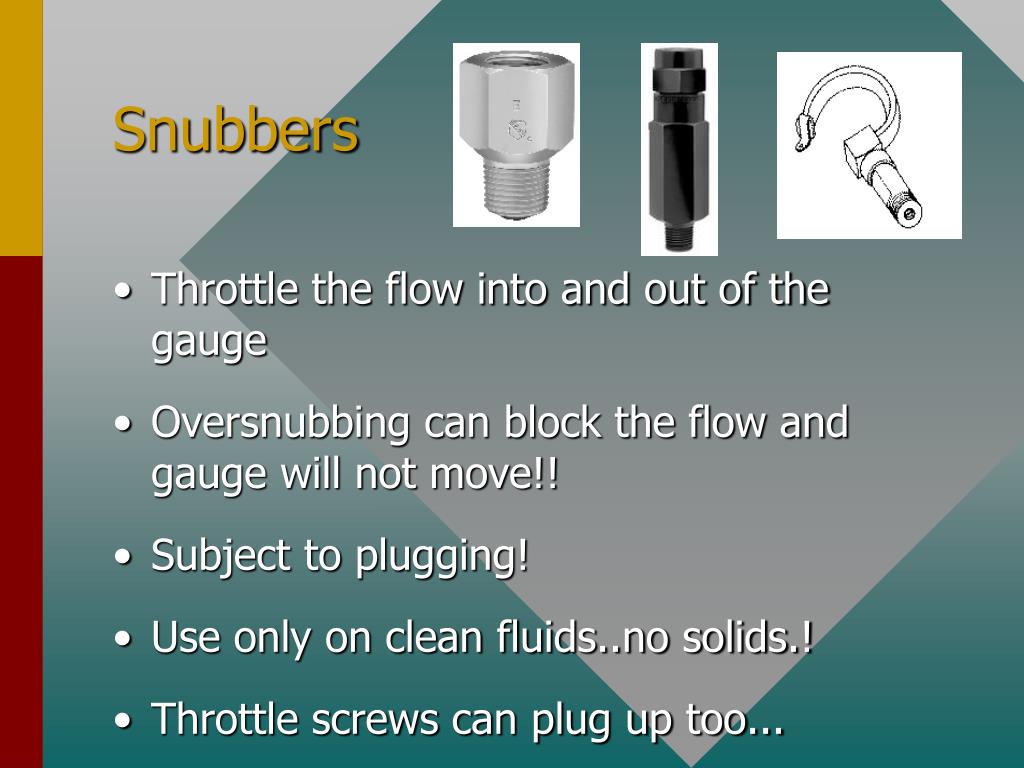

  32. Snubbers • Throttle the flow into and out of the gauge • Oversnubbing can block the flow and gauge will not move!! • Subject to plugging! • Use only on clean fluids..no solids.! • Throttle screws can plug up too...

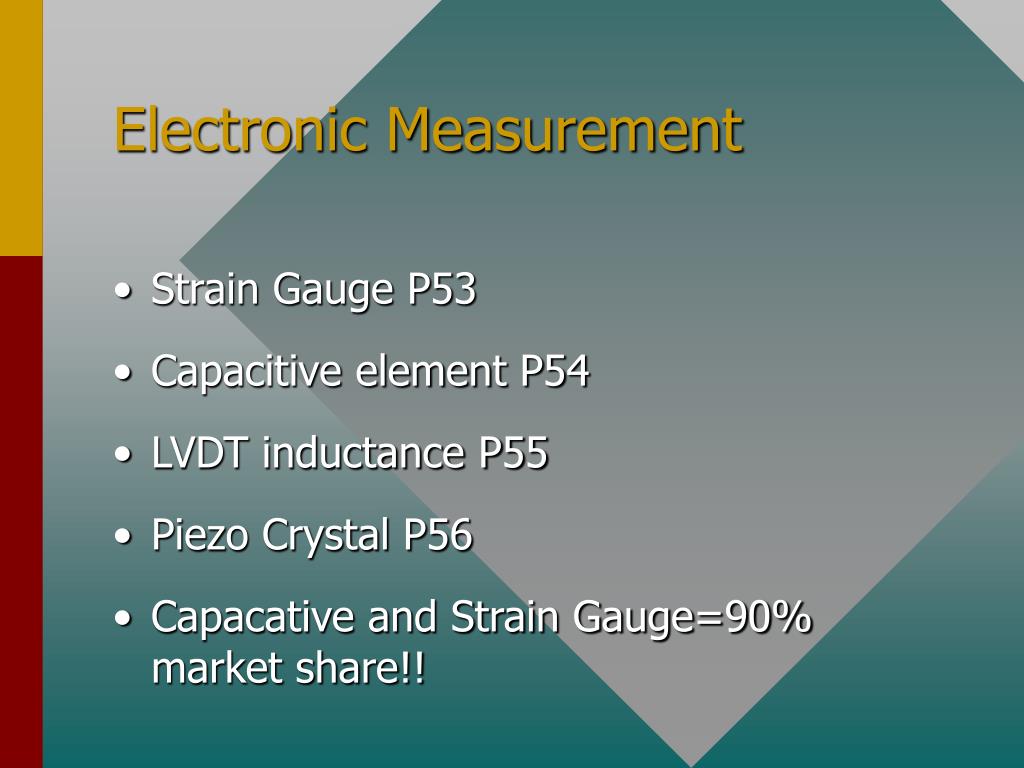

  33. Electronic Measurement • Strain Gauge P53 • Capacitive element P54 • LVDT inductance P55 • Piezo Crystal P56 • Capacative and Strain Gauge=90% market share!!

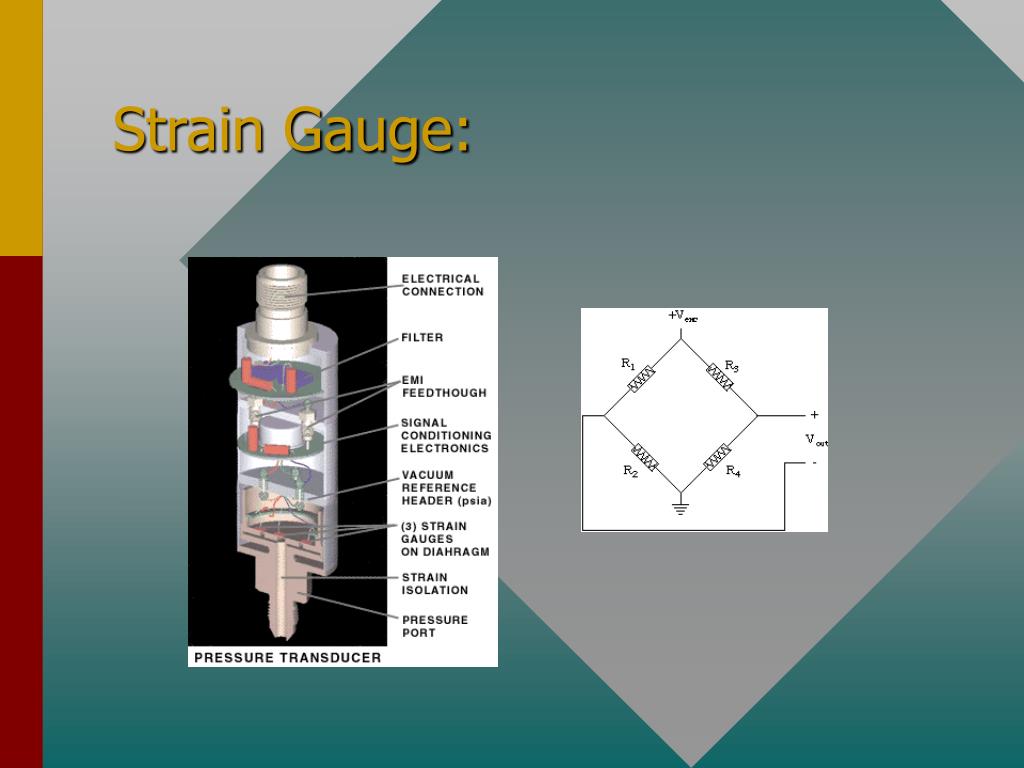

  34. Strain Gauge:

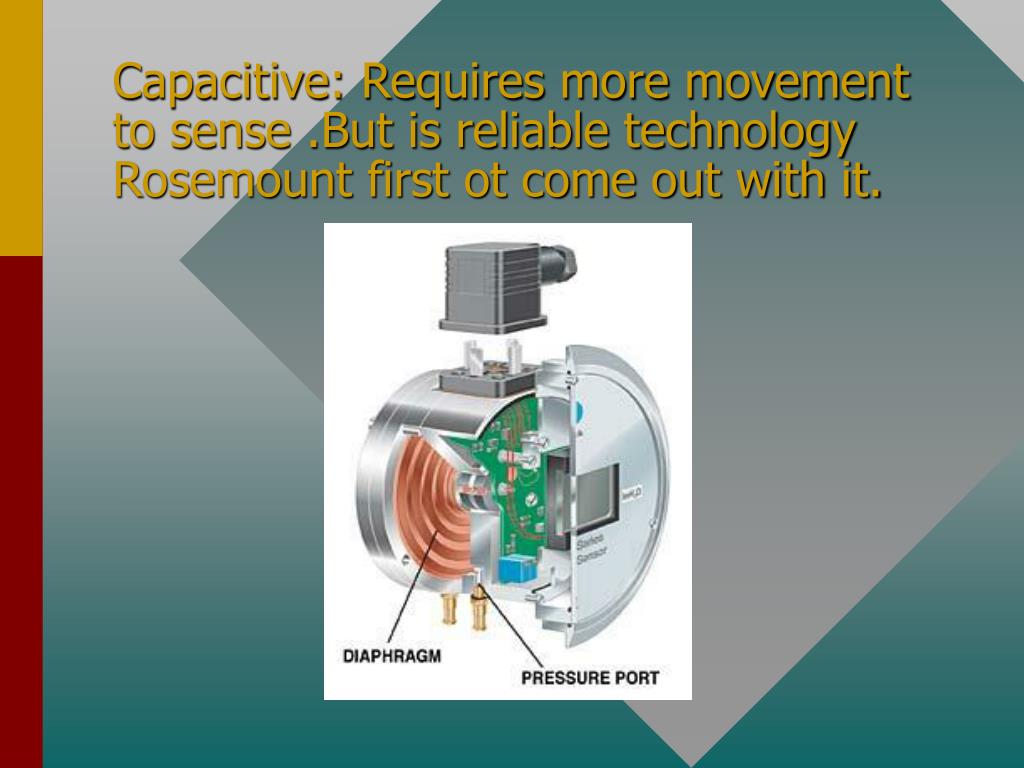

  35. Capacitive: Requires more movement to sense .But is reliable technologyRosemount first ot come out with it.

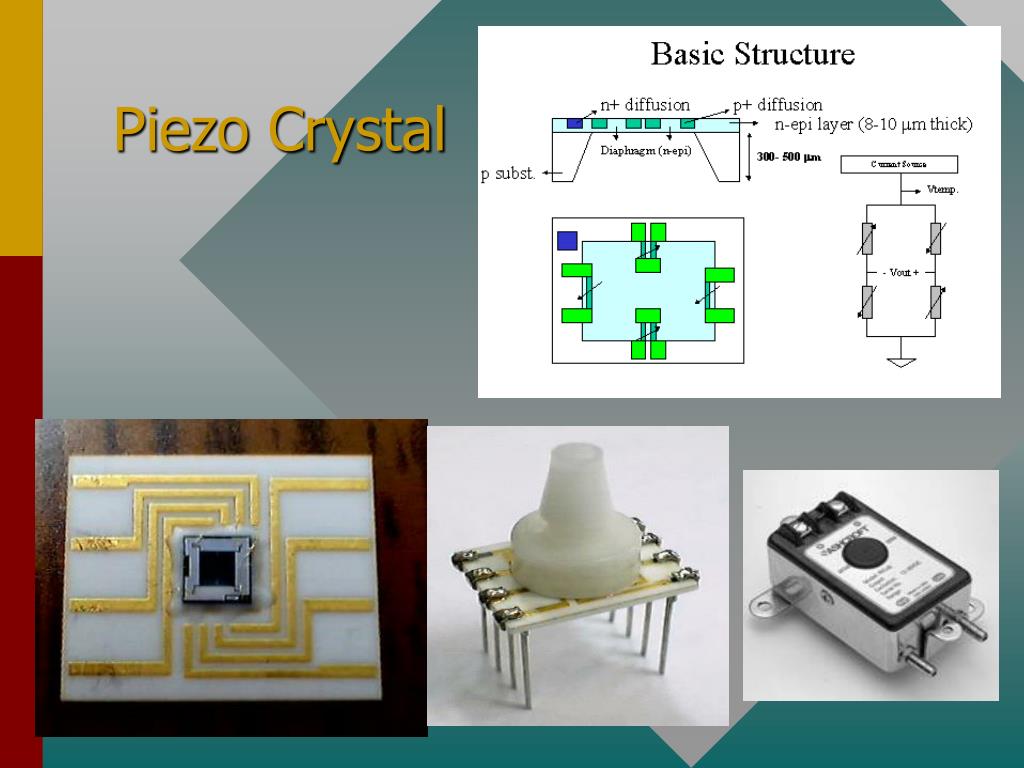

  36. Piezo Crystal

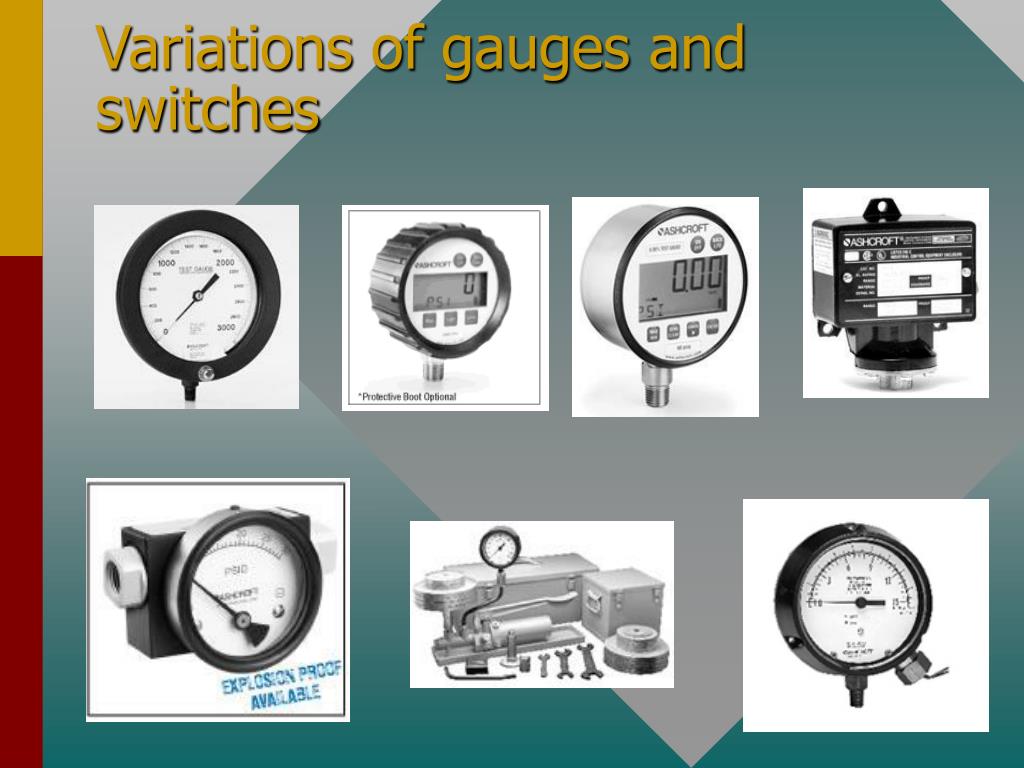

  37. Variations of gauges and switches

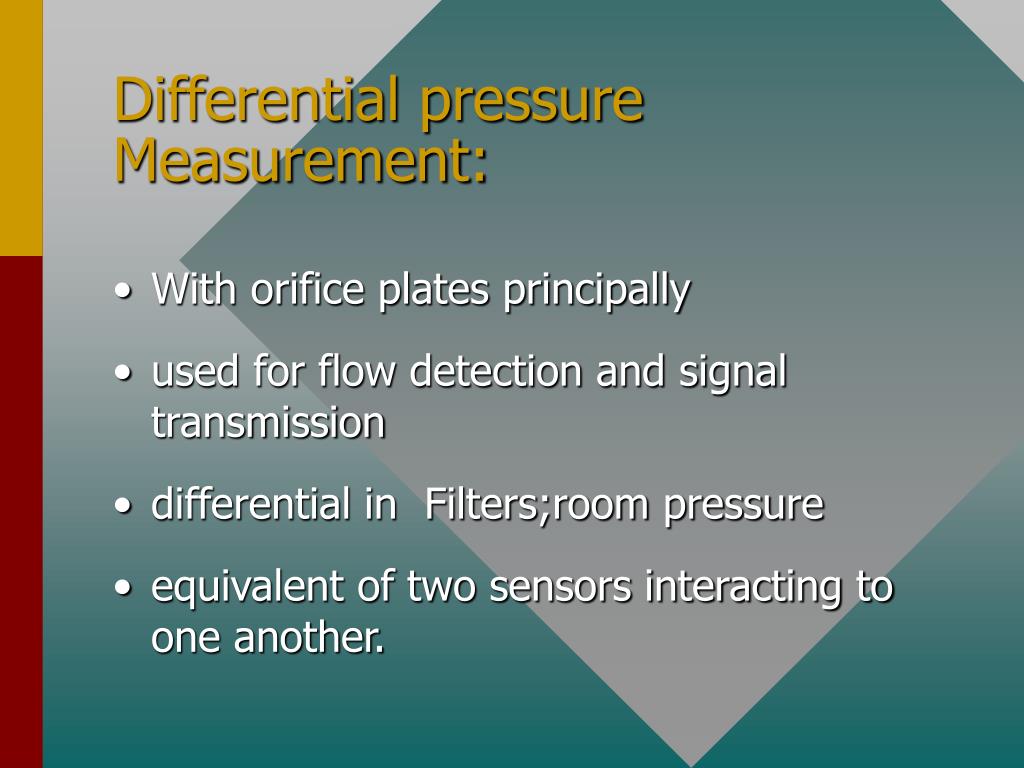

  38. Differential pressure Measurement: • With orifice plates principally • used for flow detection and signal transmission • differential in Filters;room pressure • equivalent of two sensors interacting to one another.

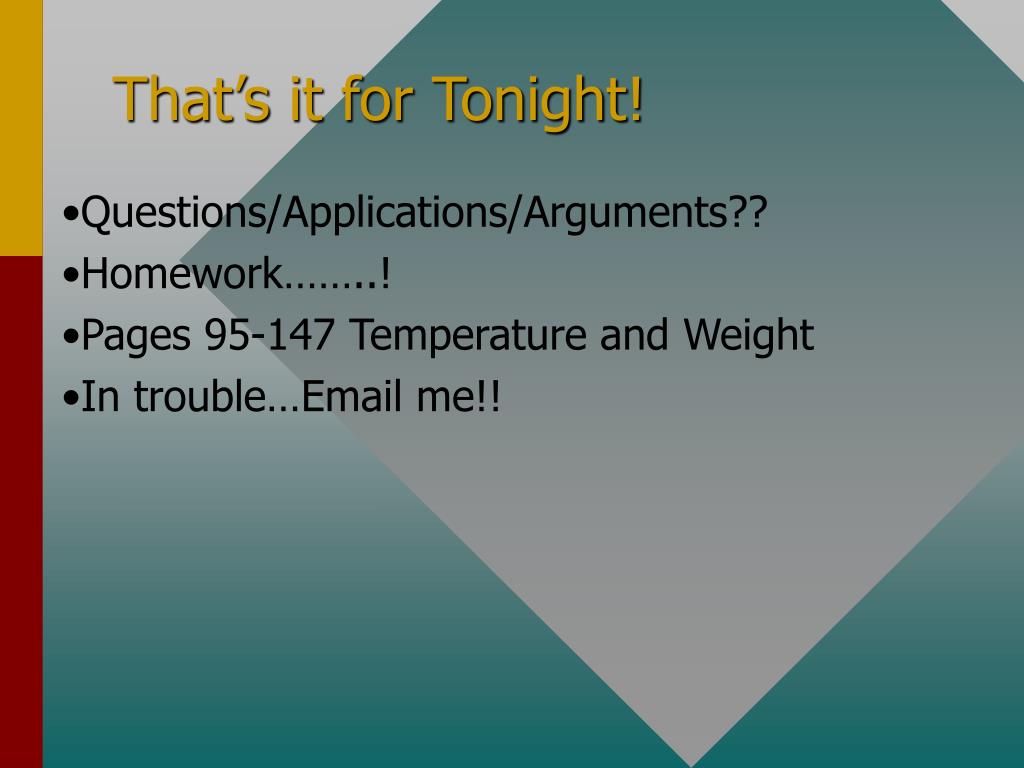

  39. That’s it for Tonight! Questions/Applications/Arguments?? Homework……..! Pages 95-147 Temperature and Weight In trouble…Email me!!
