Form Validation

Form Validation. Validation. Validation of form data can be cumbersome using the basic techniques StringTokenizer If-else statements Most of the time you want to validate against a pattern rather than a specific value E.g. all digits or all letters or letters with one space in between

tangia
Télécharger la présentation

Form Validation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

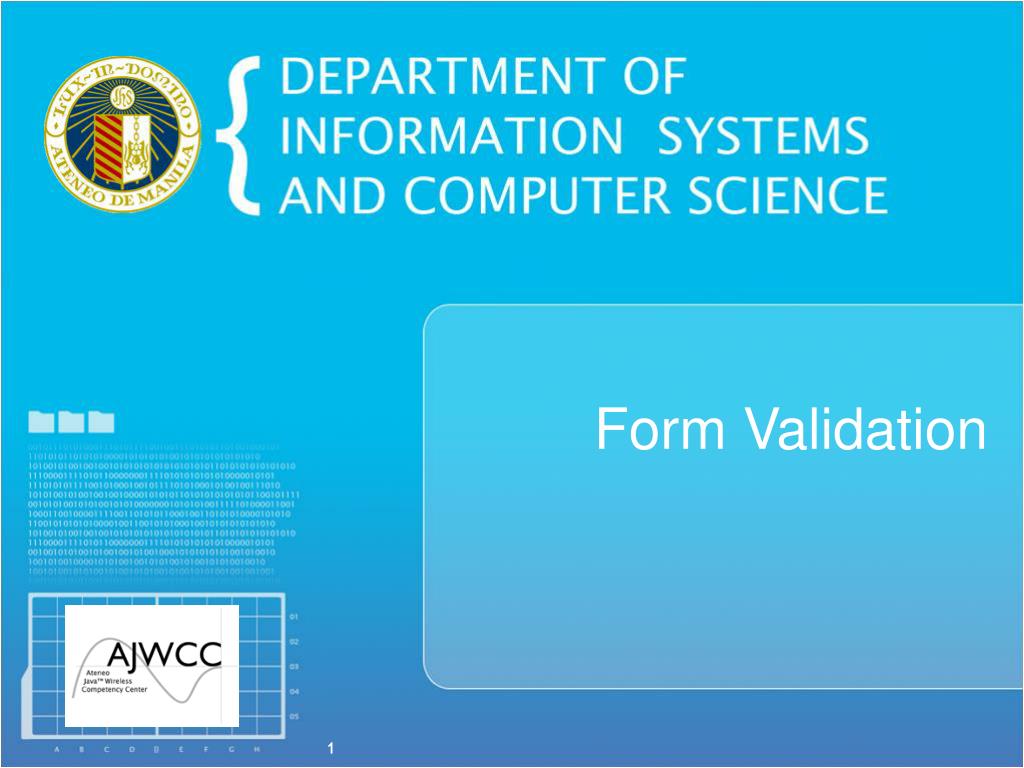

  1. Form Validation

  2. Validation • Validation of form data can be cumbersome using the basic techniques • StringTokenizer • If-else statements • Most of the time you want to validate against a pattern rather than a specific value • E.g. all digits or all letters or letters with one space in between • What pattern would define any web URL? Any email address?

  3. Regular Expressions • One technique is to define your pattern using what is called a Regular Expression (RegEx) and process it using a RegEx engine • For example, the regex (\d+) means one or more digits • Java SE and Android have built-in RegEx functionality • java.util.regex

  4. A Quick Introduction to Regular Expressions

  5. Regular Expressions • Regular expressions (regex's) are sets of symbols and syntactic elements used to matchpatterns of text.

  6. Basic Syntax

  7. Matches • Input string consumed from left to right • Match ranges: inclusive of the beginning index and exclusive of the end index • Example: Current REGEX is: foo Current INPUT is: foofoofoo I found the text "foo" starting at index 0 and ending at index 3. I found the text "foo" starting at index 3 and ending at index 6. I found the text "foo" starting at index 6 and ending at index 9.

  8. Character Classes

  9. Predefined Character Classes

  10. Quantifier Types • There are three types of regex matching styles: • Greedy • Reluctant • Possessive

  11. Greedy • Example: Current REGEX is: .*foo Current INPUT is: xfooxxxxxxfoo I found the text "xfooxxxxxxfoo" starting at index 0 and ending at index 13. Greedy: first, the quantified portion of the expression eats the whole input string and tries for a match. If it fails, the matcher backs off the input string by one character and tries again, until a match is found. • Greedy is the default style

  12. Reluctant • Example: Current REGEX is: .*?foo Current INPUT is: xfooxxxxxxfoo I found the text "xfoo" starting at index 0 and ending at index 4. I found the text "xxxxxxfoo" starting at index 4 and ending at index 13. Reluctant: starts to match at the beginning of the input string. Then, iteratively eats another character until the whole input string is eaten. • Note the ? On the expression, this indicates the previous portion should he handled reluctantly

  13. Possessive • Example Current REGEX is: .*+foo Current INPUT is: xfooxxxxxxfoo No match found. Possessive: try to match only once on the whole input stream. • NOTE the + sign

  14. Examples

  15. Groups • With parentheses, we can create groups to apply quantifiers to several characters: “(abc)+” • Also useful for parsing results (see last slide) • Groups are numbered by counting their opening parentheses from left to right • Example: groups in “((A)(B(C)))” 1. ((A)(B(C))) 2. (A) 3. (B(C)) 4. (C)

  16. Boundary matchers Current REGEX is: \bdog\b Current INPUT is: The doggie plays in the yard. No match found. Current REGEX is: \bdog\b Current INPUT is: The dog plays in the yard. Match found.

  17. Using Regular Expressions in Java

  18. String • The String class contains several regex based methods • split(String regex) – splits a String using the regEx as a delimiter • replaceAll(String regex, String replacement) – replaces all match patterns with replacement • matches(String regex) – returns if the string matches the regex • These methods are sufficient for most simple validation tasks

  19. split() example • NOTE: notice we are splitting against a literal period. • Since the period is part of the regex language, it must be escaped -> \. • But since you need to escape the backslash in Java -> \\. String testString = "This.is.a.test"; String[] data = testString.split("\\."); System.out.println(Arrays.toString(data)); OUTPUT: [This, is, a, test]

  20. replaceAll() example • NOTE: we need to reassign the output string of the method to the variable since String instances are immutable String testString = "This.is.a.test.test.test"; testString = testString.replaceAll("\\.test", ""); System.out.println(testString); OUTPUT: This.is.a

  21. matches() example • Regex description: • Starts with “This” • Has one or more groups of one or more whitespaces followed by one or more word characters • Followed by a single whitespace • Followed by “test” String match = "This is a test"; System.out.println(match.matches("This(\\s+\\w+)+\\stest")); OUTPUT: true

  22. Java RegEx API • Two important classes: • java.util.regex.Pattern -- a compiled representation of a regular expression • java.util.regex.Matcher -- an engine that performs match operations by interpreting a Pattern • Example Pattern p = Pattern.compile("a*b"); Matcher m = p.matcher("aaaaab"); boolean b = m.matches();

  23. Pattern • Patterns are compiled regular expressions. • Pattern instances are useful if you need to do a lot of work with the same regular expression • more efficient to compile it once and reuse it. • e.g. for parsing tasks

  24. Pattern • The Pattern class and its companion, Matcher, are also a lot more powerful than the small amount of functionality exposed by String • Can be used to find repeating patterns within a string • A Pattern is created using the static Pattern.compile(String regEx)method

  25. Matcher • Once a Pattern is compiled, a Matcher instance can be obtained using matcher(String inputString)method of Pattern • Some common Matcher methods: • matches() – used to determine if the inputString matches the pattern used to create this Matcher • find() – used to loop through all the pattern matches in the inputString • group(int index) – isolates the value held in a specific group of the match • 1-indexed, group 0 represents the whole match

  26. Example • Regex description: • Starts with zero or more “a” characters • Followed by “b” Pattern p = Pattern.compile("a*b"); Matcher m = p.matcher("aaaaab"); boolean b = m.matches(); OUTPUT: true

  27. Example import java.util.regex.*; public class RegEx{ public static void main( String args[] ){ String amounts = "$1.57 $316.15 $19.30 $0.30 $0.00 $41.10 $5.1 $.5"; Pattern strMatch = Pattern.compile( "\\$(\\d+)\\.(\\d\\d)" ); Matcher m = strMatch.matcher( amounts ); while ( m.find() ){ System.out.println( "$" + ( Integer.parseInt( m.group(1) ) + 5 ) + "." + m.group(2) ); } } } OUTPUT: $6.57 $321.15 $24.30 $5.30 $5.00 $46.10 • Regex description: • Starts with “$” • Followed by one or more digits • Followed by a period • Followed by two digits

  28. Additional References • SUN regexps tutorial http://download.oracle.com/javase/tutorial/essential/regex/ • Java.util.regex API for Android file:///C:/android-sdk-windows/docs/reference/java/util/regex/package-summary.html

  29. UI Validation in Android • EditText widgets have a means of limiting what types of characters using the inputType XML attribute • However, this is not enough to handle specific cases such as • does the cellphone number match a Philippine number (+63xxxxxxx) or a Globe/SMART/Sun number

  30. UI Validation in Android • Regex Validation can be done in several places • Check the current text as you are typing • Requires a KeyListener • Can be a bit tricky • At a predefined point (e.g. when moving to the next screen) • Prior to triggering the next activity or closing the current activity extract all the strings and check against the patterns

  31. Things to think about What are the expressions for the following? Email address Web URL Cellphone/Phone number License plate Money values (with commas and decimal) Strong passwords
