  1. Pulleys Charlie Haffey Norwood Elementary Science

  2. For Simplicity Weights will be in pounds. A ten pound box weighs ten pounds. A ten kilogram box Weighs 98 Newtons.

  3. What Is A Pulley? A wheel With a groove Can be flat Can be single or multiple

  4. http://farm7.staticflickr.com/6047/6335553351_bb7f4baf46_z.jpghttp://farm7.staticflickr.com/6047/6335553351_bb7f4baf46_z.jpg http://3.imimg.com/data3/MB/PU/MY-5187183/step-pulleys-250x250.jpg http://img.ehowcdn.com/article-new/ehow/images/a05/qp/dl/mechanical-advantage-block-tackle-800x800.jpg http://wpcontent.answcdn.com/wikipedia/commons/thumb/b/be/Flachriemen.png/220px-Flachriemen.png

  5. 100 lbs. 100 lbs. 100 lbs.

  6. Fixed Pulley 100 lbs. E 100 lbs.

  7. Specifically Work = Force x Distance W = F x D To lift a 100 lb box 2 feet off the ground 2 feet of rope are reeled in.

  8. 50 lbs. 50 lbs. 100 lbs.

  9. MoveablePulley 50 lbs. 50 lbs. 100 lbs.

  10. CombinationPulleys 50 lbs. 50 lbs. Double Pulley 100 lbs.

  11. The Big Tradeoff Work = Force x Distance W = F x D The force is decreased by half. How much rope is reeled in to lift the box 2 feet off the ground?

  12. CombinationPulleys 50 lbs. 50 lbs. Double Pulley E 100 lbs. 2

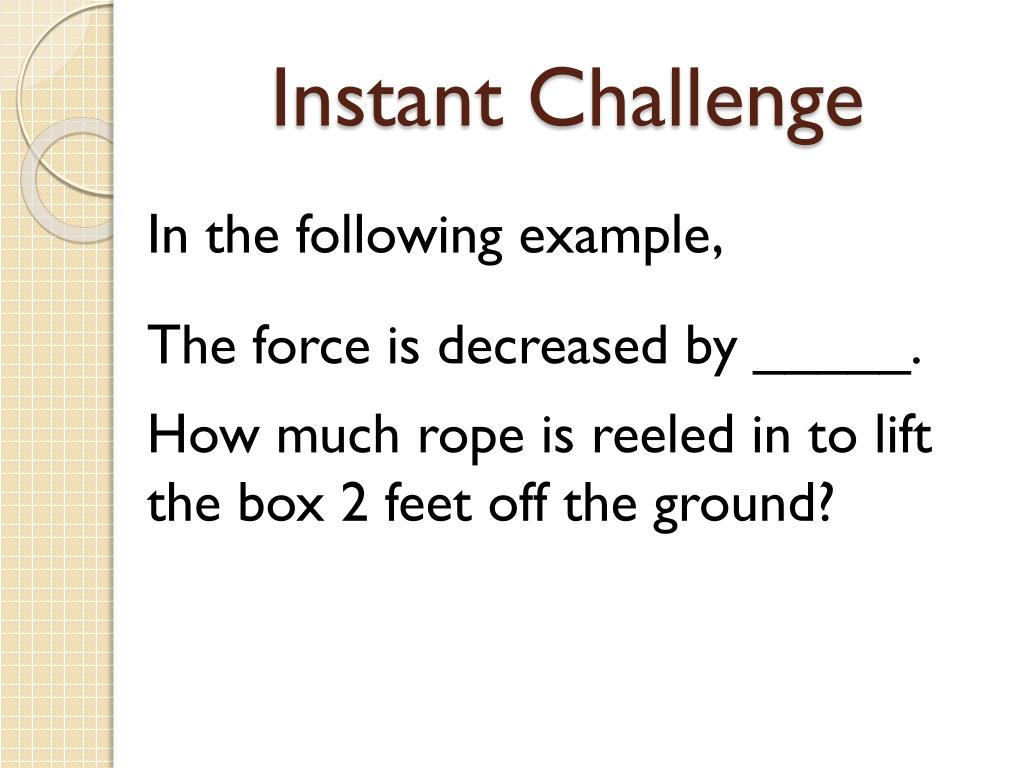

  13. Instant Challenge In the following example, The force is decreased by _____. How much rope is reeled in to lift the box 2 feet off the ground?

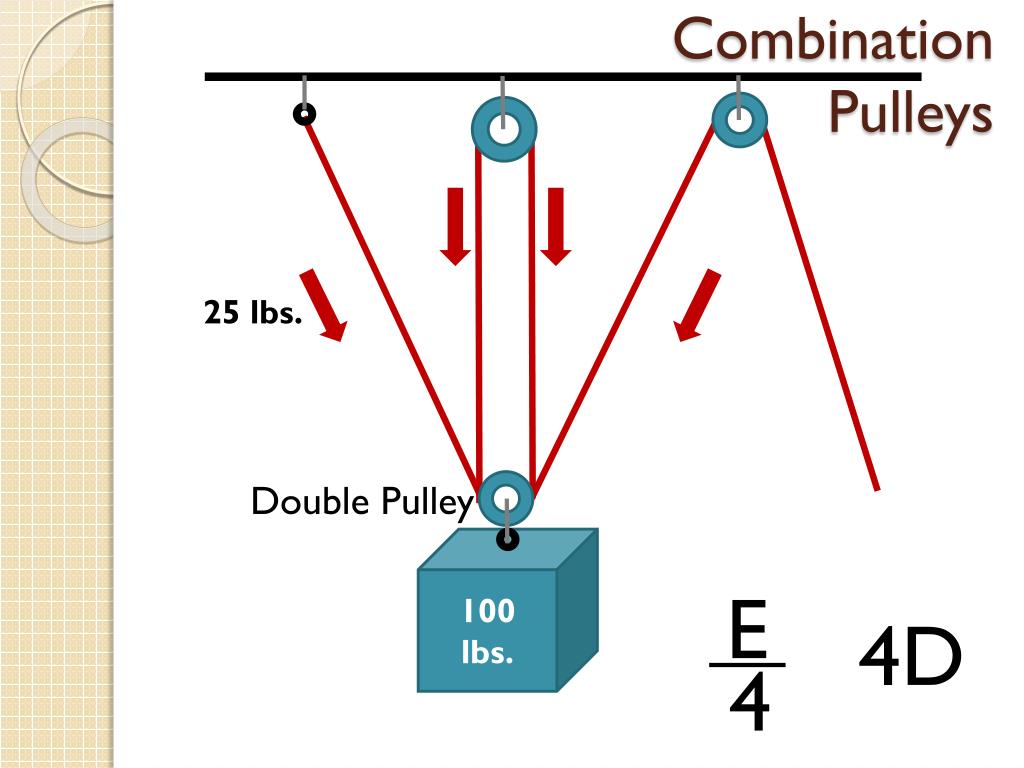

  14. CombinationPulleys 25 lbs. Double Pulley E 100 lbs. 4 4D

  15. Pulleys Charlie Haffey Norwood Elementary Science
