Presentation Transcript

  1. LESSON 1 INTRODUCTION OF SCILAB AzalyaRahmatika FathulFithrah JURUSAN MATEMATIKA FAKULTAS MATEMATIKA DAN ILMU PENGETAHUAN ALAM UNIVERSITAS SYIAH KUALA DARUSSALAM, BANDA ACEH April, 2013

  2. SCILAB http://www.scilab.org/download/

  3. Disampingditampakkantampilandariscilab. • Icon (-->) merupakan command prompt • Bagipenggunaawaldapatmenuliskanhelp pada command promtuntukmengetahuisemuakegunaanscilab. • Linear Algebra, Signal Processing, Genetic Algorithms, Interpolation, Metanet, Optimization and Simulation, Statistics, Strings, Time and Datedllmerupakanbeberapa Function yang dapatdicarimenggunakanScilab.

  4. User dapatdenganmudahmencaricaramenggunakan function. Misalnyapenggunainginmengetahuicaramenggukan function invers, maka user dapatmengetikhelp inv. Akankeluarkotakdialogesepertidisamping

  5. Scilabdapatdigunakansepertisimpelkalkulator, dansepertibahasapemrogramanlainnyadapatmenyimpan variable. • Jika user menggunakantandasemicolon (;)artinya user tidakmenampilkan variable.

  6. Frequently Ask Question (FAQ)(untukpemula)

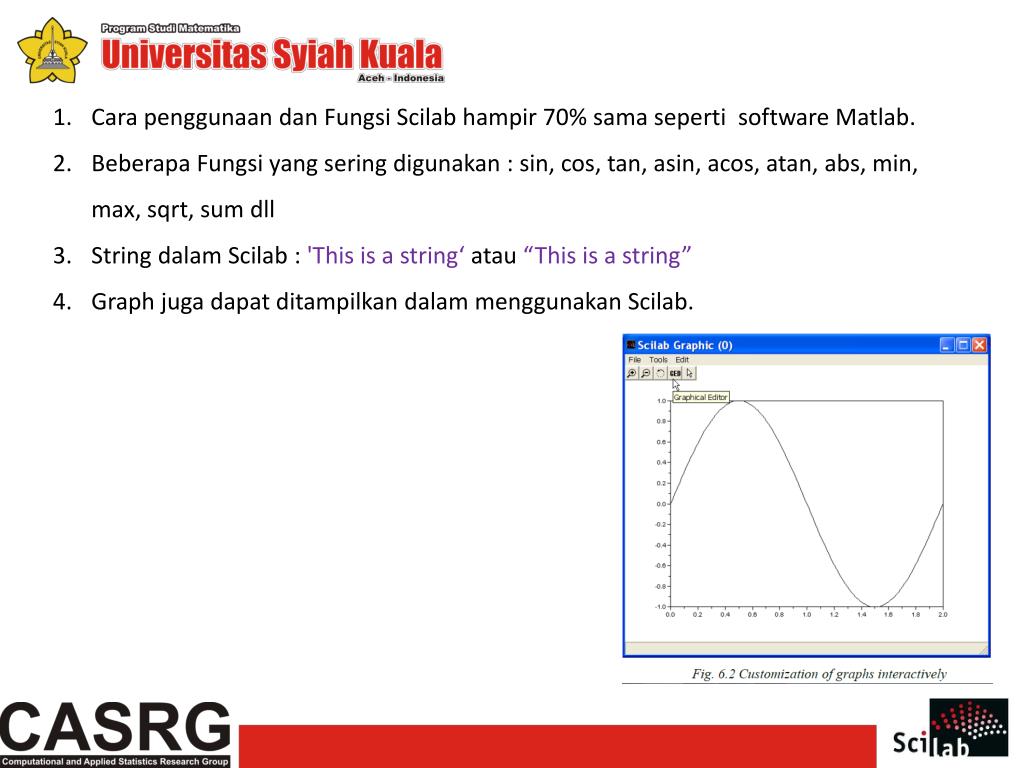

  7. Cara penggunaandanFungsiScilabhampir 70% samaseperti software Matlab. • BeberapaFungsi yang seringdigunakan : sin, cos, tan, asin, acos, atan, abs, min, max, sqrt, sumdll • String dalamScilab : 'This is a string‘ atau“This is a string” • Graph jugadapatditampilkandalammenggunakanScilab.

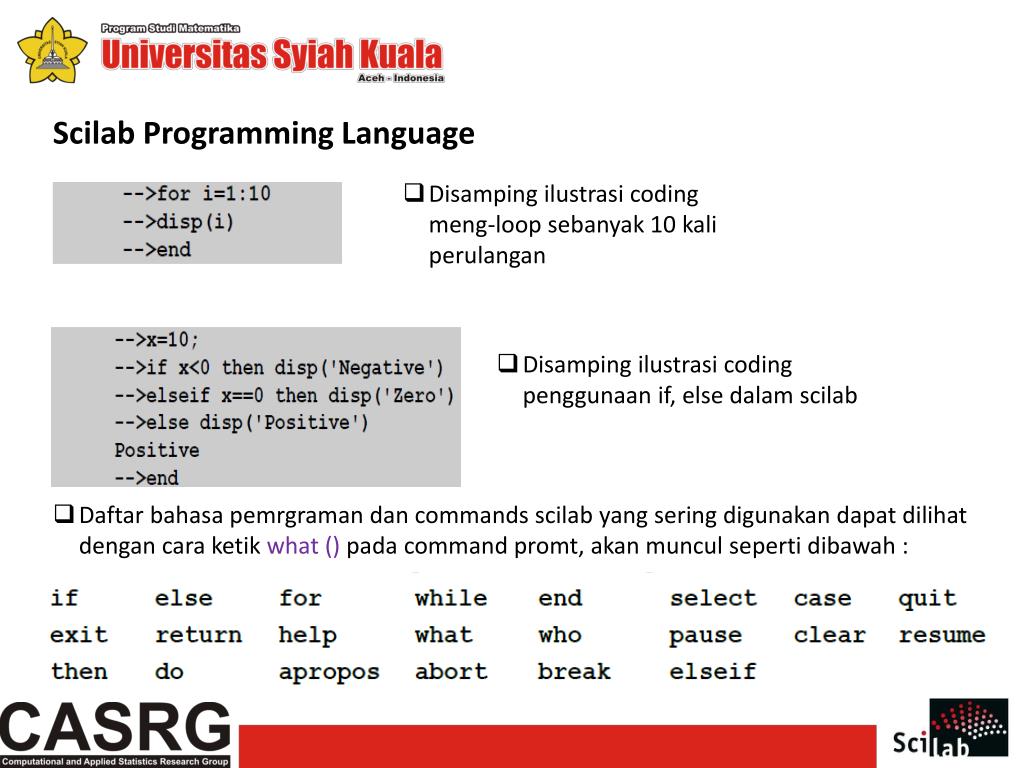

  8. Scilab Programming Language • Disampingilustrasi coding meng-loop sebanyak 10 kali perulangan • Disampingilustrasi coding penggunaan if, else dalamscilab • Daftarbahasapemrgramandan commands scilab yang seringdigunakandapatdilihatdengancaraketikwhat ()pada command promt, akanmunculsepertidibawah :

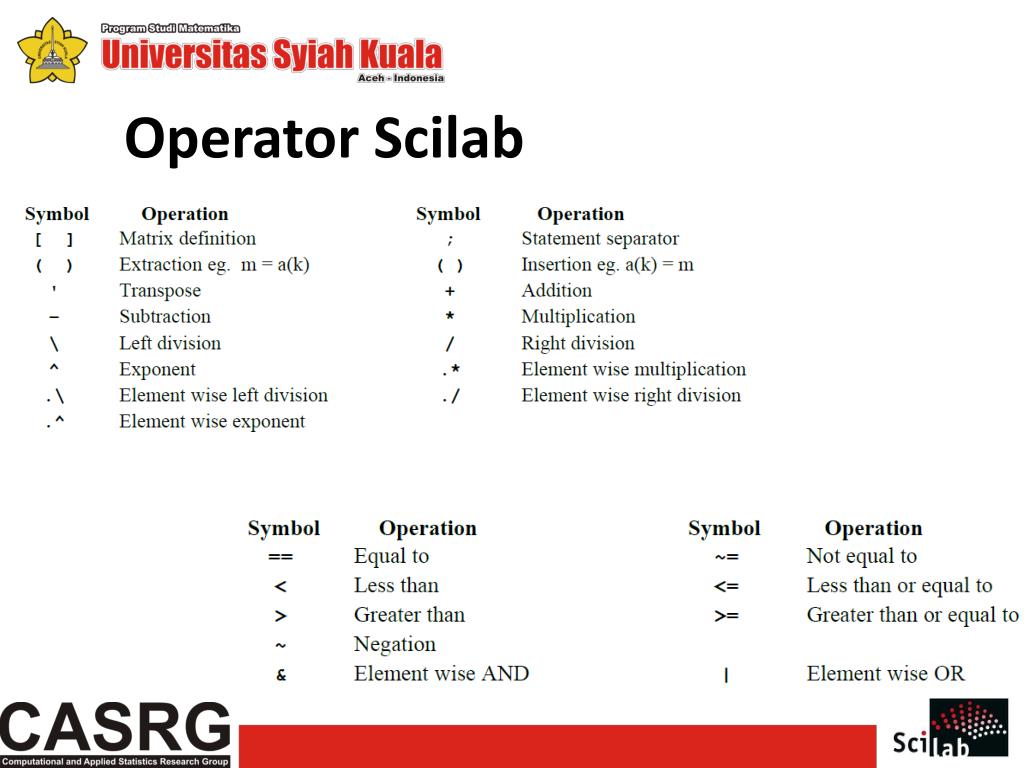

  9. Operator Scilab

  10. TERIMA KASIH
