Morphing

Morphing. Meaning : transforming a shape into another . Create a new layer within a new doc. Make sure you have a first frame to draw into, otherwise, press F6 . Draw one shape of any kind on frame 1. Then go to say frame 30, press F6 to define a frame.

terry
Télécharger la présentation

Morphing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Morphing • Meaning: transforming a shape into another. • Create a new layer within a new doc. Make sure you have a first frame to draw into, otherwise, press F6. • Draw one shape of any kind on frame 1. Then go to say frame 30, press F6 to define a frame. • Once defined, delete the shape u drew on frame 1, and draw a different shape on frame 30. • Upon completion, you’ll have 2 different shapes.

  2. SimpleMovie Clip Animation • Create a shape, then draw the details to represent a smiley. • For the eyes, convert the layer into a movie clip. • Open it, and insert a key-frame (F6), and adjust the eyes. • Create a mouth - > Convert to movie clip - > insert a keyframefurther right - > tweak it to represent a smile - > apply a motion tween.

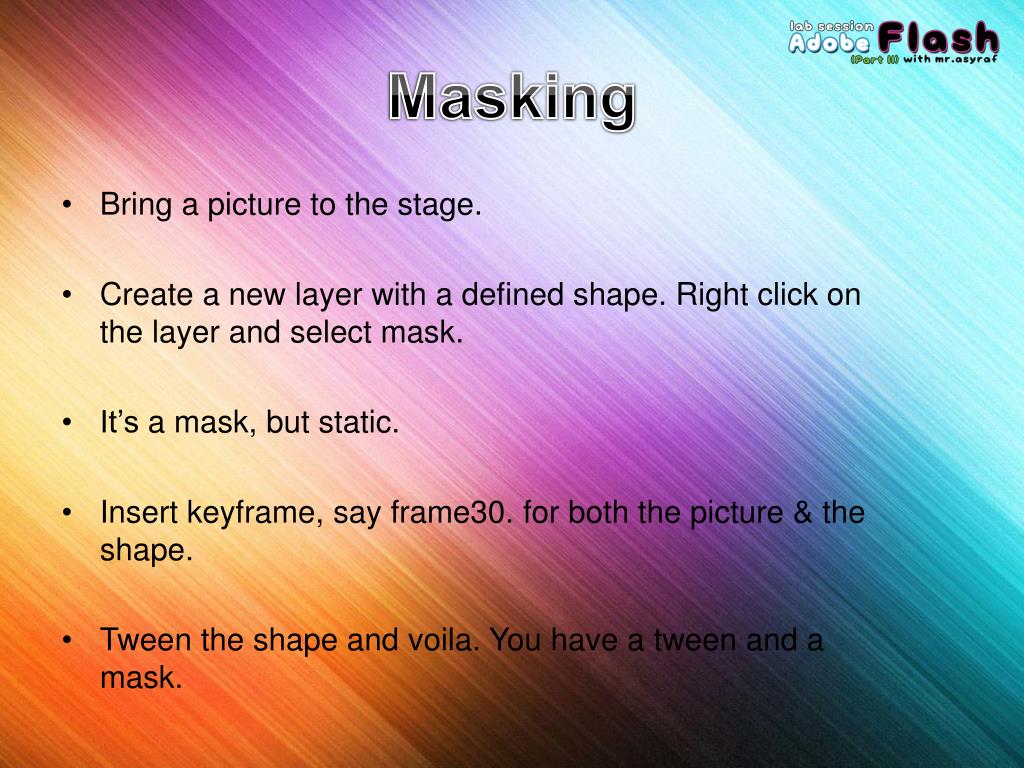

  3. Masking • Bring a picture to the stage. • Create a new layer with a defined shape. Right click on the layer and select mask. • It’s a mask, but static. • Insert keyframe, say frame30. for both the picture & the shape. • Tweenthe shape and voila. You have a tween and a mask.

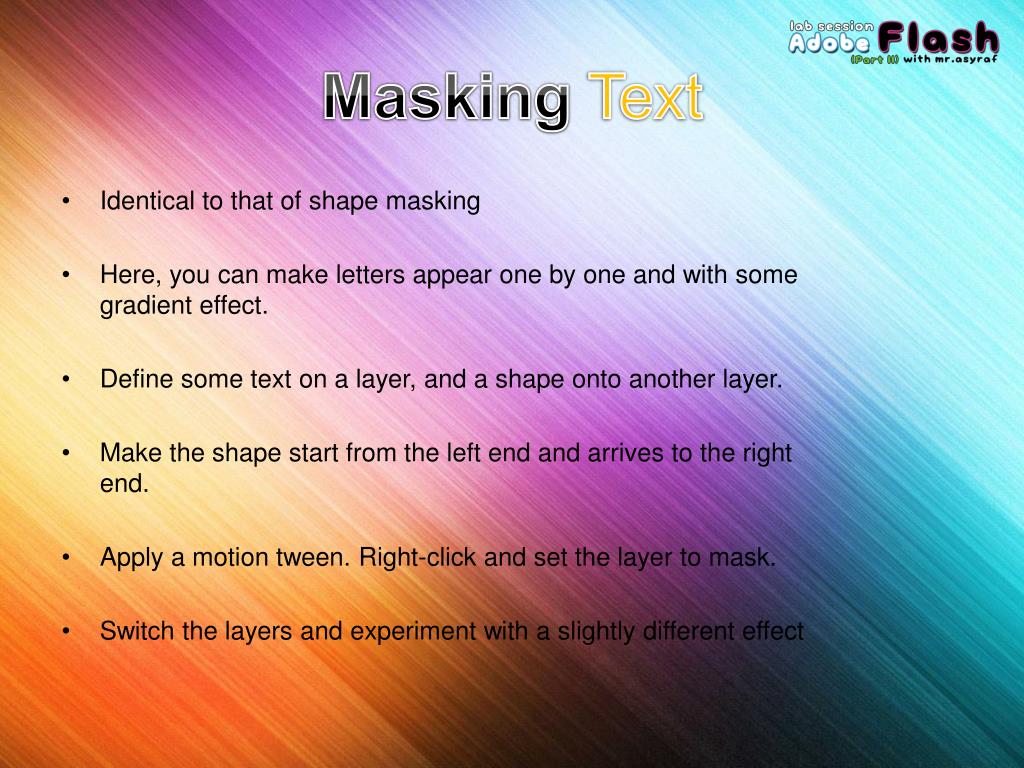

  4. MaskingText • Identical to that of shape masking • Here, you can make letters appear one by one and with some gradient effect. • Define some text on a layer, and a shape onto another layer. • Make the shape start from the left end and arrives to the right end. • Apply a motion tween. Right-click and set the layer to mask. • Switch the layers and experiment with a slightly different effect

  5. BasicMotion • On frame 1, draw a circle. • Insert keyframe on frame 30. select the latter and move the shape to a different position. • Right click on any frame between 1-30 and select create motion tween.

  6. ColorAnimation • Create a shape. • Insert a few keyframes, and on each , keyframe, change the color of the shape. • Use a color for like 2-3 frames, instead of a frame for one color

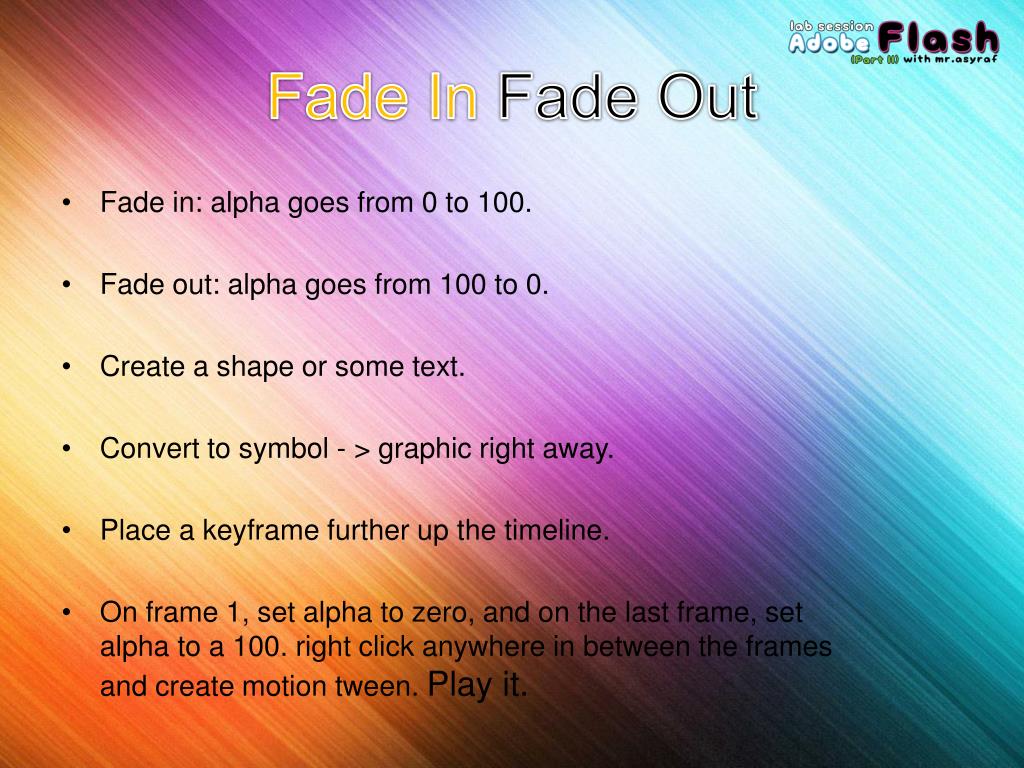

  7. Fade In Fade Out • Fade in: alpha goes from 0 to 100. • Fade out: alpha goes from 100 to 0. • Create a shape or some text. • Convert to symbol - > graphic right away. • Place a keyframe further up the timeline. • On frame 1, set alpha to zero, and on the last frame, set alpha to a 100. right click anywhere in between the frames and create motion tween. Play it.

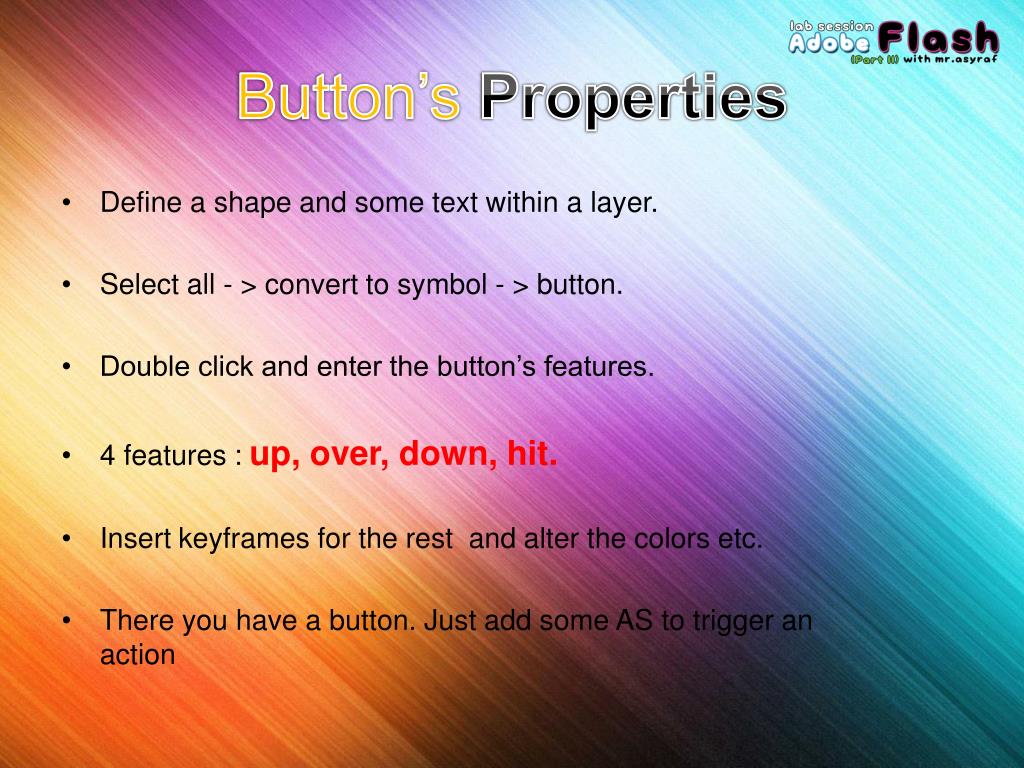

  8. Button’s Properties • Define a shape and some text within a layer. • Select all - > convert to symbol - > button. • Double click and enter the button’s features. • 4 features : up, over, down, hit. • Insert keyframes for the rest and alter the colors etc. • There you have a button. Just add some AS to trigger an action

  9. Zoom Effect • Truly simple. • Create a shape, very small one on frame 1. • Add a keyframe on frame 30. Then select and scale up the shape you just did. • Properties - > tween - > shape • Zooming out follows the exact opposite of zooming in. Begin with a bigger shape and end with a smaller version of that shape.

  10. Button + Action + Sound + Animation • Define 4 layers. (button, sound, animation, action) • Button Layer: create play, pause and stop shapes. Then convert each to a button. Add the scripts as shown. • Click on each and insert the action as shown. • Sound Layer: first import a sound to library - > go to properties - > sound - > select from drop down list. • Animation layer: create a simple tween. From frame 0-60. • Action layer: add a stop on the first frame.

  11. TheFinalPiece • A simple way to present and design things. All layers play according to their entry in time. Thus, you control what comes at a certain point in your movie. • The file is given for you to study it…and share it this knowledge to each other.
