  1. Database replication policies for dynamic content applications Gokul Soundararajan, Cristiana Amza, Ashvin Goel University of Toronto Presented by Ahmed Ataullah Wednesday, November 22nd 2006

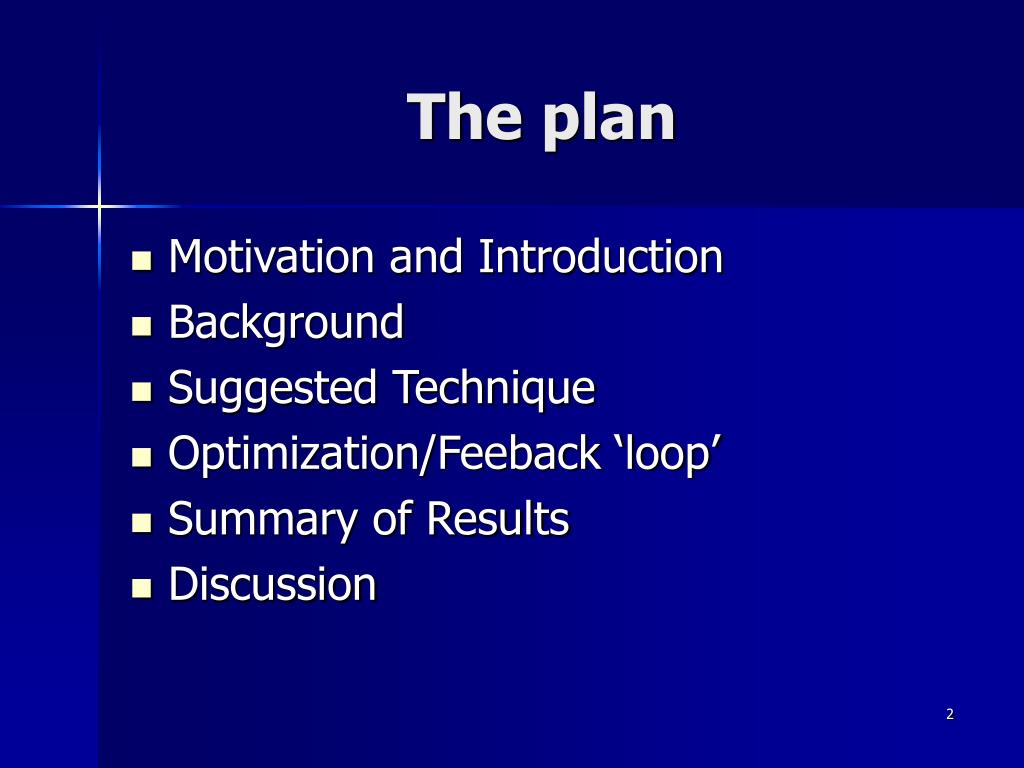

  2. The plan • Motivation and Introduction • Background • Suggested Technique • Optimization/Feeback ‘loop’ • Summary of Results • Discussion

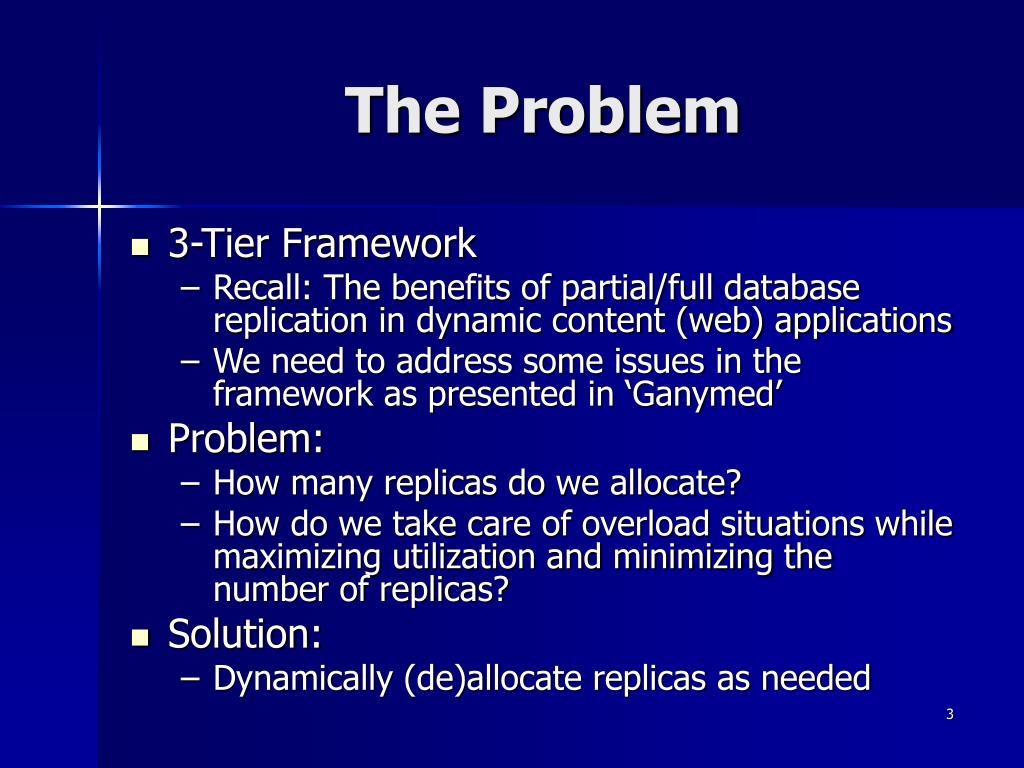

  3. The Problem • 3-Tier Framework • Recall: The benefits of partial/full database replication in dynamic content (web) applications • We need to address some issues in the framework as presented in ‘Ganymed’ • Problem: • How many replicas do we allocate? • How do we take care of overload situations while maximizing utilization and minimizing the number of replicas? • Solution: • Dynamically (de)allocate replicas as needed

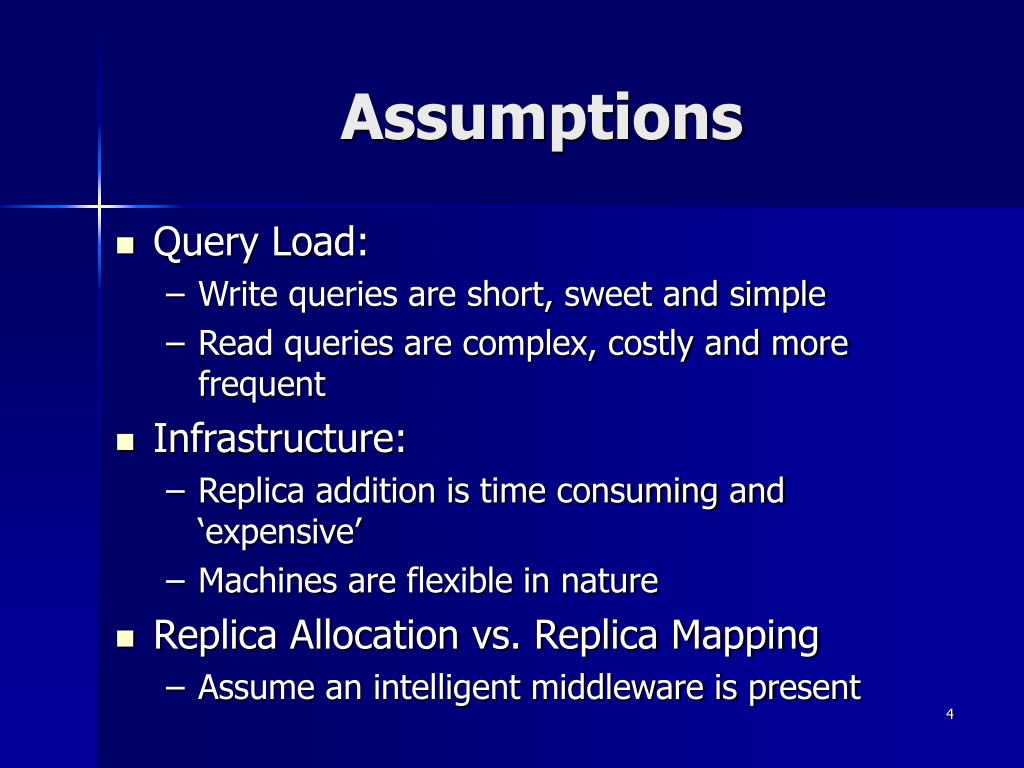

  4. Assumptions • Query Load: • Write queries are short, sweet and simple • Read queries are complex, costly and more frequent • Infrastructure: • Replica addition is time consuming and ‘expensive’ • Machines are flexible in nature • Replica Allocation vs. Replica Mapping • Assume an intelligent middleware is present

  5. Replica Allocation • Full overlapping allocation • All databases replicated across all machines in the cluster • Disjoint allocation (no overlapping) B A (A two database Scenario: Global replica pool not shown) RS = Read Sets, WS=Write Sets : Ratio of WS to RS may be misleading in the above diagram

  6. Partial Overlapping Allocation • Only share write sets. Read sets do not overlap B A (A two database scenario) RS = Read Sets, WS=Write Sets

  7. Dynamic Replication (Eurosys 2006 Slides) • Assume a cluster hosts 2 applications • App1 (Red) using 2 machines • App2 (Blue) using 2 machines • Assume App1 has a load spike

  8. Dynamic Replication • Choose # of replicas to allocate to App1 • Say, we adapt by allocating one more replica • Then, two options • App2 still uses two replicas (overlap replica sets) • App2 loses one replica (disjoint replica sets)

  9. Dynamic Replication • Choose # of replicas to allocate to App1 • Say, we adapt by allocating one more replica • Then, two options • App2 still uses two replicas (overlap replica sets) • App2 loses one replica (disjoint replica sets)

  10. Dynamic Replication • Choose # of replicas to allocate to App1 • Say, we adapt by allocating one more replica • Then, two options • App2 still uses two replicas (overlap replica sets) • App2 loses one replica (disjoint replica sets)

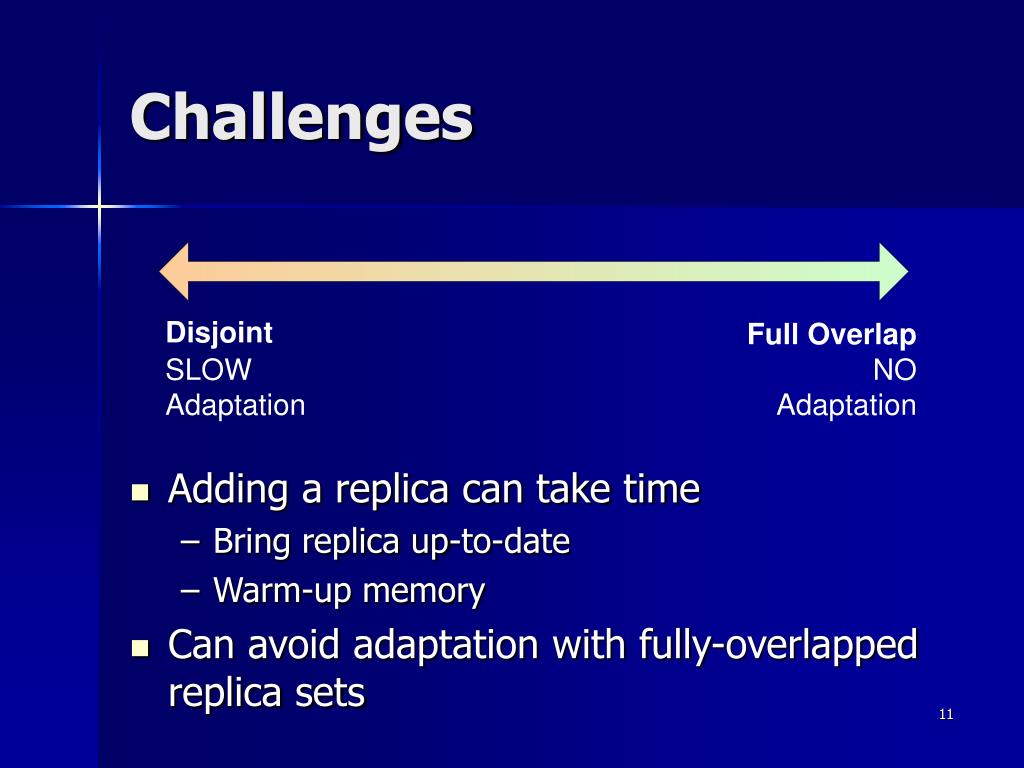

  11. Challenges • Adding a replica can take time • Bring replica up-to-date • Warm-up memory • Can avoid adaptation with fully-overlapped replica sets

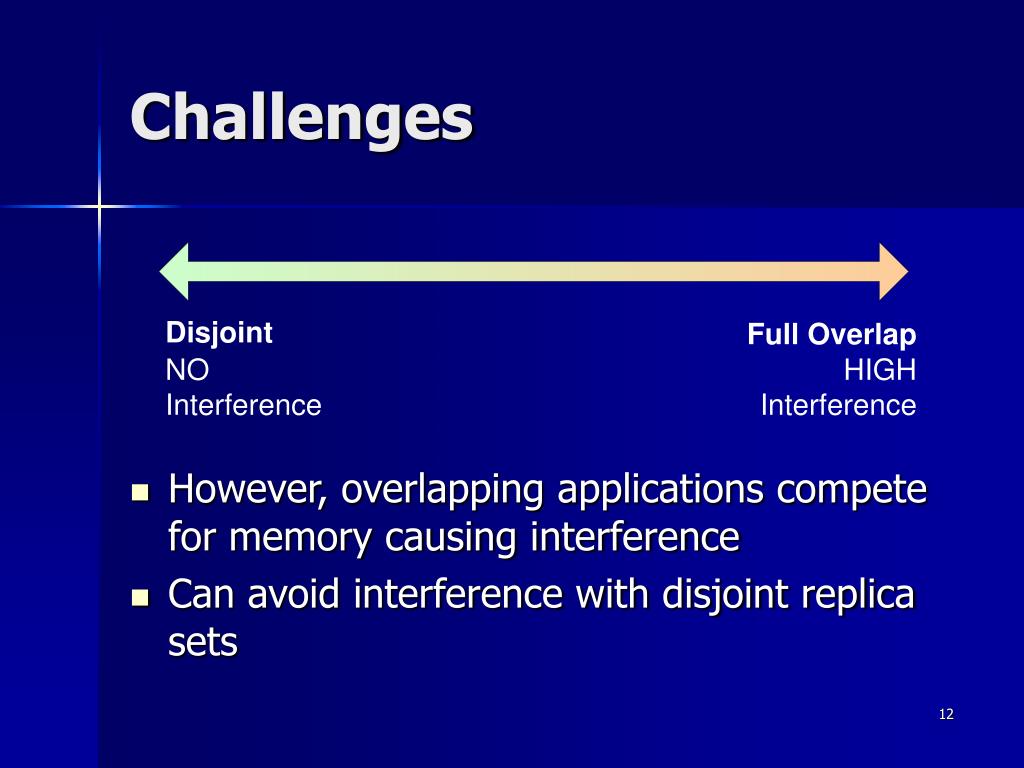

  12. Challenges • However, overlapping applications compete for memory causing interference • Can avoid interference with disjoint replica sets

  13. Challenges • However, overlapping applications compete for memory causing interference • Can avoid interference with disjoint replica sets Tradeoff between adaptation delay and interference

  14. Our Solution – Partial Overlap • Reads of applications sent to disjoint replica sets • Avoids interference • Read-Set • Set of replicas where reads are sent

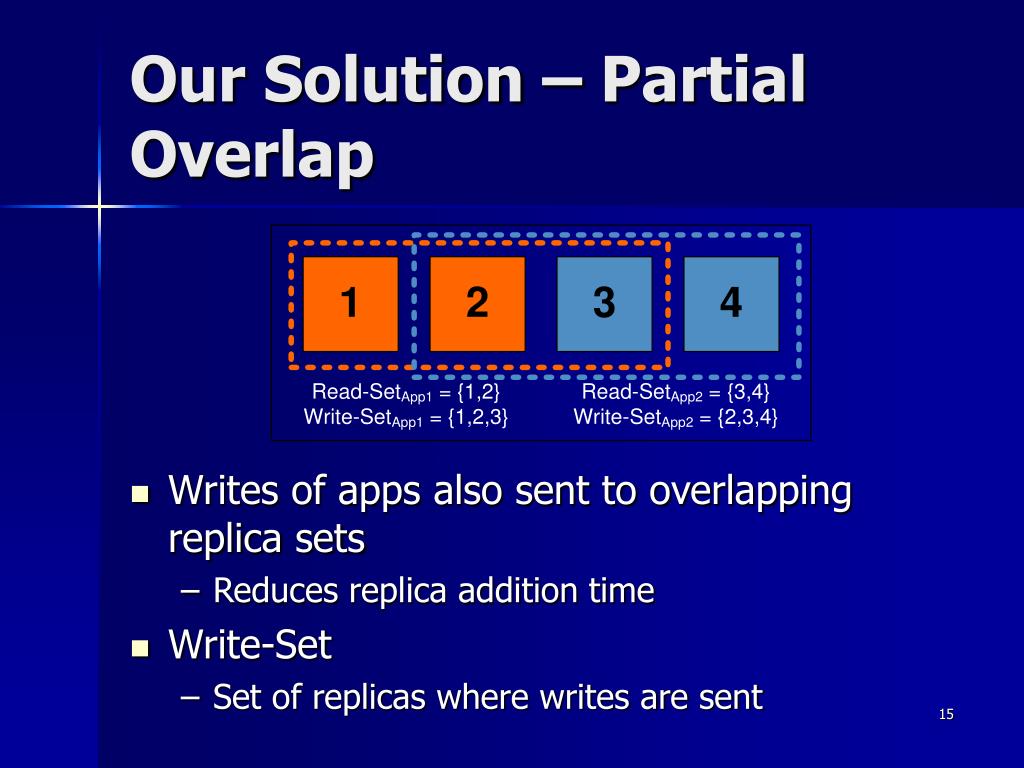

  15. Our Solution – Partial Overlap • Writes of apps also sent to overlapping replica sets • Reduces replica addition time • Write-Set • Set of replicas where writes are sent

  16. Optimization • For a given application, • Replicas in Write-Set – Fully Up-to-Date • Other Replicas – Periodic Batch Updates

  17. Secondary Implementation Details • Scheduler(s): • Separate read-only from read/write queries • One copy serializability is guaranteed • Optimization: • Scheduler also stores some cached information (queries, write sets etc,) to reduce warm-up/ready time. • Conflict awareness at the scheduler layer

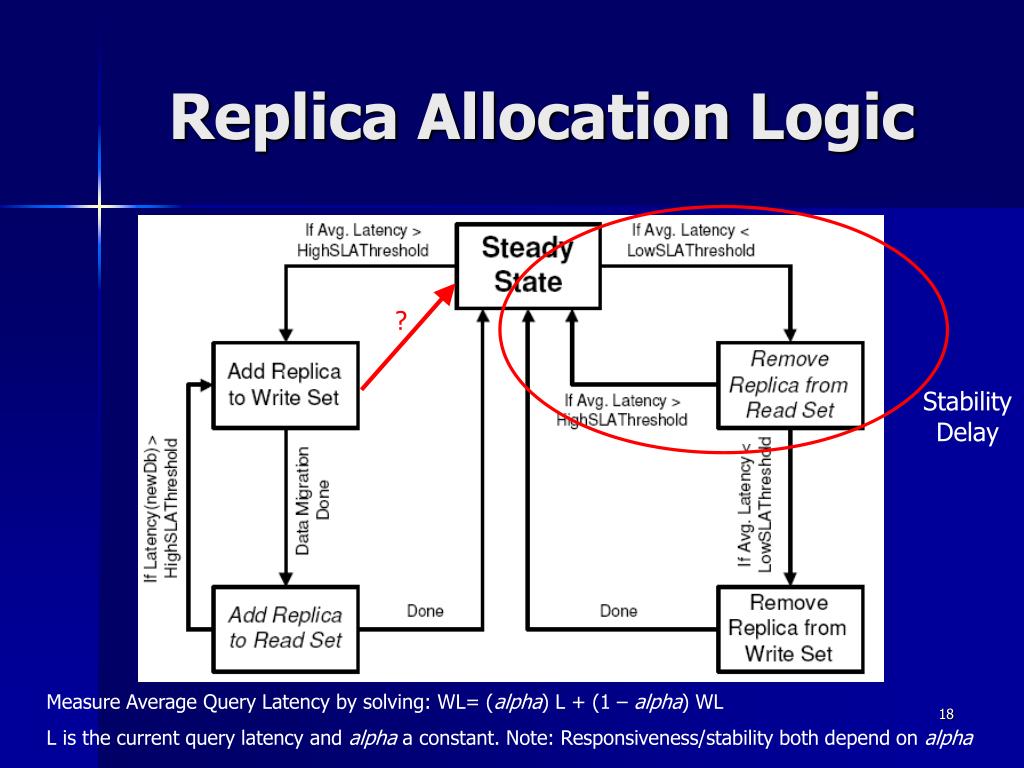

  18. Replica Allocation Logic ? Stability Delay Measure Average Query Latency by solving: WL= (alpha)L + (1 – alpha) WL L is the current query latency and alpha a constant. Note: Responsiveness/stability both depend on alpha

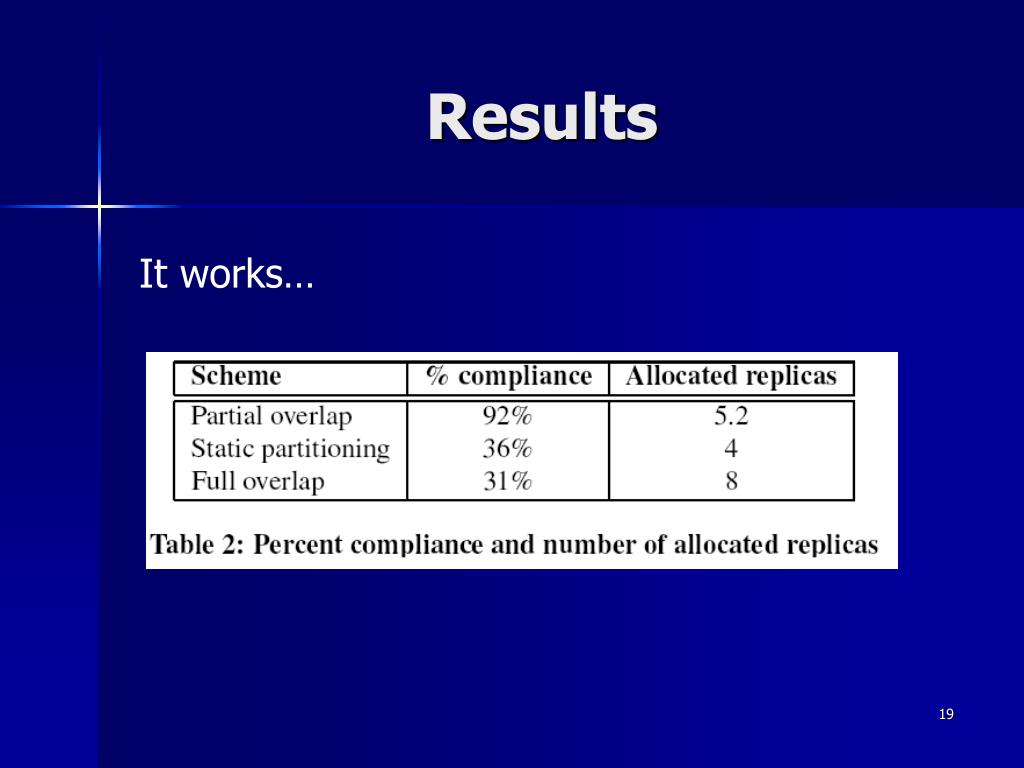

  19. Results It works…

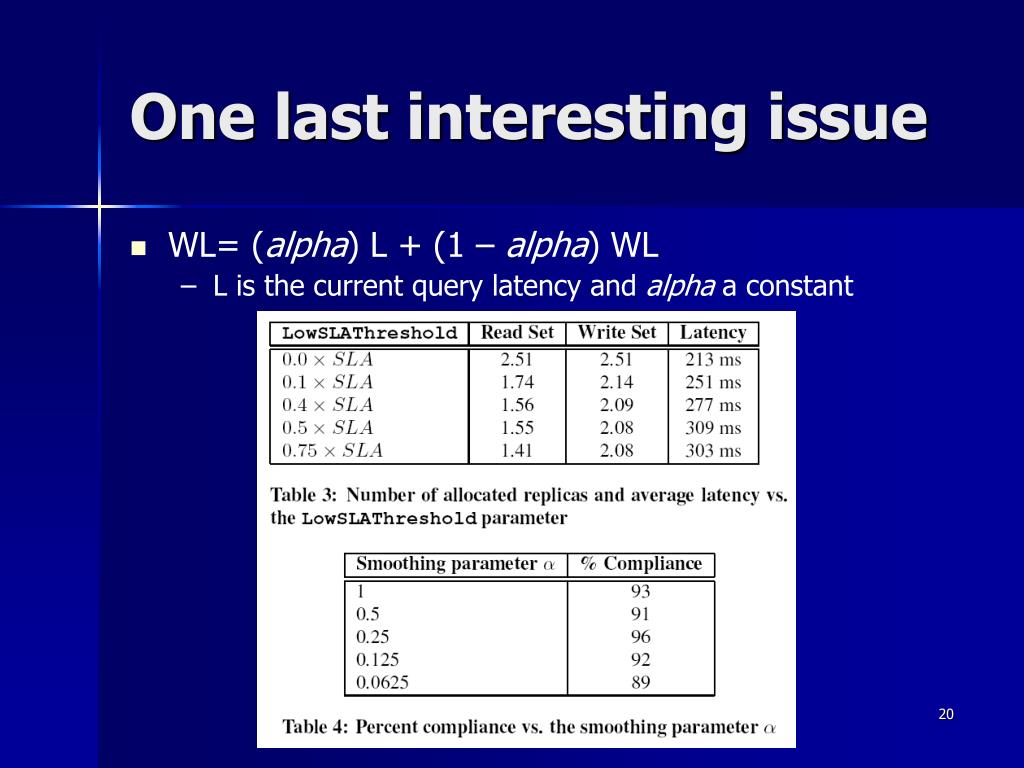

  20. One last interesting issue • WL= (alpha)L + (1 – alpha) WL • L is the current query latency and alpha a constant

  21. Discussion • Questionable Assumptions • Are write requests really (always) simple? • Scalability beyond 60 replicas (is it an issue?) • How closely does this represent a real data center situation? • Load contention issues • Overlap assignment • Determination of alpha(s) • Actual cost savings vs. Implied cost savings • Depends on SLA etc. • Depends on hardware leasing agreements • The issue of readiness in secondary replicas • What level of ‘warmth’ is good enough for each application. Can some machines be turned off? • What about contention in many databases trying to stay warm. • Management concerns • Can we truly provide strong guarantees for keeping our end of the SLA promised?
