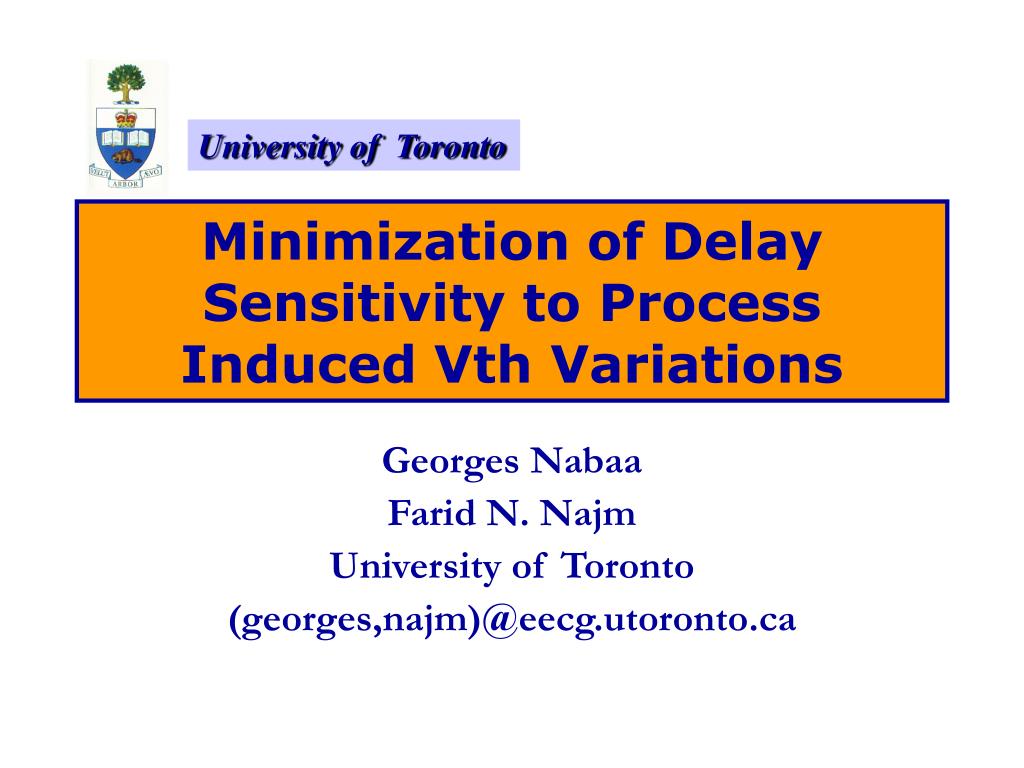

  1. Minimization of Delay Sensitivity to Process Induced Vth Variations Georges Nabaa Farid N. Najm University of Toronto (georges,najm)@eecg.utoronto.ca

  2. Outline • Introduction • Problem formulation and goals • Methodology • Standard simulations • Static gates • Dynamic gates • Transmission gates • Standalone simulations • Sizing simulations • Conclusion NEWCAS-05

  3. Introduction • The threshold voltage is a fundamental operational parameter of a MOSFET • For the past 30 years, performance improvements in semiconductors have been achieved by decreasing channel length • This decrease had to be accompanied by a • Decrease supply voltage • Decrease threshold voltage (Vth) • This Vth decrease has not been followed by a corresponding decrease in threshold voltage variations NEWCAS-05

  4. Random Dopant Fluctuations • Threshold Voltage is a function of the dopants in the channel • Due to the decrease in the number of dopants in DSM processes there is increased variability IBM: ISSCC 2004

  5. Threshold Voltage Variations • Threshold voltage variations (δVth) cause variations in circuit delay that impact the chip timing yield • Can cause up to 30% variation in chip frequency [BKN02] • Threshold Variations can be divided into • Within-die • Die-to-die Tschanz 2002 NEWCAS-05

  6. Problem Formuation • Previous work applies chip wide compensation schemes • Unsuitable for the within-die component • Within-die variations become larger as the feature length gets smaller • We study design techniques that minimize the effects of threshold variations on circuit delay variability (minimize delay sensitivity) • Specifically, we explore: • Topology issues, e.g., series vs. parallel arrangements • Design style, e.g., static vs. dynamic (NAND vs NOR) • Optimization issues, e.g., sizing NEWCAS-05

  7. Goals • Evaluate these styles based on performance penalty, area overhead, and delay variability minimization • This per gate approach tackles within-die variations intrinsically • Design δVth aware Libraries NEWCAS-05

  8. Methodology • We model Vth variations (δVth ) as normally distributed random variables (RVs) • The 3σ limits of the Normals are from the technology files • Adjusted using the Law of Area: (Horstmann99) • The larger the transistors, the smaller the input Vth variations • For all the transistors in a given logic gate consider δVth variations as: • Independent Normals (n transistors -> n independent normals) • Fully Positively Correlated Normals NEWCAS-05

  9. Methodology (cont) • Used 0.13um UMC process • Generated 1000 sweep points and link it to the DELVTO parameter in SPICE • Run the simulation and record propagation delay • Absolute delay is input dependent • For each gate we choose the worst-case input vectors NEWCAS-05

  10. Methodology • Assume Linearity between process and delay • From each sweep, the sensitivity is recorded as: NEWCAS-05

  11. Static Gates: Series better than Parallel • Series stacks exhibit less delay sensitivity than their parallel counterparts. • Explanation: body-effect minimizes the impact of Vth • Design: insert series transistors to create series stacks NEWCAS-05

  12. Hybrid Gates • The fact that series are better than parallel led us to insert a “serializing” dummy transistor into the structure of a gate • For a 2-input NAND gate, two potential configurations: Standard Configuration 1 Configuration 2 NEWCAS-05

  13. Hybrid gates: Independent • Hybrid gates exhibit less delay variability than standard gates NEWCAS-05

  14. Hybrid Gates: Correlation • Even with correlation • Hybrid gates exhibit less delay variability than standard gates NEWCAS-05

  15. Hybrid Gates: Limitations • These gains come at the expense of larger absolute delays. • These delays can be recovered by a corresponding increase in area: • In order for the hybrid NAND to match the nominal delay performance its area must be 2.1 times the area of a standard NAND gate • This overhead is reduced as the number of inputs increases; • For a three input hybrid NAND, the area overhead required to match the nominal performance of a standard 3 input NAND gate is 1.5×. • To further minimize area overhead, we use a low Vth for the dummy transistor. • Area overhead required to match similar performance is down to 78 % NEWCAS-05

  16. Dynamic Logic • Performed similar experiments on dynamic gates • NOR gates • Very susceptible to variations • The footer in standard dynamic logic helps to reduce variability • Still has large variability NEWCAS-05

  17. Dynamic Gates: NAND • NAND Dynamic gates exhibit less variation than NOR Dynamic Gates • Dynamic NAND has more variations than Static NAND • But footerless dynamic NAND gates are better than those with footer • Can be attributed to the fact that the footer transistor is also subjected to the normal δVth (and the circuit is already in series) • Use NAND Logic instead of NOR logic whenever possible. • Footerless NAND logic is fastest and less prone to variability NEWCAS-05

  18. Transmission gates • Transmission gates display the best delay variability robustness in both • Correlated simulations • Independent simulations • Can be explained through the intrinsic structure of the gate • NMOS and PMOS have opposite Vth values (in sign) • In correlated simulations, when subjected to similar ΔVth , the contribution (faster or slower) that results from say the NMOS device is counterbalanced by an equal contribution from the PMOS device and vice versa. • In independent simulations, the variability still remains low (half that of a NAND gate) NEWCAS-05

  19. Transmission Gates Transmission Gate AND vs Static NAND (Independent) Transmission Gate AND vs Static NAND (Correlated) NEWCAS-05

  20. Standalone tests • Second Type of Test • Input threshold voltage variations on only one transistor at a time: • Goals: Find (if any) the critical transistor in a gate • Can be made wider to minimize the Vth variations • Can be used in the context of a multiple Vth solution • Results: • Bottommost transistor of a stack constitutes the bottleneck • This transistor can be made larger to minimize variability • Can also be used in the context of a multiple Vth solution NEWCAS-05

  21. Sizing • Third set of tests • Simulated gates with different transistor sizes • The sizing simulations show that: • Larger gates demonstrate less variability • Optimal widths are twice the width of standard gates NEWCAS-05

  22. Sizing NEWCAS-05

  23. Conclusion • We studied the delay sensitivity of major design families with respect to Vth variations • Series stack are less sensitive than parallel configurations • Serialized standard gates: hybrid NAND and NOR gates • NAND footerless logic is “better” than standard dynamic logic. • Transmission gates are intrinsically robust with respect to Vth variations • Optimal sizing of gates seems around 2x that of standard gates NEWCAS-05
